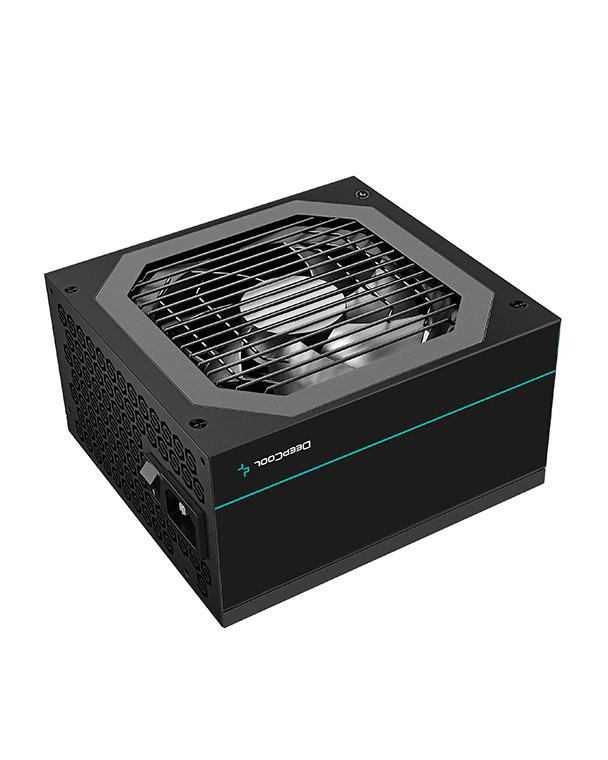

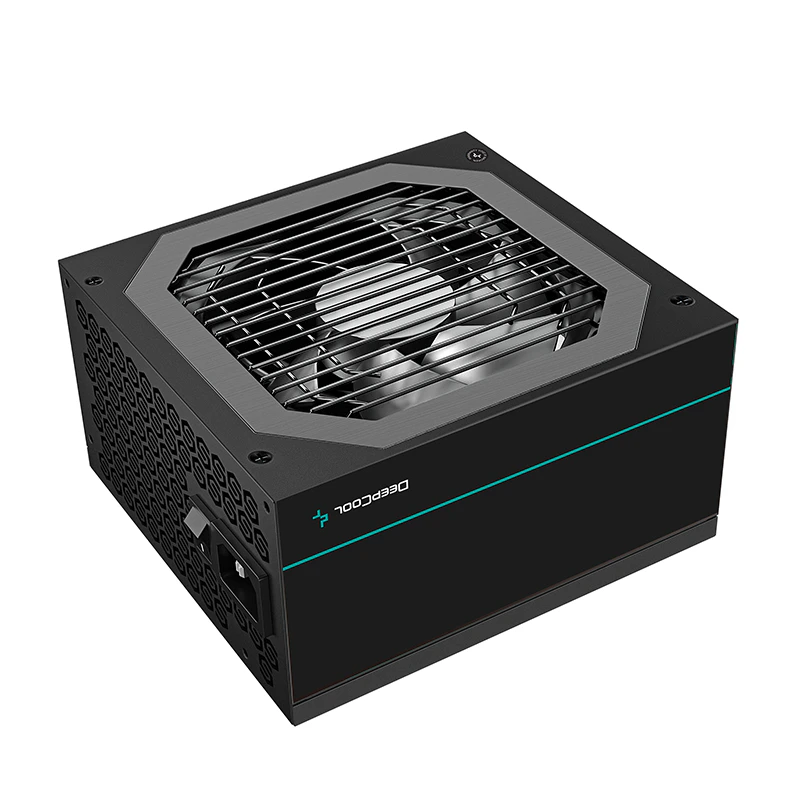

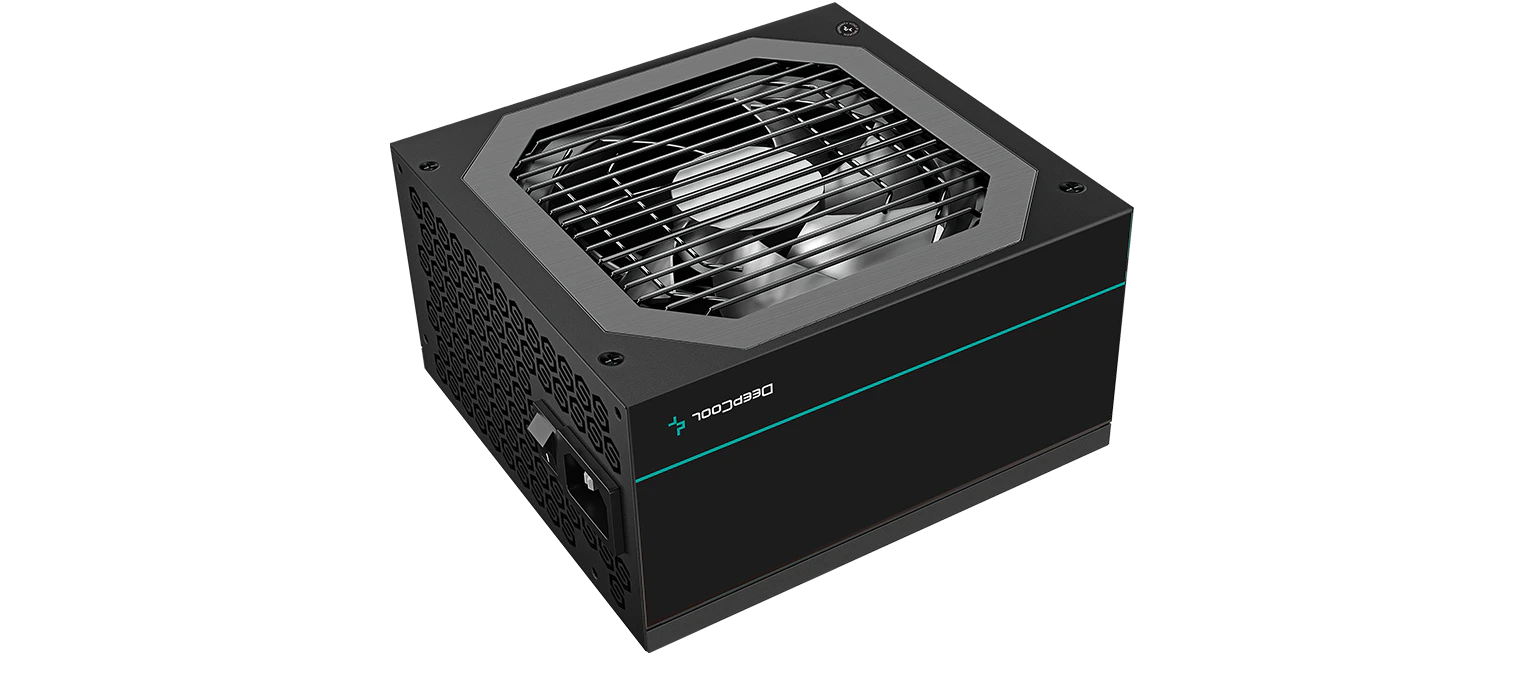

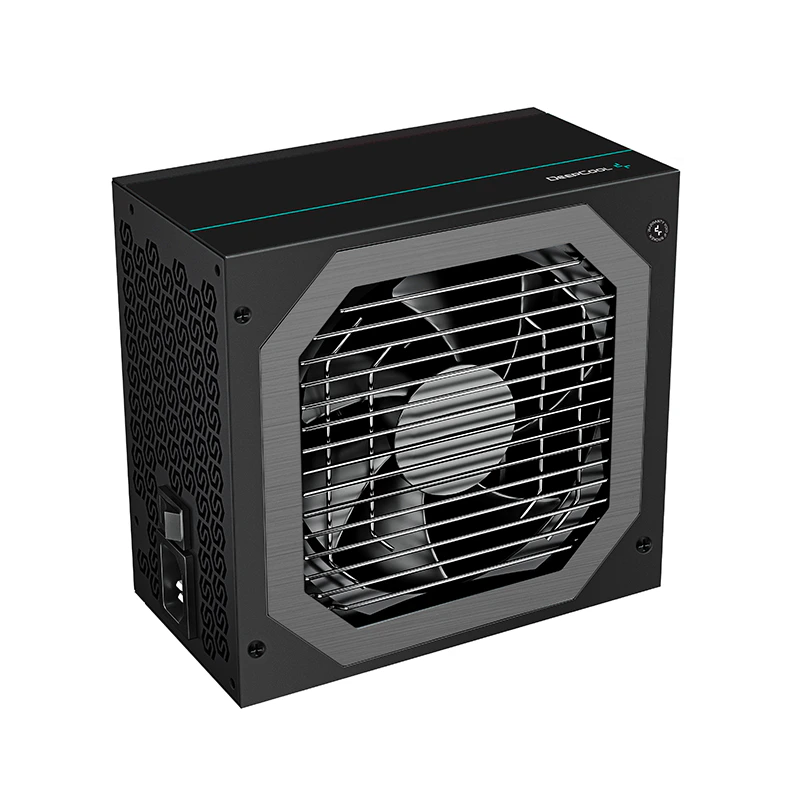

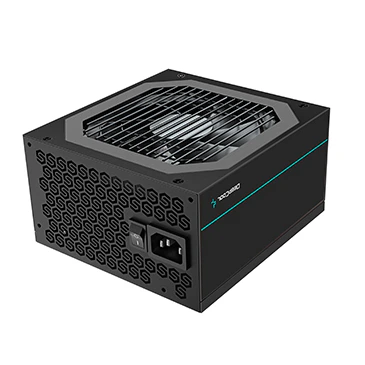

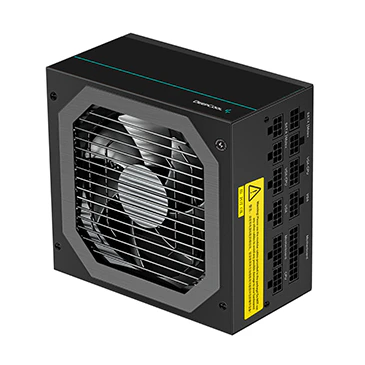

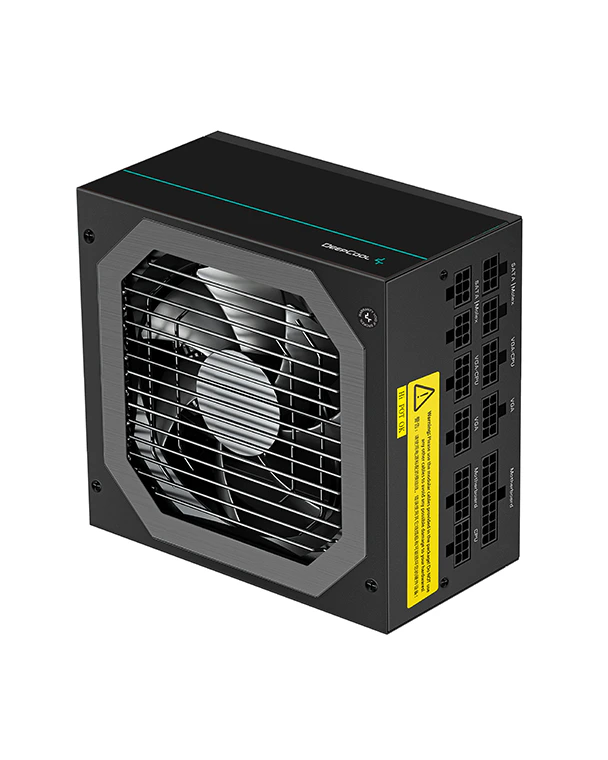

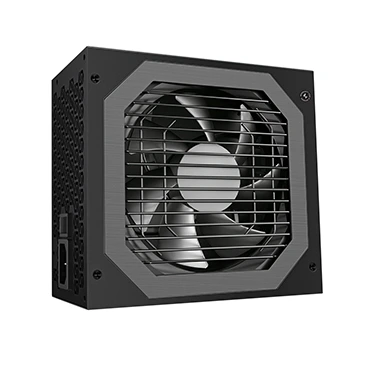

DQ750-M-V2L
The DQ750M-V2L fully modular 750W 80 PLUS Gold power supply features 100% Japanese capacitors and high quality switch MOSFETs. Built to deliver stable output capacity with high conversion efficiency, the DQ750-M-V2L offers better reliability for your PC system.
COLOR
black
MODEL
DQ750-M-V2L
Reliable 80 PLUS Gold Efficiency
The DQ750M-V2L fully modular 750W 80 PLUS Gold power supply features 100% Japanese capacitors and high quality switch MOSFETs. Built to deliver stable output capacity with high conversion efficiency, the DQ750-M-V2L offers better reliability for your PC system.
80 PLUS® Gold Certified
Get all the power you need with a maximum 91.2% efficiency to reduce excess energy consumption and waste heat.
Top-notch Design
Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ750-M-V2L delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs.
80 PLUS® Gold
80 PLUS® Gold certified - Up to 87~90% efficient (20~100% Loading)

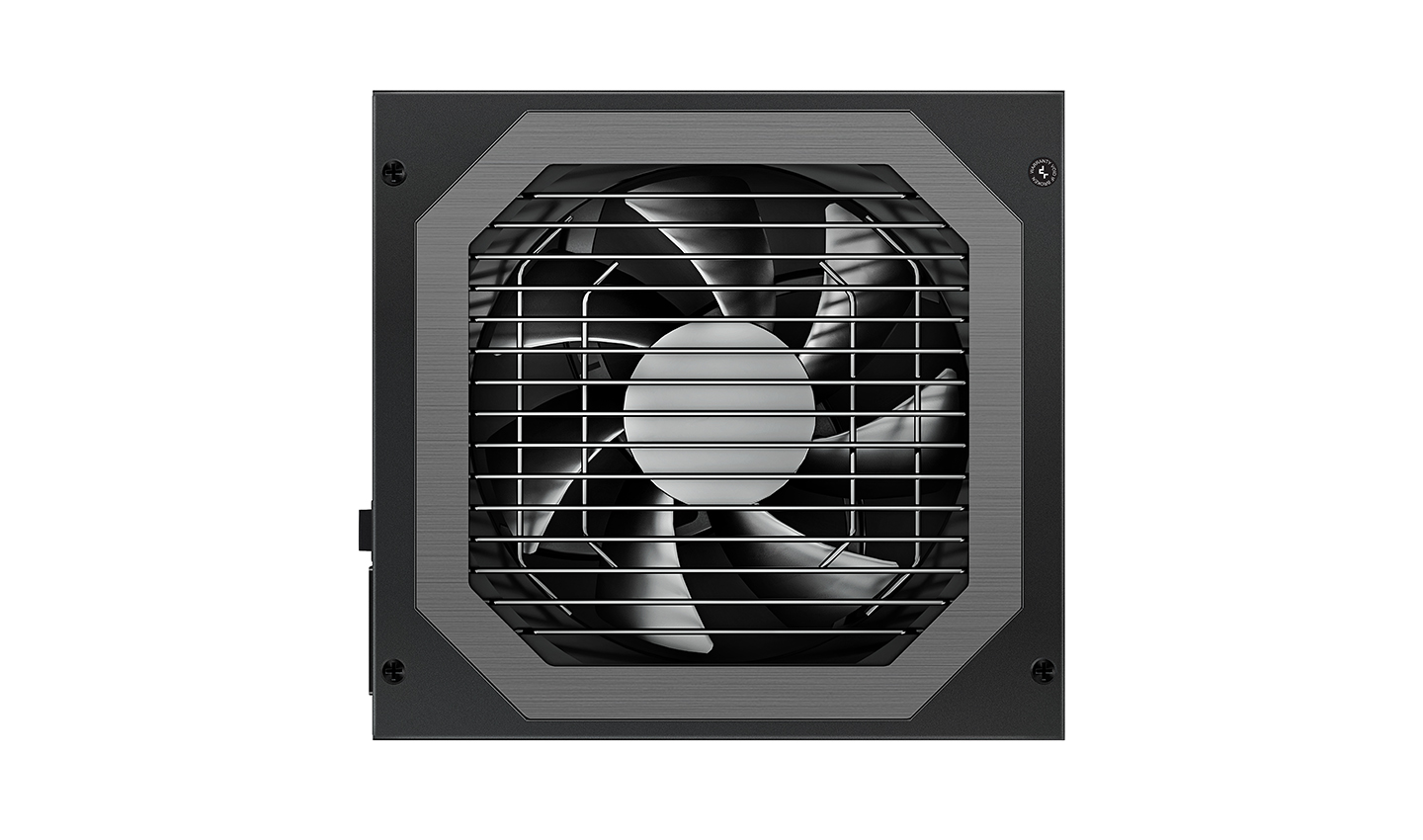

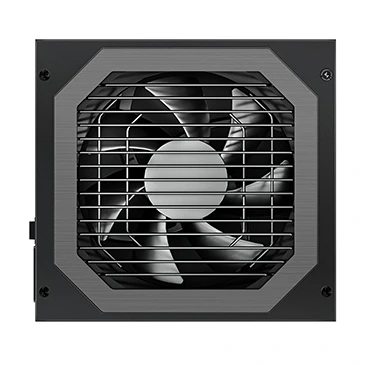

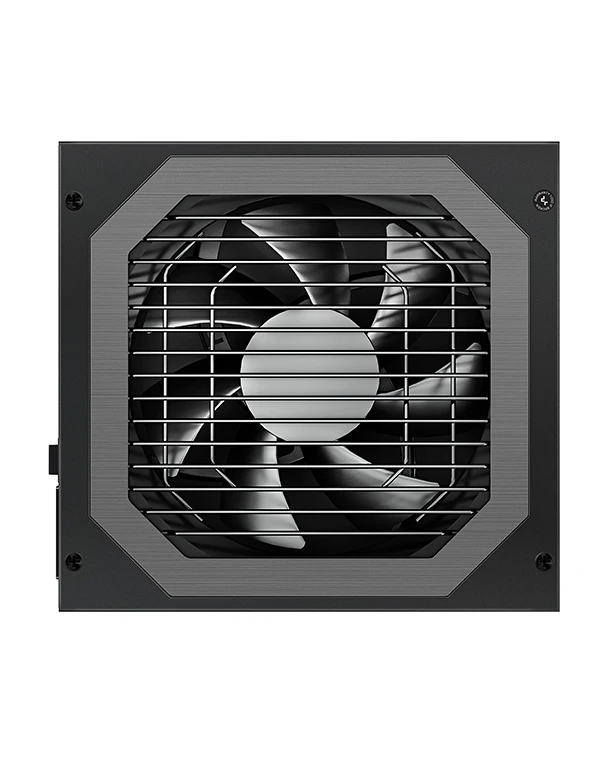

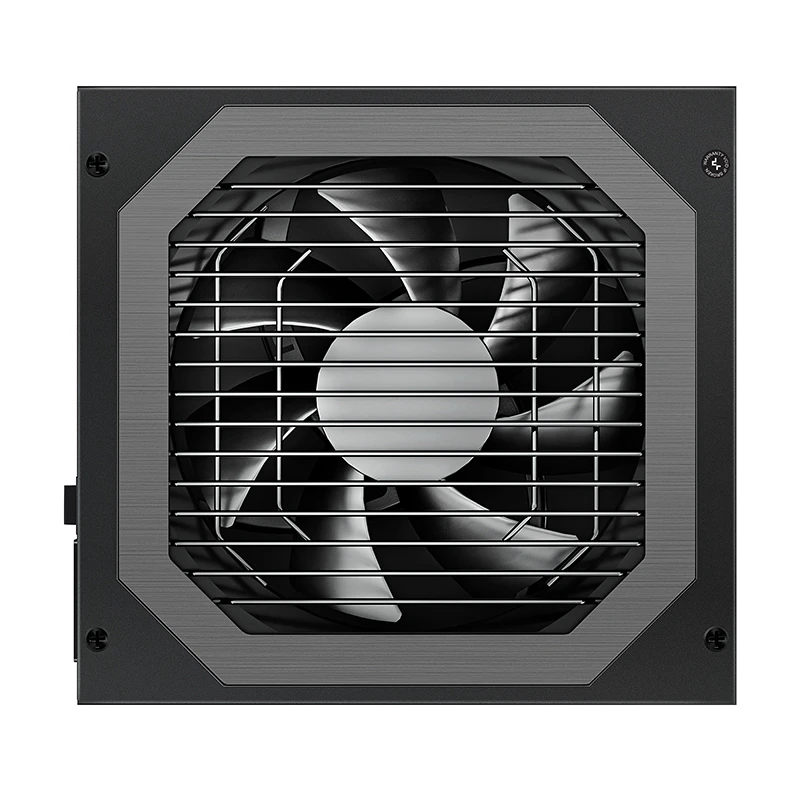

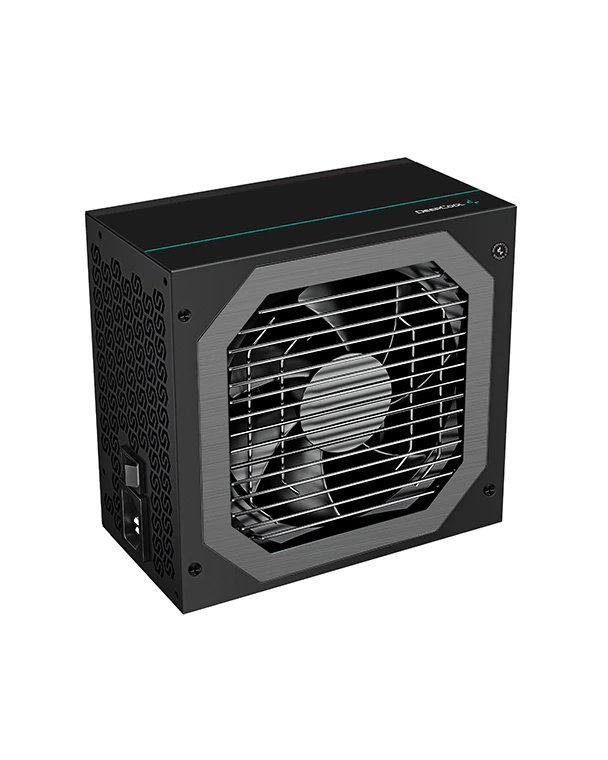

Silent and High Performance Fan
120mm silent fan has temperature control function to keep low noise

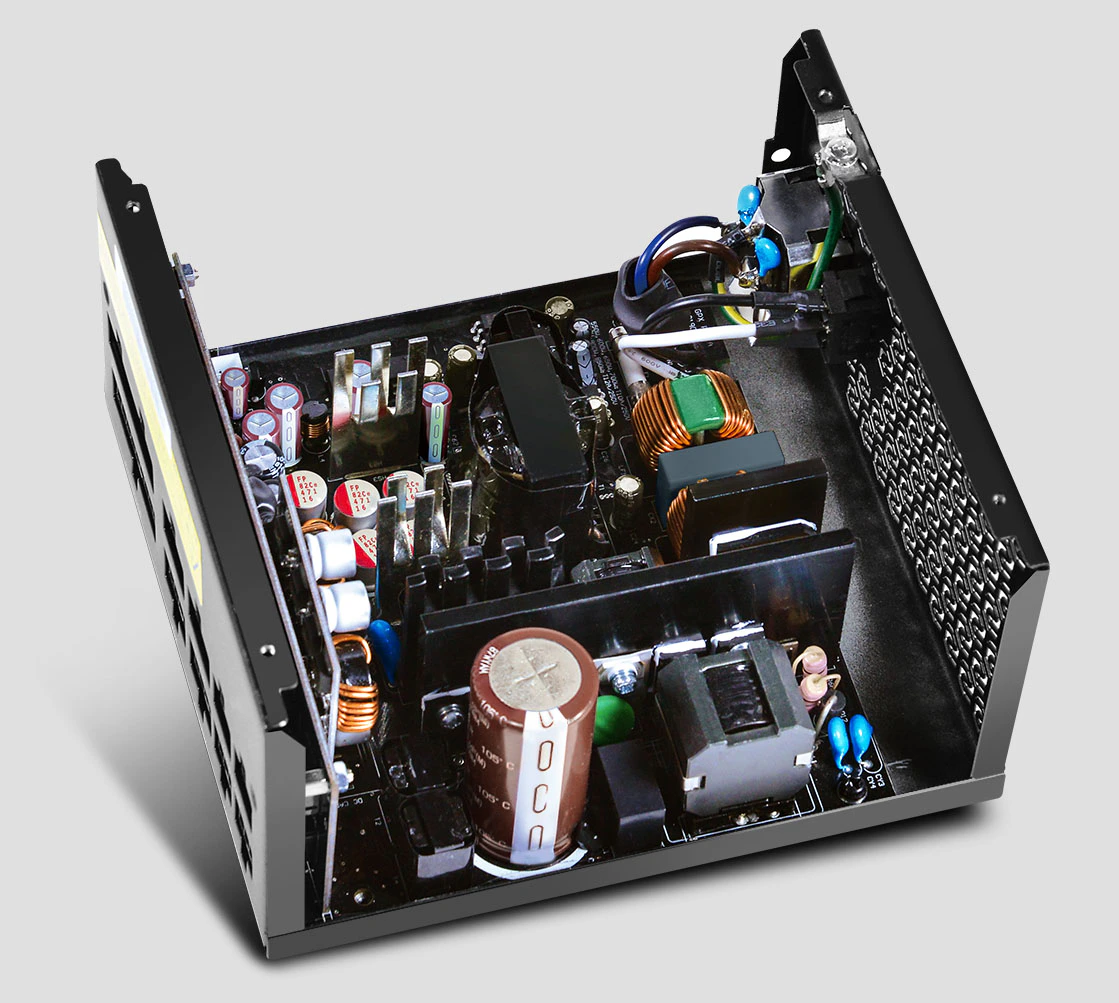

Details Discovered

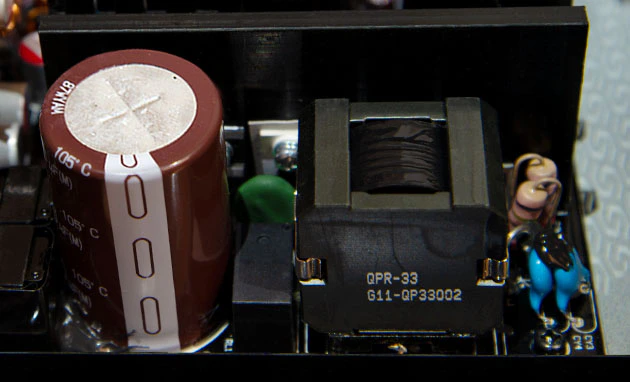

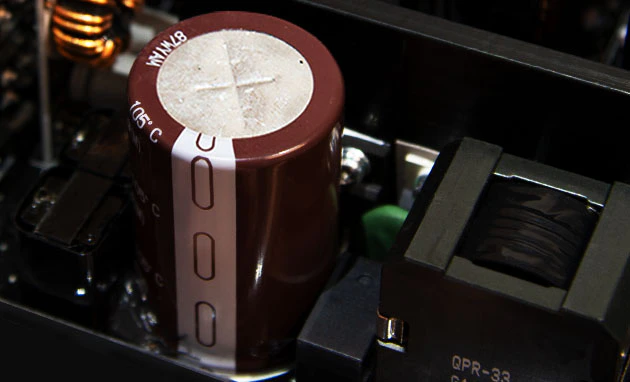

High grade Japanese 105℃ PFC Boost Capacitor
100% Japanese Capacitors

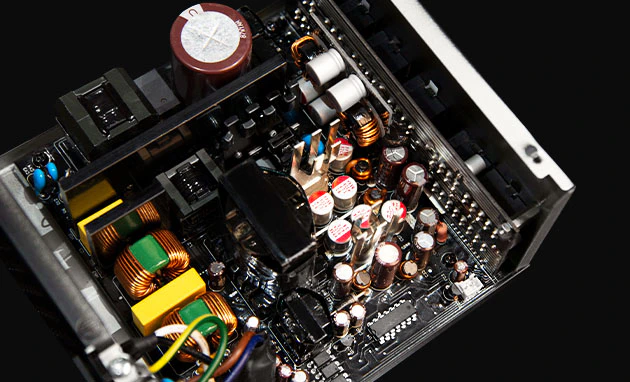

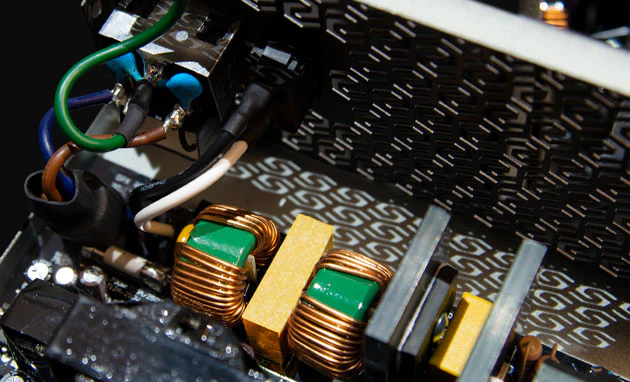

Excellent 1 and 2-stage EMI filter circuit
Highly efficient Active PFC
Excellent manufacturing process

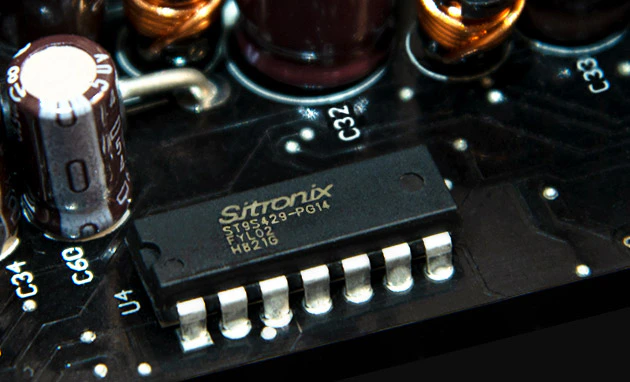

Highly reliable supervisor IC for protections

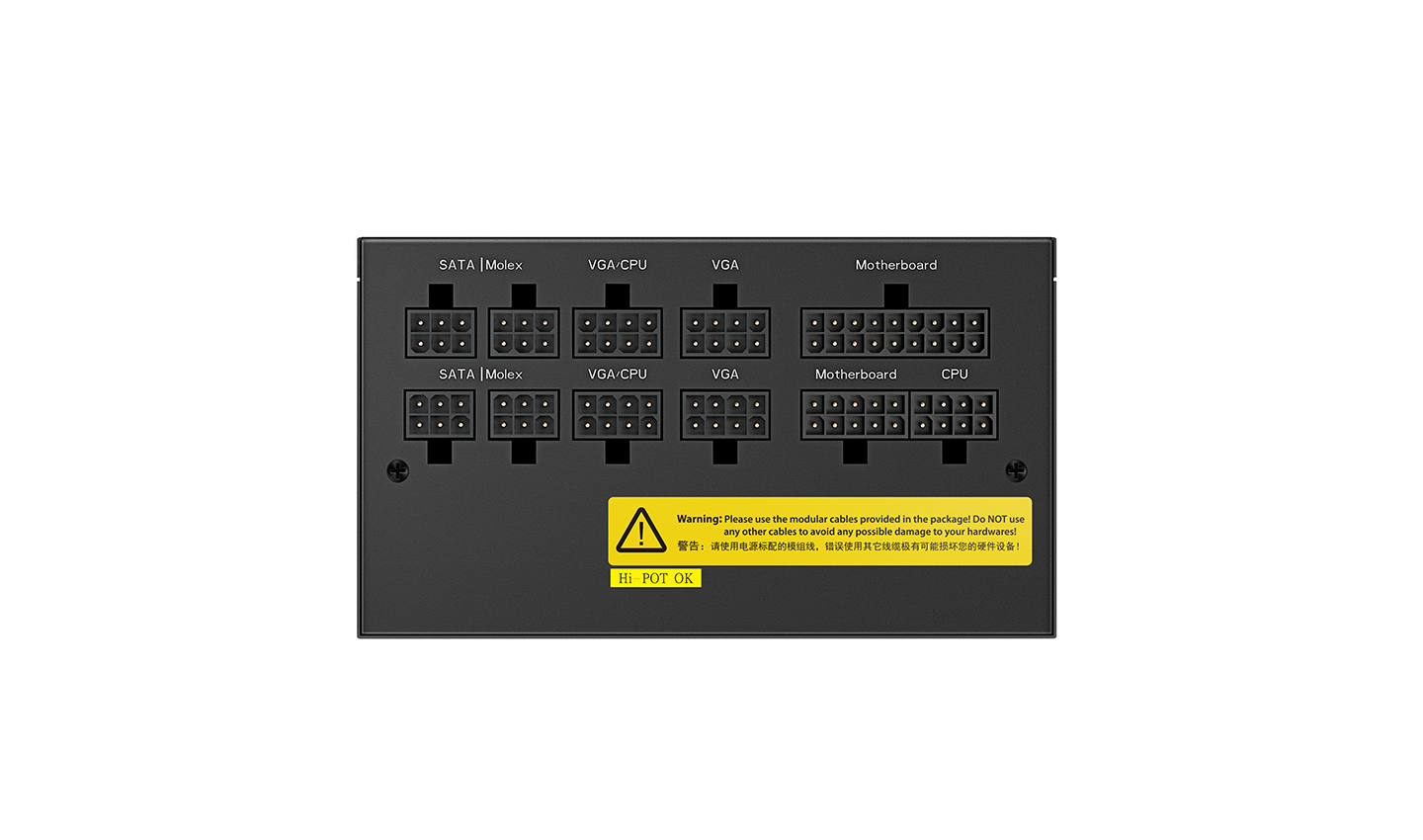

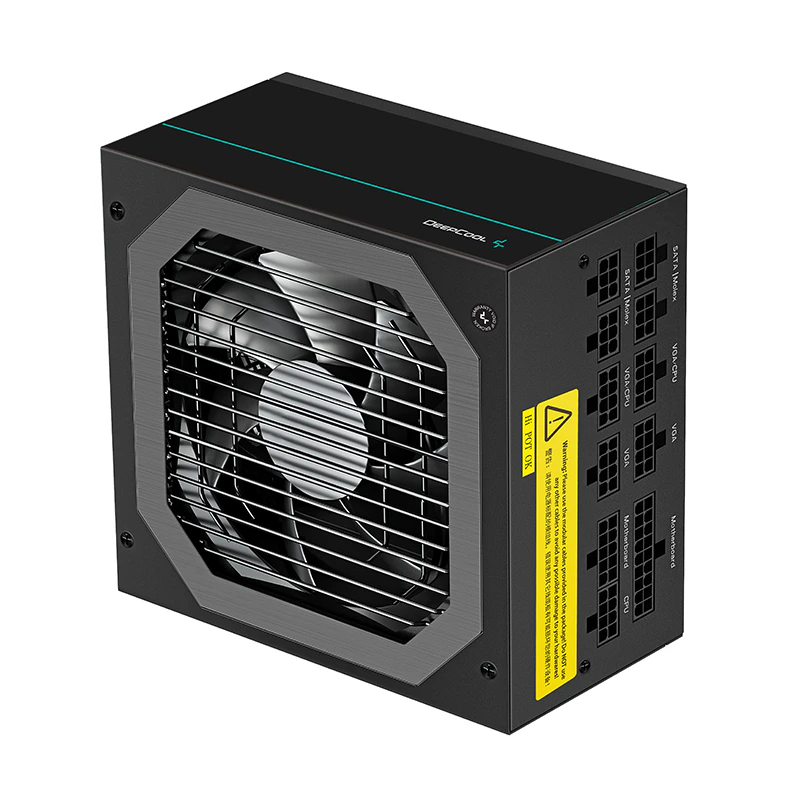

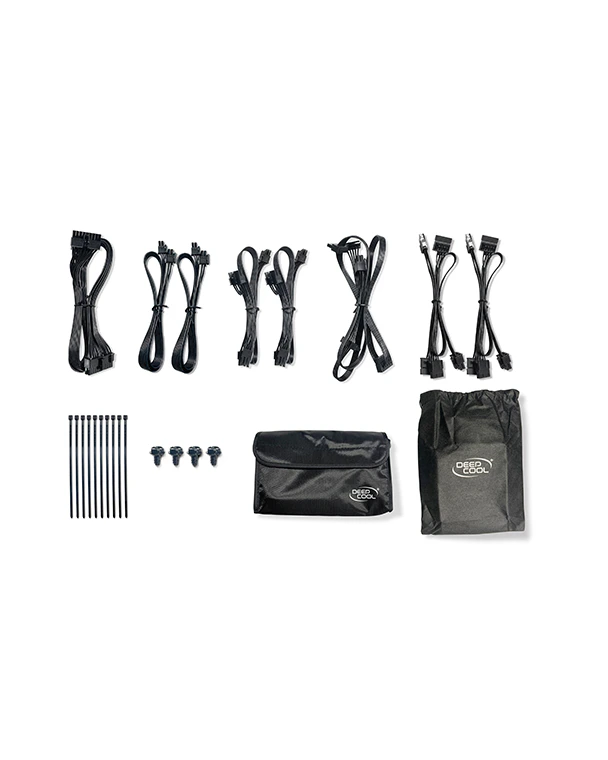

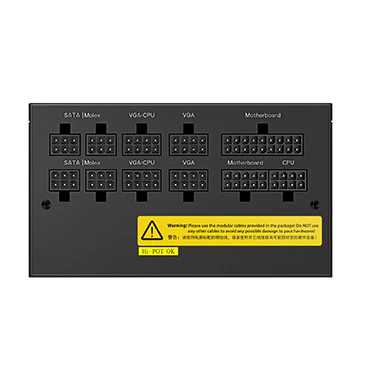

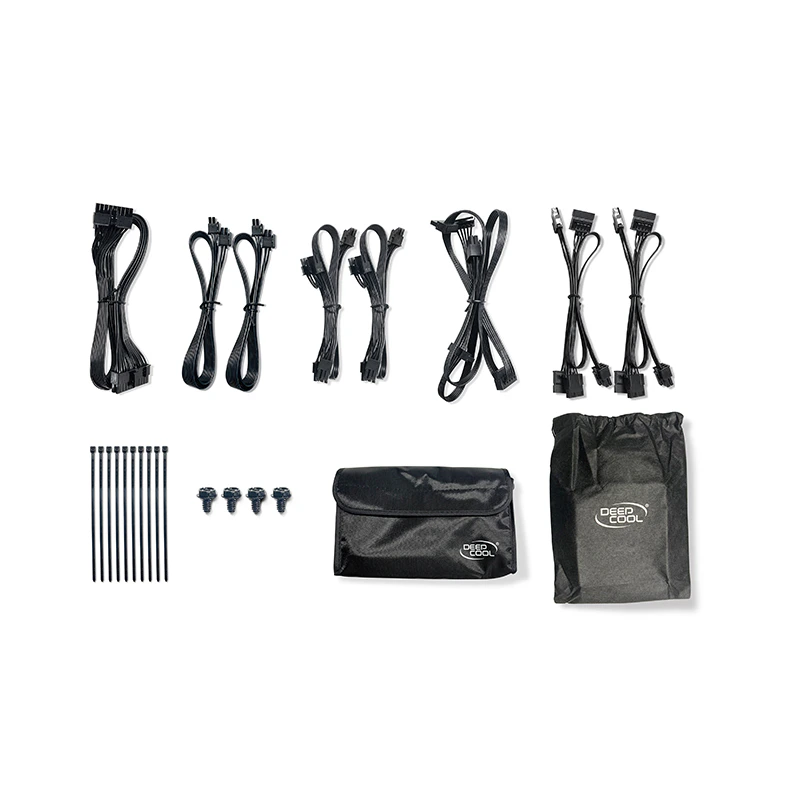

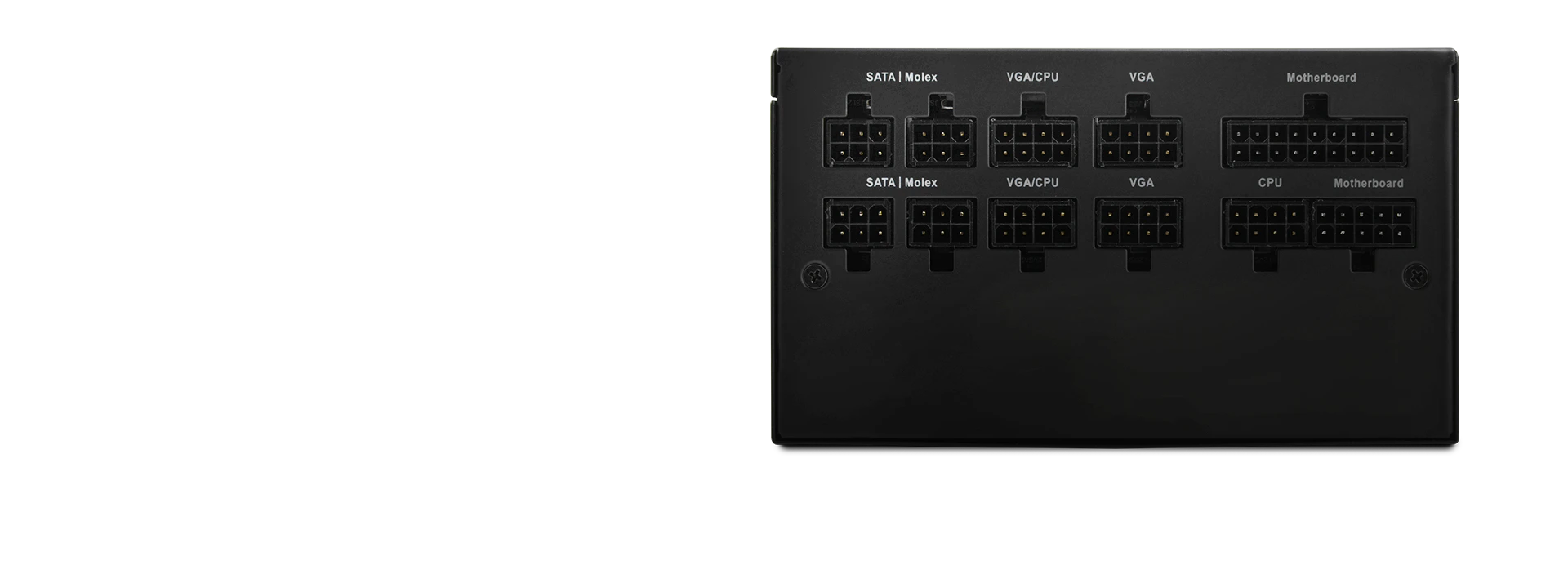

Fully Modular

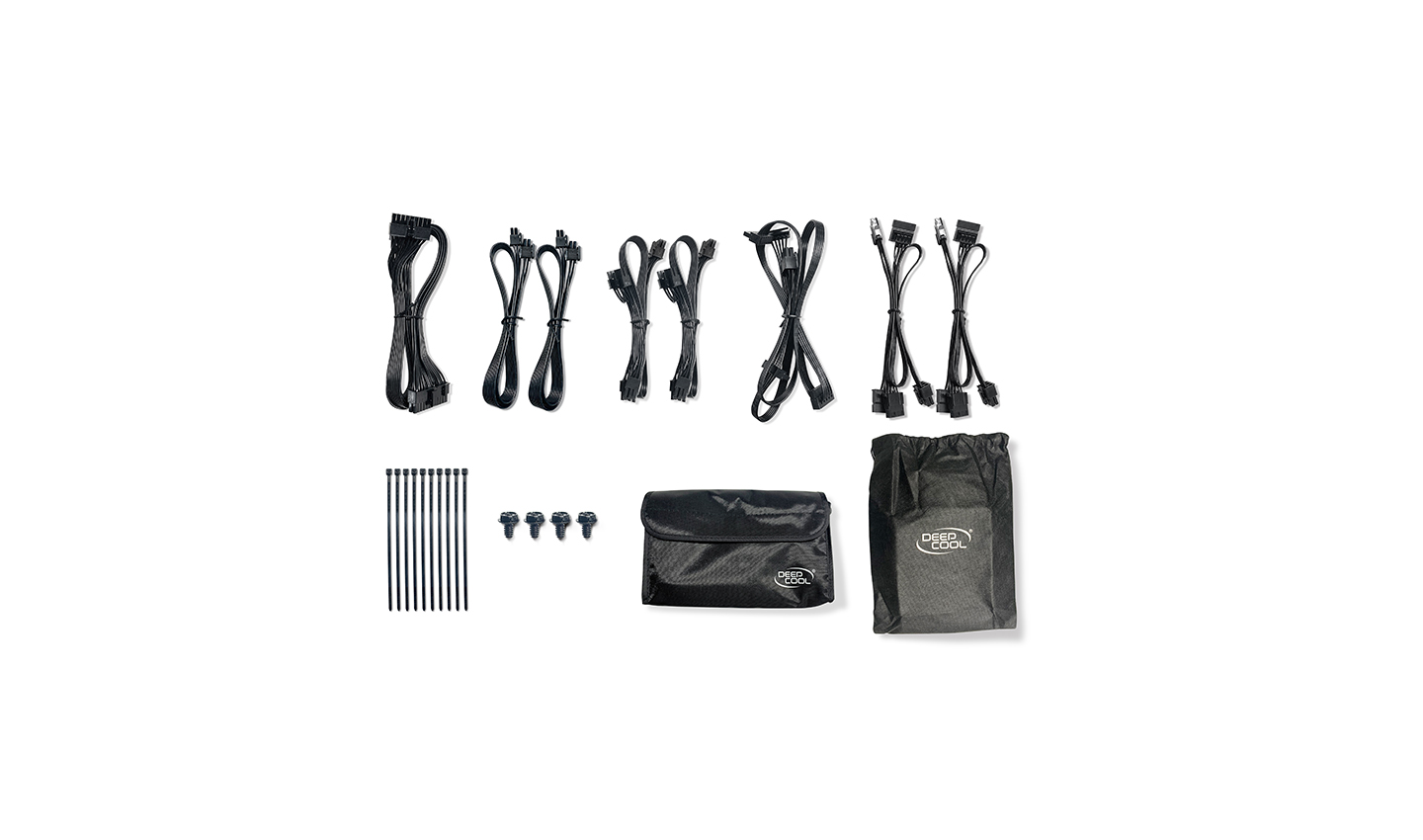

Easy cable management with flat cables keep your system clean and tidy.
The 100% Japanese capacitors enhanced ripple filtering, improved reliability and product life.
X1
Main Power Connector 24(20+4)Pin
X2
EPS 12V Connector 8(4+4)Pin
X2
PCI-E (6+2)Pin x2
X1
SATA x4
X2
4Pin Peripheral x2 & SATA x2
Technical Spec
Model DQ750-M-V2L
Type ATX 12V V2.31
Certifications 80PLUS GOLD
Dimension 150×160×86mm (W × L × H)
Output Capacity 750W
Input Voltage 100-240V
Input Current 10.0A
Input Frequency Range 47-63Hz
Fan Size 120mm
PFC Active
Power Good Signal 100-500ms
Hold Up Time >16ms (80% Loading)
Efficiency >90% Under Typical Load (50% Loading)
Standby Efficiency ErP Lot 3 2014
Protection OVP/UVP/OCP/SCP/OPP/OTP
Operation Temperature 0-40°C
Regulatory CE/CB/CCC/EAC/FCC/KCC/RCM/RoHs
MTBF 100,000 Hours
EAN 6933412798927
P/N DP-GD-DQ750-M-V2L
