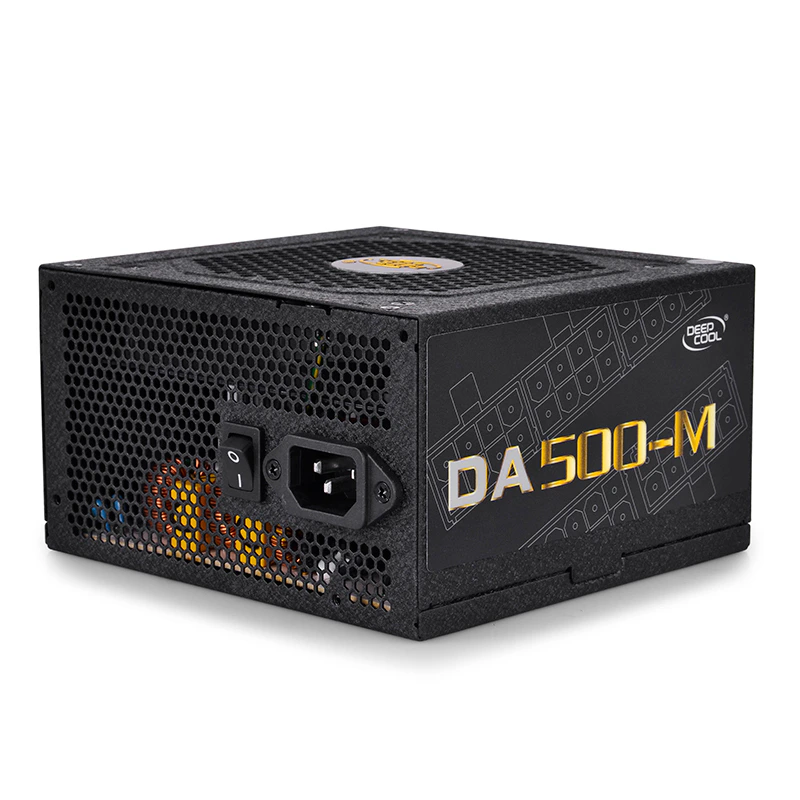

DA500-M

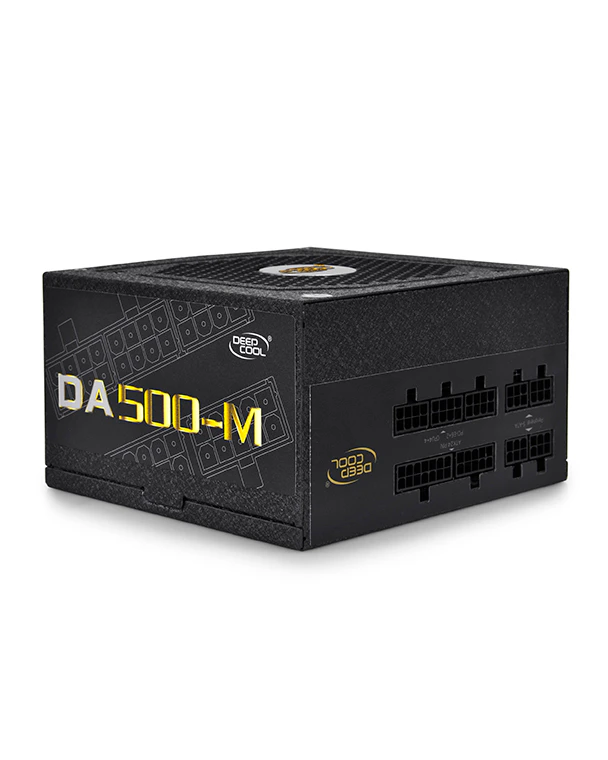

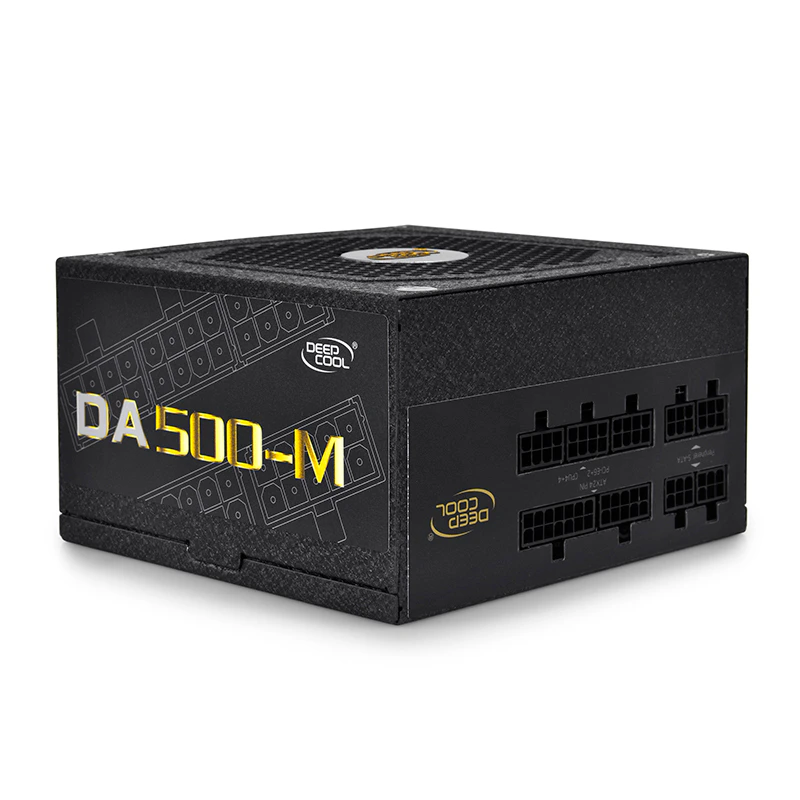

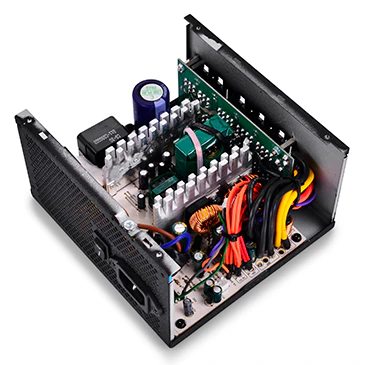

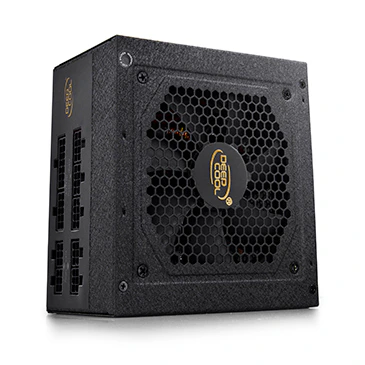

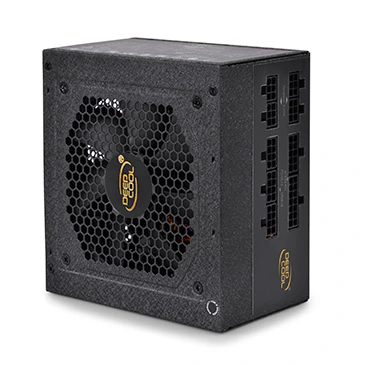

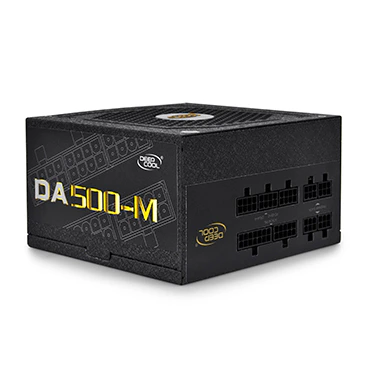

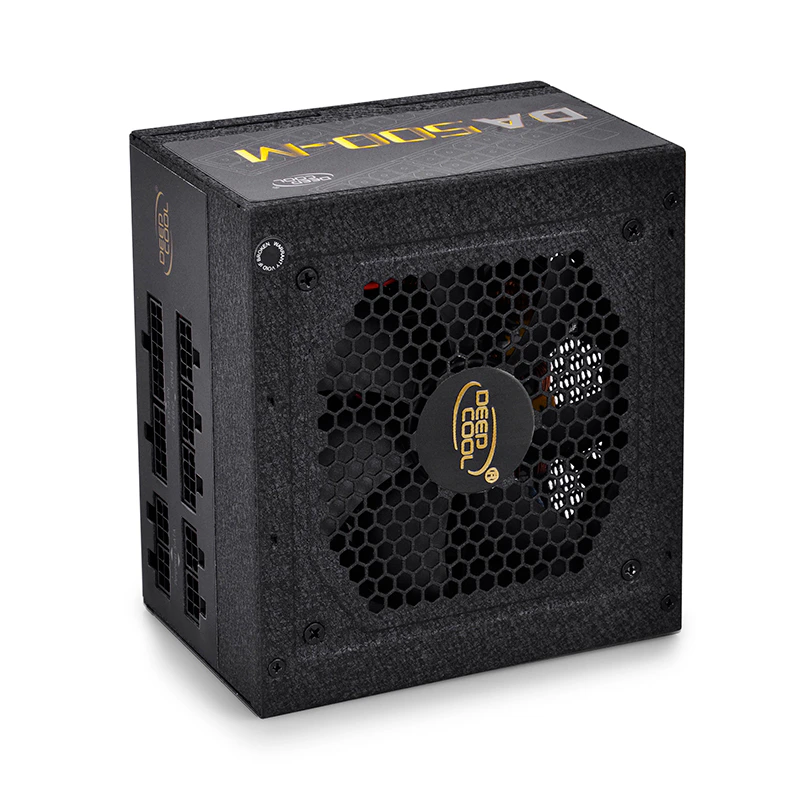

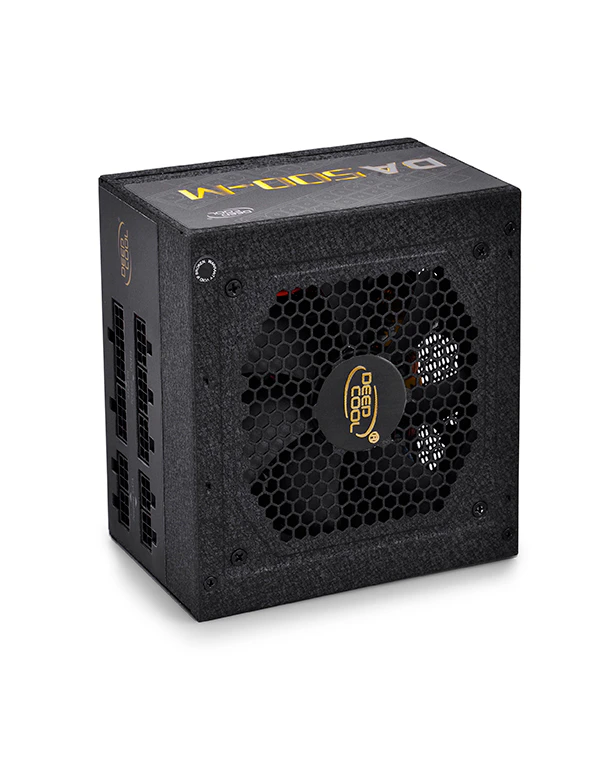

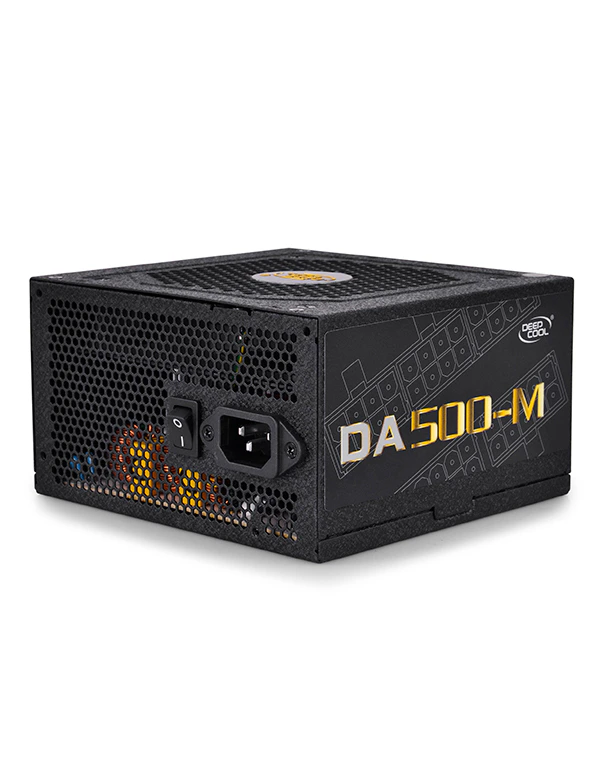

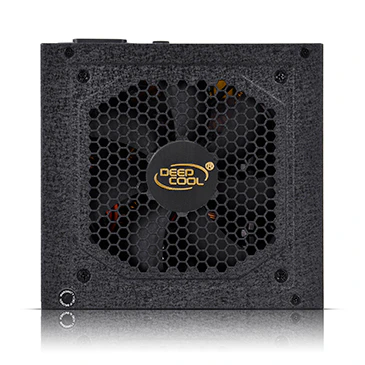

DA500-M (Model No. DA500) is a 100% fully modular power supply unit (PSU). This PSU is certified to 80 Plus Bronze, achieving up to 85% electrical efficiency, lowering heat generation and reducing operational costs. Outstanding and stable performance of this PSU makes it one of the best choices for a wide range of applications. Double-Layer EMI Filter for protection against electromagnetic interference (EMI) and for noise control.
COLOR
black
MODEL
DA500-M
80PLUS Bronze up to 85% Efficient PSU with 100% Full Modular
Description
DA500-M (Model No. DA500) is a 100% fully modular power supply unit (PSU). This PSU is certified to 80 Plus Bronze, achieving up to 85% electrical efficiency, lowering heat generation and reducing operational costs. Outstanding and stable performance of this PSU makes it one of the best choices for a wide range of applications. Double-Layer EMI Filter for protection against electromagnetic interference (EMI) and for noise control.

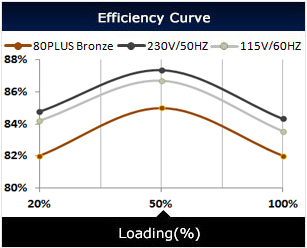

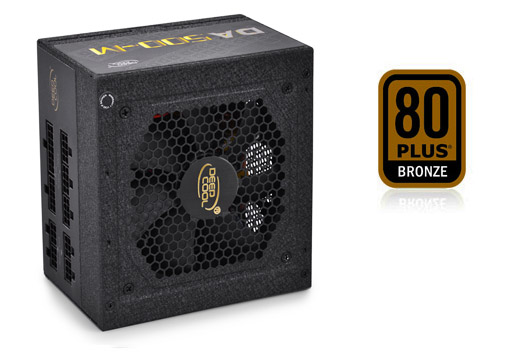

80PLUS BRONZE
80 PLUS Bronze certified provides a high energy efficiency up to 85%. Click here to view the certification.

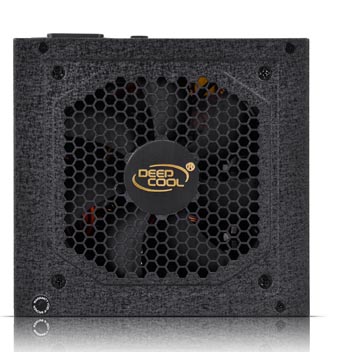

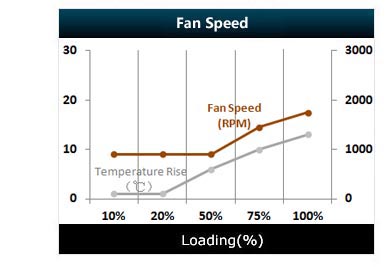

Silent, High Performance Fan
120 mm quiet PWM-capable fan with an incredible performance-to-noise ratio.

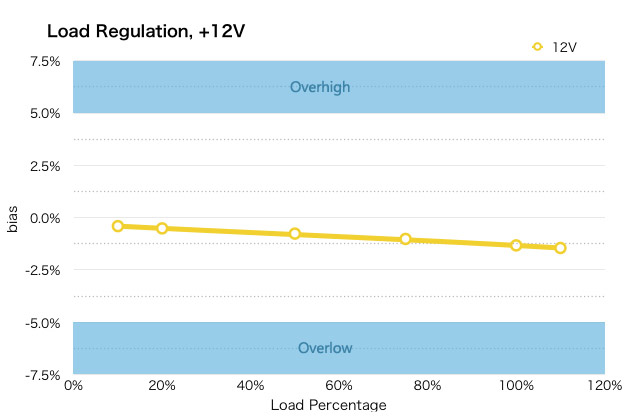

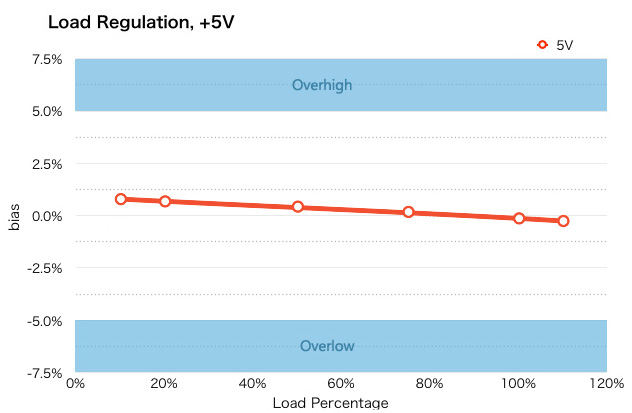

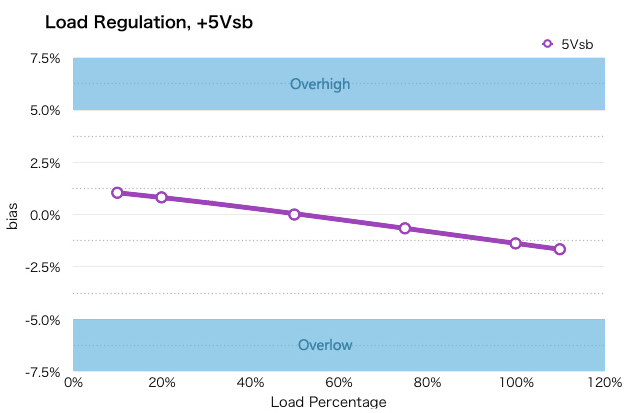

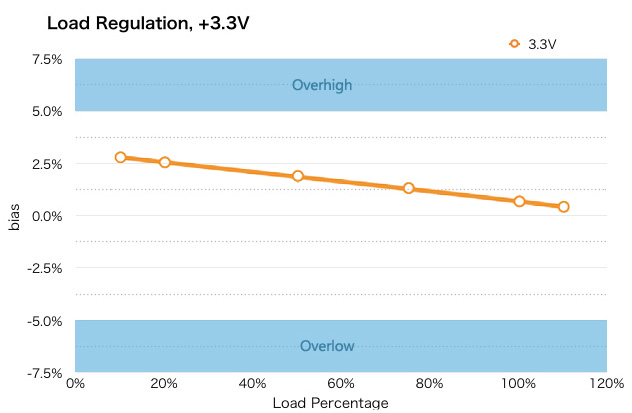

Voltage regulation

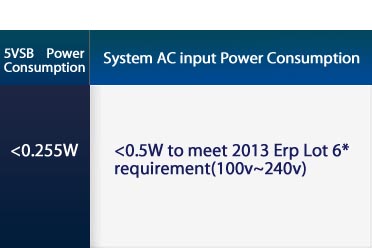

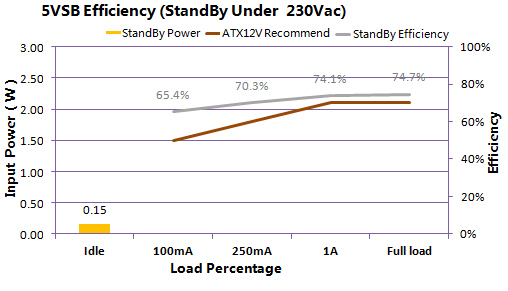

Idle / Standby Efficiency

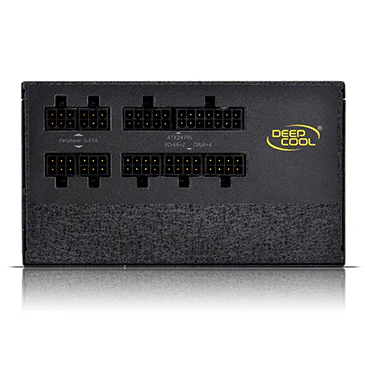

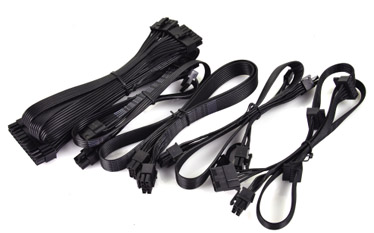

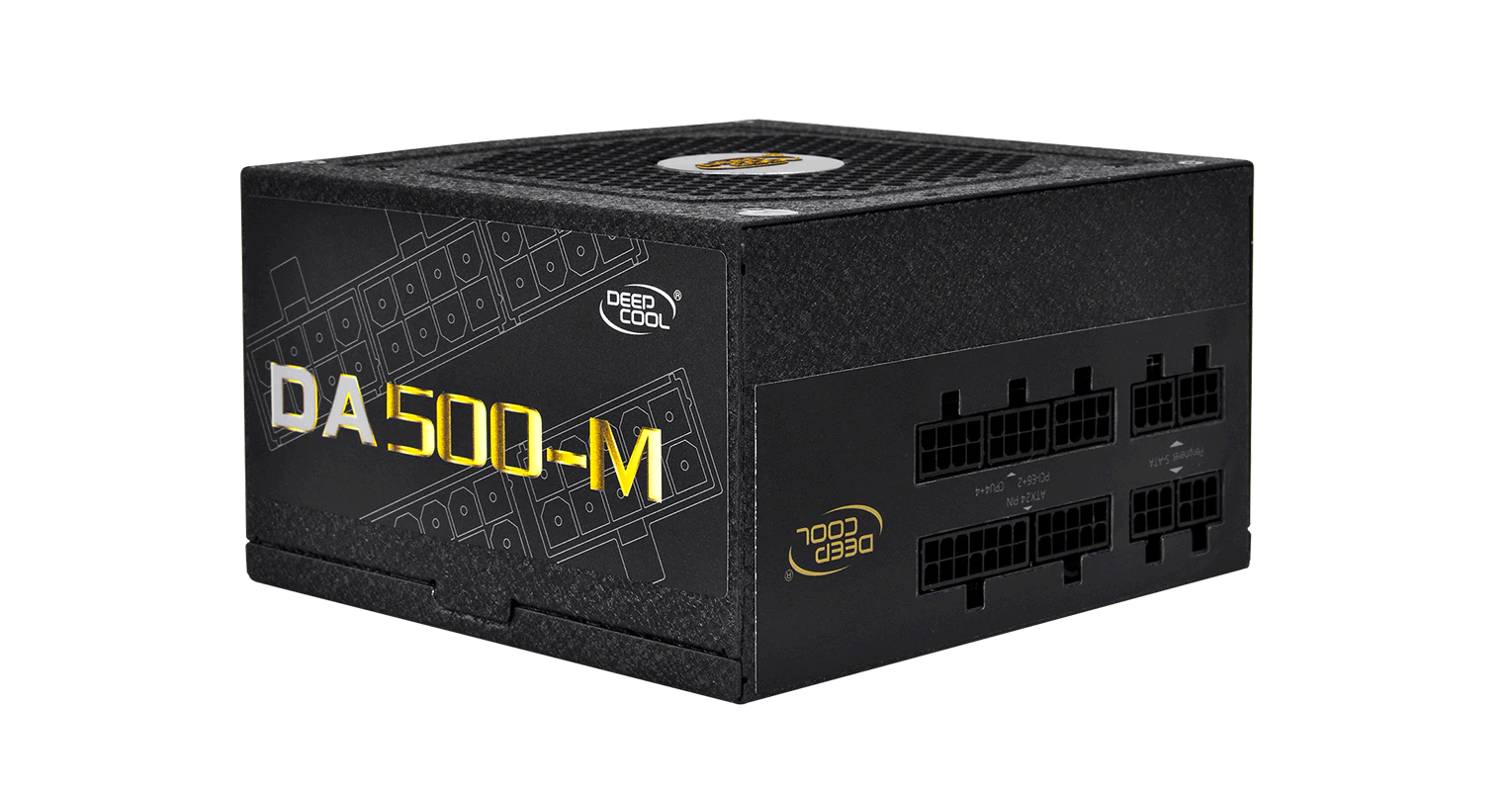

Fully Modular Cable Design

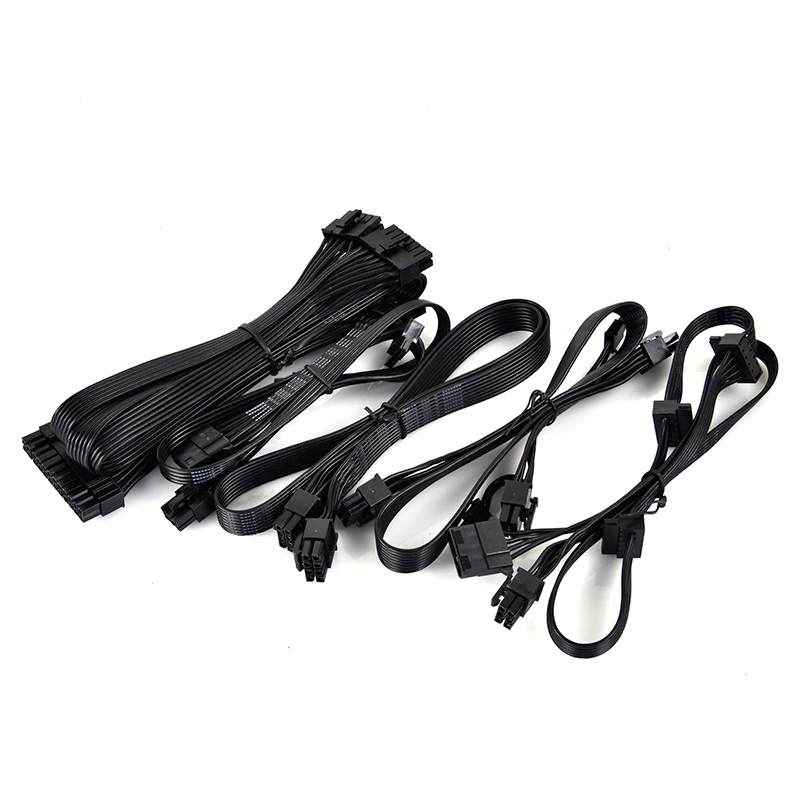

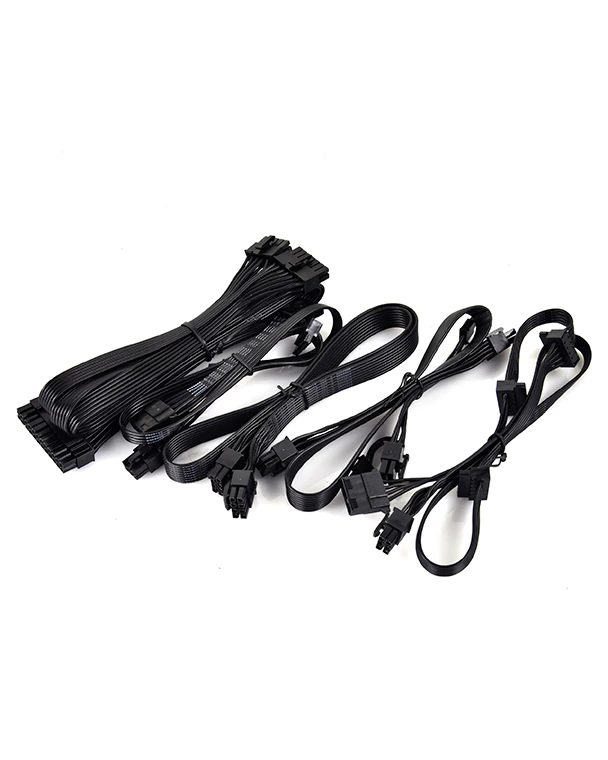

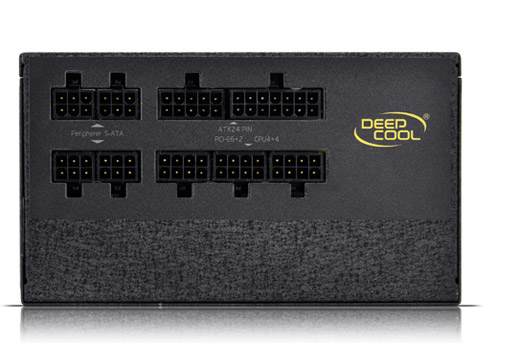

Modular Cable System
Modular cable system allows builders to use only cables they need, providing a tidier and better-looking system.
Certification and Support

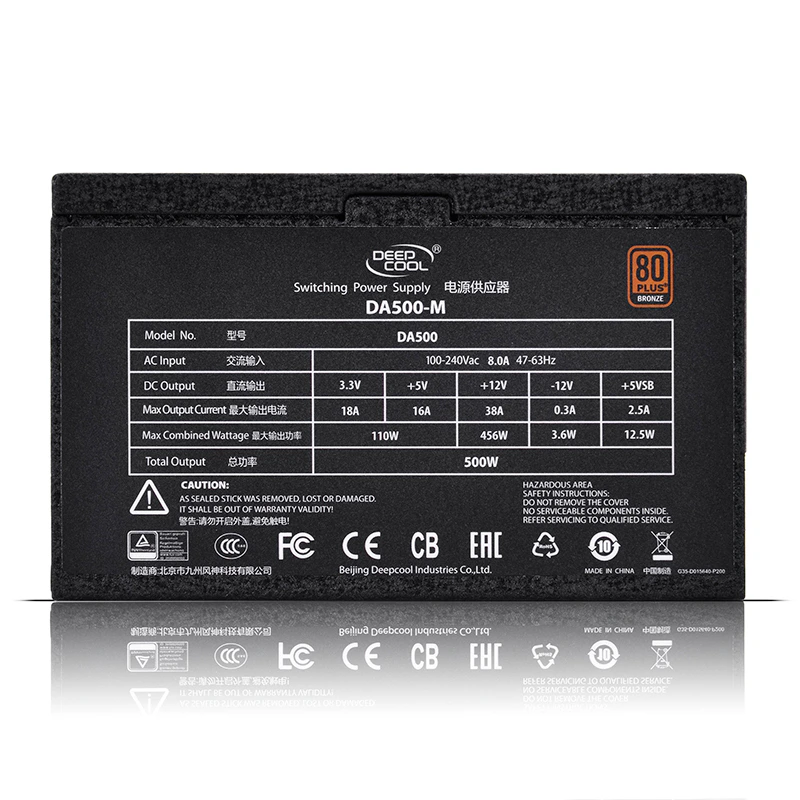

Technical Spec

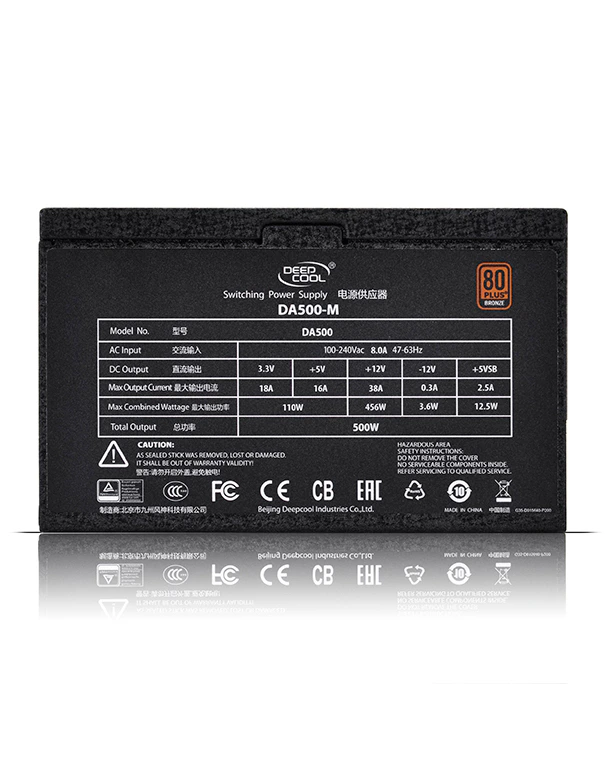

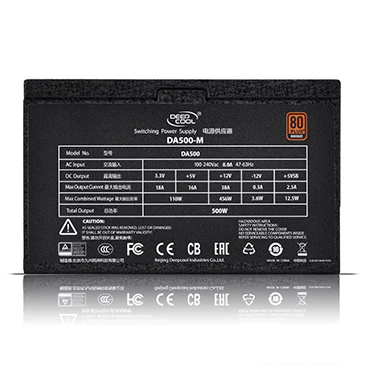

Model DA500-M (Model No. DA500)
Type ATX 12V V2.4
Certifications 80PLUS Bronze
Dimension 150×140×86mm (W x L x H)
Output Capacity 500W
Input Voltage 100~240V
Input Current 8A
Input Frequency Range 47~63Hz
Fan Size 120mm Black Fan
PFC Active PFC
Power Good Signal 100-500ms
Hold Up Time >16ms
Efficiency 85% Under Typical Load
Protection OVP / UVP / SCP / OPP
Operation Temperature 0~40°C
Regulatory CE / FCC / CCC / CB / EAC
MTBF 100,000 Hours
EAN 6933412798743
P/N DP-BZ-DA500-MFM2
