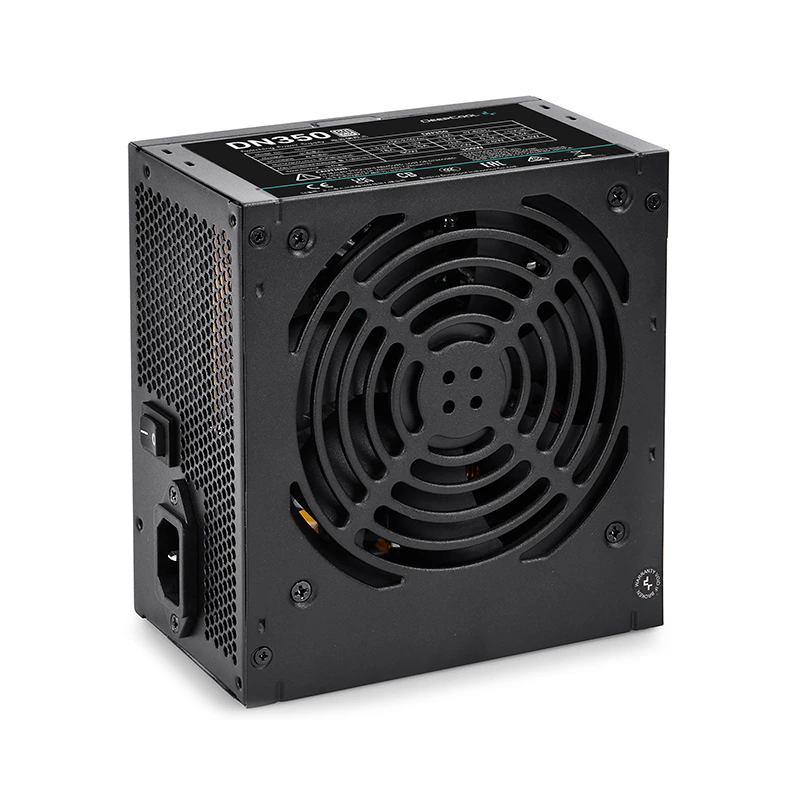

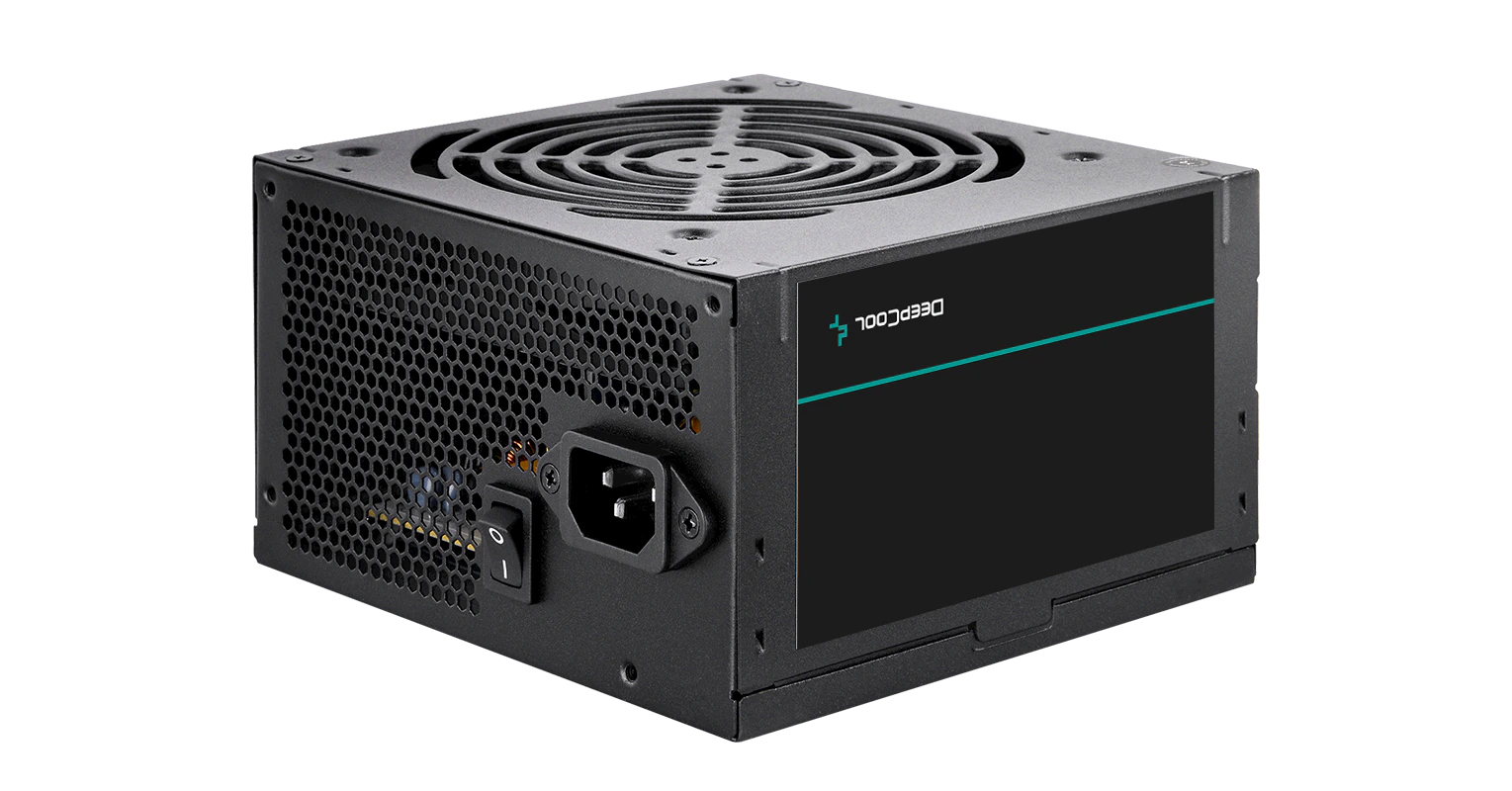

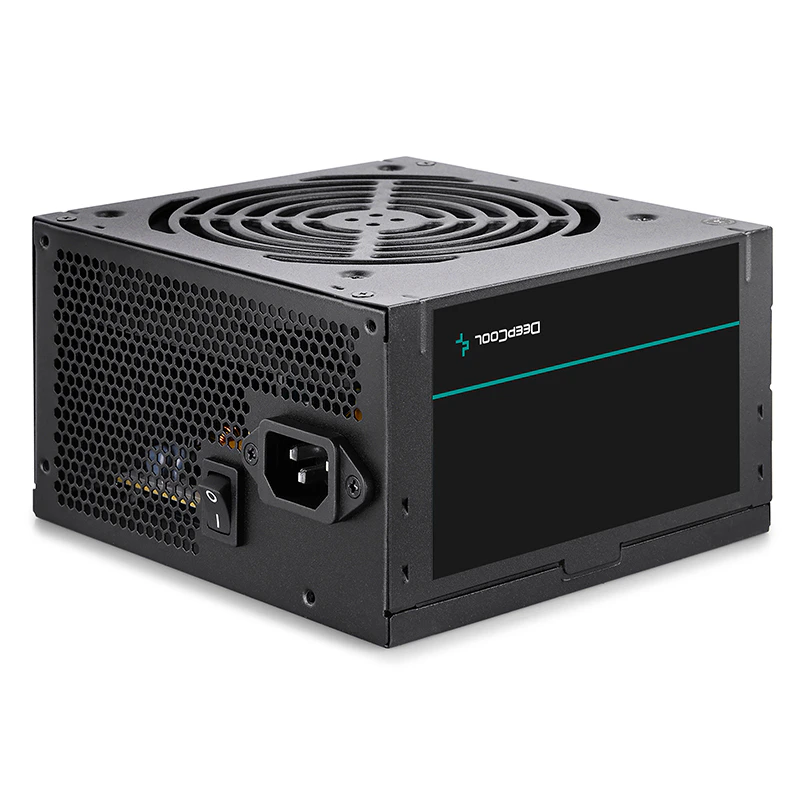

DN350
350w rated power with 80 PLUS® 230V EU certified — up to 85% efficiency
Description
DN350 is certified to 80 PLUS® 230V EU, achieving up to 85% electrical efficiency, lowering heat generation and reducing operational costs. The PSU is designed to have < 1W power consumption under off-mode, and is therefore compliant to the Effective Radiated Power (ErP) standard. Outstanding and stable performance of this PSU makes it one of the best choices for a wide range of applications.
80 PLUS® 230V EU
80 PLUS® 230V EU certified provides a high energy efficiency up to 85%.
Click here to view the certification.

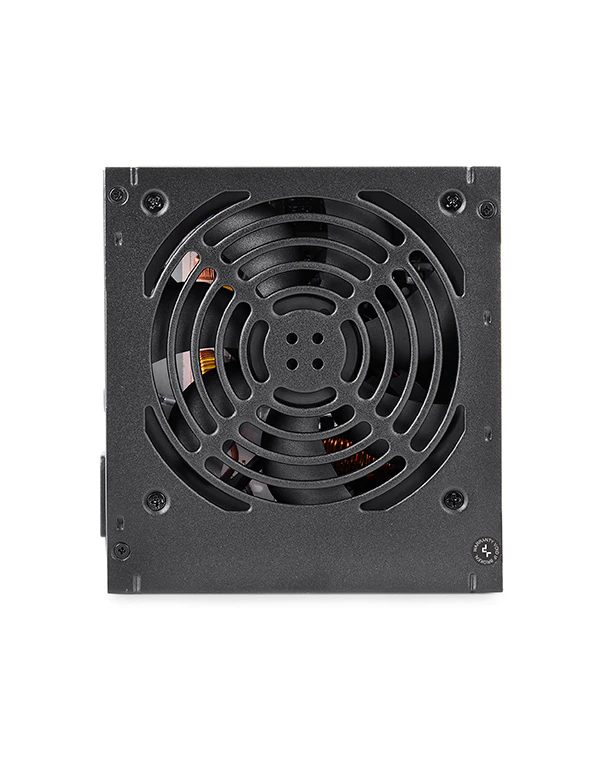

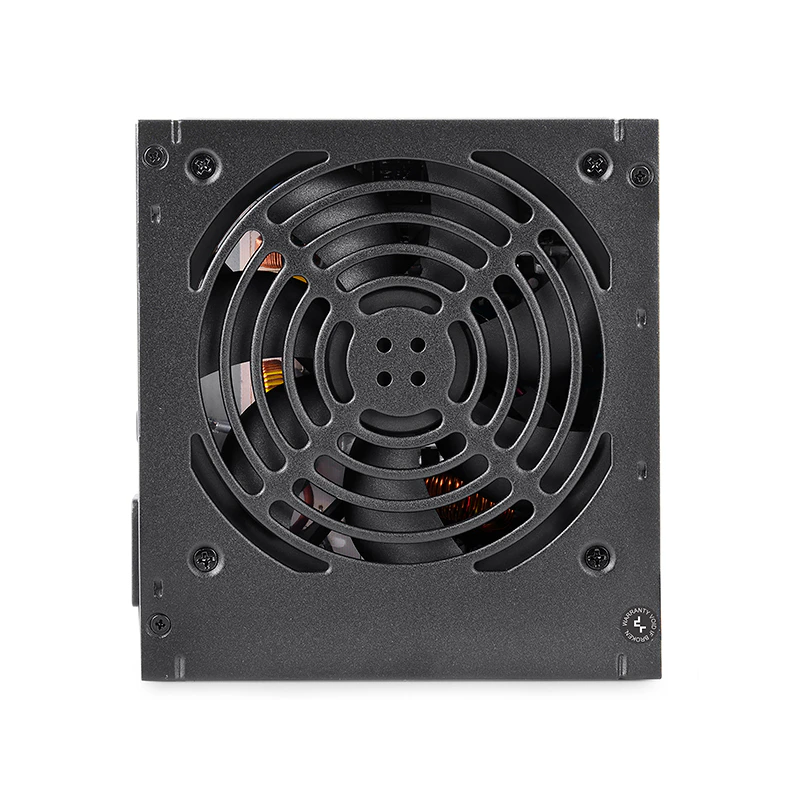

Silent, High Performance Fan
120 mm silent fan with temperature control that provides an incredible performance-to-noise ratio.

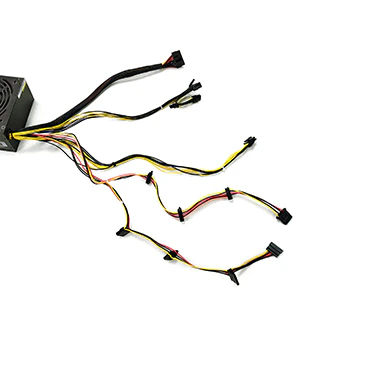

Longer Cable Design
Longer cable design for enhancing cable management.
Certification and Support
Main Power Connector (20+4)Pin x 1
X1
SATAx3+4pin Peripheralx1
X1
4pin Peripheralx2+ SATAx2
X1

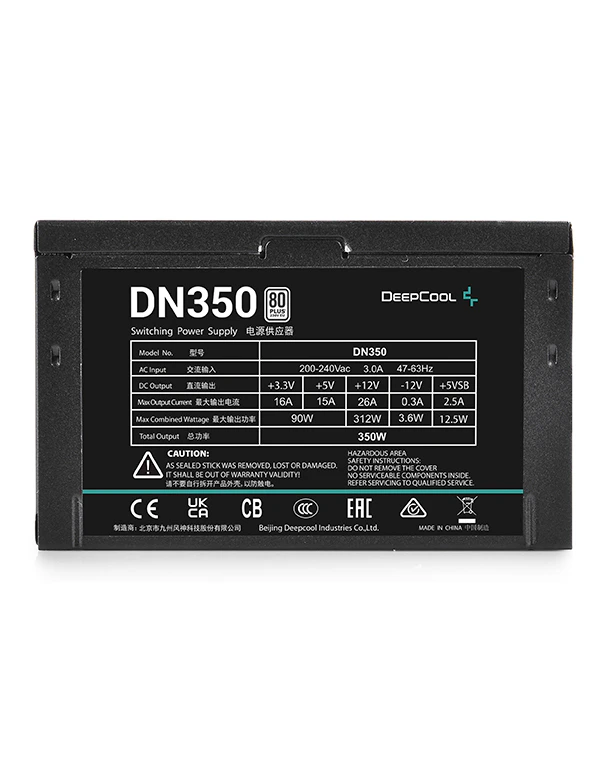

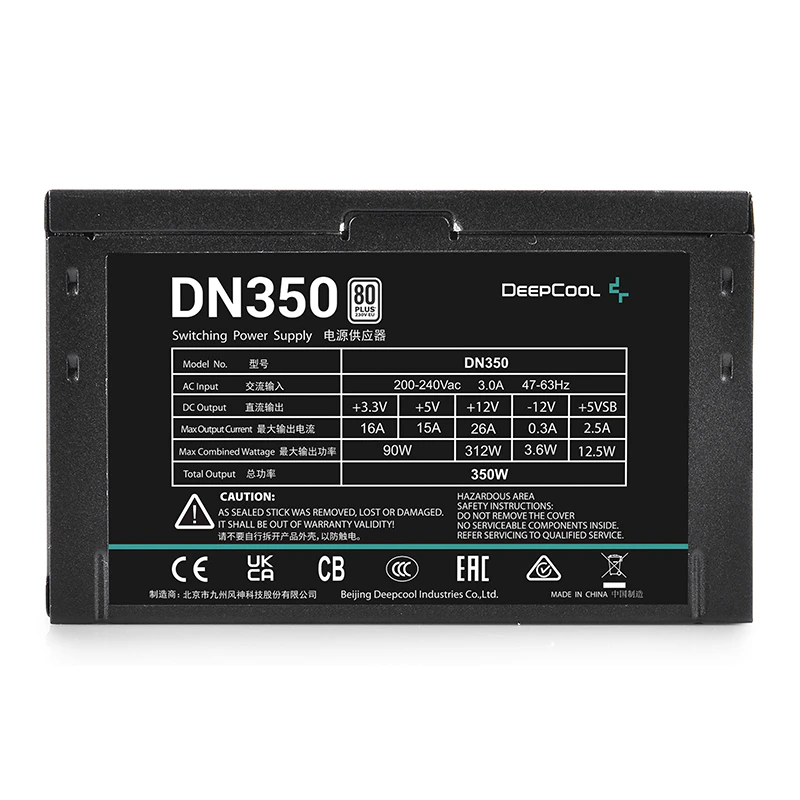

Technical Spec
|
Model
|
DN350
|
|
Type
|
ATX 12V V2.4
|
|
Dimension
|
350W
|
|
Input Voltage
|
200-240V
|
|
Input Current
|
3.0A
|
|
Input Frequency Range
|
47~63Hz
|
|
Fan Size
|
120mm
|
|
PFC
|
Active PFC (>0.99)
|
|
Power Good Signal
|
100-500ms
|
|
Hold Up Time
|
>16ms
|
|
Efficiency
|
85% Under Typical Load
|
|
Protection
|
OVP/UVP/SCP/OPP
|
|
Operation Temperature
|
0~40°C
|
|
Regulatory
|
CB/CE/EAC/UKCA/RCM
|
|
MTBF
|
100,000 Hours
|
