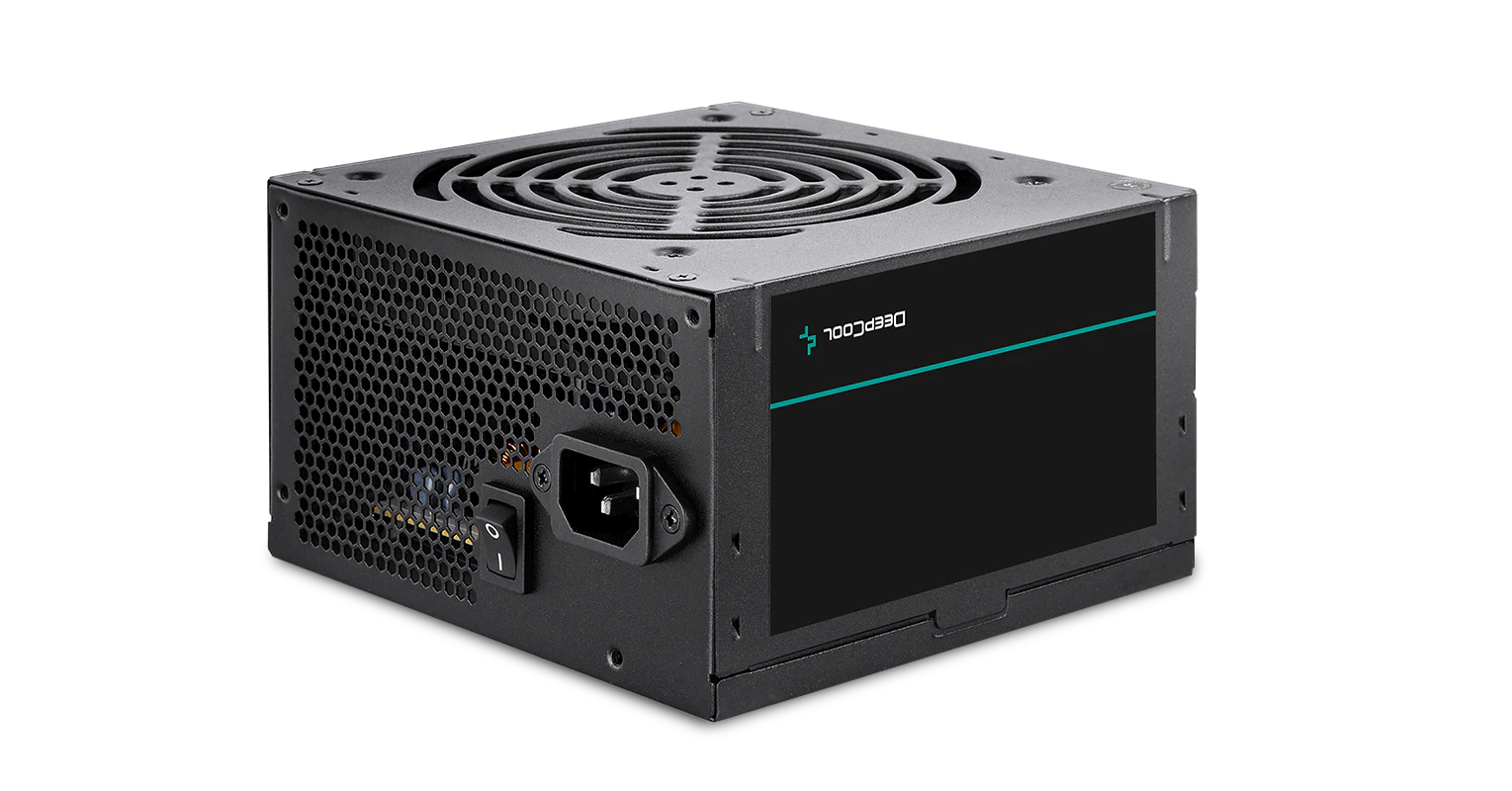

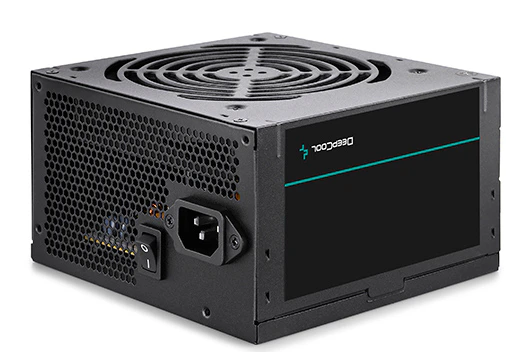

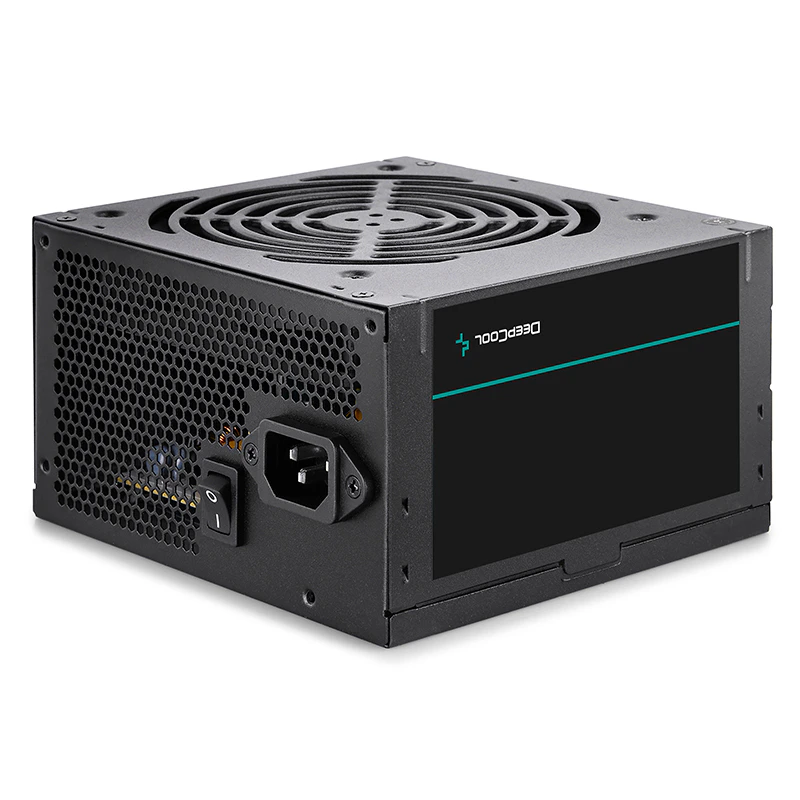

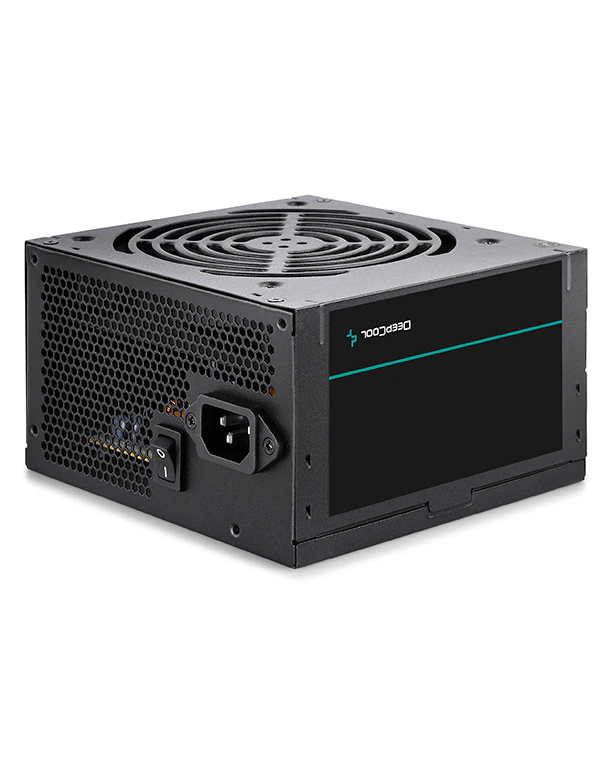

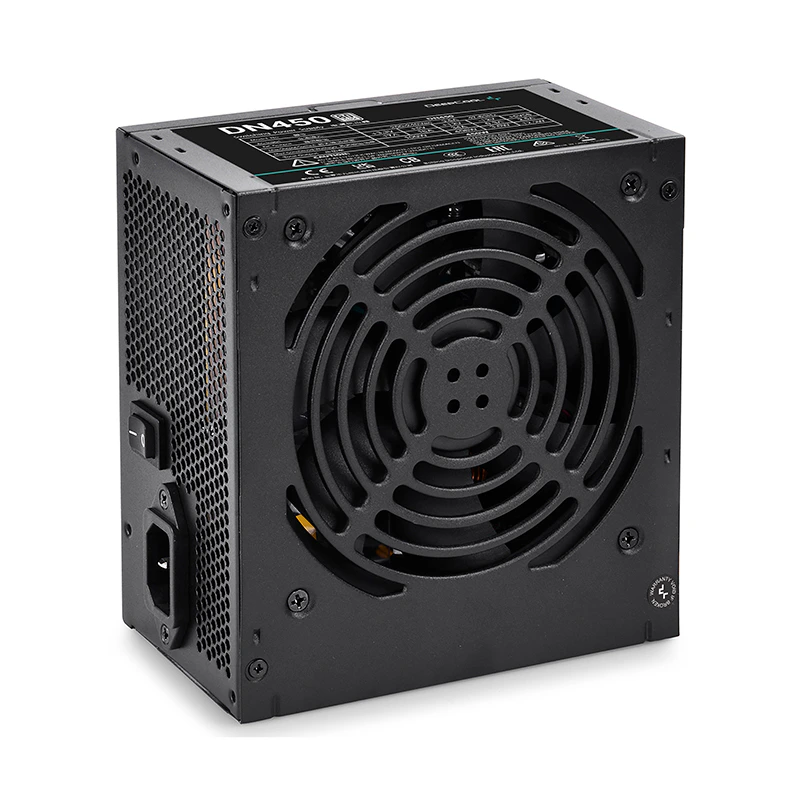

DN450
450W rated power with 80 PLUS® 230V EU certified up to 85% efficiency
Description
DN450 is certified to 80 PLUS® 230V EU, achieving up to 85% electrical efficiency, lowering heat
generation and reducing operational costs. The PSU is designed to have < 1W power consumption under
off-mode, and is therefore compliant to the Effective Radiated Power (ErP) standard. Outstanding and
stable performance of this PSU makes it one of the best choices for a wide range of applications.
80 PLUS® 230V EU
80 PLUS® 230V EU certified provides a high energy efficiency up to 85%.
Click here
to view the certification.

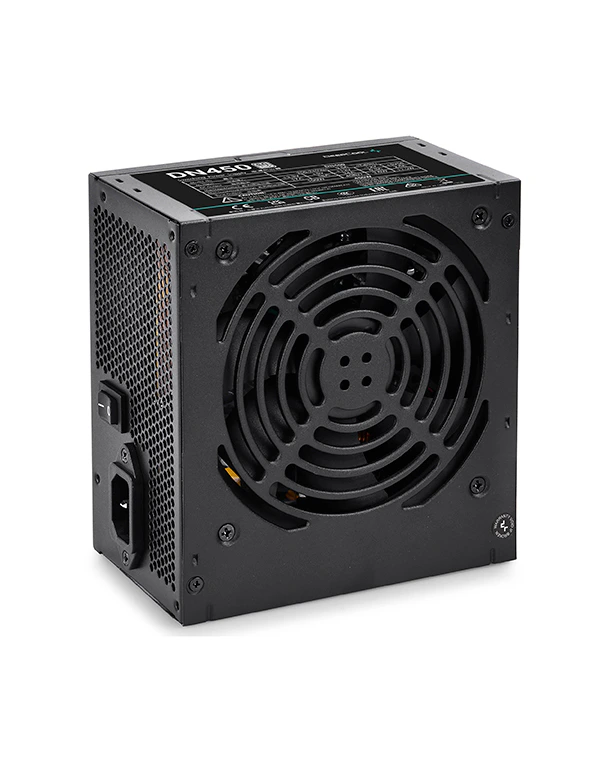

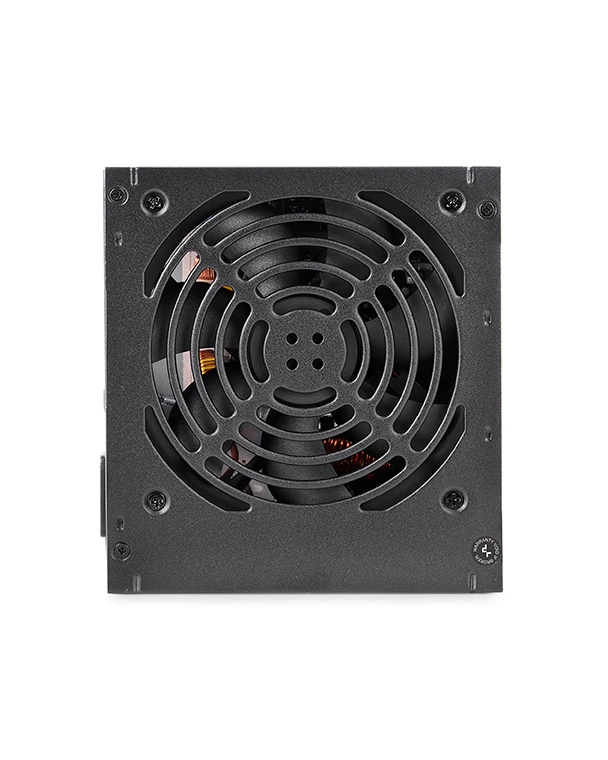

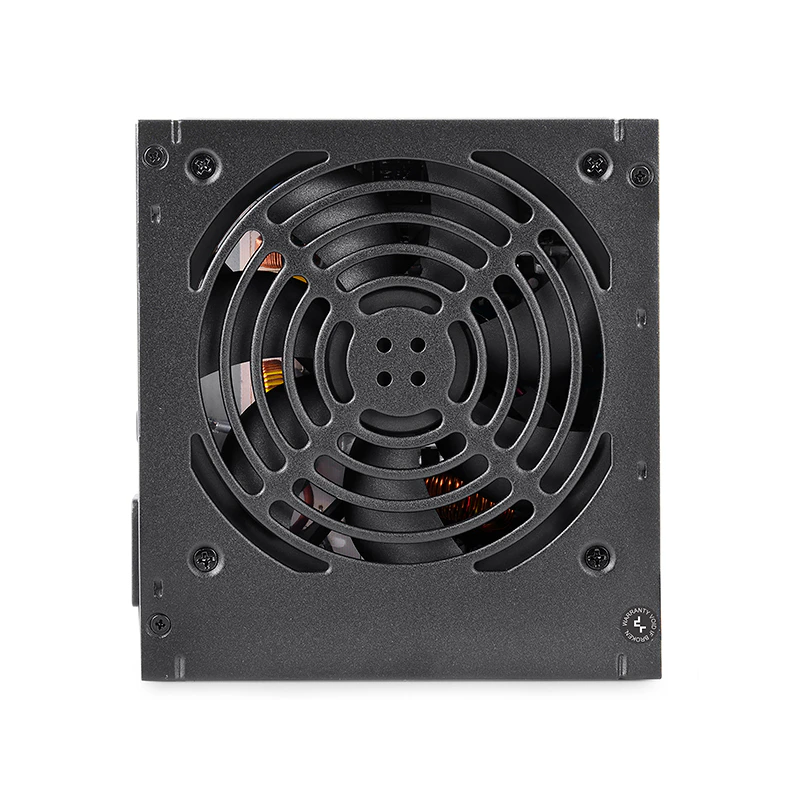

Silent, High Performance Fan
120 mm silent fan with temperature control that provides an incredible
performance-to-noise ratio.

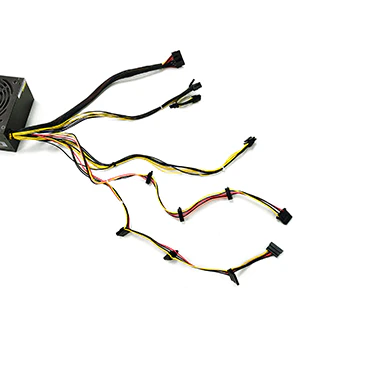

Longer Cable Design
Longer cable design for enhancing cable management.
Certification and Support
* This product is prohibited from being used for mining and other abnormal uses. If the product fails
due to it, DeepCool can refuse to provide the relevant warranty service according to the power supply
warranty regulations.
Main Power
Connector (20+4)Pin x 1
X1
SATAx3+4pin
Peripheralx1
X1
4pin
Peripheralx2+ SATAx2
X1

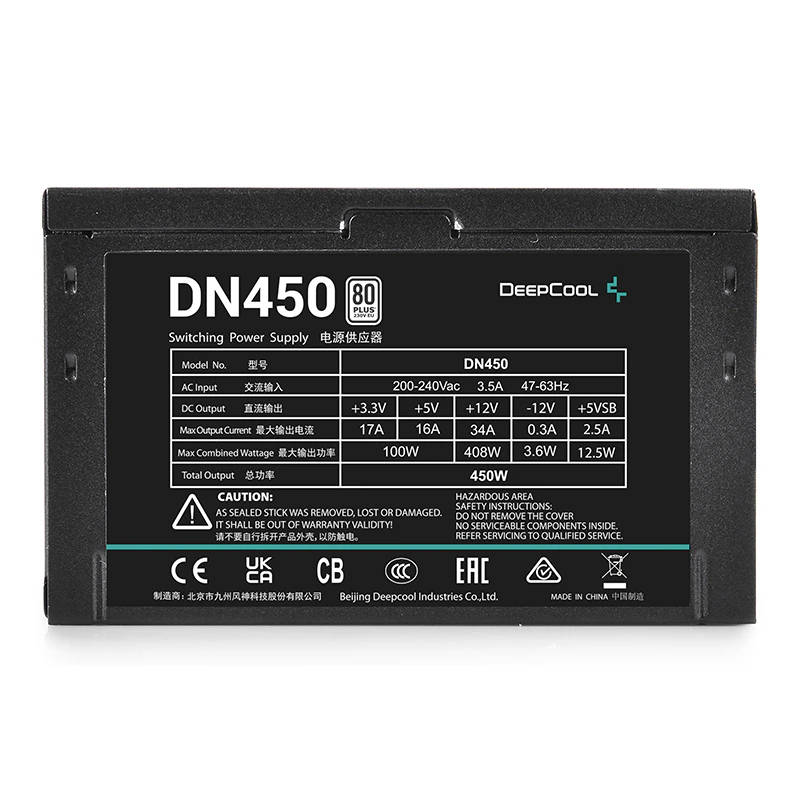

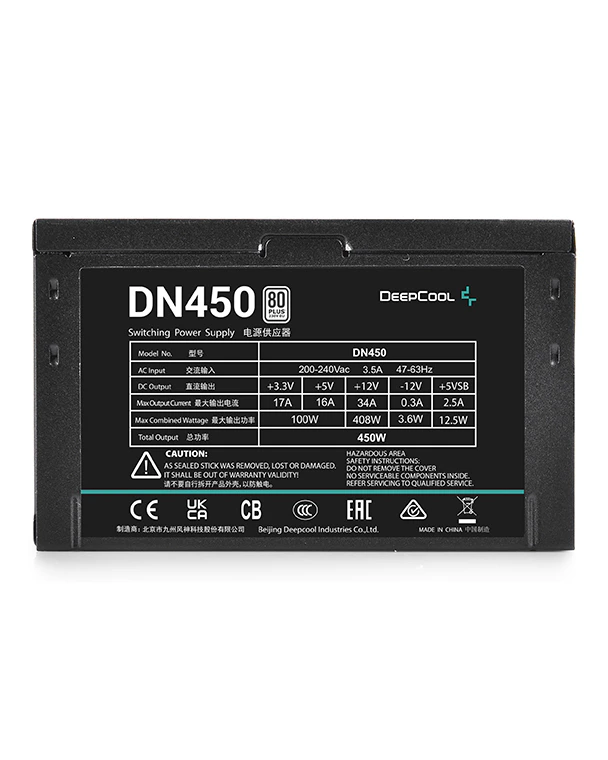

Technical Spec
|
Model |
DN450 |
|
Type |
ATX 12V V2.4 |
|
Total Output |
450W |
|
Input Voltage |
200-240V |
|
Input Current |
3.5A |
|
Input Frequency Range |
47~63Hz |
|
Fan Size |
120mm |
|
PFC |
Active PFC (>0.99) |
|
Power Good Signal |
100-500ms |
|
Hold Up Time |
>16ms |
|
Efficiency |
85% Under Typical Load |
|
Protection |
OVP/UVP/SCP/OPP |
|
Operation Temperature |
0~40°C |
|
Regulatory |
CB/CE/EAC/UKCA/RCM |
|
MTBF |
100,000 Hours |
|
EAN |
6933412798828 |
| P/N |
DP-230EU-DN450 |
