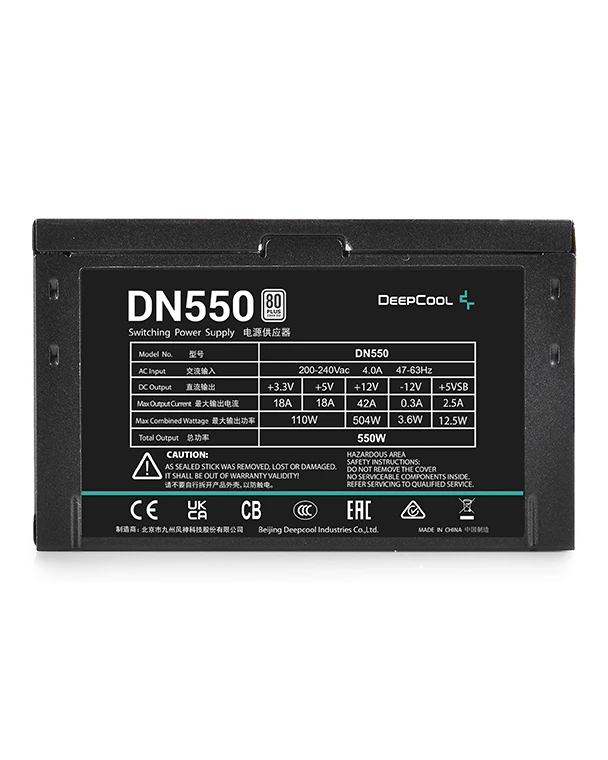

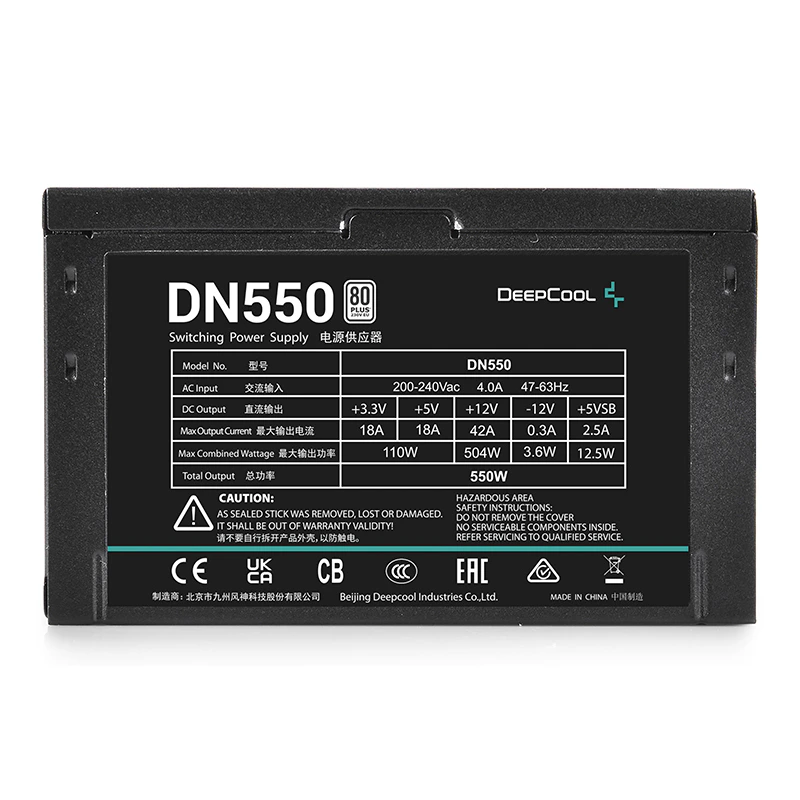

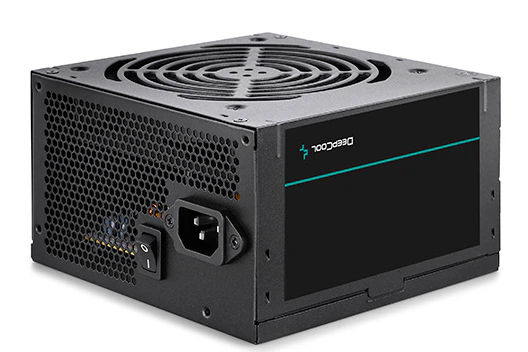

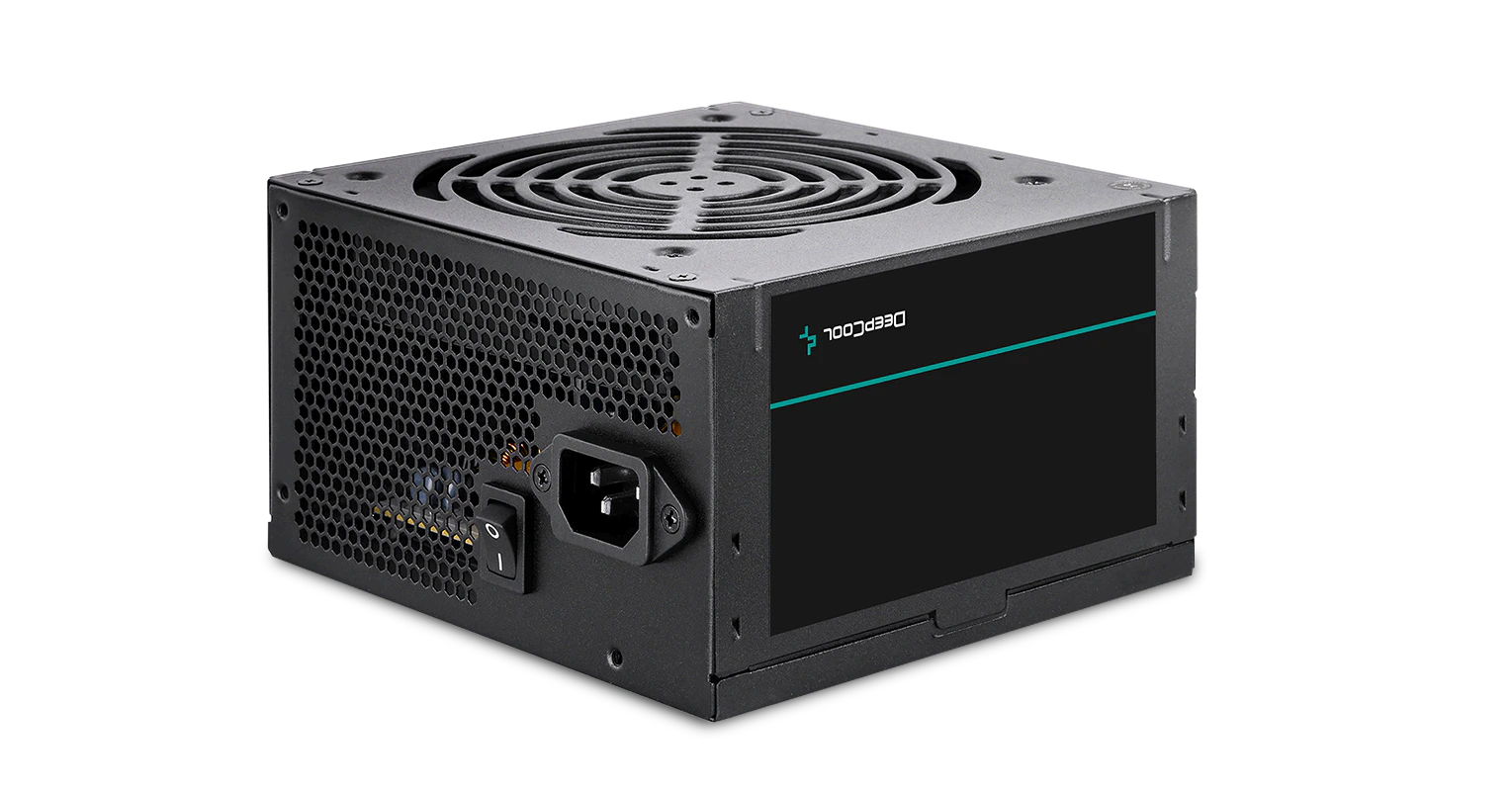

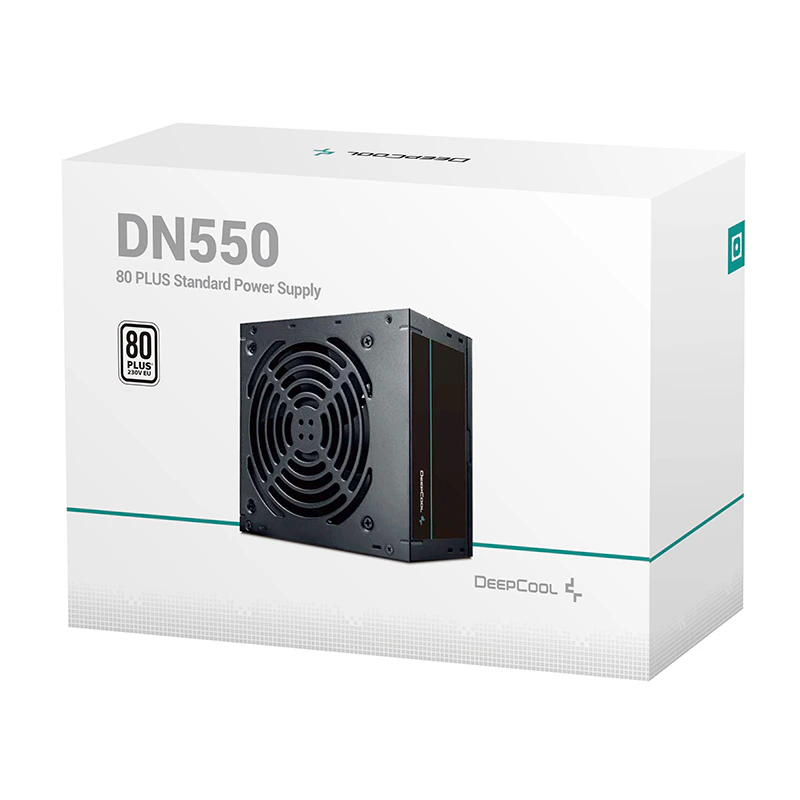

DN550
COLOR
black
MODEL
DN550
550W rated power with 80 PLUS® 230V EU certified up to 85% efficiency
Description
DN550 is certified to 80 PLUS® 230V EU, achieving up to 85% electrical efficiency, lowering heat generation and reducing operational costs. The PSU is designed to have < 1W power consumption under off-mode, and is therefore compliant to the Effective Radiated Power (ErP) standard. Outstanding and stable performance of this PSU makes it one of the best choices for a wide range of applications.
80 PLUS® 230V EU
80 PLUS® 230V EU certified provides a high energy efficiency up to 85%. Click here to  view the certification.

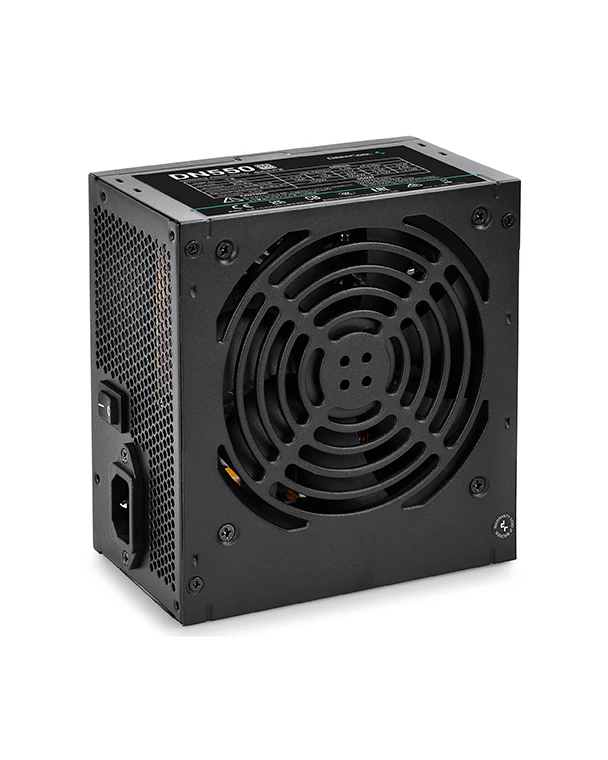

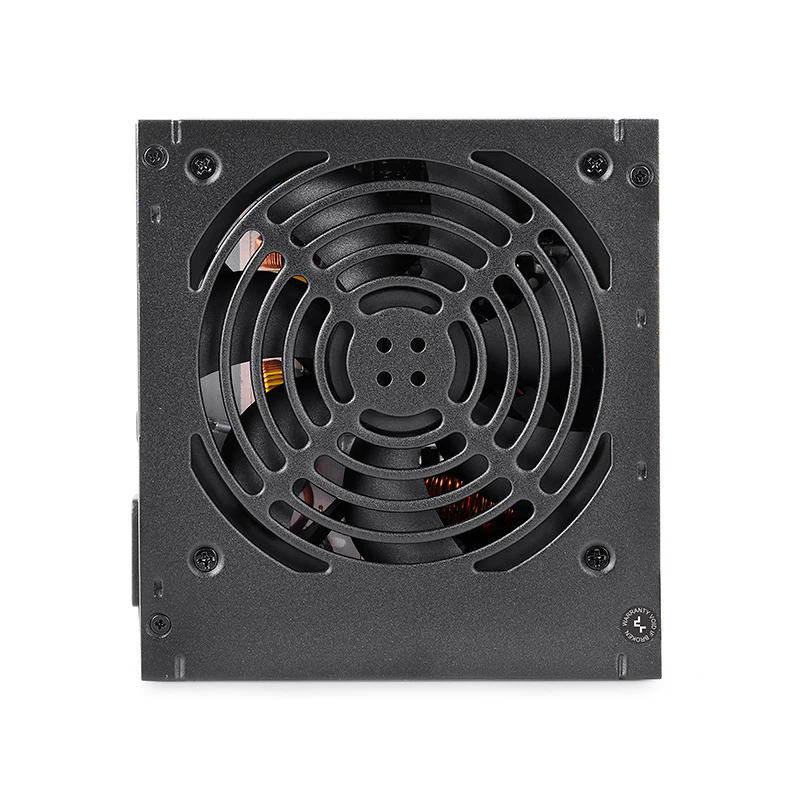

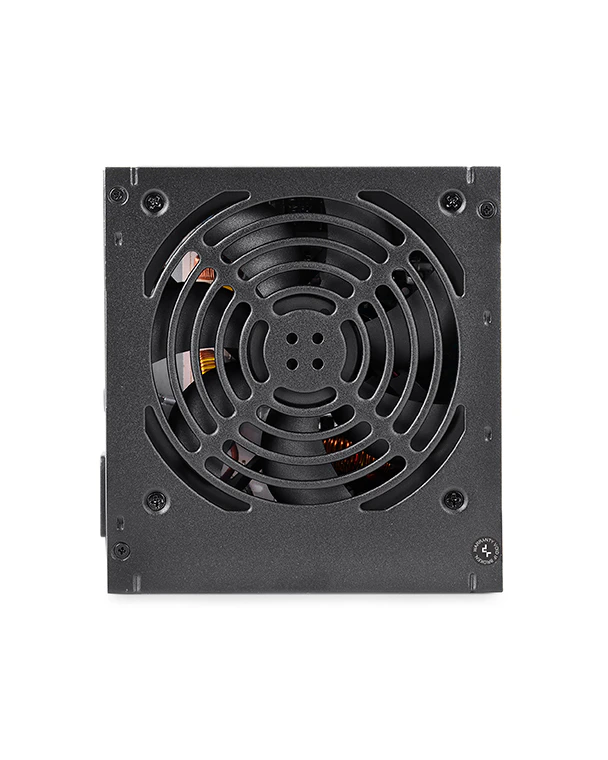

Silent, High Performance Fan
120 mm silent fan with temperature control that provides an incredible performance-to-noise ratio.

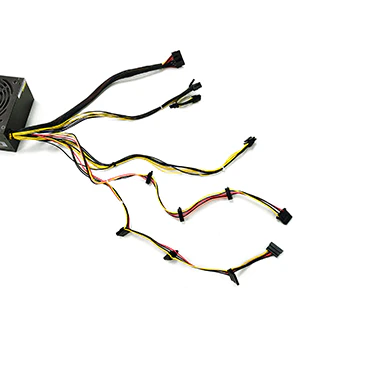

Longer Cable Design
Longer cable design for enhancing cable management.
Certification and Support
Main Power Connector (20+4)Pin x 1
X1
CPU(4+4)Pin x 1
X1
PCI-E(6+2)Pin x 2
X1
SATAx3+4pin Peripheralx1
X1
SATAx2 +4pin Peripheralx2
X1
Technical Spec
Model DN550
Type ATX 12V V2.4
Dimension 150×140×86mm (W×L×H)
Total Output 550W
Input Voltage 200-240V
Input Current 4.0A
Input Frequency Range 47~63Hz
Fan Size 120mm
PFC Active PFC (>0.99)
Power Good Signal 100-500ms
Hold Up Time >16ms
Efficiency 85% Under Typical Load
Protection OVP/UVP/SCP/OPP
Operation Temperature 0~40°C
Regulatory CE/CB/EAC/CCC
MTBF 100,000 Hours
EAN 6933412798835
P/N DP-230EU-DN550
Pictures and content displayed on product pages are provided for reference only. Product features and specifications (including, but not limited to appearance, color, and size), as well as actual displayed content (including, but not limited to background, UI and icons) may vary.
