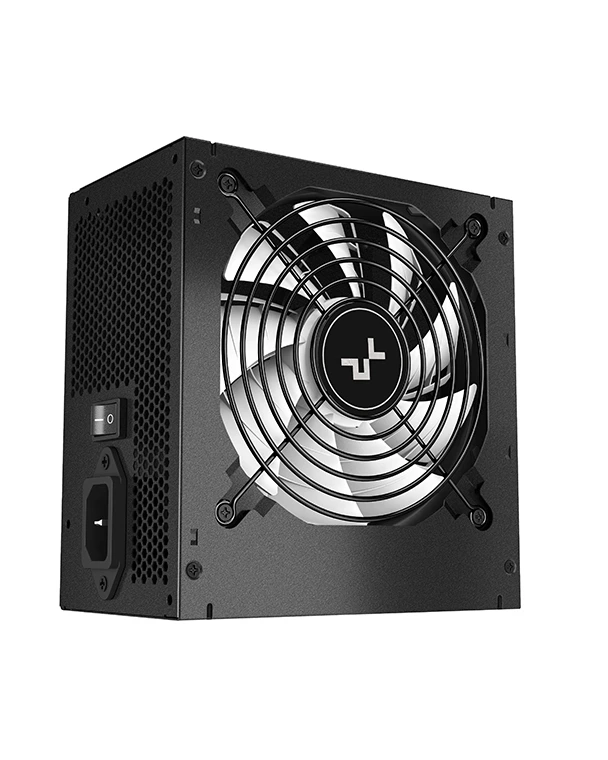

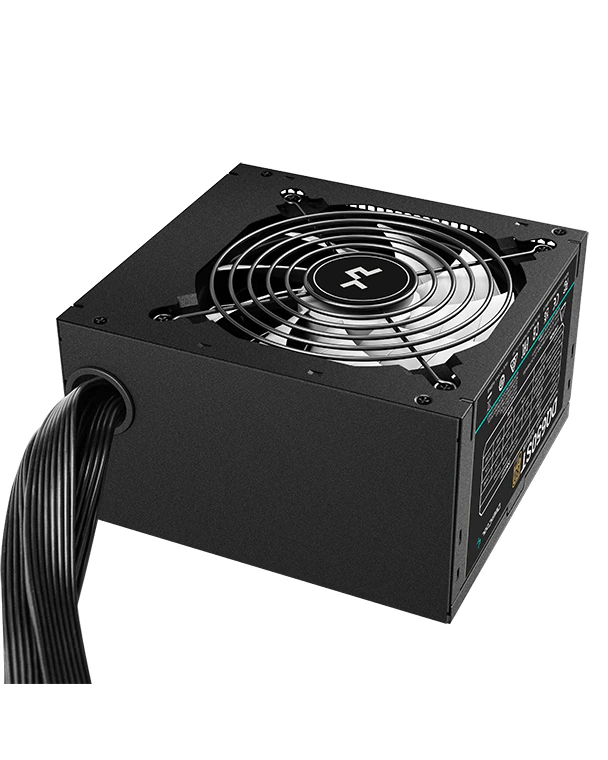

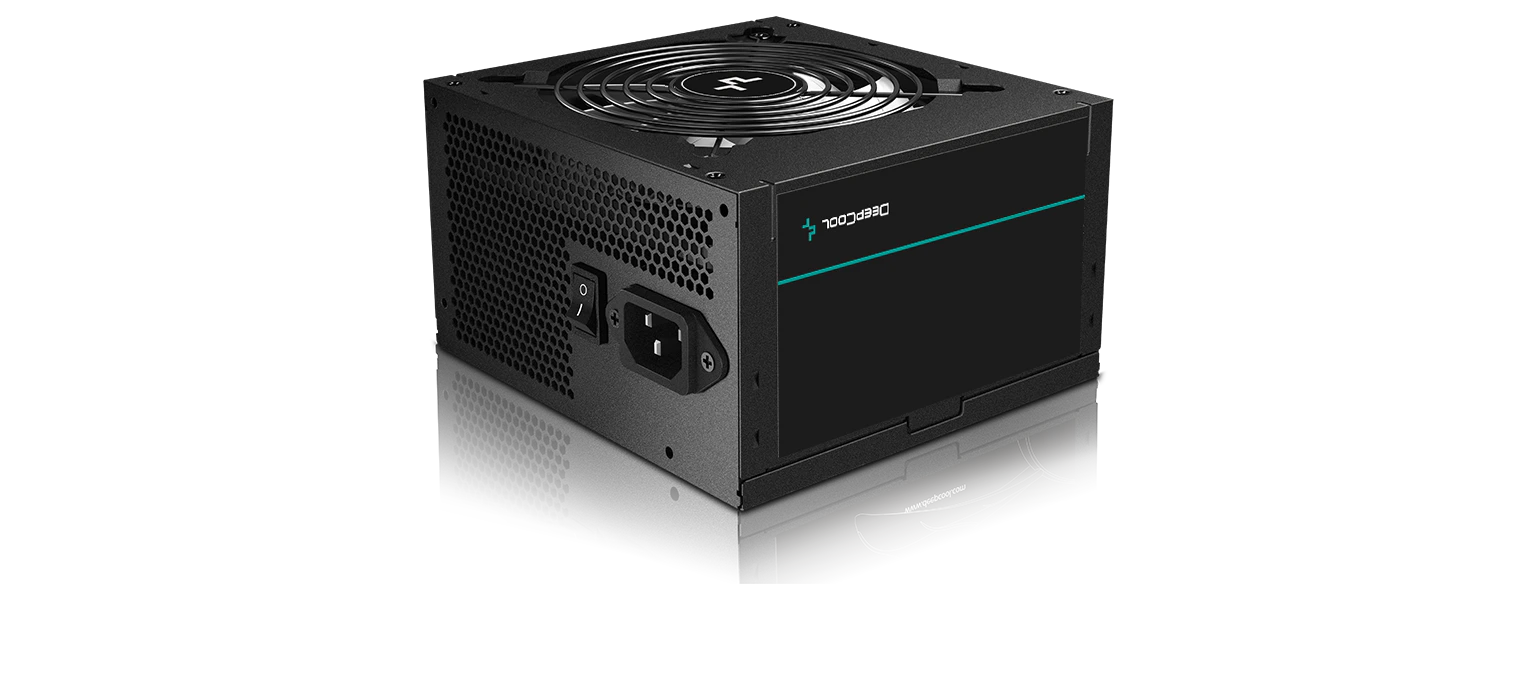

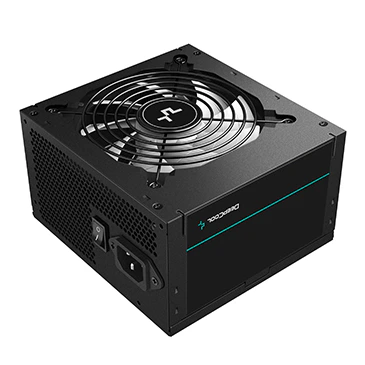

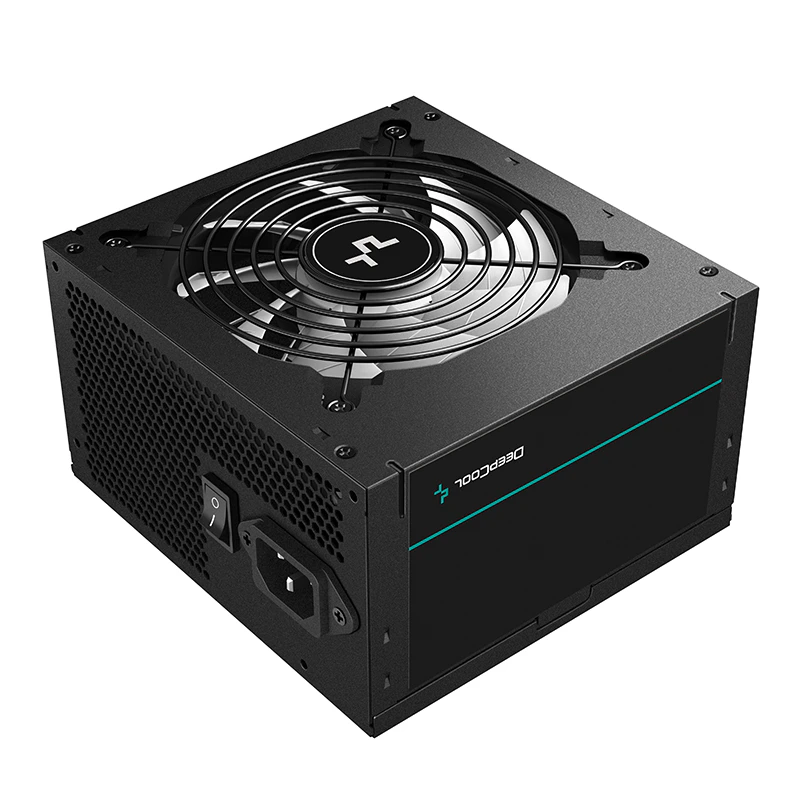

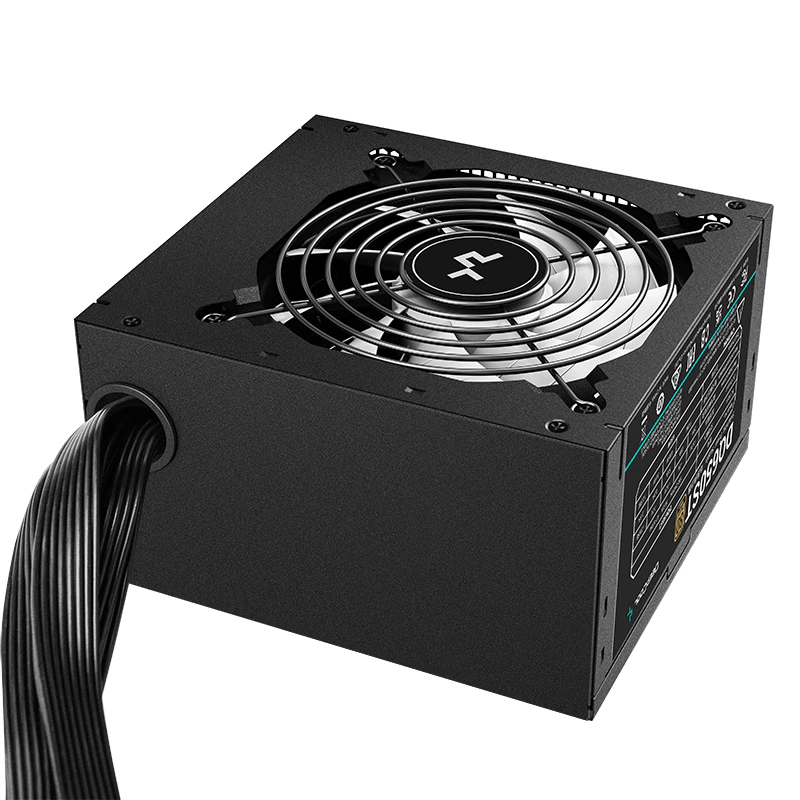

DQ650ST
DQ650ST is certified to 80 PLUS Gold, achieving up to 87-90% electrical efficiency. Cooling is achieved with a quiet 120mm variable-speed fan. DQ650ST is provided with all the features necessary for building the perfect gamer rig.
COLOR
black
MODEL
DQ650ST
650W real power supply with 80Plus Gold Certified and 120mm FDB Bearing PWM fan
Description
DQ650ST is certified to 80 PLUS Gold, achieving up to 87-90% electrical efficiency, lowering heat generation and reducing operational costs. This PSU offers outstanding and stable performance, making it one of the best DeepCool PSU solutions. DQ650ST is capable of providing a continuous 650W electrical supply under 50℃. Cooling is achieved with a quiet 120mm variable-speed fan. DQ650ST is provided with all the features necessary for building the perfect gamer rig.

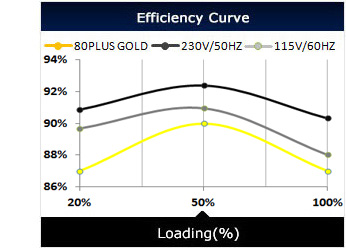

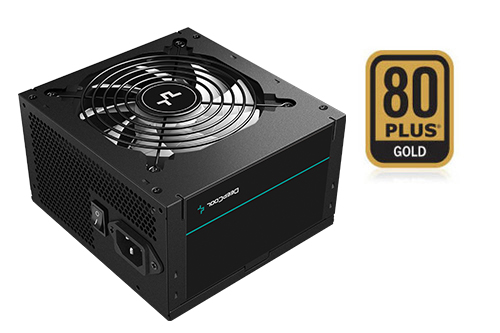

80 PLUS GOLD
80 PLUS® Gold certified - Up to 87-90% efficient. Click here to view the certification.

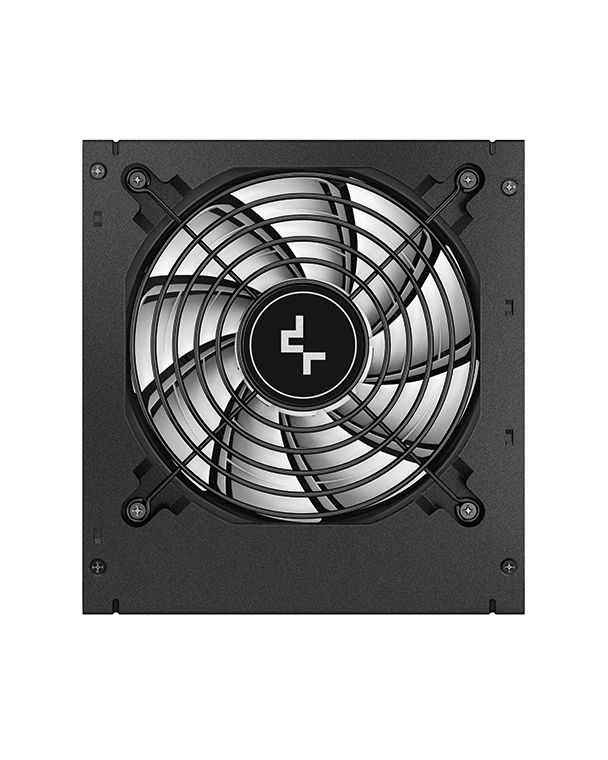

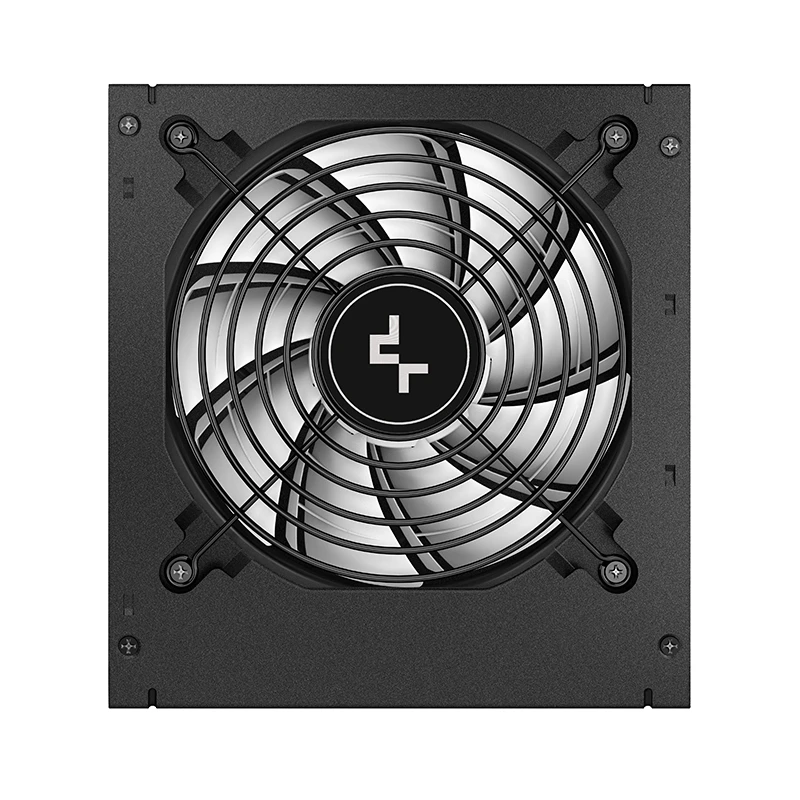

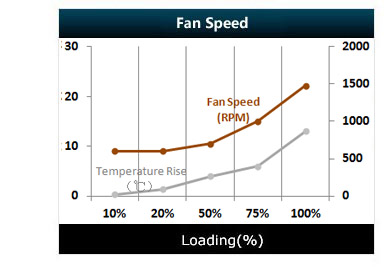

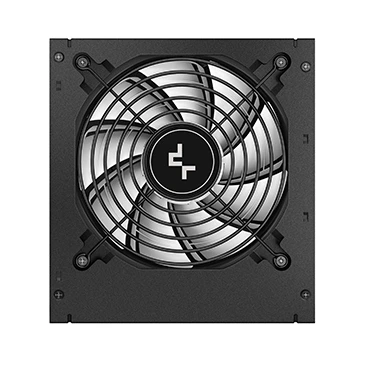

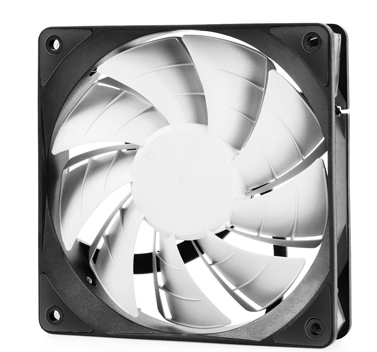

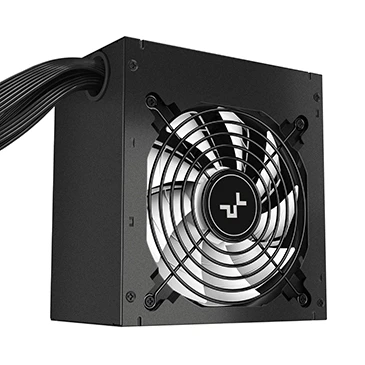

Silent, High Performance Fan
120 mm fan with FDB bearing with specialized fan impeller that delivers stronger wind pressure, ultra-low noise operations, and excellent performance.

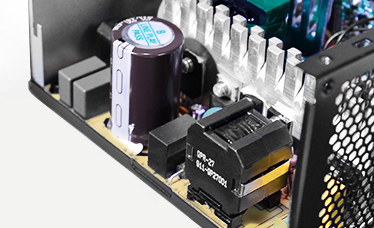

High Grade Components

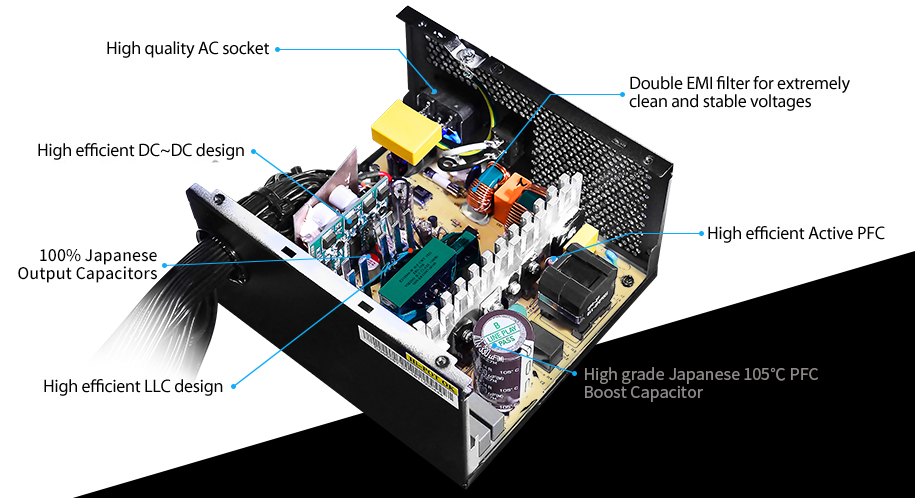

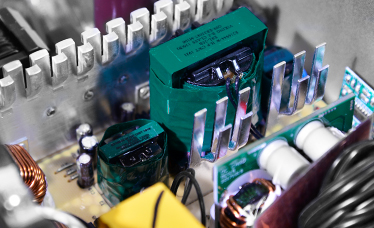

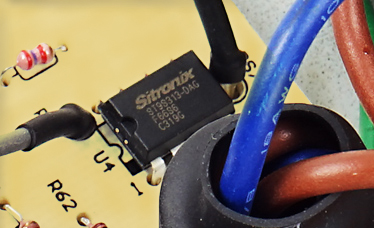

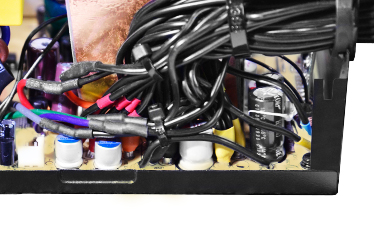

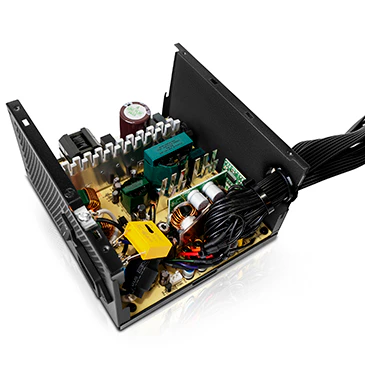

Insider details

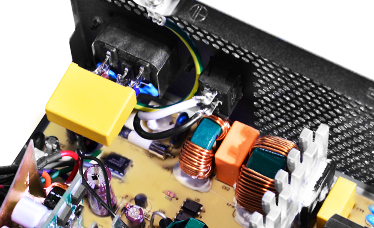

Excellent 1- and 2-stage EMI filter circuit
Highly efficient Active PFC

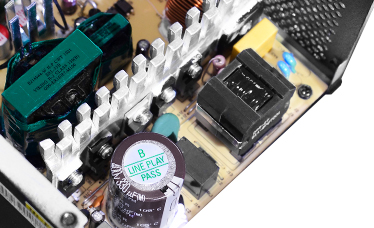

High grade Japanese 105℃ PFC Boost Capacitor
Highly efficient and stable transformer
Outstanding single +12V output
Highly reliable multi-layered protection

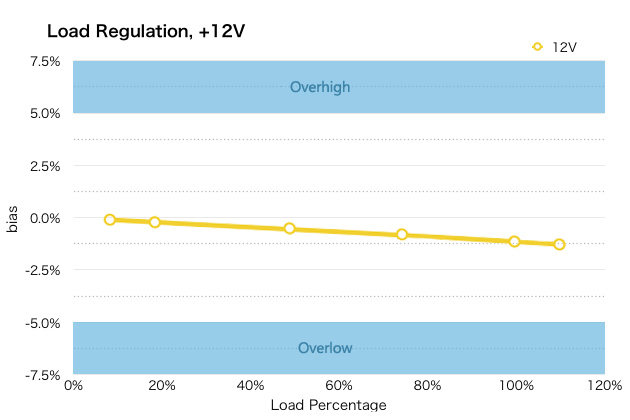

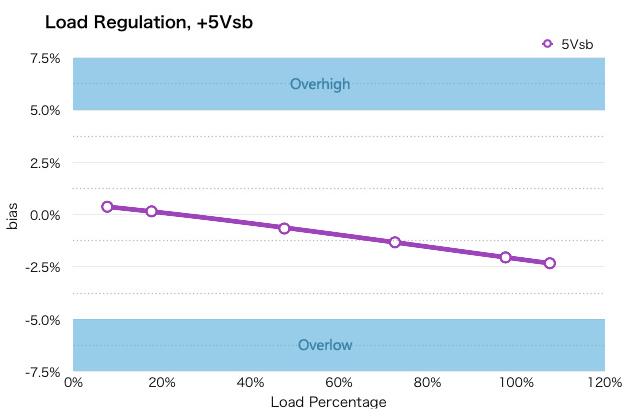

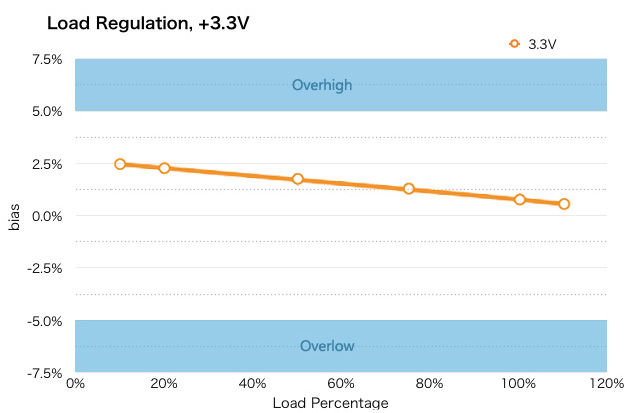

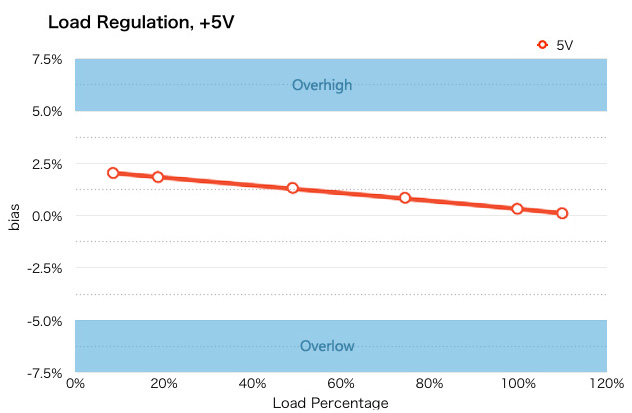

Voltage regulation

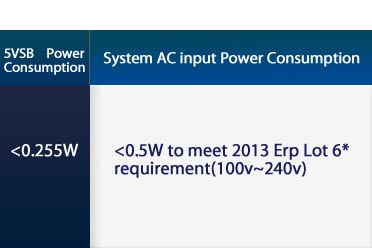

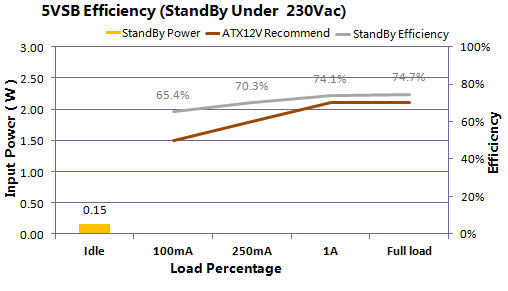

Idle / Standby Efficiency
Certification and Support
Main Power Connector (20+4)Pin x 1
X1
CPU(4+4)Pin x 1
X1
PCI-E(6+2)Pin x 2
X1
SATA×3+4pin Peripheral×1
X1
4Pin Peripheral x 2+SATA x 2
X1
Technical Spec
Model DQ650ST
Type ATX 12V V2.4
Certifications 80PLUS Gold
Dimension 150×140×86mm (W x L x H)
Output Capacity 650W
Input Voltage 100~240V
Input Current 10A/5A
Input Frequency Range 47~63Hz
Fan Size 120mm
PFC Active PFC (>0.99)
Power Good Signal 100-500ms
Hold Up Time >16ms
Efficiency 90% Under Typical Load
Protection OVP / UVP / SCP / OPP
Operation Temperature 0~40°C
Regulatory CE / FCC / CCC / CB / EAC
MTBF 120,000 Hours
EAN 6933412798538
P/N DP-GD-DQ650ST
