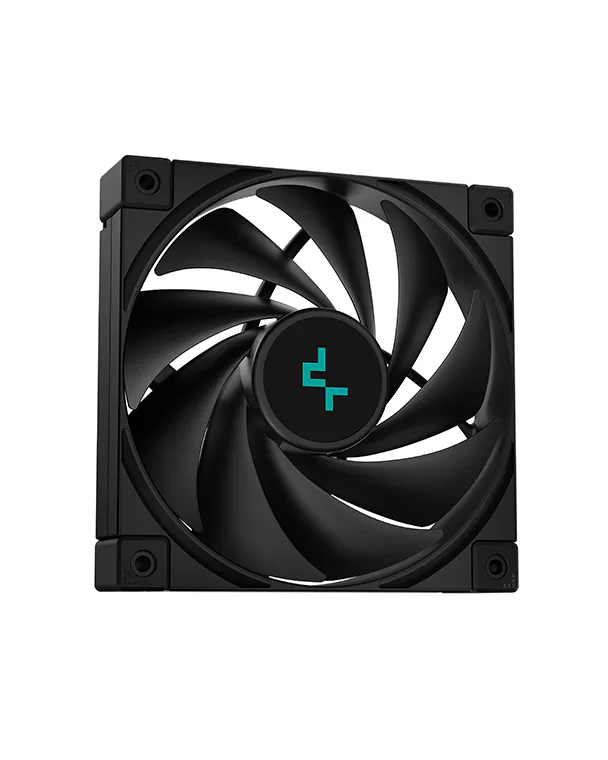

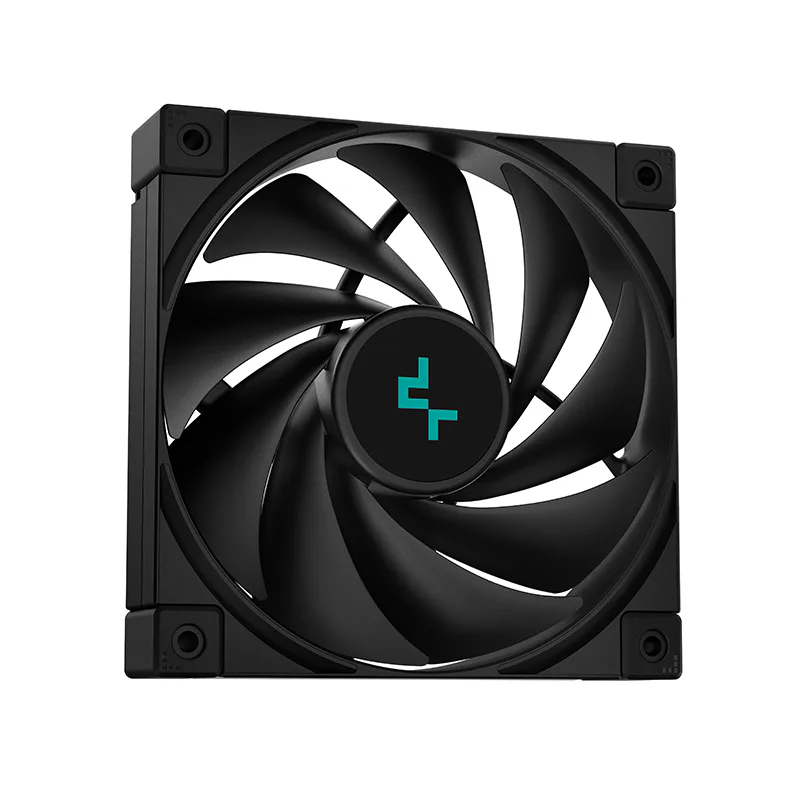

FK120

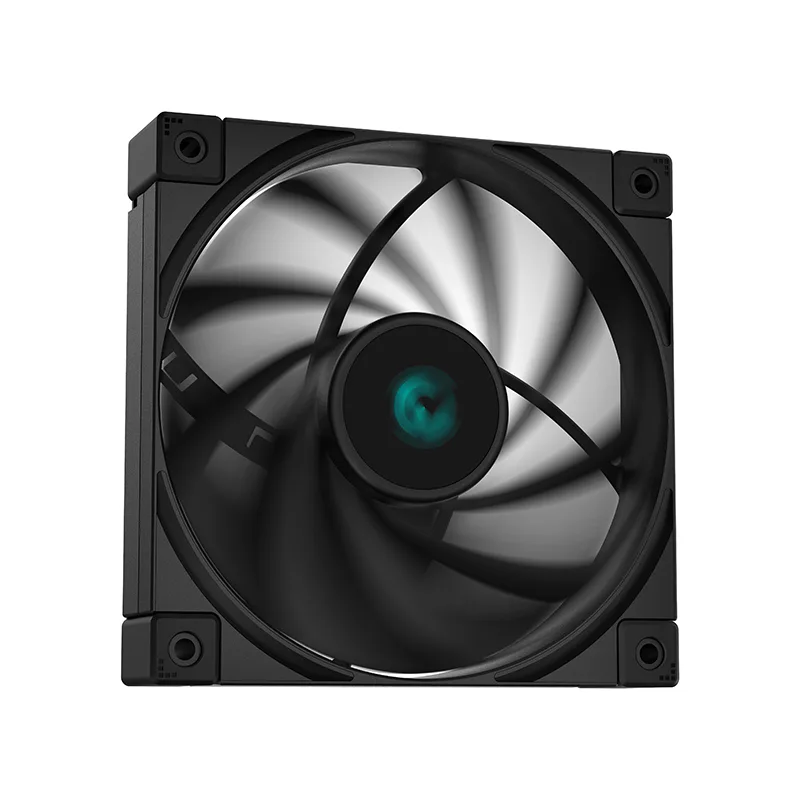

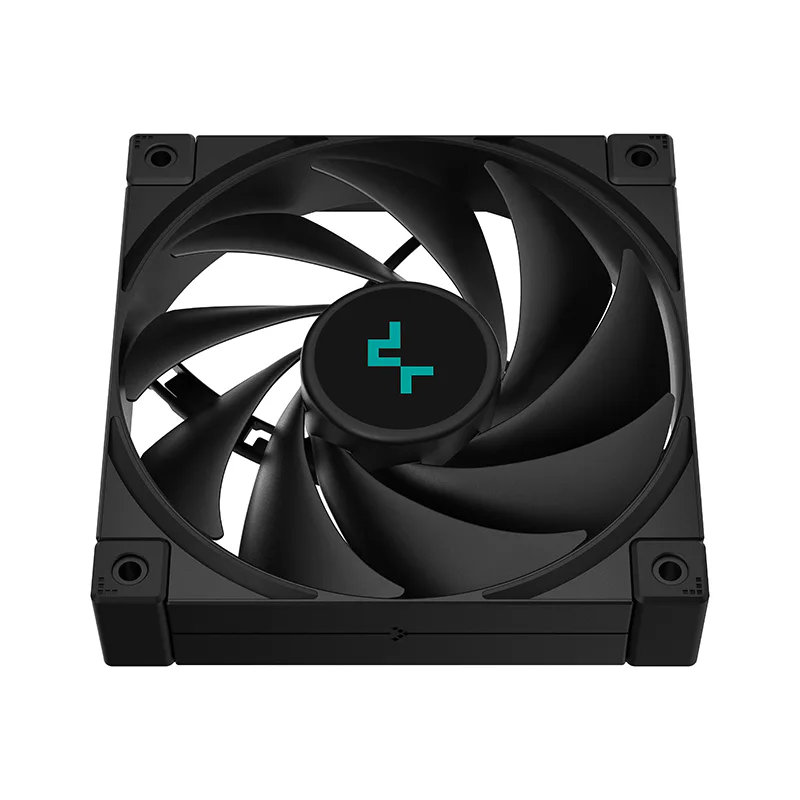

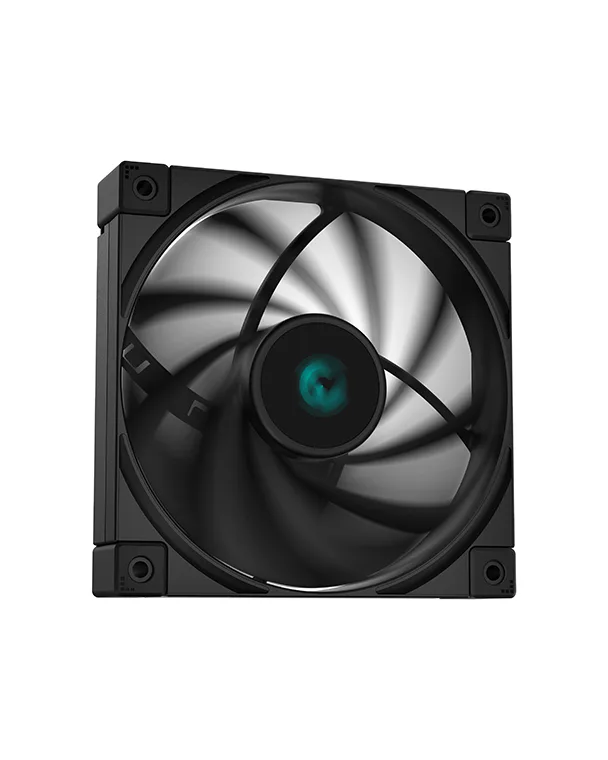

The DeepCool FK120 is a High-Performance 120mm PWM fan with elite cooling and silent efficiency designed for demanding CPU or radiator cooling.
COLOR
black
MODEL

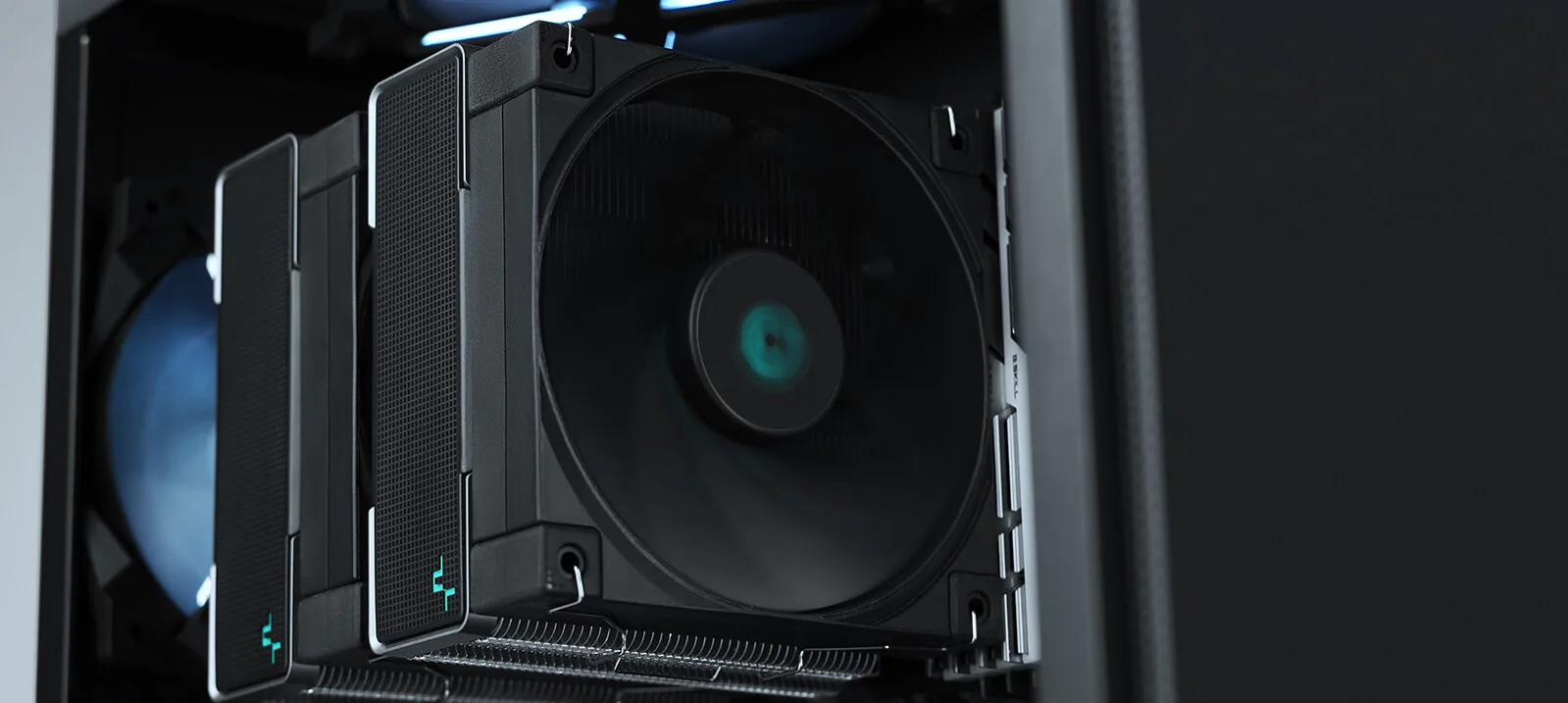

The Beast mode for your AK620
FK120
High-Performance PWM Fan

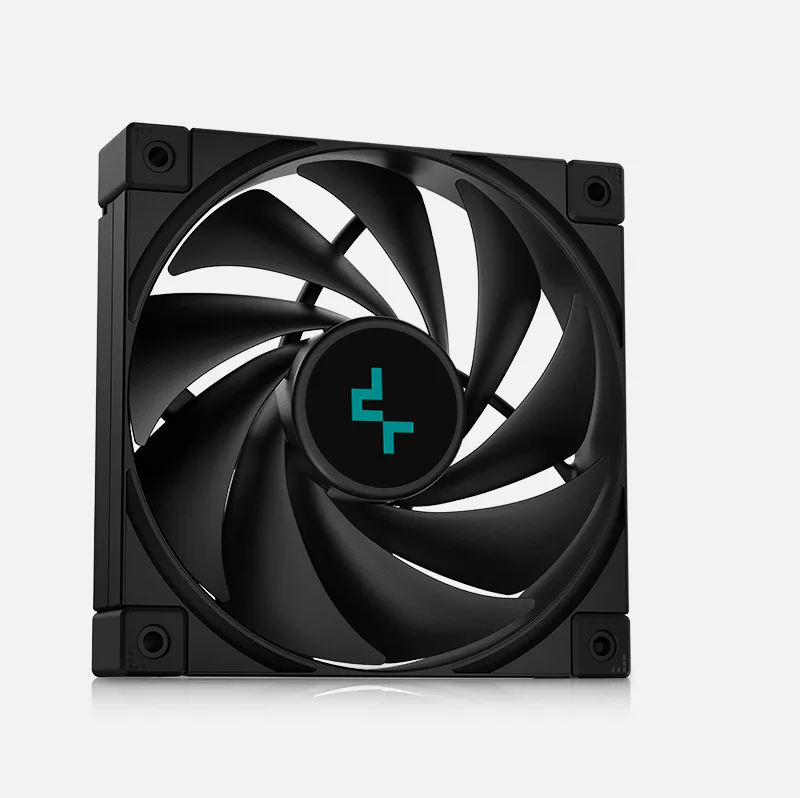

Designed With Precision

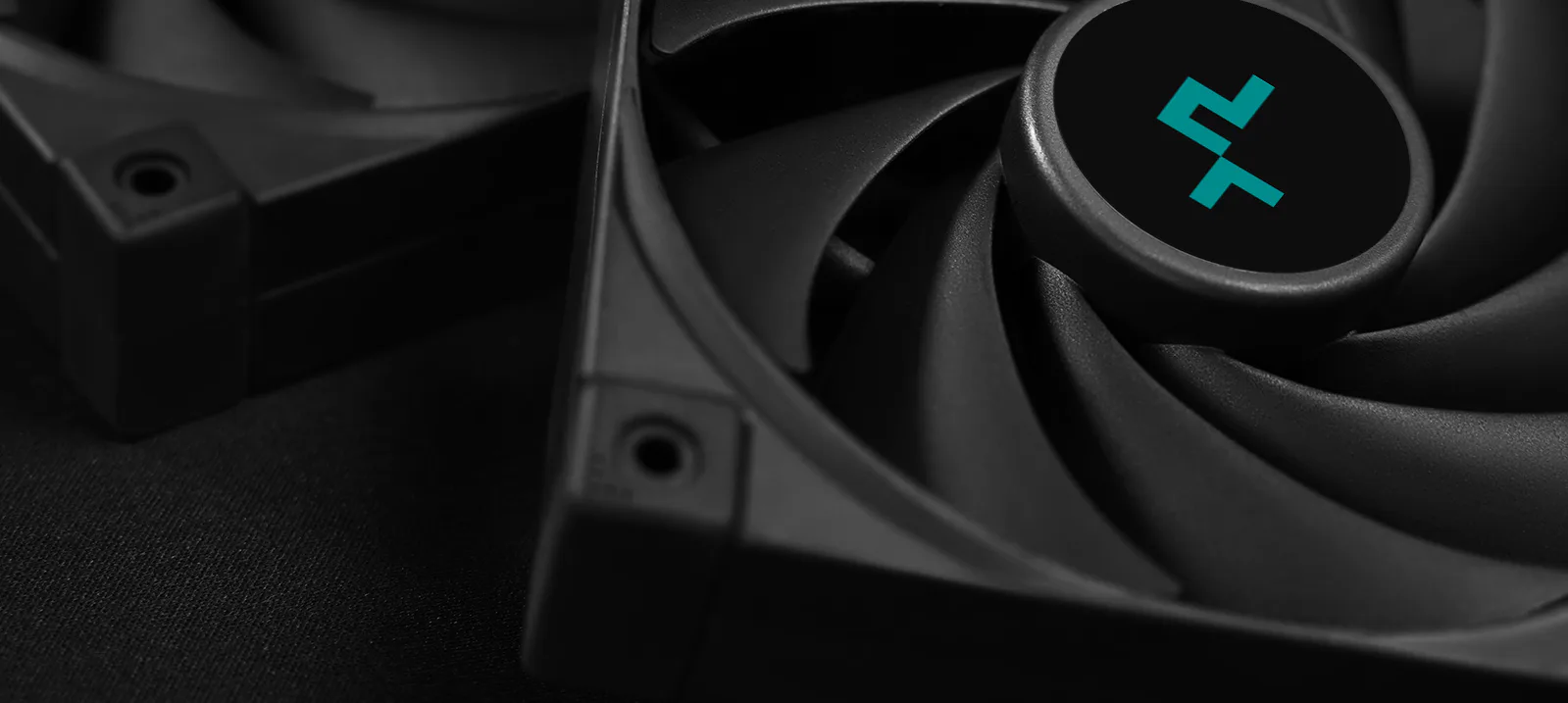

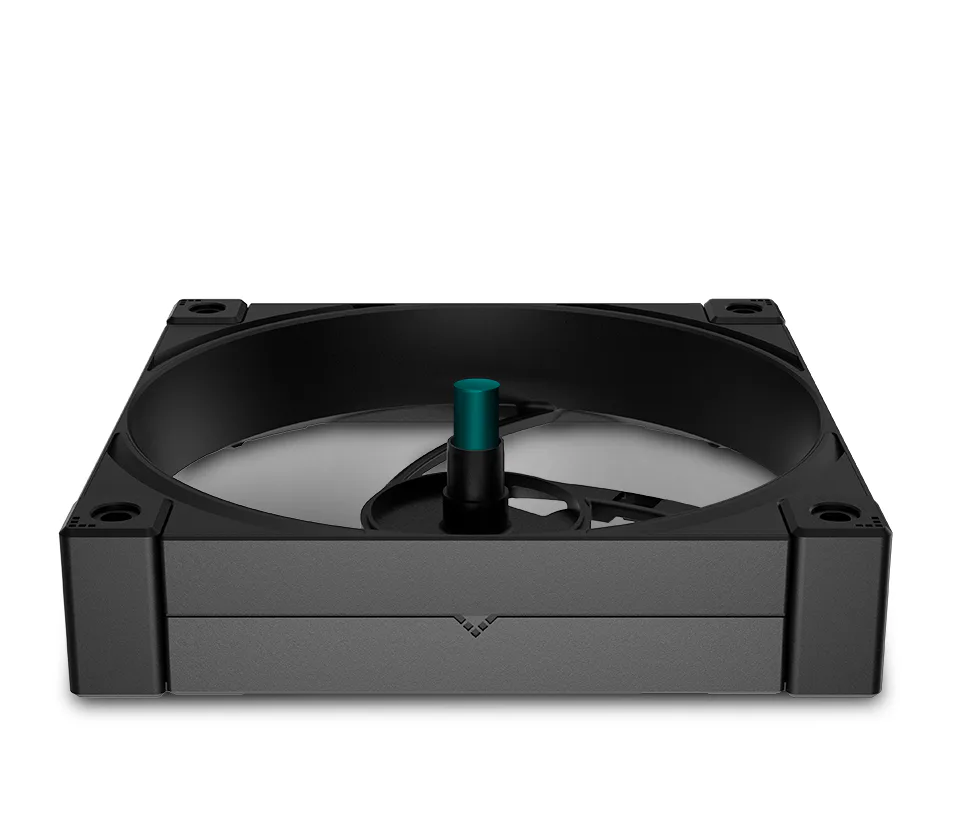

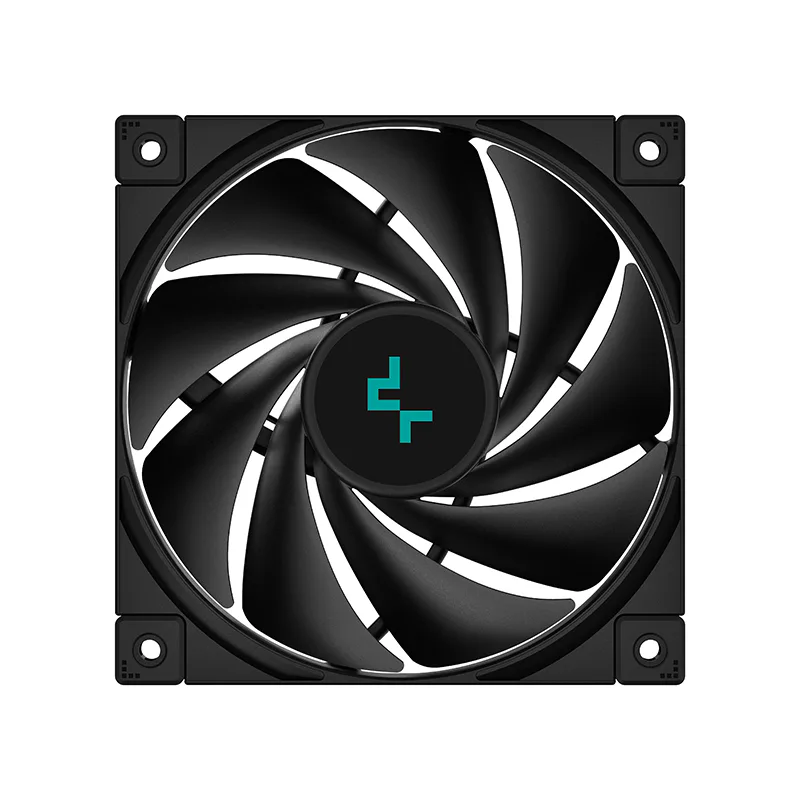

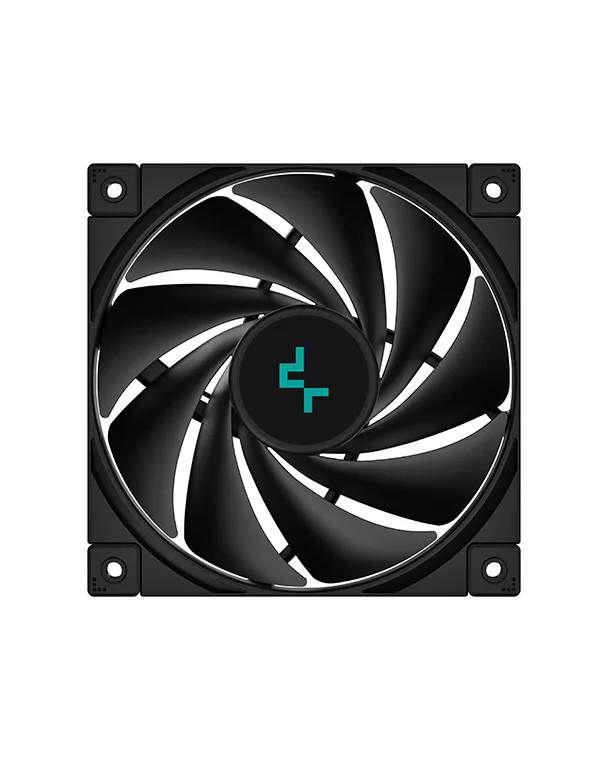

Carefully constructed and tested to enhance static pressure and concentrate airflow for outstanding cooling performance on any mounting application including cooler heat sinks, radiators, and case fan configurations. The narrow frame bezel and wide fan blade provides increased surface area to deliver higher efficiency.

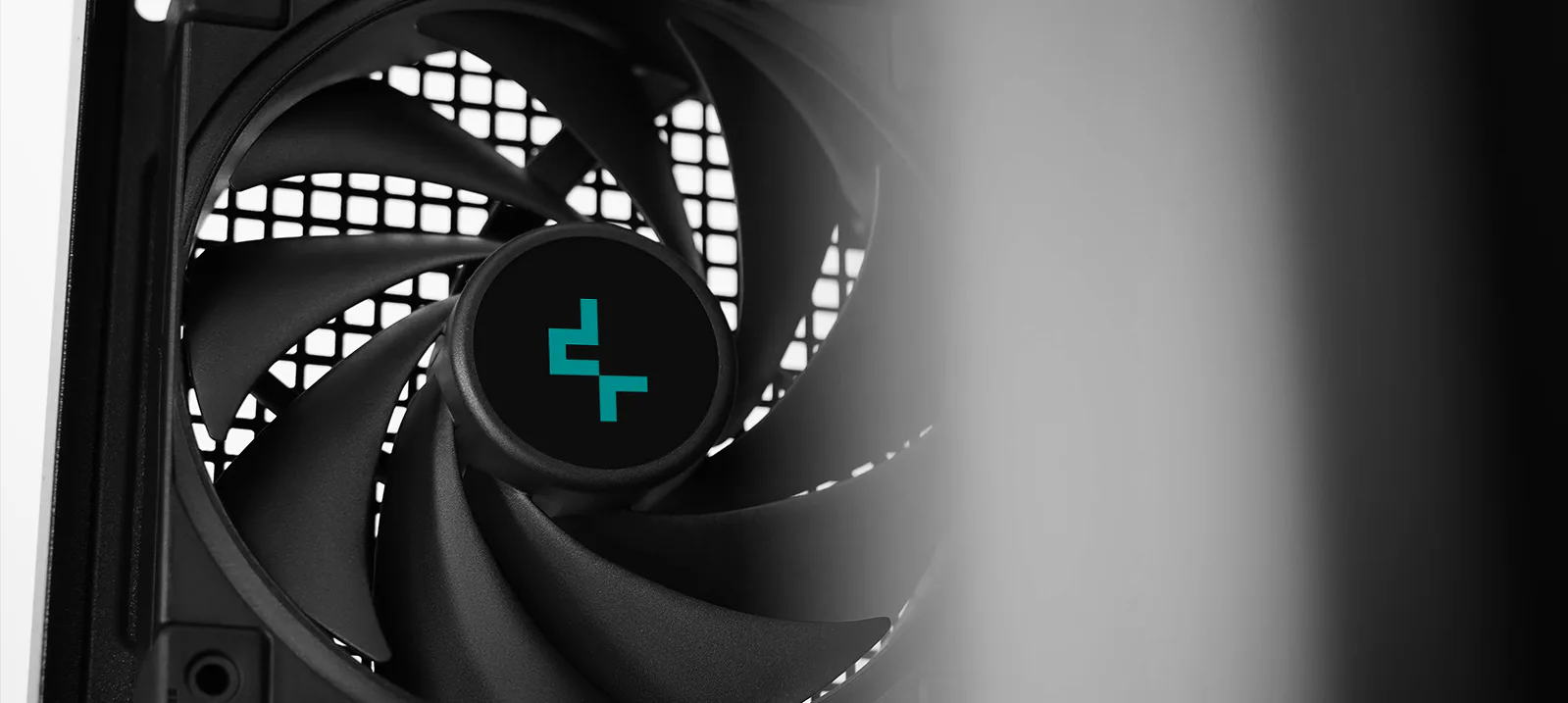

Elite Cooling
Extremely efficient with a PWM range up to 1850RPM that maximizes air pressure and airflow for impressive cooling results while offering dynamic balance between high performance and low-noise operation.
500-1850 RPM
Dynamic PWM Range
2.19 mmAq
Max Static Pressure
68.99 CFM
Max Airflow
Super Silent
Maxing out at just 28dbA under full load, the extremely silent FK120 fan is exceptionally designed for quiet noise levels. The fluid dynamic bearing provides superior performance and reliable long-term stability.

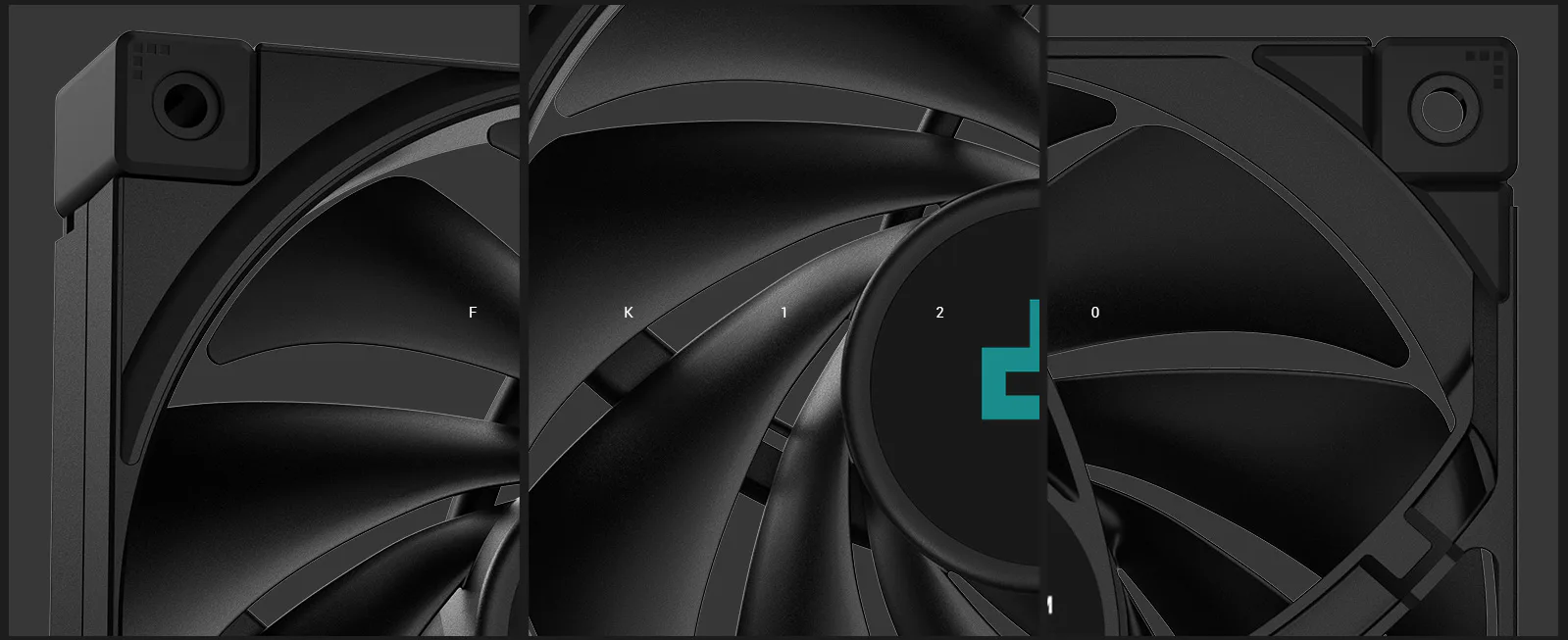

Outstanding Details

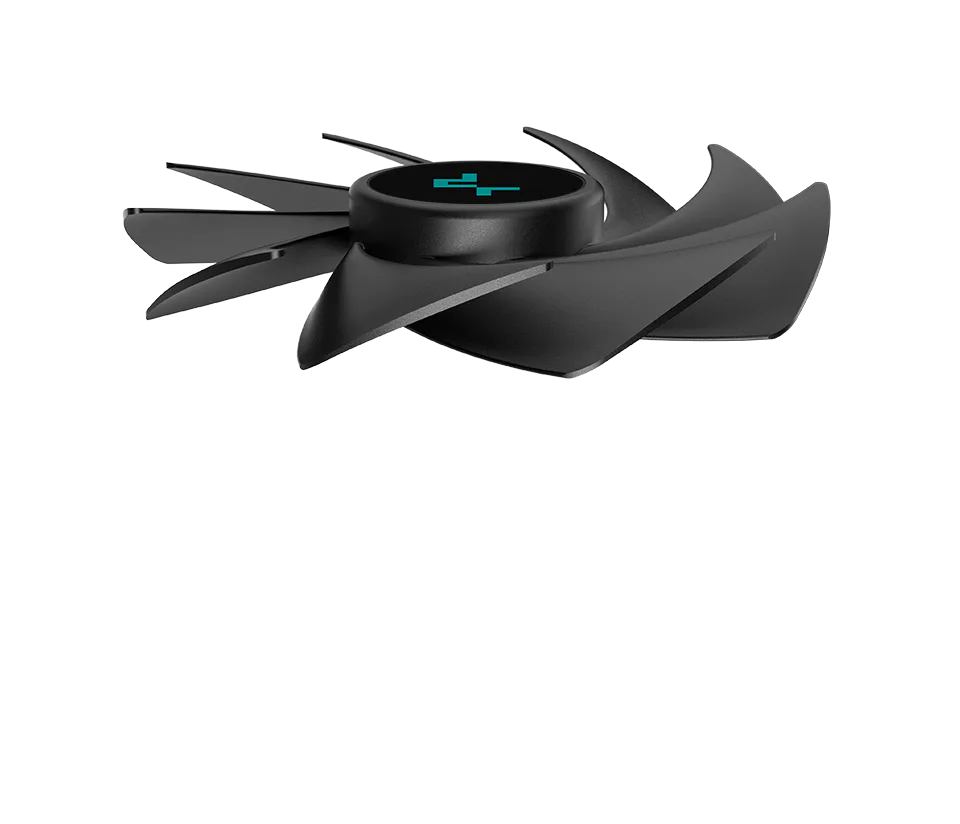

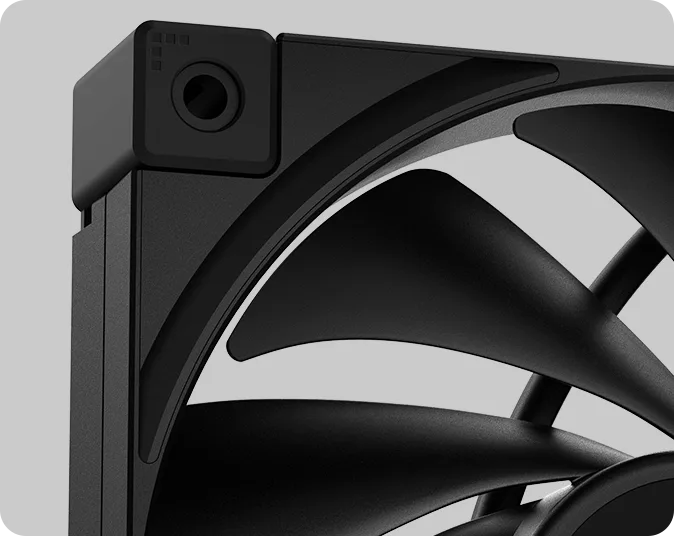

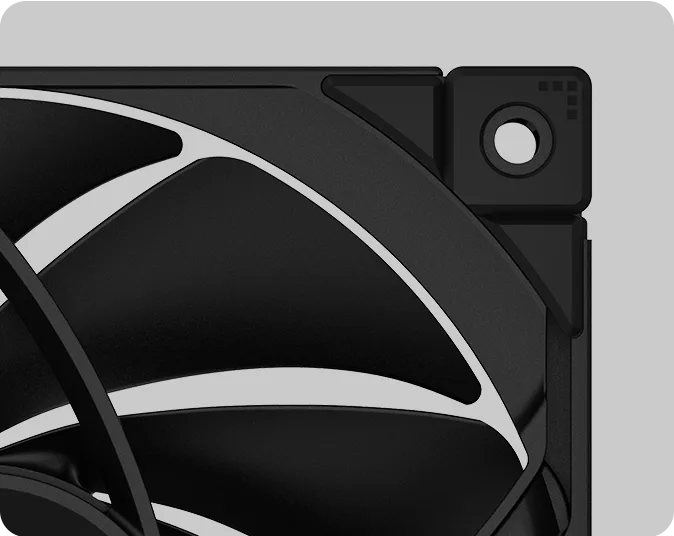

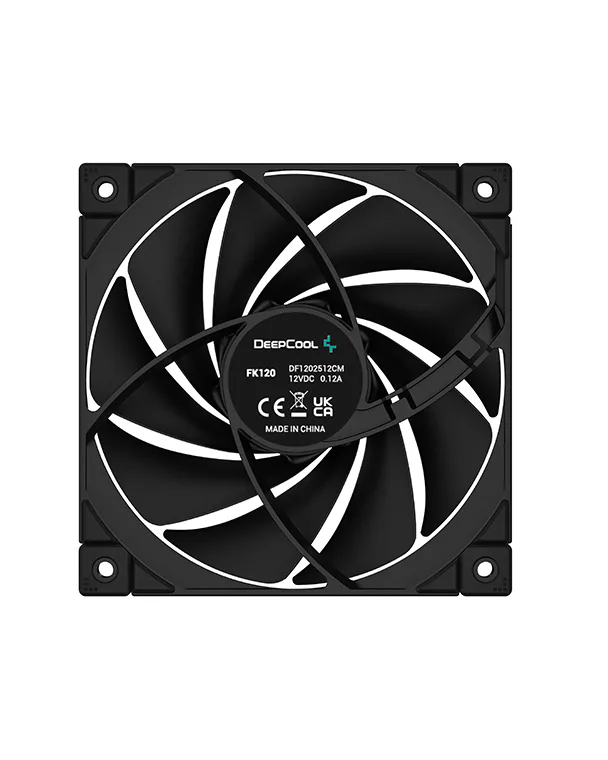

High-quality polybutylene terephthalate (PBT) material is used to ensure increased durability and wear resistance, allowing the fan blades to maintain high tensile strength. Shock-absorbing rubber pads shield the screw mounts to reduce unnecessary vibrations for stable operation.

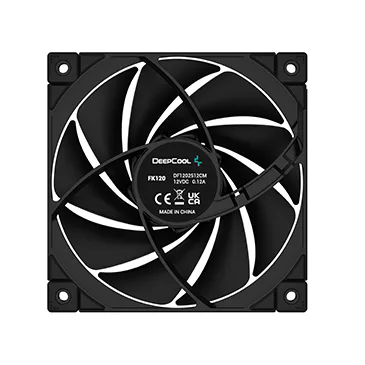

Technical Spec
Fan Dimensions120×120×25 mm(L×W×H)
Net Weight 170 g
Fan Speed 500~1850 RPM±10%
Fan Airflow 68.99 CFM
Fan Air Pressure 2.19 mmAq
Fan Noise ≤28 dB(A)
Fan Connector 4-pin PWM
Bearing Type Fluid Dynamic Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.12 A
Fan Power Consumption 1.44 W
EAN 6933412710622
P/N R-FK120-BKNPF1-G-1
Download
FK120 Manual.pdf
