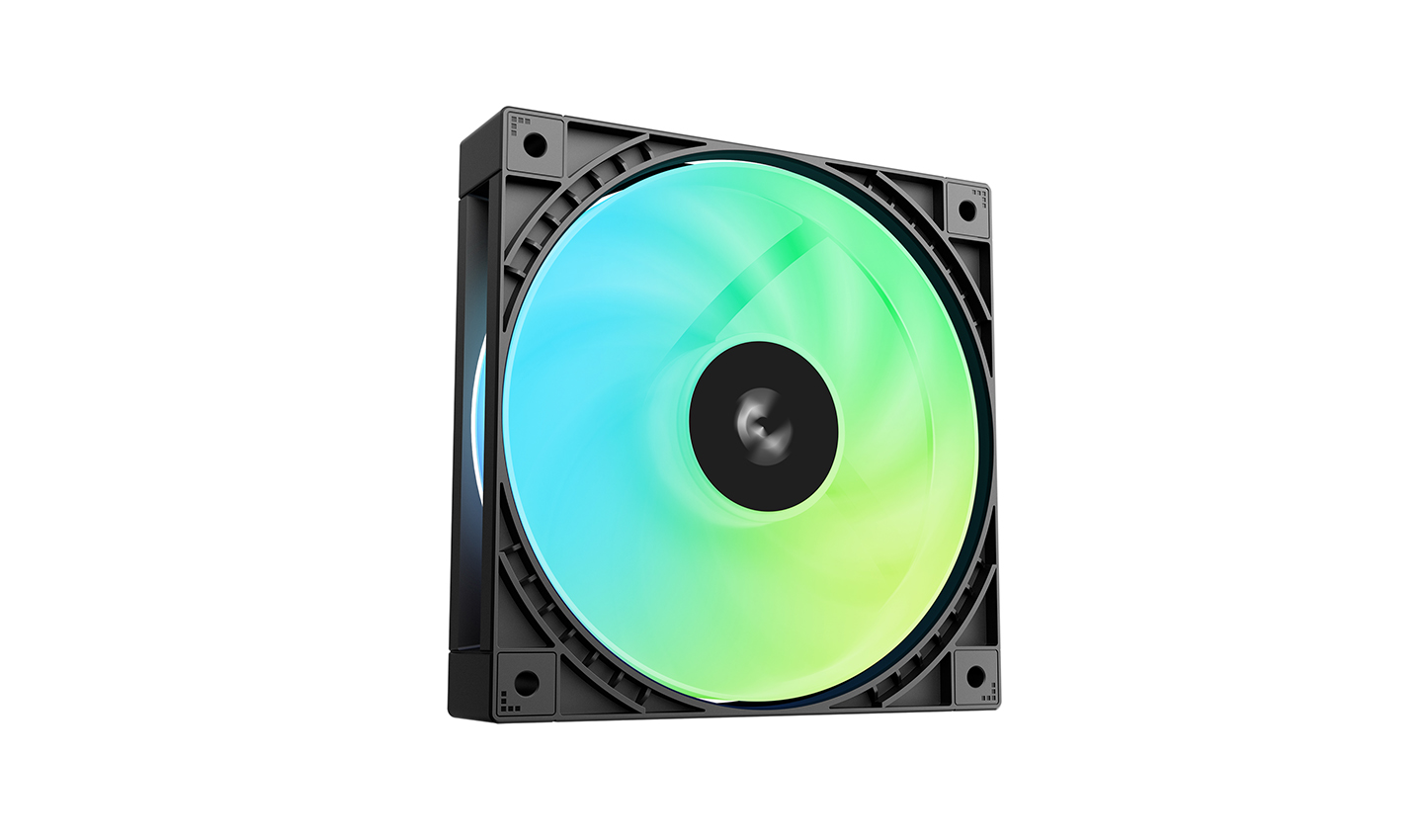

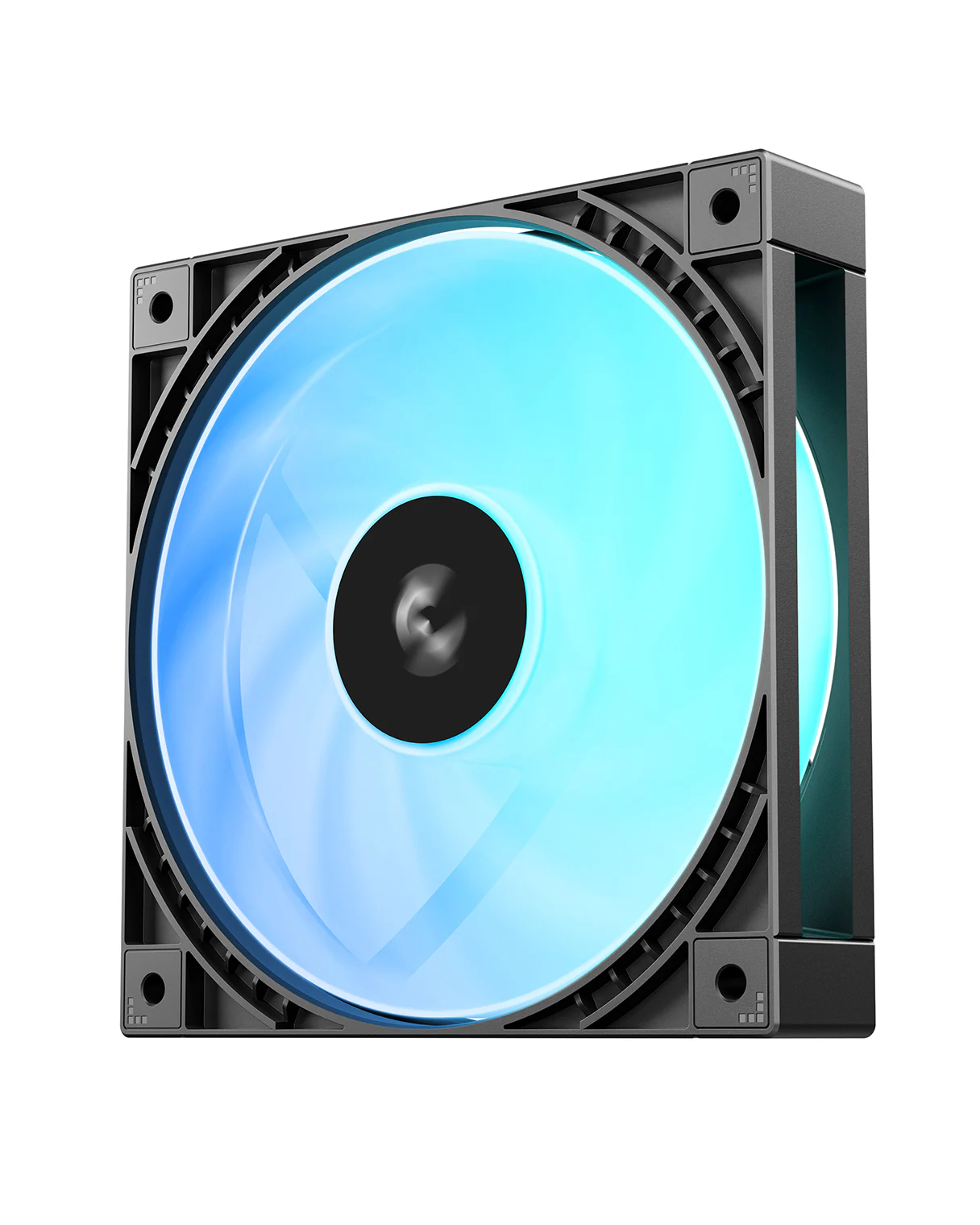

FD12 ARGB V2
The new DeepCool FD12 ARGB V2 fans are the next evolution of the popular FD12 AGRB cooling fans. Revamped with a performance closed fan wheel design and tuned aerodynamic engineering ensuring power without the din.
MODEL
FD12 ARGB V2
GLOW IN SILENCE

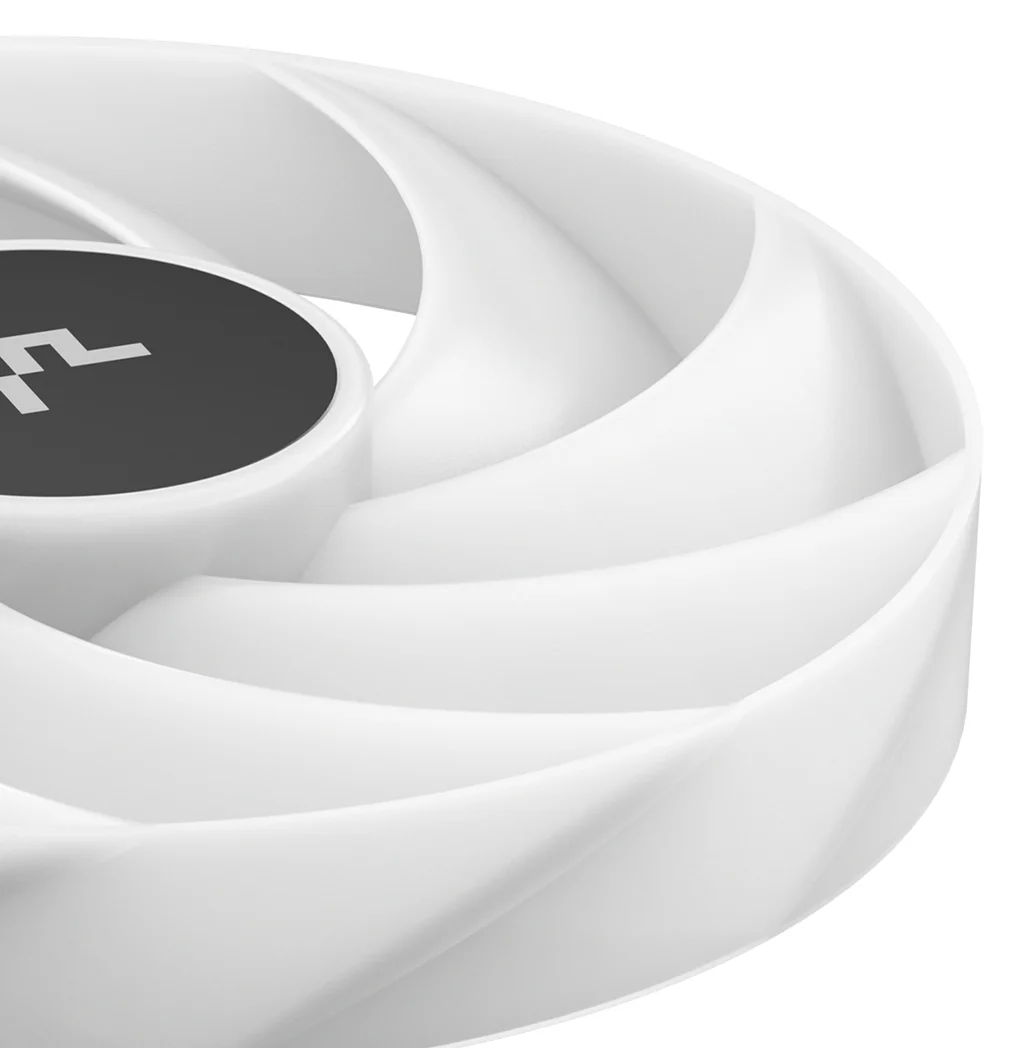

NEXT WAVE OF CLOSED-WHEEL COOLING

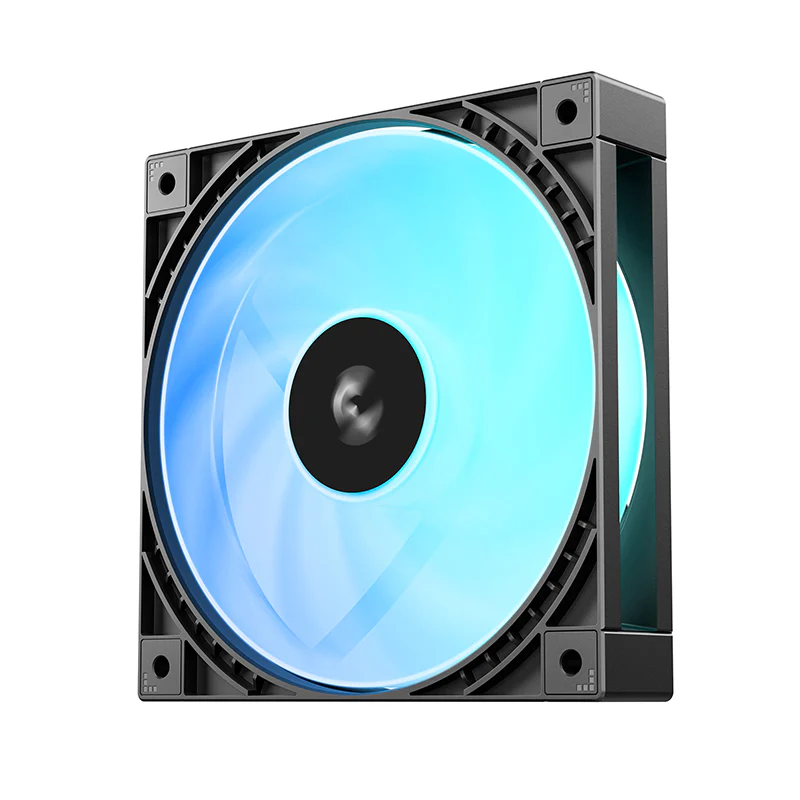

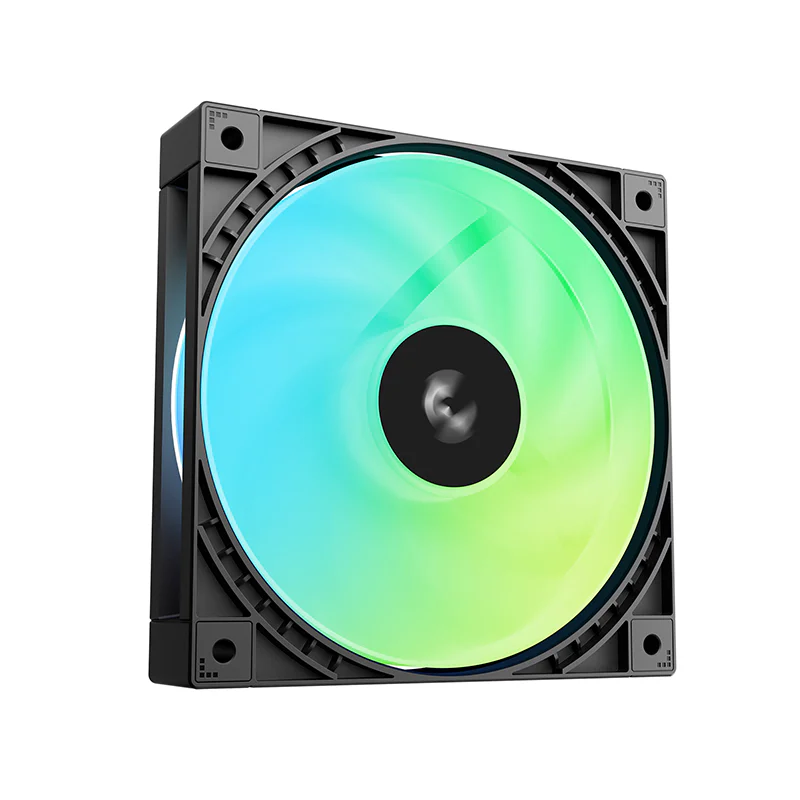

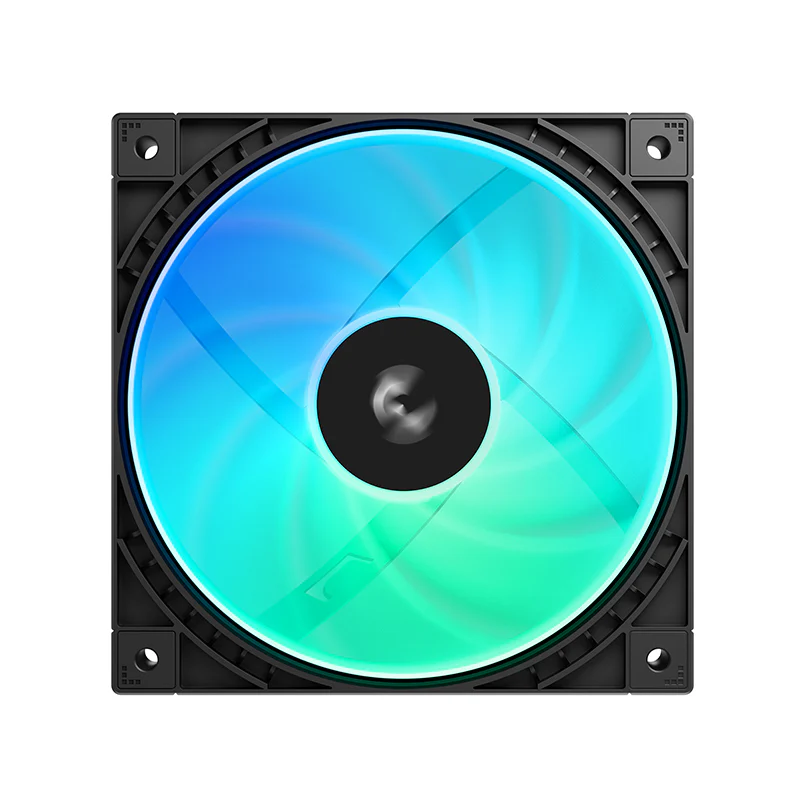

Optimized for performance and acoustics, the FD12 ARGB V2’s all-new closed-wheel ARGB fans enhance airflow and static pressure while keeping noise levels low. Reinforced blade strength improves stability and durability, while the fully enclosed blade-tip ring structure was engineered to match the open frame design, ensuring focused airflow and minimizing dead zones for maximum ventilation.

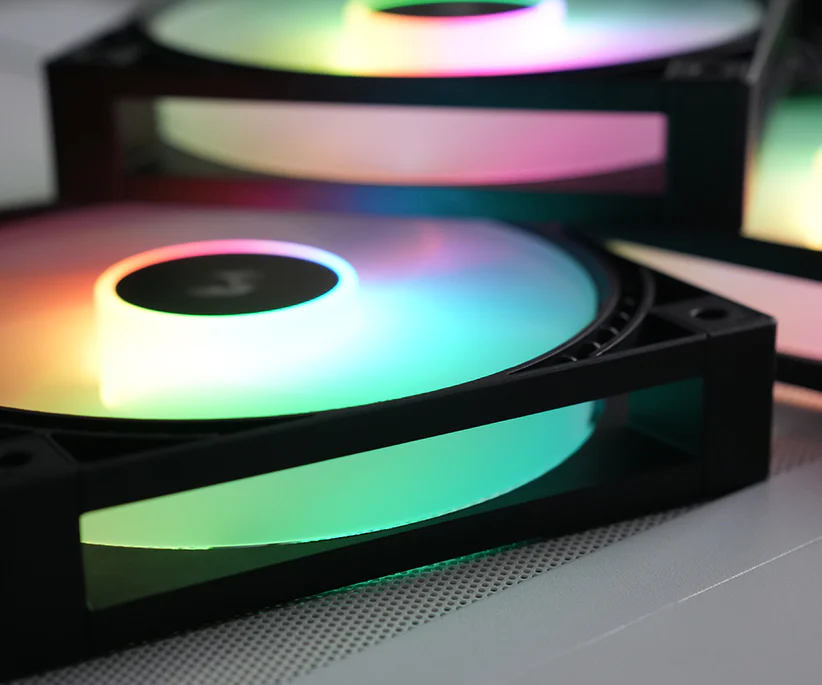

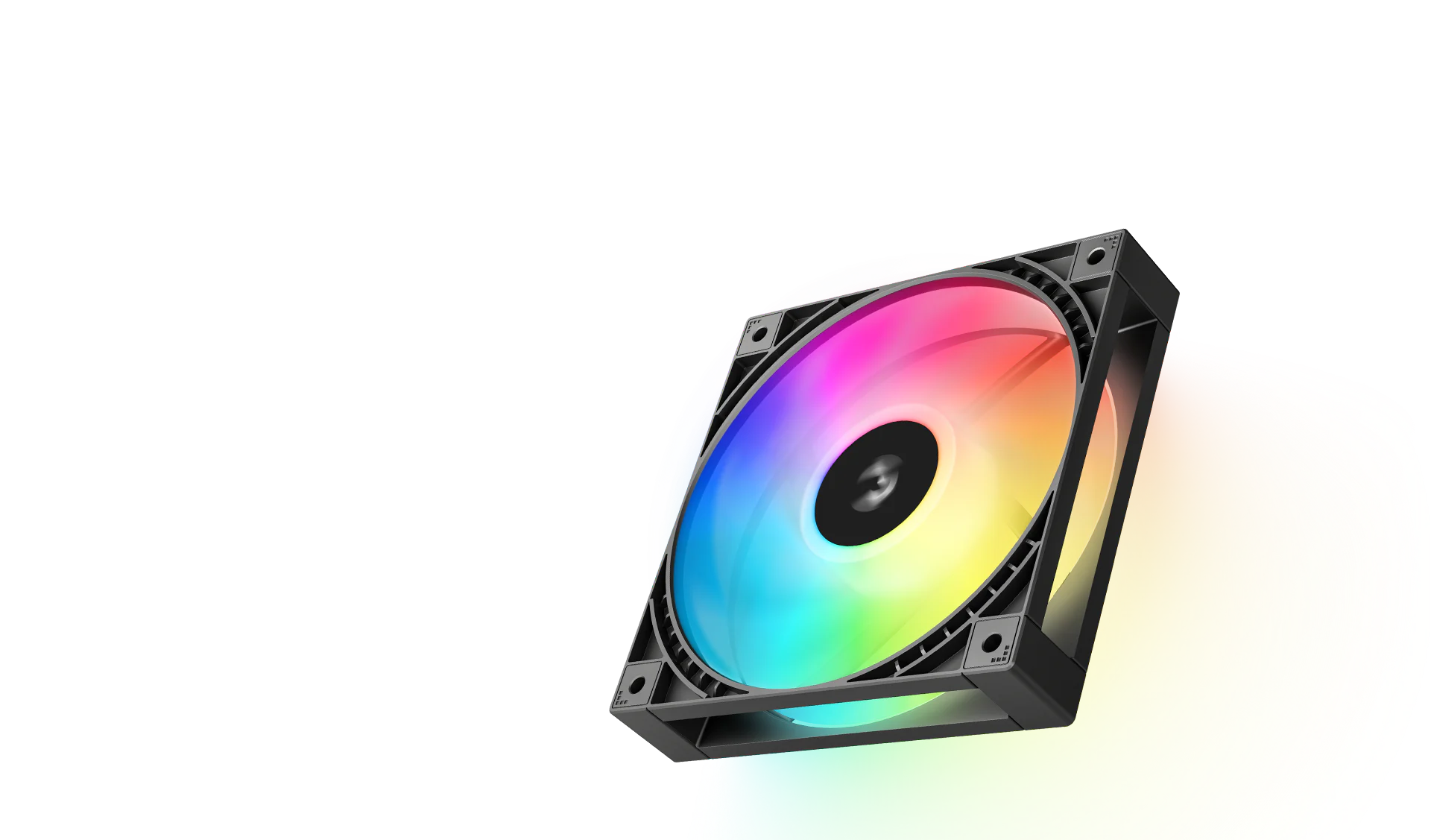

VIVID ARGB LIGHTING

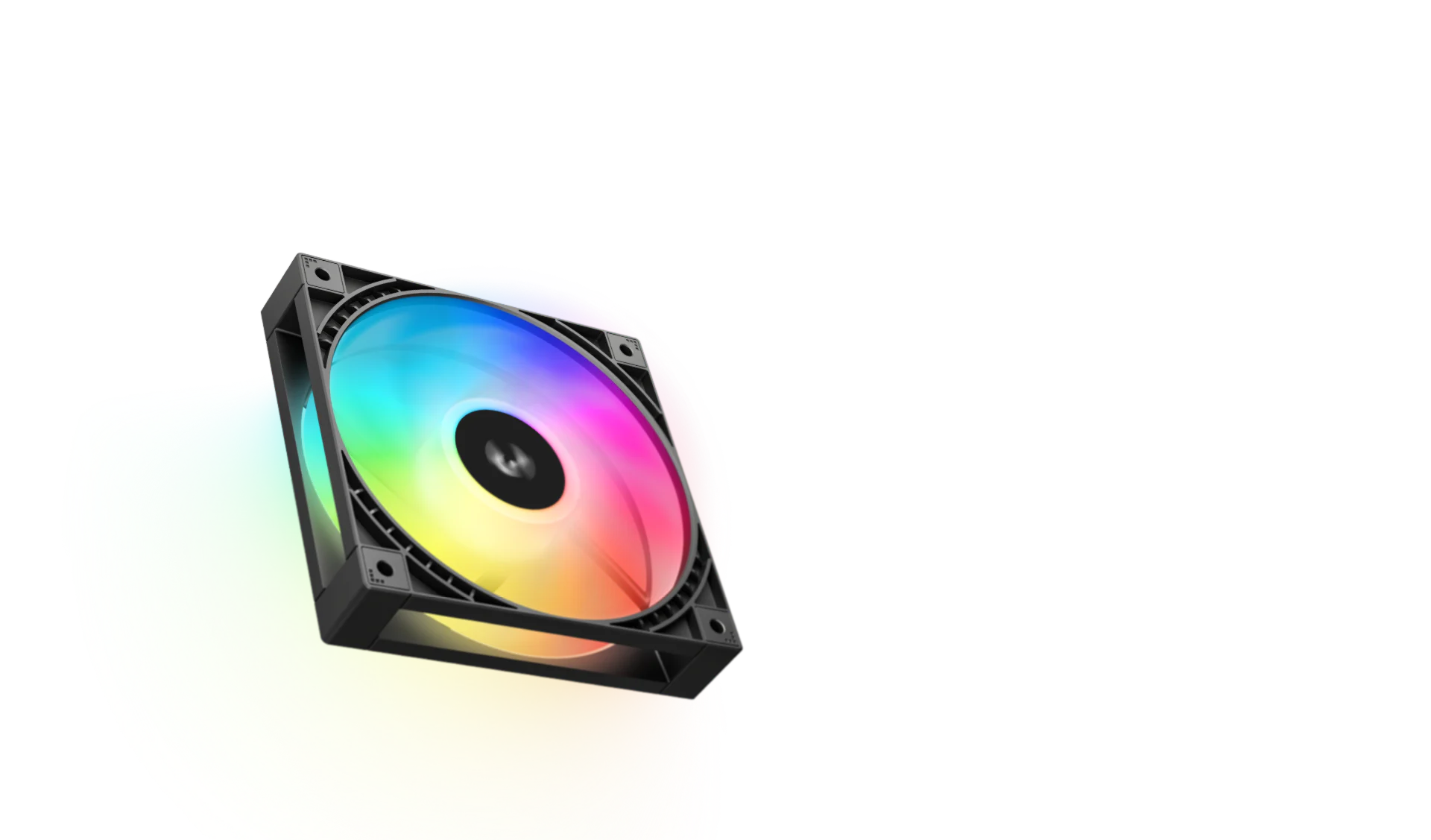

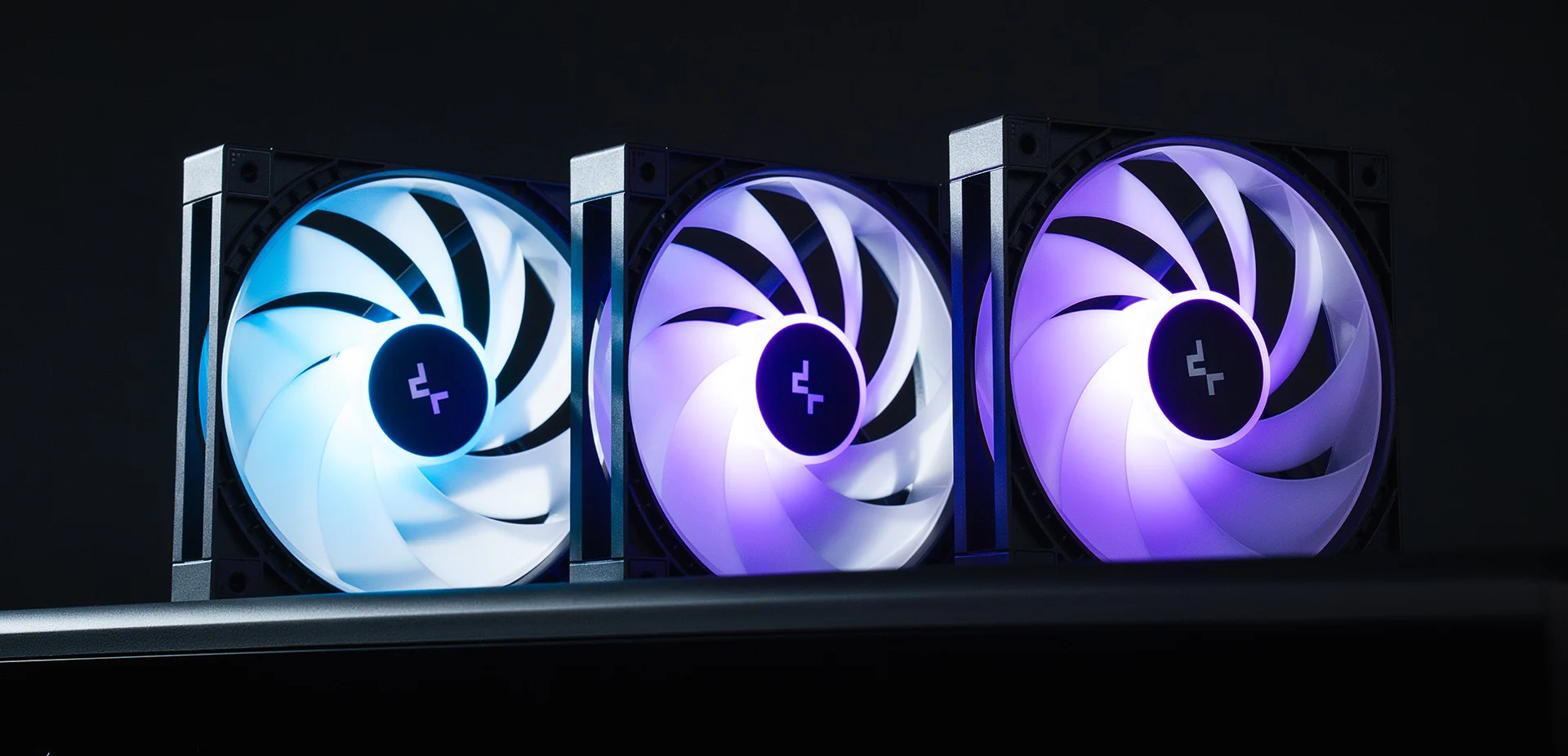

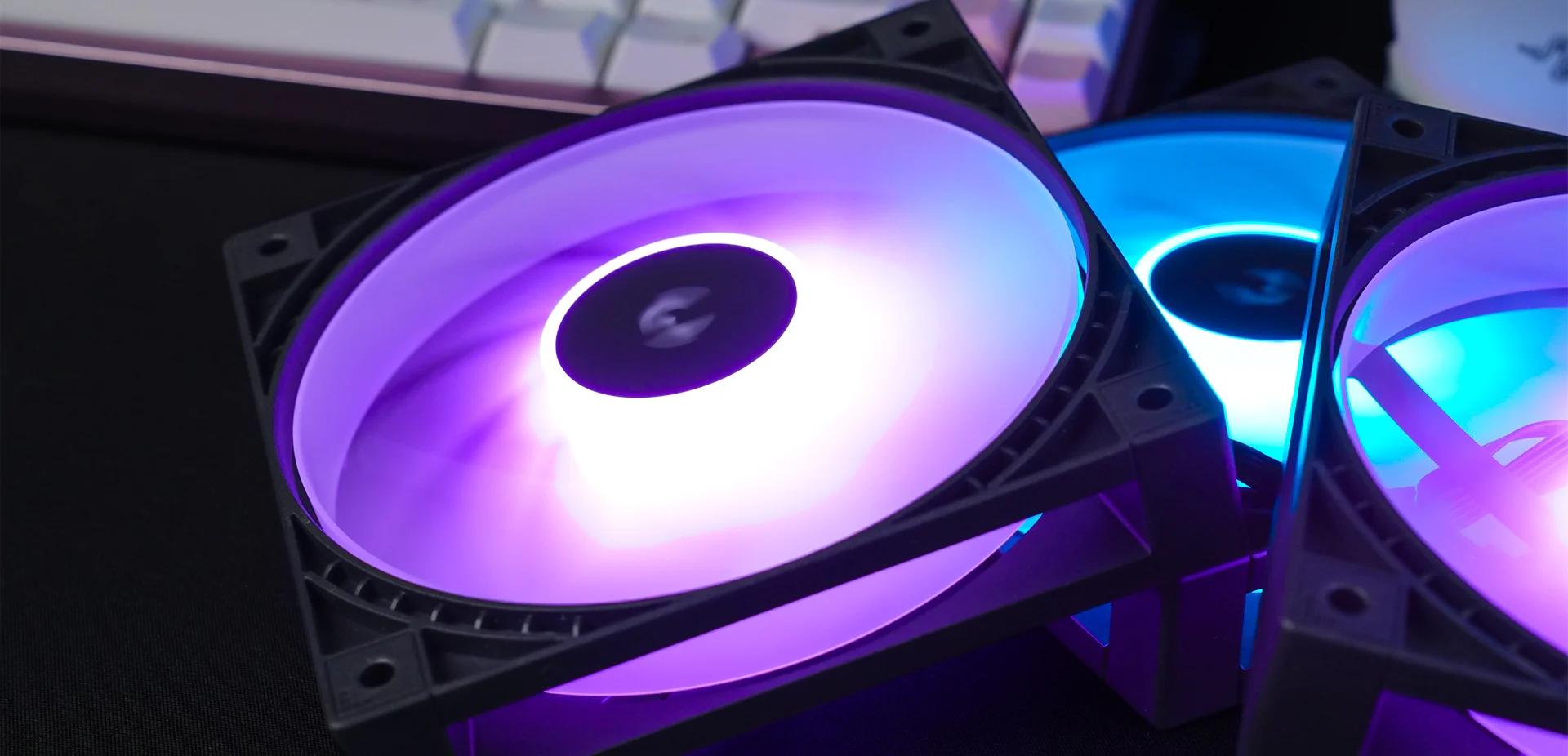

With a fully open frame and nine bright LEDs surround the center hub, the FD12 ARGB V2 delivers stunning lighting that radiates from both the front and sides of each fan.

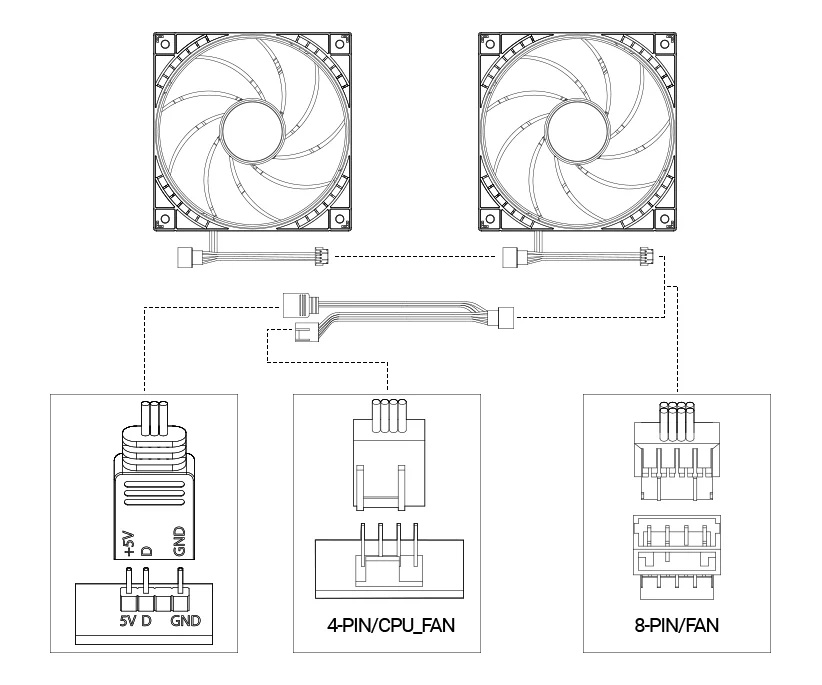

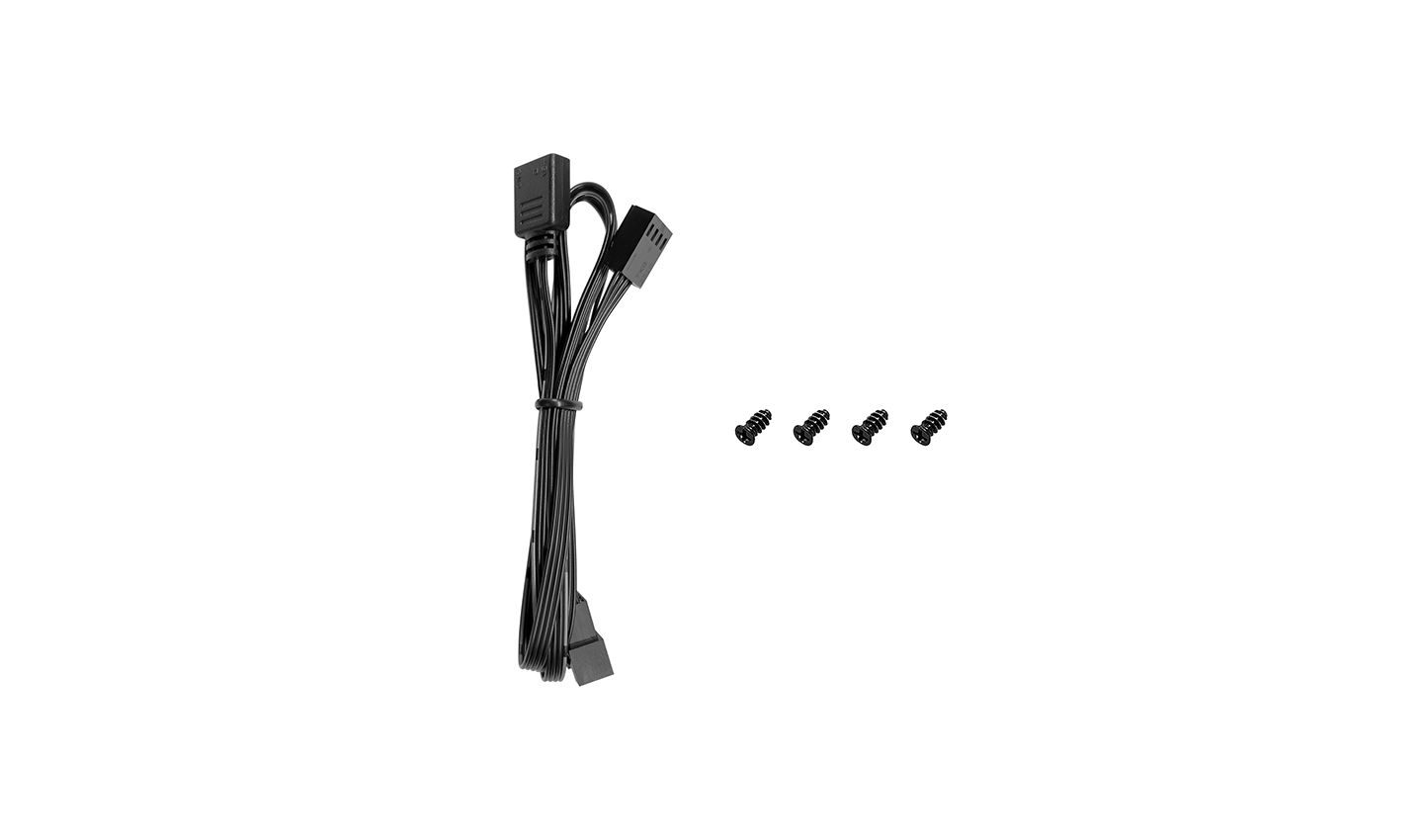

SECURE CONNECTION

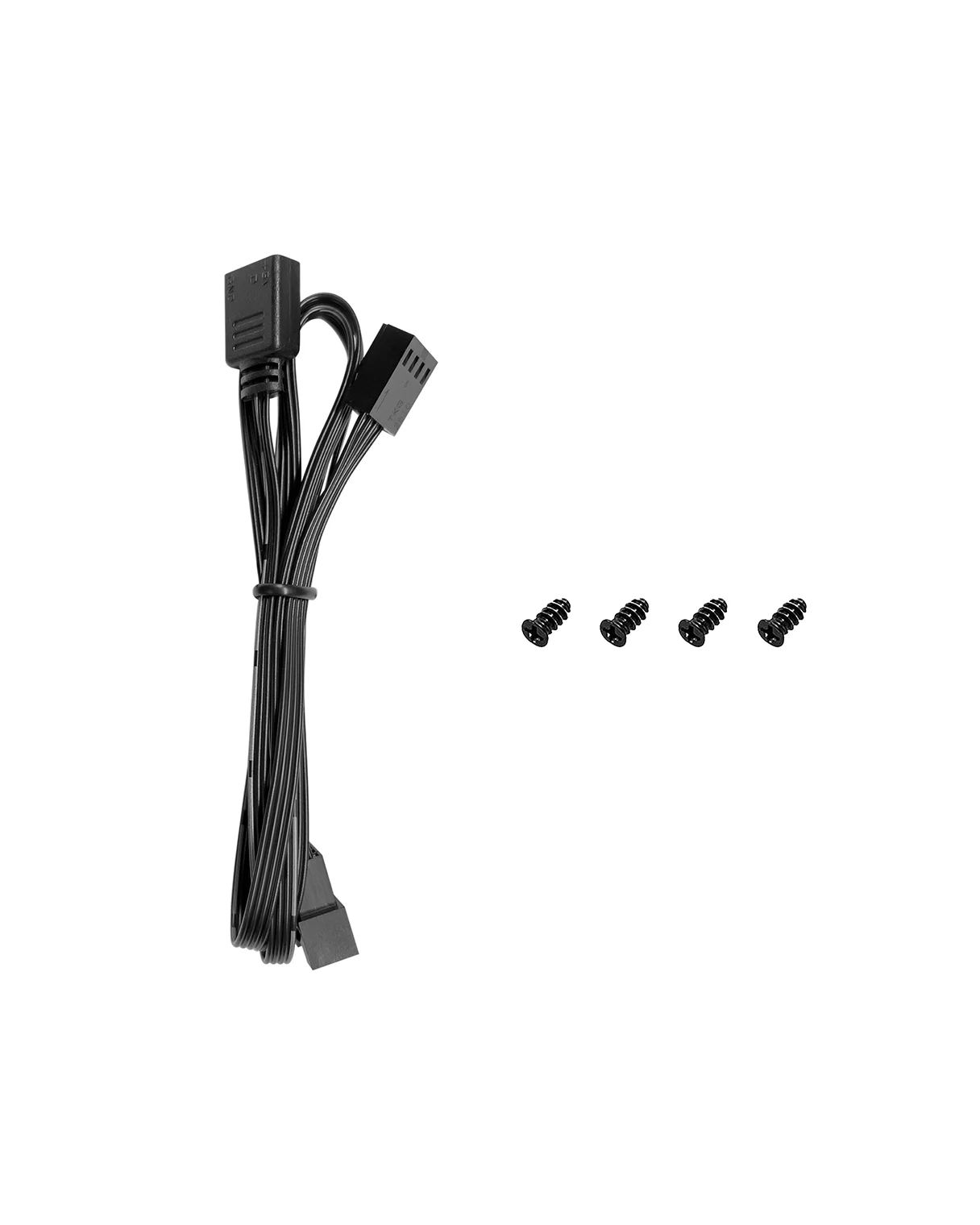

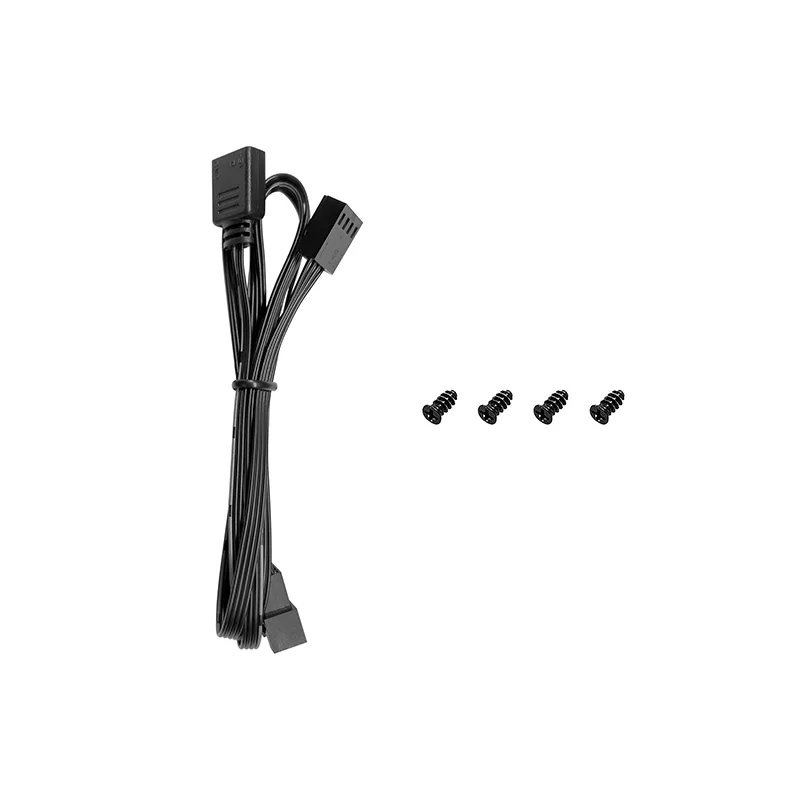

The 8-pin connectors, integrated with PWM and ARGB SYNC, provide a more accessible and safer user installation experience.

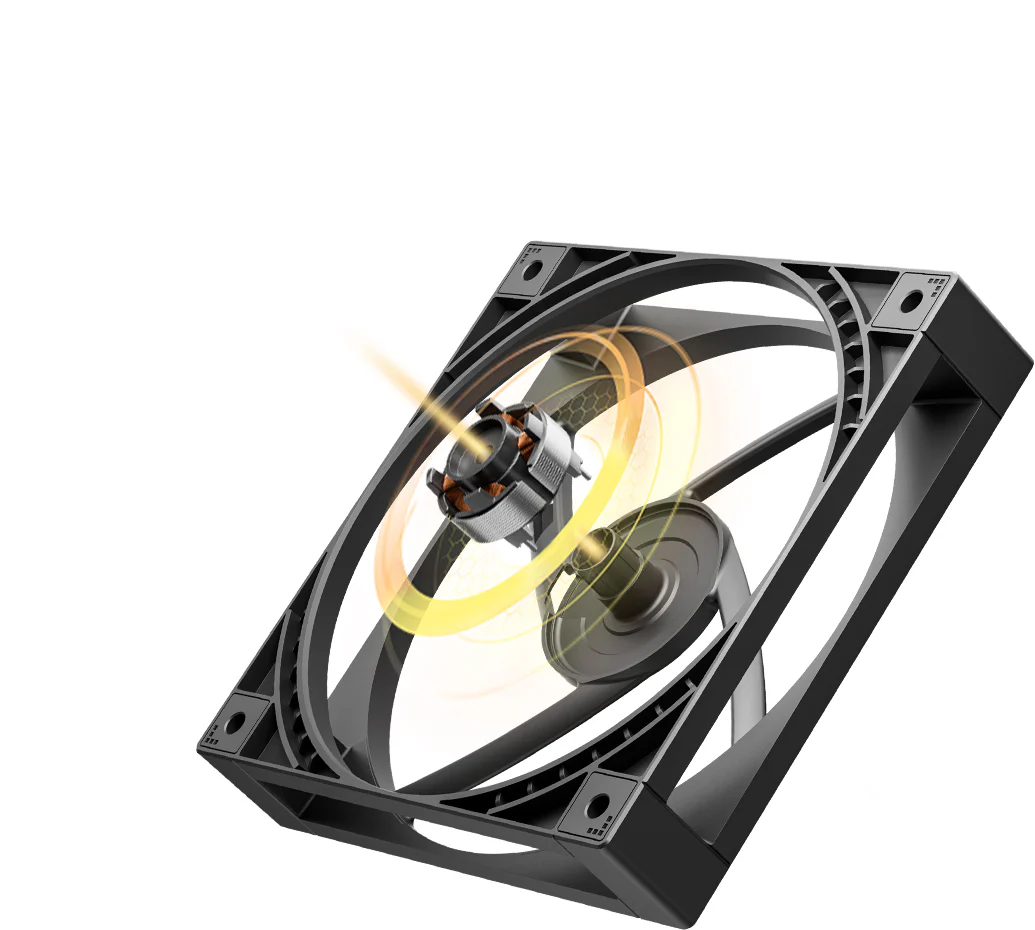

COOLING YOU CAN TRUST
Equipped with a long-life hydro bearing. The FD12 ARGB V2 PWM fans boast exceptional cooling specs while remaining relatively quiet.
500–1900 RPM ±10%
Fan Speed
56.31 CFM
Fan Airflow
1.48 mmAq
Fan Air Pressure
≤26.57 dB(A)
Noise Level In Front
≤24.27 dB(A)
Noise Level On The Side

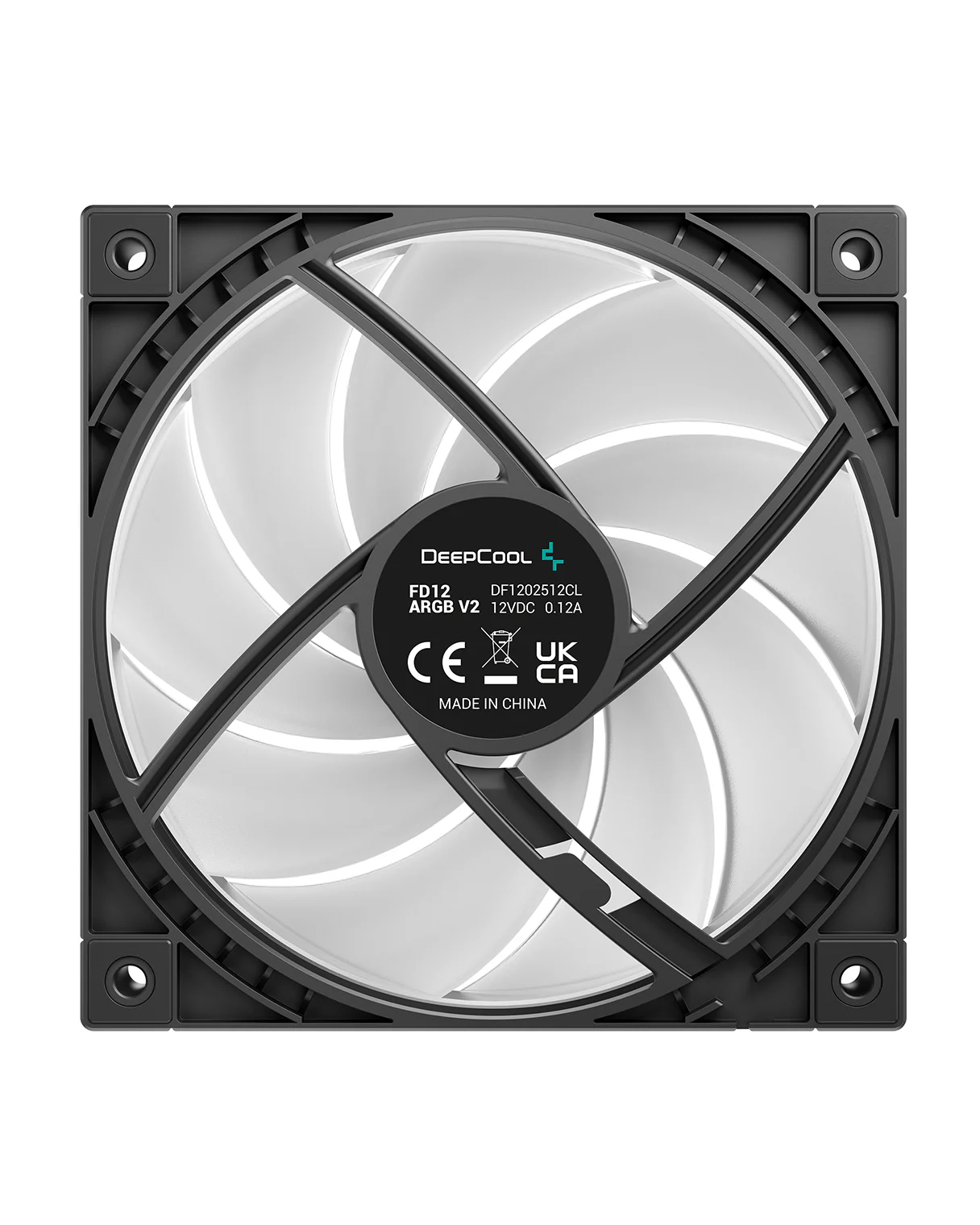

ENHANCED MATERIALS

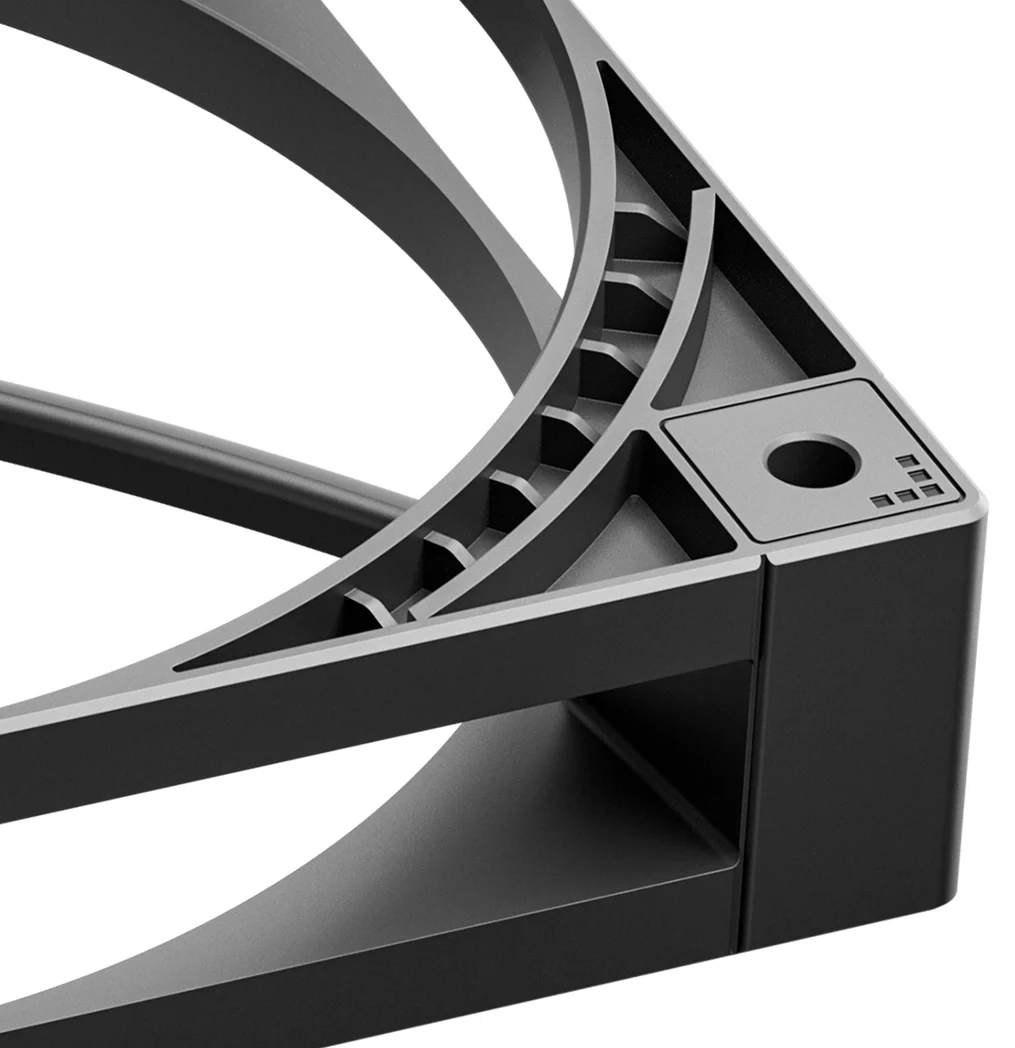

By utilizing an enhanced composite material based on PBT for the frames and polycarbonate for the fan blades, the entire fan assembly is extremely consistent and has a quieter overall sound profile.
FANS YOU CAN DEPEND ON
The quality of these fans will last quite some time, but if anything arises, fear not, as all FD ARGB V2 series fans are backed by DeepCool's limited warranty for three full years.
Technical Spec
Fan Dimensions120×120×25 mm(L×W×H)
Net Weight141g
Fan Speed500~1900 RPM±10%
Fan Airflow56.31 CFM
Fan Air Pressure1.48 mmAq
Noise level in front≤26.57 dB(A)
Noise level on the side≤24.27 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.12 A
Fan Power Consumption1.44 W
LED TypeAddressable RGB LED
LED Connector3-pin(+5V-D-G)
LED Rated Voltage5 VDC
LED Power Consumption1.70 W
EAN6933412785415
P/NR-FD12ARGBV2-BKAPN1-G
Download
FD12 ARGB V2 Manual.pdf
