CF120 PLUS WH

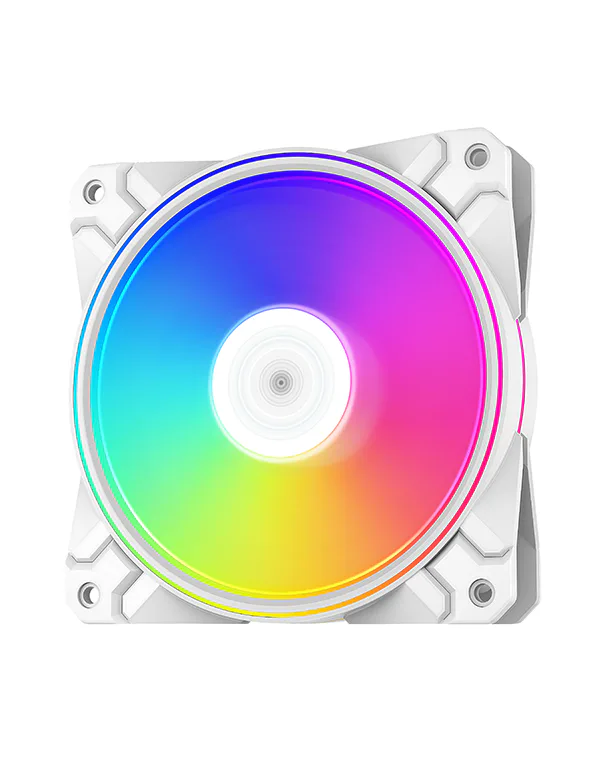

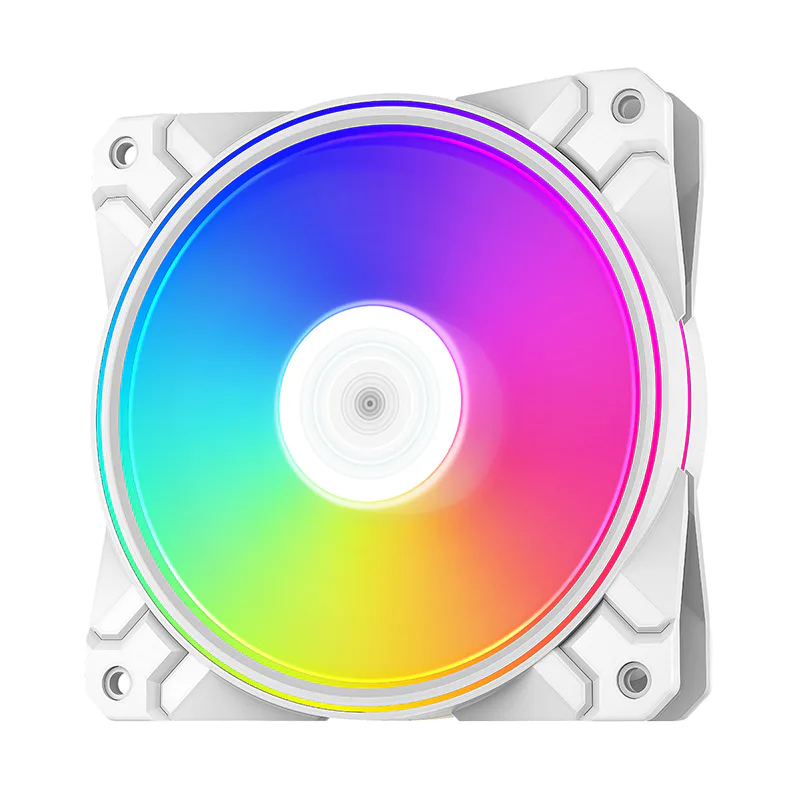

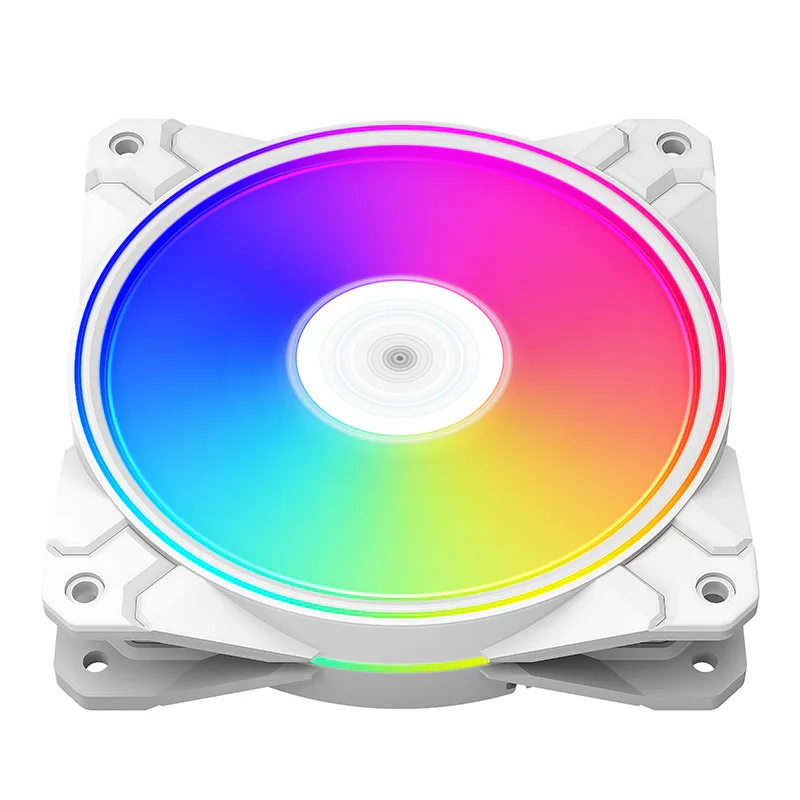

The CF120 PLUS WH case fan fits 18 individual addressable RGB LEDs across the fan blades and housing to create vibrant lighting effects in a layered design.
COLOR
white
MODEL
CF120 PLUS WH

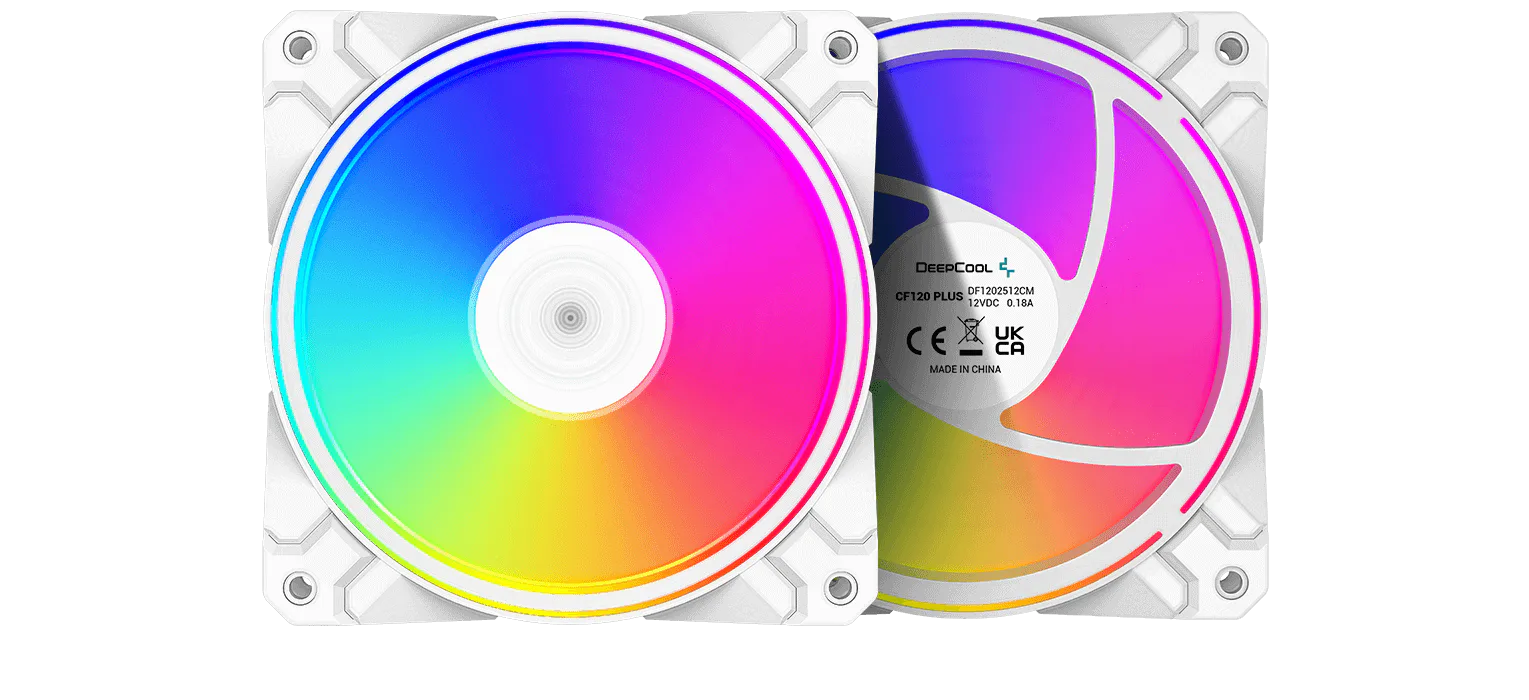

Overflowing Light
LIGHT UP YOUR BUILD

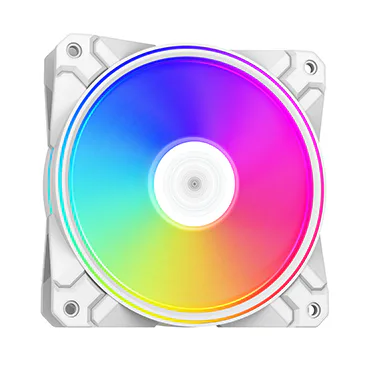

The CF120 PLUS WH case fan fits 18 individual addressable RGB LEDs across the fan blades and housing to create vibrant lighting effects in a layered design.
MOTHERBOARD RGB SYNC
Sync with your motherboard for direct control using RGB software, including Chroma.
MOTHERBOARD RGB SYNC
Sync with your motherboard for direct control using RGB software, including Chroma.
KEEPING THINGS COOL
Maximize cooling efficiency with powerful fan speeds and PWM fan control to quickly lower system temperatures when needed and staying quiet under light loads.
500~1800 RPM±10%
Wide Speed Range
52.5 CFM
Ultra Airflow
≤28.8 dB(A)
Super Silent
Technical Spec
Fan Dimensions120×120×26.5 mm(L×W×H)
Net Weight 186 g
Fan Speed 500~1800 RPM±10%
Fan Airflow 52.5 CFM
Fan Air Pressure 2.08 mmAq
Fan Noise ≤28.8 dB(A)
Fan Connector 4-Pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12VDC
Fan Rated Current 0.18A
Fan Power Consumption 2.16W
LED Type Addressable RGB LED
LED Rated Voltage 5VDC
LED Rated Current 0.63A
LED Power Consumption 3.15W
LED Connector 3-pin（+5V-D-G）
EAN 6933412710592
P/N DP-F12-AR-CF120P-WH
Product Dimension
Download
CF120 PLUS WH Manual.pdf
