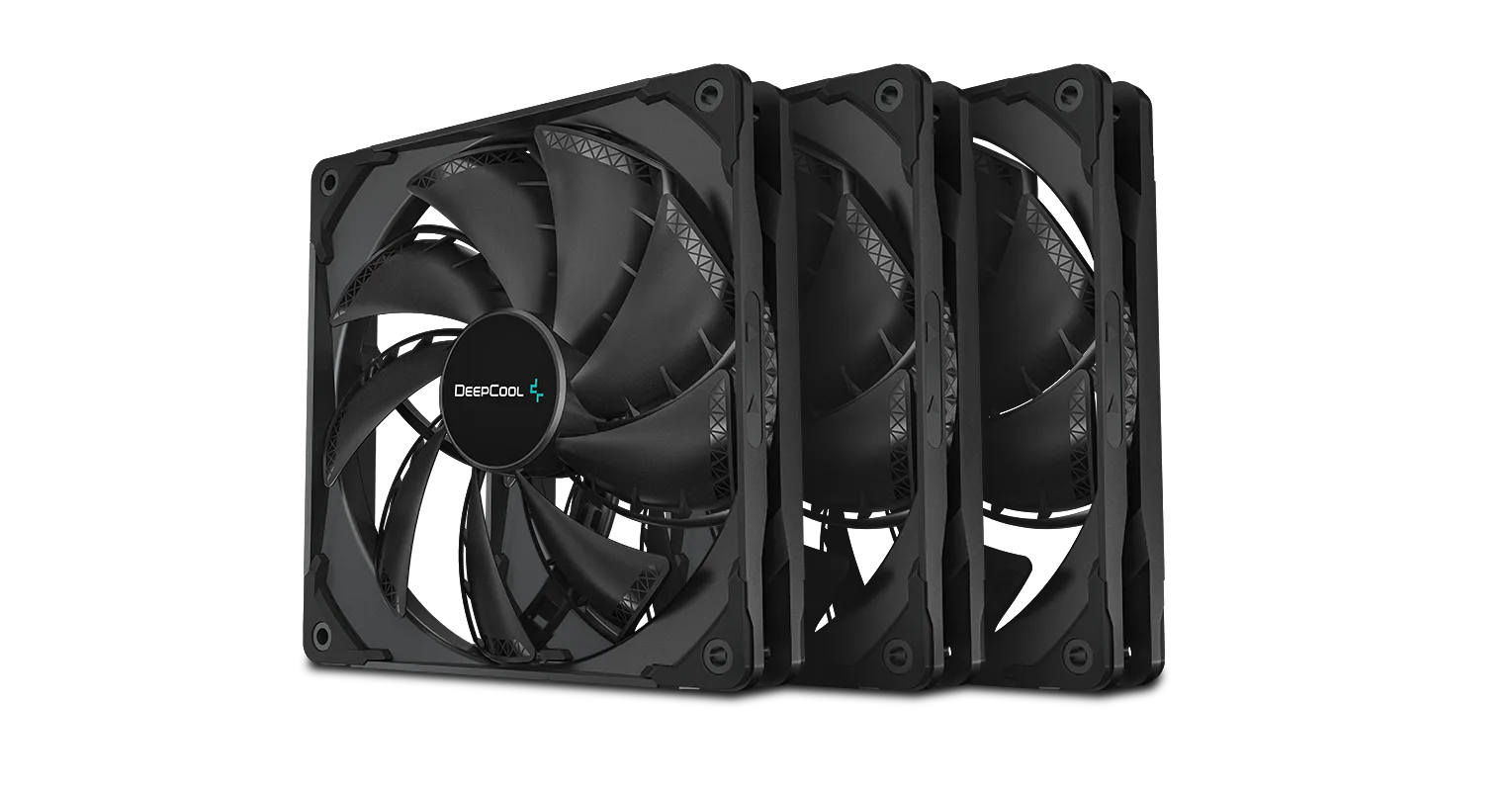

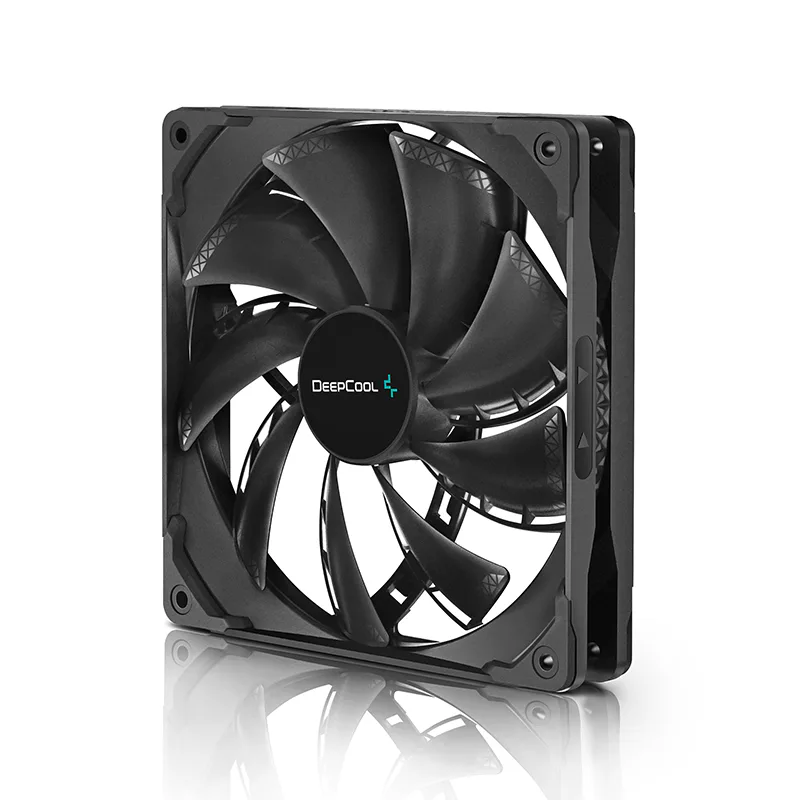

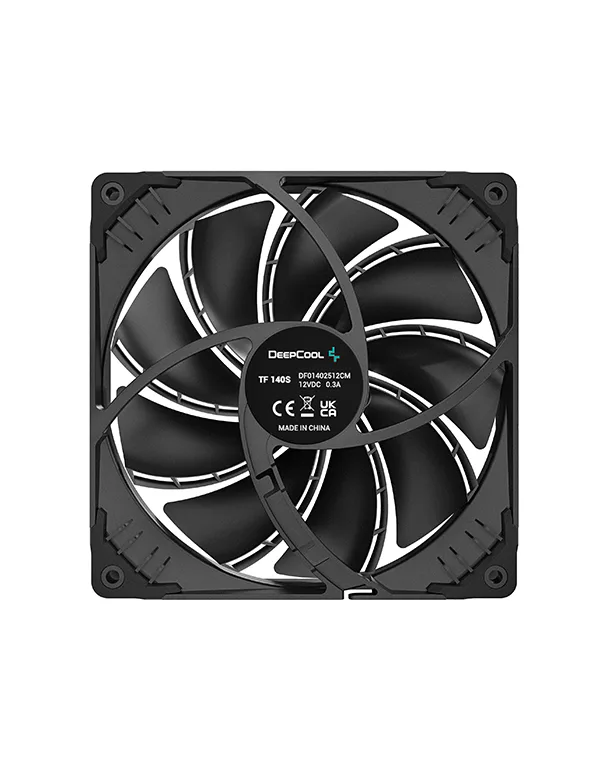

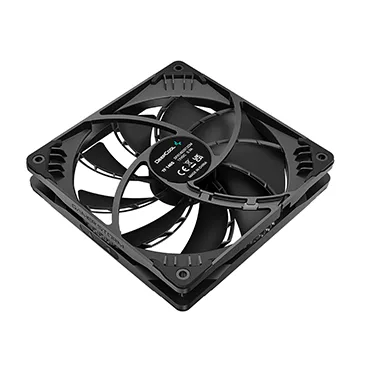

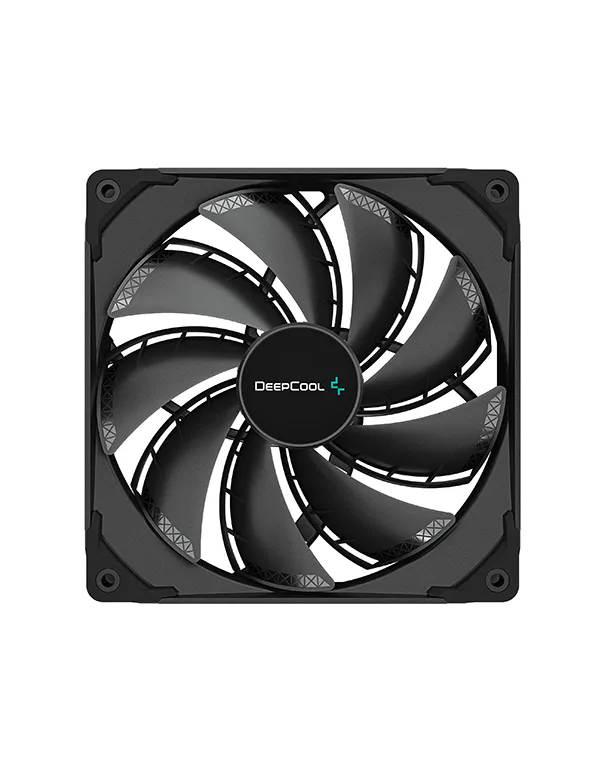

TF140S-3 IN 1

THE BEAST-UNLEASHING RADIATOR FAN

STRONGER PERFORMANCE

TF140S has an extremely high max. airflow of 97.03 CFM, as well as strong max. air pressure of 2.00 mmAq. Installing TF120S can vastly improve the performance of your radiator.

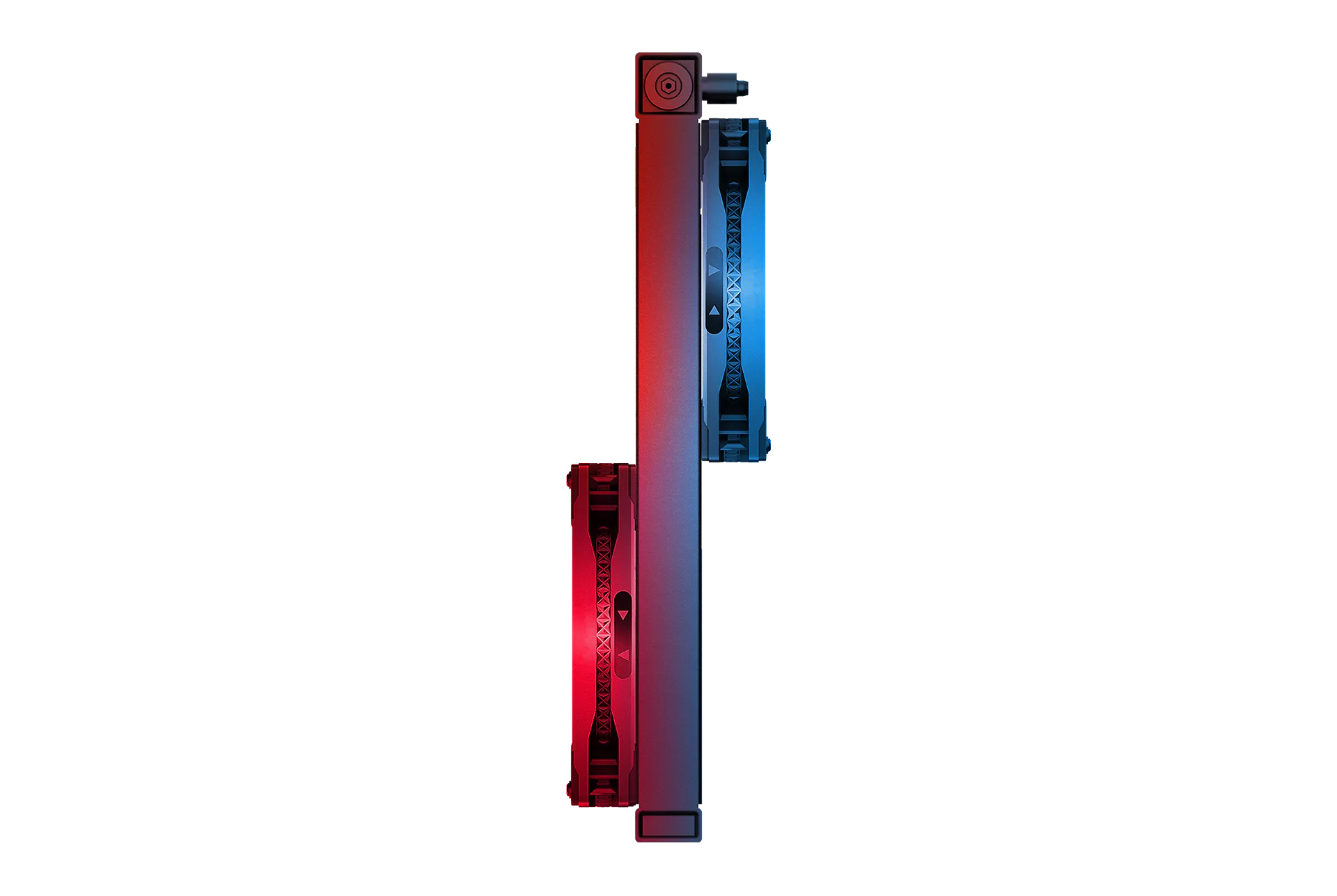

SCIENTIFIC BASIS

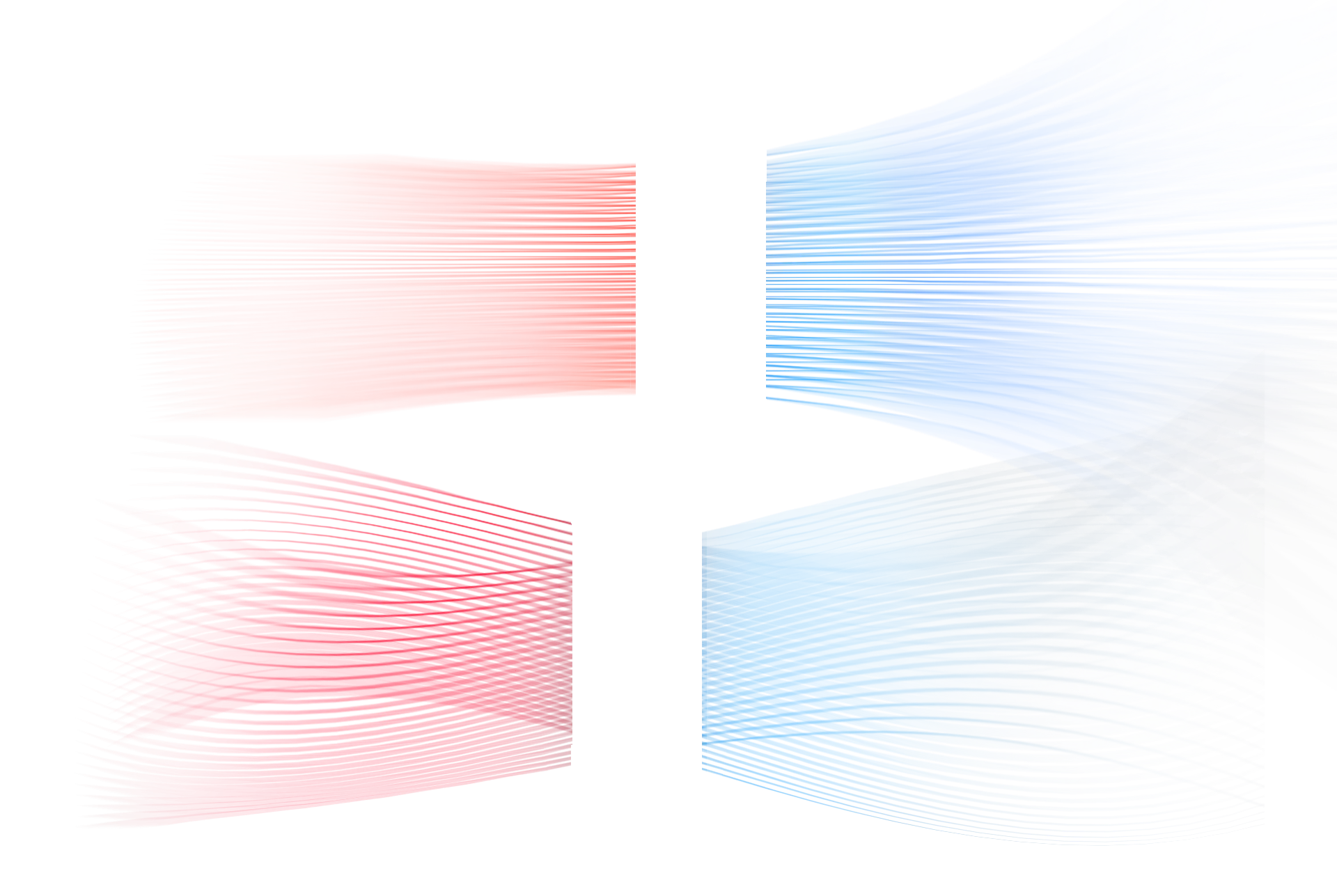

The max. air pressure determines fans’ penetrating power; the max. airflow determines fans’ air transmission ability;
an elevation in both parameters can improve the fans’ performance comprehensively.

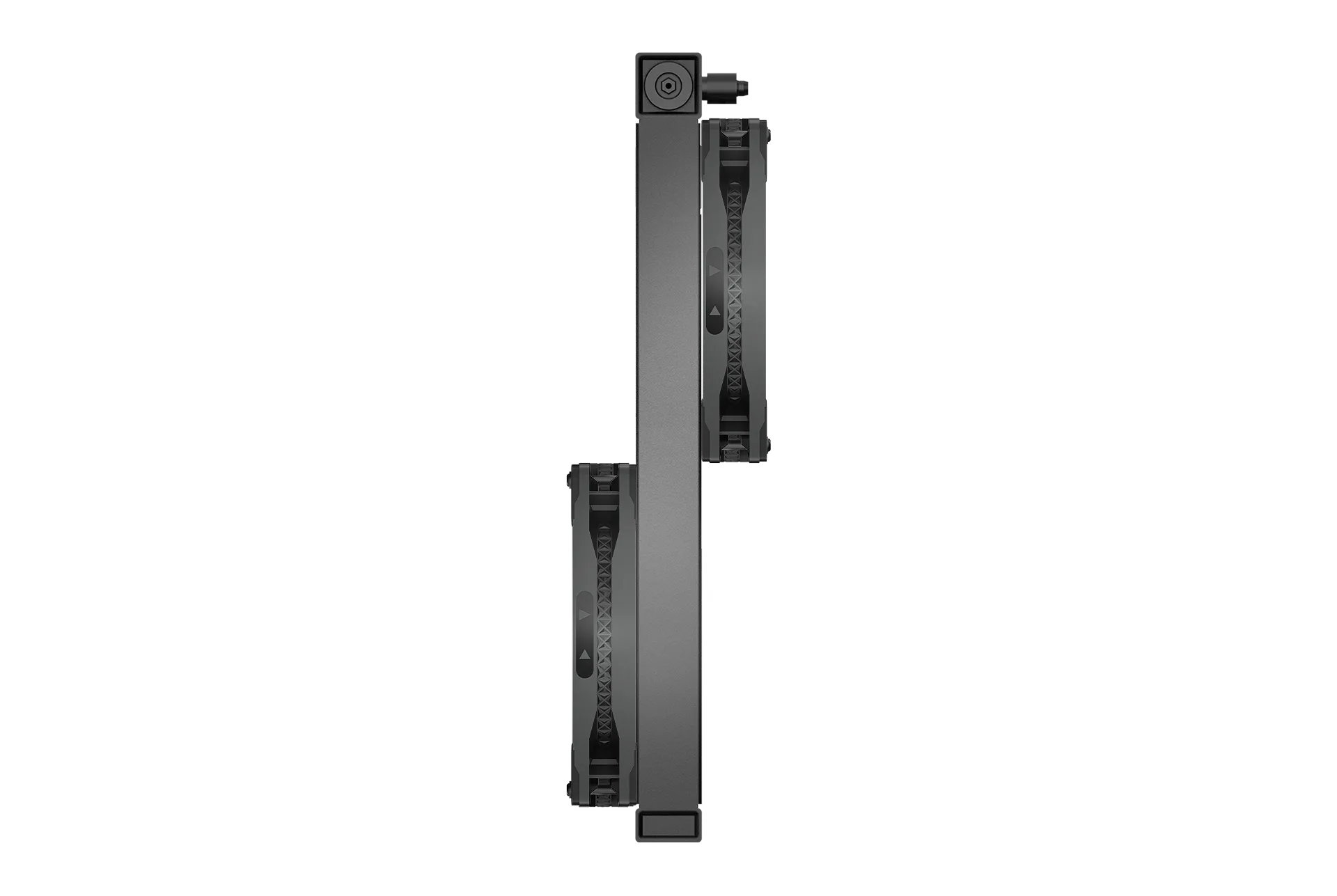

The higher the max. air pressure is, the easier it is to blow through radiators.

The greater the max. airflow is, the more heat can be removed from the radiator.

HIGH-PERFORMANCE DESIGNS

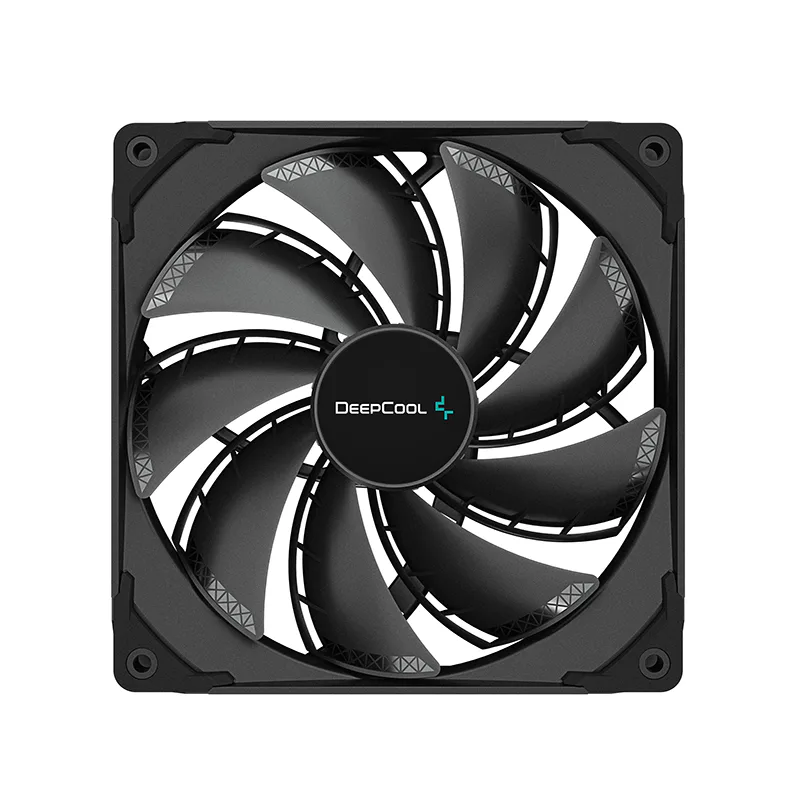

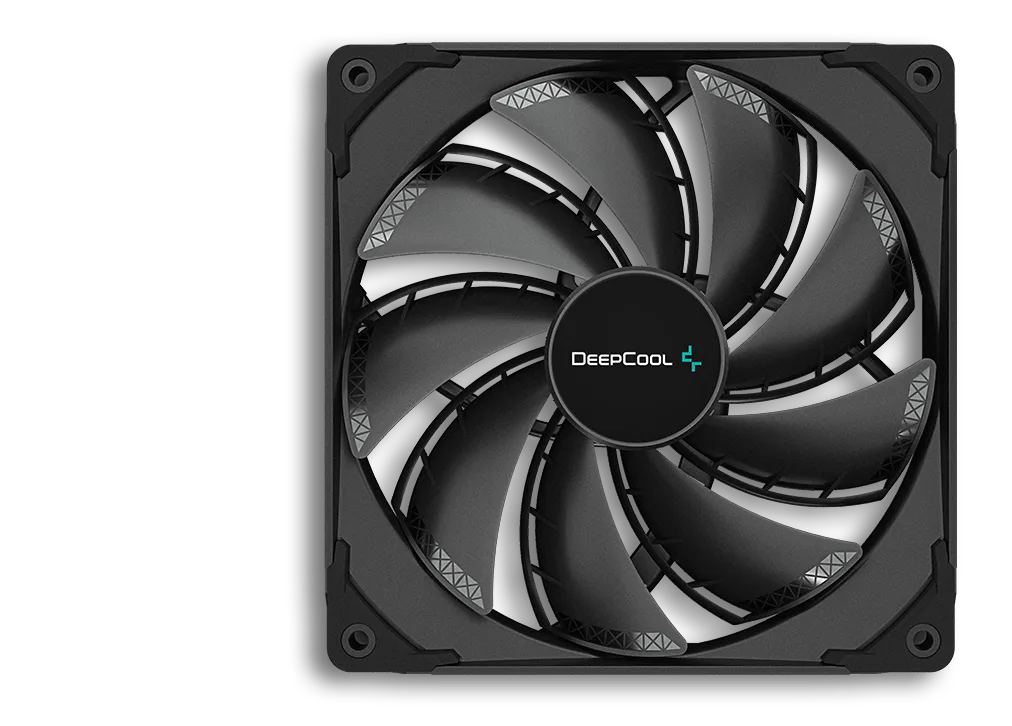

Patented double-layer fan blades can vastly increase max. air flow.

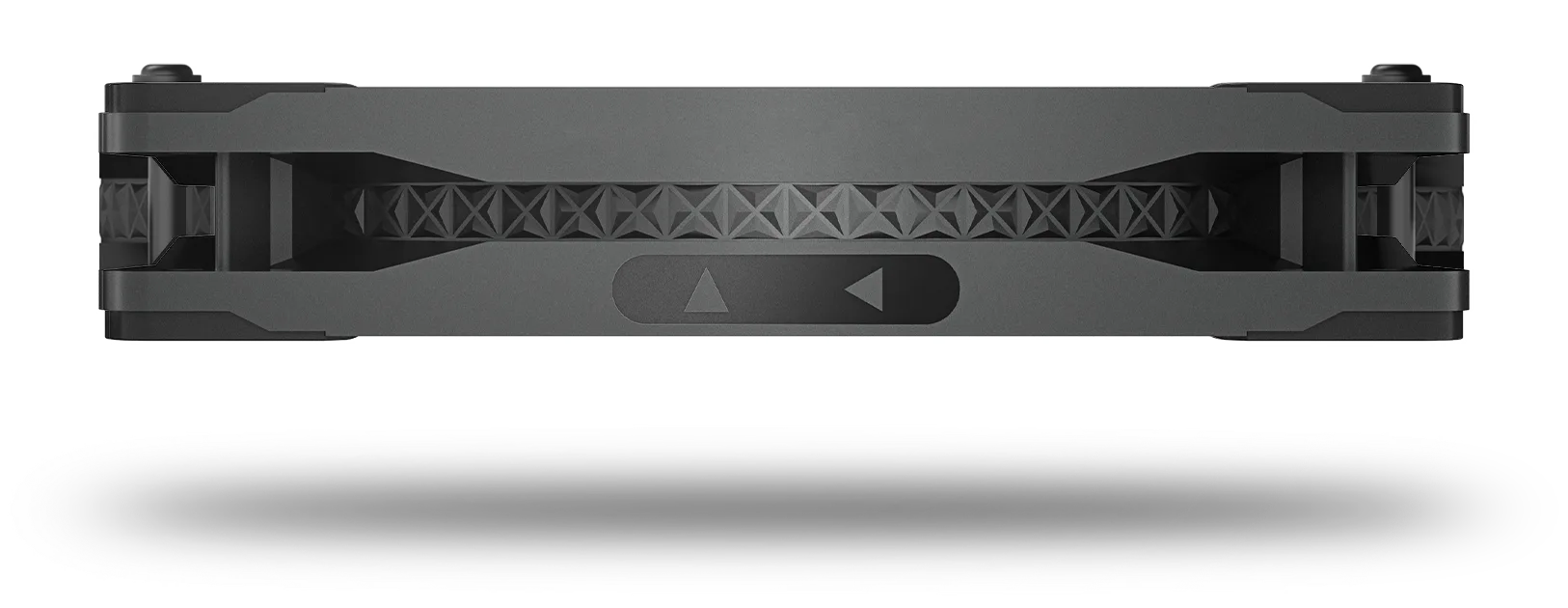

The unique wasp waist fan frame design can effectively elevate max. air pressure.

LOW-NOISE DESIGNS

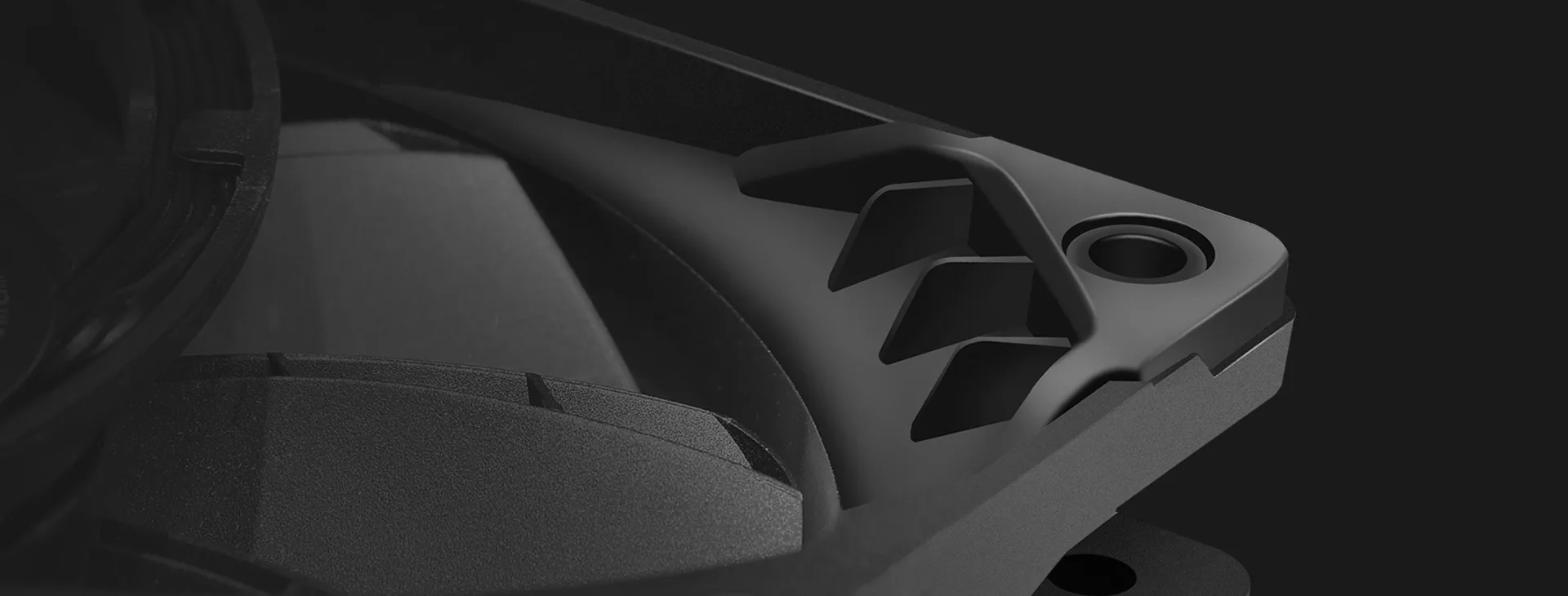

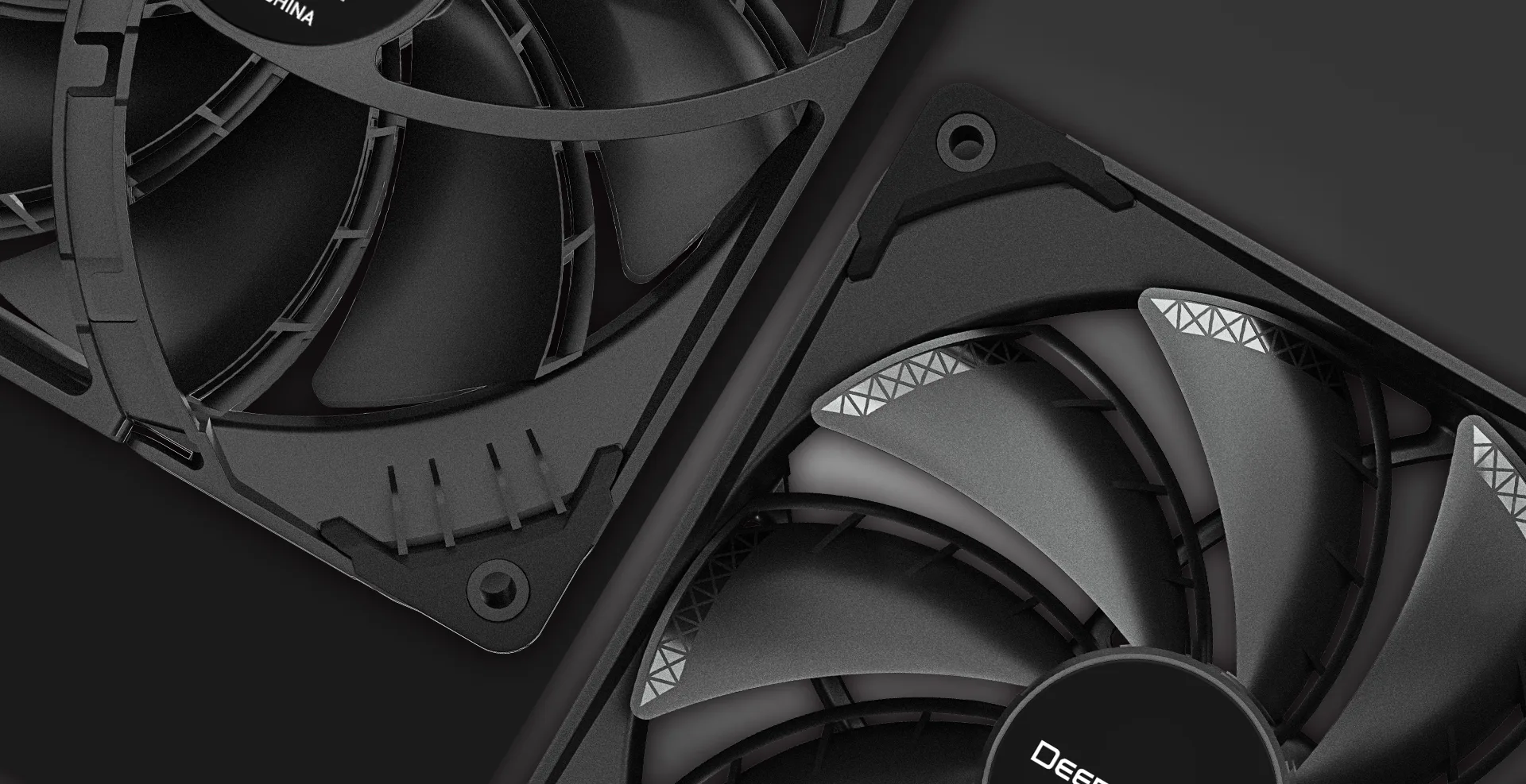

Turbulator teeth are placed on the exhaust side of the frame, which can significantly lower the noise and vibration caused by the airflow. In addition, 8 rubber pads are attached on the corners of frames to further absorb vibration.

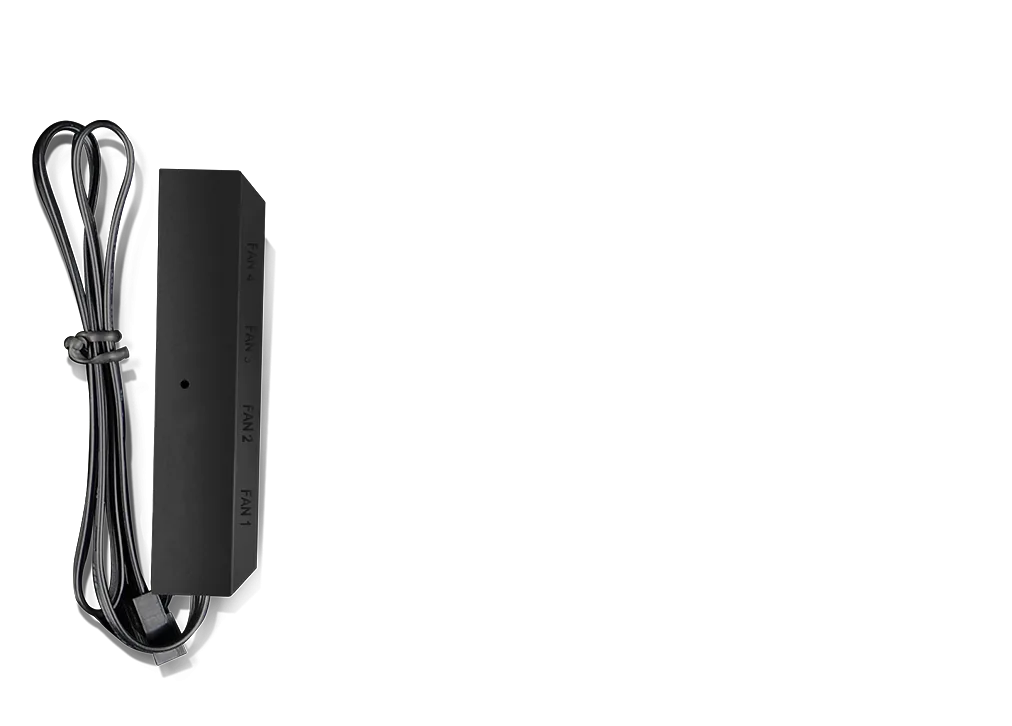

FAN HUB INCLUDED

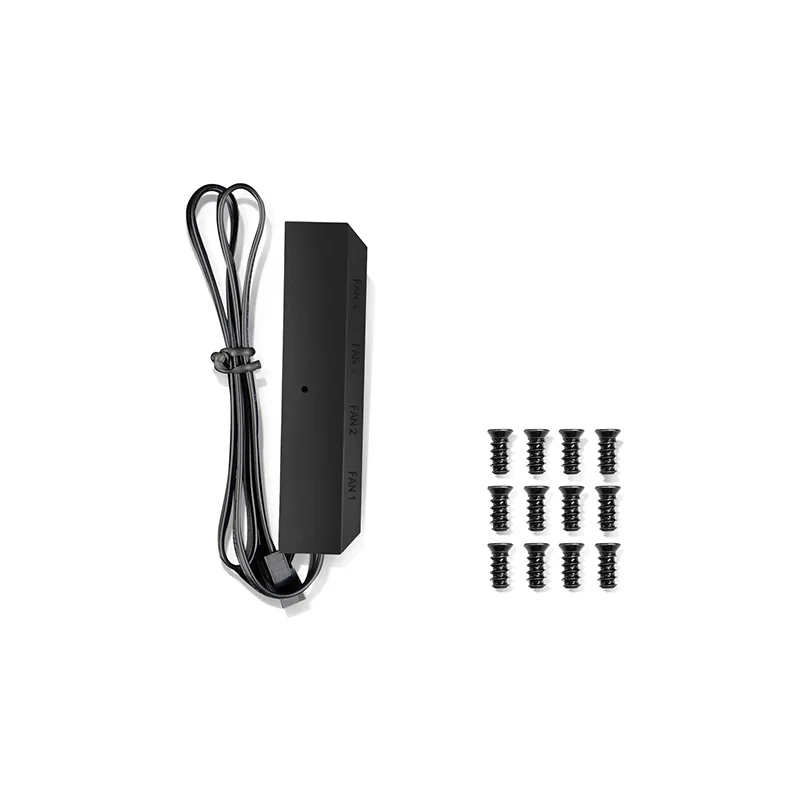

TF140S 3 in 1 includes a 4-port PWM hub to make fan speed control convenient.

Technical Spec

Fan Dimensions	140×140×25 mm(L×W×H)
Net Weight	540 g
Fan Speed	400~1600 RPM±10%
Fan Airflow	97.03 CFM
Fan Air Pressure	2.00 mmAq
Fan Noise	≤39.8 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.3 A±10%
Fan Power Consumption	3.6 W
EAN	6933412710530
P/N	DP-GS-H14B-TF140S-3P

Product Dimension

Download

TF140S-3 IN 1 Manual.pdf
