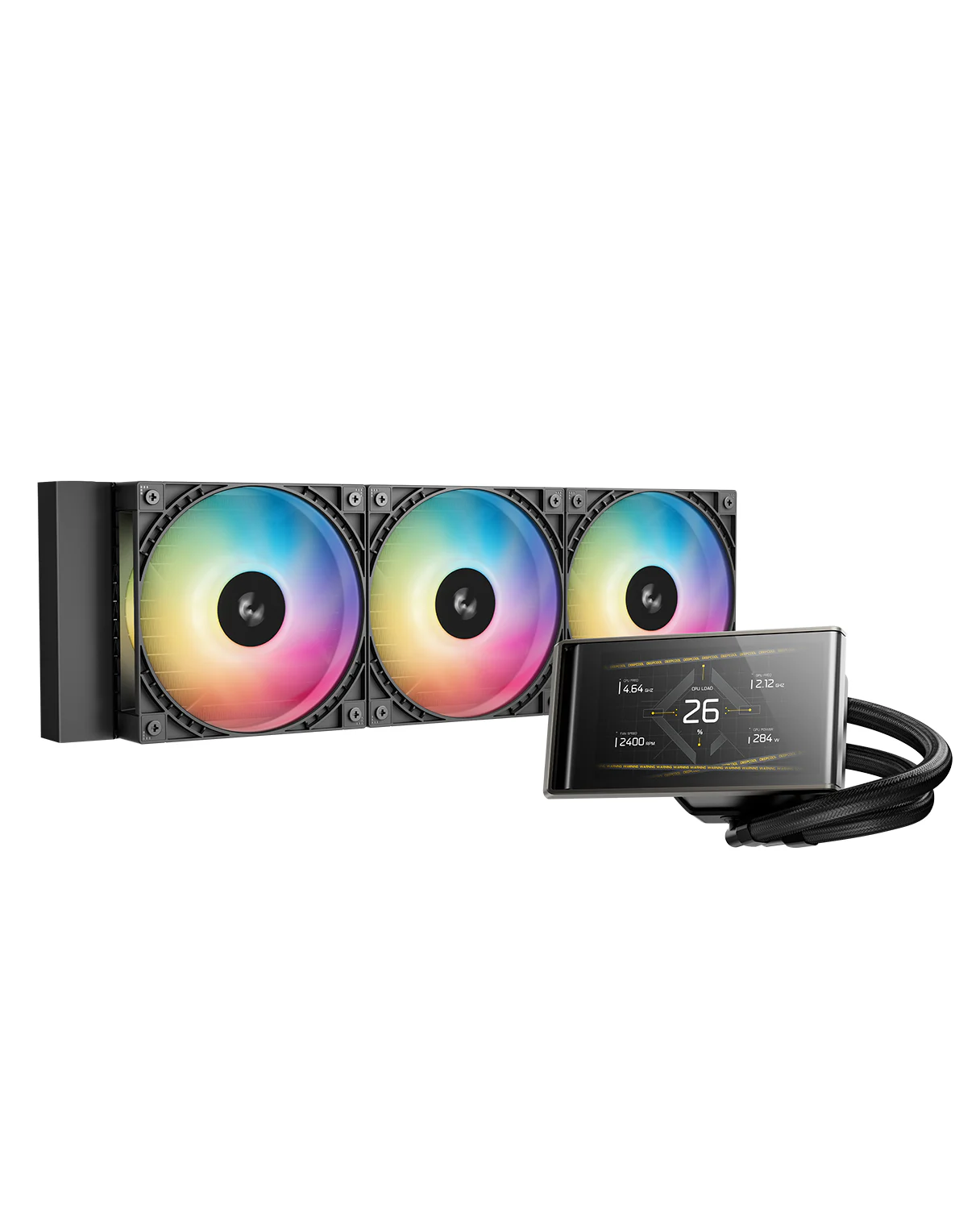

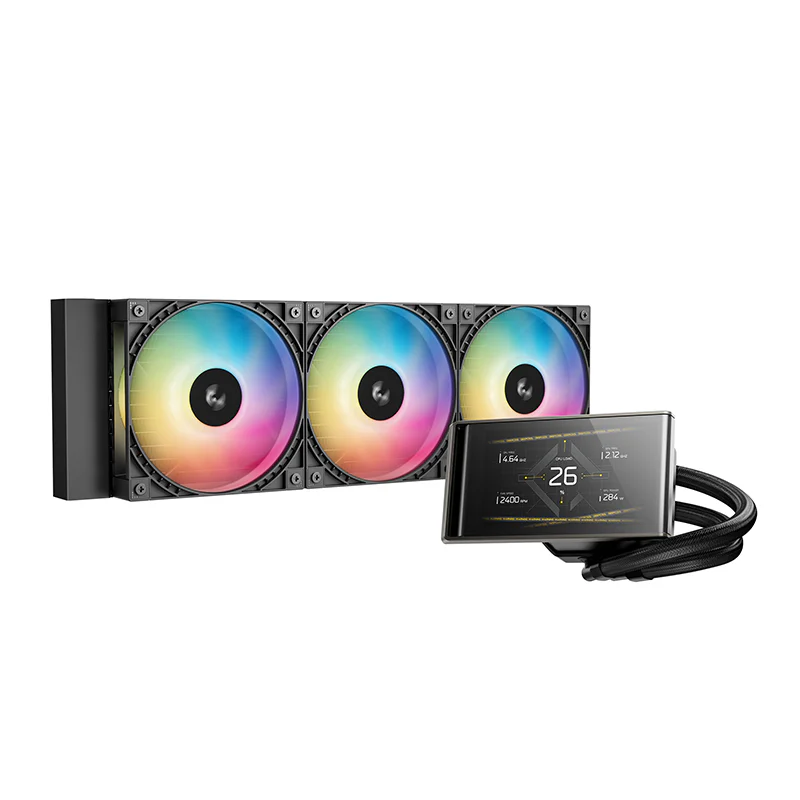

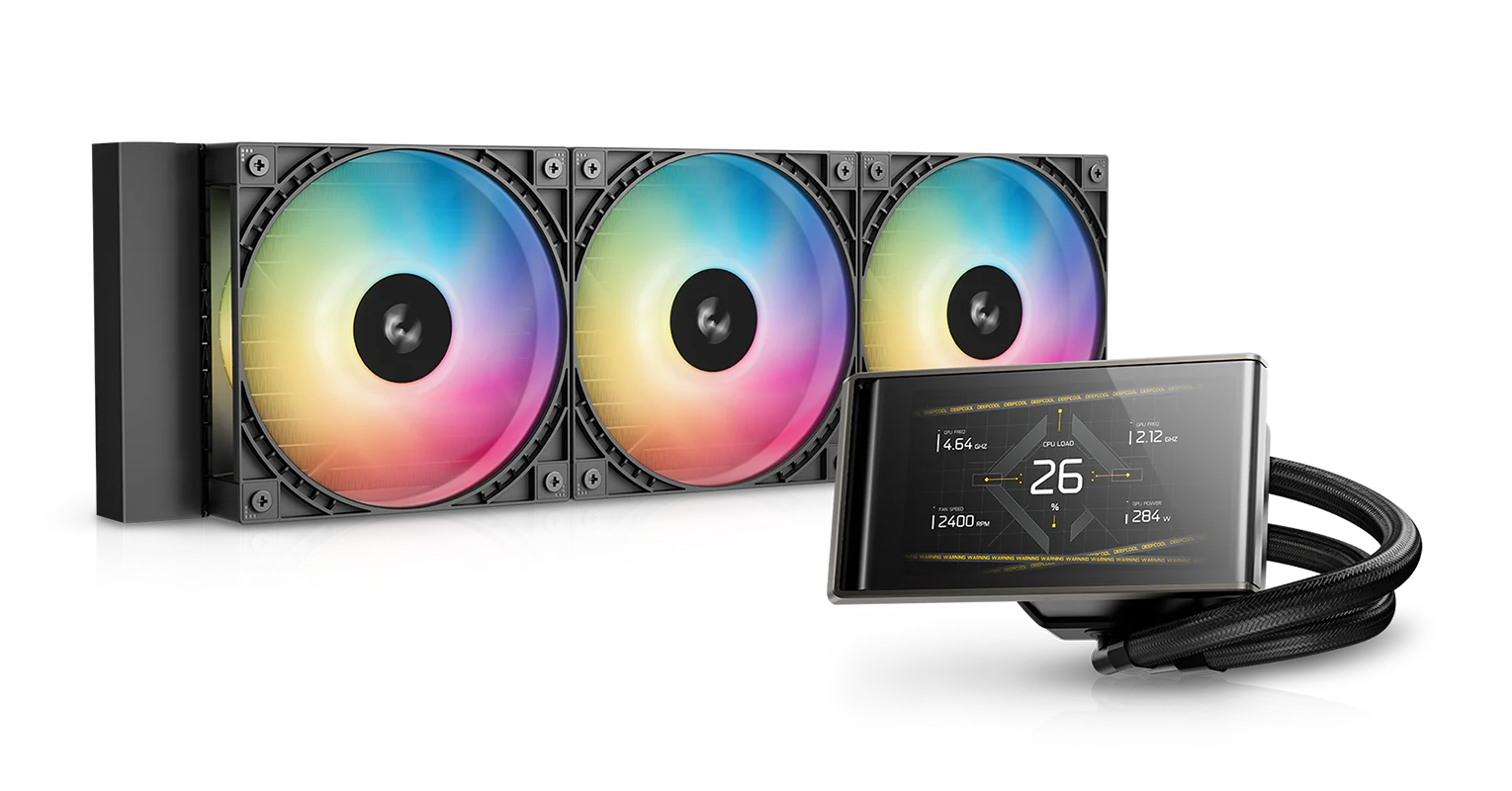

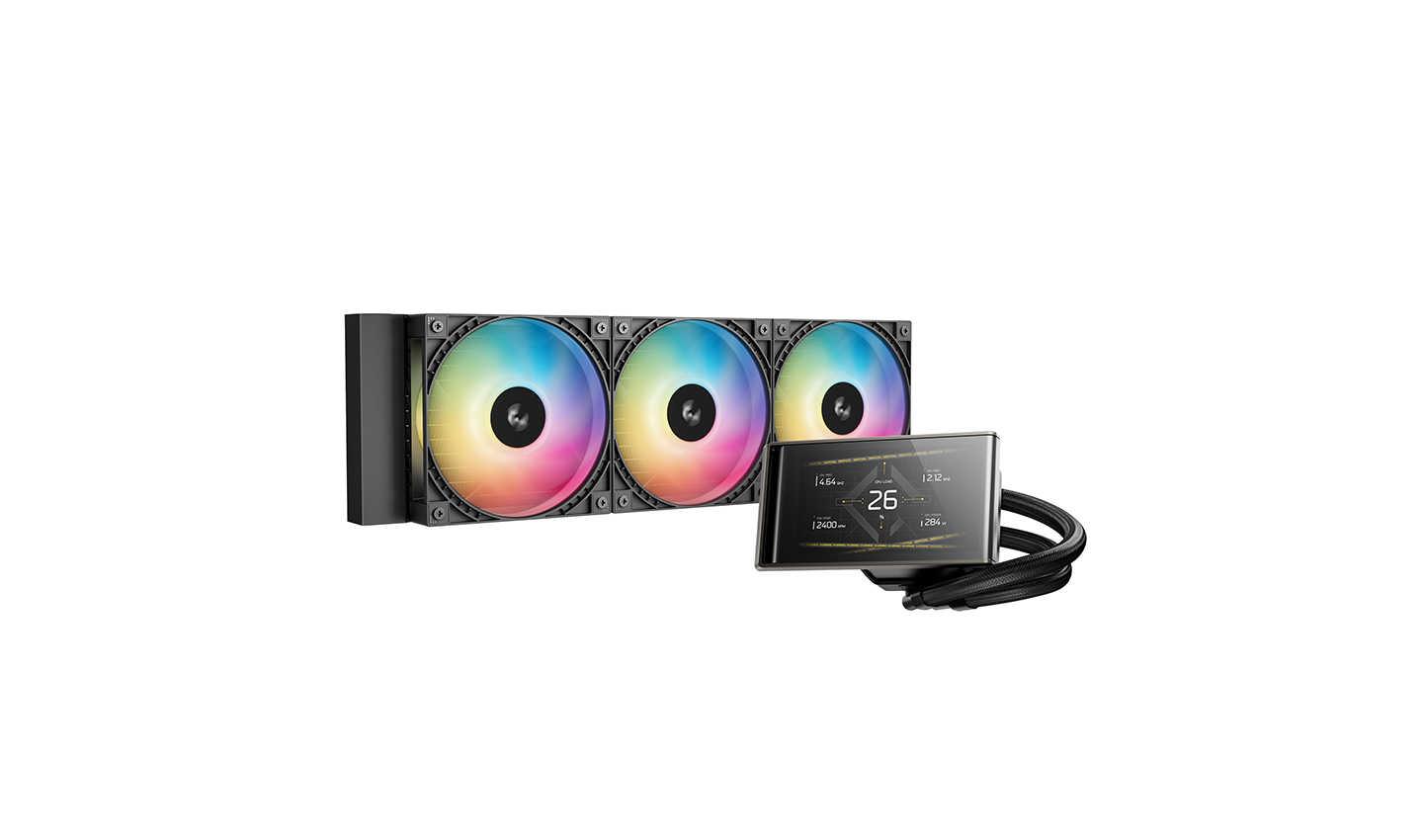

LT360 VISION ARGB

BUILT FOR THE BIG SCREEN

EXPANSIVE VISUAL PRESENCE

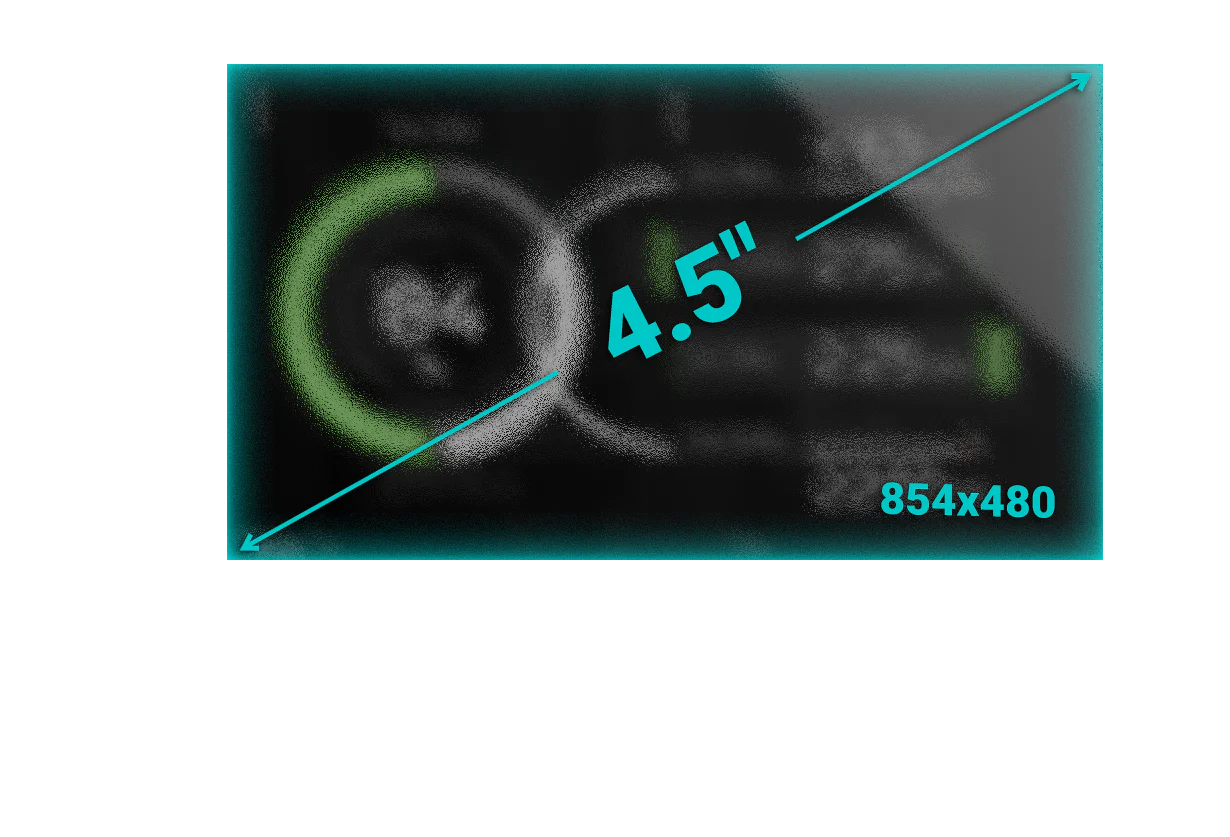

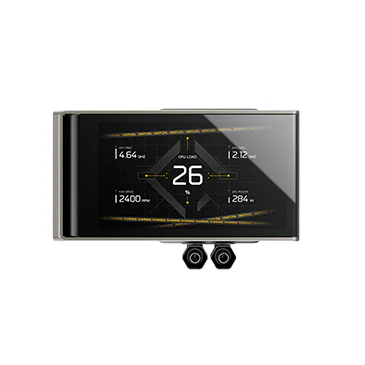

Open up a new visual experience with a 4.5” IPS LCD screen. With a sharp 854×480 resolution, it provides a clear canvas for dynamic content. The orientation of on-screen visuals can be adjusted through software.

A CLEARER WAY TO SEE

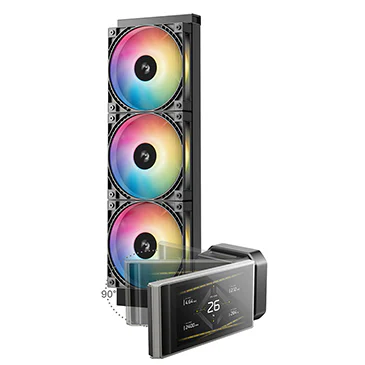

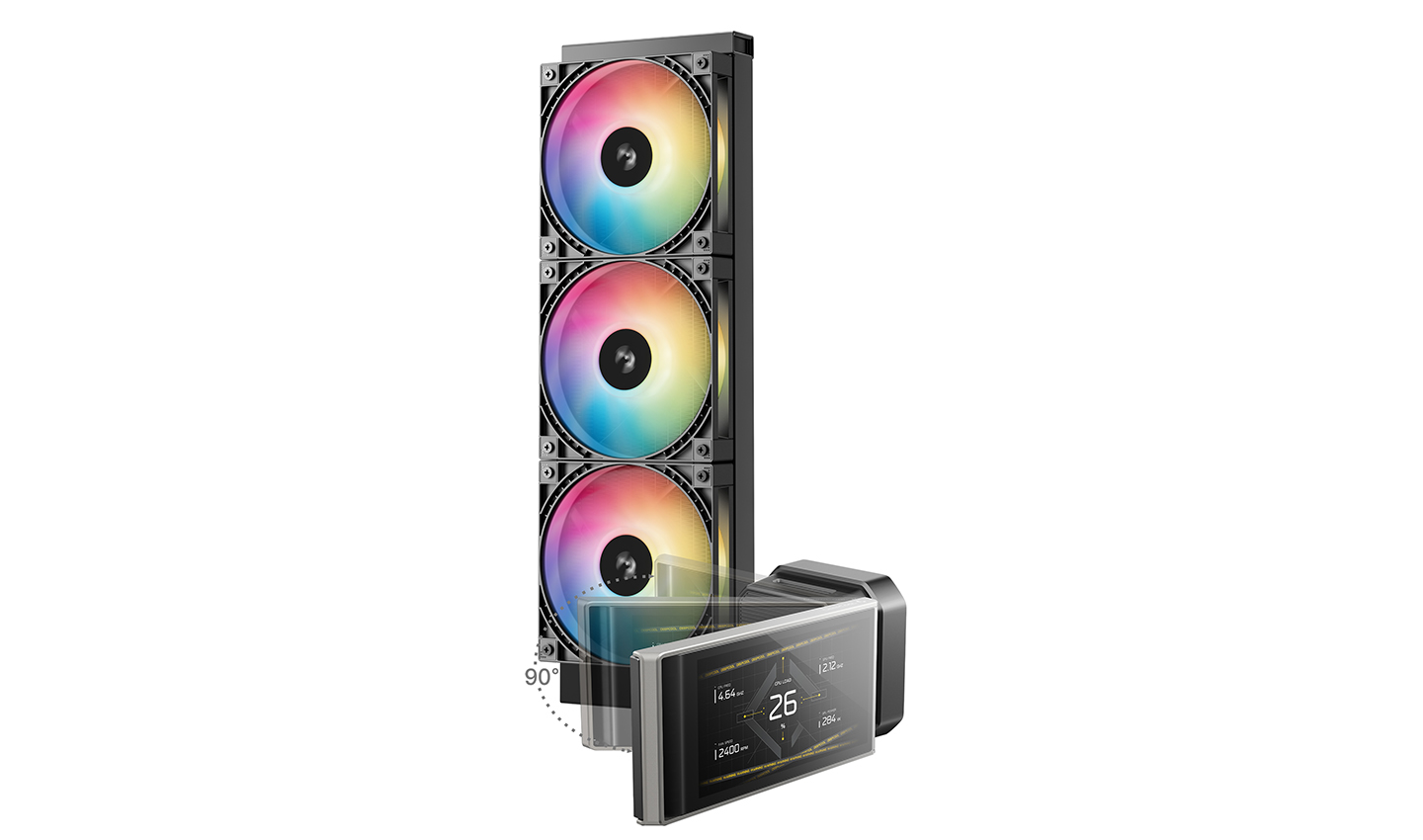

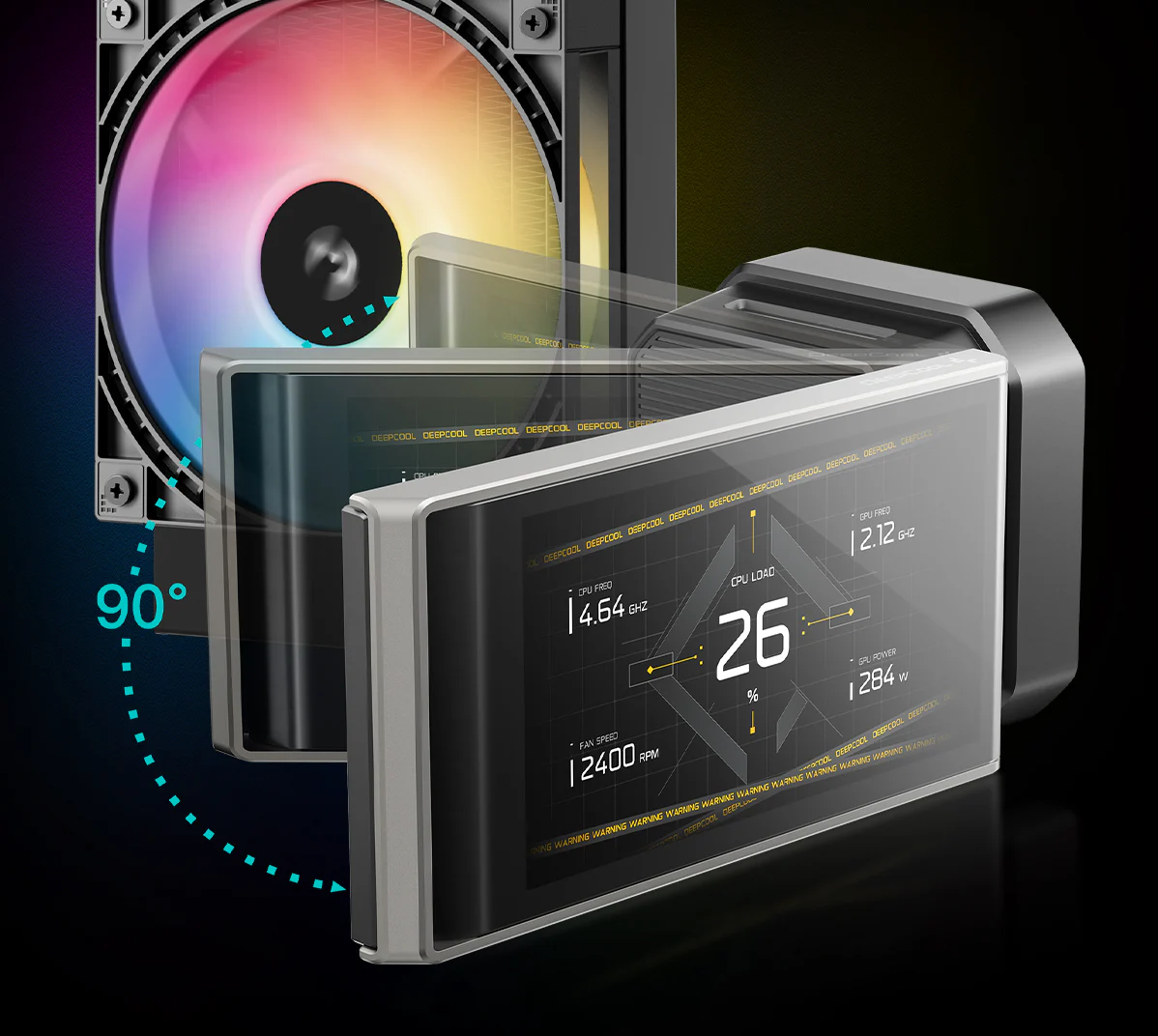

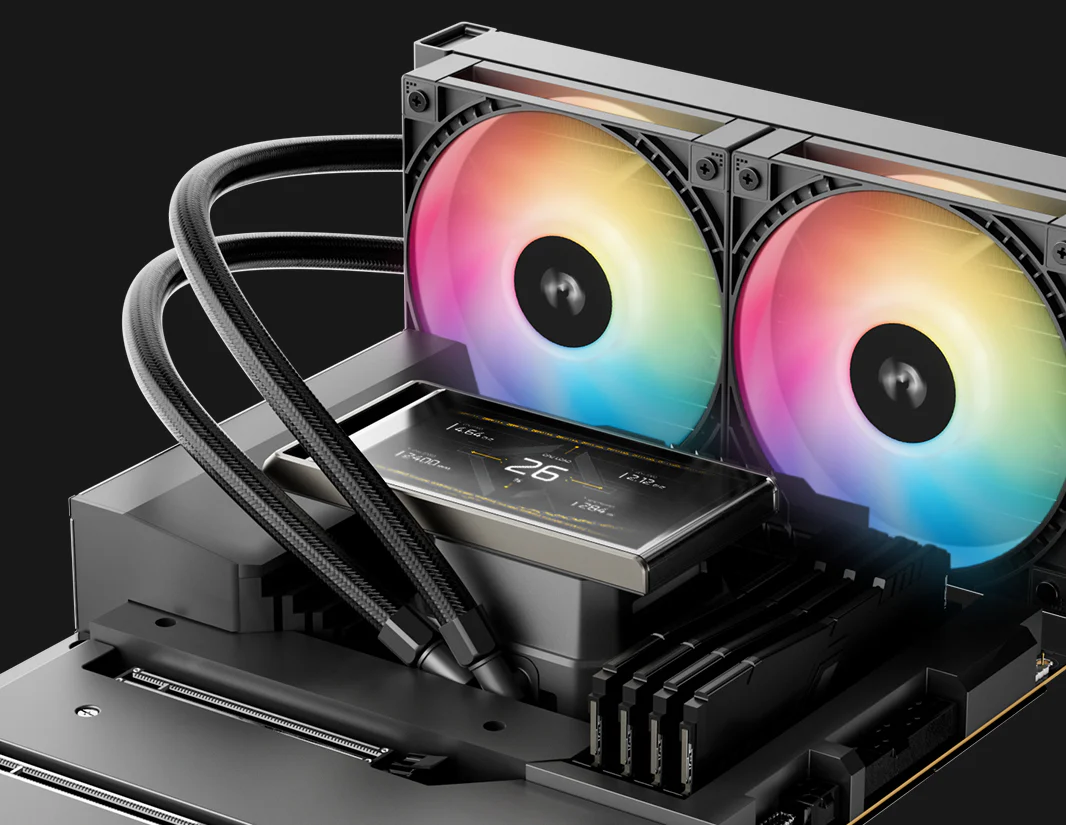

The adjustable display ensures clear visibility even when the cooler isn’t front-facing. Mounted on a damped hinge, the screen can be tilted up to 90°, allowing the display to be positioned for optimal viewing, even when the case is placed at an angle or viewed from the side.

DRIVEN BY THE GEN 6 PUMP

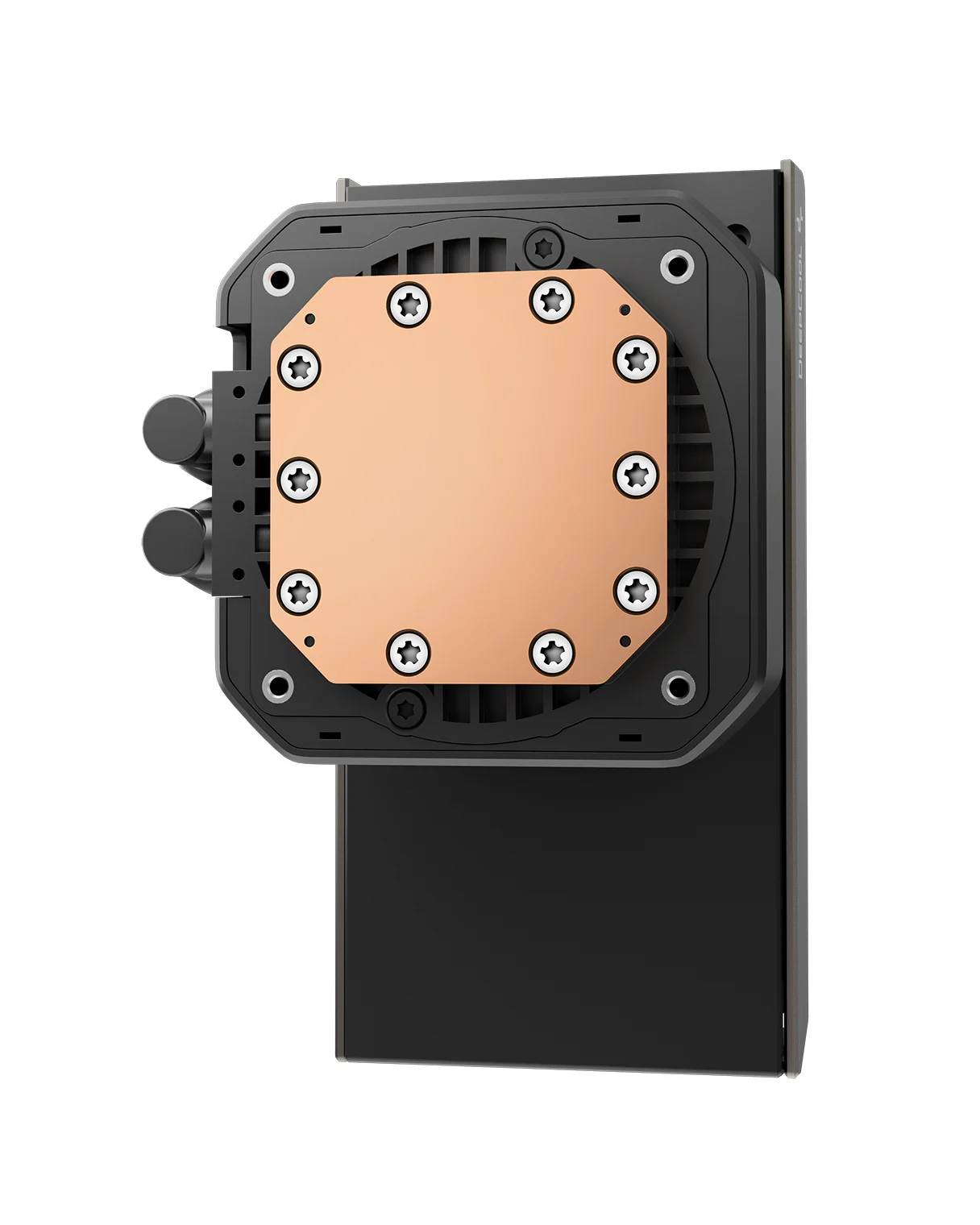

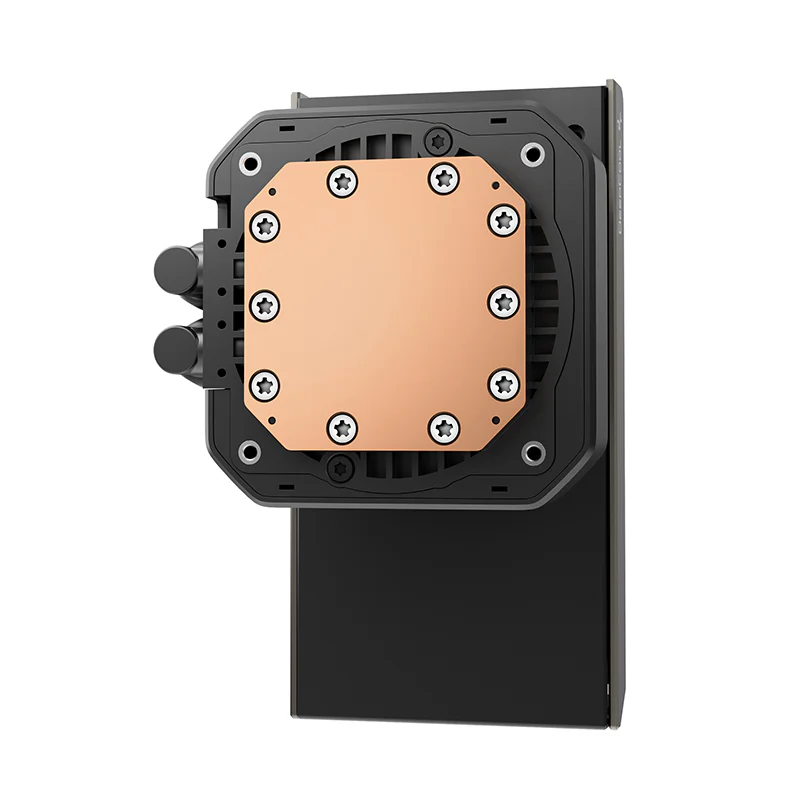

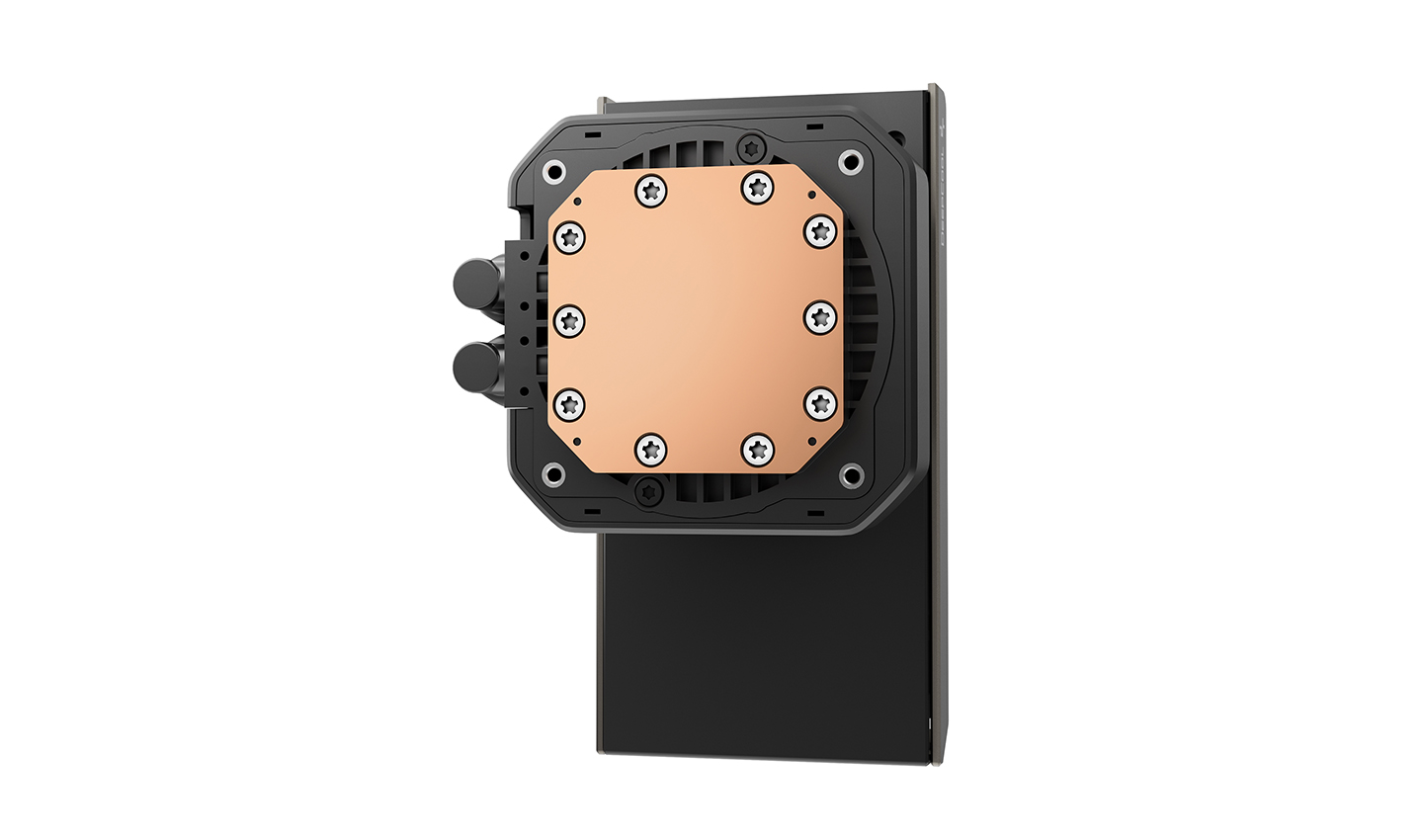

The 6th-generation pump features a 3-phase, 6-slot motor with FOC control, delivering smooth and efficient operation at speeds up to 3,400 RPM. An expanded copper base and fine-tuned microfin structure enhance thermal transfer while maintaining low noise levels and long-term reliability.

FULL CONTROL WITH DEEPCREATIVE

Powered by DeepCreative software, the display capabilities of the LT360 VISION ARGB are fully unlocked. Choose from multiple preset themes to monitor key system data in real time or showcase personalized visual content with ease. The software also provides unified control over compatible devices, with ongoing updates to expand functionality over time.

MONITORING

MEDIA

D-CAST

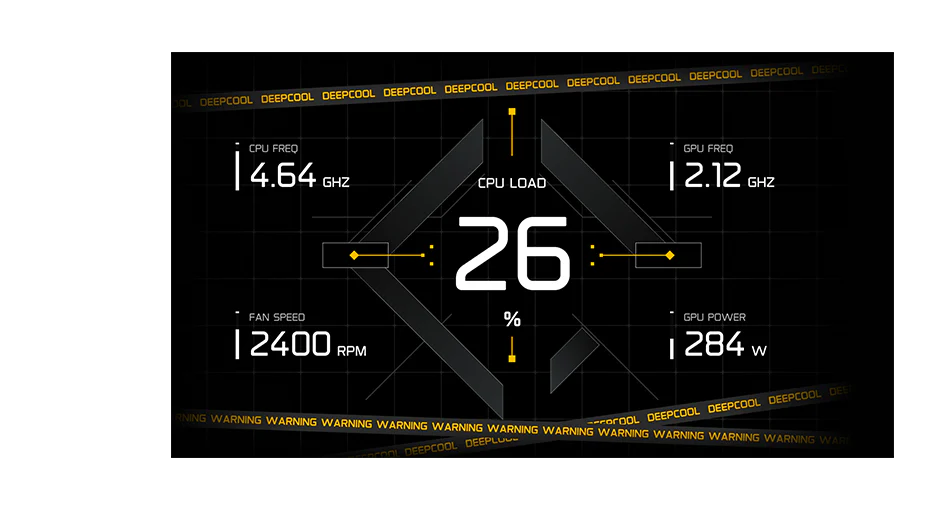

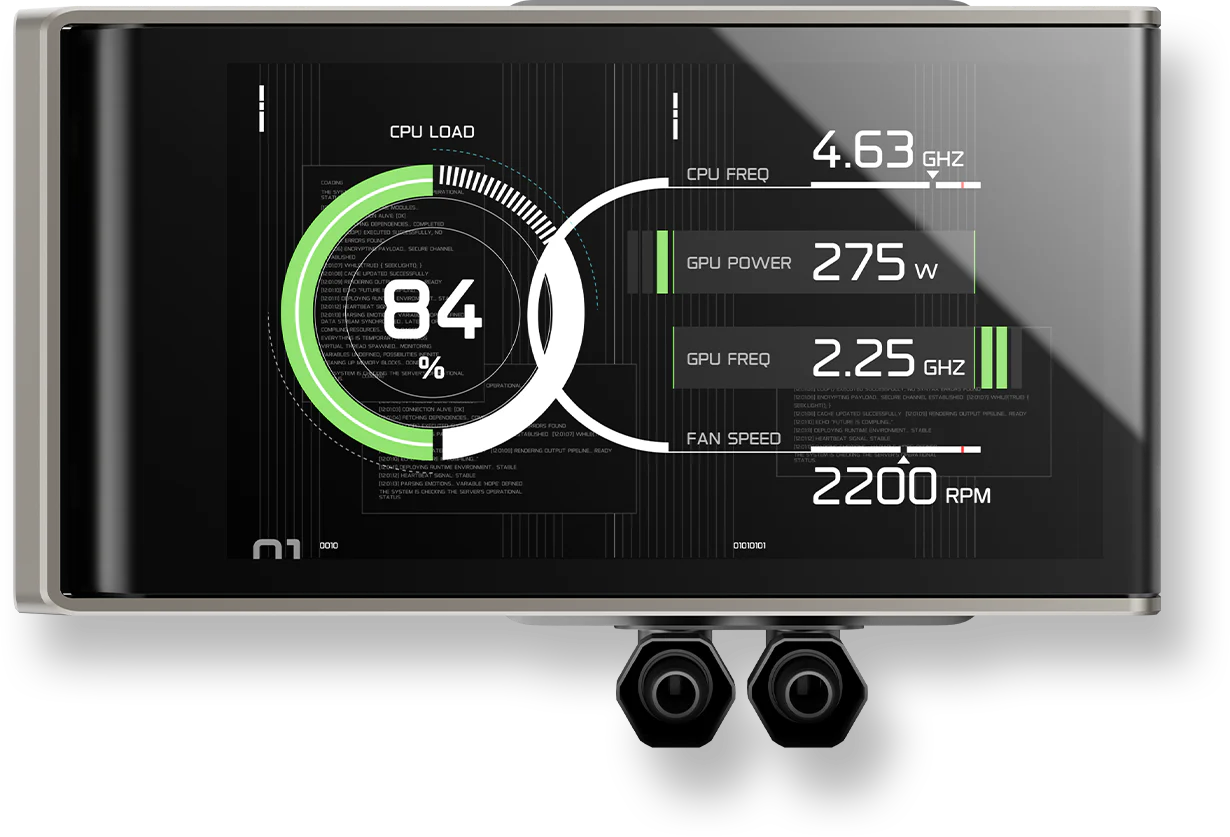

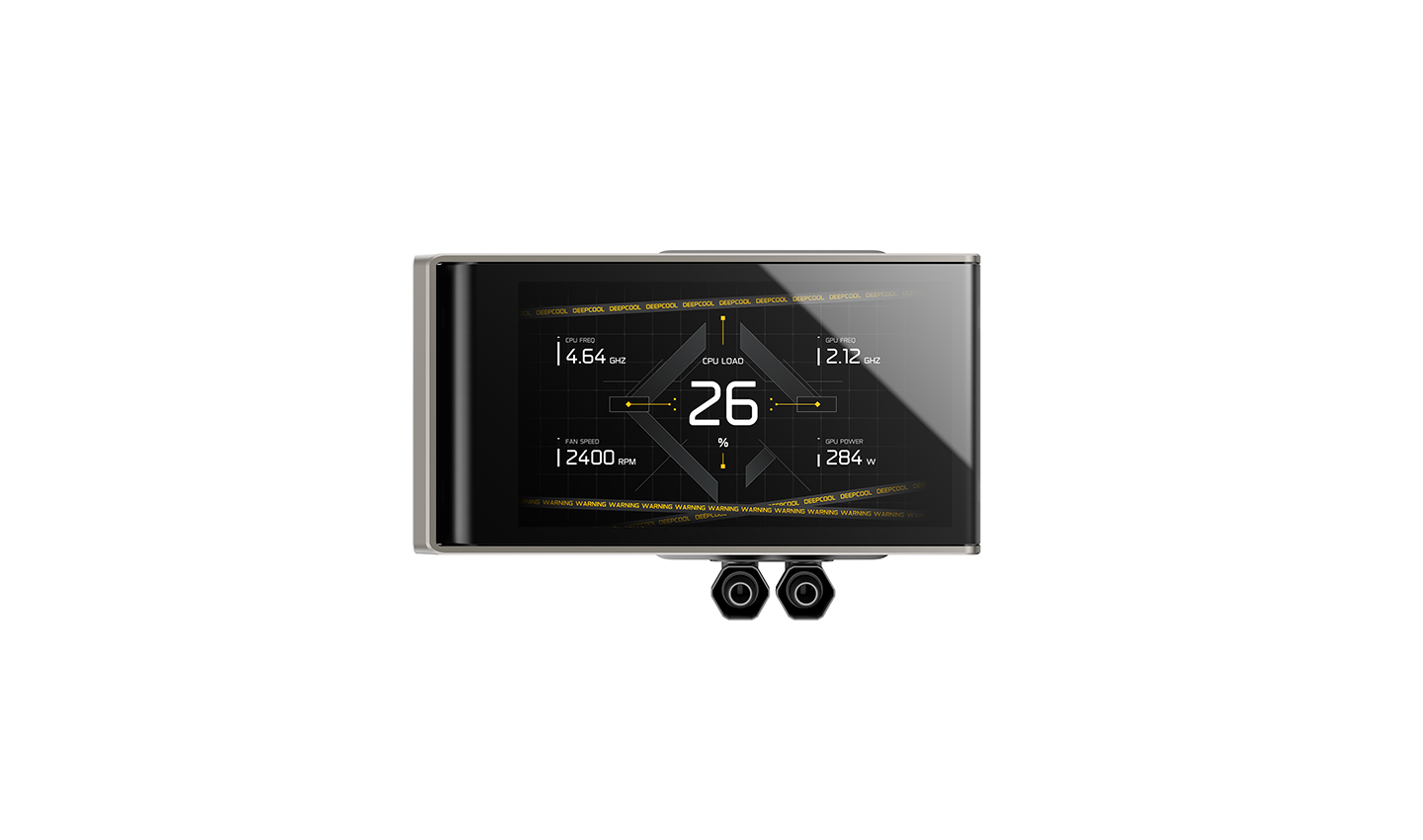

Monitoring Mode makes essential system information easy to read at a glance. A primary data area can be selected to display key system information, such as CPU metrics or time, while secondary fields continuously show additional system data including CPU, GPU, and fan-related details.

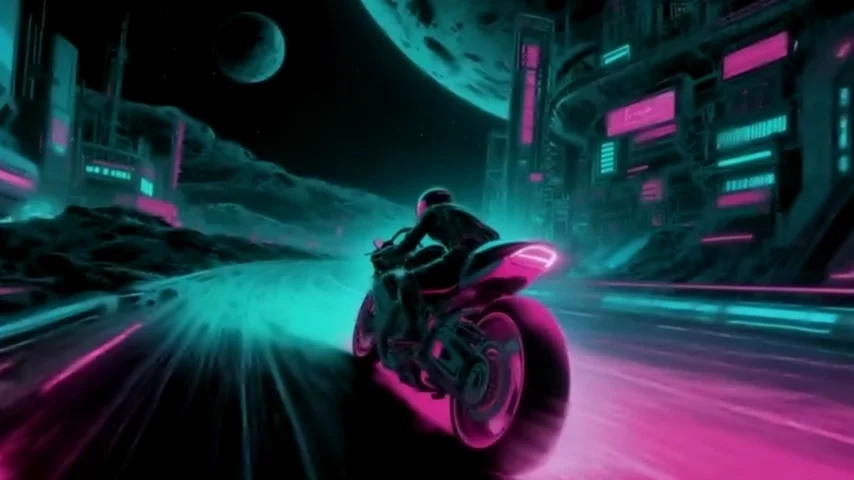

Upload JPG or PNG images, play animated GIFs, or showcase video content to bring motion and personality to your build.

D-Cast allows the screen to function as an extended system display, offering a flexible way to place secondary visuals, status panels, or creative elements.

BRIGHT, QUIET, AND CAPABLE

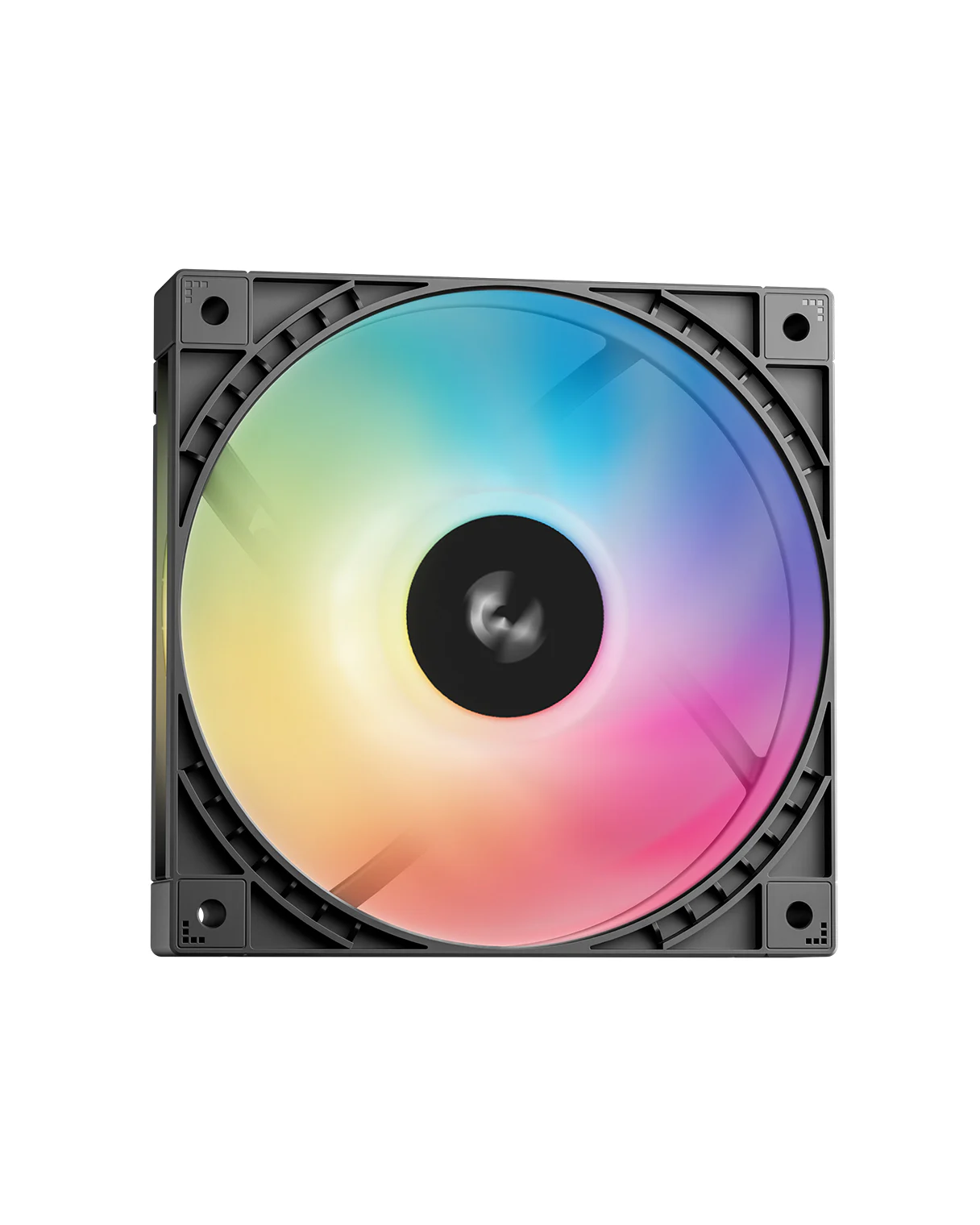

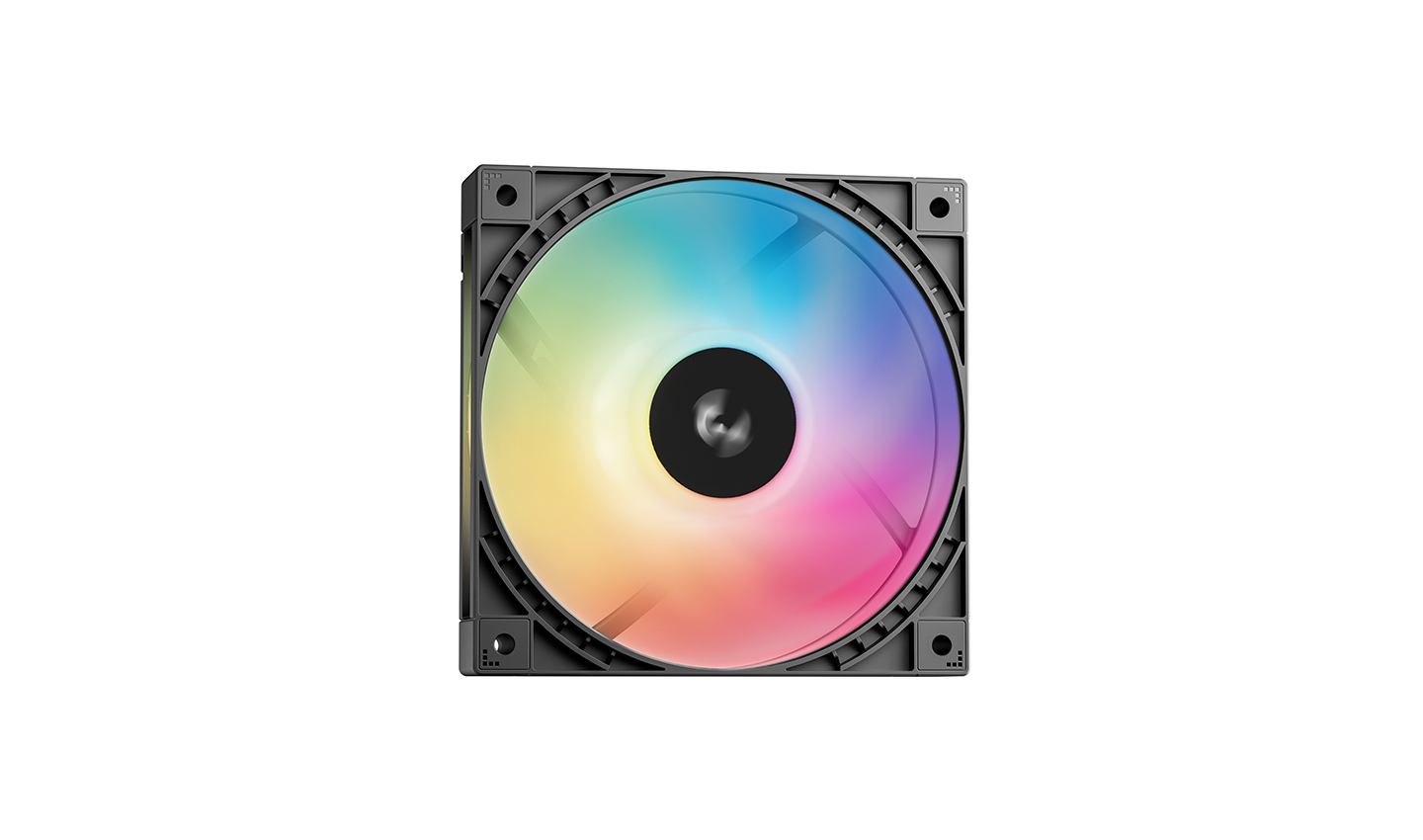

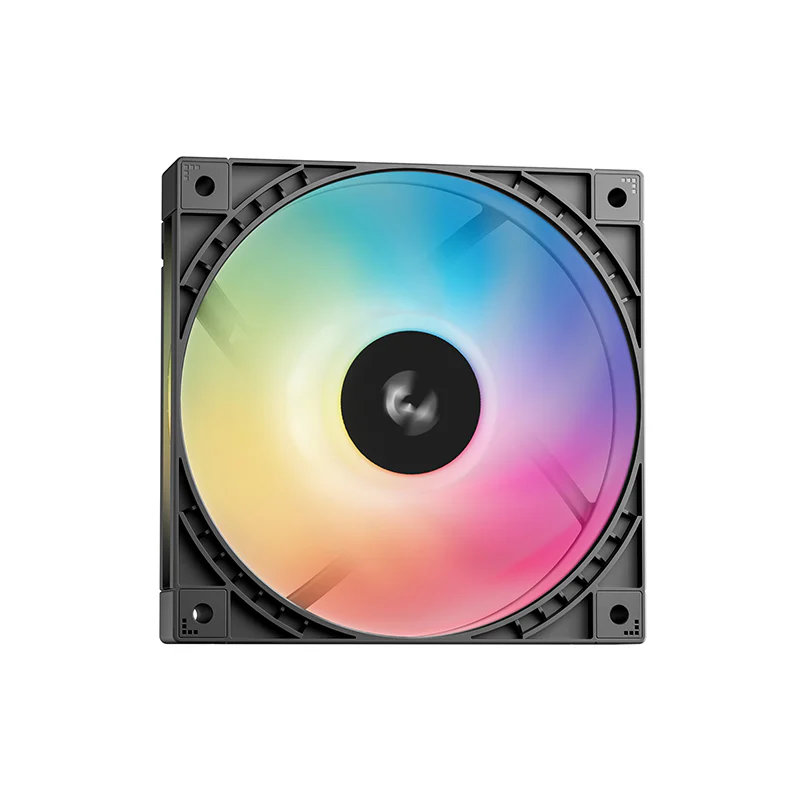

Outfitted with all-new closed-wheel ARGB fans, the LT360 VISION ARGB optimizes airflow and static pressure for powerful yet quiet cooling. The reinforced blade structure boosts stability and durability, while preventing unwanted lateral airflow interference.

500-2500 RPM ±10%

Fan Speed

75.33 CFM

Airflow

2.41 mmAq

Static Pressure

≤33.66 dB(A)

Fan Noise

ANTI-LEAK TECHNOLOGY

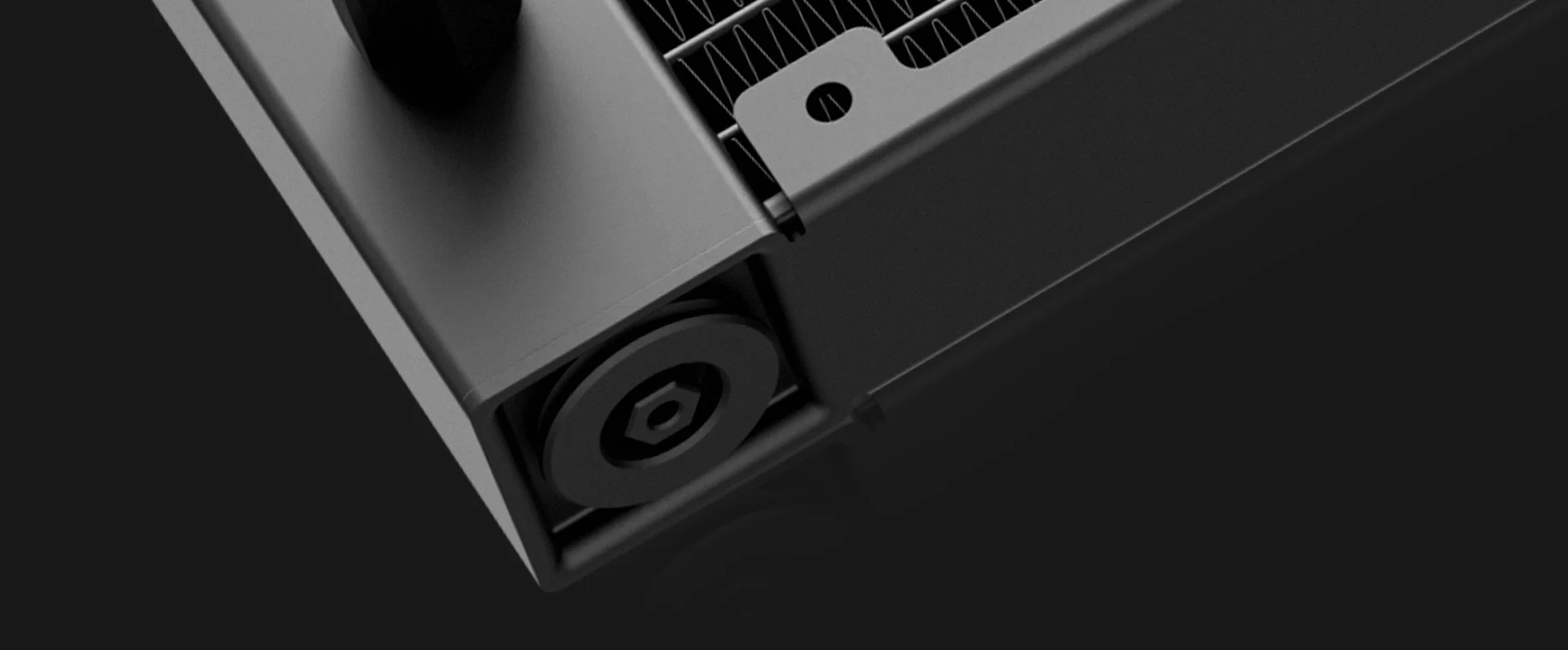

The LT VISION ARGB liquid coolers feature DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and purges it when internal pressure exceeds atmospheric pressure, extending the cooler's lifespan and reducing the risk of leaks.

SIMPLIFIED INSTALLATION

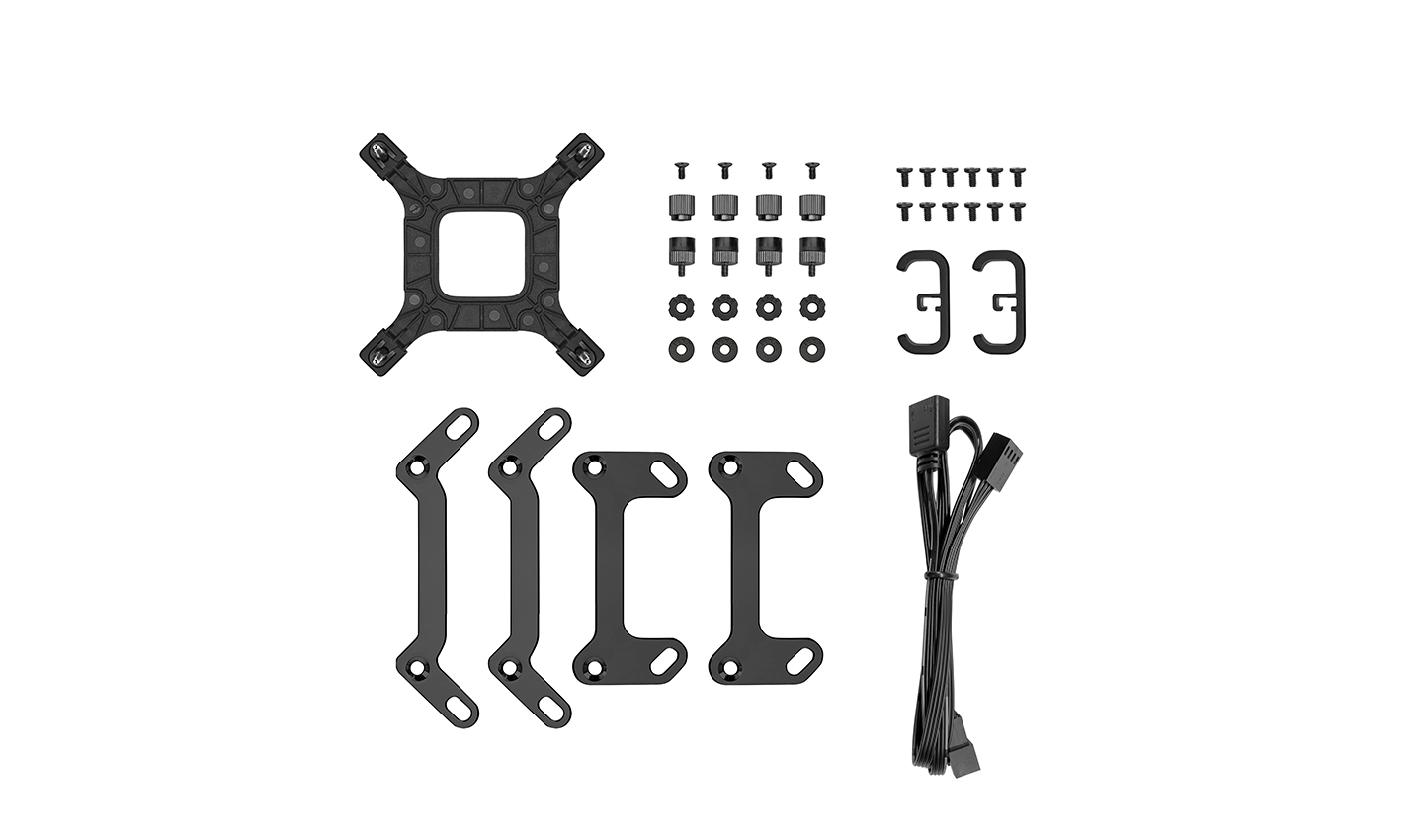

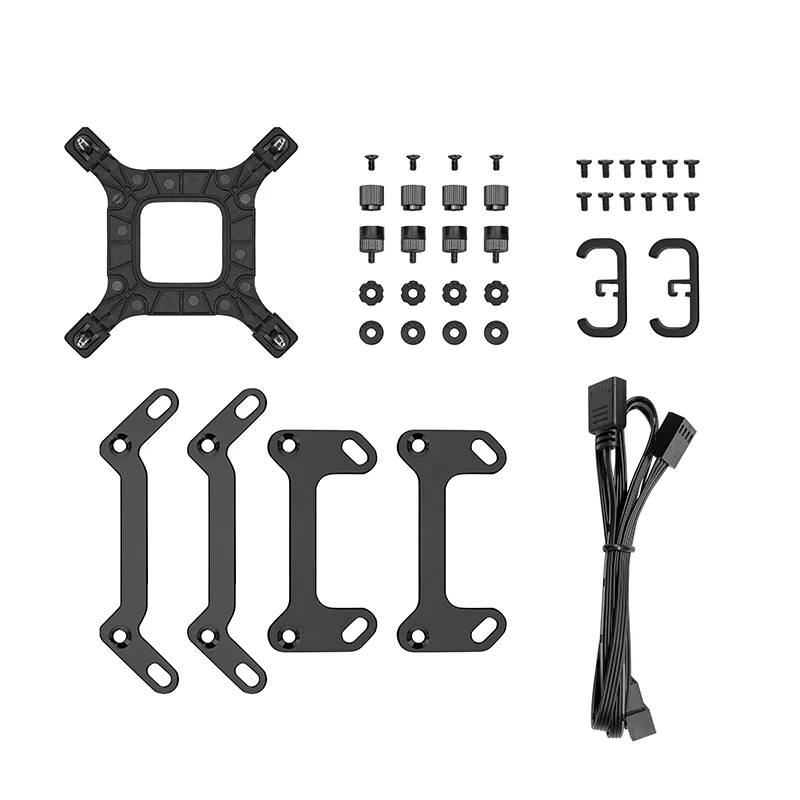

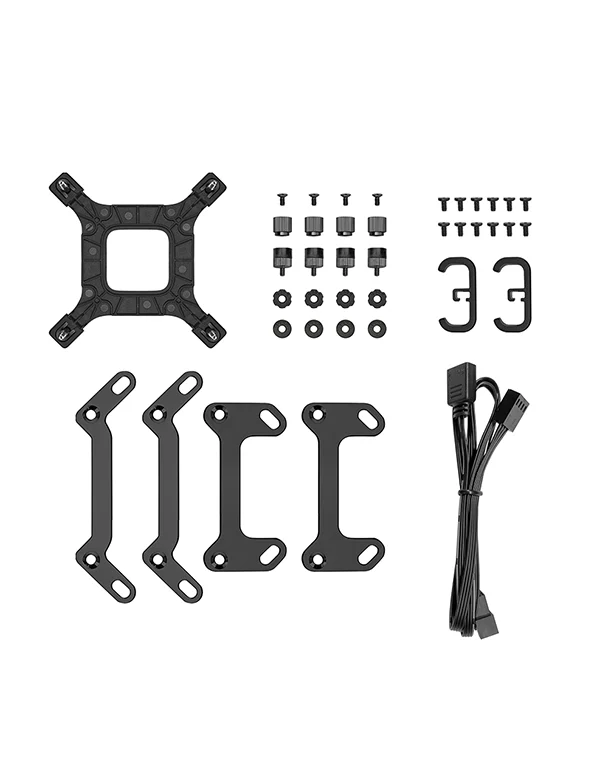

The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the LT360 VISION ARGB to the latest mainstream CPUs is included in the box, so you are ready to go.

Intel LGA1851/1700/1200/1151/1150/1155

AMD AM5/AM4

Application For

Intel

LGA1851/1700/1200/1151/1150/1155

AMD

AM5/AM4

Technical Spec

Net Weight	1768 g

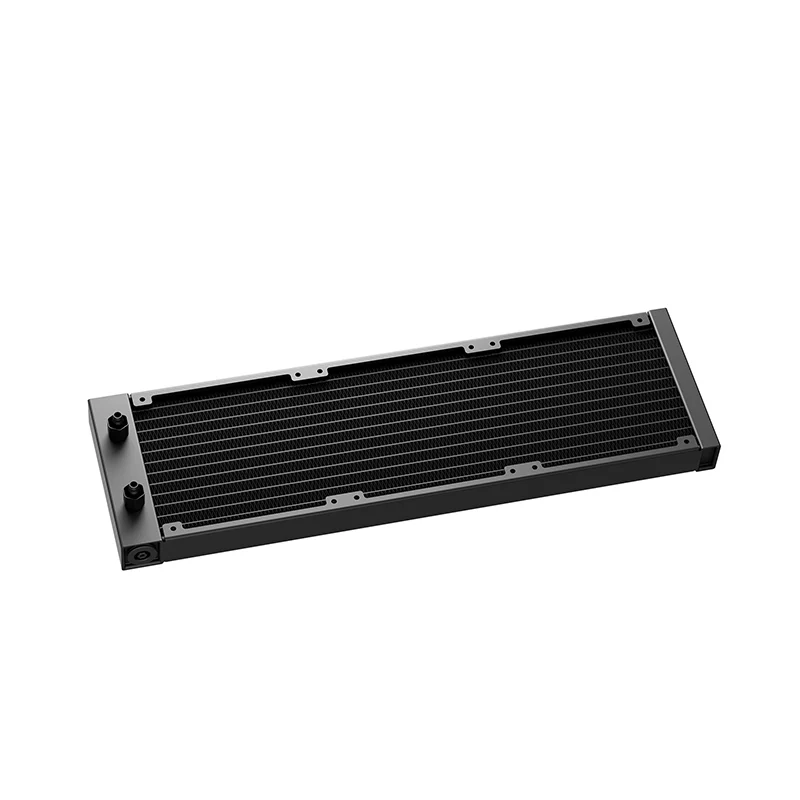

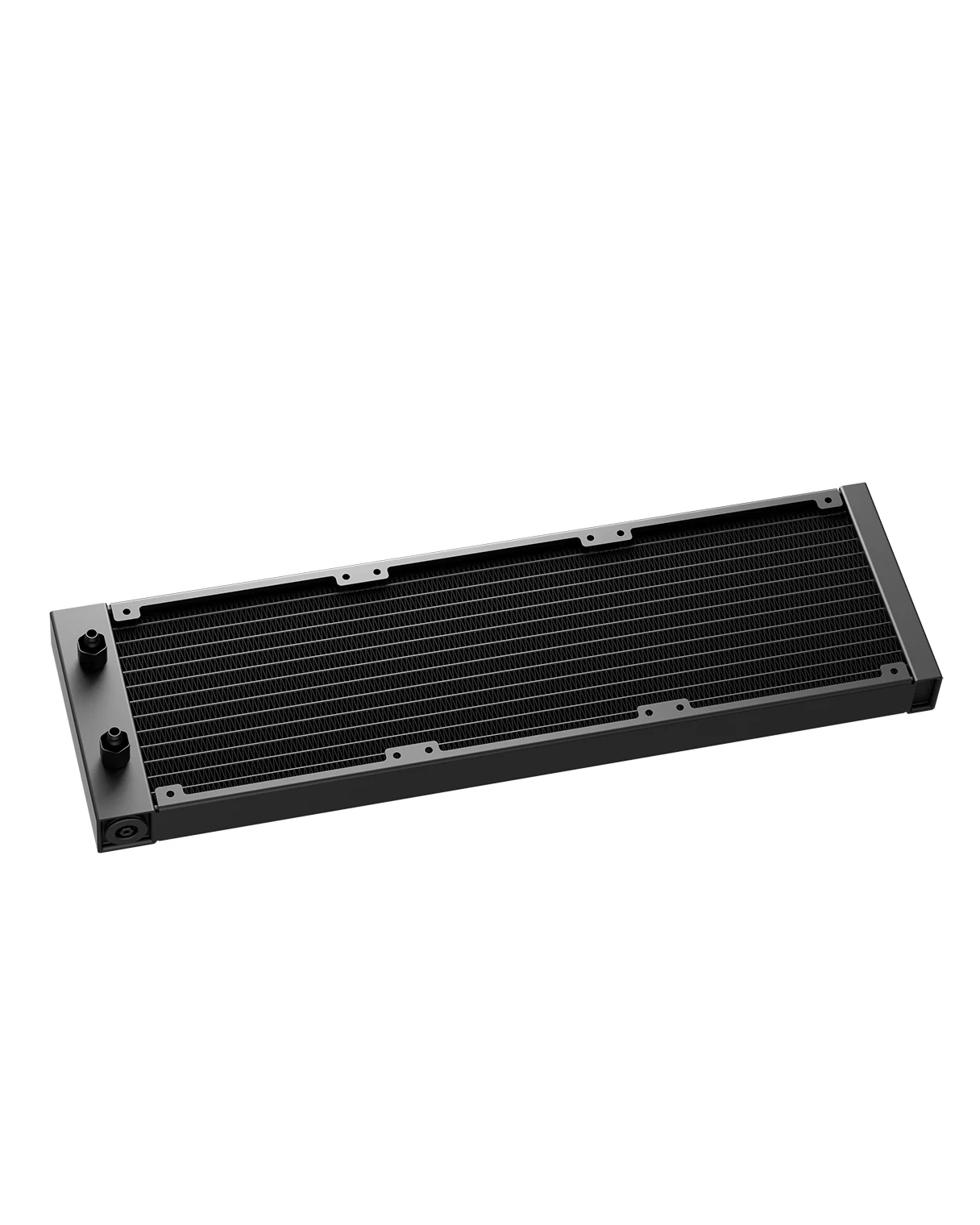

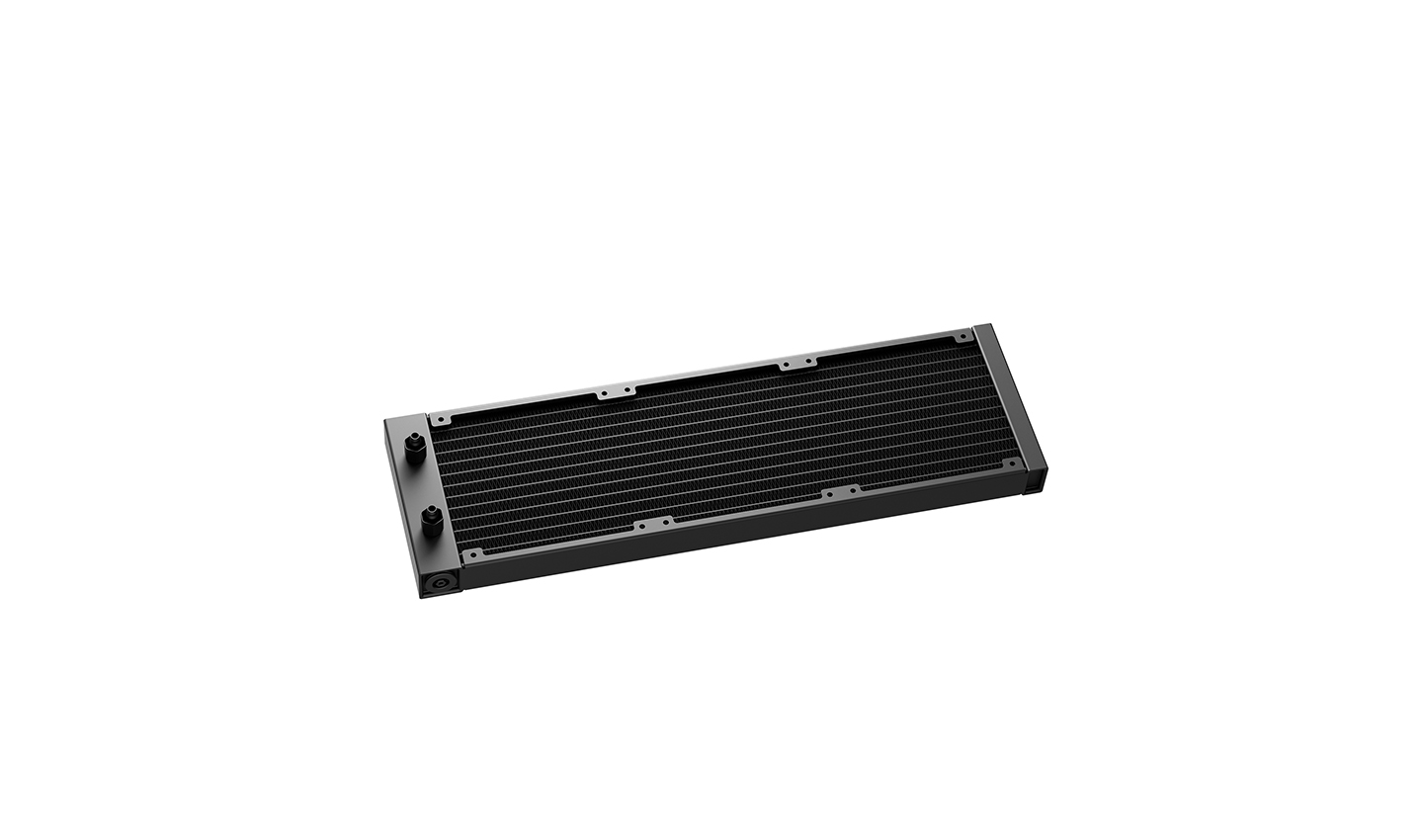

Radiator Dimensions	402×120×27 mm(L×W×H)
Radiator Material	Aluminum
Tube length	410 mm
Pump Dimensions	131×89×58 mm(L×W×H)
Pump Speed	3400±10% RPM (MAX)
Pump Connector	4-pin PWM
Pump Rated Voltage	12 VDC
Pump Rated Current	0.29 A
Pump Power Consumption	3.48 W
Fan Dimensions	120×120×25 mm(L×W×H)
Fan Speed	500~2500 RPM±10%
Fan Airflow	75.33 CFM
Fan Air Pressure	2.41 mmAq
Fan Noise	≤33.66 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.28 A
Fan Power Consumption	3.36 W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G)
LED Rated Voltage	5 VDC
LED Power Consumption	1.65 W（PUMP）/ 5.1 W（FAN×3）
Display Specifications	4.5 inch 480*854 TFT LCD
EAN	6933412730156
P/N	R-LT360VISION-BKAMMC-G-1

Download

LT360 VISION ARGB Manual.pdf
