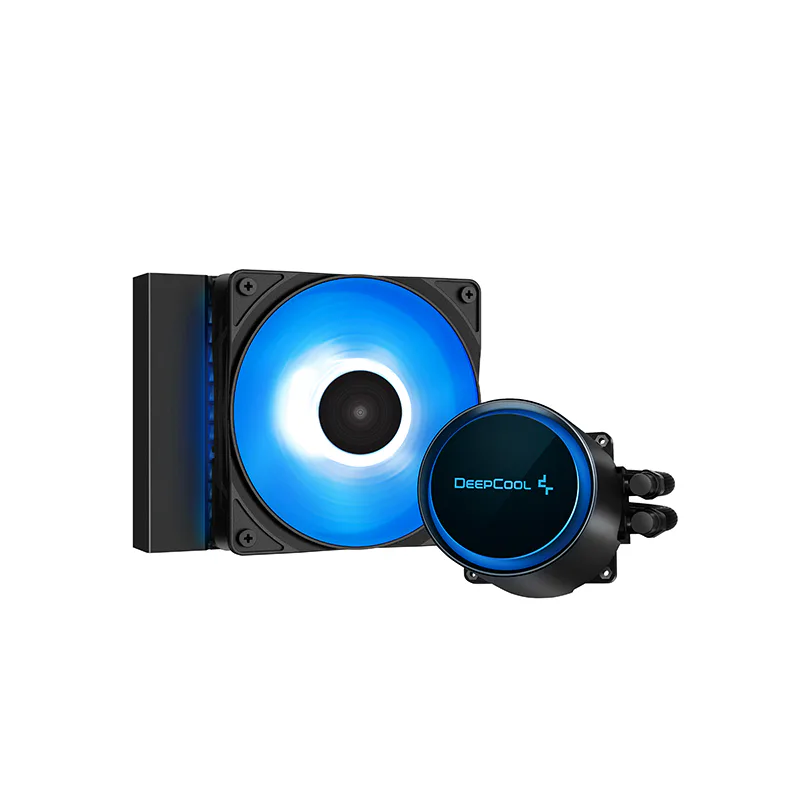

CASTLE 120R

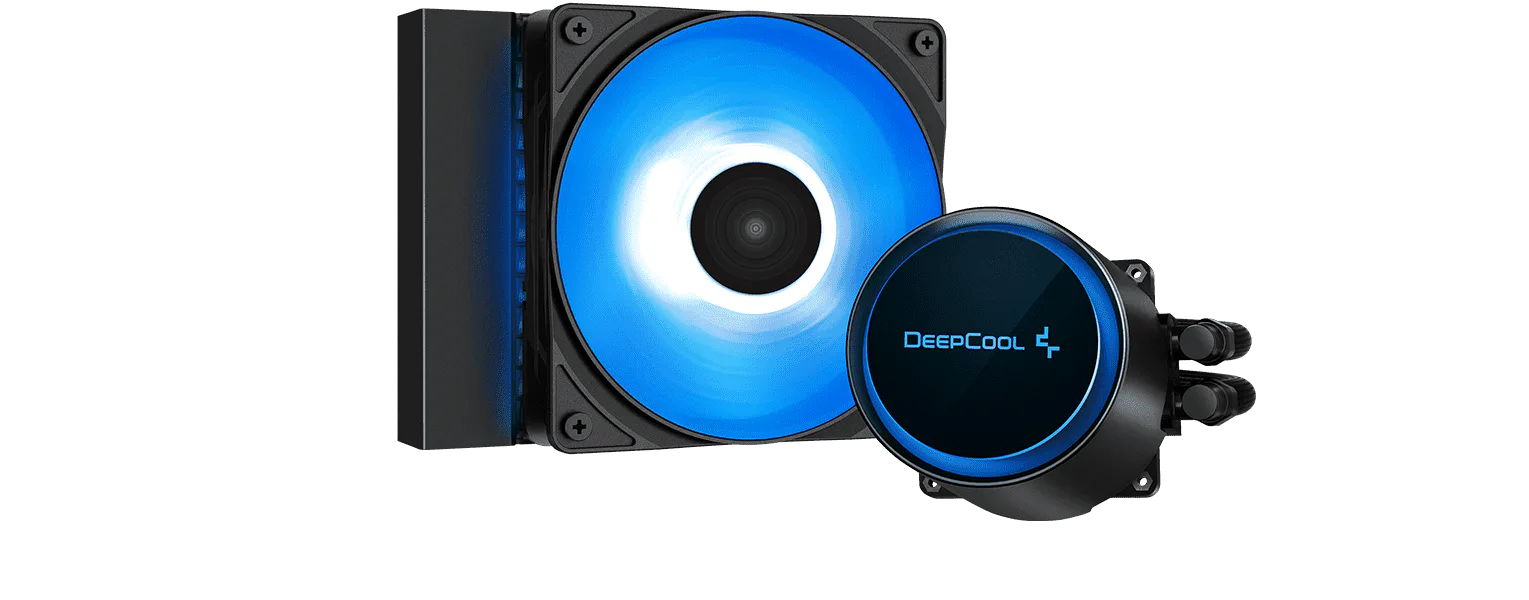

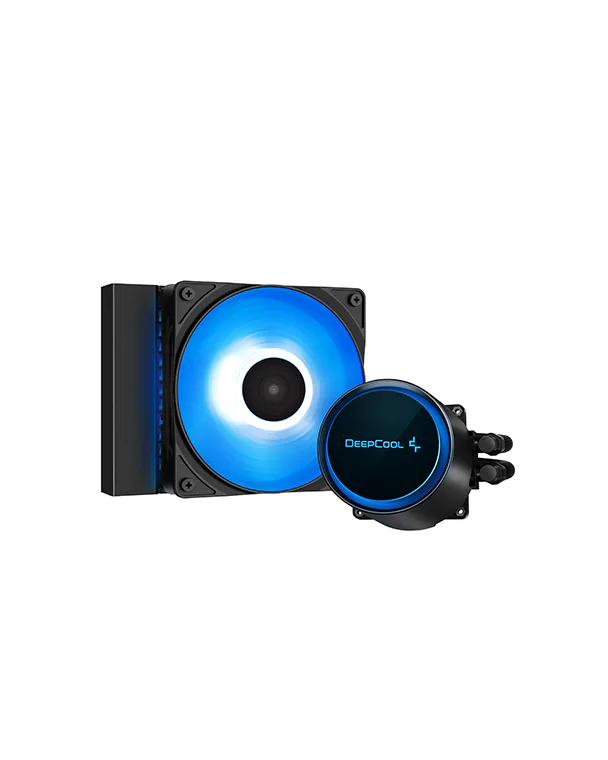

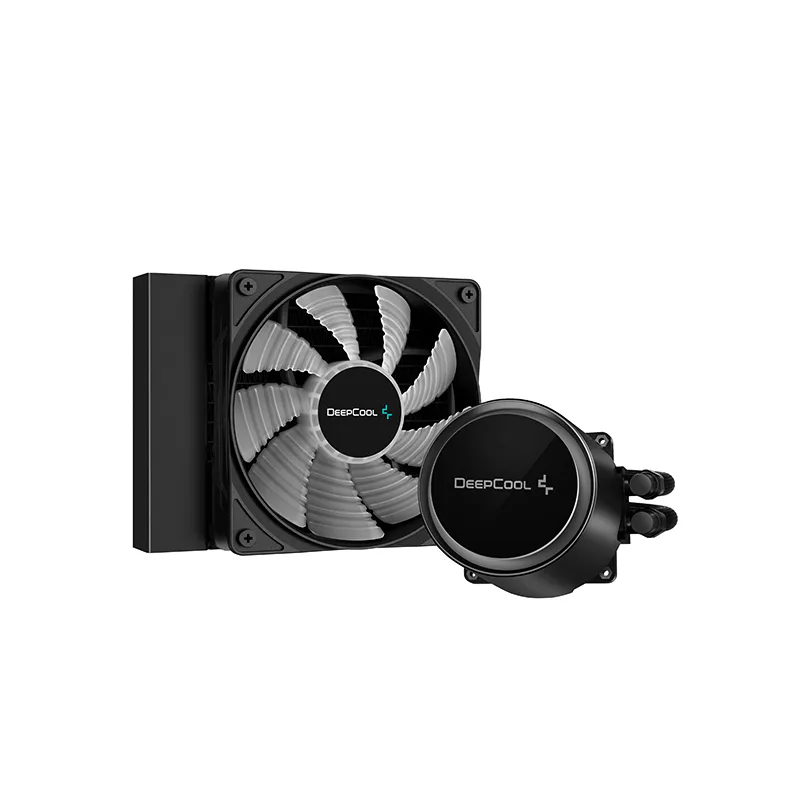

The CASTLE 120R is an all-in-one CPU liquid cooler made for better cooling performance with a clean styled RGB pump head and fan.
COLOR
black
MODEL
CASTLE 120R
Reliable Liquid Cooling
The CASTLE 120R is an all-in-one CPU liquid cooler made for better cooling performance with a clean styled RGB pump head and fan.
Compact
performance
―

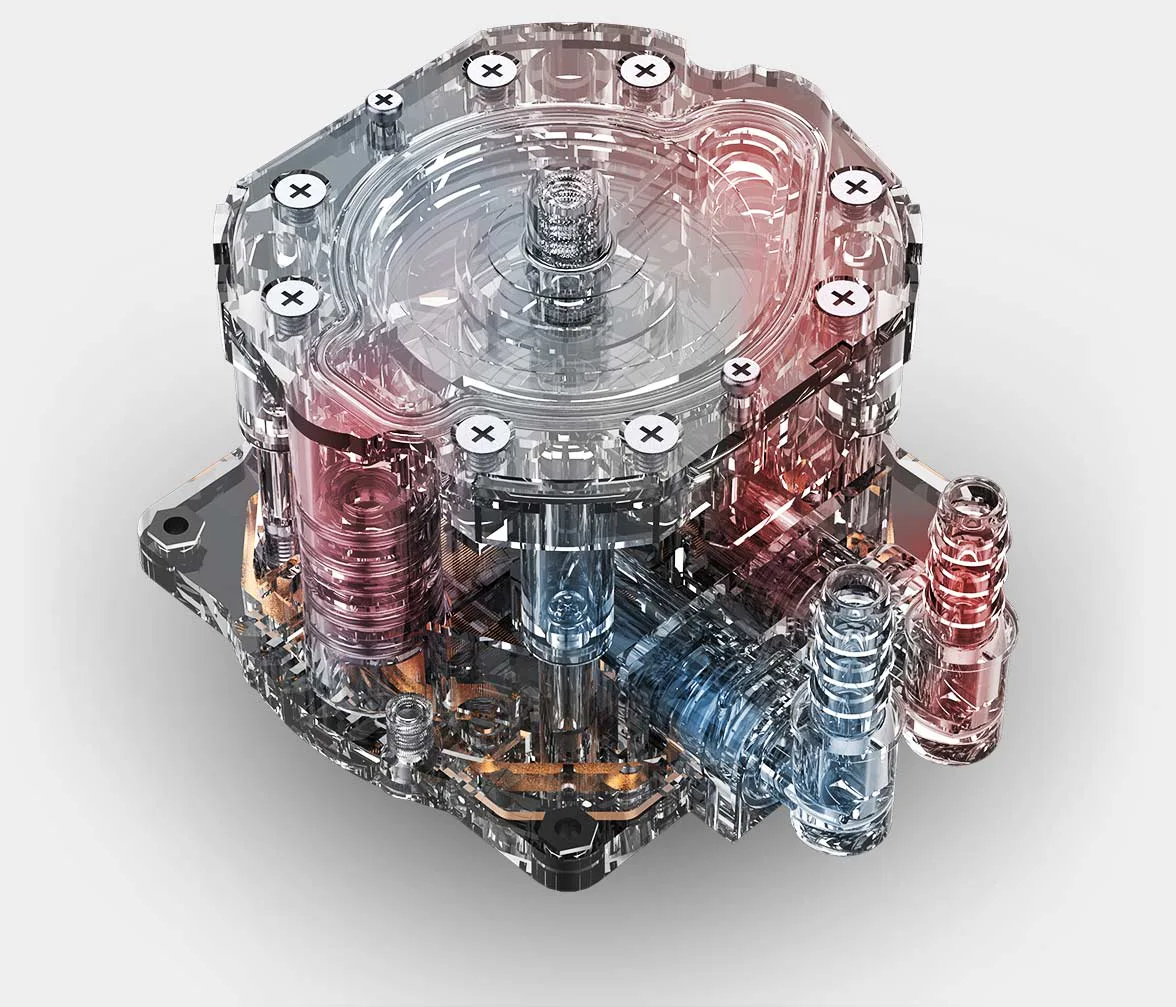

The split dual-chamber design is optimized to ensure a higher flow rate with a reduction in resistance and energy loss.
Efficient and powerful
―

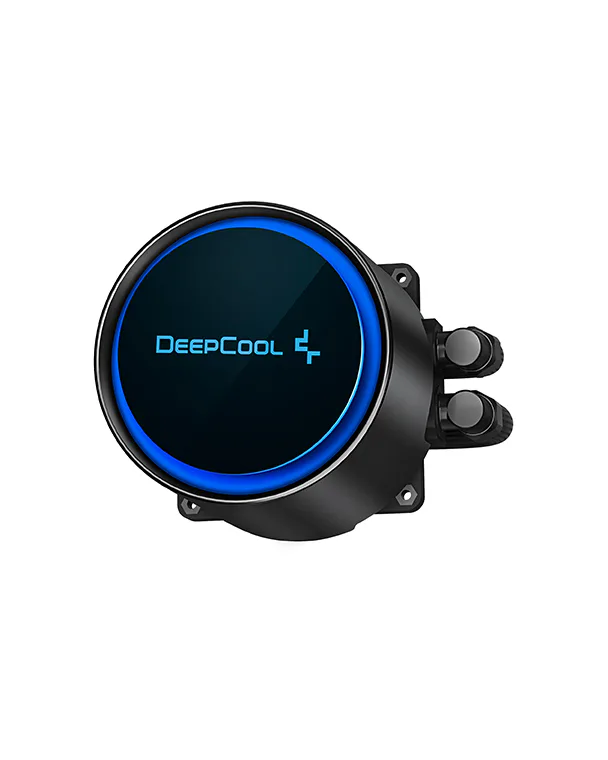

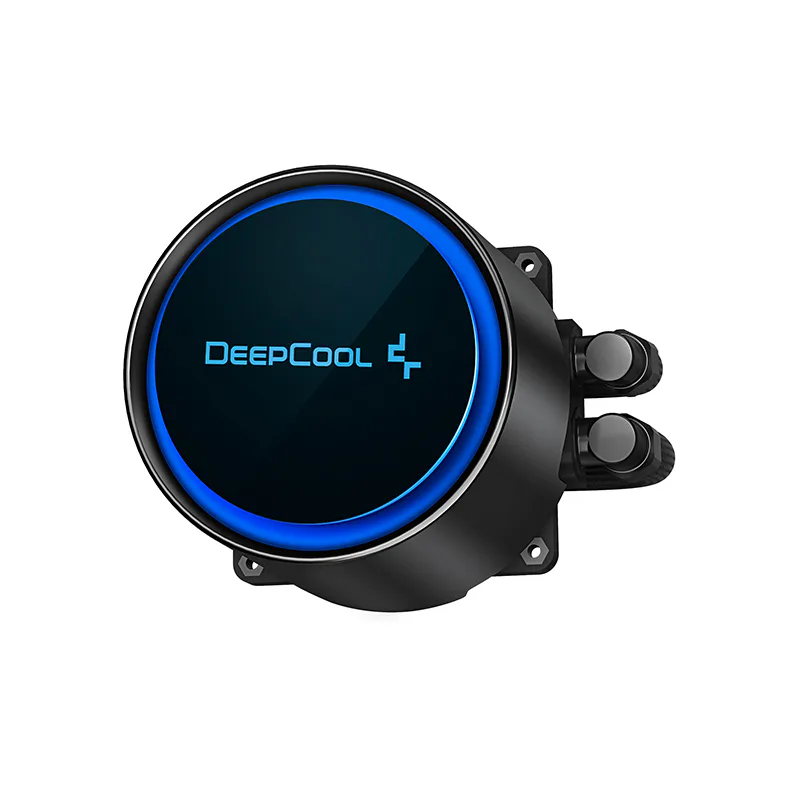

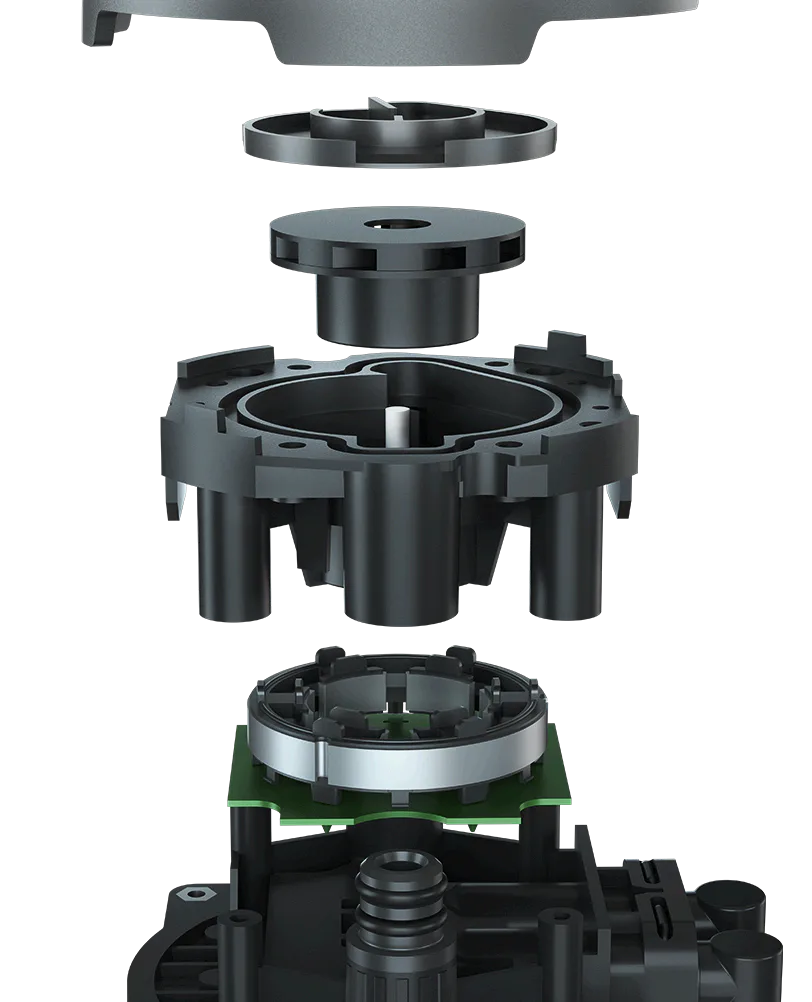

A powerful pump motor effectively moves coolant to transfer heat away from the CPU for better overall performance while staying efficiently quiet.
Designed to last

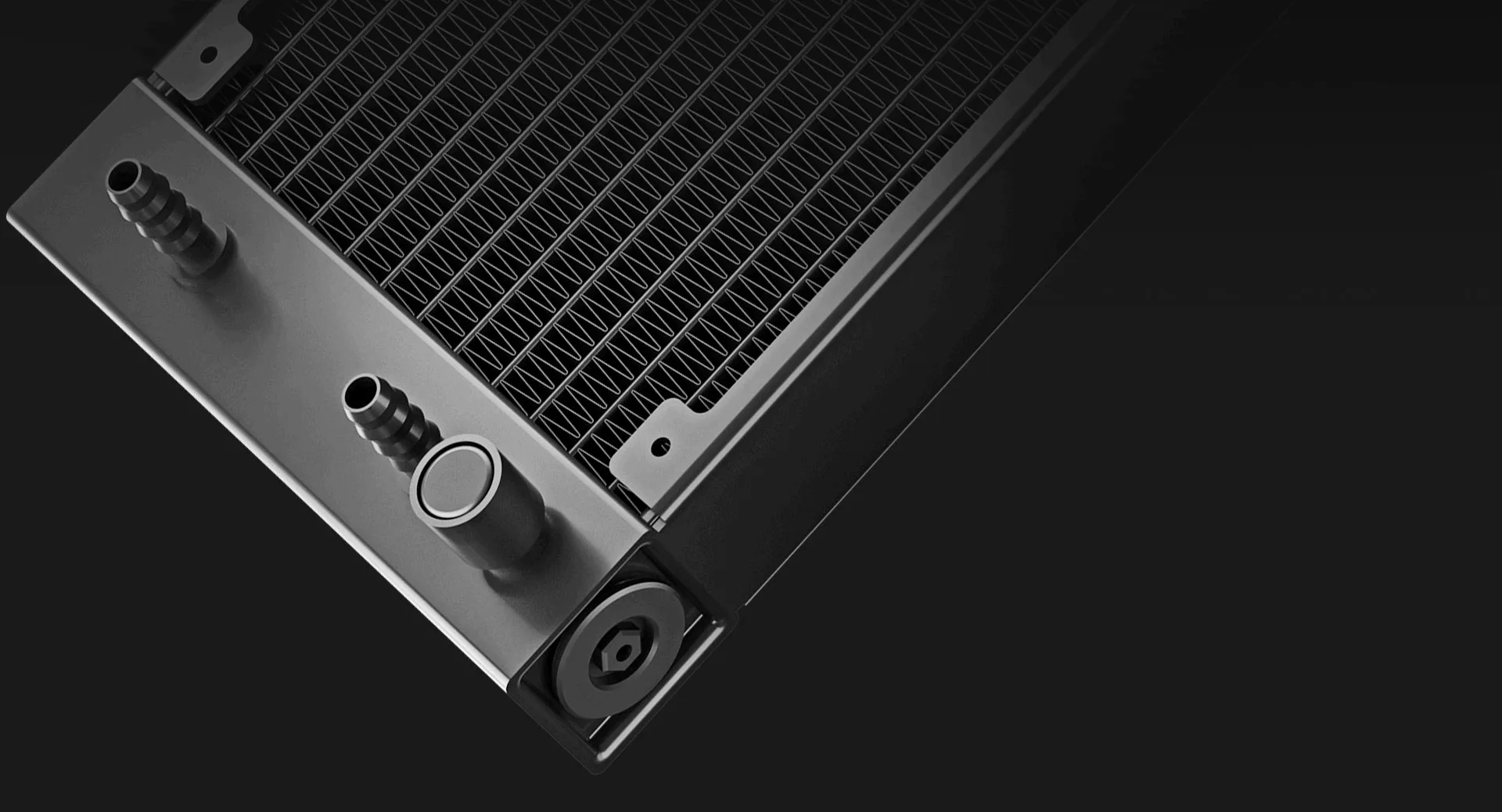

DeepCool Anti-Leak Technology helps regulate pressure buildup inside the AIO, which significantly increases reliability and is setting a new standard for liquid cooling systems.
Learn more about Anti-leak Tech Inside
RGB lighting
―

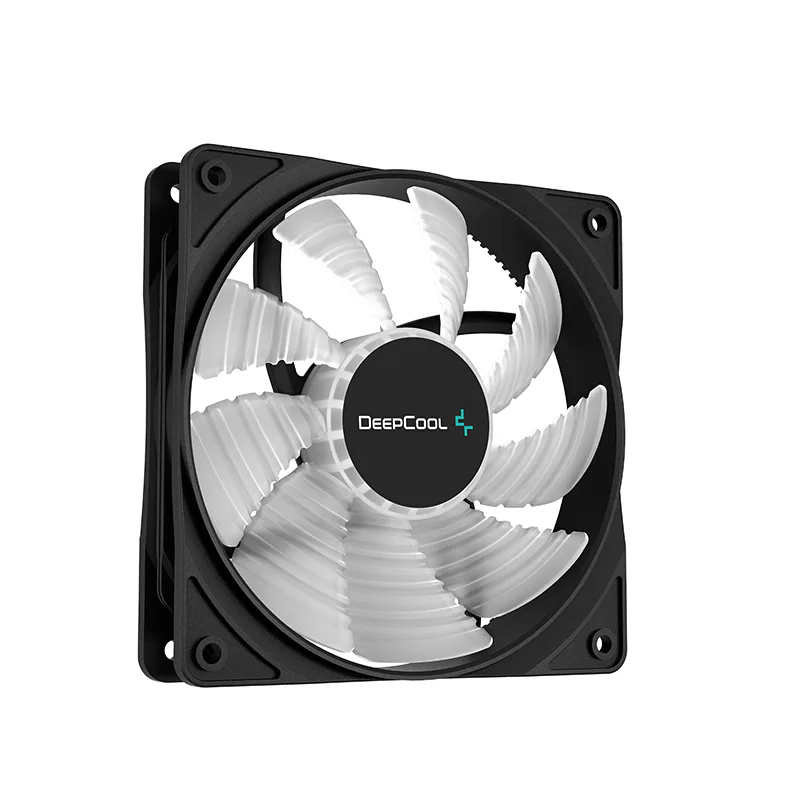

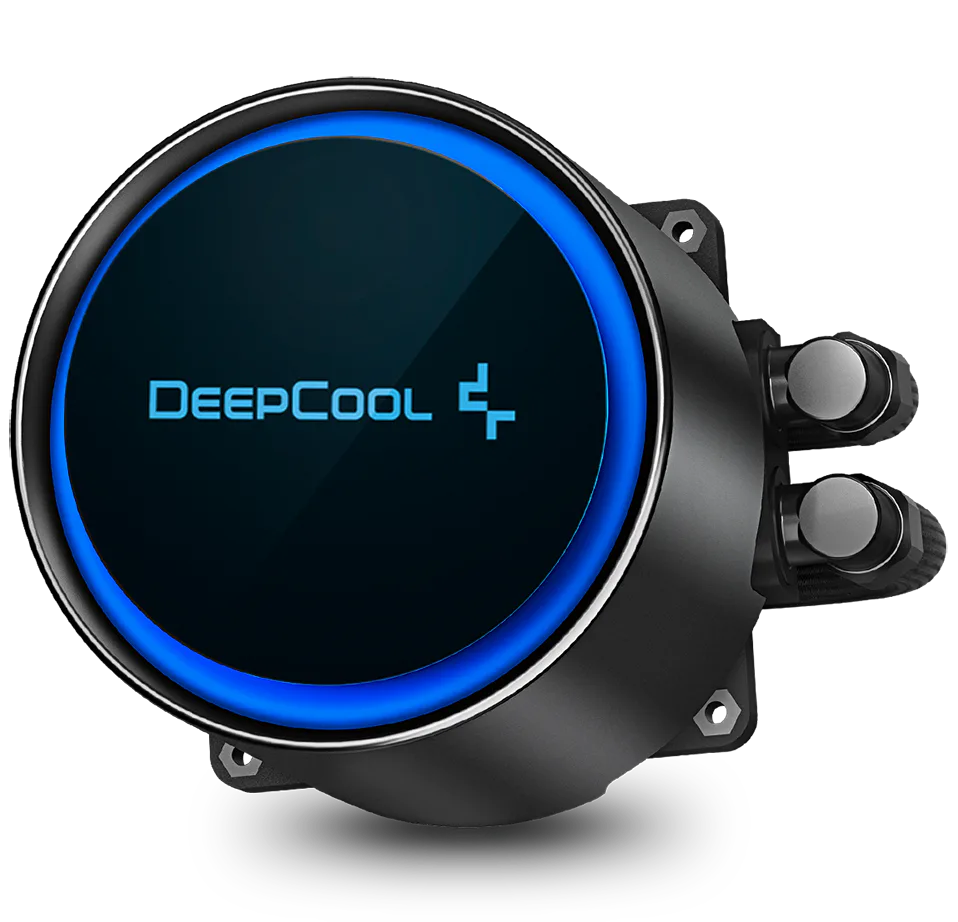

Sync to your colors in full brilliance with a rotatable RGB pump face and fan that are compatible with supported RGB software control.
*RGB control only available through a +12V 4-pin header on supported motherboards.
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
AM4
Technical Spec
Net Weight 980 g

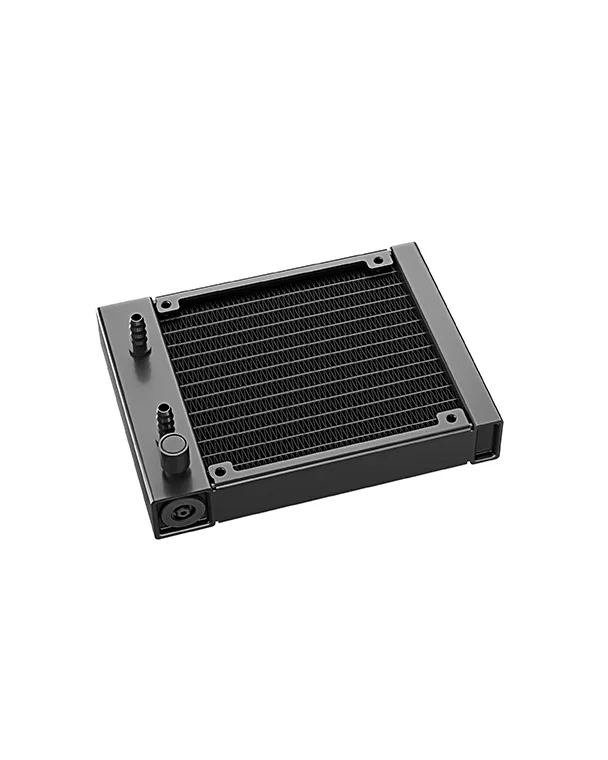

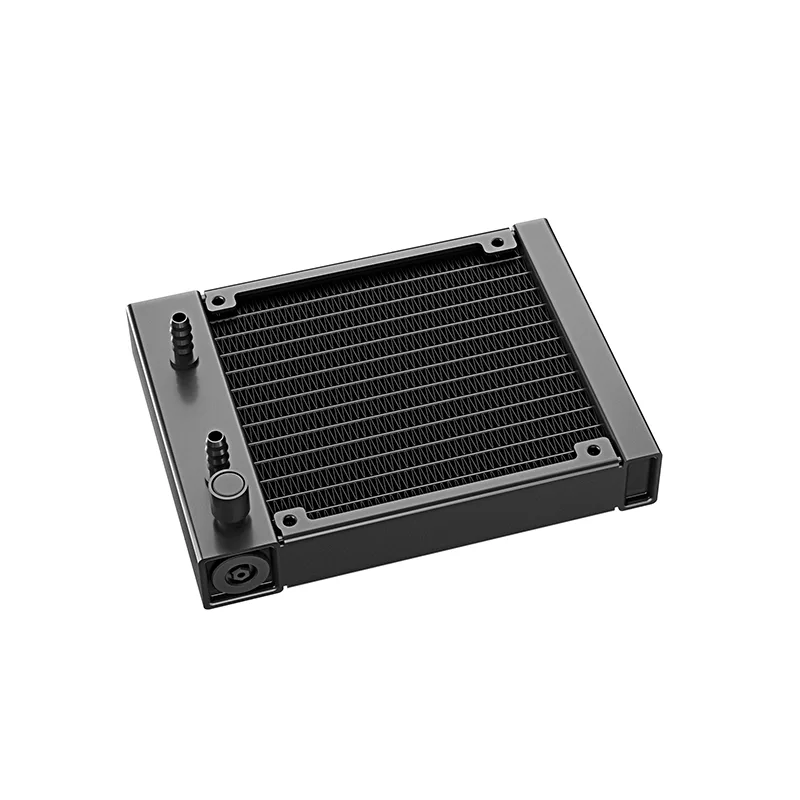

Radiator Dimensions159×120×27 mm(L×W×H)
Radiator Material Aluminum
Tube length 310 mm
Pump Dimensions86 ×75×65 mm(L×W×H)
Pump Speed 2550 RPM±10%
Pump Noise 17.8 dB(A)
Pump Connector 3-pin
Pump Rated Voltage 12 VDC
Pump Rated Current 0.2 A
Pump Power Consumption 2.4 W

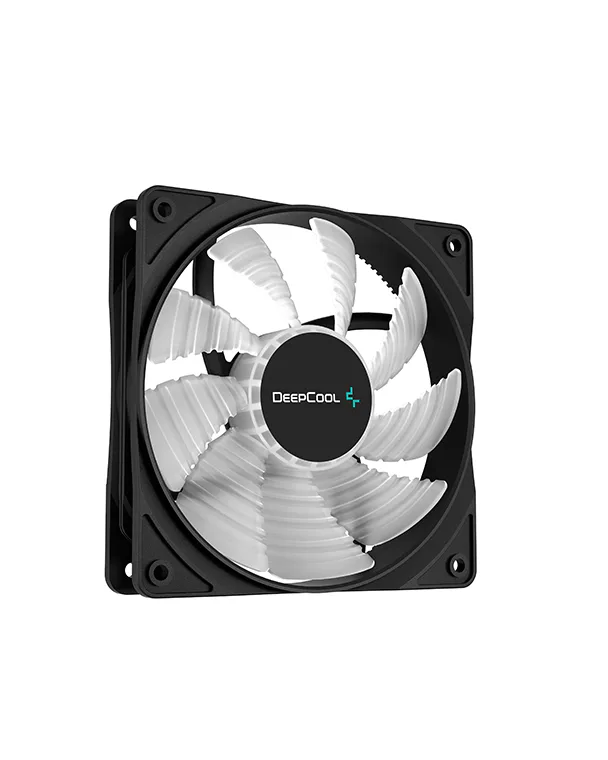

Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed 500~1800 RPM±10%
Fan Airflow 69.34 CFM
Fan Air Pressure 2.42 mmAq
Fan Noise ≤30 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.17 A
Fan Power Consumption 2.04 W
LED Type RGB LED
LED Connector 4-pin(+12V-G-R-B)
LED Rated Voltage 12 VDC
LED Power Consumption 1.56 W（PUMP） / 1.4 W（FAN）
EAN 6933412727149
P/N DP-GS-H12-CSL120R
Product Dimension
Download
CASTLE 120R Manual.pdf
