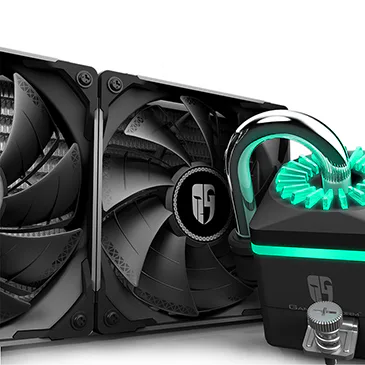

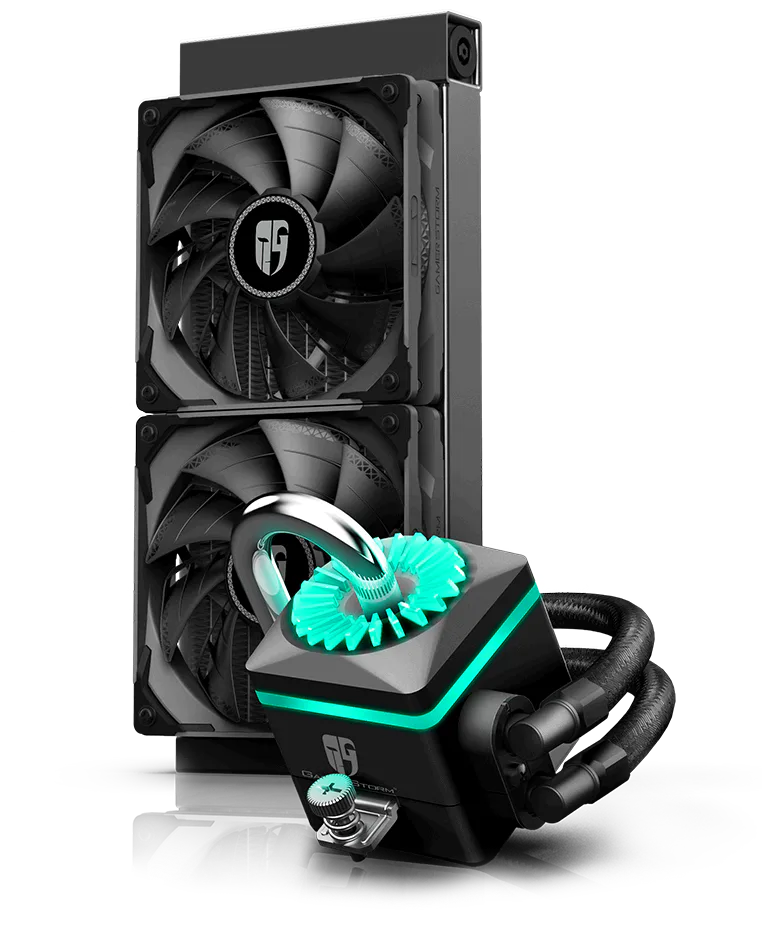

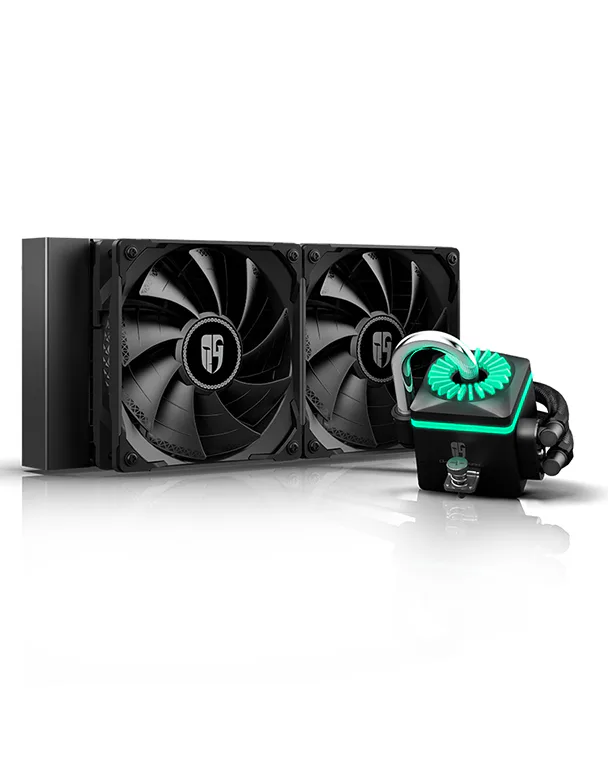

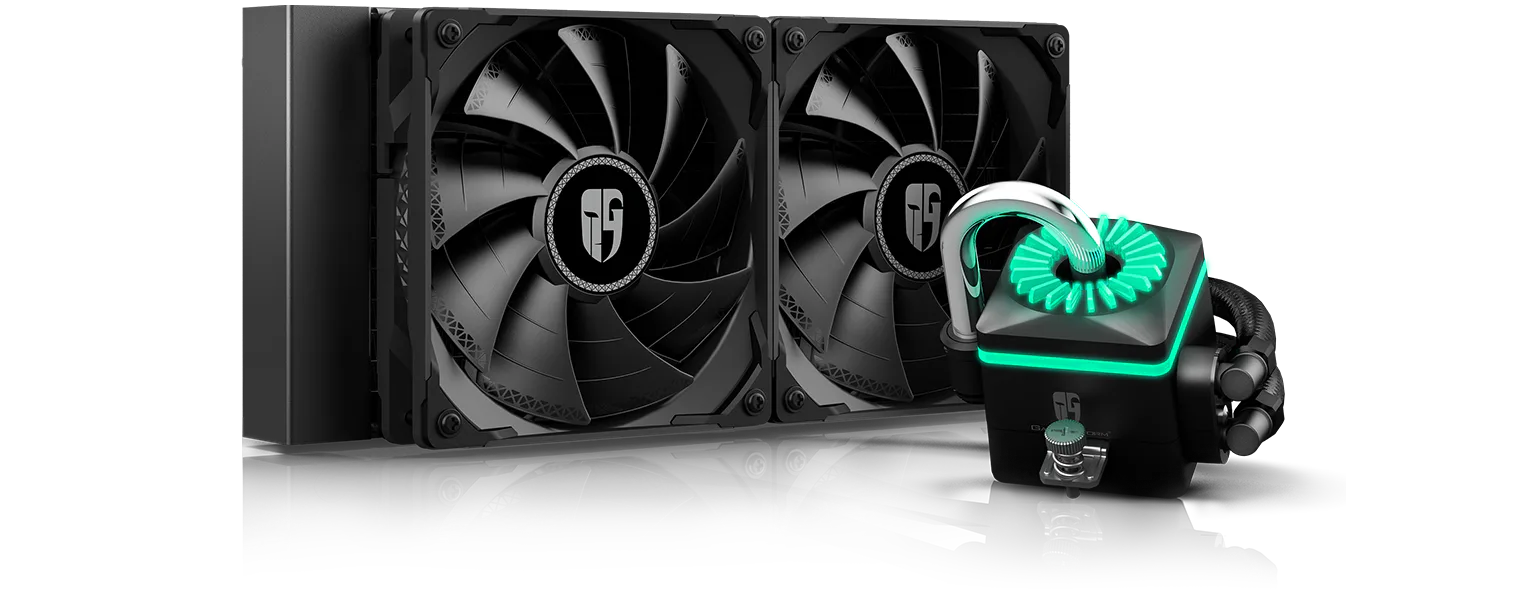

CAPTAIN 240X

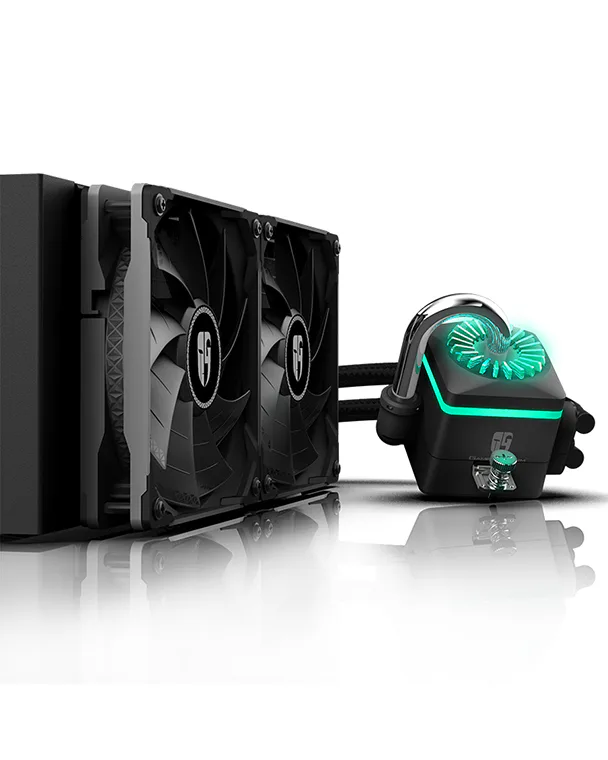

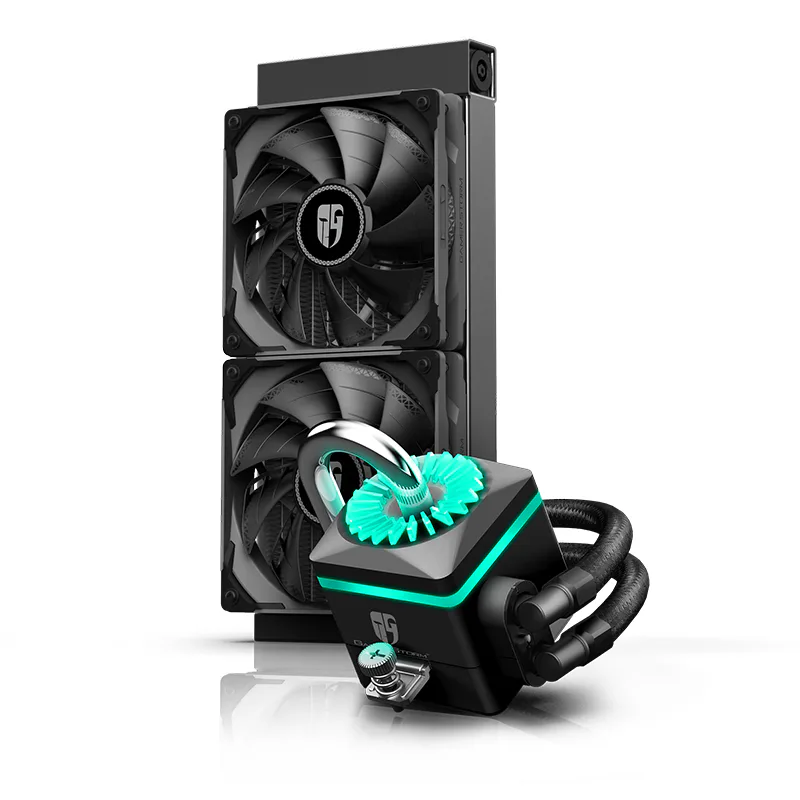

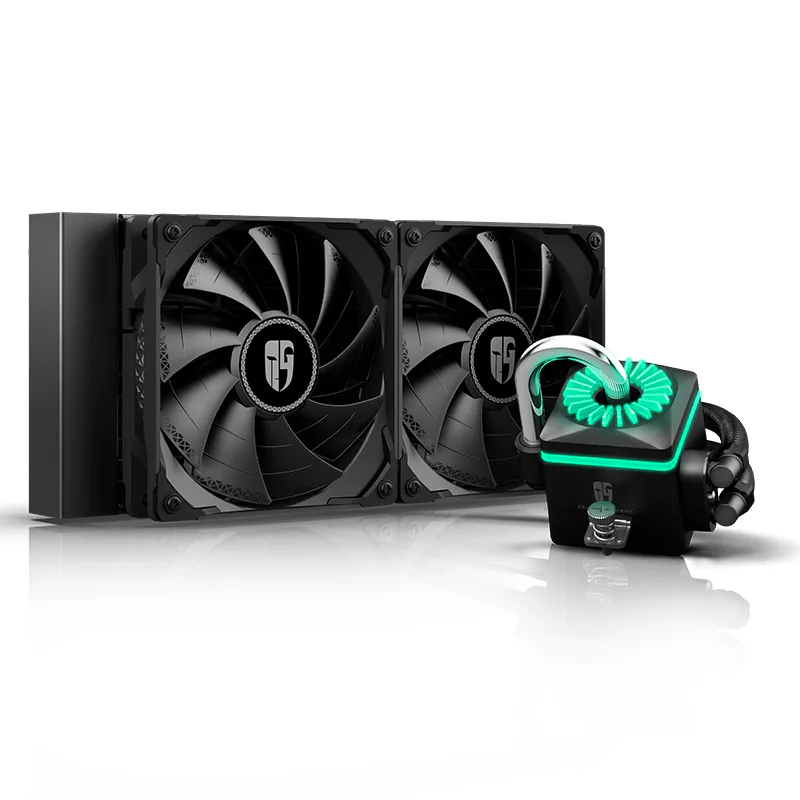

The CAPTAIN 240X AIO liquid CPU cooler is built with Anti-leak technology for better reliability and features an upgraded stainless steel pipe on the water block design with RGB lighting.
COLOR
black
MODEL
CAPTAIN 240X
Leading the way
ANTI-LEAK TECH INSIDE
CAPTAIN 240X is equipped with DeepCool’s exclusive Anti-leak Technology. The technology helps the system achieve an automated pressure balance, which will significantly improve operation safety of AIO liquid cooling systems. With this technology, DeepCool is setting a new standard for liquid cooling systems.
Learn more about Anti-leak Tech Inside

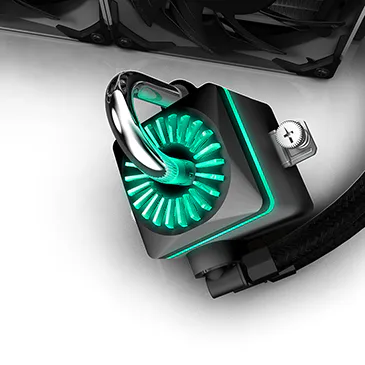

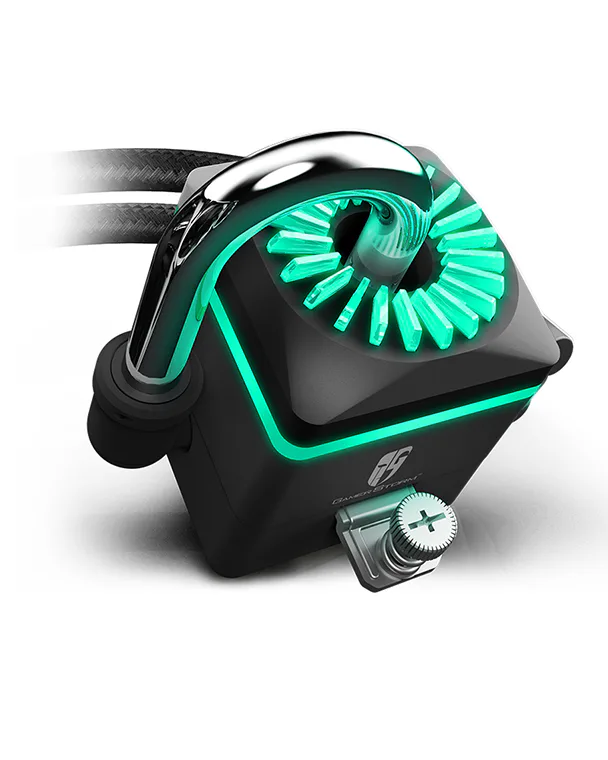

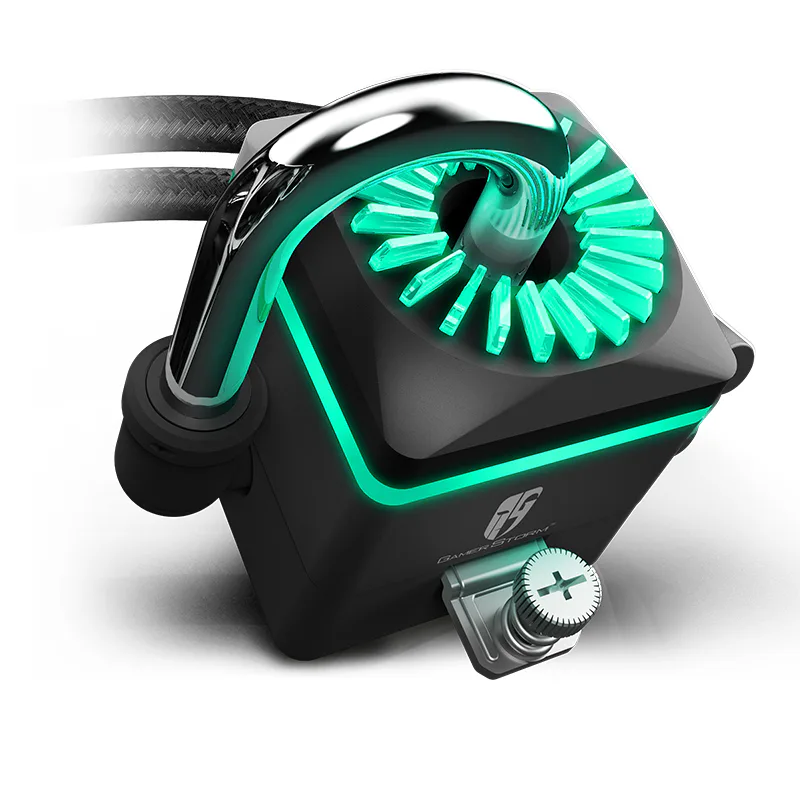

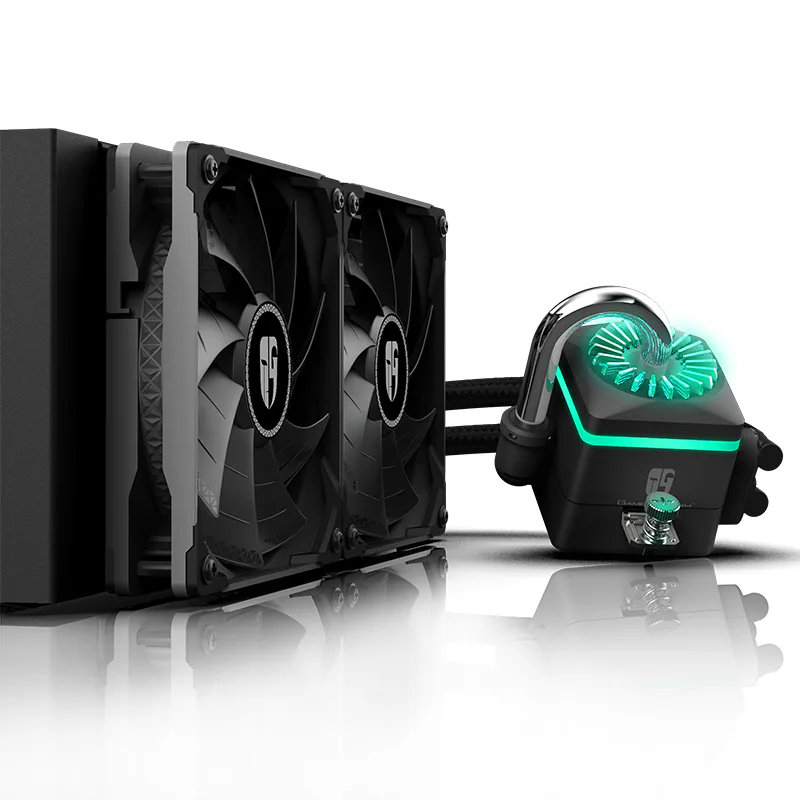

STAINLESS STEEL PIPE
CAPTAIN 240X upgraded its U-shape pipe from glass to stainless steel, gaining extra sturdiness and machinery-like aesthetics.

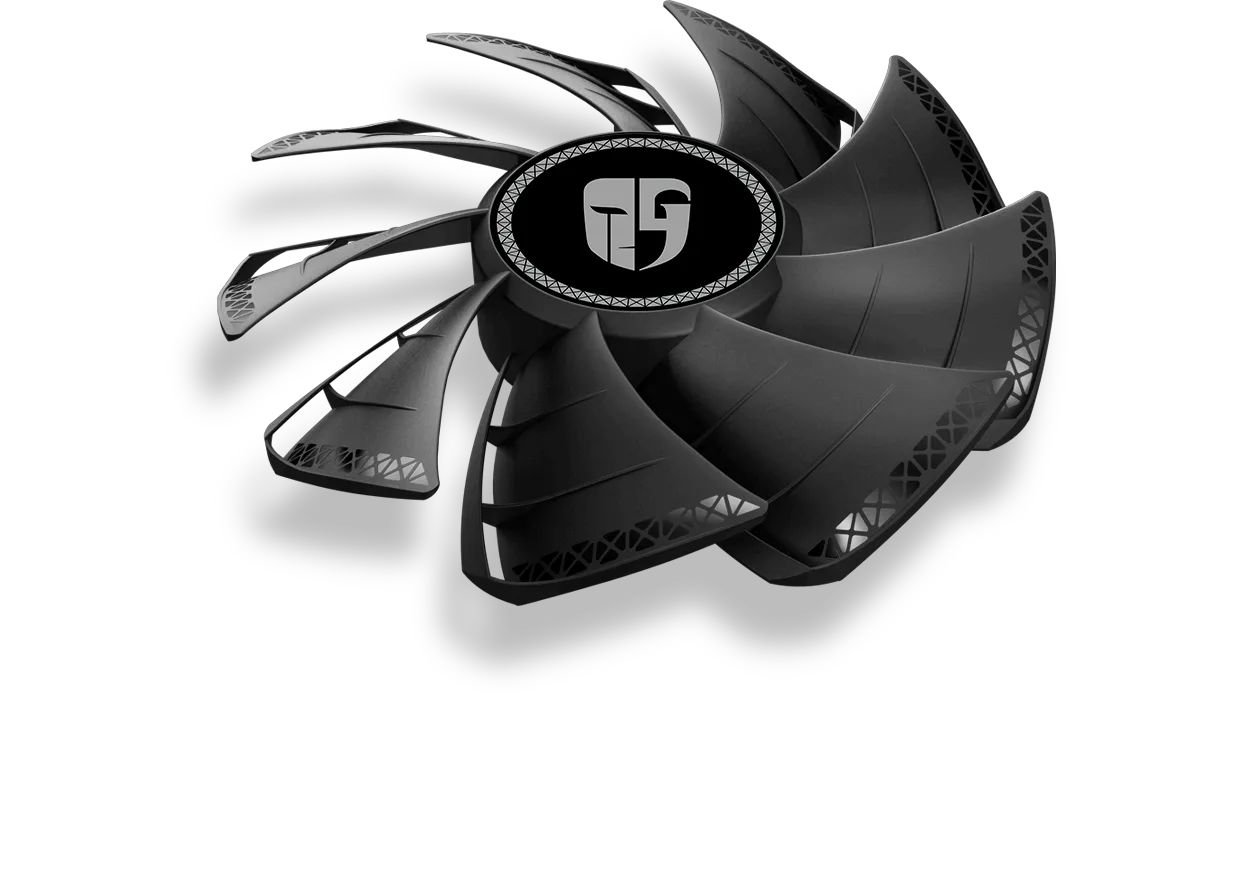

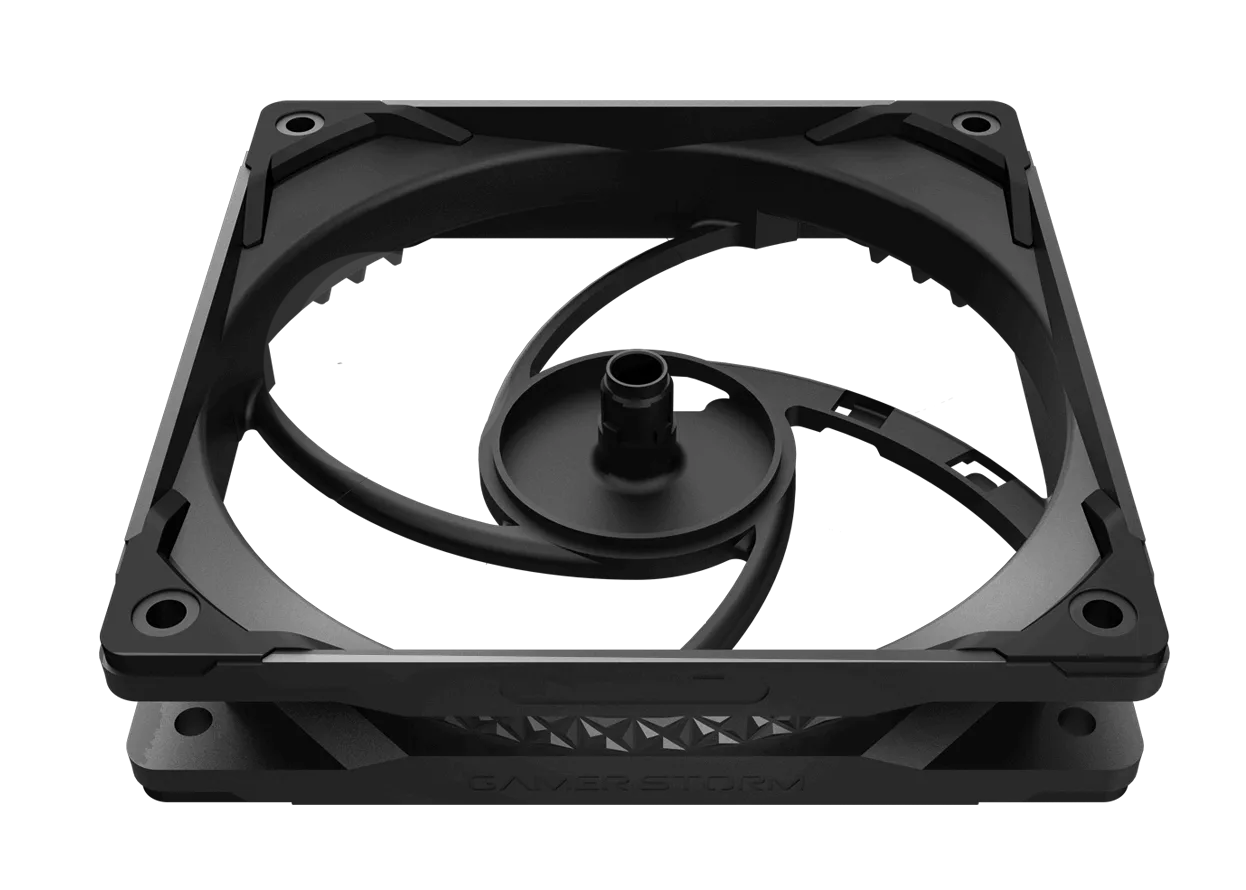

FIERCE FANS
2 specially tuned TF120 S fans are included (in matching the radiator’s properties).
The fans are also equipped with patented two-layer fan blades, as well as flow-amplifying and noise-canceling frames.
STRONG HEART
The powerful 3 phase motor boosts the TDP of CAPTAIN 240X up to 250W, and makes the cooler a perfect partner of all flagship CPUs like Intel i9 series, Ryzen 3000 series, etc .
EASY TO INSTALL

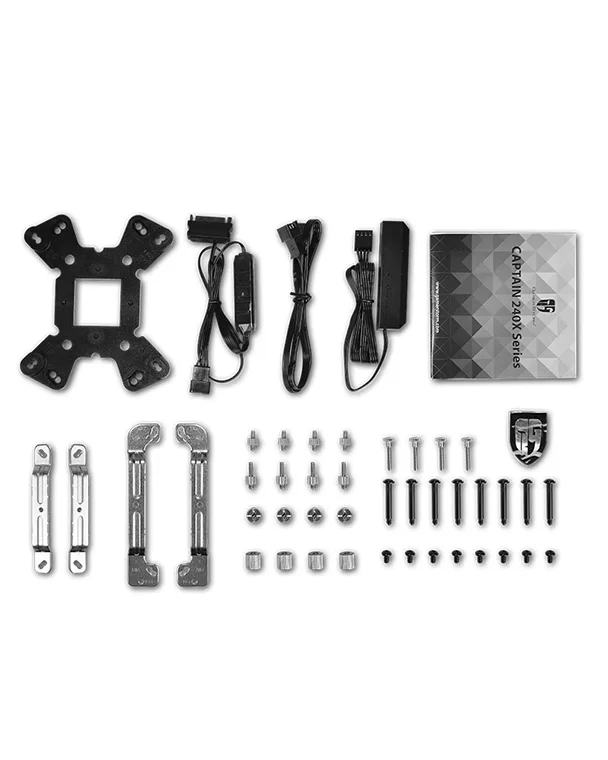

Unique pre-installed spring screws make the installation on motherboard super convenient.

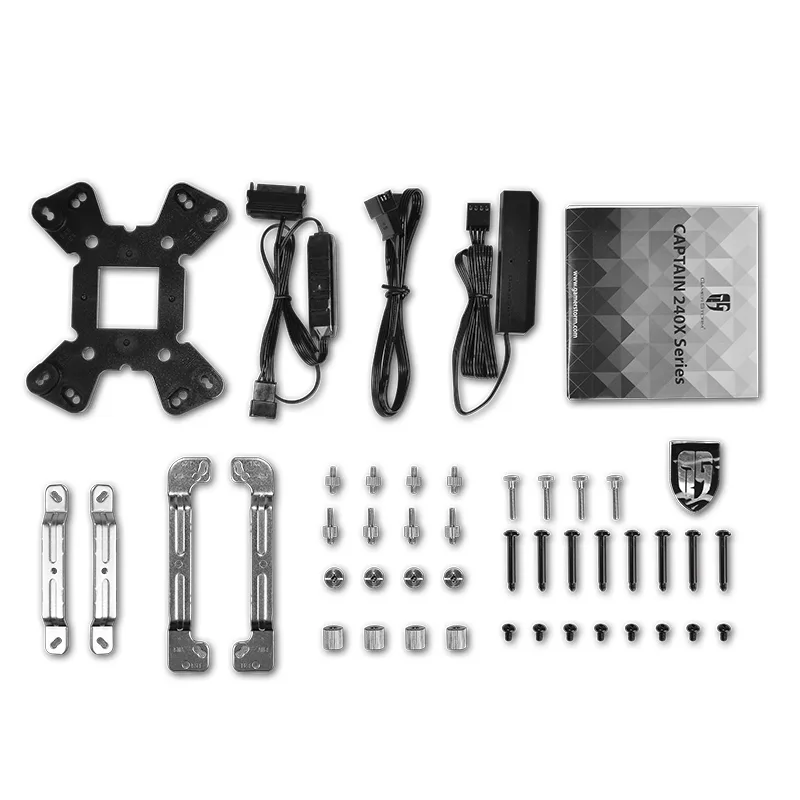

Accessories like PWM hub and RGB extension cable also allows easy RGB and PWM control.
1Stainless Steel Pipe
2Zirconia Ceramic Bearings and Axis
3One Pump, Two Chambers
1Stainless Steel Pipe
2Zirconia Ceramic Bearings and Axis
3One Pump, Two Chambers
4Three-phase Winding Motor
5Micro Water Passages
4Three-phase Winding Motor
5Micro Water Passages
Mode+
Speed （Hold for 3 seconds to switch on/off）
Mode-

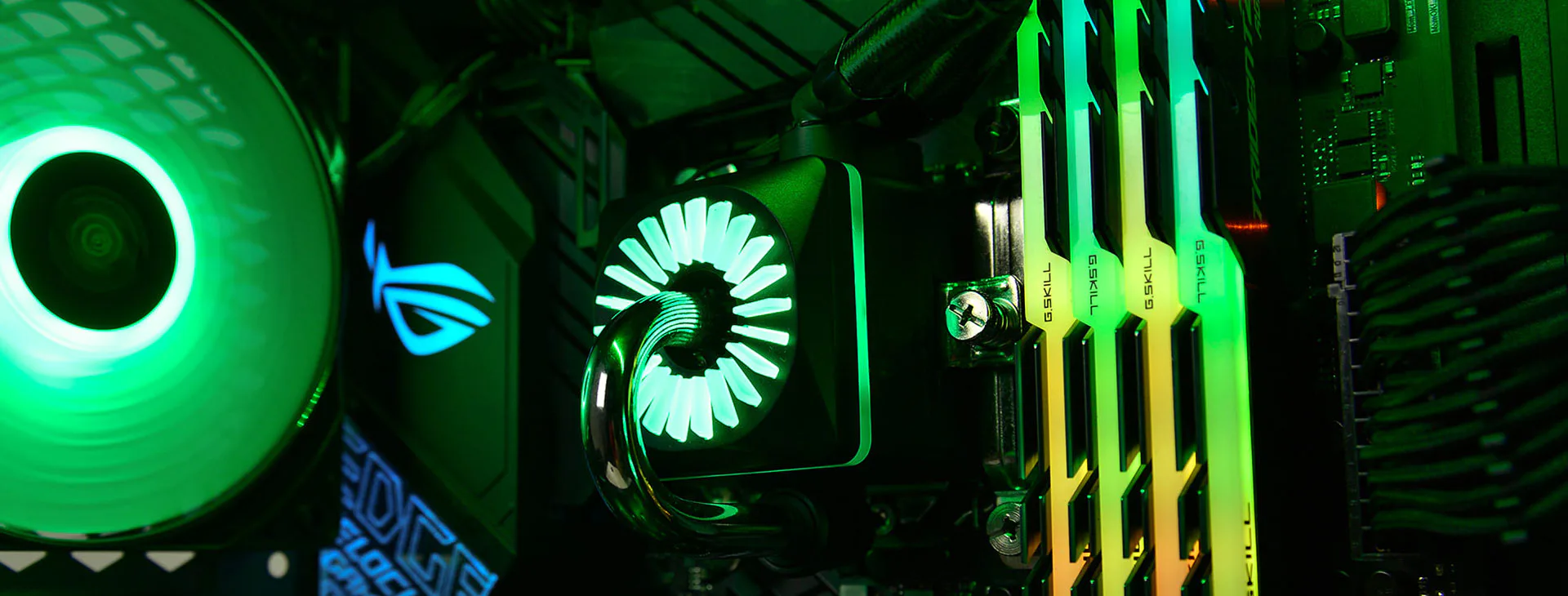

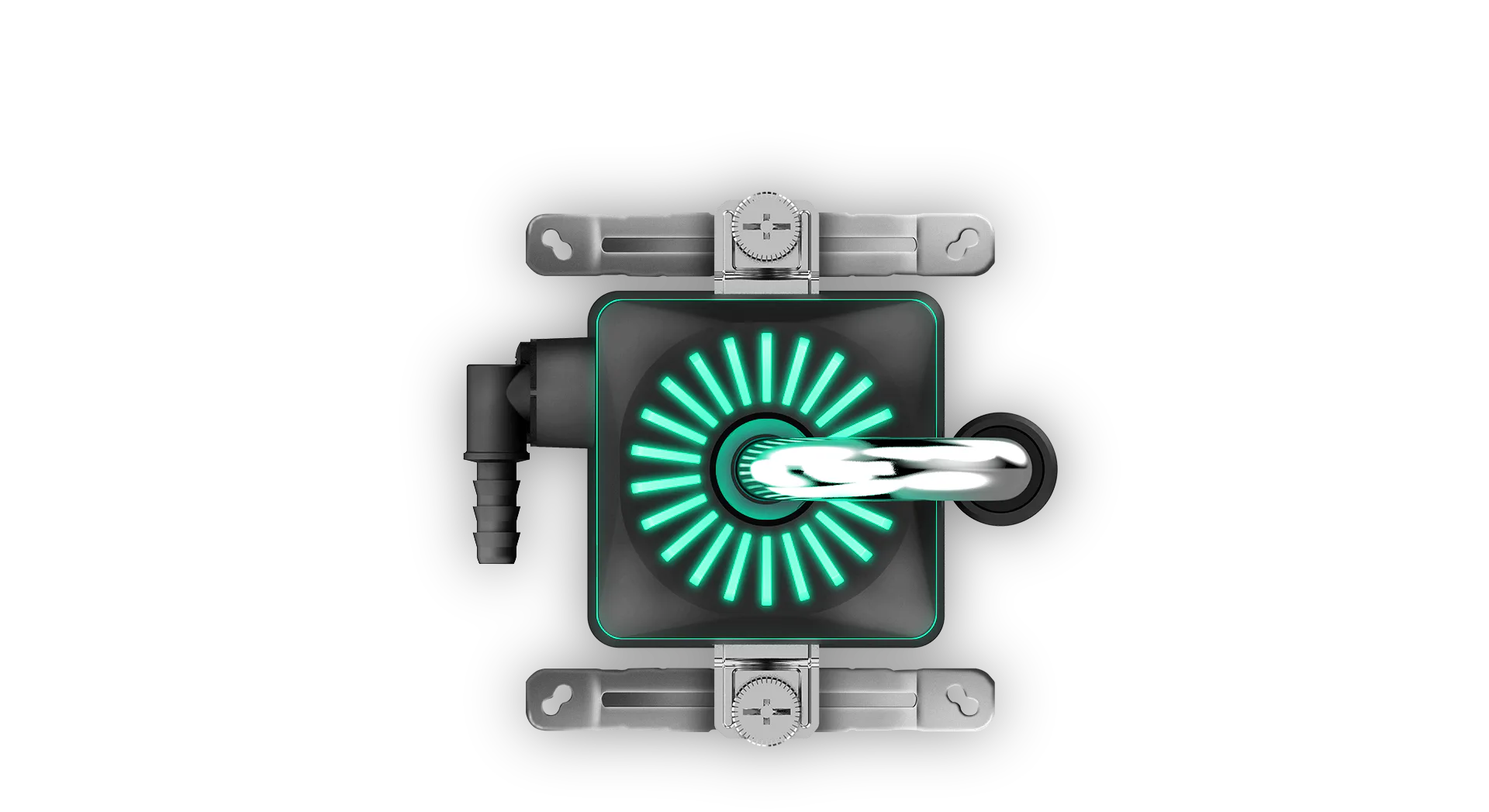

The water block 12V RGB lighting system fulfills your aesthetic desires and supports synchronized lighting control by either mainstream motherboards or included controller.
Dynamic
Static
Breathing
Application For
Intel
LGA2066/2011-v3/2011/LGA1200/1151/1150/1155/1366
AMD
TRX4/TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Technical Spec
Radiator Dimensions282×120×27 mm(L×W×H)
Radiator Material Aluminum
Net Weight 1624 g
Tube length 380 mm(L×W×H)
Pump Dimensions93.7×93×85 mm(L×W×H)
Pump Speed 2200 RPM±10%
Pump Noise 17.8 dB(A)
Pump Connector 3-pin
Pump Rated Voltage 12 VDC
Pump Rated Current 0.13 A
Pump Power Consumption 1.56 W
Fan Dimensions120×120×25 mm(L×W×H)
Fan Speed 500~1800 RPM±10%
Fan Airflow 64.4 CFM
Fan Air Pressure 2.33 mmAq
Fan Noise ≤32.1 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.15 A
Fan Power Consumption 1.8 W
LED Type RGB LED
LED Connector 4-pin(+12V-G-R-B)
LED Rated Voltage 12 VDC
LED Power Consumption 1.56 W（PUMP）
EAN 6933412726692
P/N DP-GS-H12B-CT240XR
Product Dimension
$1000 Gaming PC Build GIVEAWAY!!!
Zach's Tech Turf used Captain 240X to build a $1000 Gaming PC as the prize of his giveaway. Appearance/performance/price presented.
View More
Date:2019/12
Media:Kitguru
