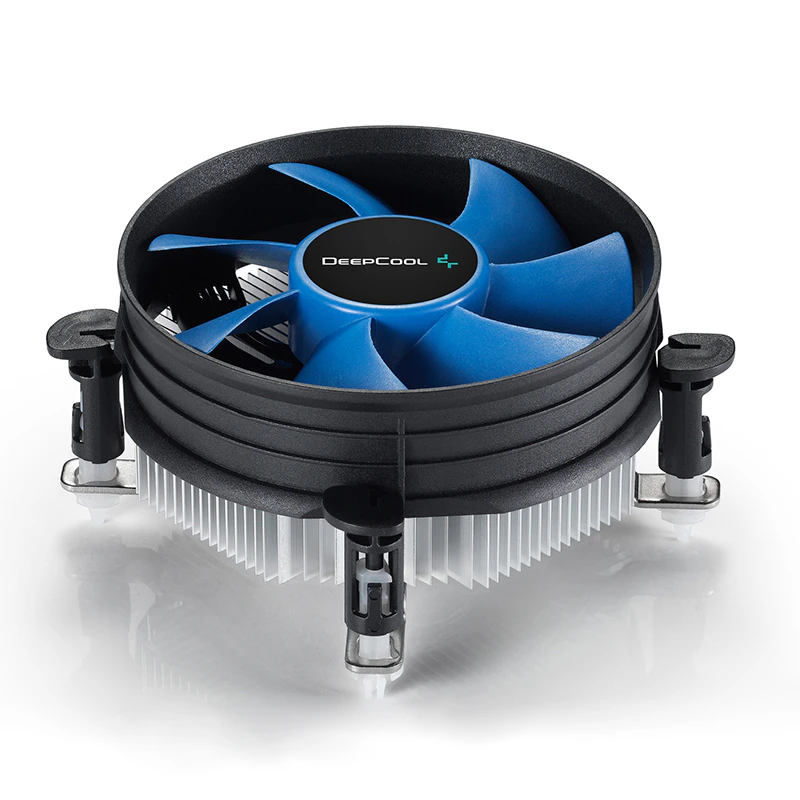

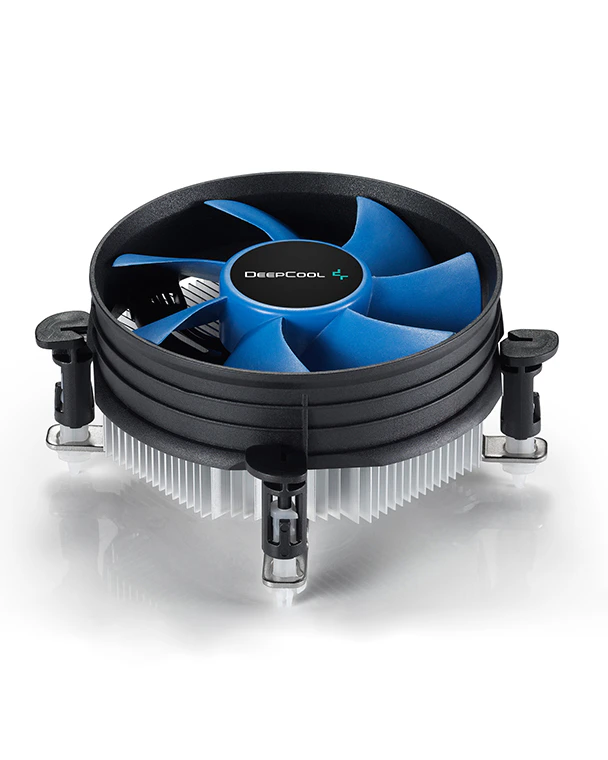

THETA 9 PWM
MODEL
Low profile heatsink that easily fits into SFF enclosures.
Ф92 X 25 mm PWM-capable fan offers a perfect balance between airflow and noise.

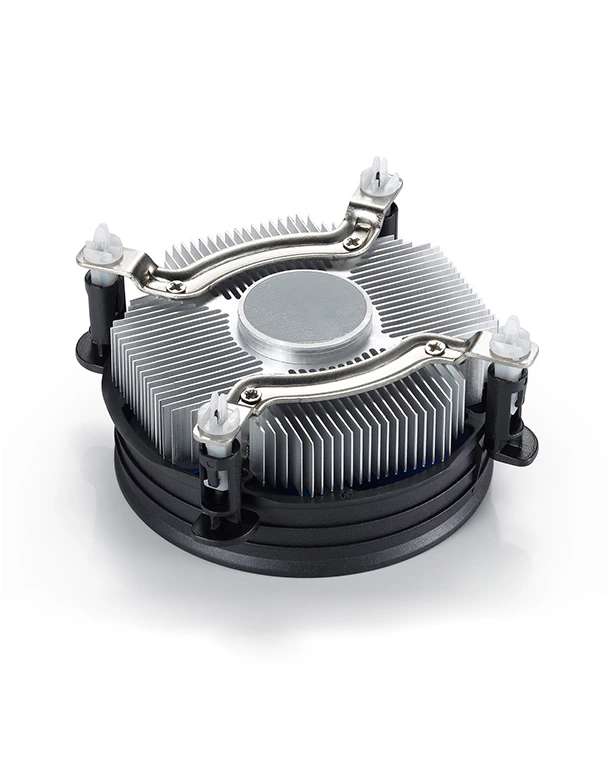

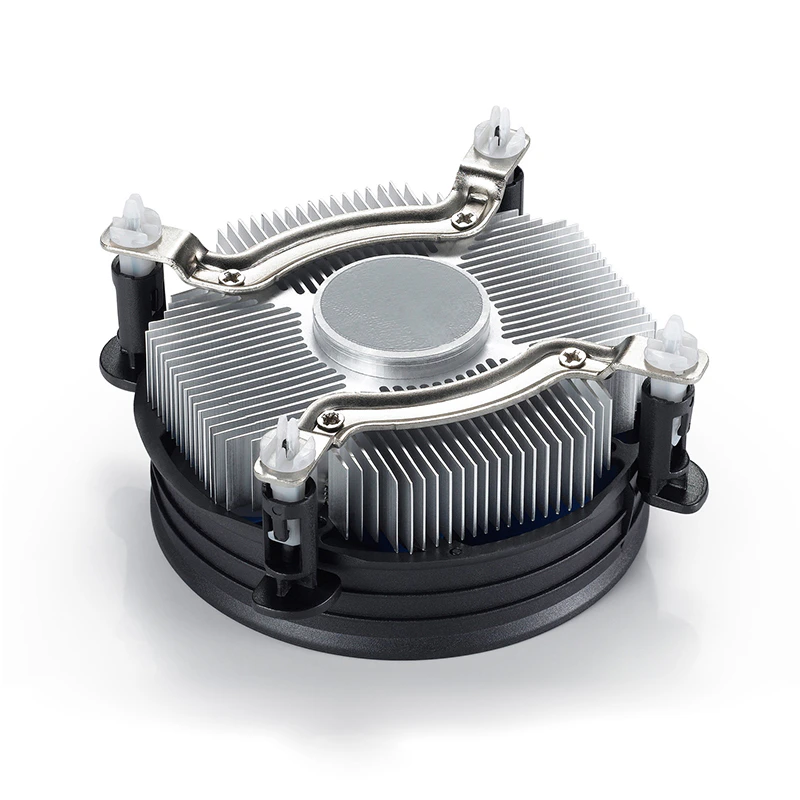

Radial aluminum heatsink providing highly effective cooling performance.
Push-pin clips for easy installation.
Application For
Intel
LGA1200/1151/1150/1155
Technical Spec
Overall Dimension100X100X46.5 mm(L×W×H)
Fan DimensionФ92X25 mm(L×W×H)
Net Weight 268.5g
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Operating Voltage 10.8～13.2VDC
Started Voltage 7VDC
Rated Current 0.26±10%A
Power Input 3.12W
Fan Speed 1100±15%~3200±10%RPM
Max. Air Flow 58.06CFM
Noise 17.8~41.3dB(A)
EAN 6933412705260
P/N DP-ICAP-T9P
