AS500 PLUS
The DeepCool AS500 PLUS single tower CPU cooler boasts a five heat pipe design with two 140mm PWM fans for great performance in a slim profile.
MODEL
AS500 PLUS
Optimized Efficiency. Unrivaled Compatibility


OVERVIEW
The DeepCool AS500 PLUS single tower CPU cooler boasts a five heat pipe design with two 140mm PWM fans for great performance in a slim profile.
ELEVATED COOLING PERFORMANCE

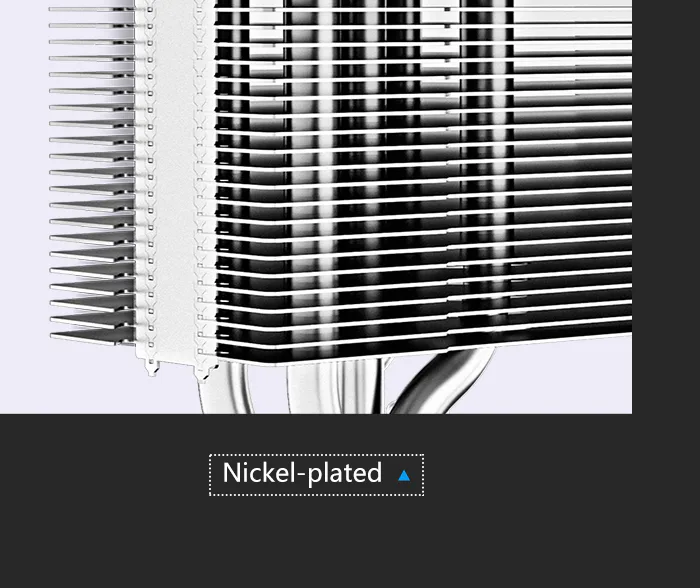

Optimize heat exchange through a solid copper base with optimal surface contact that runs five 6mm heat pipes in a single tower with high fin density
SIZED JUST RIGHT
Designed for maximum RAM height compatibility in a slim (48mm) profile.
CONTROL YOUR TEMPS
The high-performance 140mm PWM fans provide precise control between extreme cooling or low-noise operation with long-life durability.
500~1200 RPM±10%
Wide Speed Range
70.81 CFM
Ultra Airflow
CONTROL YOUR TEMPS
The high-performance 140mm PWM fans provide precise control between extreme cooling or low-noise operation with long-life durability.
500~1200 RPM±10%
Wide Speed Range
70.81 CFM
Ultra Airflow
A-RGB LED CONTROLLER
An included wired controller allows for a quick and easy way to adjust lighting effects without installing additional software.
Appropriate A-RGB connector cables for motherboard control are also provided.
WHAT’S IN THE BOX
WHAT’S IN THE BOX
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions142×102×164 mm(L×W×H)
Heatsink Dimensions140×49×159 mm(L×W×H)
Net Weight 1198 g
Heatpipe Ø6 mm×5 pcs
Fan Dimensions140×140×25 mm(L×W×H)
Fan Speed 500~1200 RPM±10%
Fan Airflow 70.81 CFM
Fan Air Pressure 1.14 mmAq
Fan Noise ≤29.2dB(A)
Overall Noise ≤31.5 dB(A)
Fan Connector 4-pin PWM
Bearing Type Fluid Dynamic Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.11 A
Fan Power Consumption 1.32 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Power Consumption 1.4 W
EAN 6933412727071
P/N R-AS500-BKNLMP-G
Product Dimension
Download
AS500 PLUS Manual.pdf
Download
Download
AS500 PLUS Manualwithout LGA1700 Mounting brackets.pdf
Download
