AS500 - DeepCool

AS500

Optimized Efficiency. Unrivaled Compatibility

Overview

The DeepCool AS500 single tower CPU cooler boasts a five heat pipe design with a 140mm PWM fan for great performance in a slim profile.

Elevated cooling performance

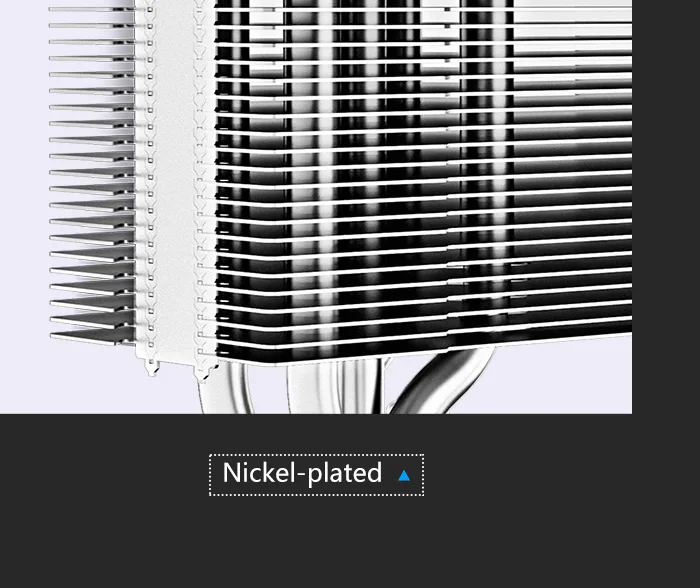

Optimize heat exchange through a solid copper base with optimal surface contact that runs five 6mm heat pipes in a single tower with high fin density.

Sized just right

Designed for maximum RAM height compatibility in a slim (48mm) profile.

Control your temps

The high-performance 140mm PWM fan provides precise control between extreme cooling or low-noise operation with long-life durability.

500~1200 RPM±10%

Wide Speed Range

70.81 CFM

Ultra Airflow

≤26 dB(A)

Super Silent

Control your temps

The high-performance 140mm PWM fan provides precise control between extreme cooling or low-noise operation with long-life durability.

500~1200 RPM±10%

Wide Speed Range

70.81 CFM

Ultra Airflow

≤26 dB(A)

Super Silent

A-RGB LED controller

An included wired controller allows for a quick and easy way to adjust lighting effects without installing additional software.

Appropriate A-RGB connector cables for motherboard control are also provided.

What’s in the box

Application For

Intel

LGA2066/2011-v3/2011/1700/1200/1151/1150/1155

AMD

AM5/AM4

Technical Spec

Product Dimensions	142×98×164 mm(L×W×H)
Heatsink Dimensions	140×49×159 mm(L×W×H)
Net Weight	1030 g
Heatpipe	Ø6 mm×5 pcs
Fan Dimensions	140×140×25 mm(L×W×H)
Fan Speed	500~1200 RPM±10%
Fan Airflow	70.81 CFM
Fan Air Pressure	1.14 mmAq
Fan Noise	≤29.2dB(A)
Overall Noise	≤26 dB(A)
Fan Connector	4-pin PWM

Bearing Type	FDB
Fan Rated Voltage	12 VDC
Fan Rated Current	0.11 A
Fan Power Consumption	1.32 W
LED Type	Addressable RGB LED
LED Connector	3-pin(+5V-D-G)
LED Rated Voltage	5 VDC
LED Power Consumption	1.4 W
EAN	6933412727064
P/N	R-AS500-BKNLMN-G

Product Dimension

Download

AS500 Manual.pdf

Download

AS500 Manual without LGA1700 Mounting brackets.pdf
