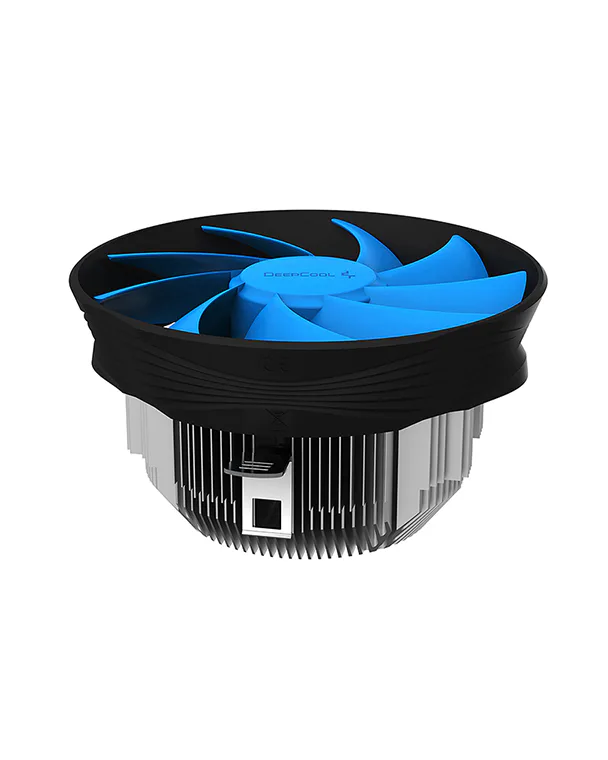

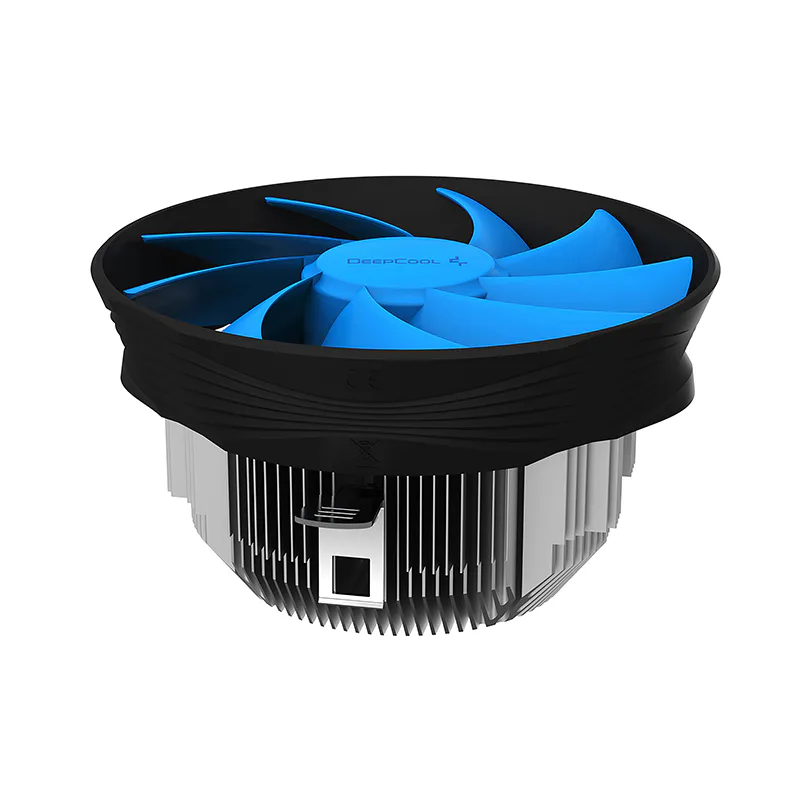

ARCHER BIGPRO V2
The ARCHER BIGPRO V2 is a top-flow cooler that provides 125W of cooling at a great price point. Its easy-to-mount hardware and compact size make it an easy choice for your compact workstations and entry-level systems.
MODEL

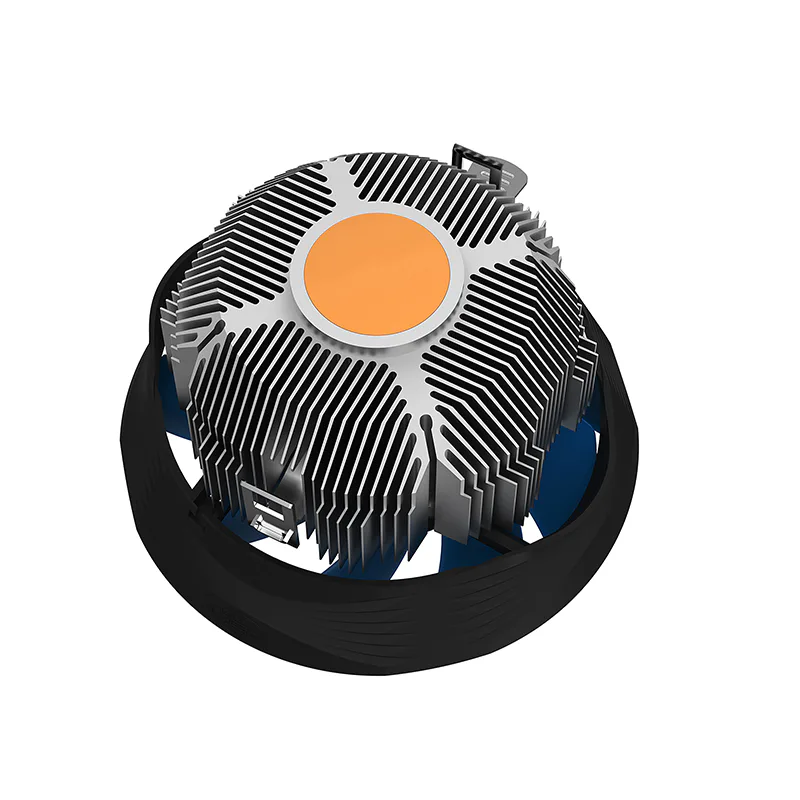

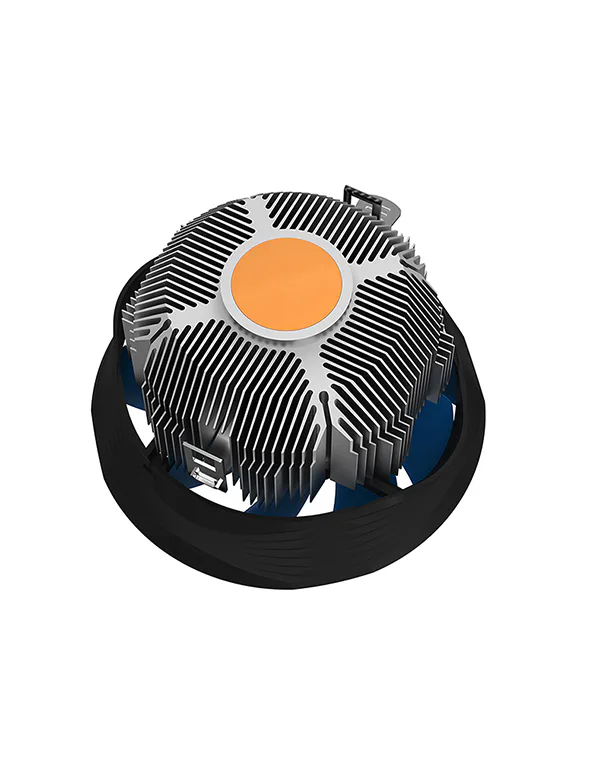

HIGH-QUALITY MATERIALS
High-quality aluminum fins are used to provide excellent cooling capacity while increasing the durability of the heatsink for a long useful life. The copper core increases cooling capacity even further as it is an excellent conductor of heat.

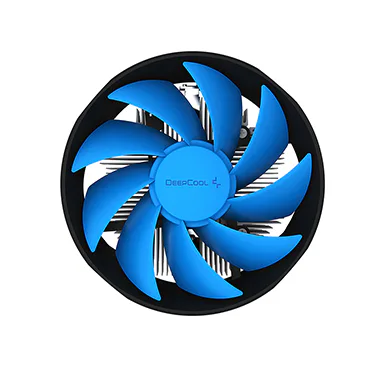

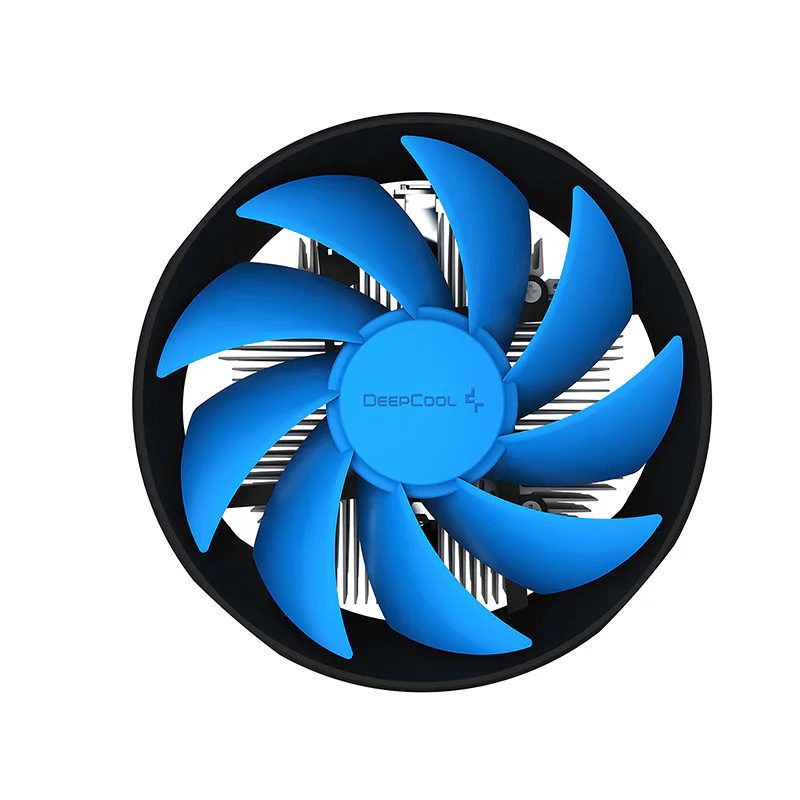

EFFICIENT AIRFLOW

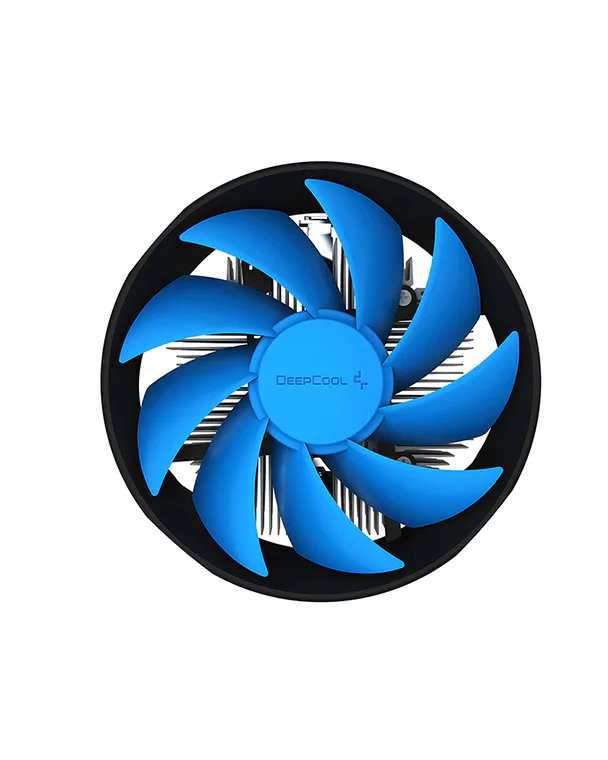

A powerful 120mm fan guarantees great airflow for efficient heat dissipation.
COOLS MORE THAN THE CPU
The unique fan frame directs the airflow through the heatsink to cool not just the CPU but also the RAM and the motherboard VRMs.
COOLER AND QUIETER
The ARCHER BIGPRO V2 is 10% more efficient than the original GAMMA ARCHER PRO, and the fan is quieter due to a rundundant PWM resistor.
UPDATED FOR MODERN CPUS
Updated to support 14th-generation processors from Intel and AM5 socket processors from AMD.
Intel: LGA1851/1700/1200/1151/1150/1155
AMD: AM5/AM4
Application For
Intel
LGA1851/1700/1200/115X
AMD
AM5/AM4
Technical Spec
Product Dimensions124×121×70mm(L×W×H)
Net Weight380g
Fan DimensionsΦ120×25 mm
Fan Speed(12V)900±150~2000±10% RPM
Fan Speed(7V)750±150~1400±10% RPM
Fan Airflow(12V)60.19CFM
Fan Airflow(7V)52.39CFM
Fan Noise(12V)29.7 dB(A)
Fan Noise(7V)24.5 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Operating Voltage10.8~13.2 VDC
Starting Voltage7 VDC
Fan Rated Current0.17 A(MAX)
Fan Power Consumption2.04 W
EAN6933412729112
P/NG-U-ARCHER-ARNNNN-G-3
Product Dimension
