AG620 DIGITAL BK

WELCOME TO THE DIGITAL ERA

REAL-TIME STATUS SCREEN

The crystal-clear digital screen displays the Celsius and usage of your system's CPU in real time, and with a high temperature warning. The display is controlled via a simple application that only requires an open USB 2.0 header.

℃

*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie

INSISTENCE OF COST PERFORMANCE

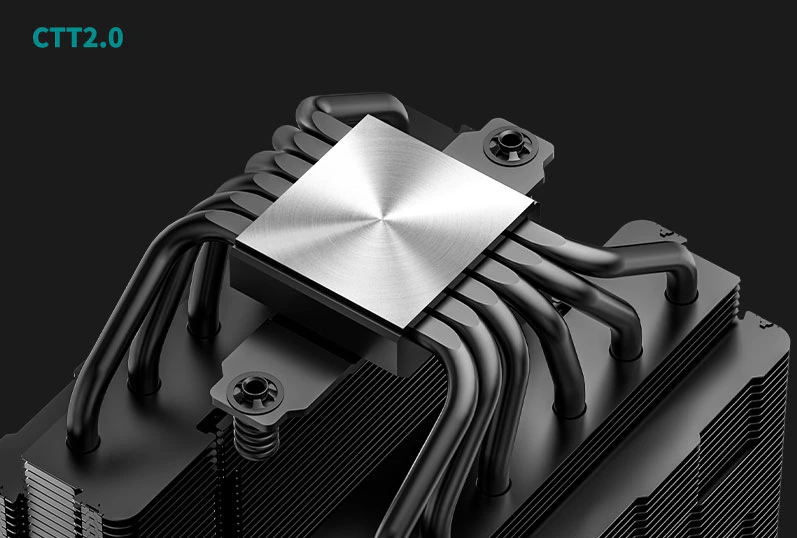

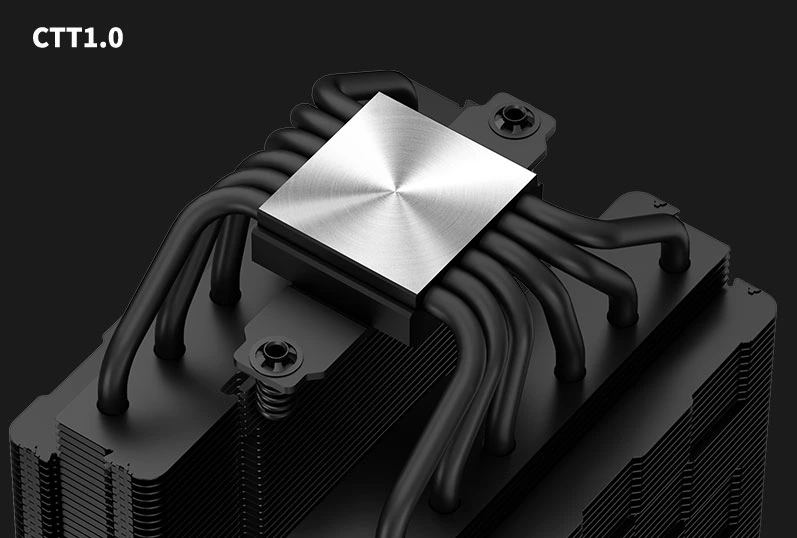

Built with the same premium quality materials, featuring six advanced copper heat pipes, a pure copper coldplate, a dense black coated dual-tower heat sink, and two silent Hydro bearing fans, it produces a powerful winning formula for high-performance cooling and provides a digital feature for gamers.

COOL, QUIET,
AND POWERFUL

Two powerful PWM fans with superior Hydro bearings offer low noise operation without losing cooling output for a perfect balance.

≤29.4 dBA

300-1950 RPM

67.88CFM

SIMPLE AND SECURE INSTALLATION

The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.

Application For

Intel

LGA1851/1700/1200/1151/1150/1155

AMD

AM5/AM4

Technical Spec

Product Dimensions	129×136×161 mm(L×W×H)
Heatsink Dimensions	127×110×157 mm(L×W×H)
Net Weight	1370 g
Heatpipe	Ø6 mm×6 pcs
Fan Dimensions	120×120×25 mm(L×W×H)
Fan Speed	300~1950 RPM±10%
Fan Airflow	67.88 CFM
Fan Air Pressure	2.04 mmAq
Fan Noise	≤29.4 dB(A)
Fan Connector	4-pin PWM
Bearing Type	Hydro Bearing
Fan Rated Voltage	12 VDC
Fan Rated Current	0.14 A
Fan Power Consumption	1.68 W
LED Type	LED
LED Connector	3-pin(+5V-D-G) and 9-pin USB 2.0
LED Rated Voltage	5 VDC
LED Power Consumption	0.95 W
EAN	6933412728443
P/N	R-AG620-BKNDMN-G-2
