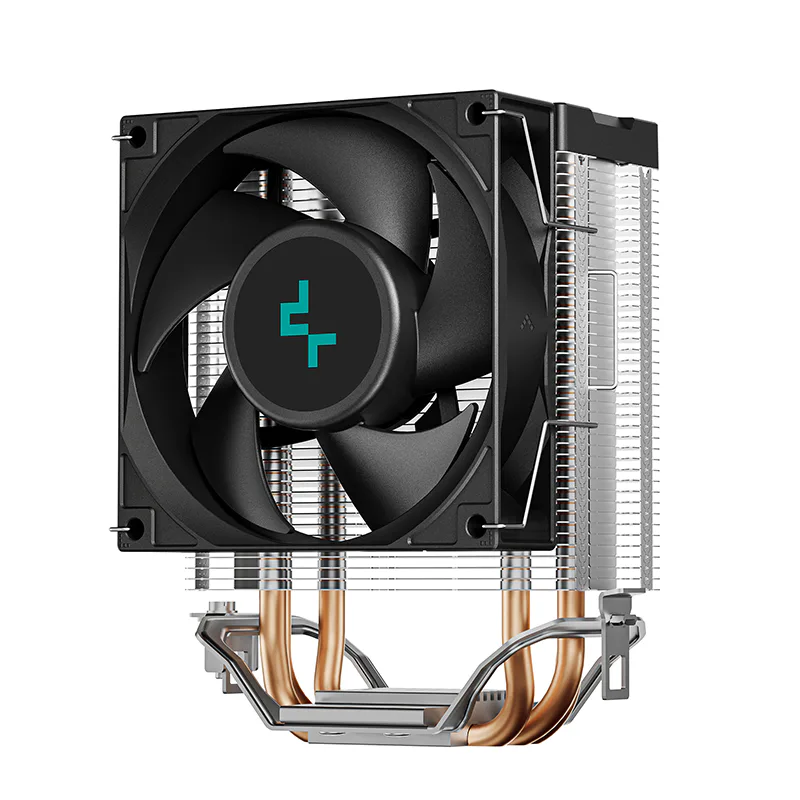

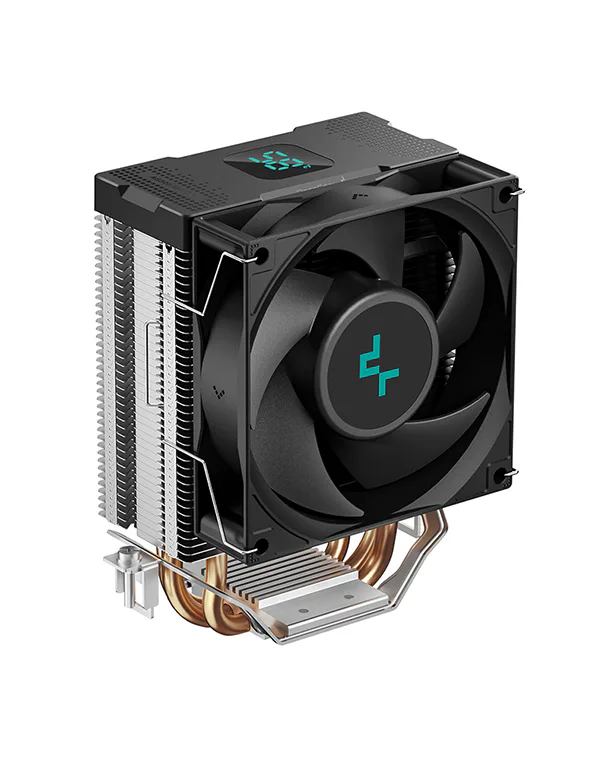

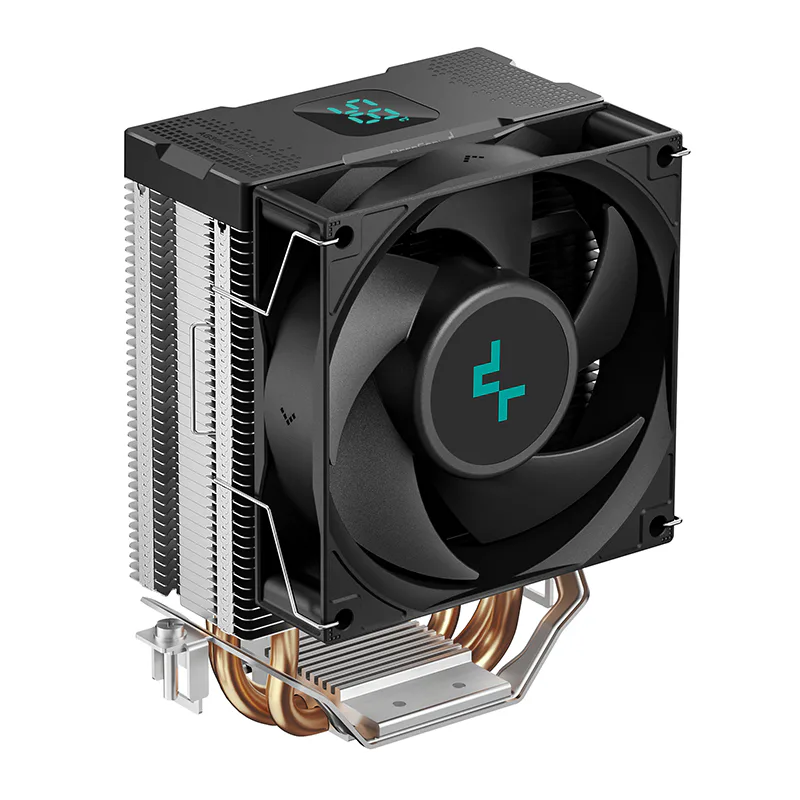

AG300 DIGITAL

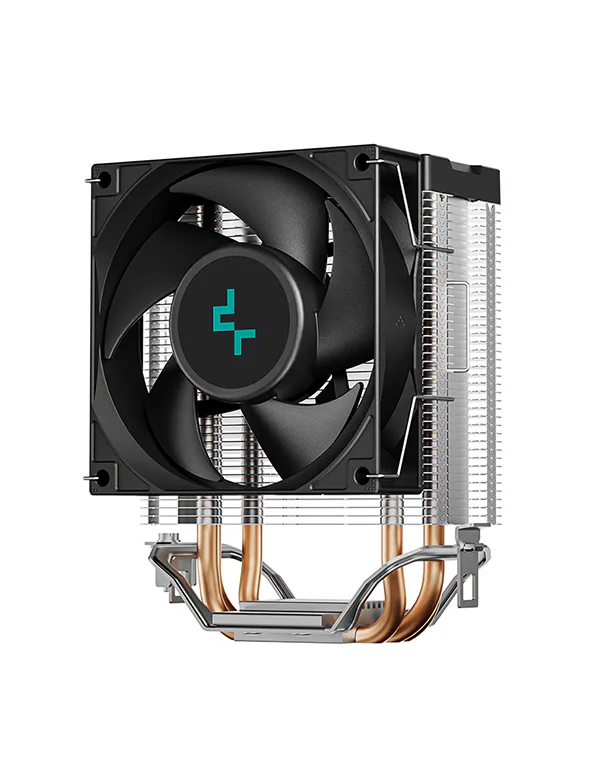

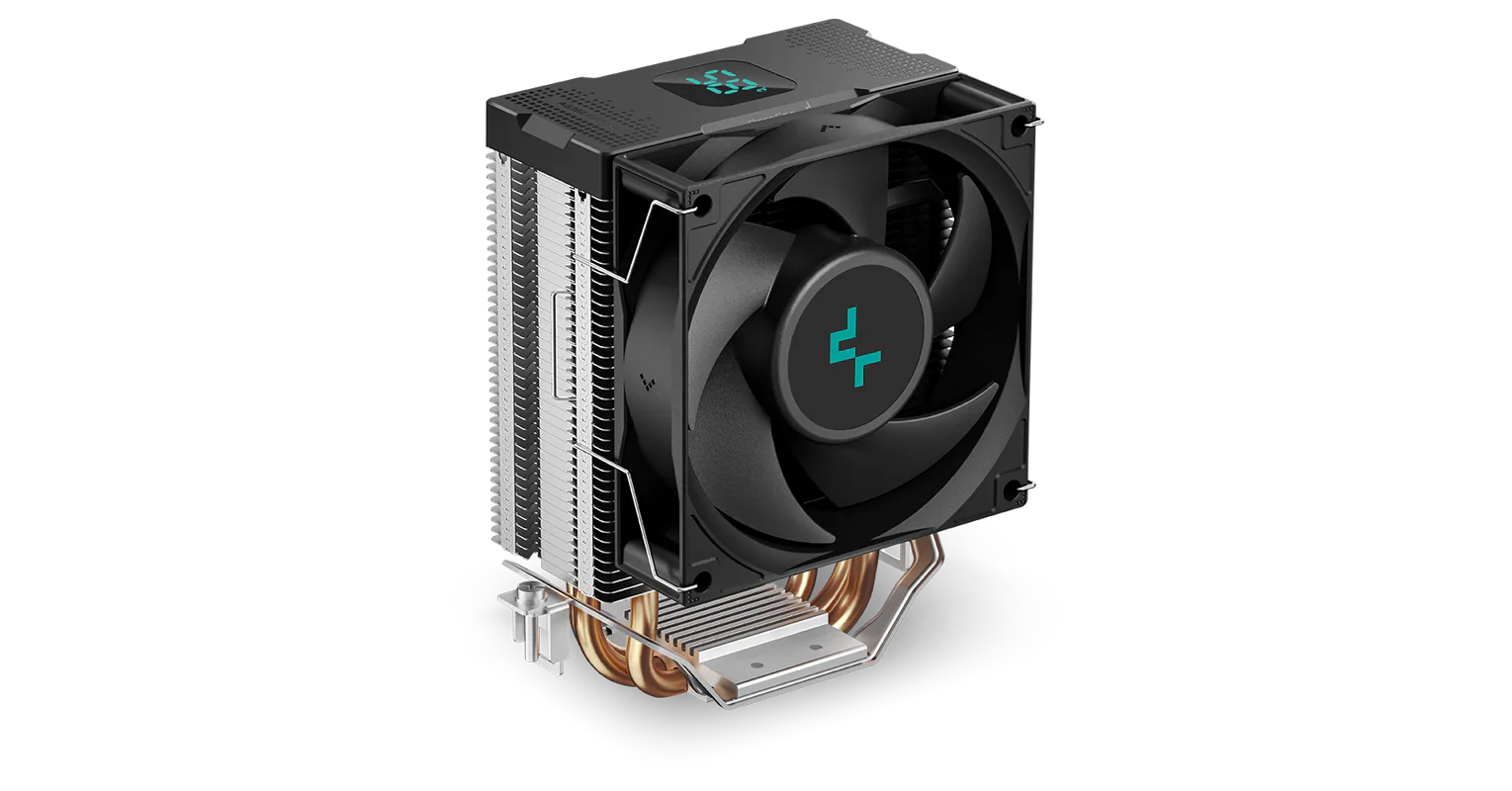

The era of digital air coolers continues with the introduction of the AG300 DIGITAL. A smaller-sized tower cooler that provides surprising cooling prowess while looking amazing with its simple-to-read digital screen.
MODEL
AG300 DIGITAL
Mini Digital Efficiency

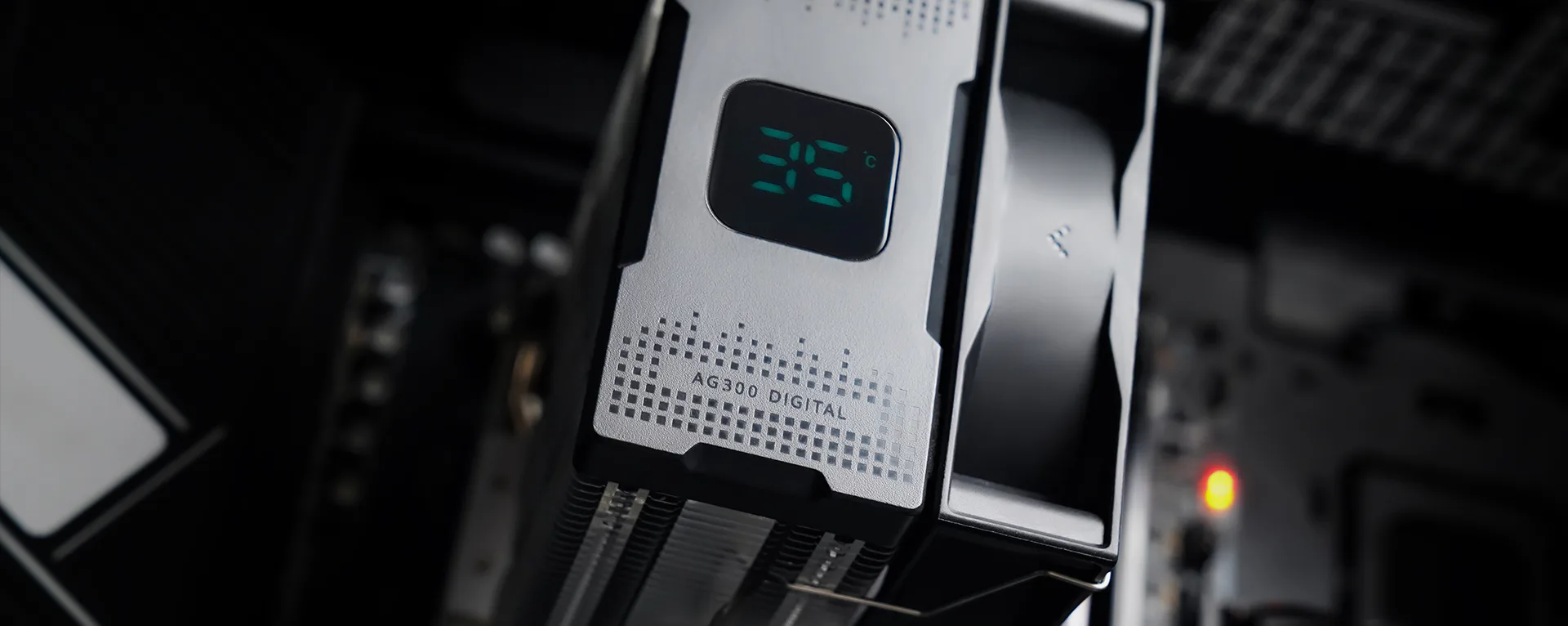

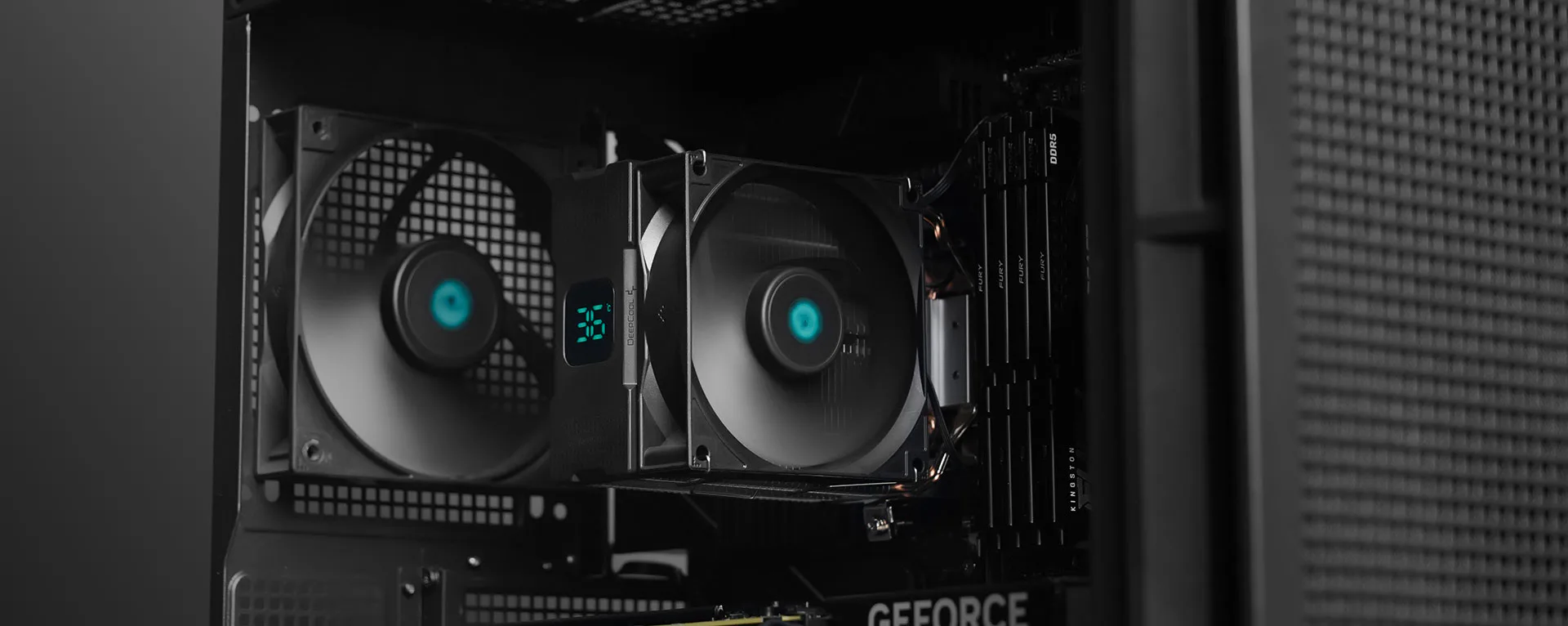

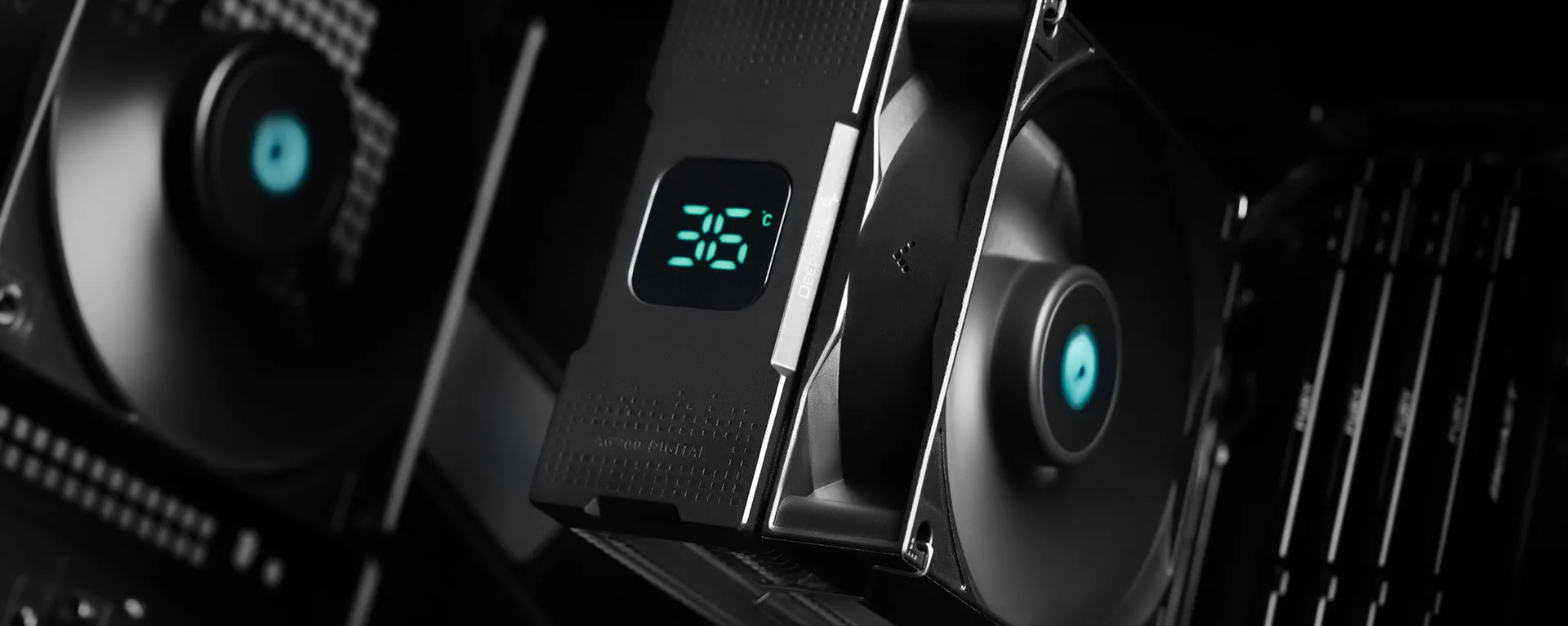

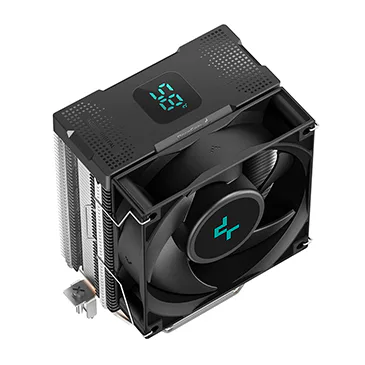

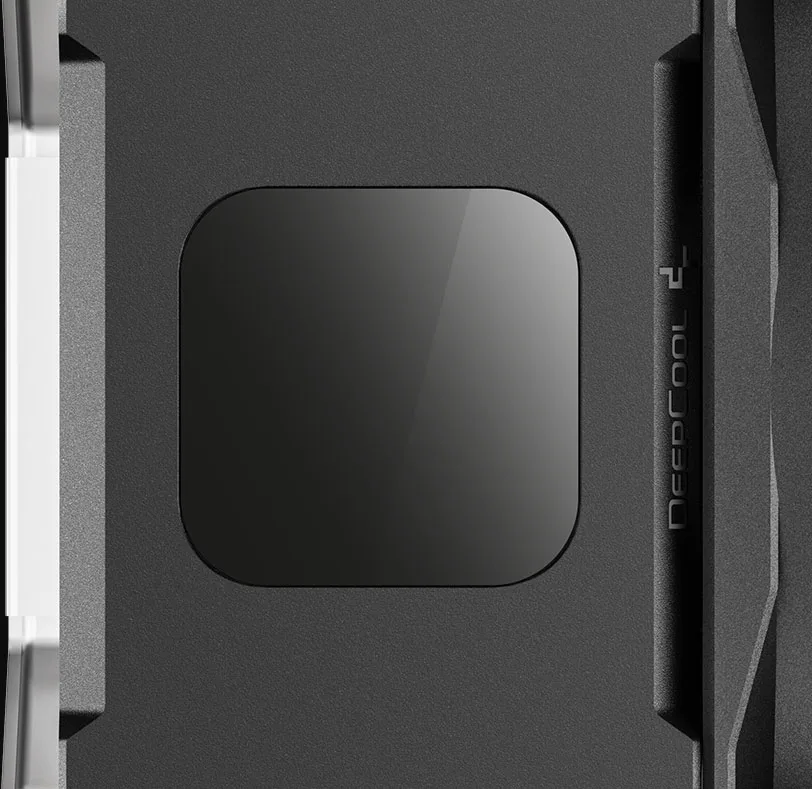

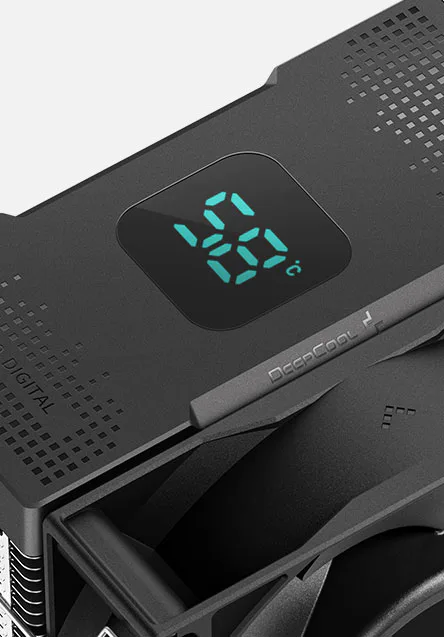

REAL-TIME CPU STATUS SCREEN
The compact digital screen displays the temperature and usage of your system's CPU in real time, with a high heat warning when the temperature rises above the 90 °C threshold. The display is controlled via a simple application that only requires an open USB 2.0 header.
℃
*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie
PREMIUM QUALITY AND VALUE

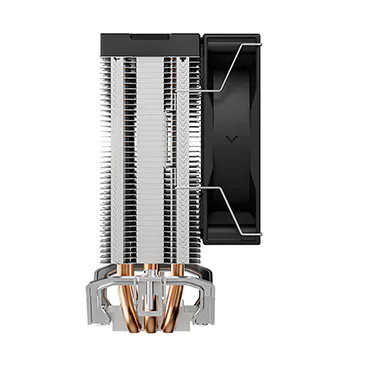

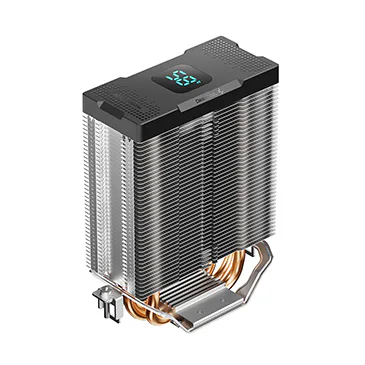

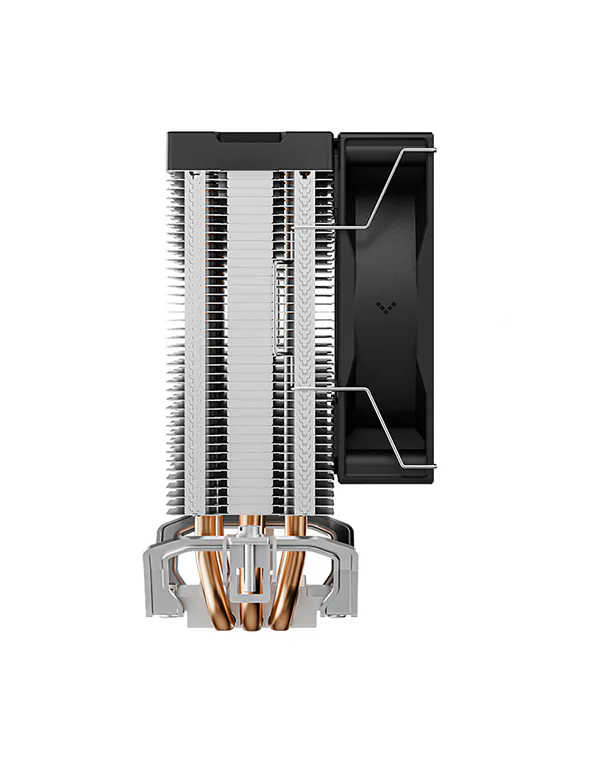

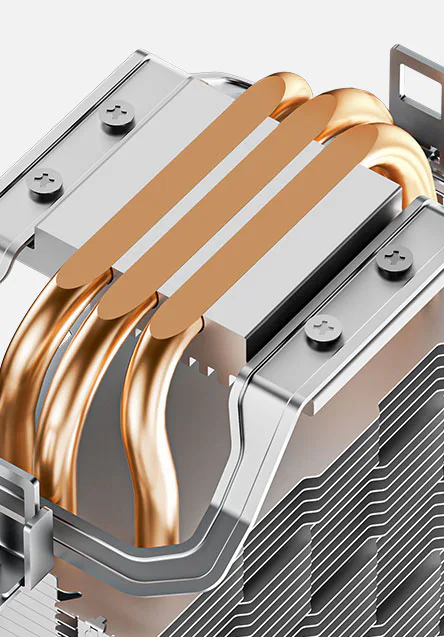

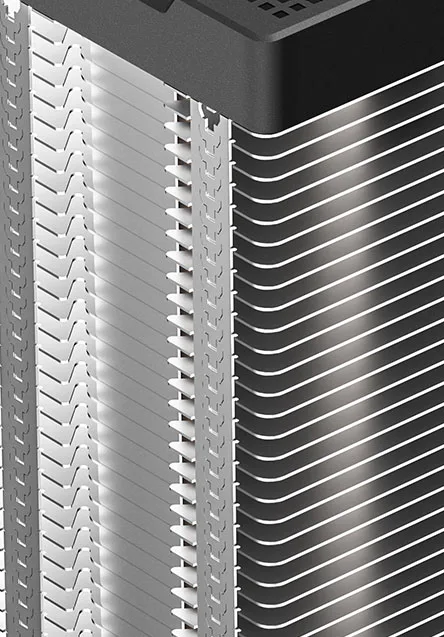

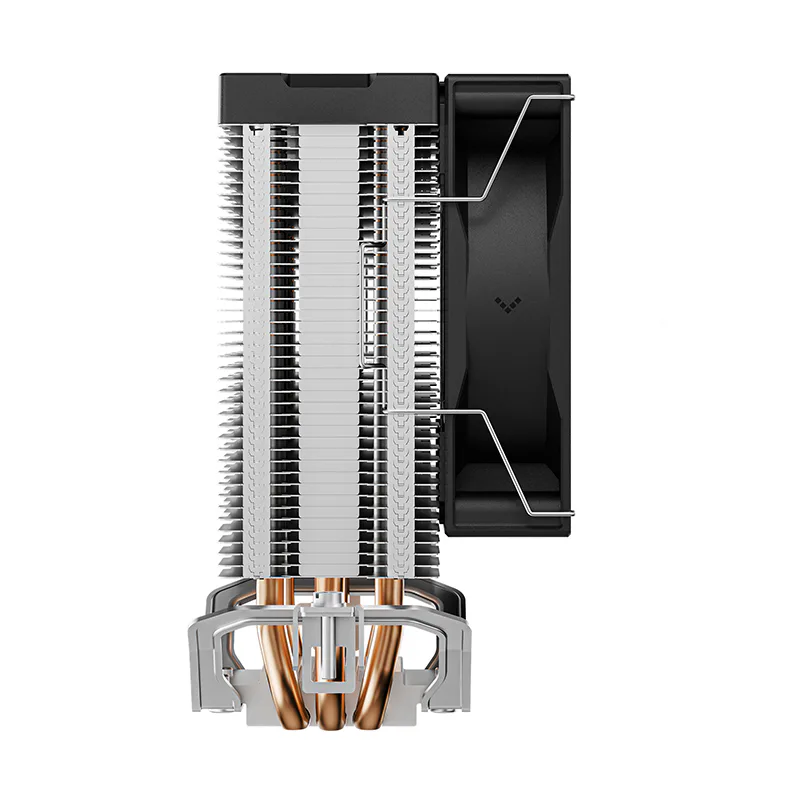

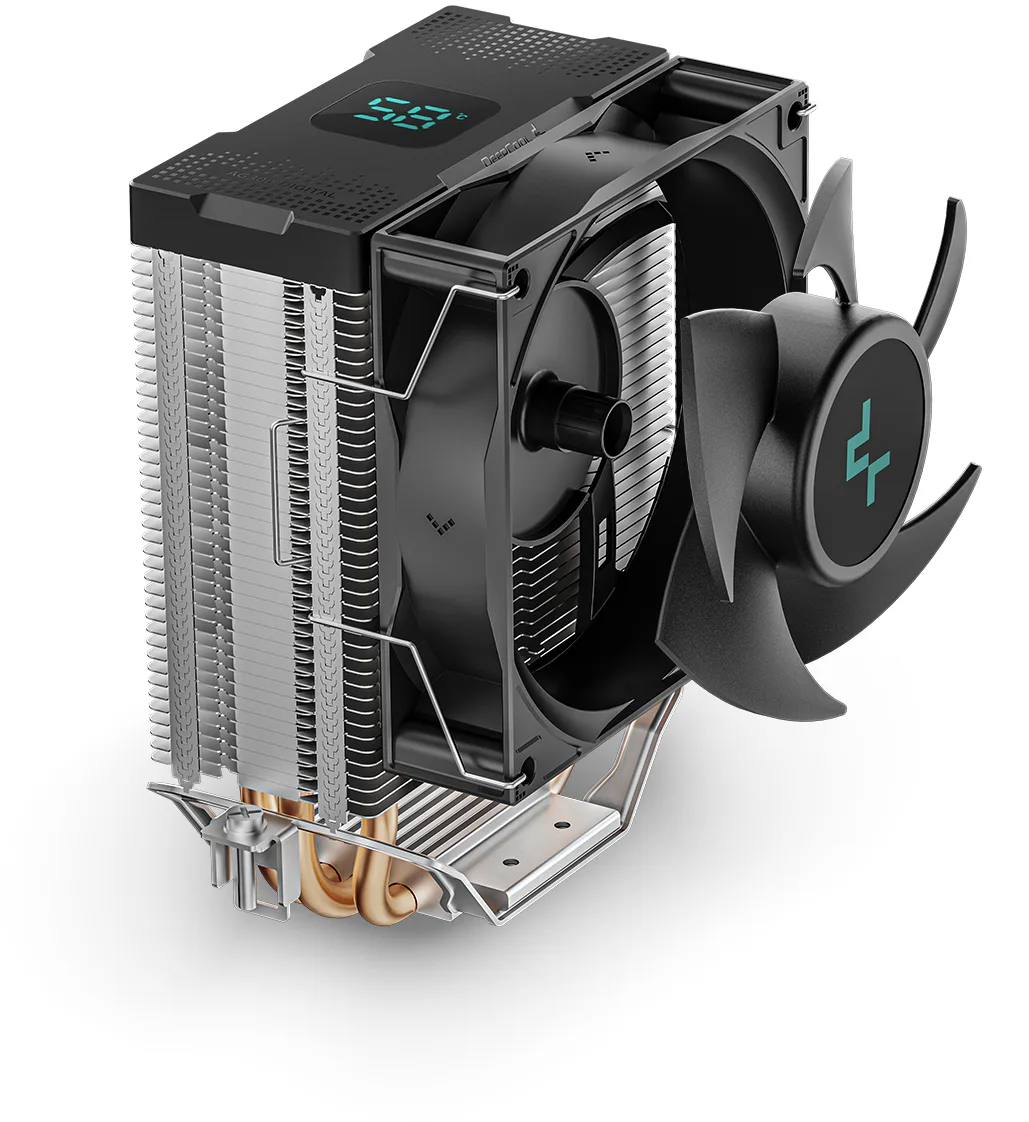

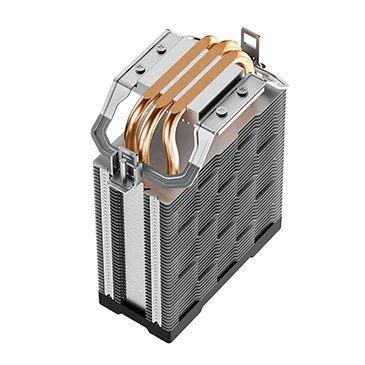

Constructed with high-quality materials that feature three advanced copper heatpipes arranged into a direct touch coldplate, a dense matrix-designed heatsink tower, and a silent hydro-bearing fan. The AG300 DIGITAL is a tiny cooling powerhouse with a simple but intelligent status screen.

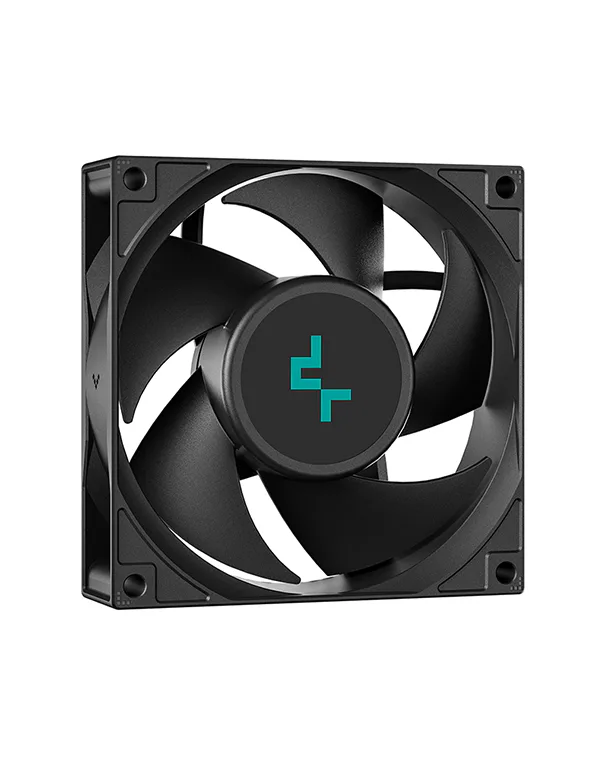

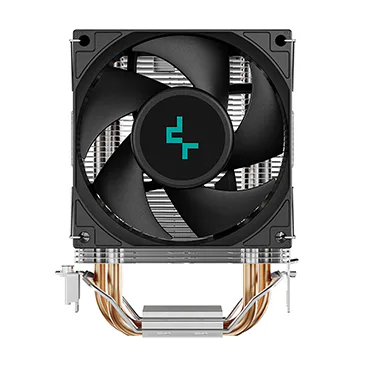

COOL, QUIET, AND POWERFUL

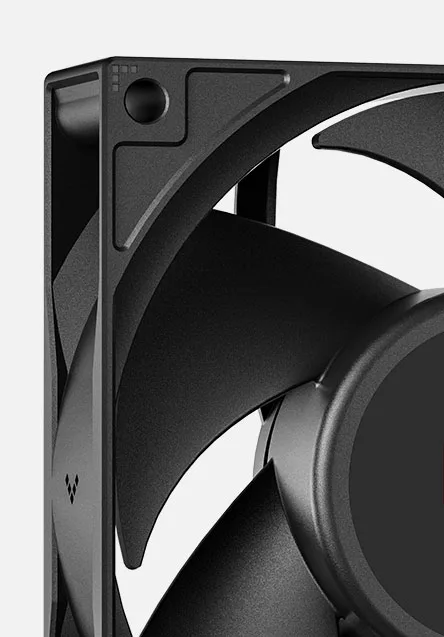

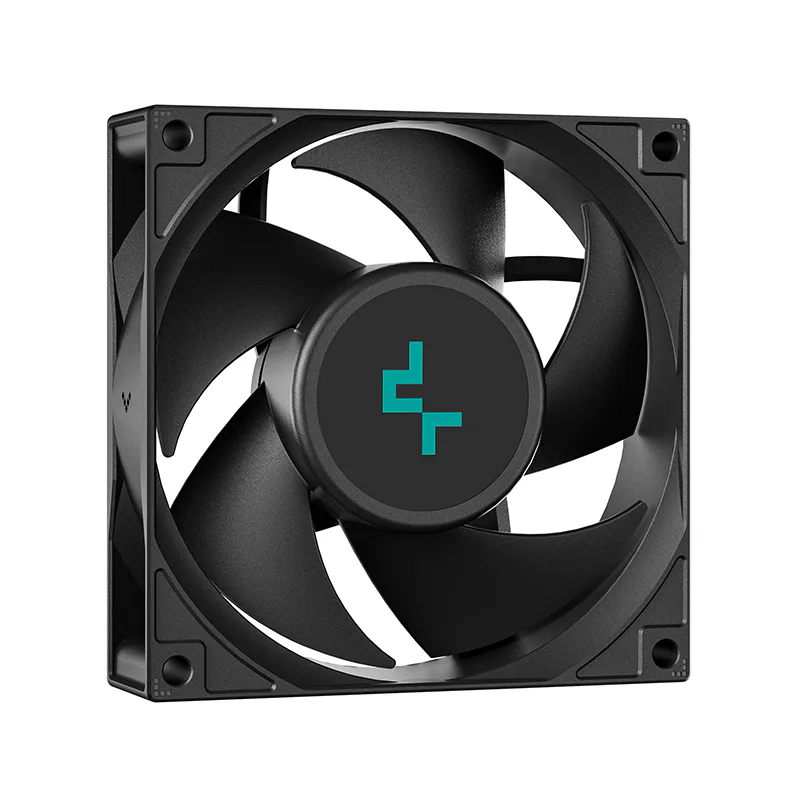

A powerful 92mm PWM fan with superior Hydro bearings offers low noise operation without losing cooling output for a perfect balance.
Fan Speed:
500-3200 RPM±10%
Fan Airflow:
36.75CFM
Fan Noise:
30.5 dB(A)
SIMPLE AND SECURE INSTALLATION

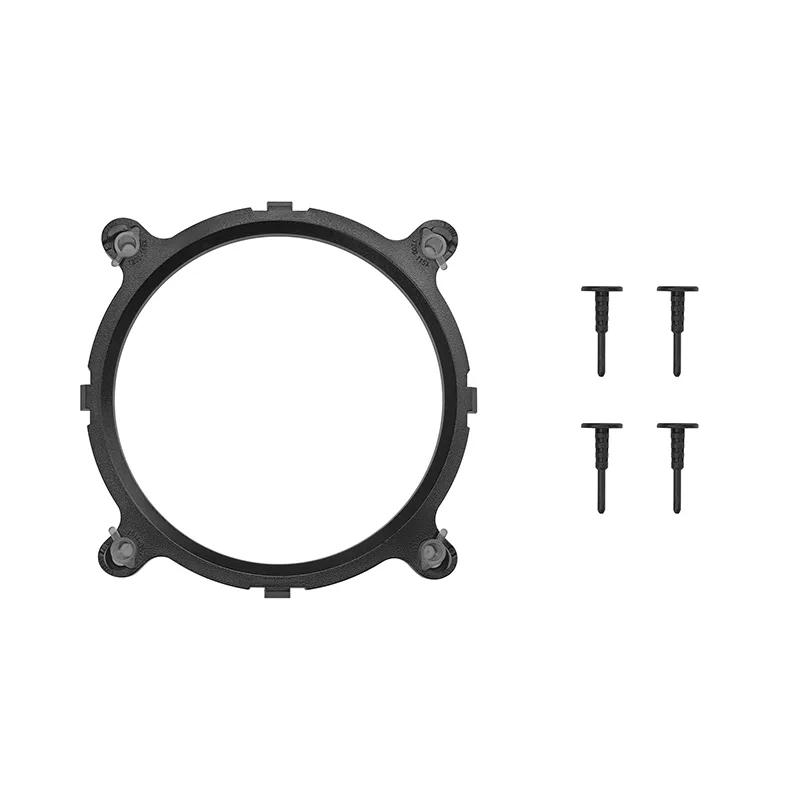

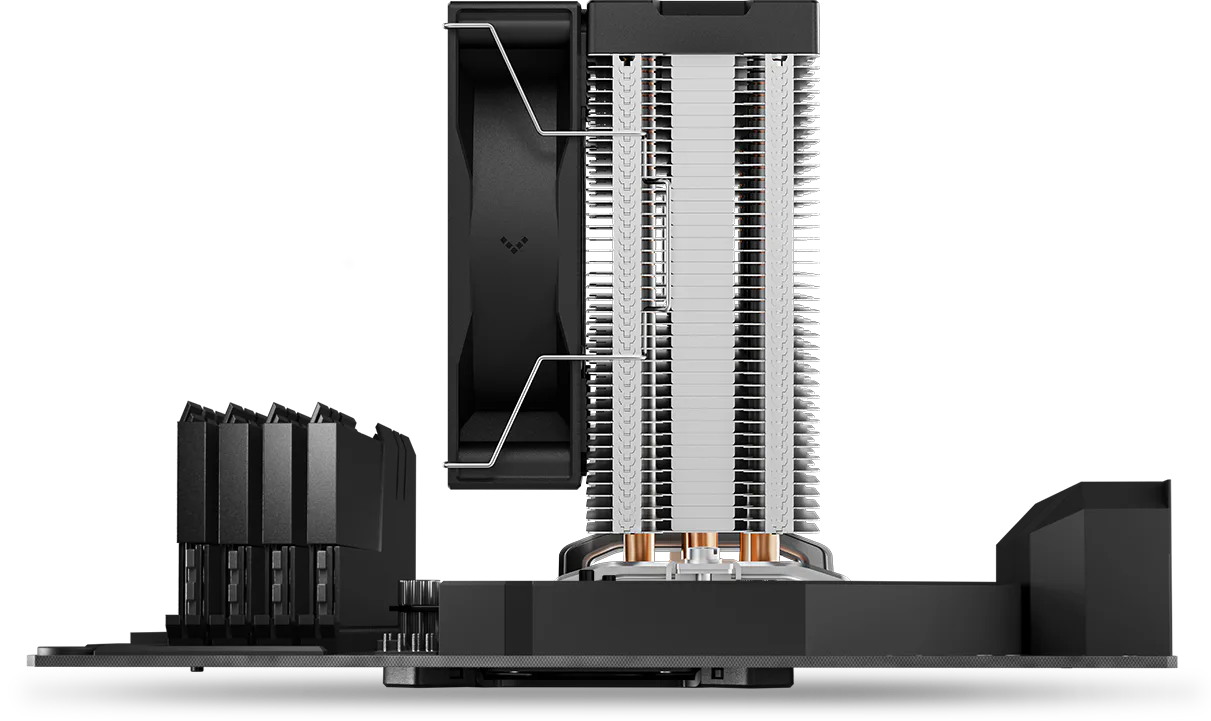

The mounting system provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms.
*High thermal resistance paste is pre-applied
Application For
Intel
LGA1851/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Product Dimensions108×77×133 mm(L×W×H)
Heatsink Dimensions94×57×129 mm(L×W×H)
Net Weight393 g
HeatpipeØ6 mm×3 pcs
Fan Dimensions92×92×25 mm(L×W×H)
Fan Speed500~3200 RPM±10%
Fan Airflow36.75 CFM
Fan Air Pressure2.89 mmAq
Fan Noise≤30.5 dB(A)
Fan Connector4-pin PWM
Bearing TypeHydro Bearing
Fan Rated Voltage12 VDC
Fan Rated Current0.13 A
Fan Power Consumption1.56 W
LED TypeLED
LED Connector9-pin USB 2.0
LED Rated Voltage5 VDC
LED Power Consumption0.55 W
EAN6933412728672
P/NR-AG300-BKNDMN-G-1
Product Dimension
Download
AG300 DIGITAL Manual.pdf
Download
Download
DeepCool-DIGITAL Setup
Download
