REDHAT

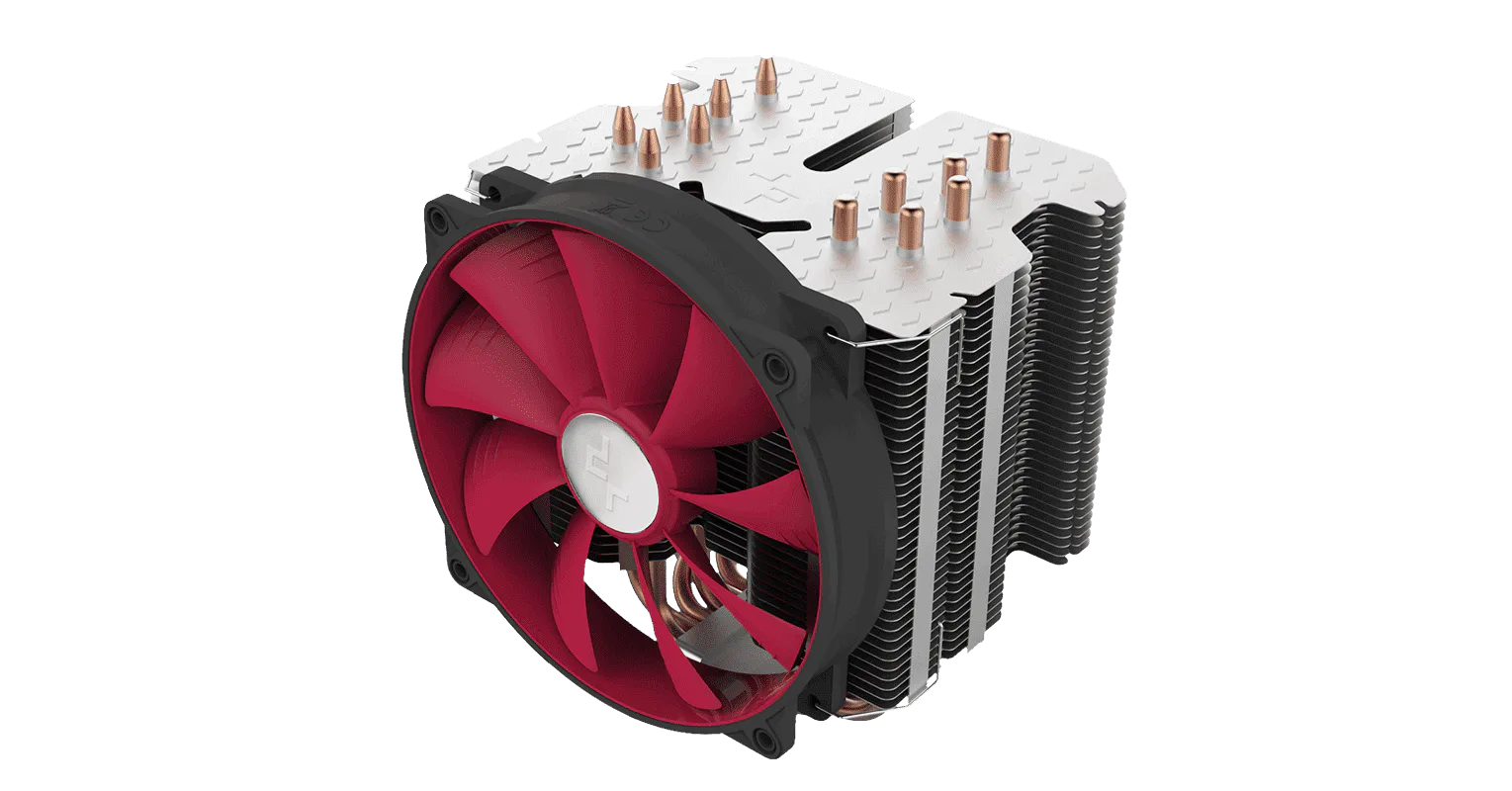

The REDHAT cooling system supports passive CPU cooling to assemble a completely silent system. At the same time, the device can cool the most powerful modern processors due to good air circulation inside the case.
MODEL
REDHAT
SILENCE

REDHAT

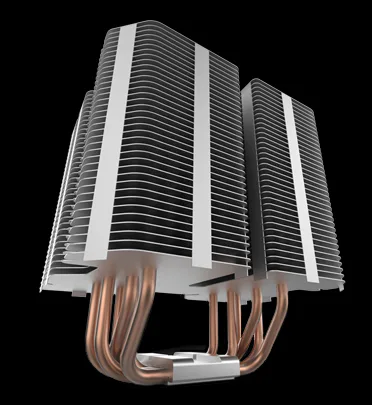

Passive cooling
The REDHAT cooling system supports passive CPU cooling to assemble a completely silent system. At the same time, the device can cool the most powerful modern processors due to good air circulation inside the case.
PWM fans with the minimum rotation speed of 300rpm for minimal noise

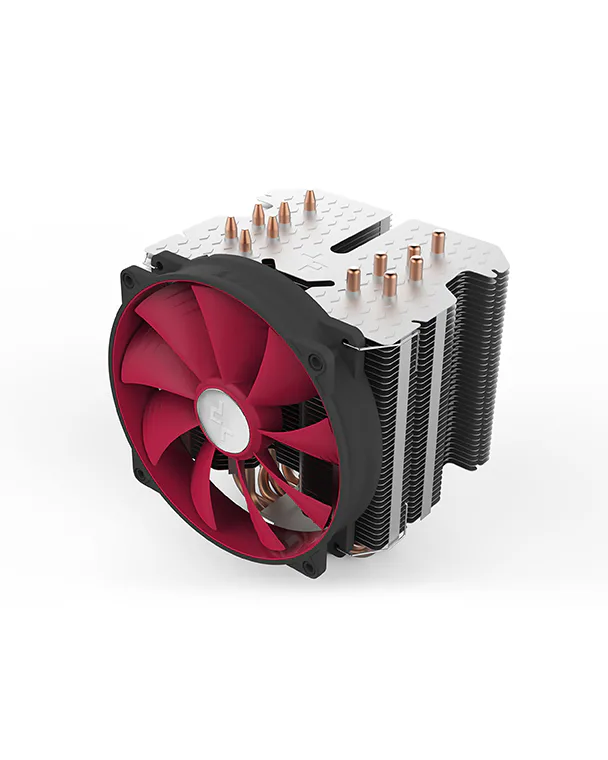

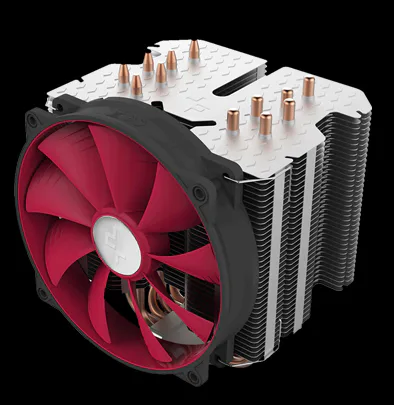

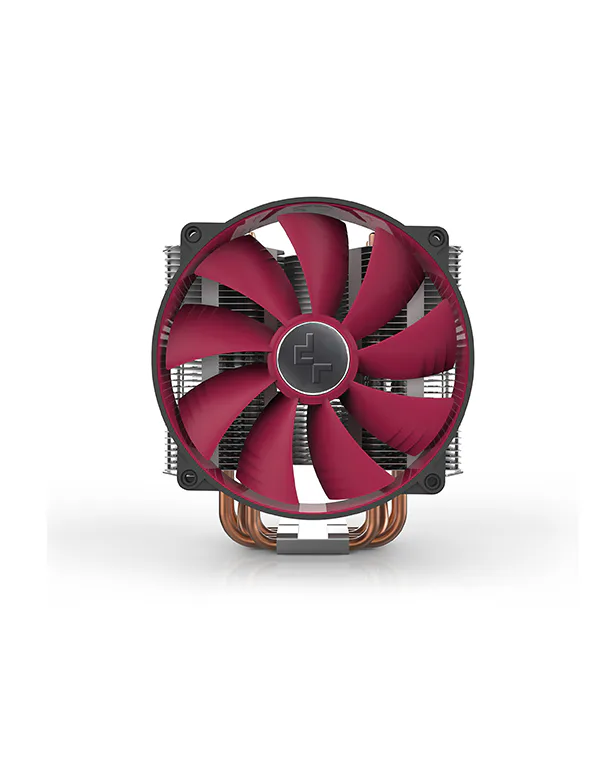

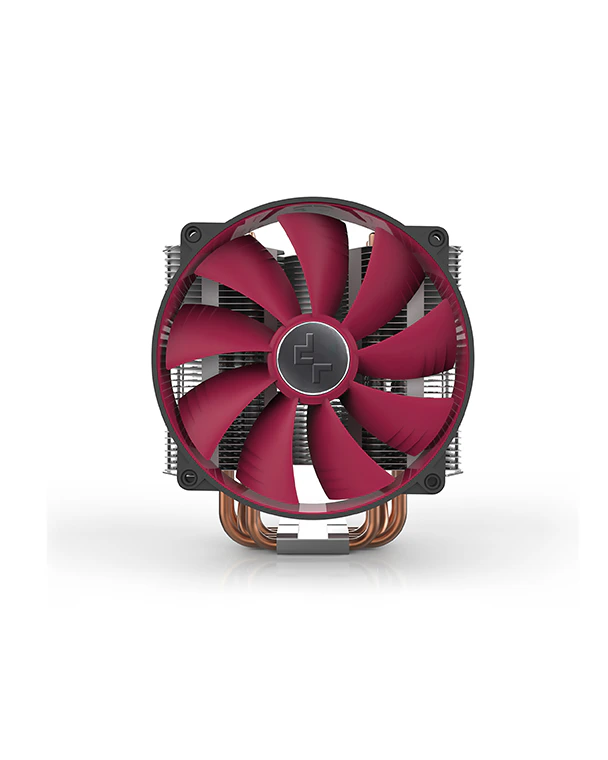

A 140mm rubber-coated fan included with the cooling system can increase the cooling capacity to 250W. The user can install such a fan for air intake or exhaust.

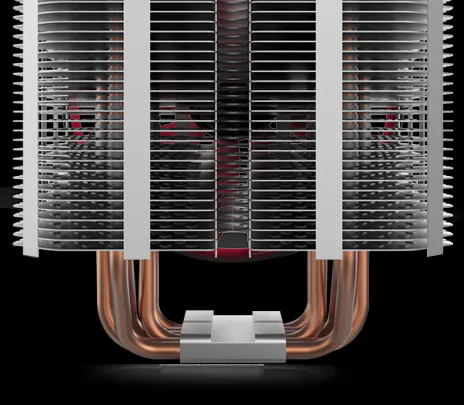

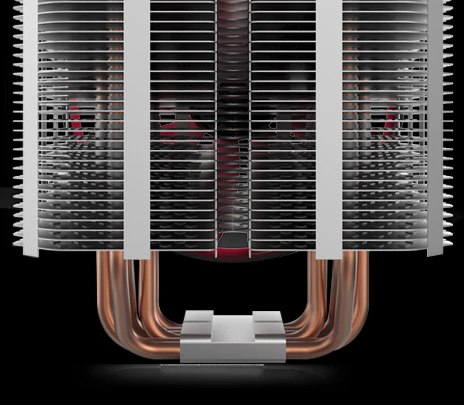

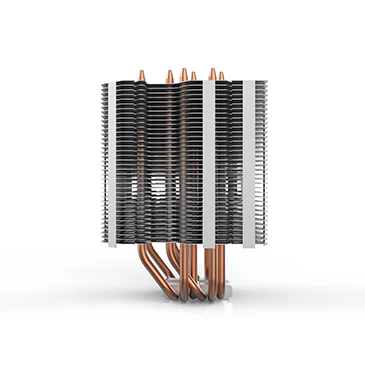

Six high-performance heat pipes

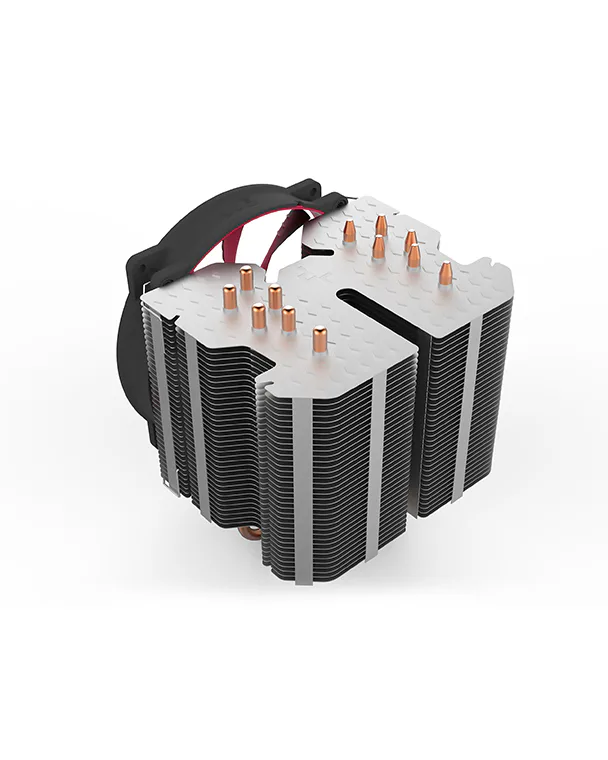

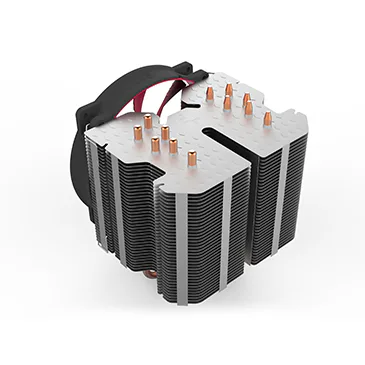

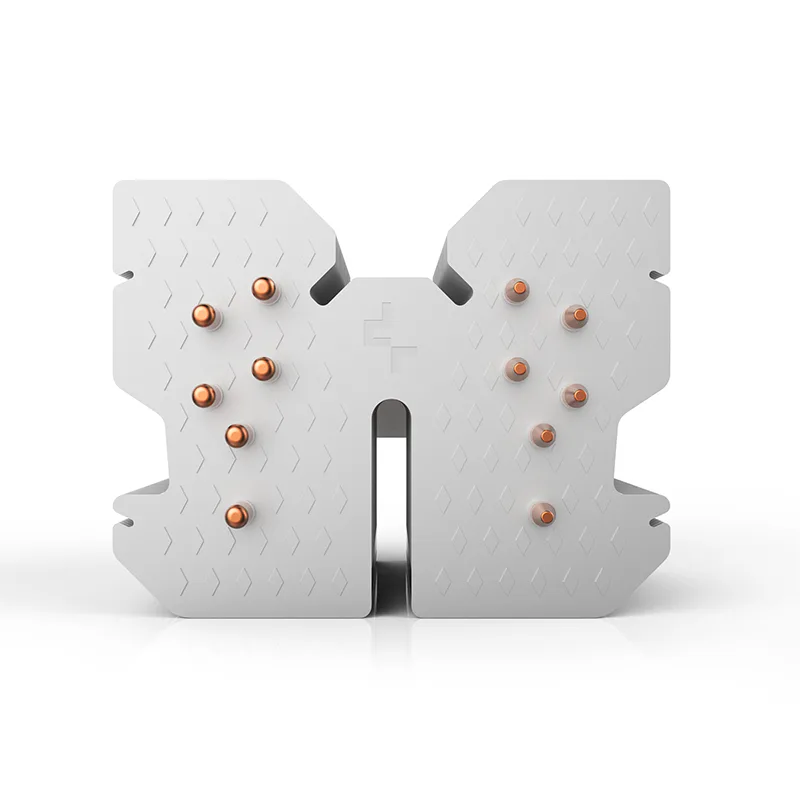

Six copper heat pipes are installed asymmetrically in the system. This arrangement avoids contact with the memory slats and promotes greater compatibility with different system configurations.

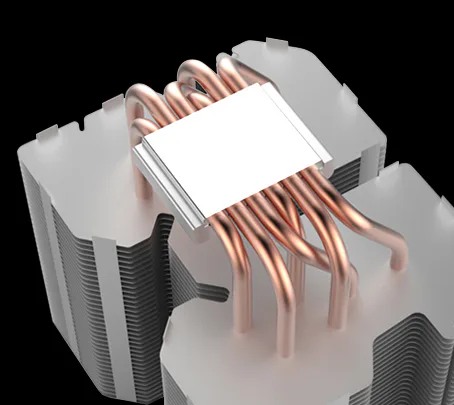

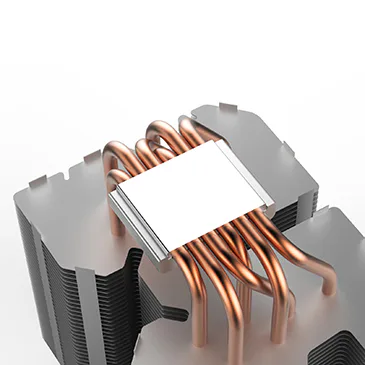

Copper backing with mirror surface

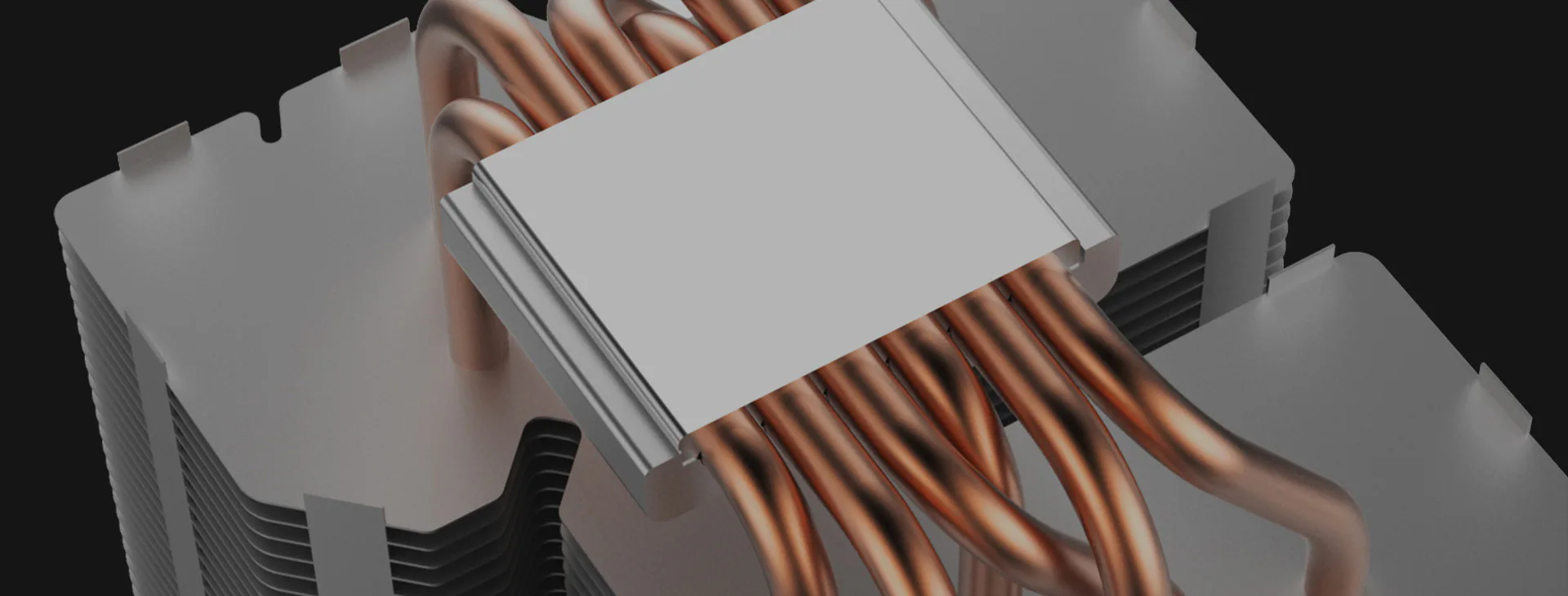

The heat pipes are securely soldered to the smooth, polished copper base to improve heat dissipation from the CPU to the heat sink. To ensure the fastest possible cooling, the copper cladding is CNC machined into a slightly convex shape.

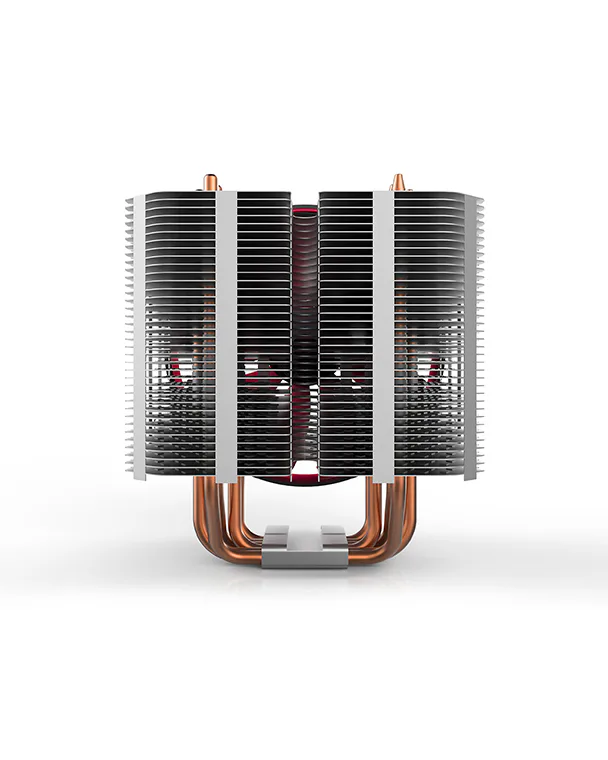

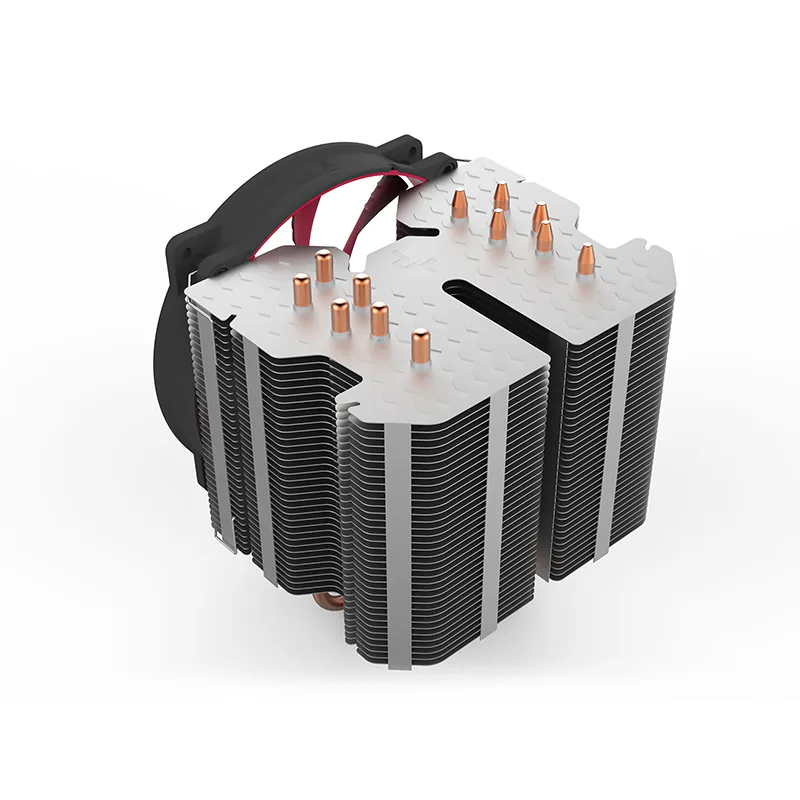

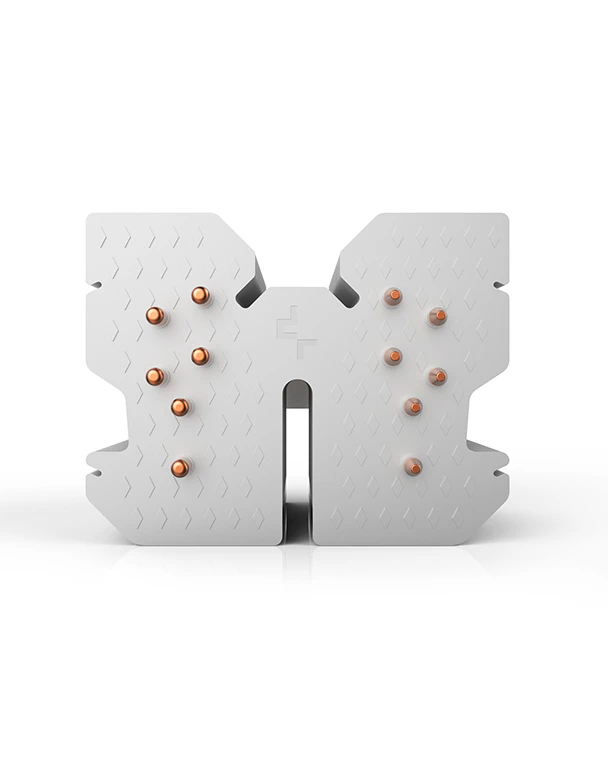

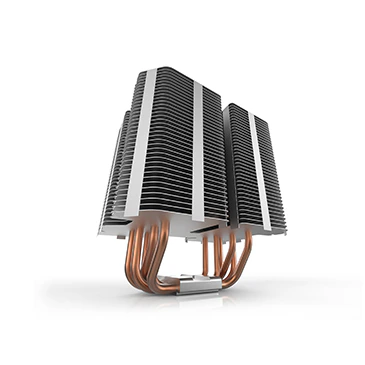

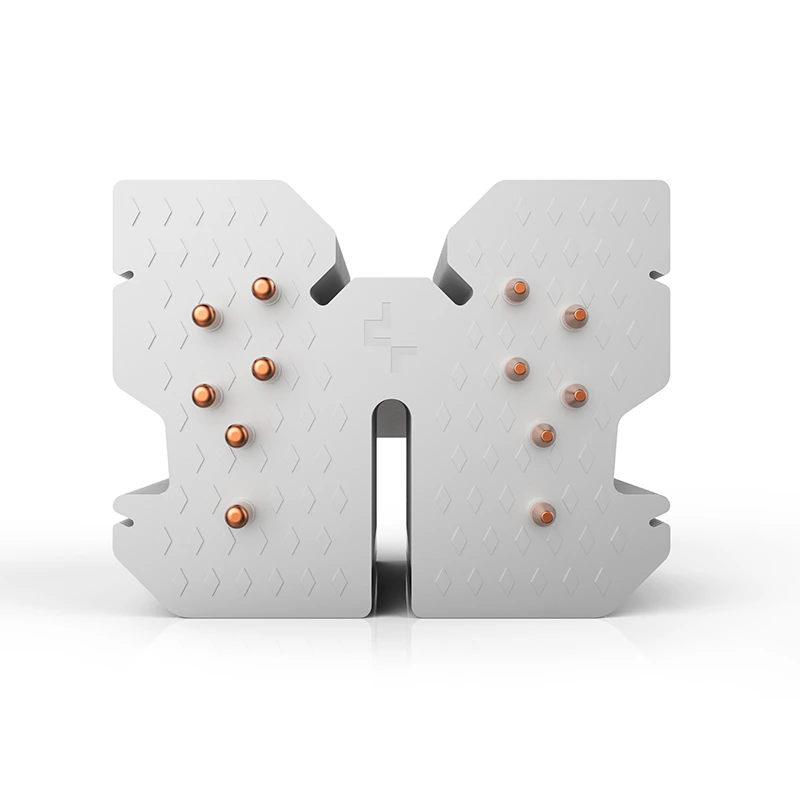

Massive aluminum fins in the shape of wings ensure sufficient heat dissipation with passive cooling.

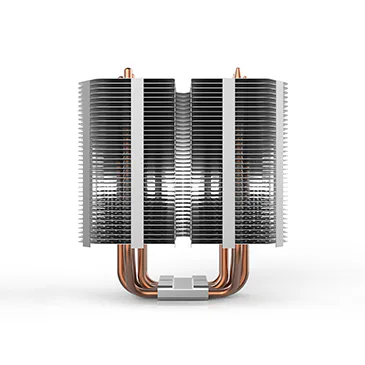

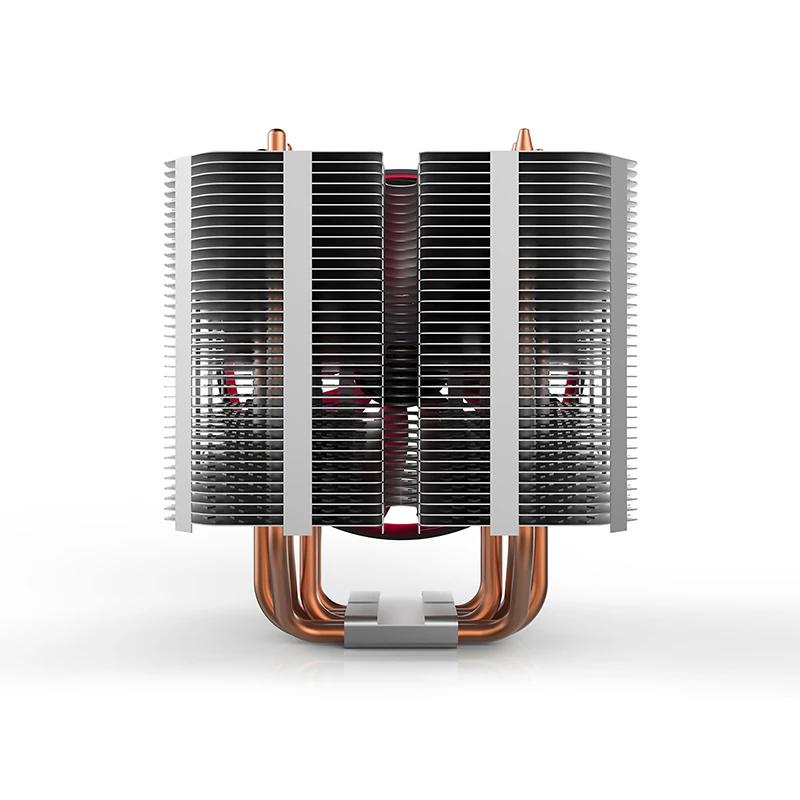

The REDHAT cooler can be installed in different versions - with or without a fan, depending on the purpose and performance of the system.

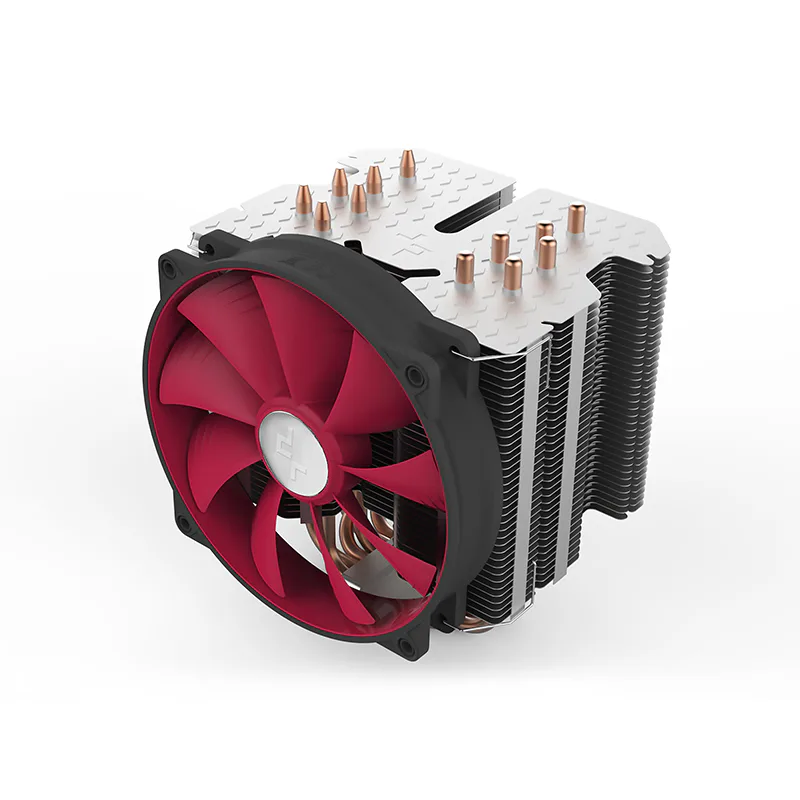

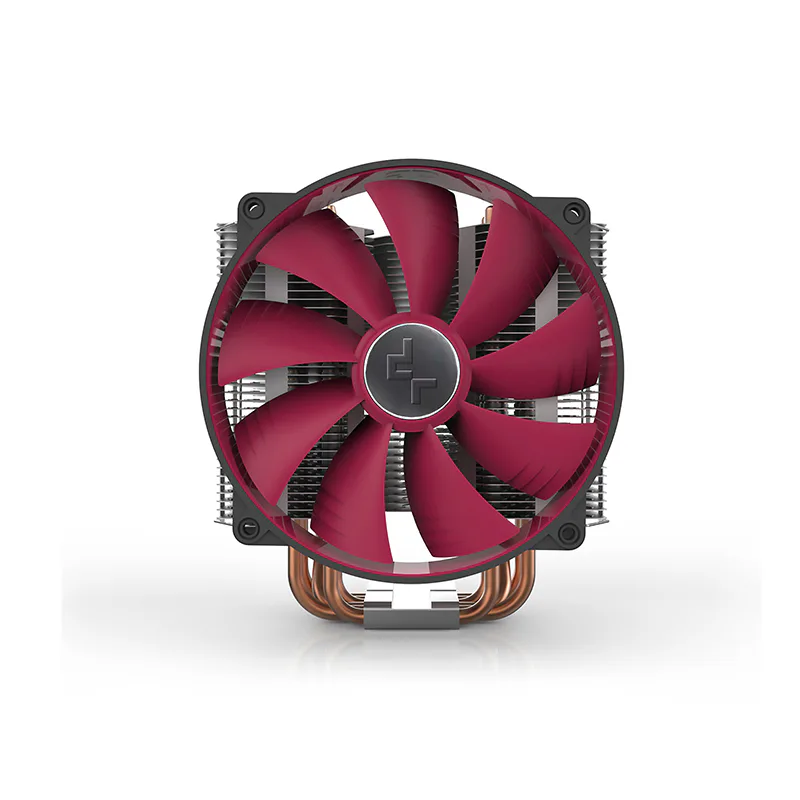

The cooling system comes with a 140mm rubber-coated fan that can increase its cooling capacity up to 250 watts.
The REDHAT cooler is compatible with the latest Intel Socket LGA2011 platform and can be installed on all modern processors.
Application For
Intel
LGA20XX/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
Overall Dimension (Without Fan)140X110X163 mm(L×W×H)
Overall Dimension (With Fan)140X136X168 mm(L×W×H)
Net Weight 1079g (With Fan)
Heatpipe 6X6mm Heatpipe
Fin Material Aluminum
Base Material Full-copper base
Fan DimensionΦ140X26 mm(L×W×H)
Fan Weight 143g
Fan Speed 300±150-1400±10%RPM
Rated Current 0.14±10%A
Power Input 1.68W
Max. Air Flow 81.33CFM
Noise 12.6~31.1dB(A) 17.8~31.1dB(A)
Rated Voltage 12VDC
Operating Voltage 10.8～13.2VDC
Starting Voltage 7VDC
Bearing Type Hydro Bearing
