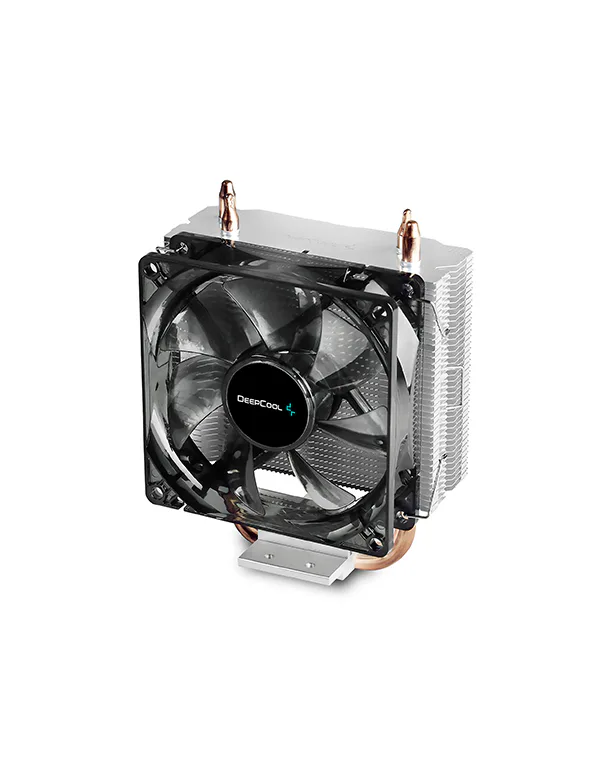

GAMMAXX 200 V2

PWM Fan · Silent Beauty

Effective cooling

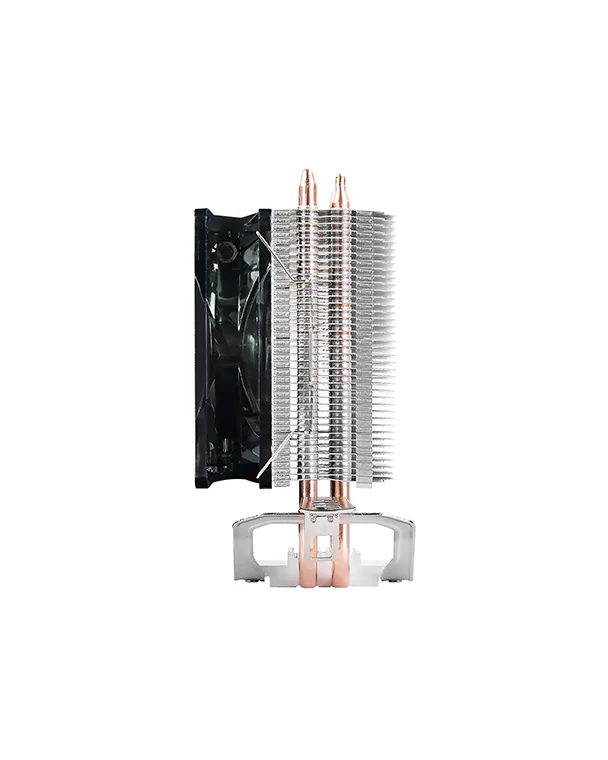

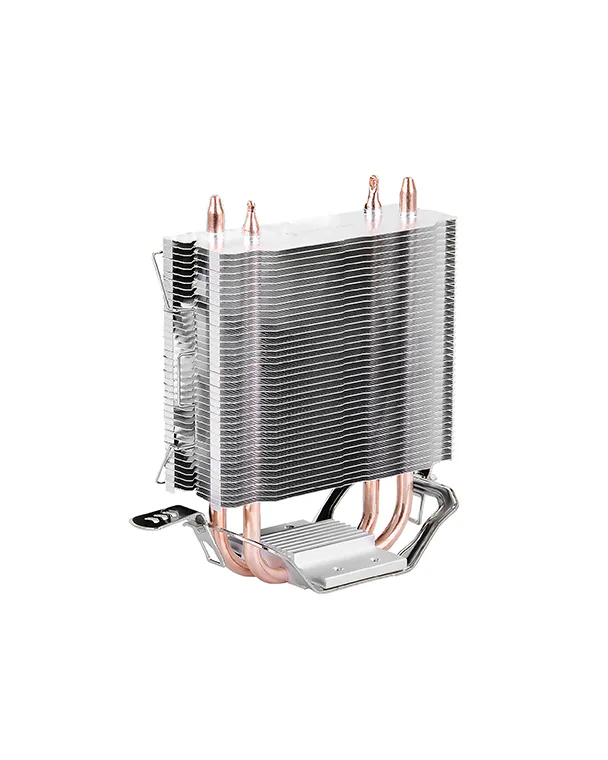

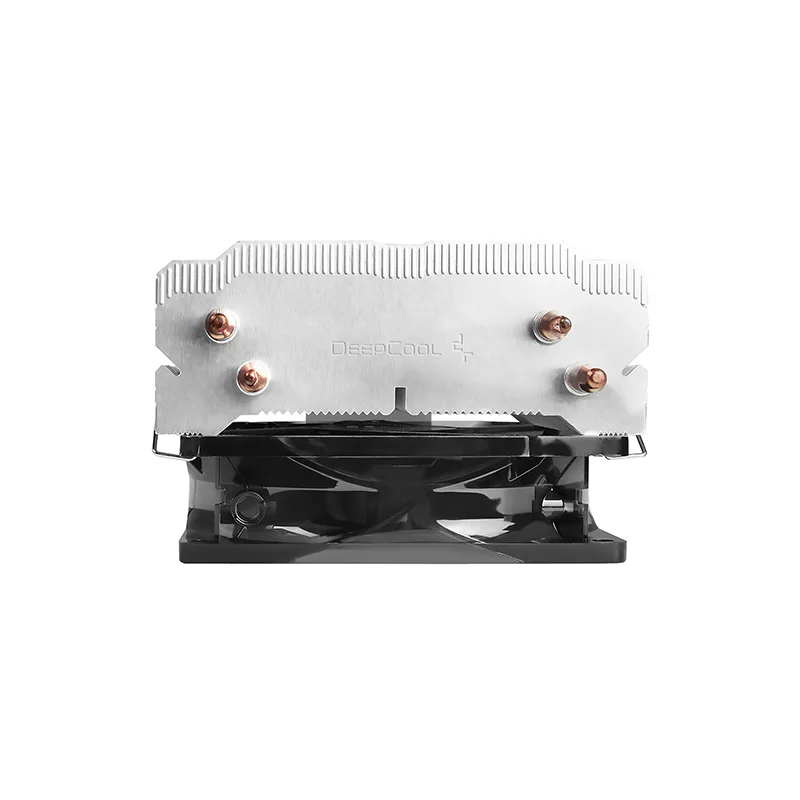

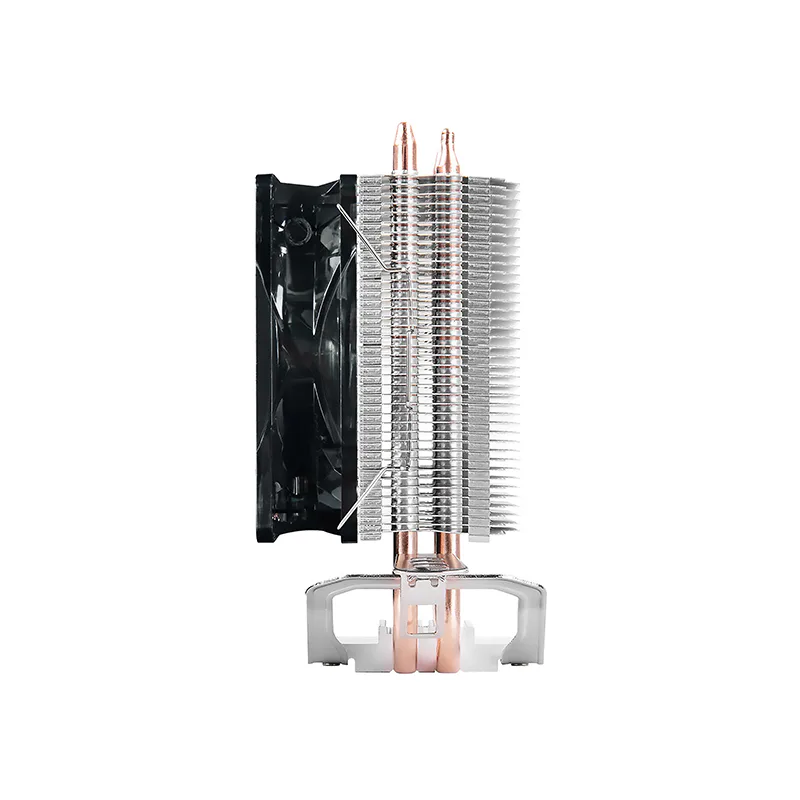

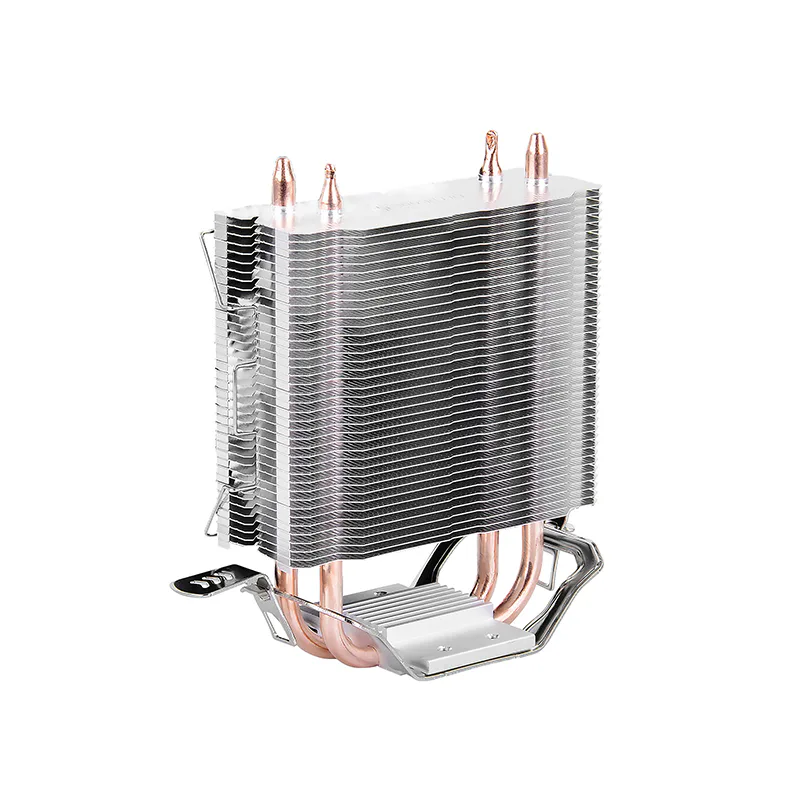

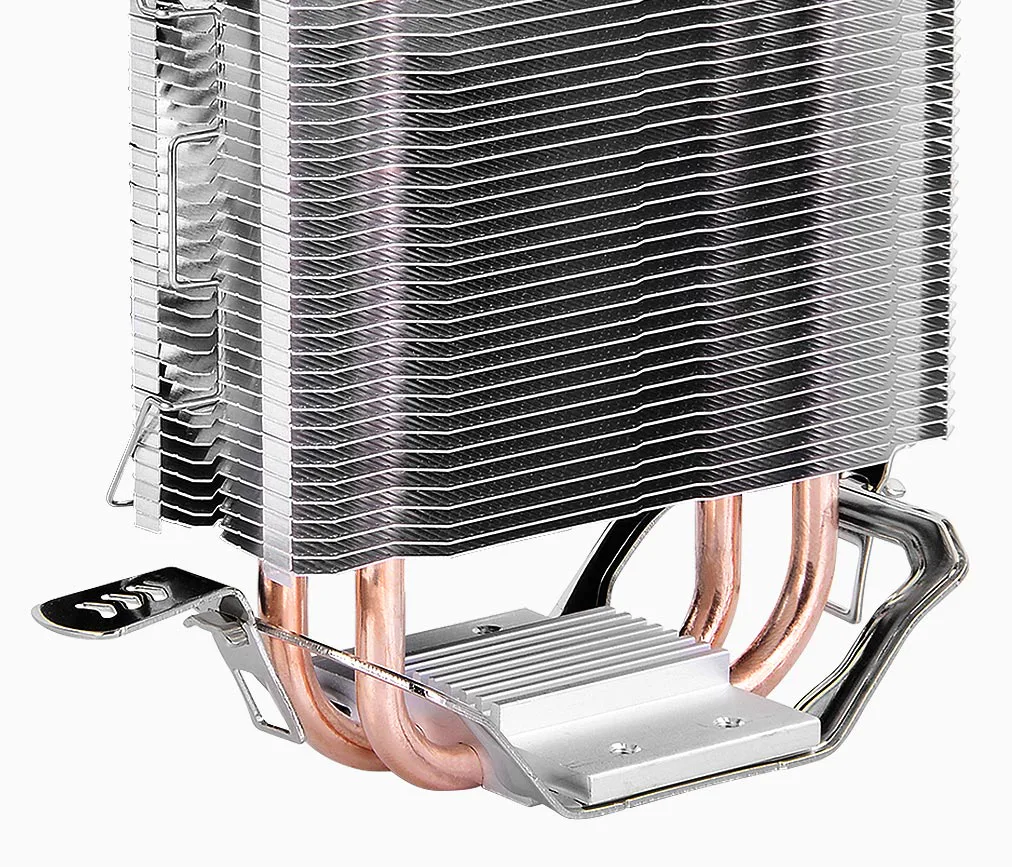

Two sintered powder heat pipes contact directly the surface of the processor to quickly dissipate heat and prevent overheating.

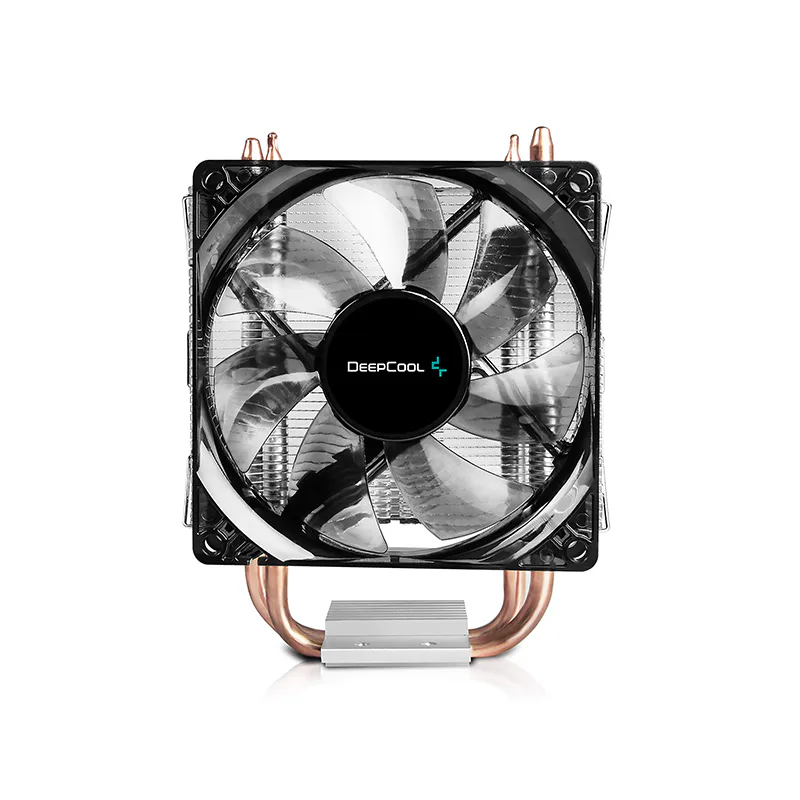

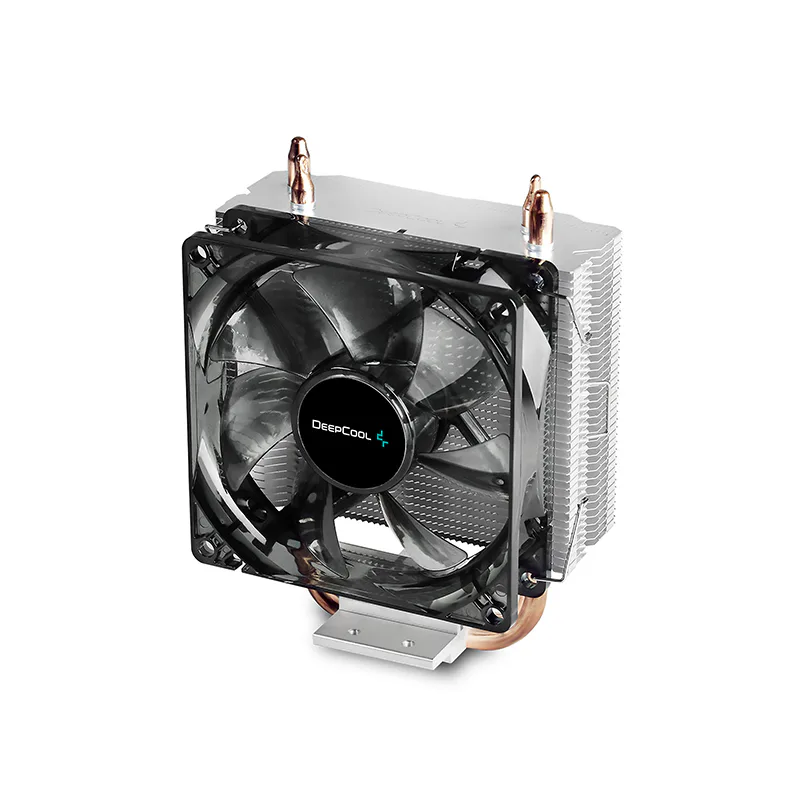

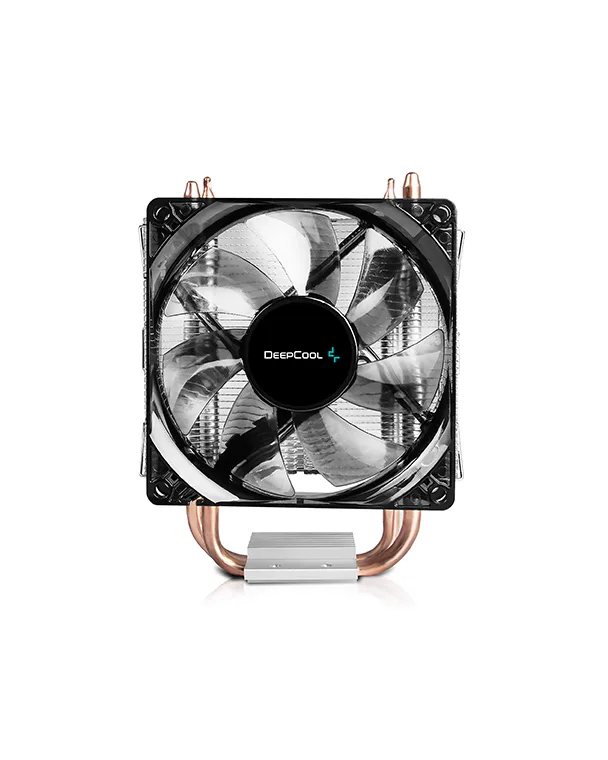

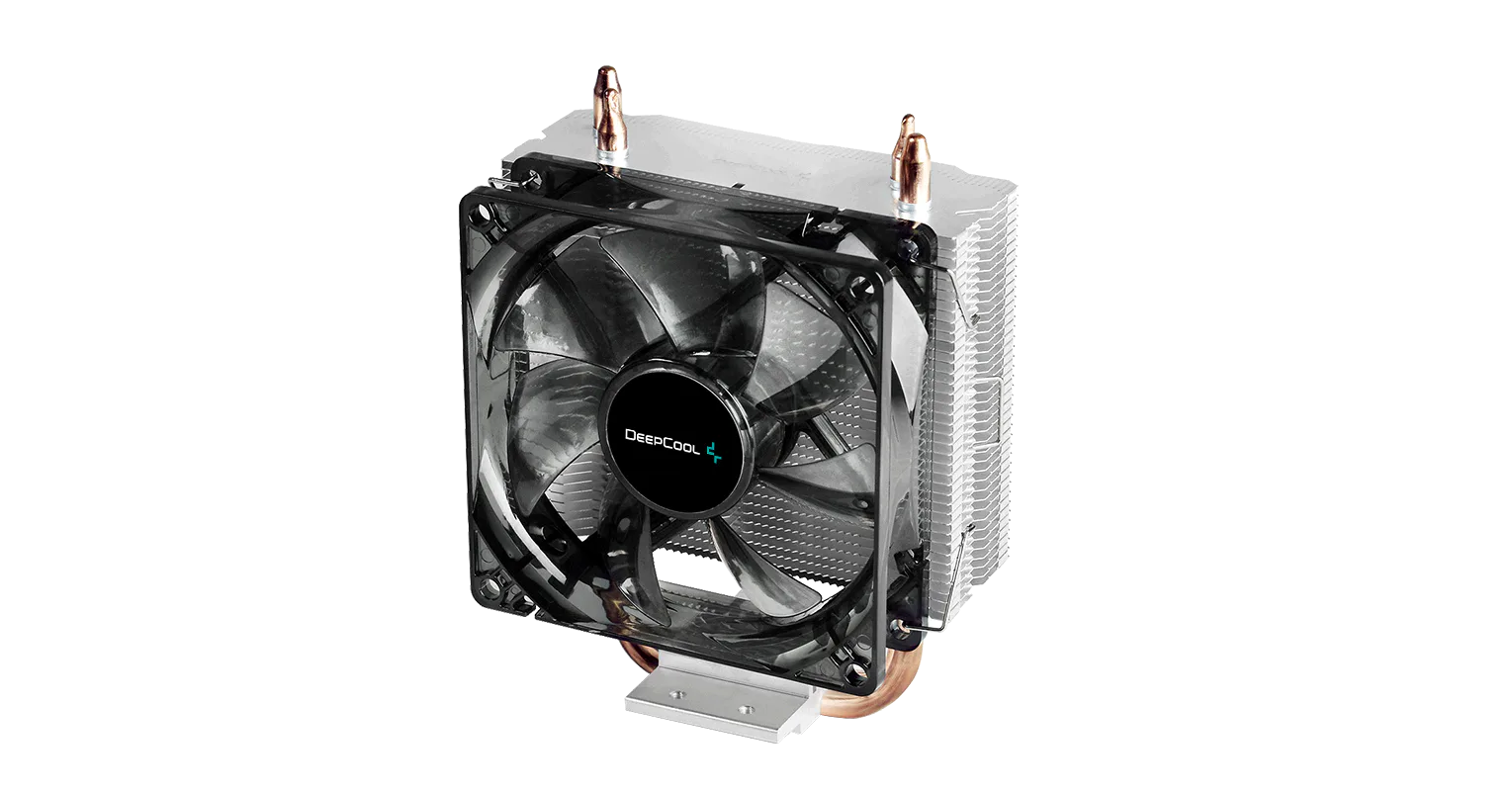

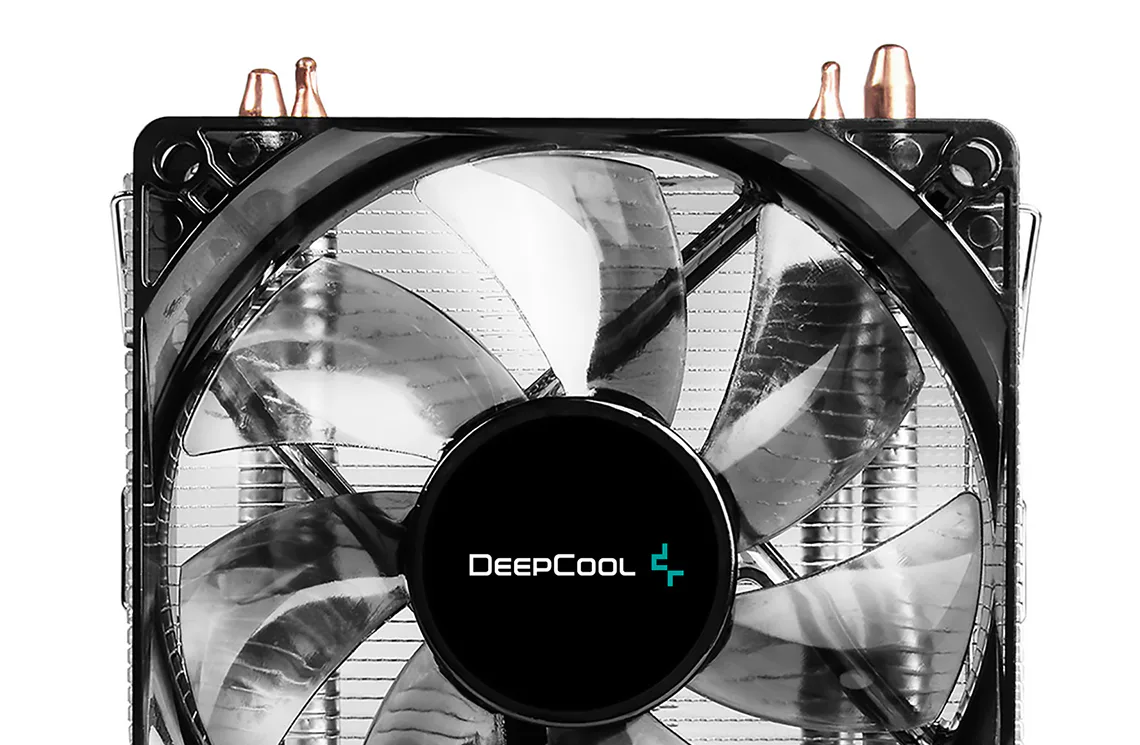

PWM Fan 92 x 92 x 25mm

Silent fan is made of translucent material, great for case modding.

Compatibility with multiple platforms

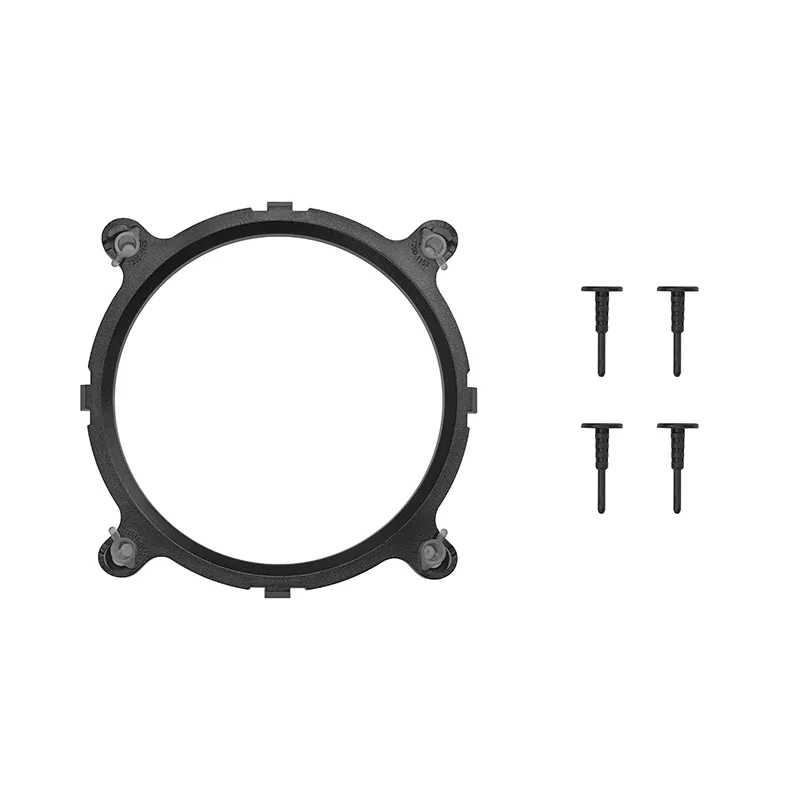

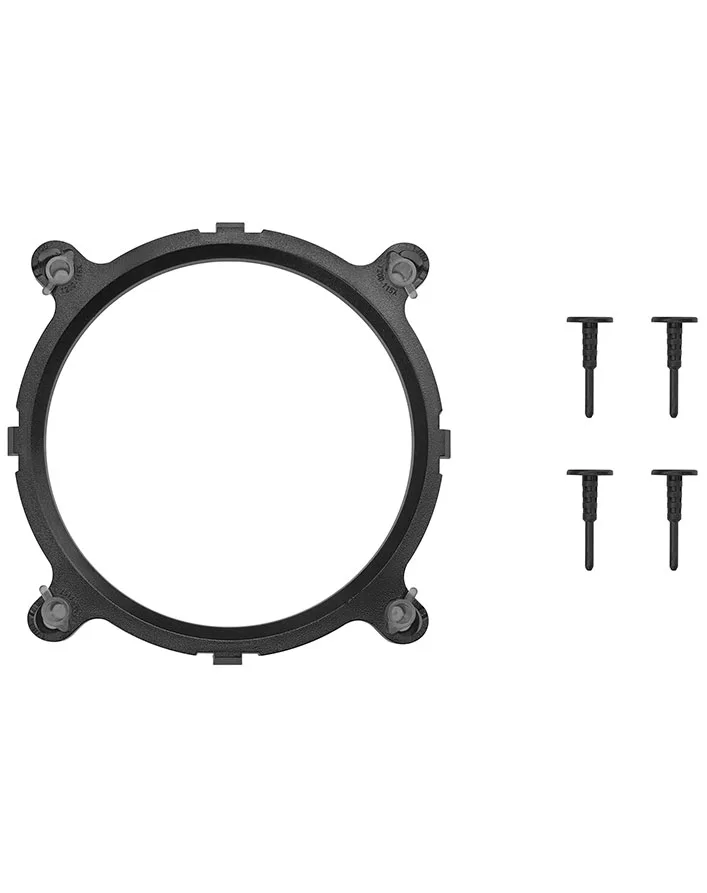

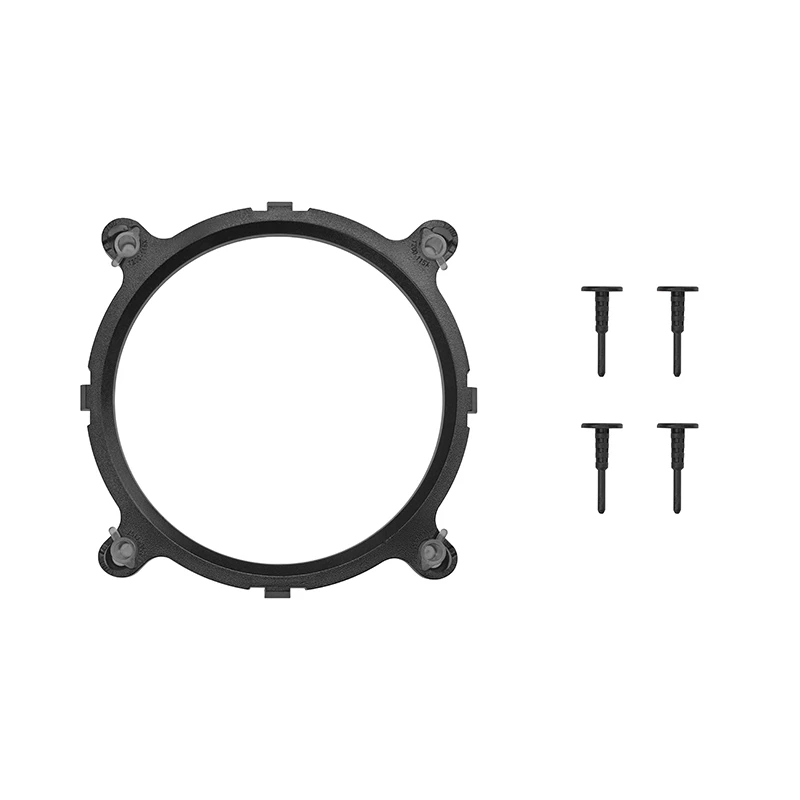

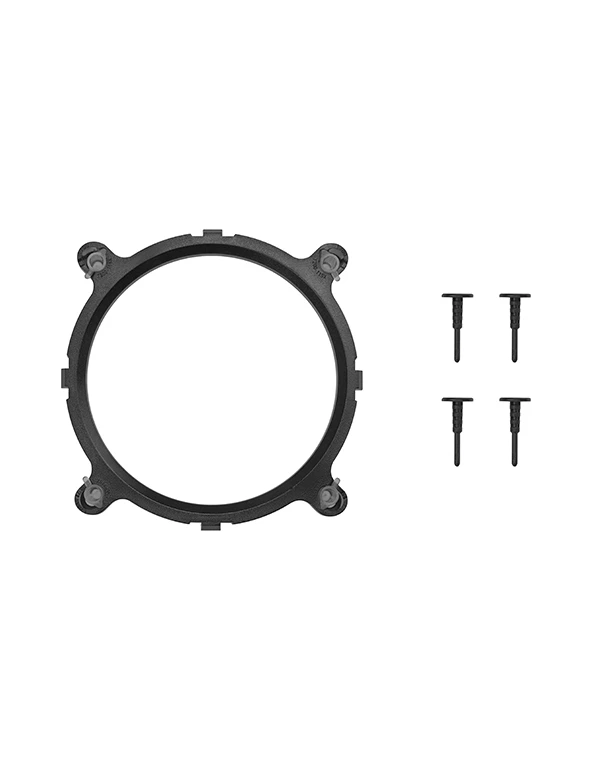

Compatibility with multiple platforms. The system comes with multiple mounting brackets to support platforms Intel LGA1851/1700/1200/1151/1150/1155 and AMD AM5/AM4.

Easy Installation

No need to reinstall the motherboard to get the cooling system installed.

Application For

Intel

LGA1851/1700/1200/1151/1150/1155

AMD

AM5/AM4

Technical Spec

Overall Dimension	107×71×131 mm(L×W×H)
Fan Dimension	92×92×25 mm(L×W×H)
Net Weight	326g
Bearing Type	Hydro Bearing
Rated Voltage	12VDC
Heatpipe	Ø6 mm×2 pcs
Fan Connector	4-pin PWM
Fan Rated Current	0.06 A±10%
Fan Power Consumption	0.72W
Fan Speed	500~2000 RPM±10%RPM
Max. Air Flow	33 CFM
Noise	≤23.9 dB(A)
EAN	6933412726937
P/N	DP-MCH2-GMX200-V2

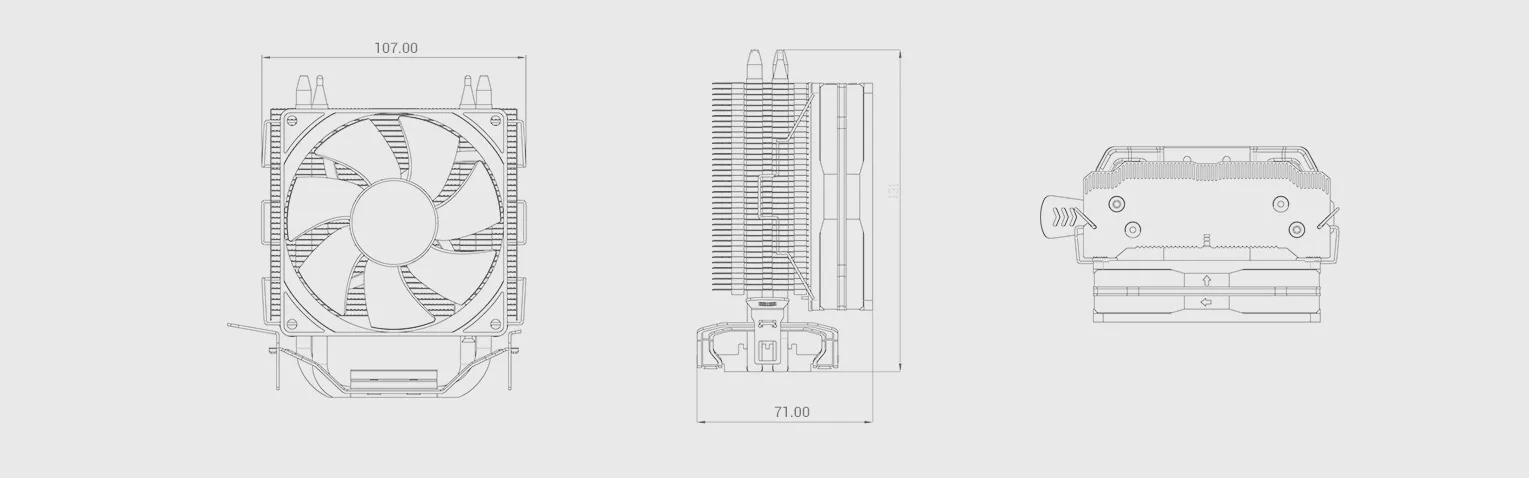

Product Dimension

Download

GAMMAXX 200 V2 Manual.pdf
