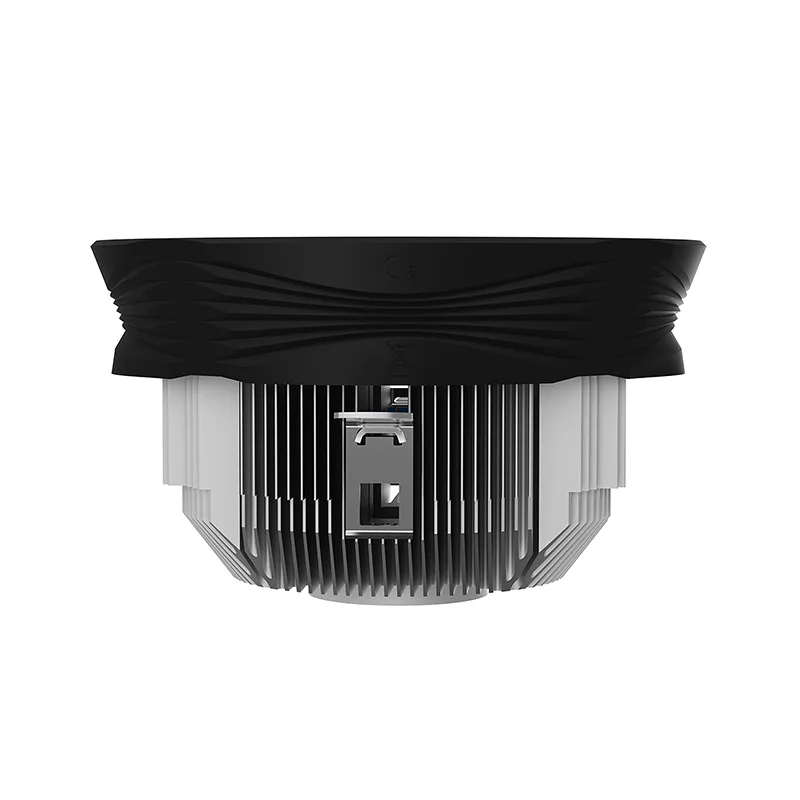

ARCHER BIGPRO - DeepCool

Compatible with AMD AM5/AM4.
The cooler is compatible with Intel LGA115X/LGA775 and AMD AM5/AM4 platforms and can cool processors with TDP up to 125W.

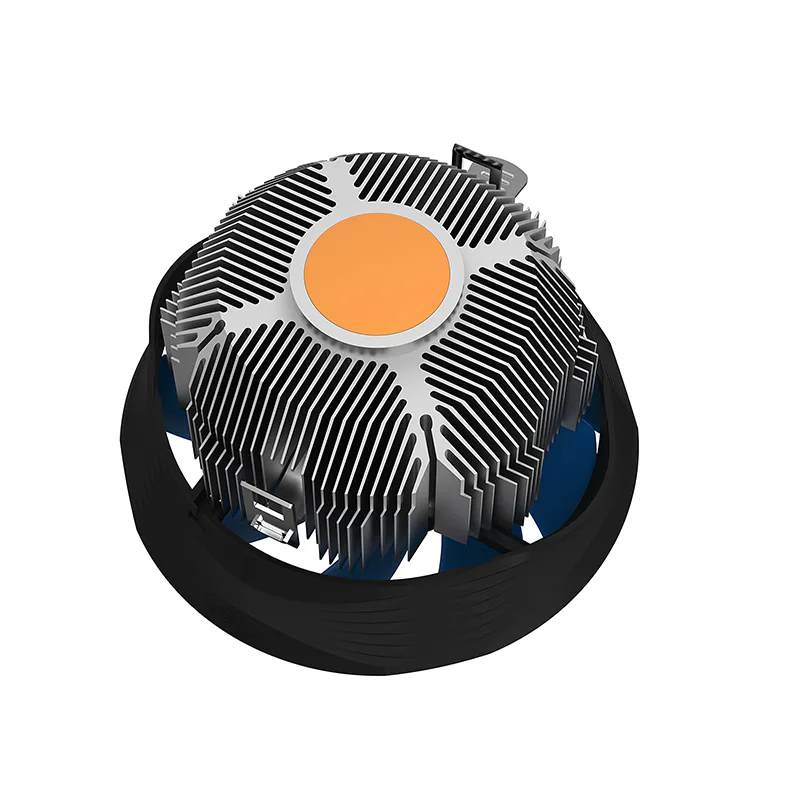

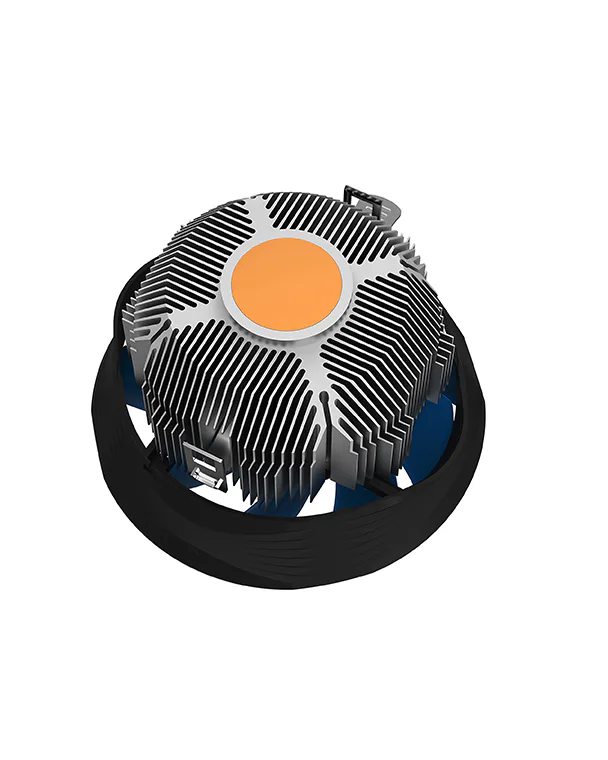

High quality aluminum heatsink provide high cooling performance and long service life.

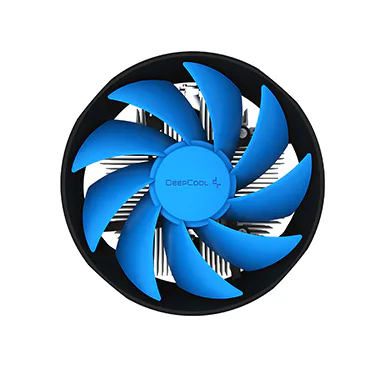

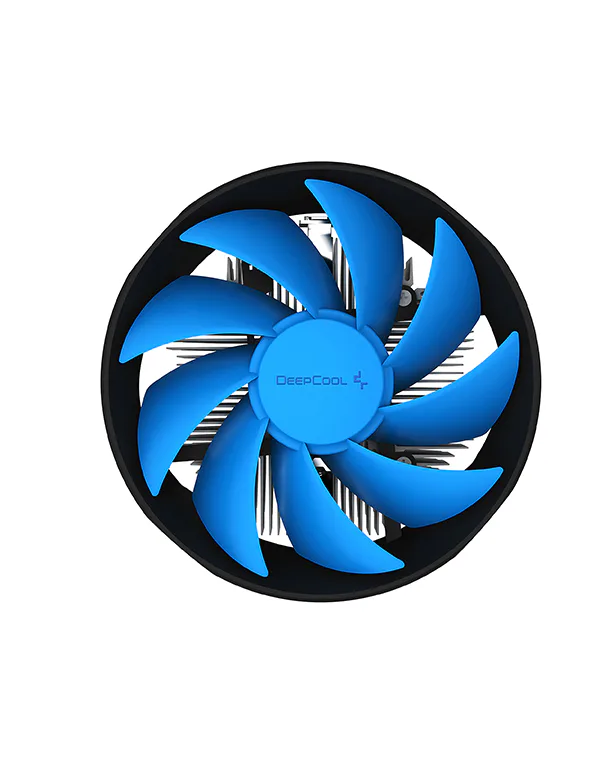

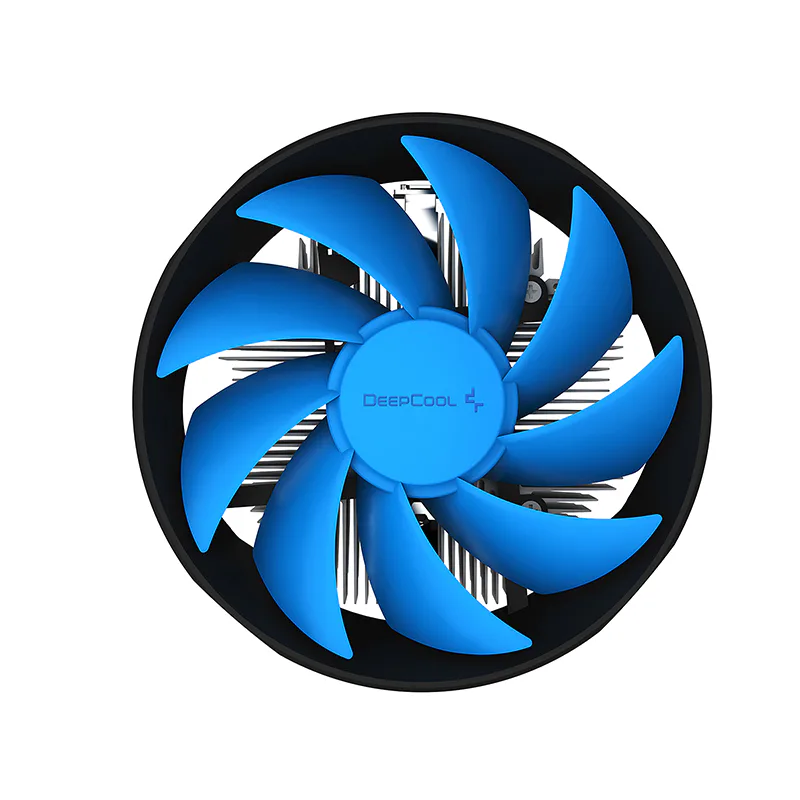

The 120mm fan creates a powerful airflow that effectively removes heat.
Thanks to the unique design of the fan frame, heat is removed, including from the memory sticks and the motherboard.
10% more efficient than ARCHER PRO Comes with an additional 4-pin PWM resistor to reduce noise.

Application For

Intel

LGA1200/1151/1150/1155/LGA775

AMD

AM5/AM4

Technical Spec

Overall Dimension	124X121X70 mm(L×W×H)
Fan Dimension	Φ120X25 mm
Net Weight	380g
Bearing Type	Hydro Bearing
Rated Voltage	12VDC
Operating Voltage	10.8～13.2VDC
Started Voltage	7VDC
Rated Current	0.17 ±10%A（MAX）
Power Input	2.04W
Fan Speed	（12V）900±150-2000±10%RPM （7V） 750±150-1400±10%RPM
Max. Air Flow	（12V）60.19CFM （7V）52.39CFM
Noise	（12V）29.7dB(A) （7V）24.5dB(A)

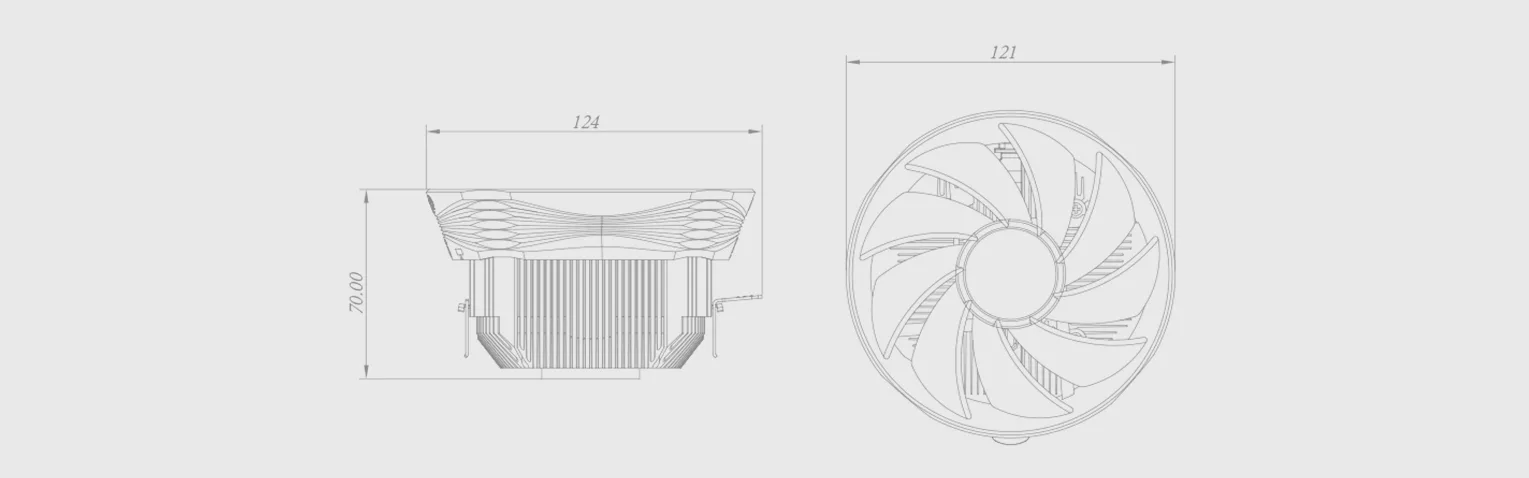

Product Dimension
