CK-11509
MODEL

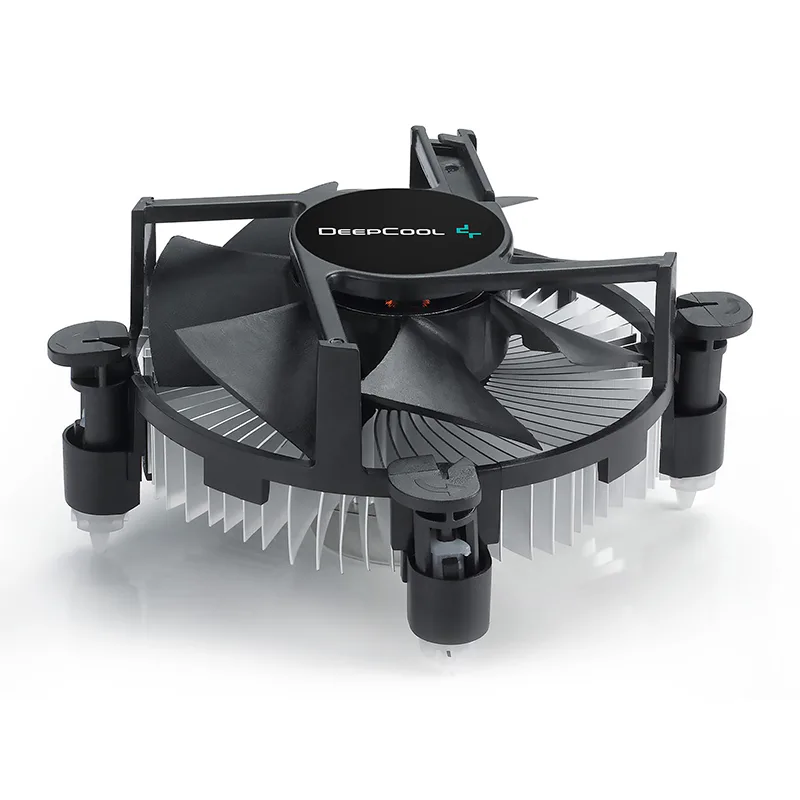

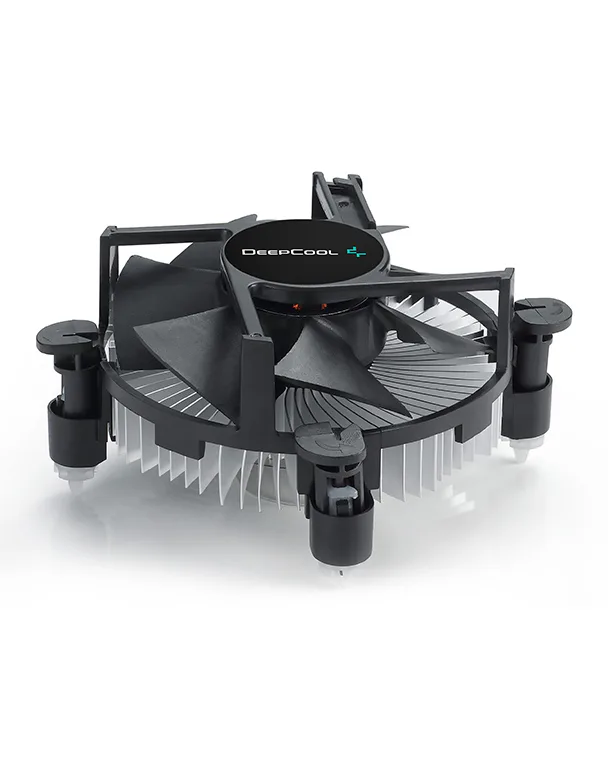

Ф92 x 25 mm inverted fan offers optimal airflow while generating low noise.

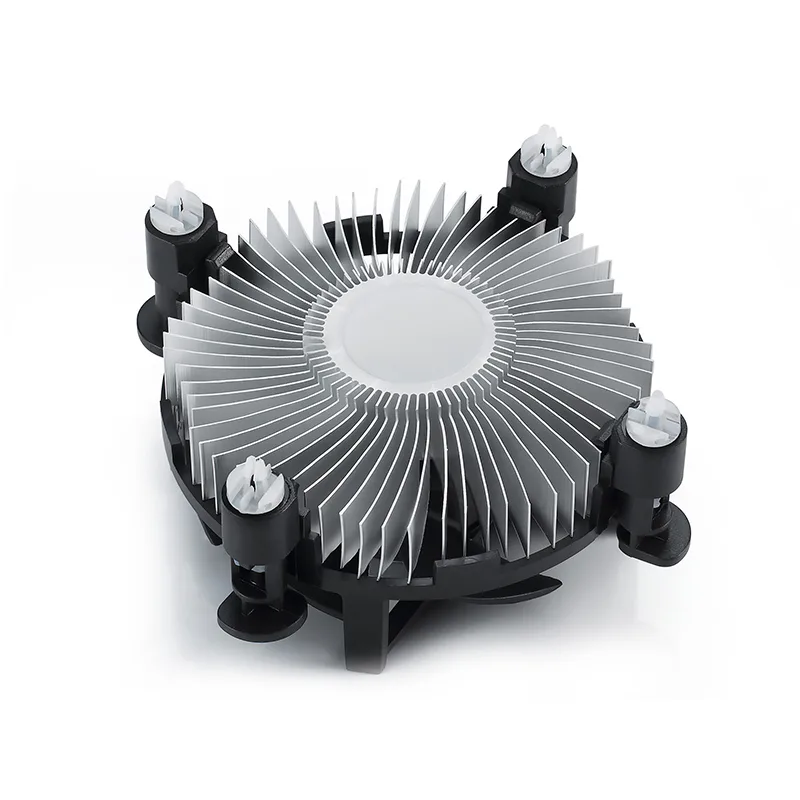

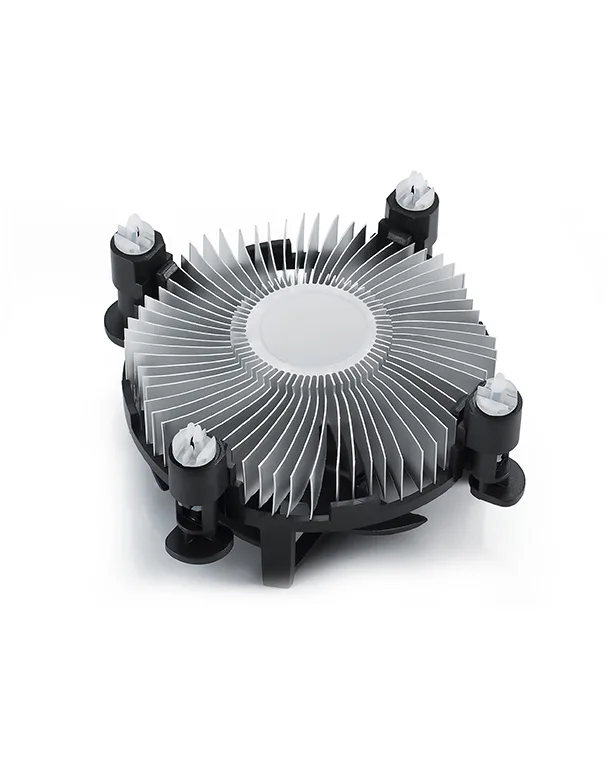

Radial aluminum heatsink for excellent cooling performance.
Push pins for simple and easy installation.
Application For
Intel
LGA1200/1151/1150/1155/LGA775
Technical Spec
Overall Dimension 94.5X94.5X56mm
Fan Dimension Ф92X25mm
Net Weight 147g
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Operating Voltage 10.8~13.2VDC
Started Voltage 7VDC
Rated Current 0.18±10%A
Power Input 2.16W
Fan Speed 2200±10%RPM
Max. Air Flow 38.62CFM
Noise 26.8dB(A)
EAN 6933412725626
P/N DP-ICAP-11509

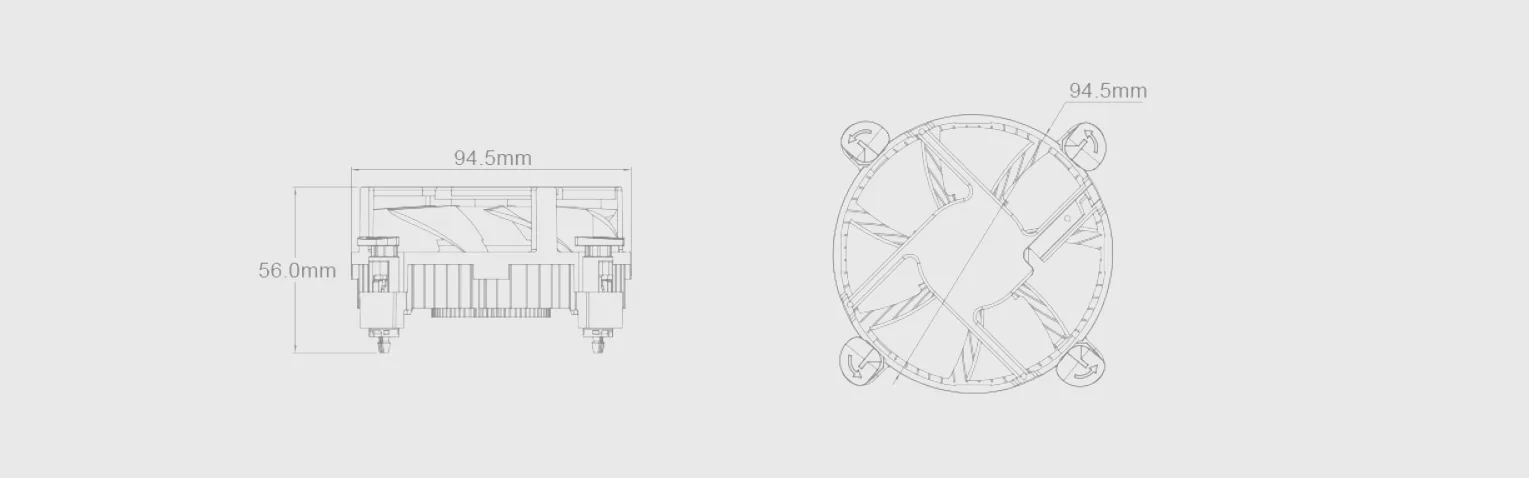

Product Dimension
