THETA 9
MODEL

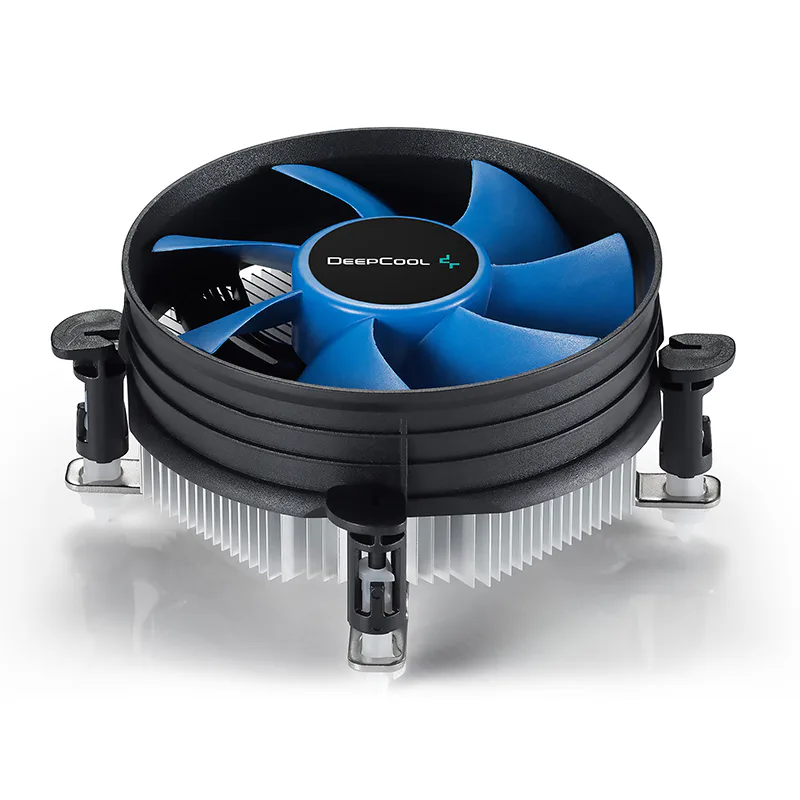

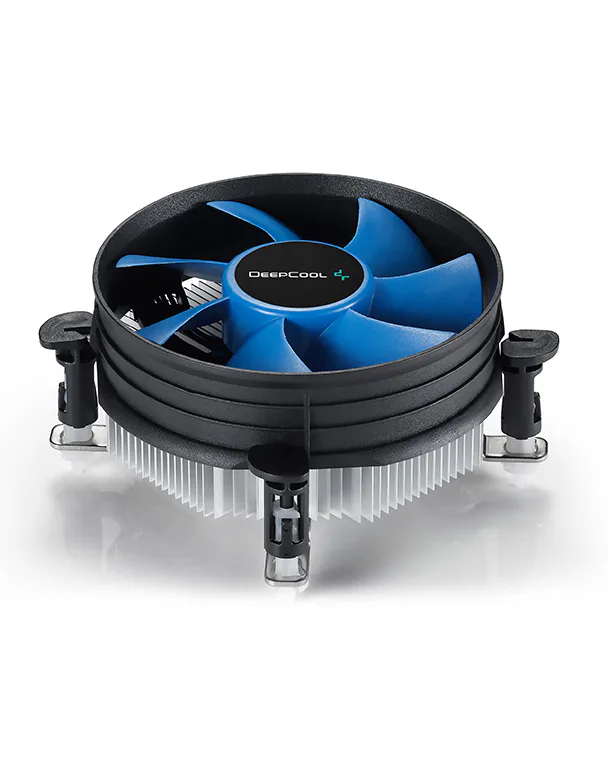

Low profile heatsink that easily fits into SFF enclosures.
Ф 92 X 25 mm fan delivers powerful airflow for effective CPU cooling.

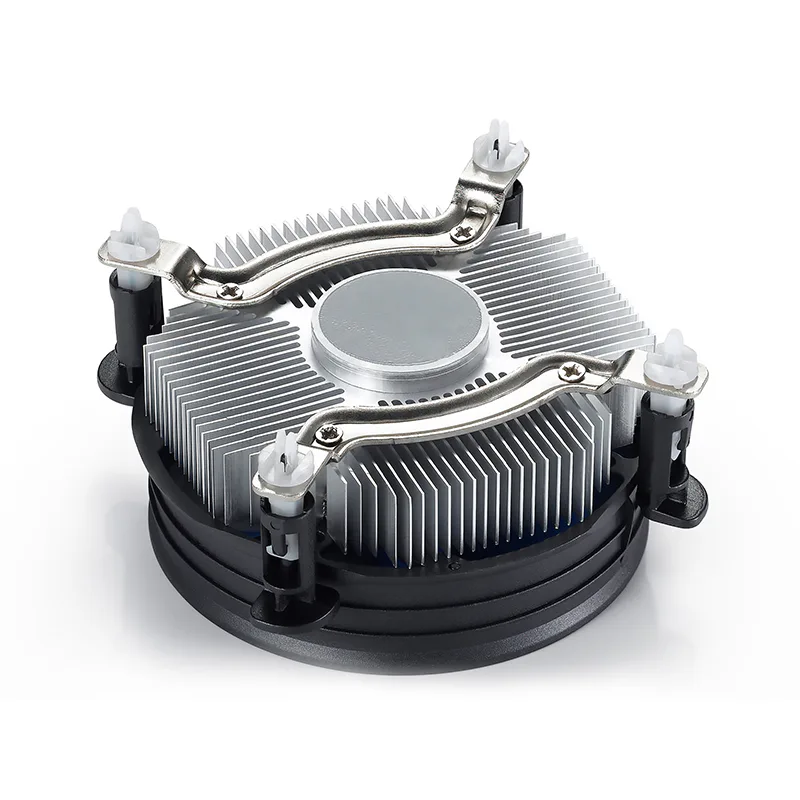

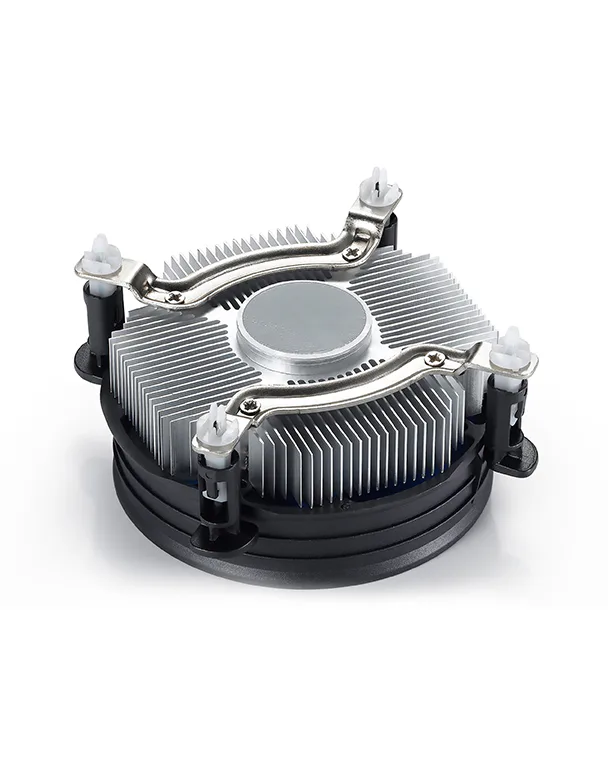

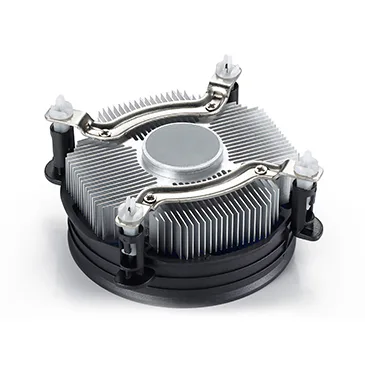

Radial aluminum heatsink providing highly effective cooling performance.
Push-pin clips for easy installation.
Application For
Intel
LGA1200/1151/1150/1155
Technical Spec
Product Dimensions100X100X46.5 mm(L×W×H)
Net Weight 268.5 g
Fan DimensionsΦ92×25 mm(L×W×H)
Fan Speed 2000 RPM±10%
Fan Airflow 39.81 CFM
Fan Air Pressure 2.72 mmAq
Fan Noise 27.6 dB(A)
Fan Connector 3-pin
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.17 A
Fan Power Consumption 2.04 W
EAN 6933412705277
P/N DP-ICAP-T9
