ICE BLADE 200M

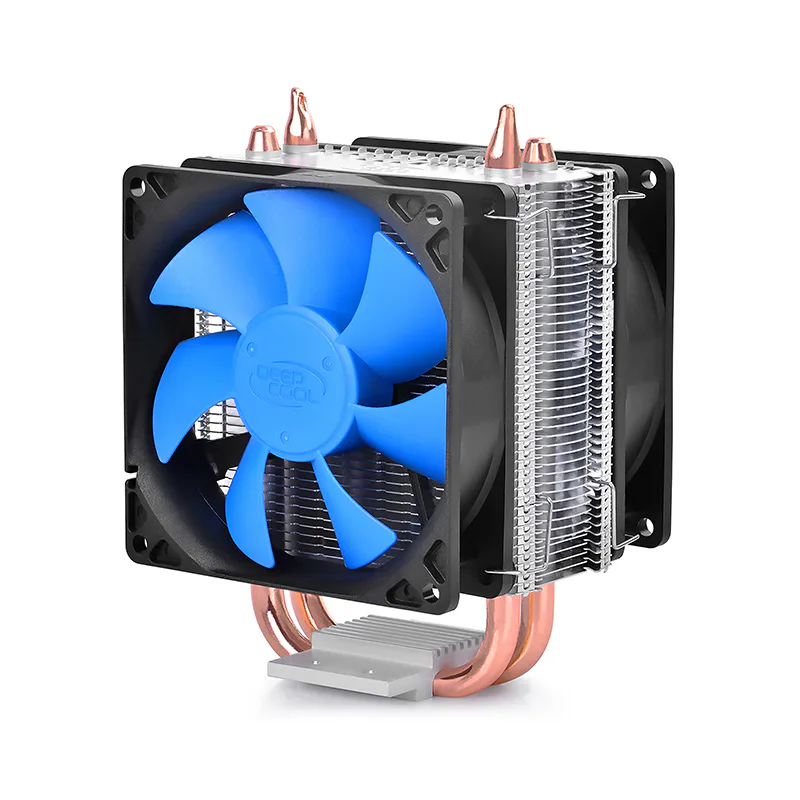

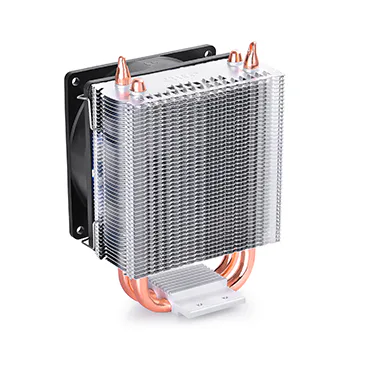

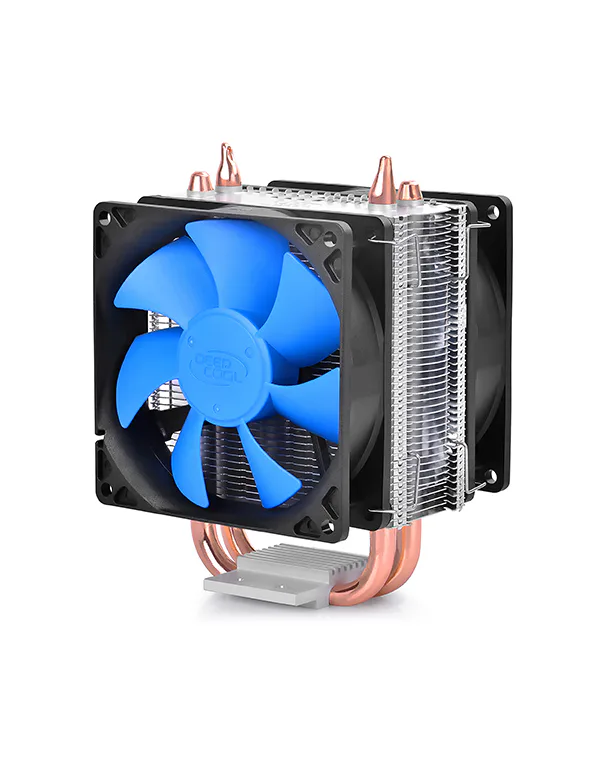

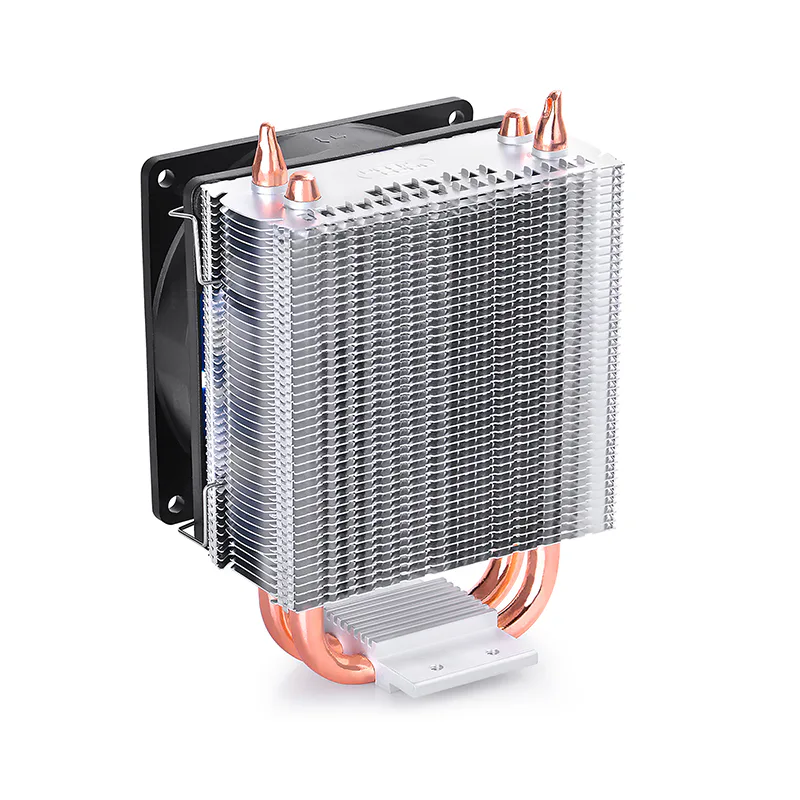

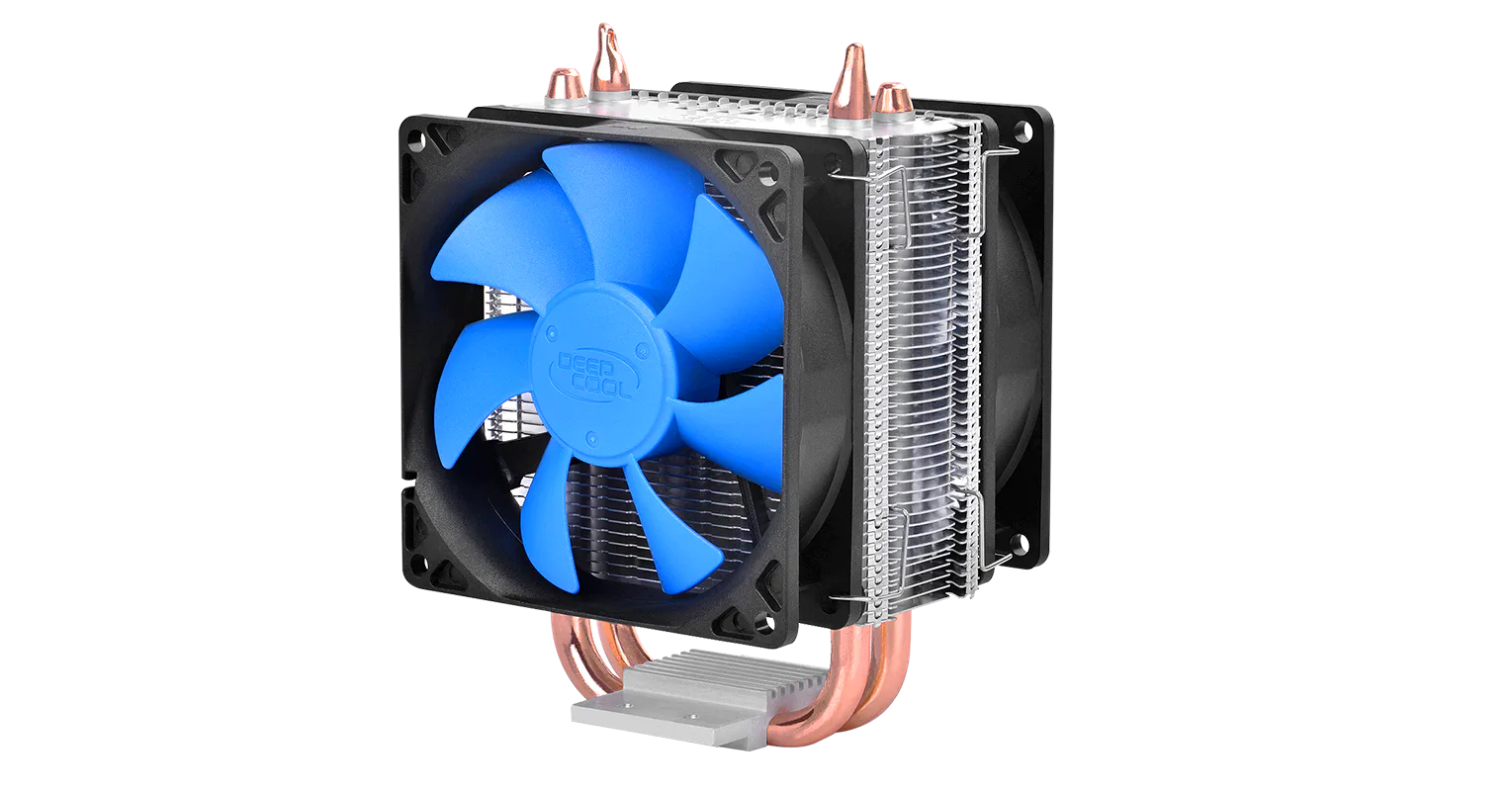

ICE BLADE 200M is a cost effective thermal solution for 130W CPUs. A massive heatsink with two Φ8mm heatpipes ensures rapid heat transfer from the processor and two 92mm fans then disperse the heat away from the heatsink quickly. With all necessary mounting kits, this cooler is able to handle all current CPUs in the market, including Intel LGA2011 and AMD FM2/FM1.

MODEL

ICE BLADE 200M

The Reason for Upgrade

Description

FEATURES

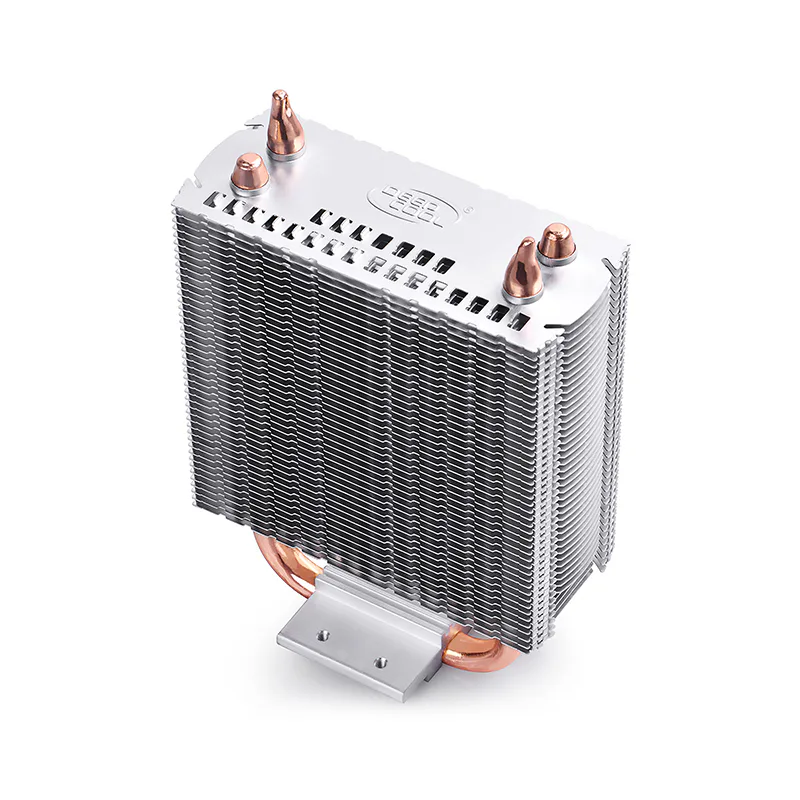

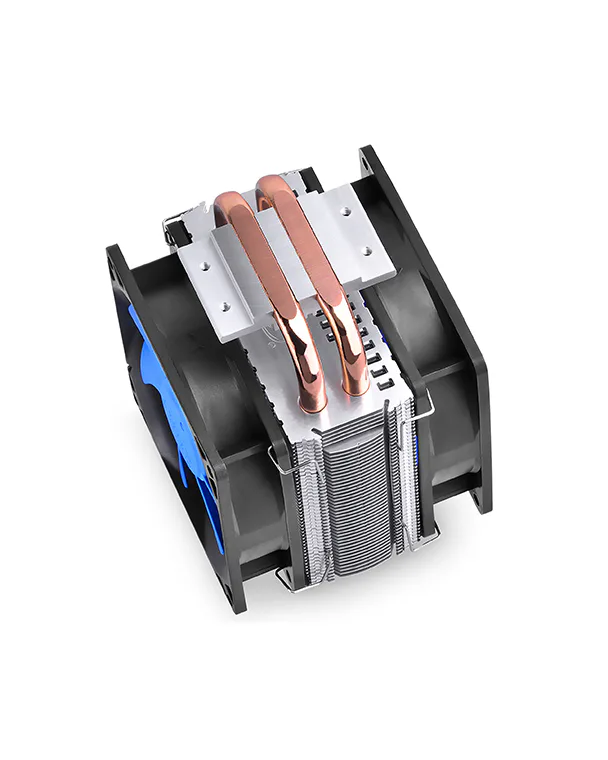

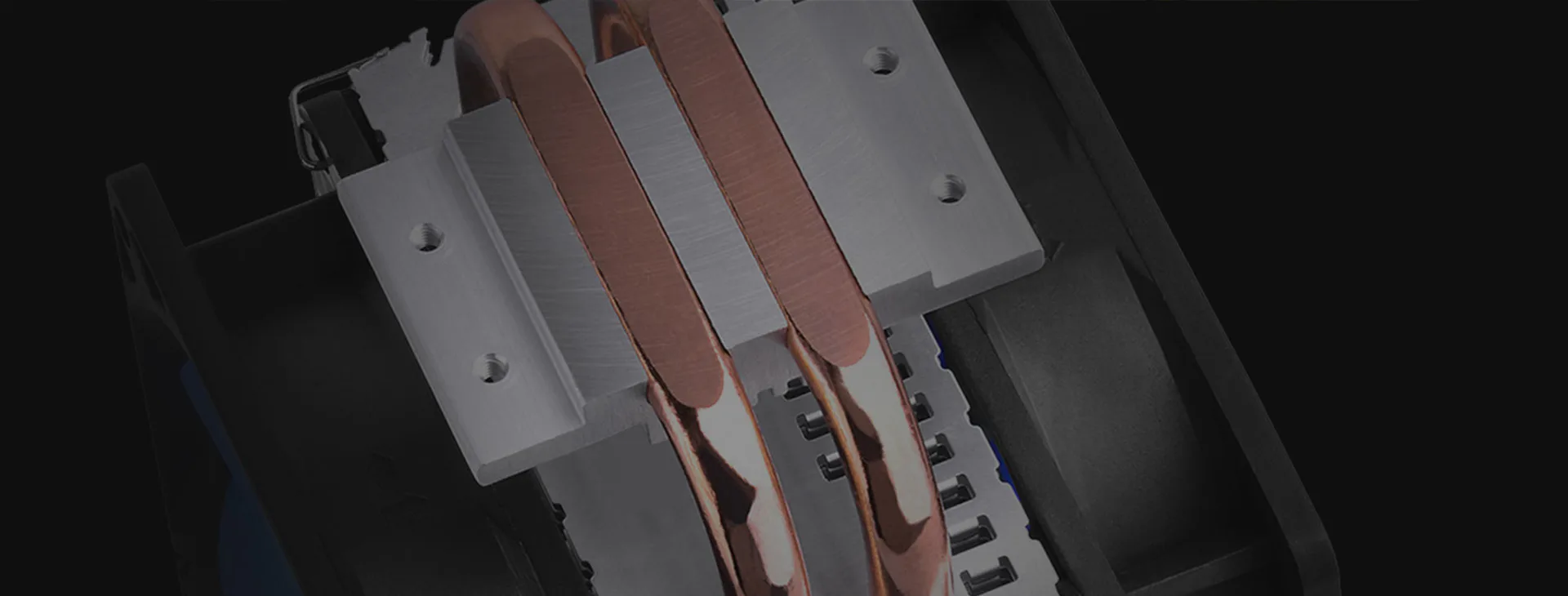

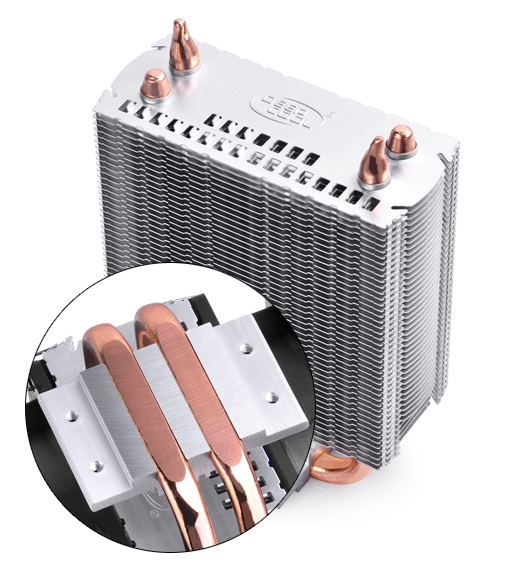

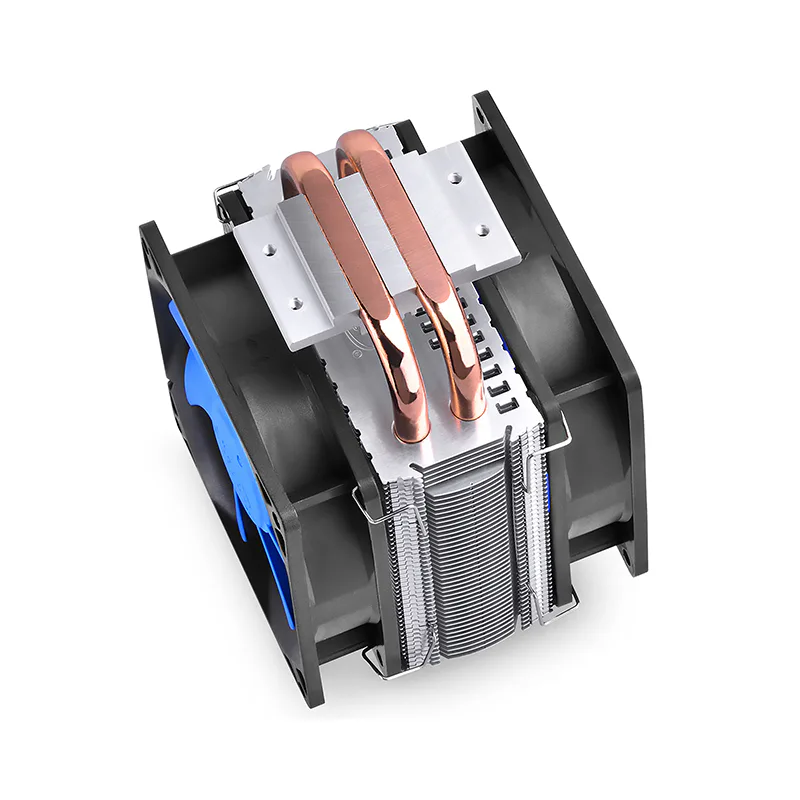

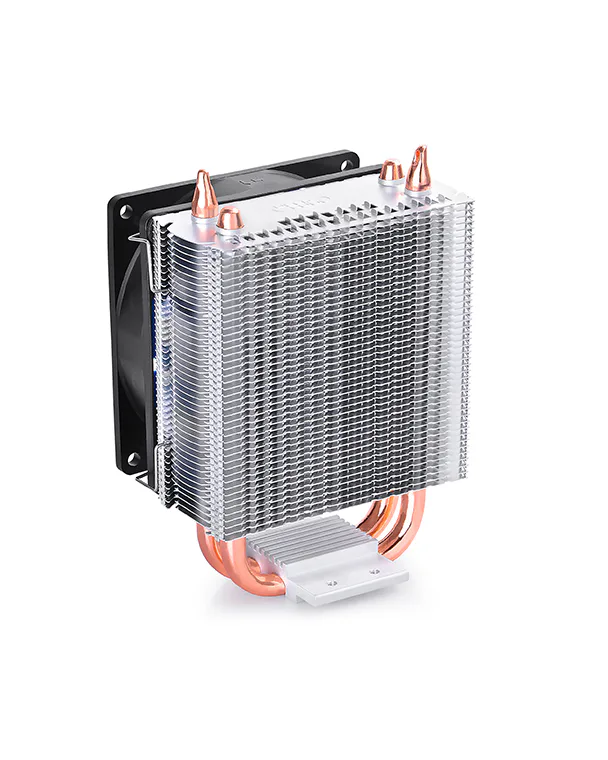

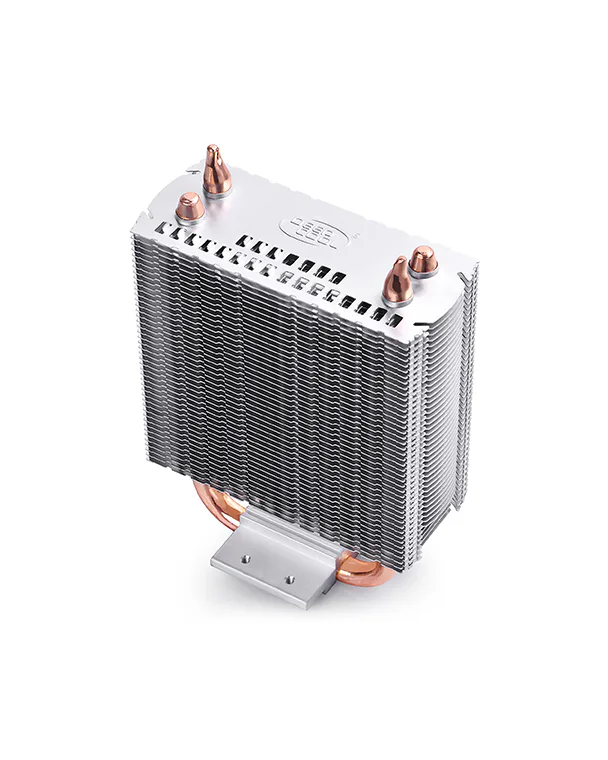

Dual Φ8mm Heatpipes & Massive Heatsink

Two Φ8 mm heatpipes in direct contact with the CPU surface rapidly conducts heat away from the CPU core to the massive aluminum heat dissipation fins.

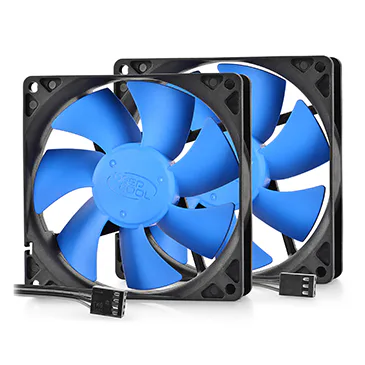

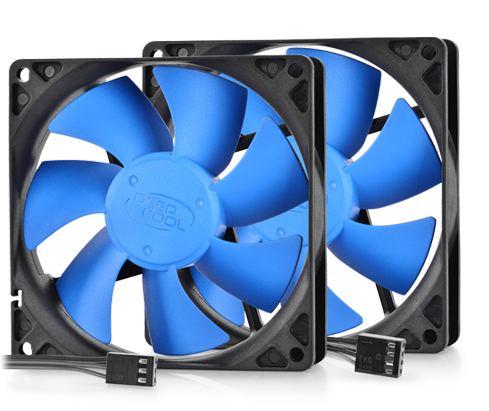

Dual 92mm PWM-capable Fans

Powerful airflow is necessary for dispersing heat from the heatsink ICE BLADE 200M comes with two 92 mm PWM-capable fans generating optimal airflow for enhanced performance.

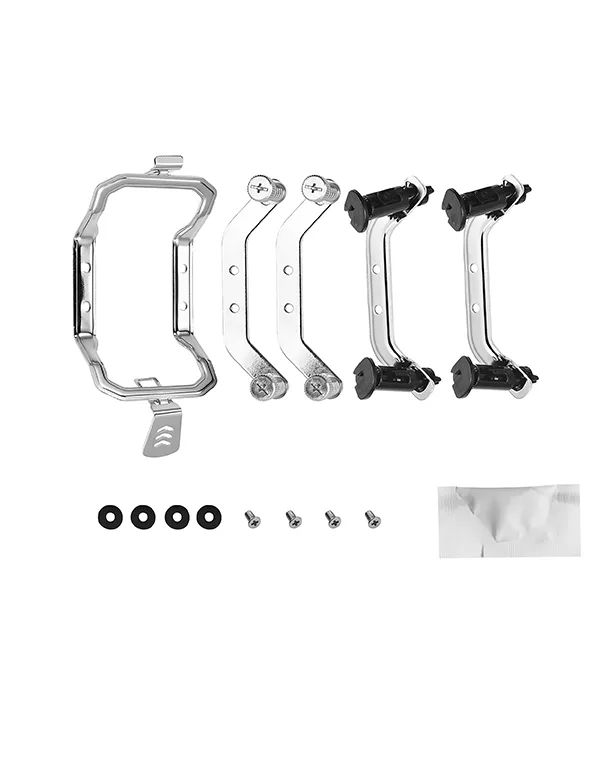

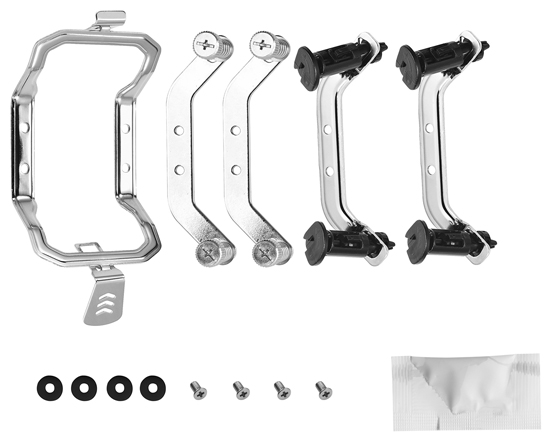

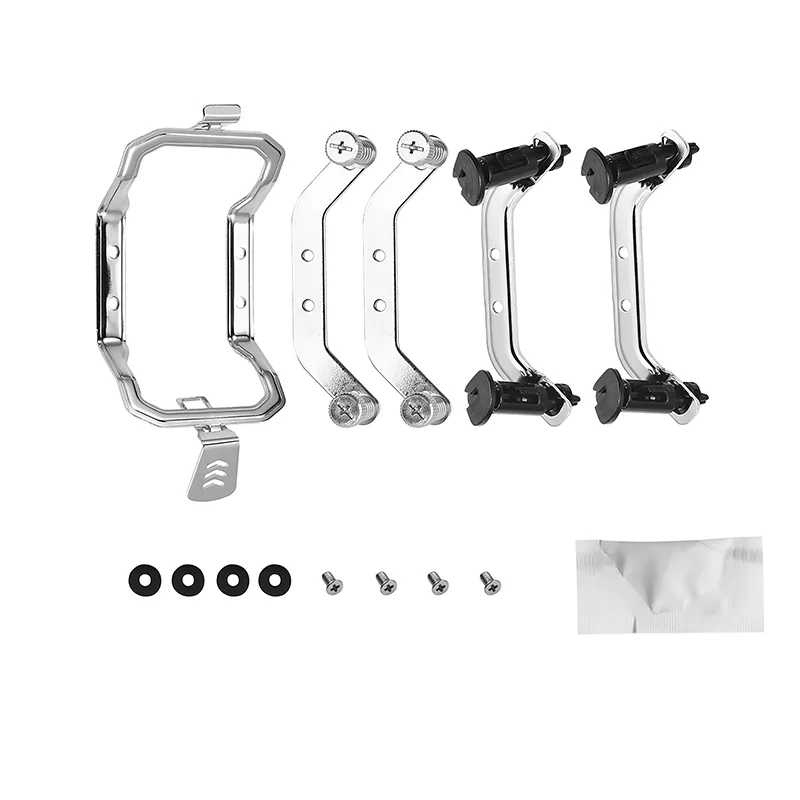

Universal Socket Compatibility

Comes with multiple clips to support: Intel LGA20XX / 1366 / 1156 / 1155 / 1151 / 1150 / 775 and AMD AM4/FM2/FM1/AM3+/AM3/AM2+/AM2.

Application For

Intel

LGA1200/1151/1150/1155

AMD

AM4

Technical Spec

Overall Dimension	103X94X135mm（With 2Fan）
Fan Dimension	92X92X25 mm(L×W×H)
Net Weight	417(With 2Fan)
Bearing Type	Hydro Bearing
Rated Voltage	12VDC
Operating Voltage	10.8～13.2VDC
Started Voltage	7VDC
Rated Current	0.2±10%A 0.19±10%A(MAX)
Power Input	2.4W 2.28W
Fan Speed	2200±10%RPM 900±150~2200±10%RPM
Max. Air Flow	42.95CFM
Noise	17.8~30.1dB(A)
EAN	6933412725466
P/N	DP-MC8H2-IB200M

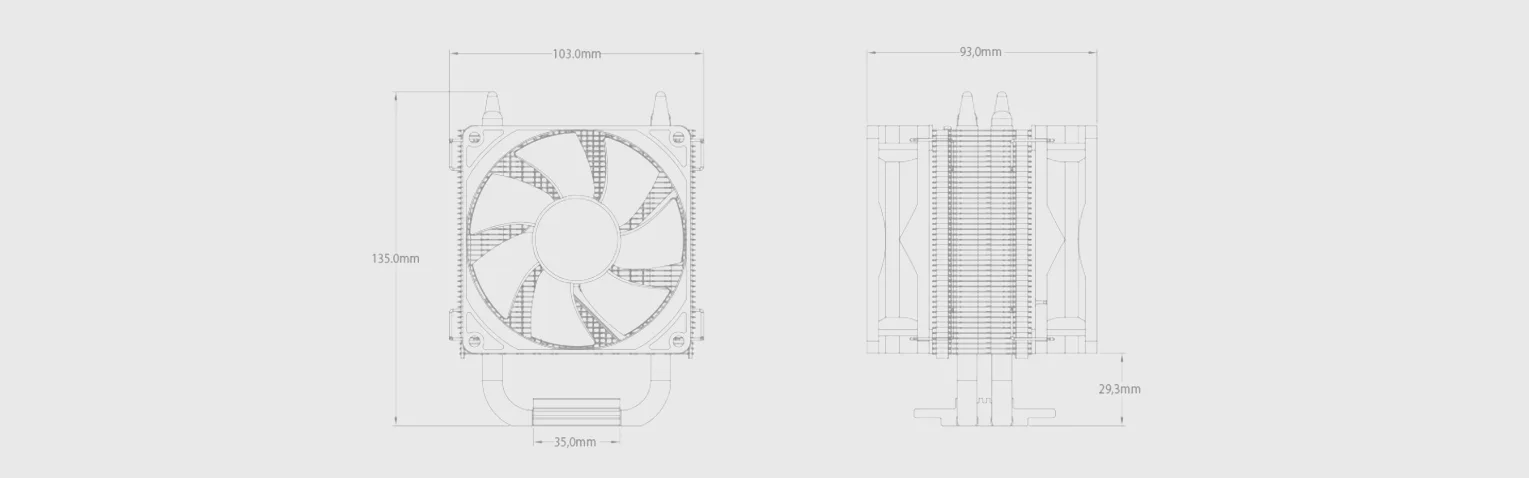

Product Dimension

Download

ICE BLADE 200M Manual.pdf
