CYCLOPS

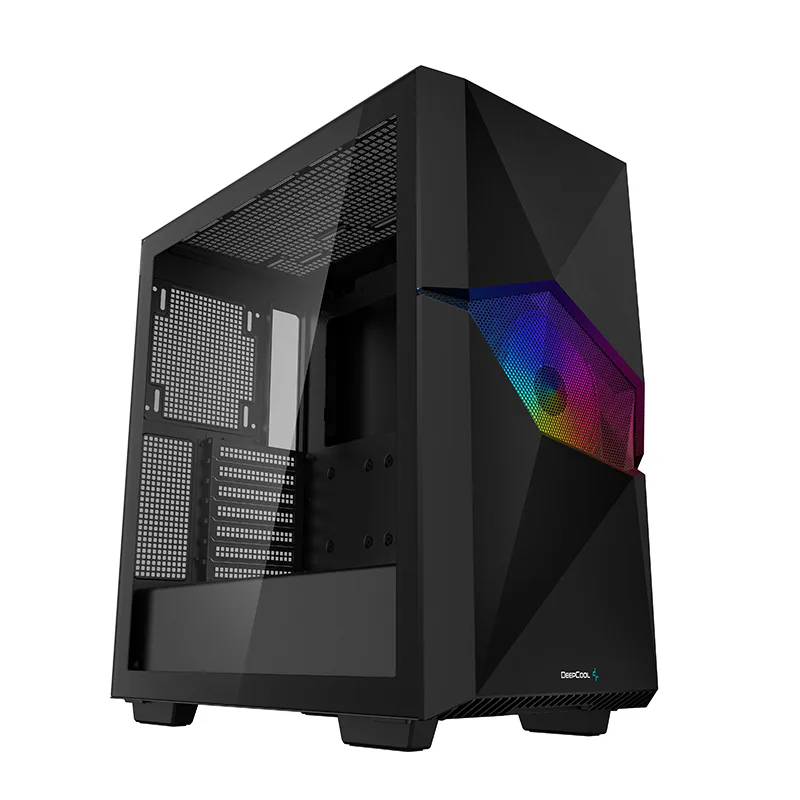

A Mid-Tower Case from Mythology

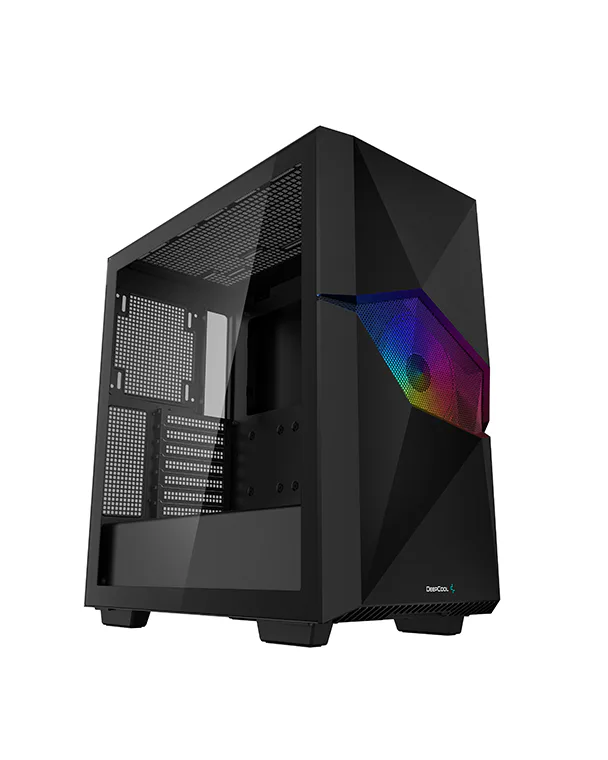

The DeepCool CYCLOPS is a mid-tower case that brings the unmistakable eye of the mythological creature to your desktop. The front panel was designed to concentrate a large amount of airflow through the ARGB “eye” and right onto the main components. 360mm radiators can be mounted at the top and front of the case, providing exceptional cooling.

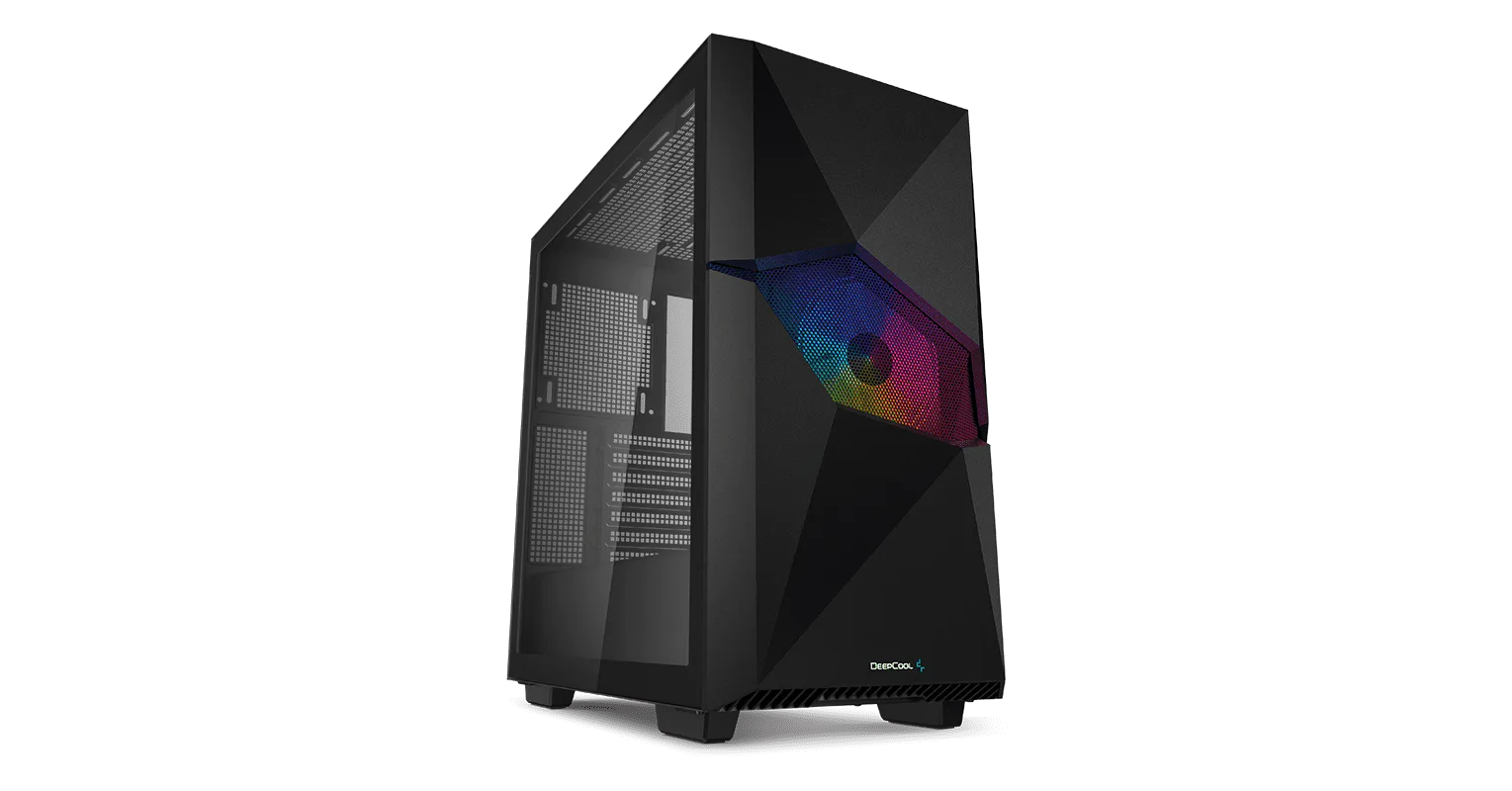

The Eye of the Monster

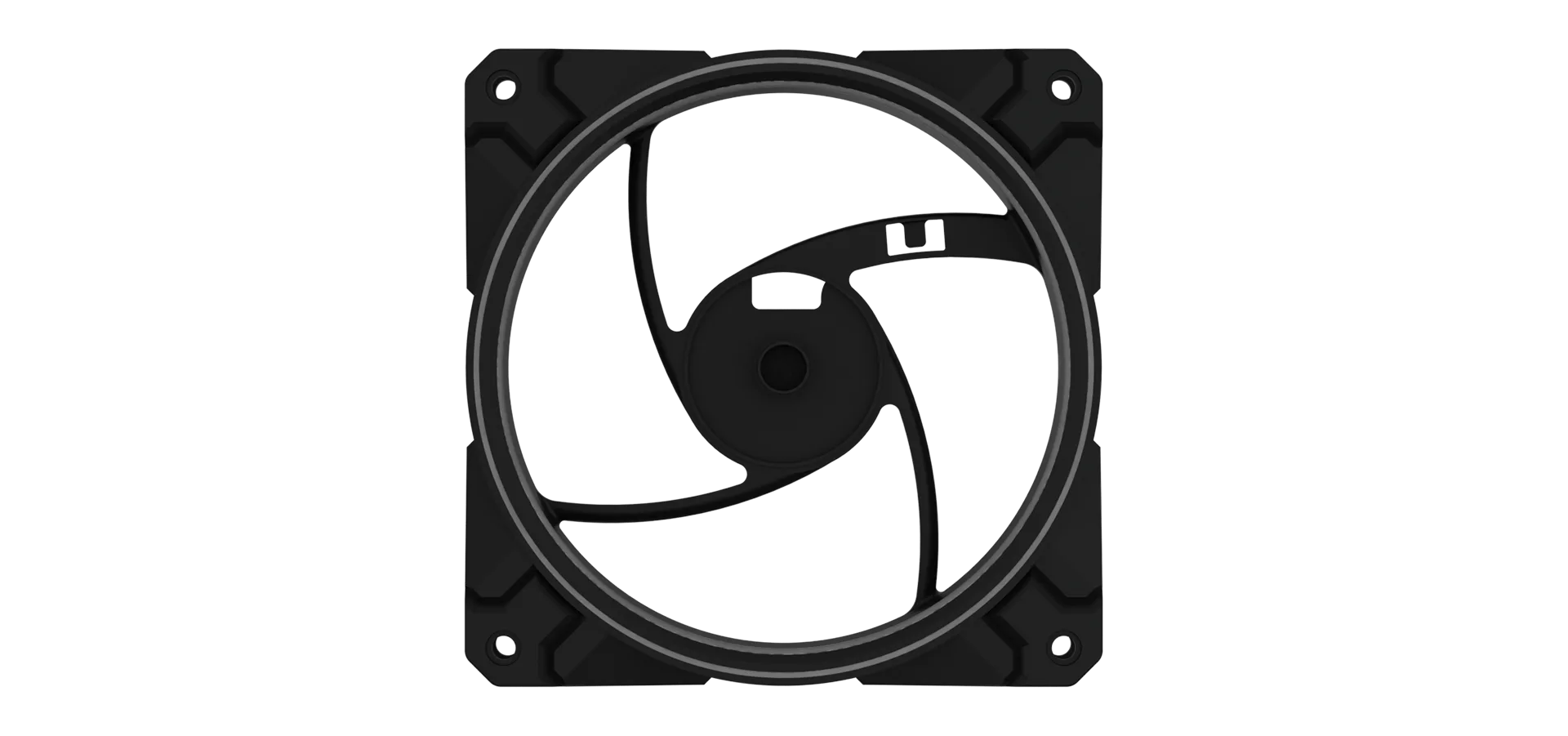

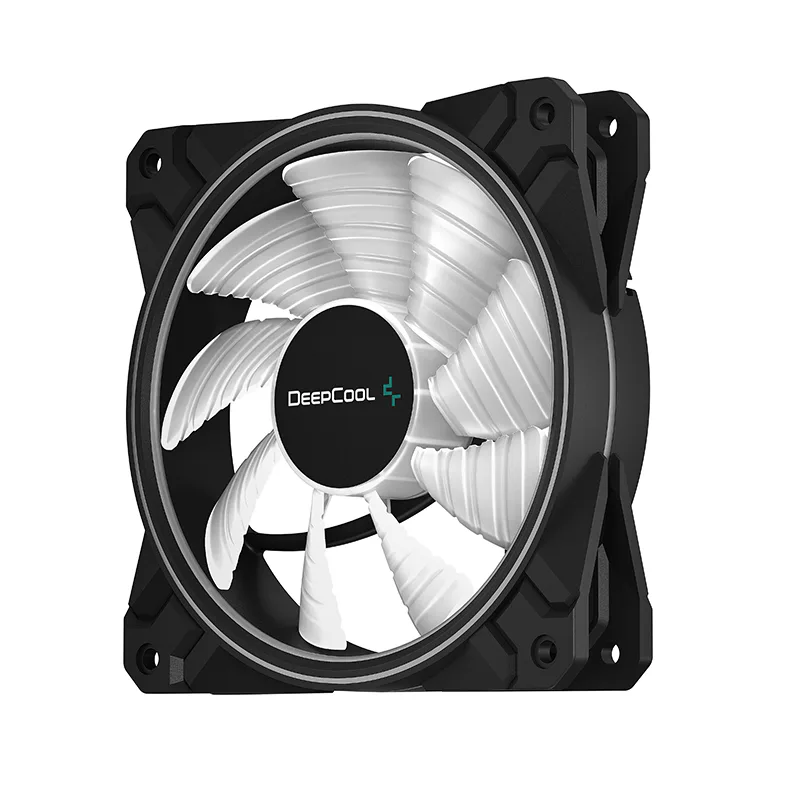

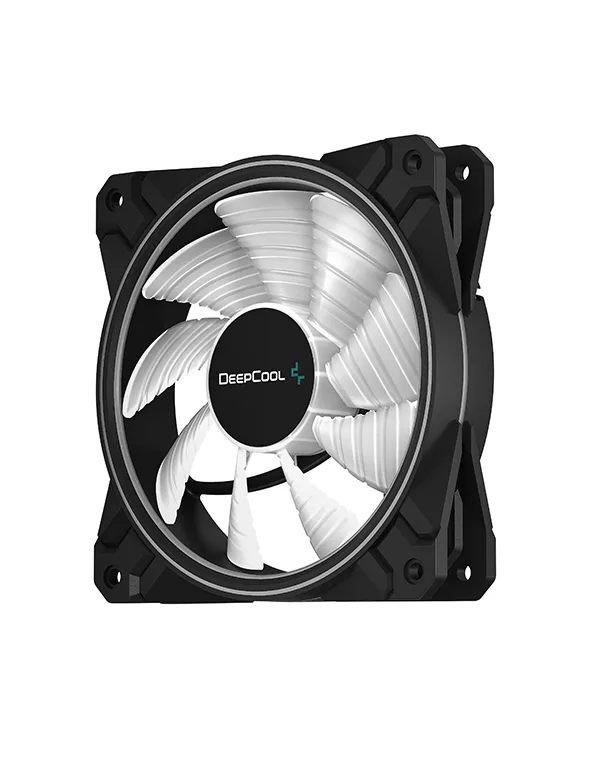

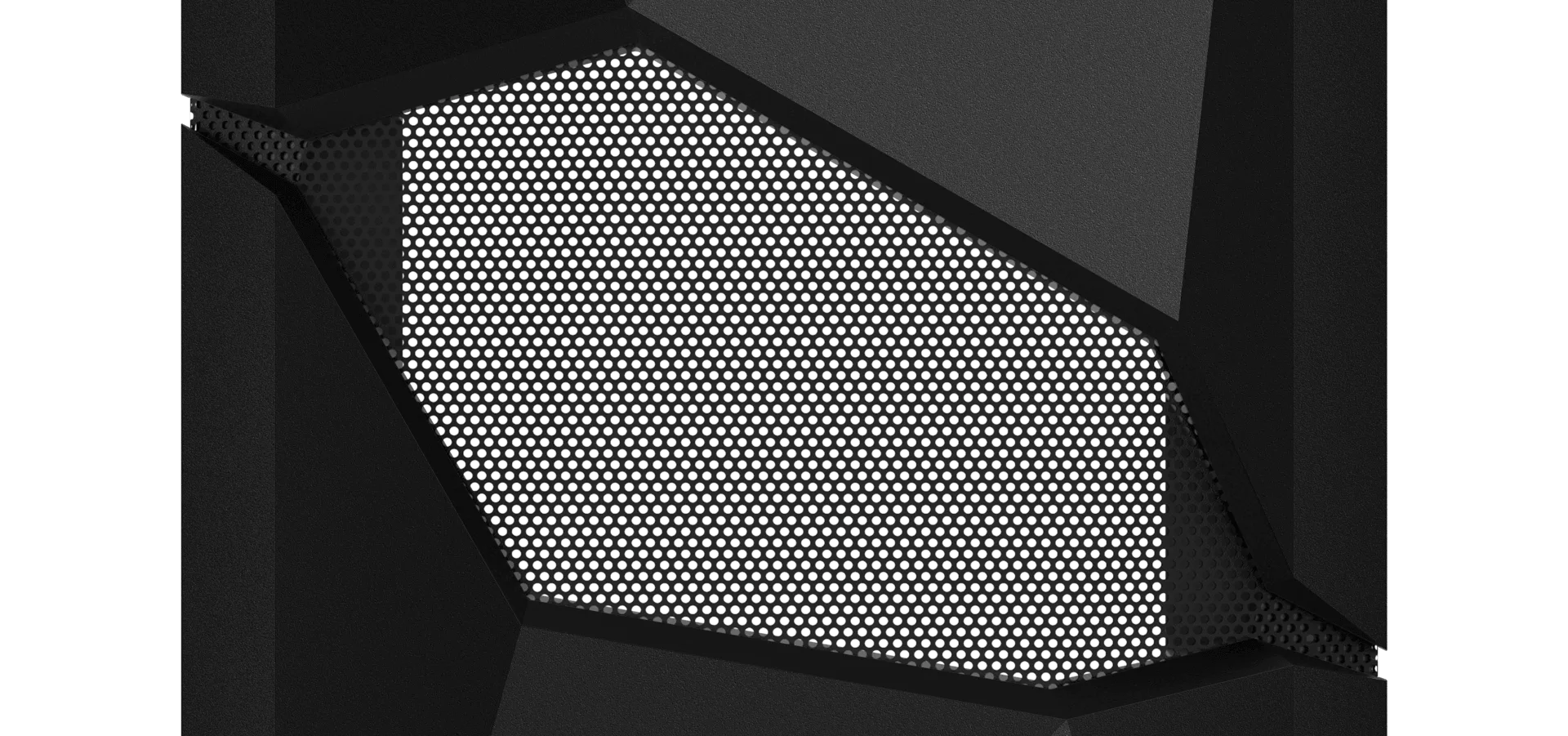

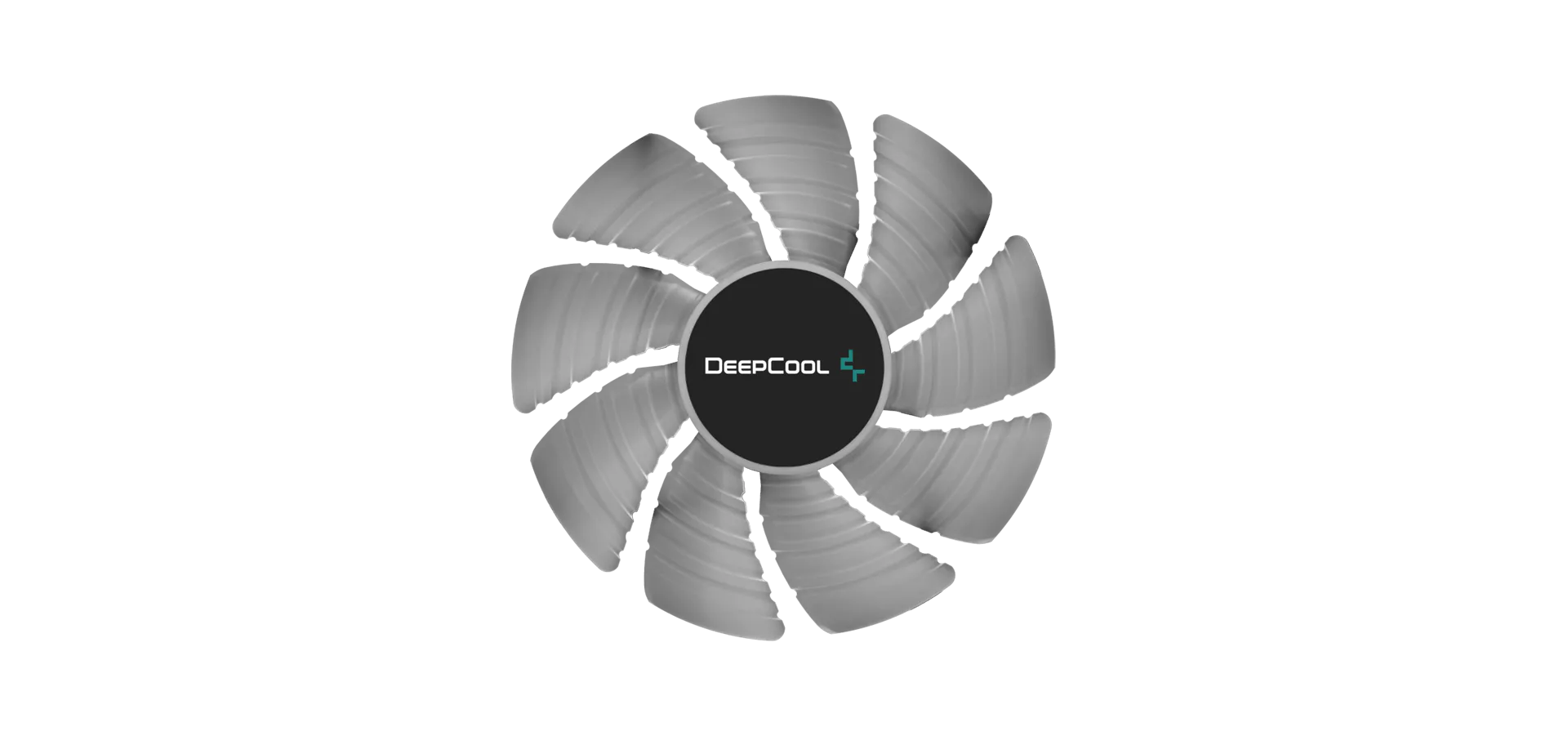

Thanks in large part to the preinstalled CF120 Plus fan, the eye of the CYCLOPS is not just aggressive, bright, and beautiful-looking; it also provides exceptional air flow.

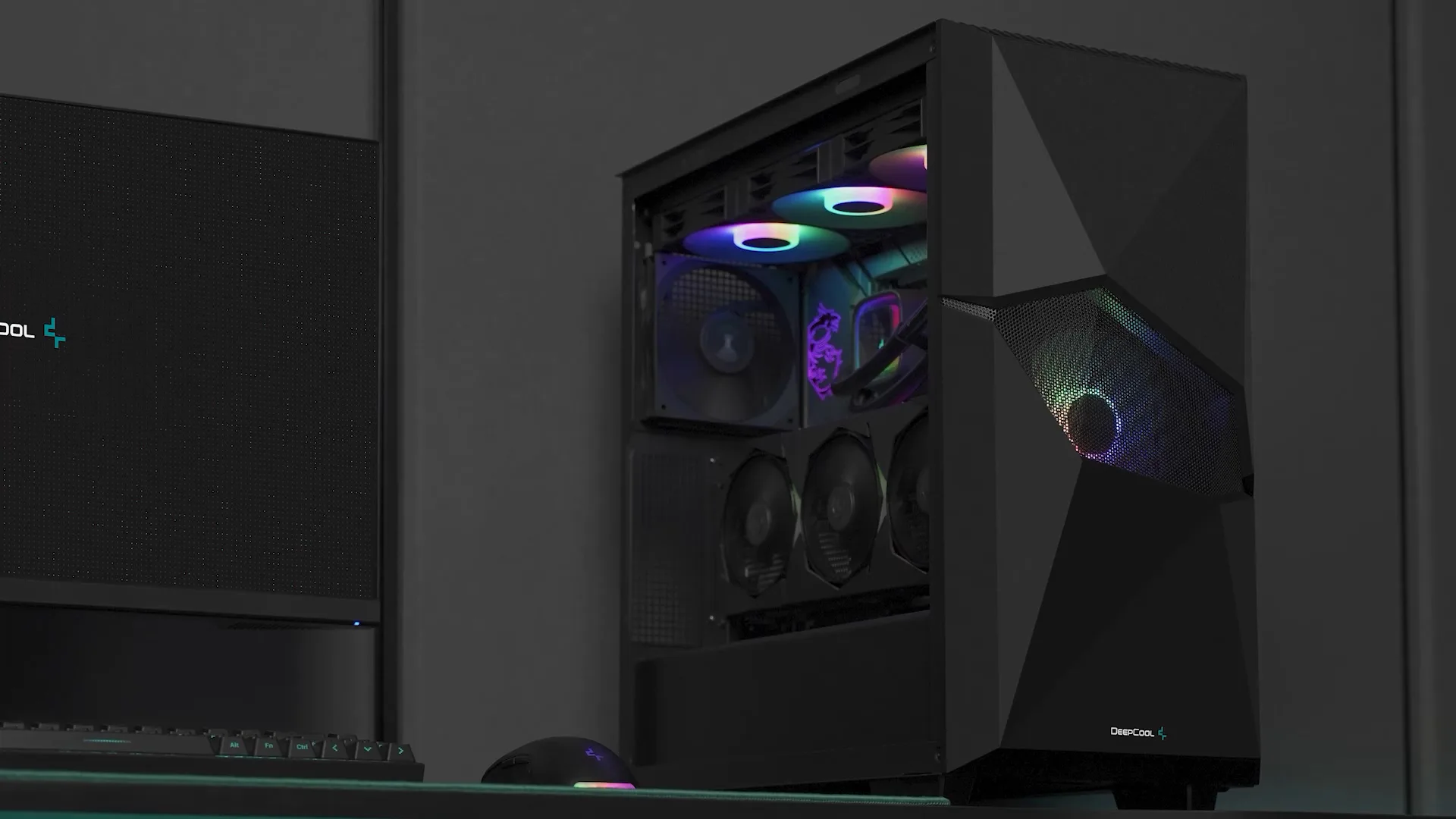

Tame the Brute

With the ability to mount up to a 360mm radiator in the front and top, as well as 9 120mm (or 5 140mm) fans, the heat generated in the heart of the chassis is easily cooled.

9x120mm

5x140mm

setups

A View into the Belly of the Beast

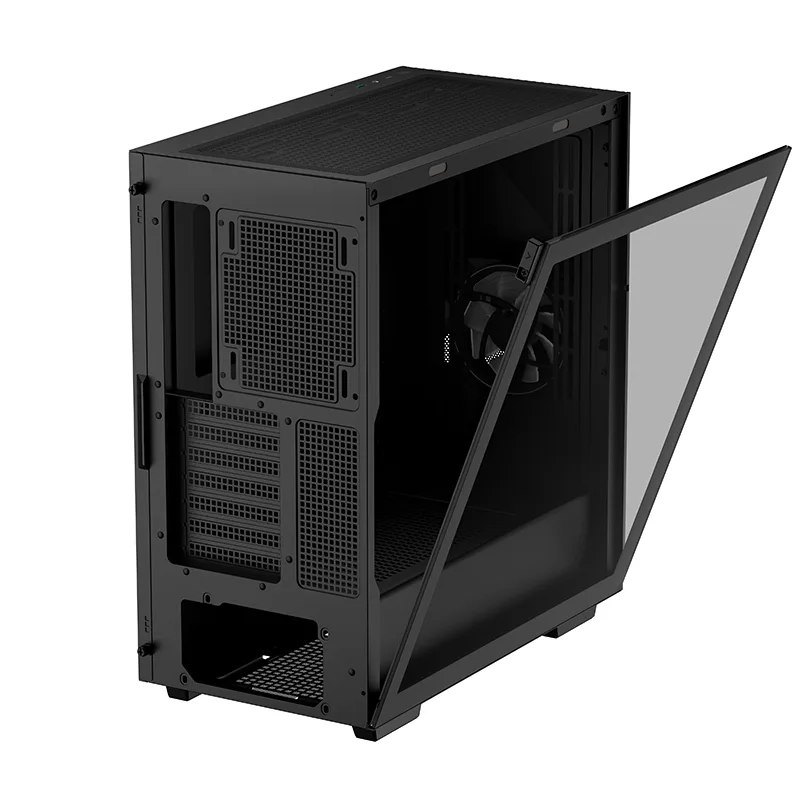

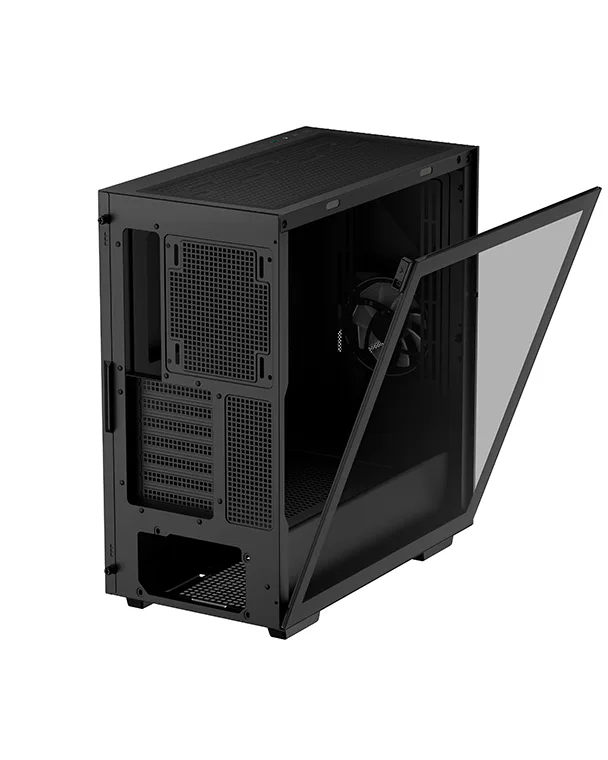

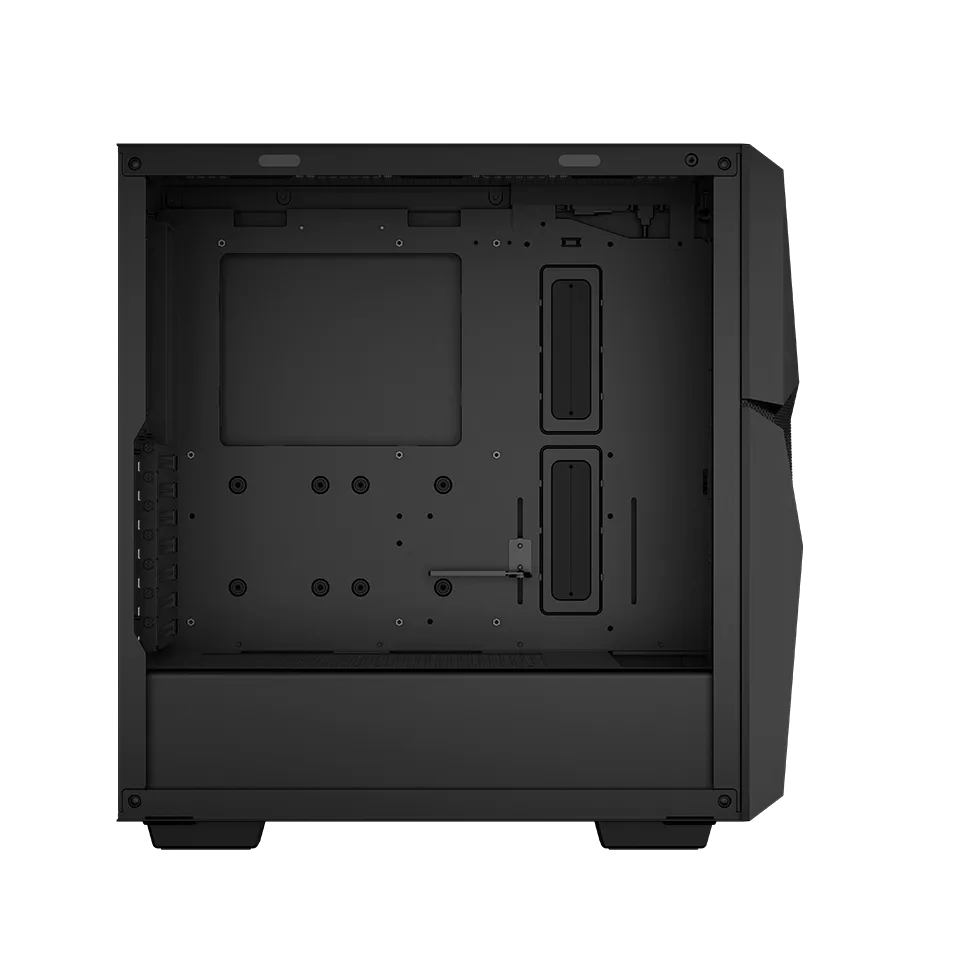

A magnetic tempered glass side panel gives spectators a crystal-clear view into the vital components of your powerhouse computer. The glass panel is more secure than conventional mounting solutions, and the option to lock it in place adds an extra element of security.

Easy to Equip

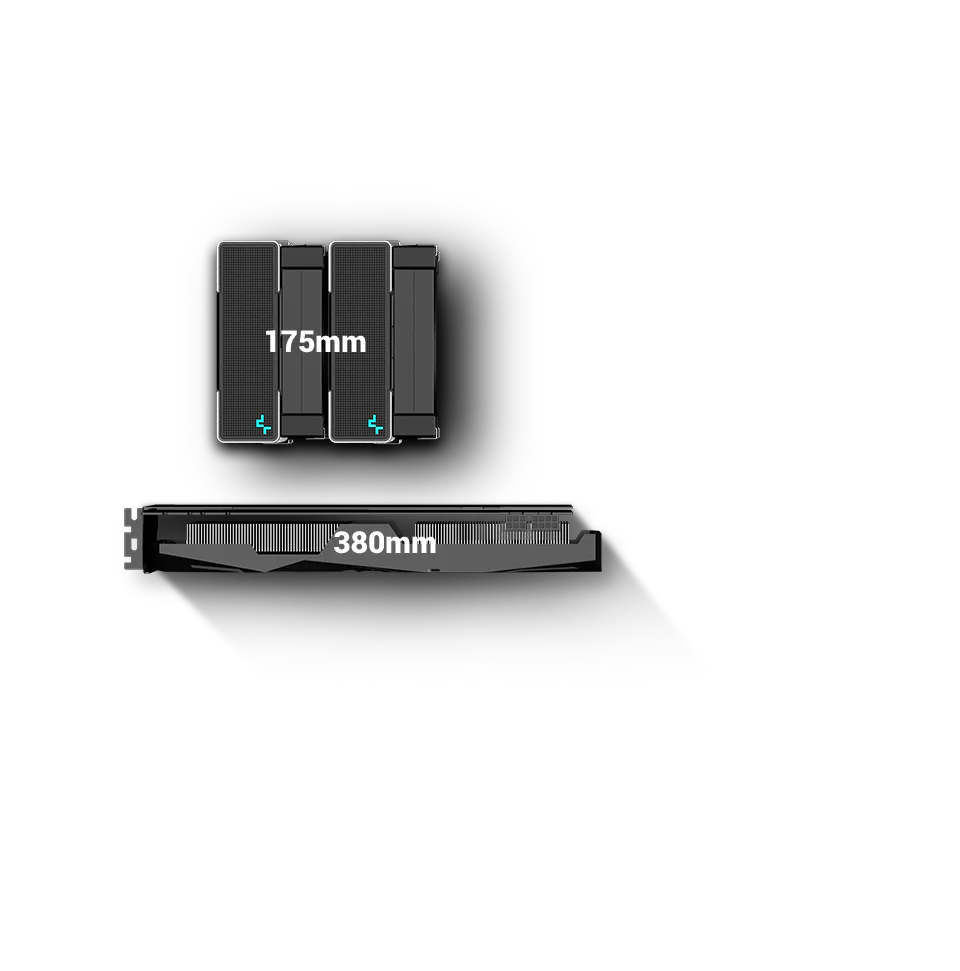

With its spacious design, the CYCLOPS can be equipped with CPU coolers up to 175mm tall and GPUs as long as 380mm, making it an excellent option for modern power-hungry components.

Ports of Massive Importance

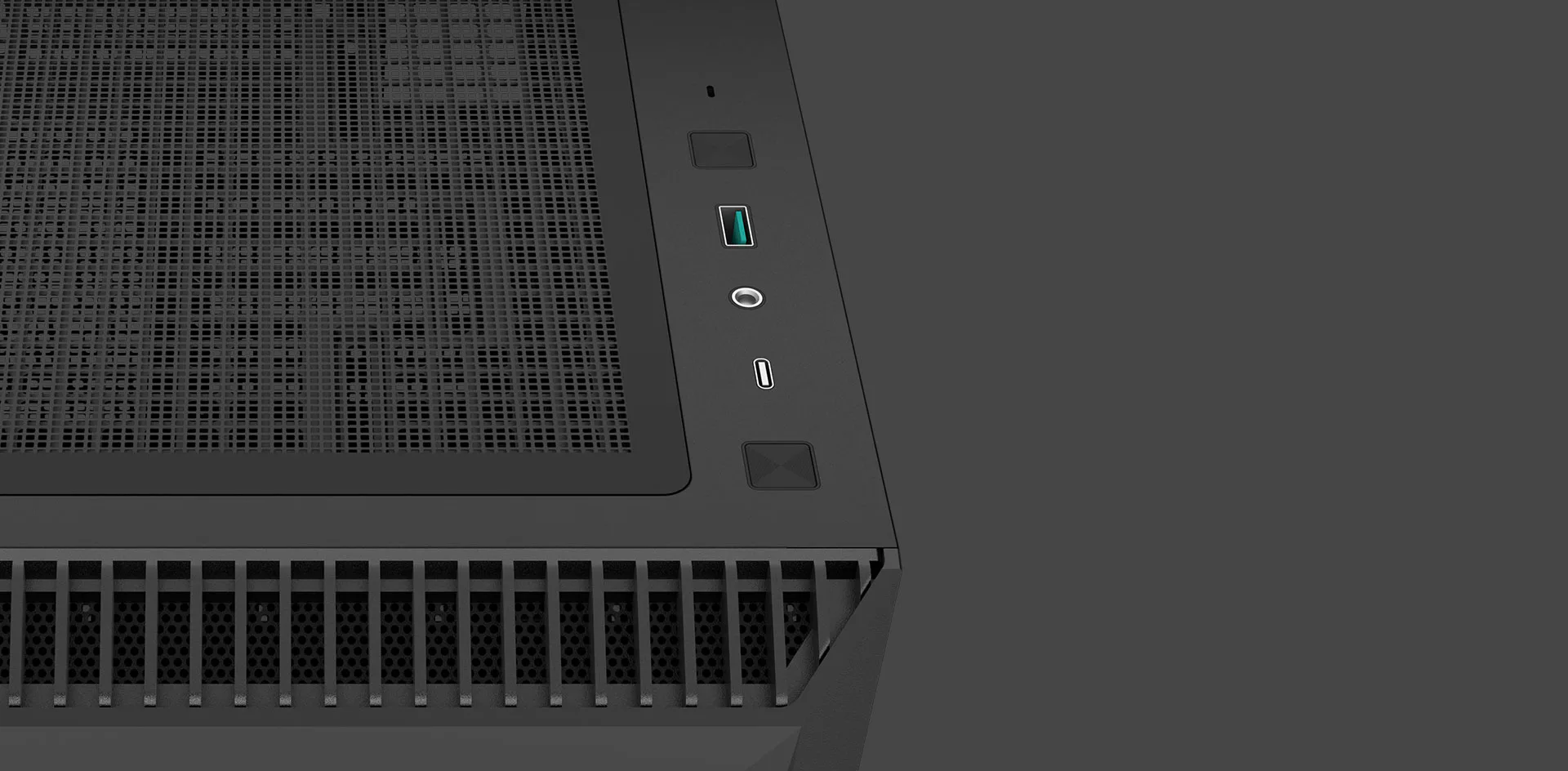

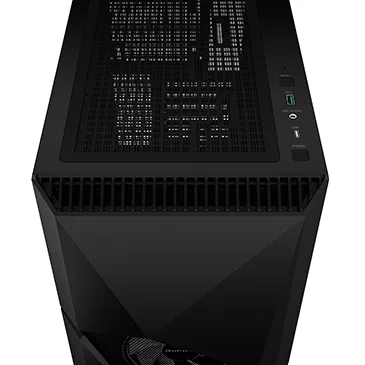

The top I/O panel includes a USB 3.0 port, a Type C port, and an audio port—everything necessary for your daily routine.

A swing-out graphics card support arm to reduce GPU sag

Magnetic dust filters for easy cleaning

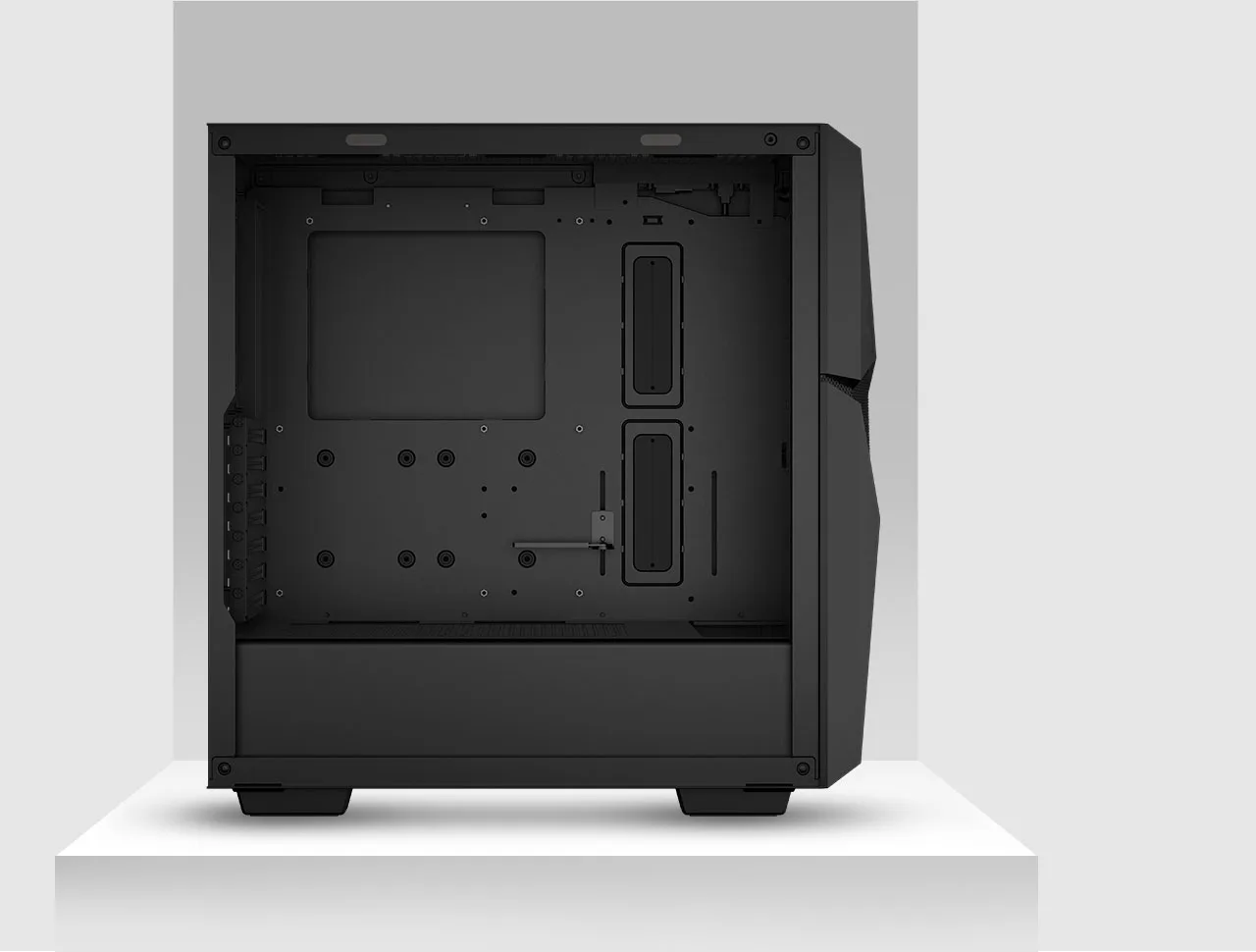

Spacious cable management room to keep things nice and tidy

Ability to mount 2 120mm fans on top of the PSU shroud

Technical Spec

Product Dimensions	475×230×471mm(L×W×H)
Net Weight	8.3Kg
Materials	ABS+SPCC+Tempered Glass
Motherboard Support	Mini-ITX / Micro-ATX / ATX / E-ATX
Front I/O Ports	USB3.0×1、Audio×1、Type-C×1
3.5" Drive Bays	2
2.5" Drive Bays	2+1
Expansion Slots	7 Slots
Pre-Installed Fans	Front: 1×120mm
Fan Support	Front: 3×120 / 2×140mm Top: 3×120 / 2×140mm Rear: 1×120 / 1×140mm PSU Shrouded: 2×120mm
Radiator Support	Front: 120/140/240/280/360mm Top: 120/140/240/280/360mm Rear: 120/140mm
CPU Cooler Height Limit	175mm
GPU Length Limit	380mm
Power Supply Type	ATX PS2 （maximum length: 170mm）
EAN	6933412715047
P/N	R-BKAAE1-C-1

Product Dimension

Download

CYCLOPS Manual.pdf
