MACUBE 110 WH
The MACUBE 110 White is a sleek micro-ATX case built with simplicity in mind featuring a refined magnetic tempered glass panel to show off your system.
COLOR
white
MODEL
MACUBE 110 WH
Clean and compact
REFINED MINIMALISM
Keeping the best details of the MACUBE line and condensed for a smaller form factor makes for a nice and tidy build.
Maximum cooling, tiny footprint

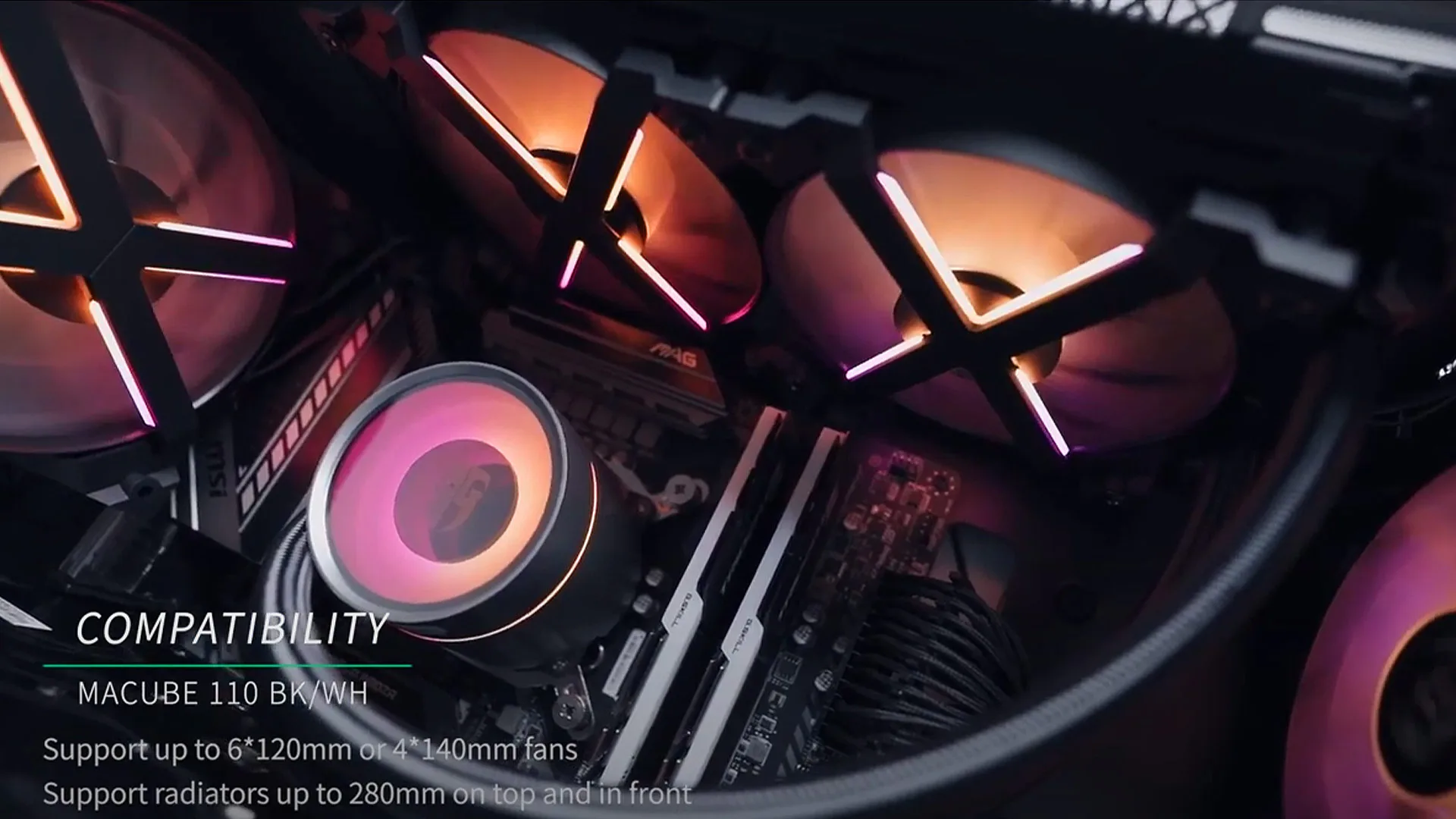

Install up to six 120mm or four 140mm cooling fans, and support radiators up to 280mm on top and in front for high performance cooling.
Skip the liquid with a massive 165mm clearance that fits top-of-the-line air coolers such as our ASSASSIN III.
Maximum cooling,
tiny footprint
Install up to six 120mm or four 140mm cooling fans, and support radiators up to 280mm on top and in front for high performance cooling.
Skip the liquid with a massive 165mm clearance that fits top-of-the-line air coolers such as our ASSASSIN III.
Removable drive cage
Get additional clearance to support a longer PSU or a larger radiator by moving the HDD cage.
Removable
drive
cage
Get additional clearance to support a longer PSU or a larger radiator by moving the HDD cage.
Clearly sensible
Featuring our popular magnetic tempered glass side panel, an adjustable GPU holder and a push-pin SSD holder for tool-less accessibility makes this case a clear choice for convenience.

Magnetic side panel

Adjustable GPU holder

Push-pin SSD holder

Ventilated
throughout
Direct fresh airflow to reach all your components with ventilation channels in front and on top.
Technical Spec
Product Dimensions 400mm×225mm×431mm(L×W×H)
Carton Dimensions 470mm×288mm×470mm(L×W×H)
Net Weight 6.2KG
Gross weight 7.3KG
Colors White
Materials ABS+SPCC+Tempered Glass
3.5' Drive Bays 2
2.5' Drive Bays 2
External 3.5'' Drive Bays 0
5.25' Drive Bays 0
Power Supply Type ATX PS2 （maximum length: 160mm）
I/O Ports USB3.0×2、Audio×1
Expansion Slots 4 Slots
Cooling Fans Compatibility Pre-installed: Rear: 1×120mm DC fan; Optional: Front: 120mm×3/140mm×2， Top: 120mm×2/140mm×2
Liquid Cooler Compatibility Front: 120/140/240/280; TOP: 120/140/240/280 Rear: 120；
CPU Cooler Height Limit 165mm
VGA Length Limit 320mm
Cable Management 20mm clearance
EAN Code
6933412714392
PN Code R-MACUBE110-WHNGM1N-G-1
Product Dimension
Download
MACUBE 110 WH Manual.pdf
