CH510 WH

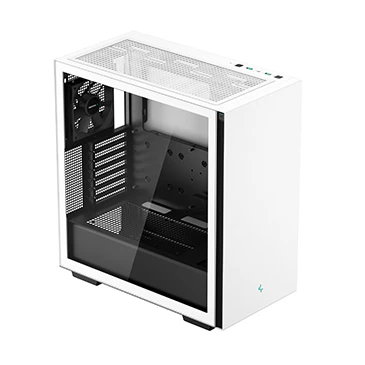

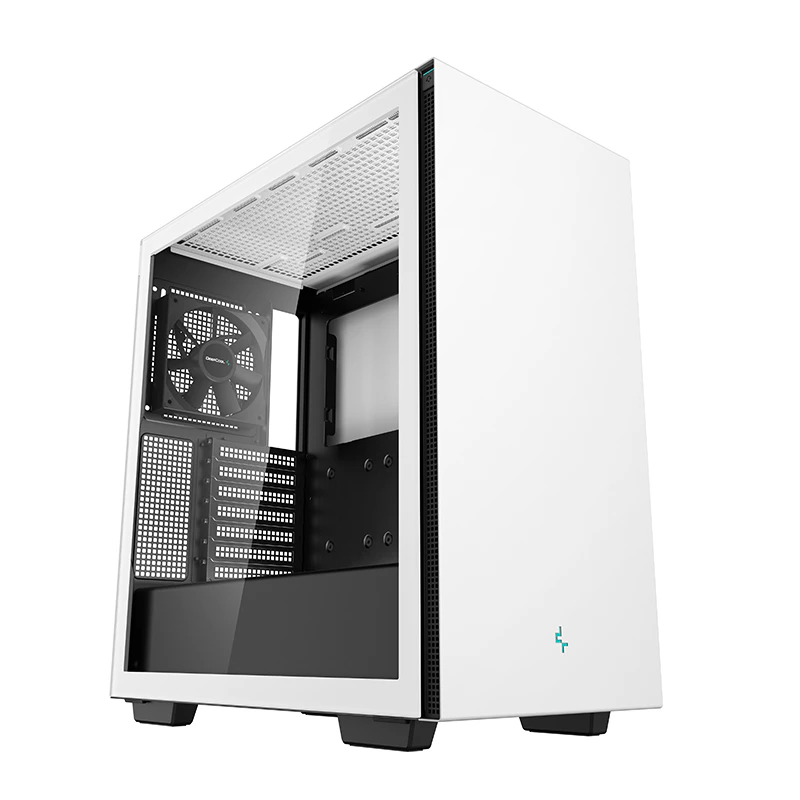

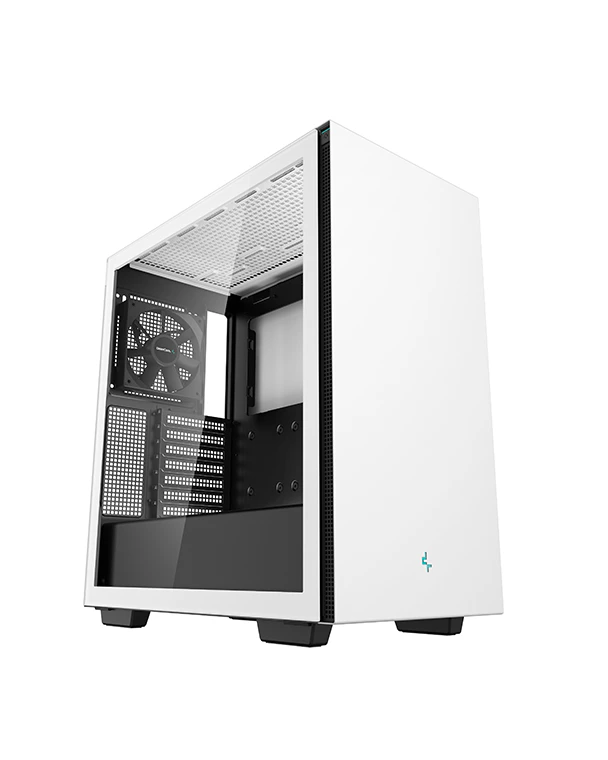

The DeepCool CH510 WH is a sleek and minimalistic mid-tower ATX case with great component compatibility and extensive cooling capacity support for a truly flexible build experience.
COLOR
white
MODEL
CH510 WH
Mid-Tower ATX Case
Mid-Tower ATX Case
The DeepCool CH510 WH is a sleek and minimalistic mid-tower ATX case with great component compatibility and extensive cooling capacity support for a truly flexible build experience.
A Complete Build Experience
The CH510 WH is an ideal case for any level builder needing a spacious interior and robust features designed for the modern PC gamer.
A Complete Build Experience
The CH510 WH is an ideal case for any level builder needing a spacious interior and robust features designed for the modern PC gamer.

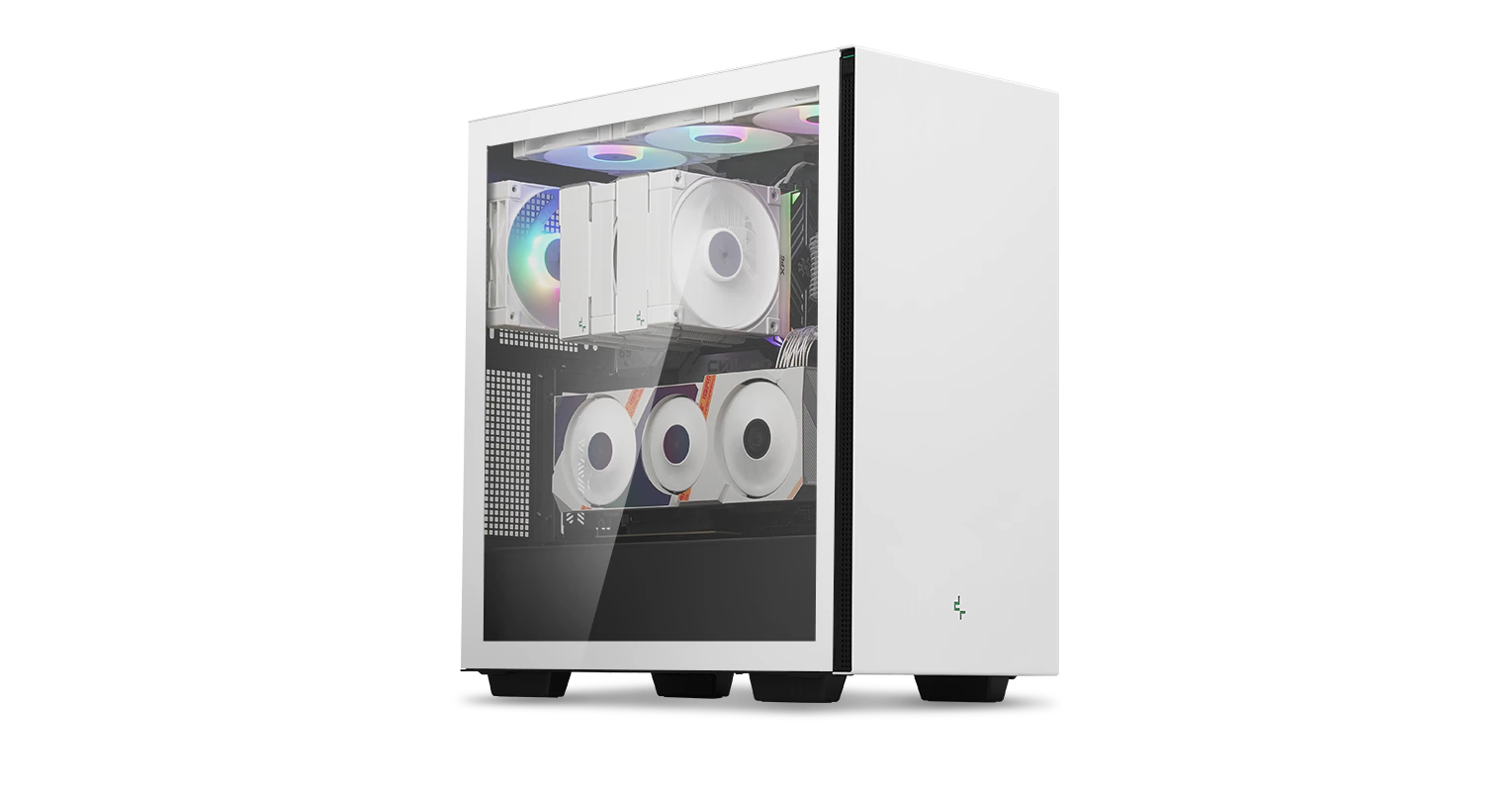

Expand Your Cooling

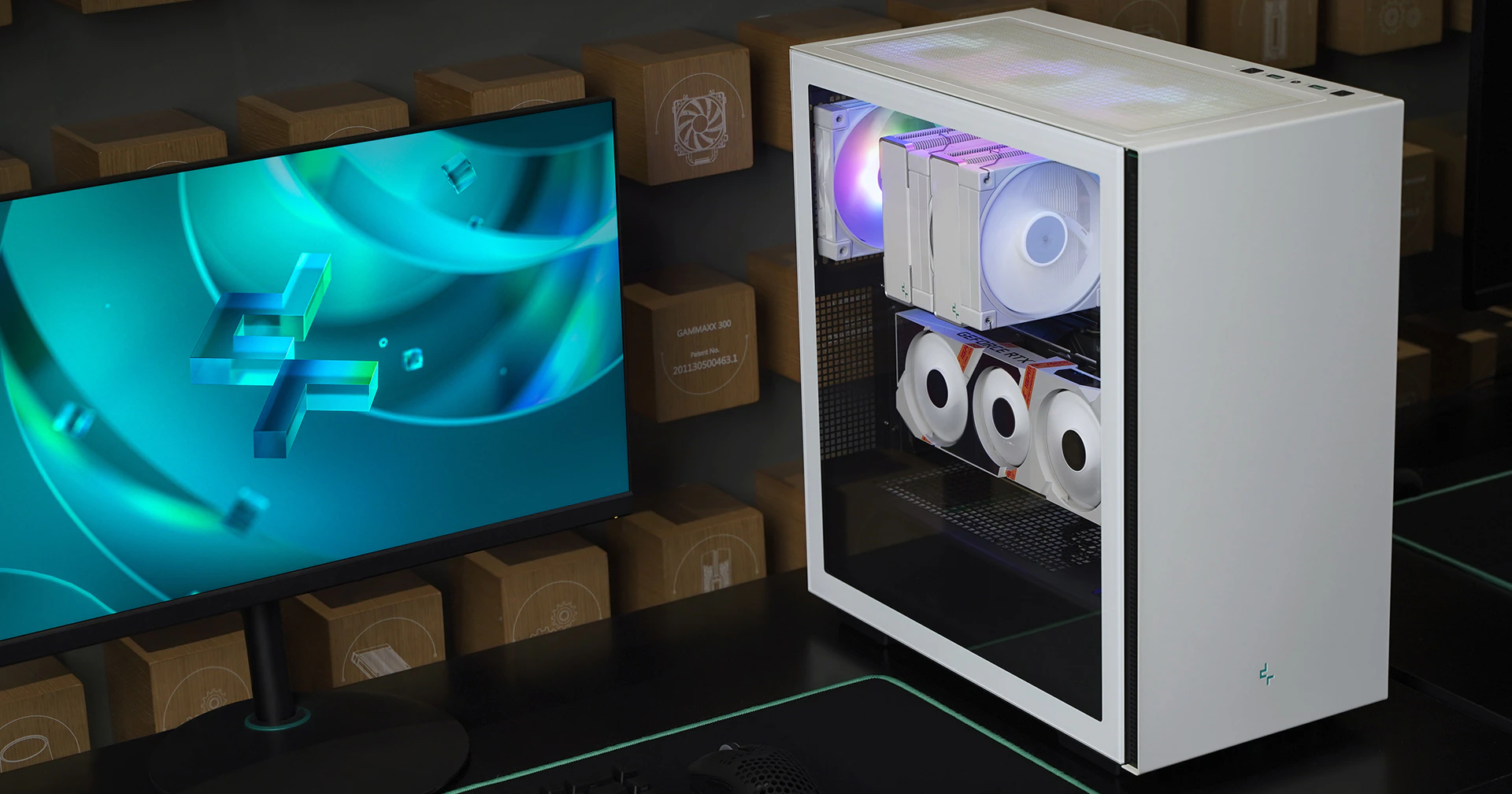

Install up to a 360mm radiator either on top or in front for water cooling setups and support up to 9x 120mm or 5x 140mm cooling fans for proper airflow ventilation that also reaches your GPU.

9

x120mm

5

x140mm

Side
Vents

Simply Streamlined

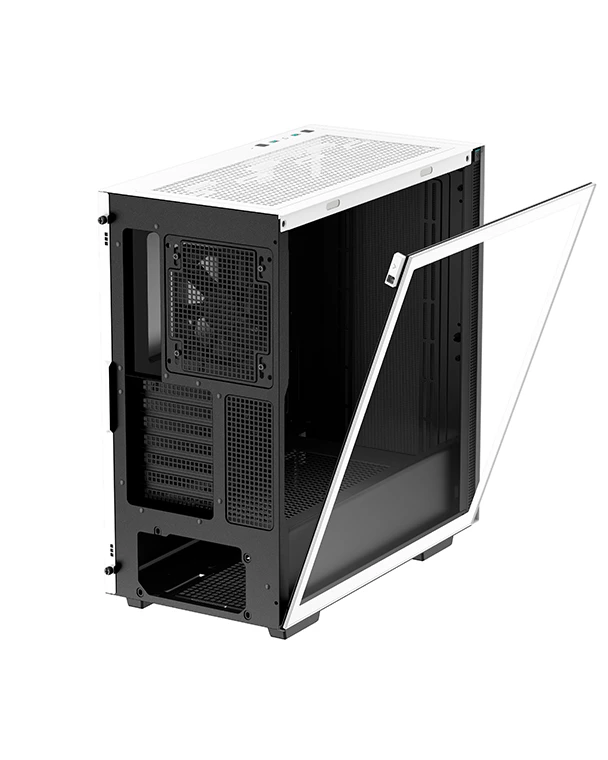

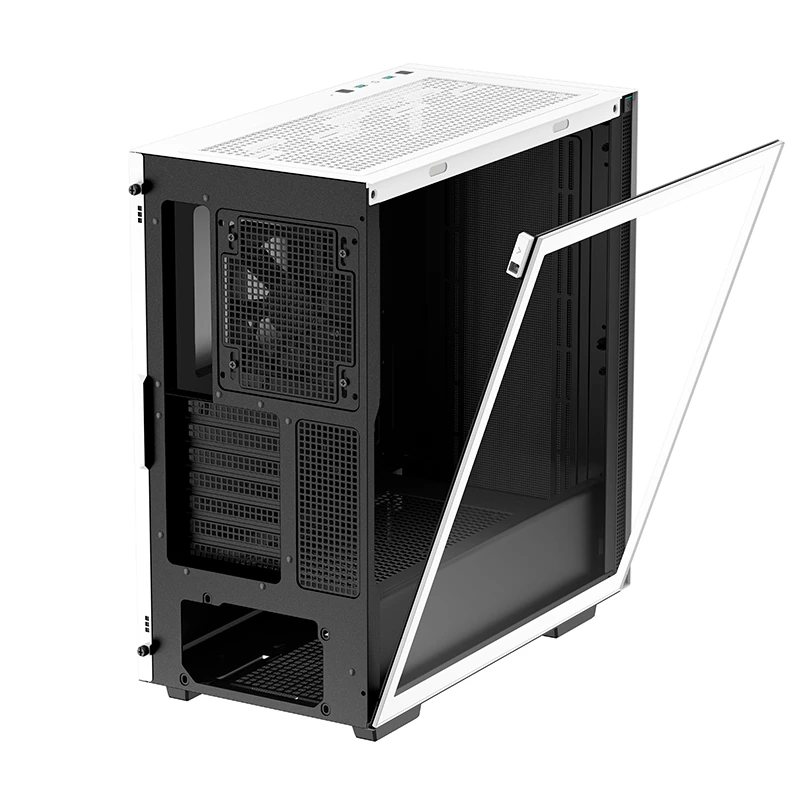

A magnetic tempered glass side panel offers the most convenient way to mount glass panels that includes an optional safety lock for extra security.

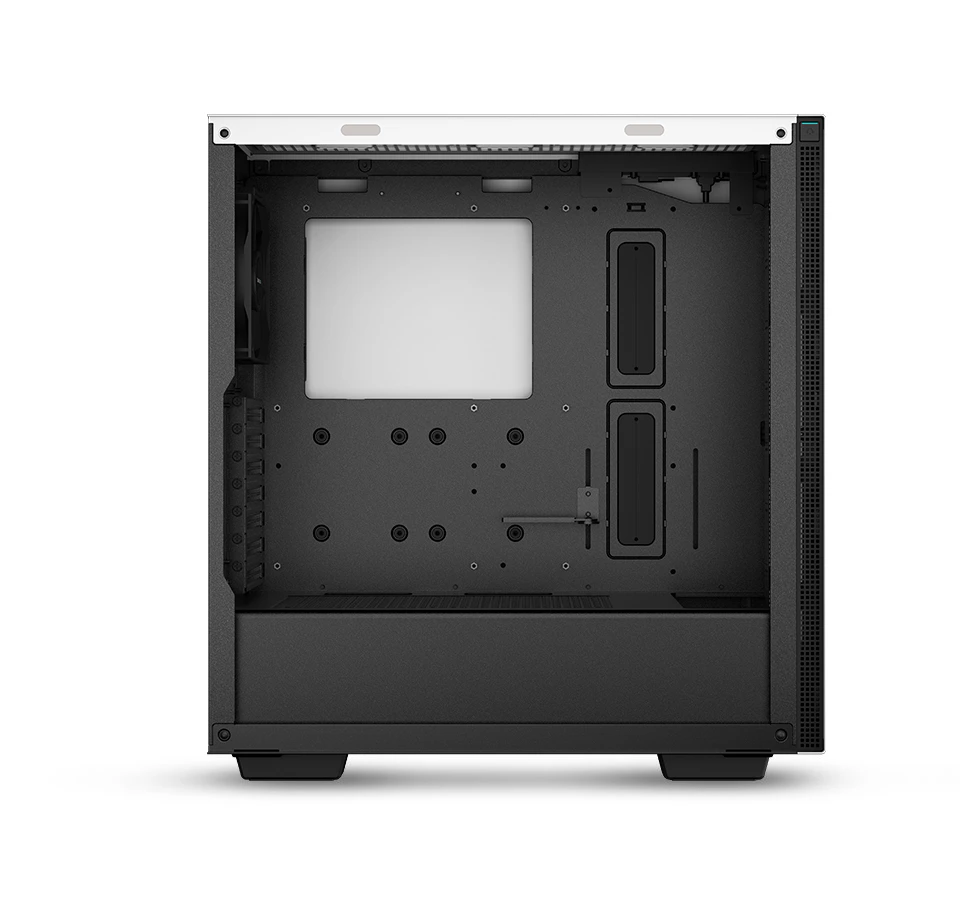

Wide and Spacious Interior

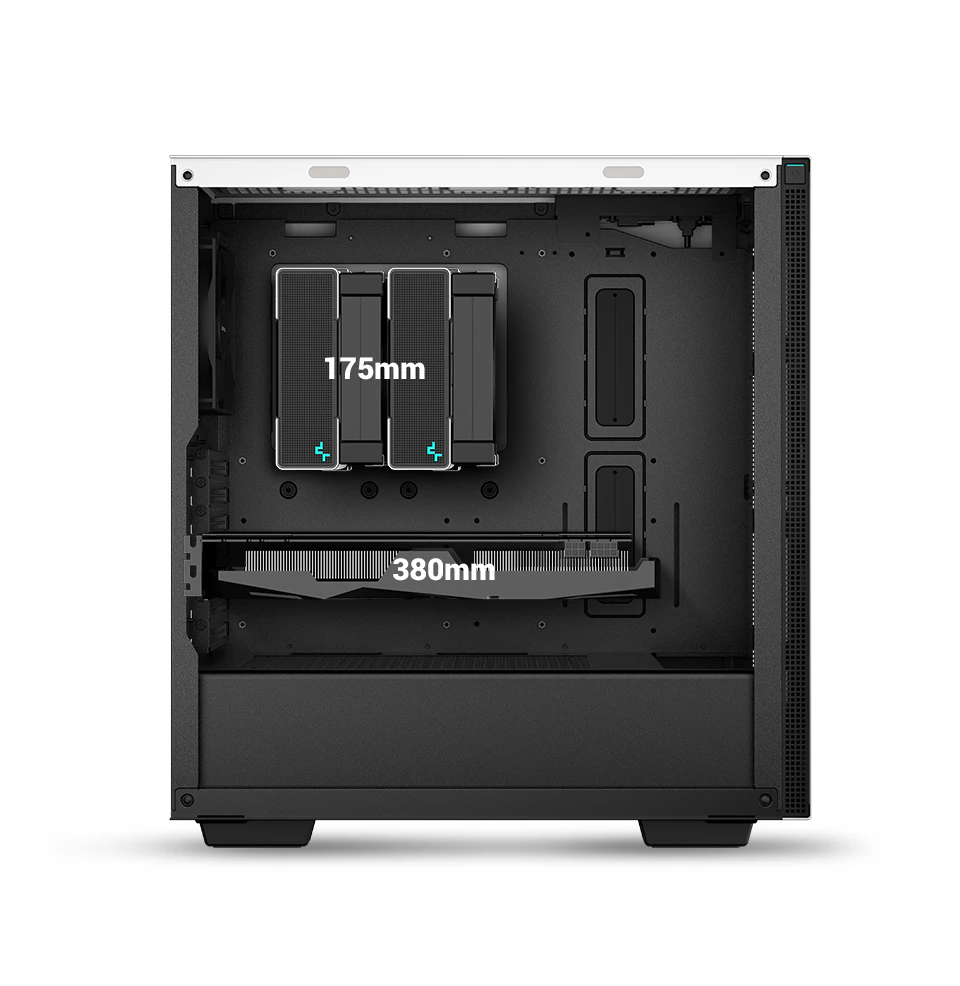

Maximize potential with flexible configurations that meet the needs of any system setup. With space for large GPUs up to 380mm and CPU coolers up to 175mm in height, the CH510 WH provides ample space without being too bulky.
The Support You Need
The built-in GPU support bracket ensures that your graphics card never has to sag.

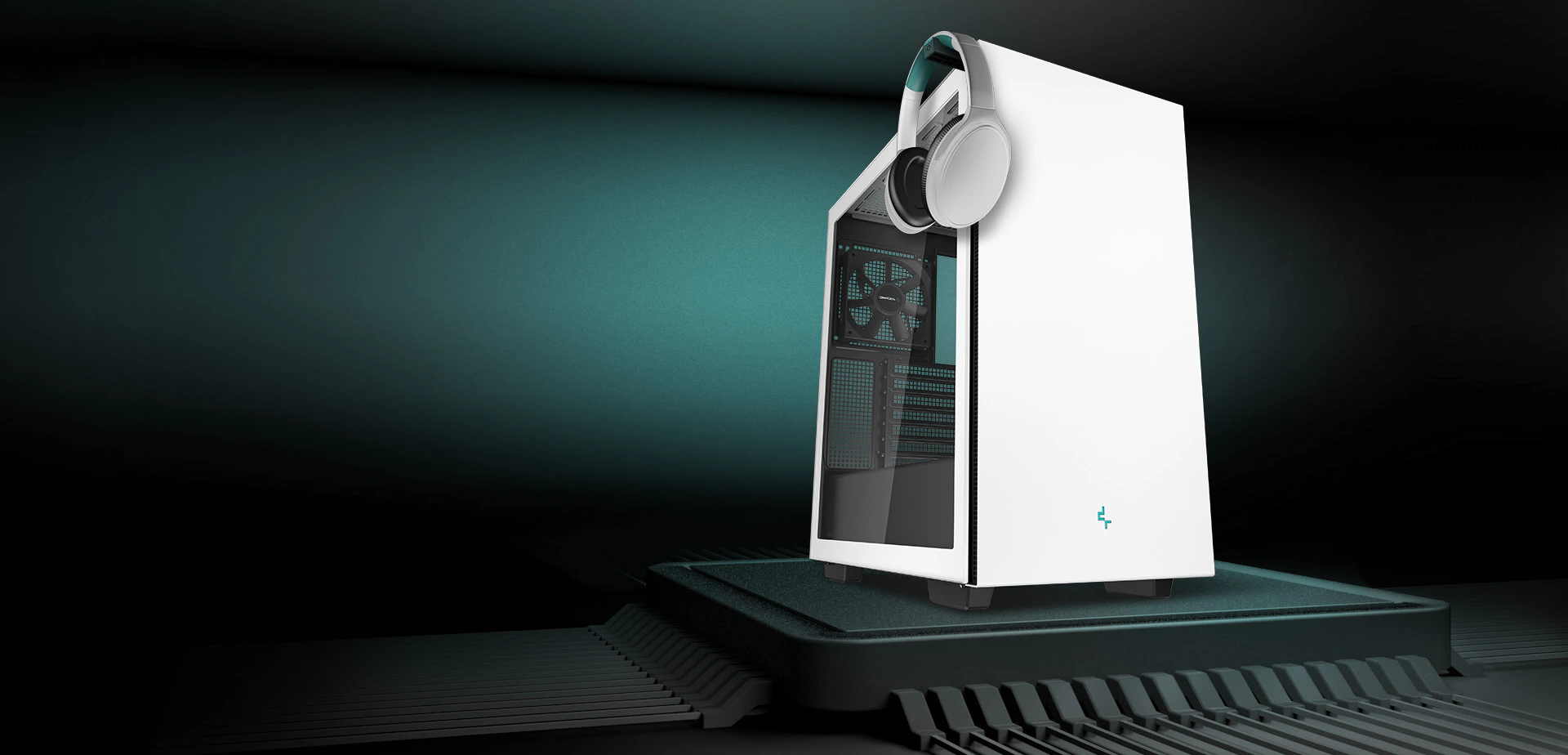

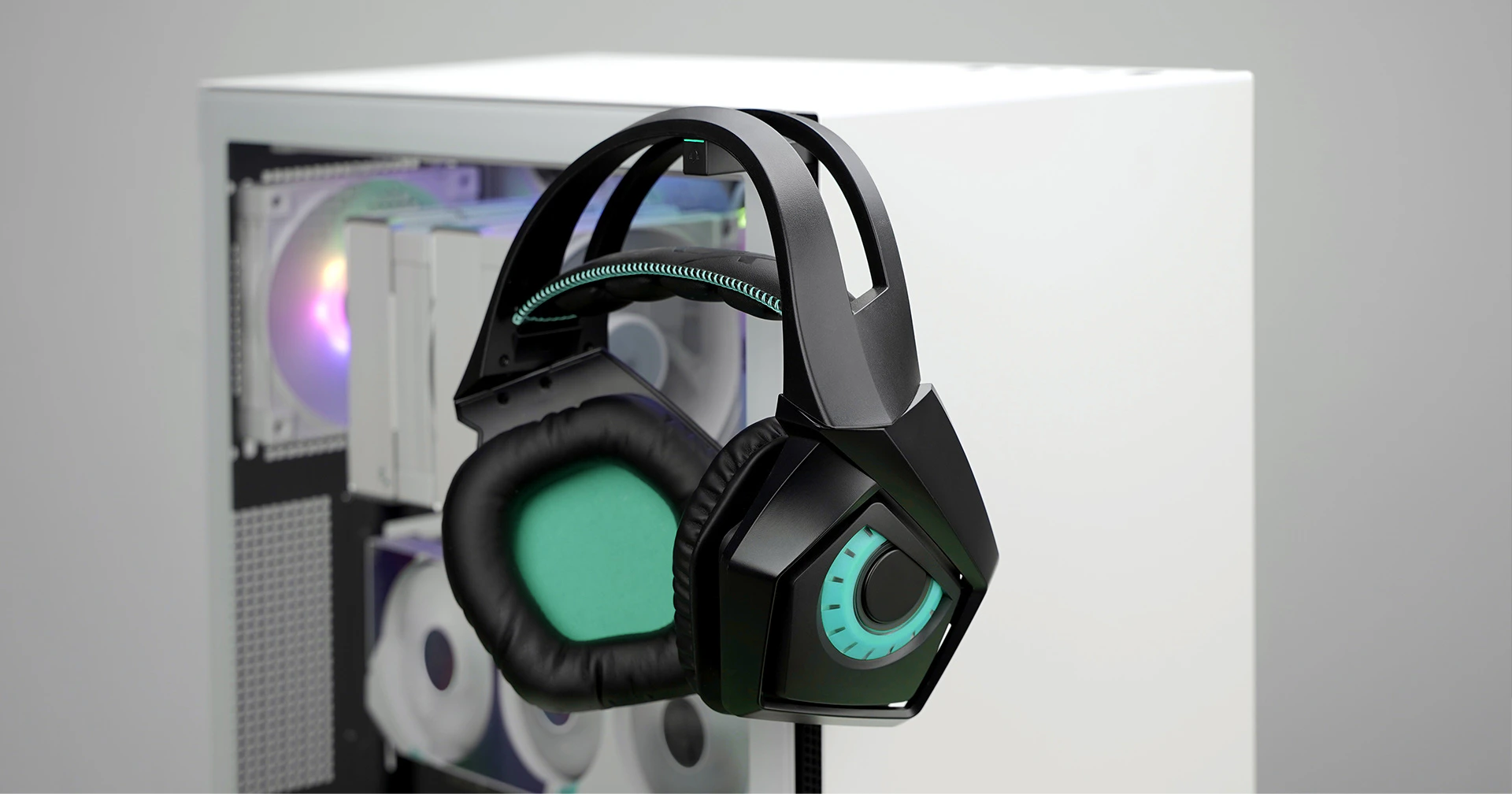

A convenient headset holder can be pulled out from the front panel to help you organize.
A convenient headset holder can be pulled out from the front panel to help you organize.
Dedicated dust-filters help keep your system clean.

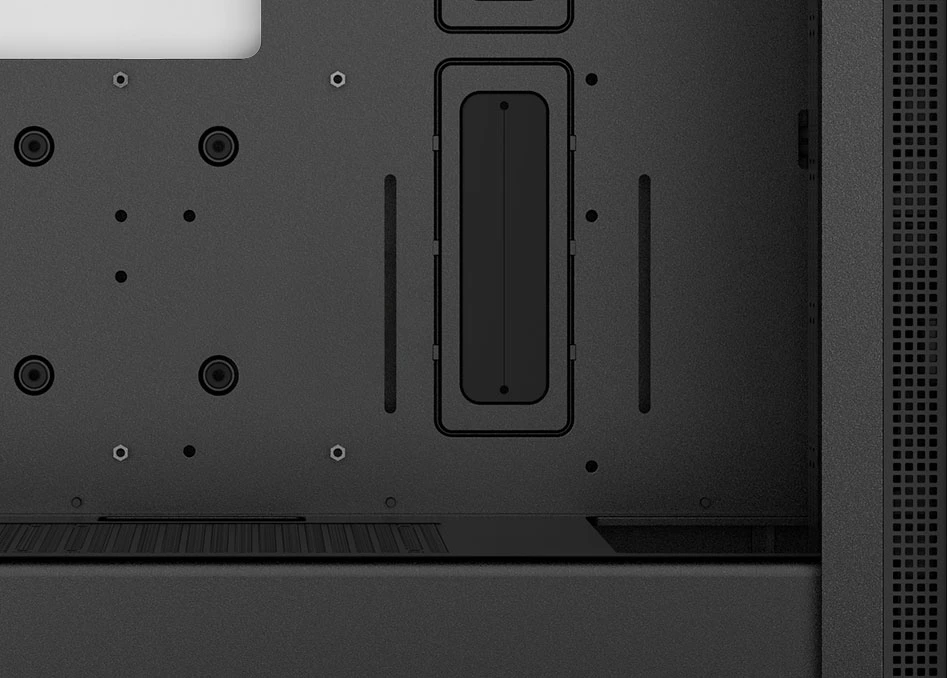

High quality rubber grommets and ample cable space helps manage clutter.
High quality rubber grommets and ample cable space helps manage clutter.

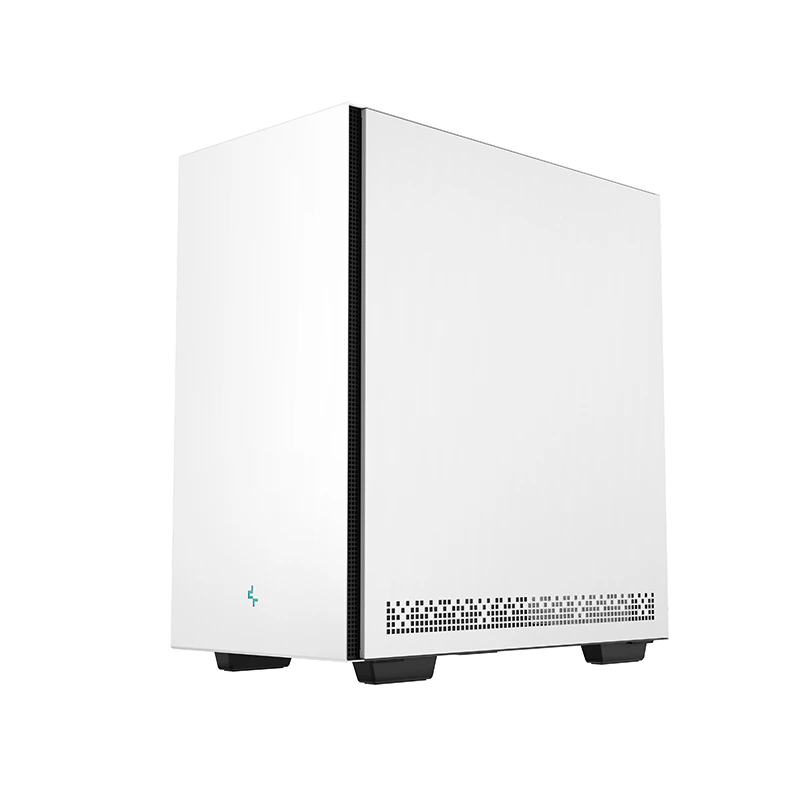

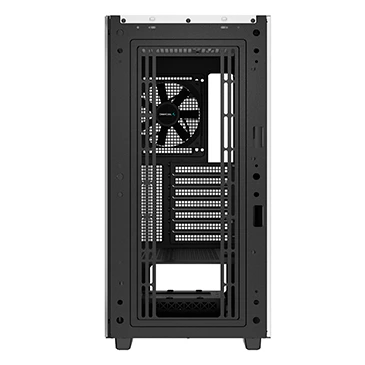

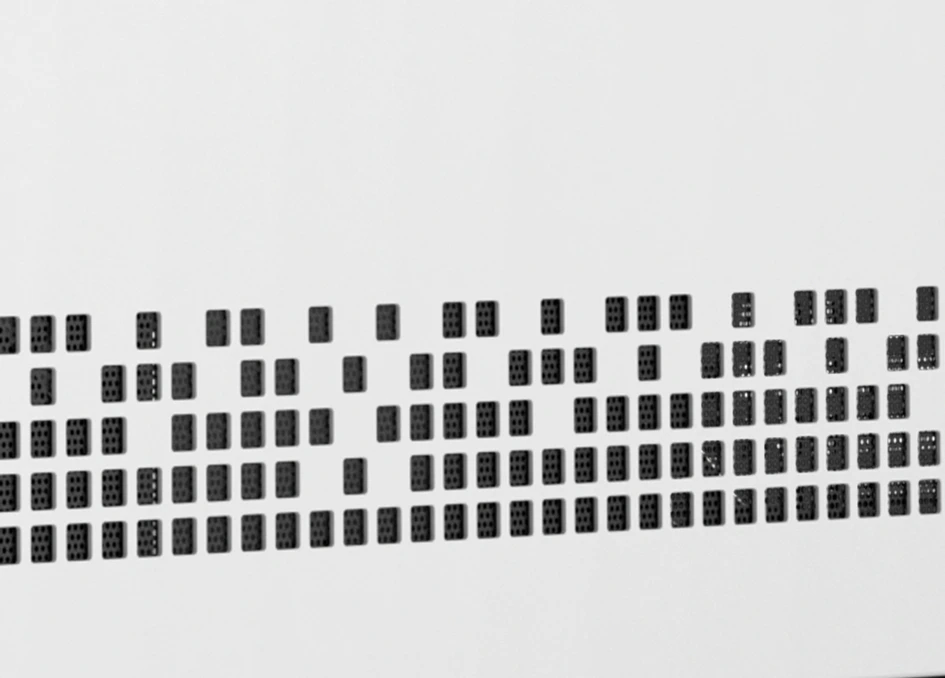

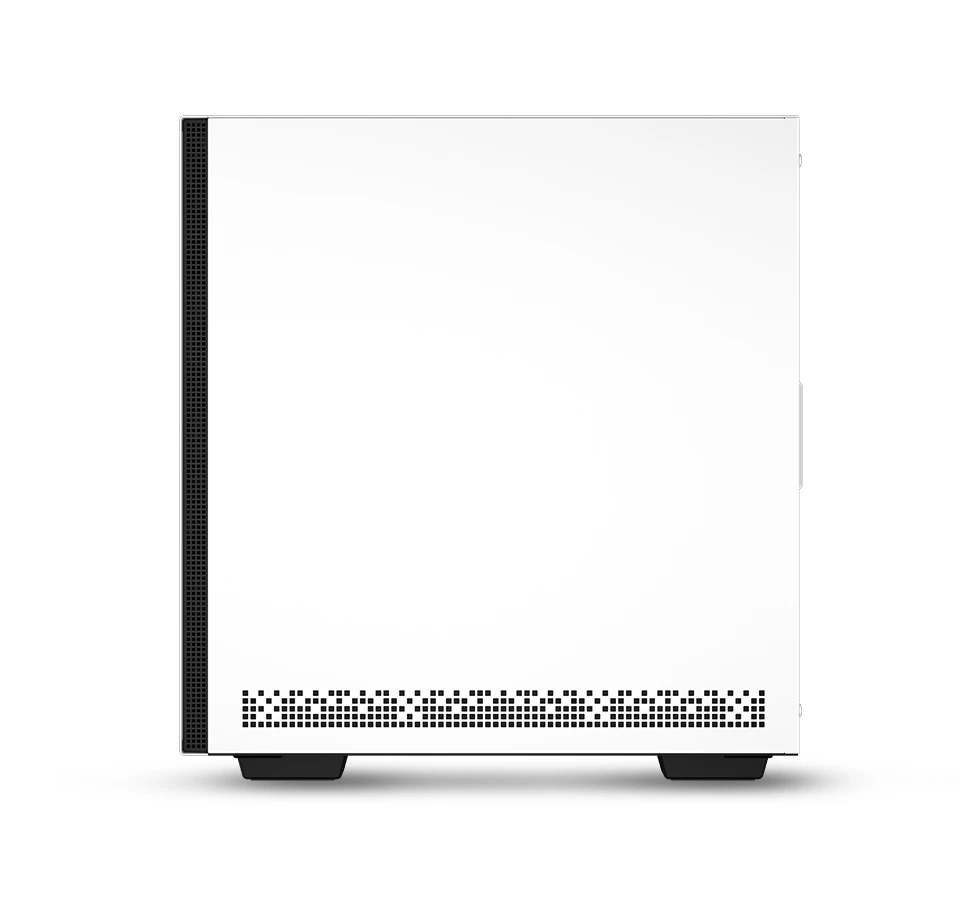

The steel side panel features ventilation for airflow when using PSU shroud fans.

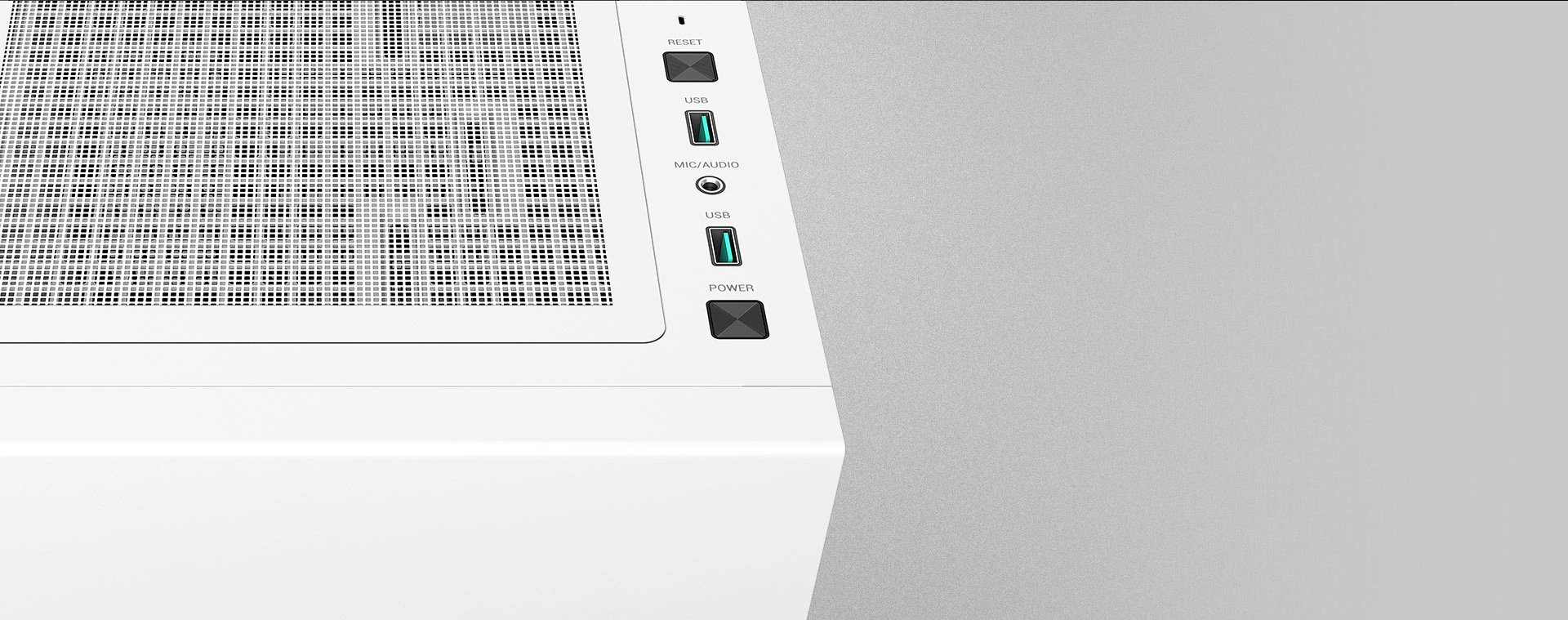

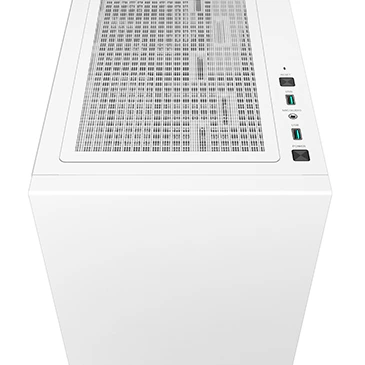

Modular Front I/O
A standard 2x USB 3.0 sit conveniently at the top for quick-access and features a modular design.
Technical Spec
Product Dimensions 435×230×471mm(L×W×H)
Net Weight 7.2Kg
Materials ABS+SPCC+Tempered Glass
Motherboard Support Mini-ITX / Micro-ATX / ATX / E-ATX
Front I/O Ports USB3.0×2、Audio×1
3.5" Drive Bays 2
2.5" Drive Bays 2+1
Expansion Slots 7 Slots

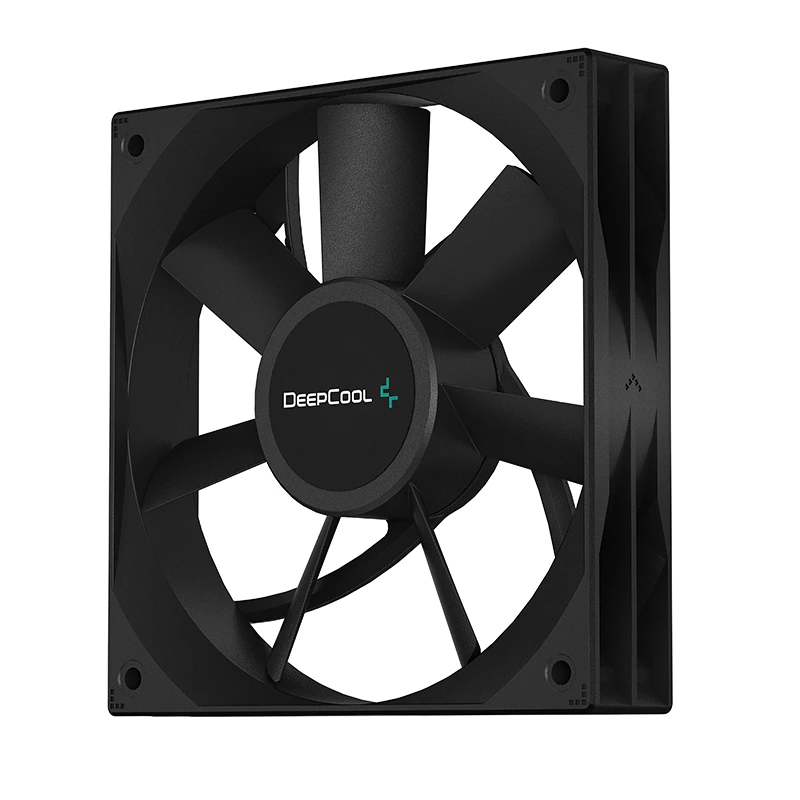

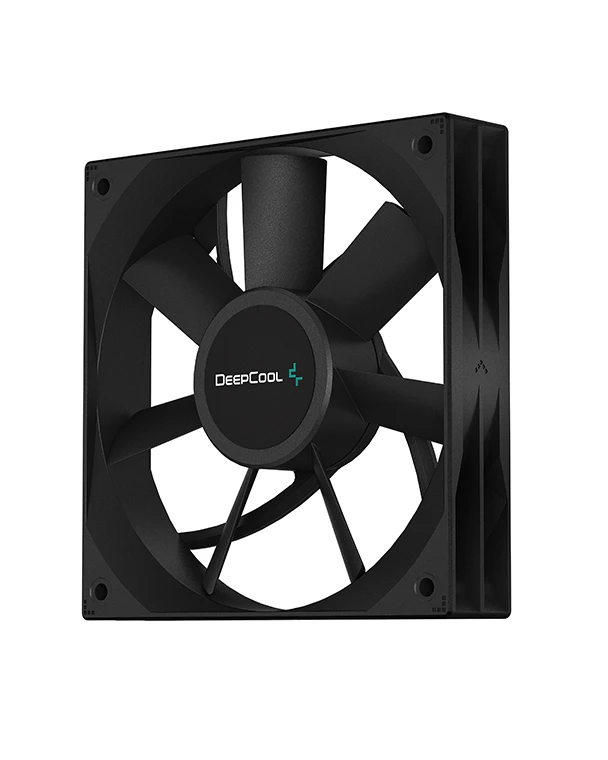

Pre-Installed Fans Rear: 1×120mm
Fan Support Front: 3×120 / 2×140mm
Top: 3×120 / 2×140mm
Rear: 1×120 / 1×140mm
Radiator Support Front: 120/140/240/280/360mm
Top: 120/140/240/280/360mm
Rear: 120/140mm
CPU Cooler Height Limit 175mm
GPU Length Limit 380mm
Power Supply Type ATX PS2 (maximum length: 170mm)
EAN Code 6933412715016
PN Code R-CH510-WHNNE1-G-1
Download
CH510 WH Manual.pdf
