MACUBE 310P

Clean aesthetics

MACUBE 310P is an ATX case that offers premium user experience. With outstanding ventilation and elegant aesthetics, it is the perfect companion for your PC system.

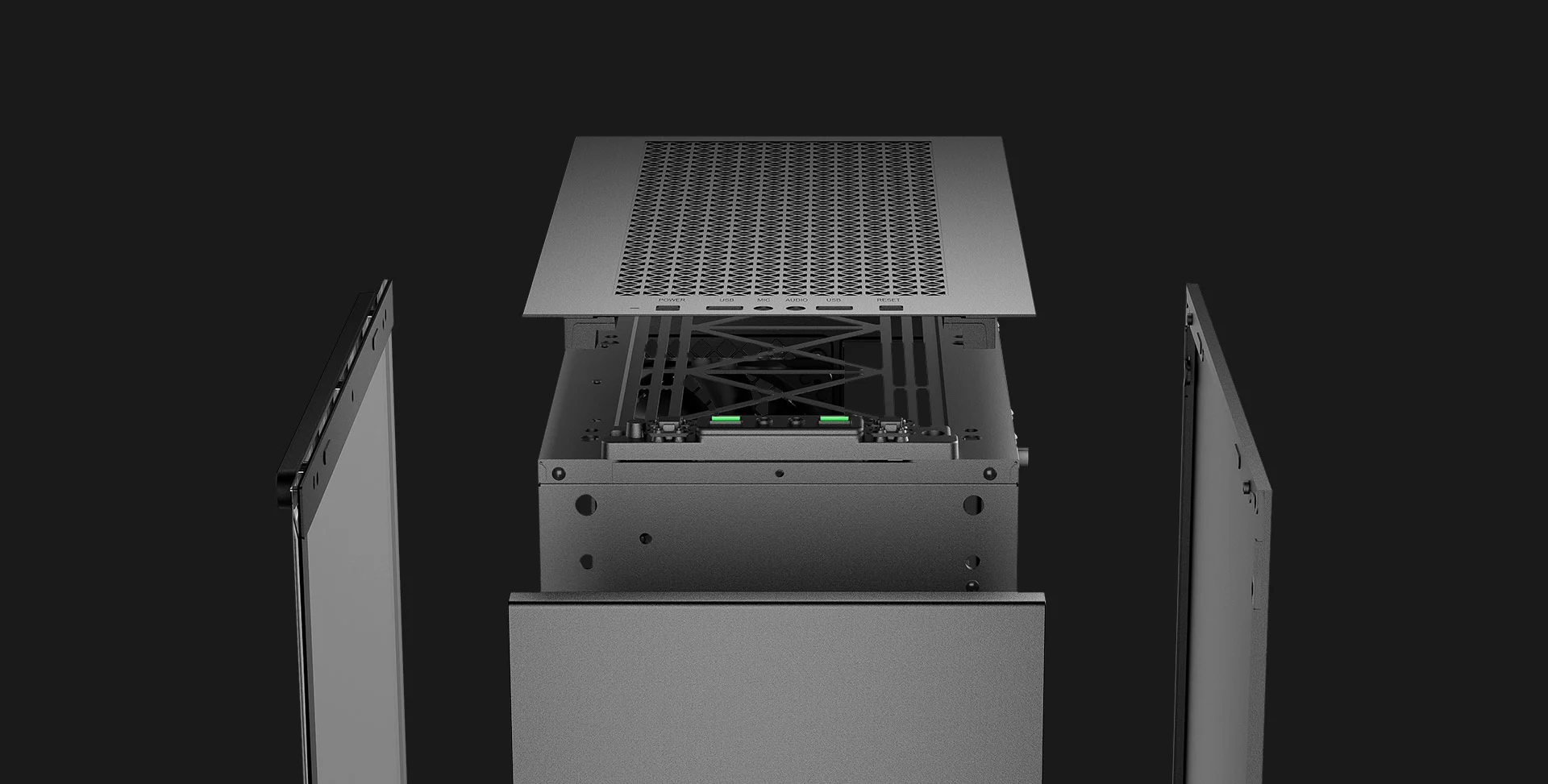

SNAP-FIT FRONT AND TOP PANEL, EASY TO REMOVE AND CLEAN DUST FILTERS.

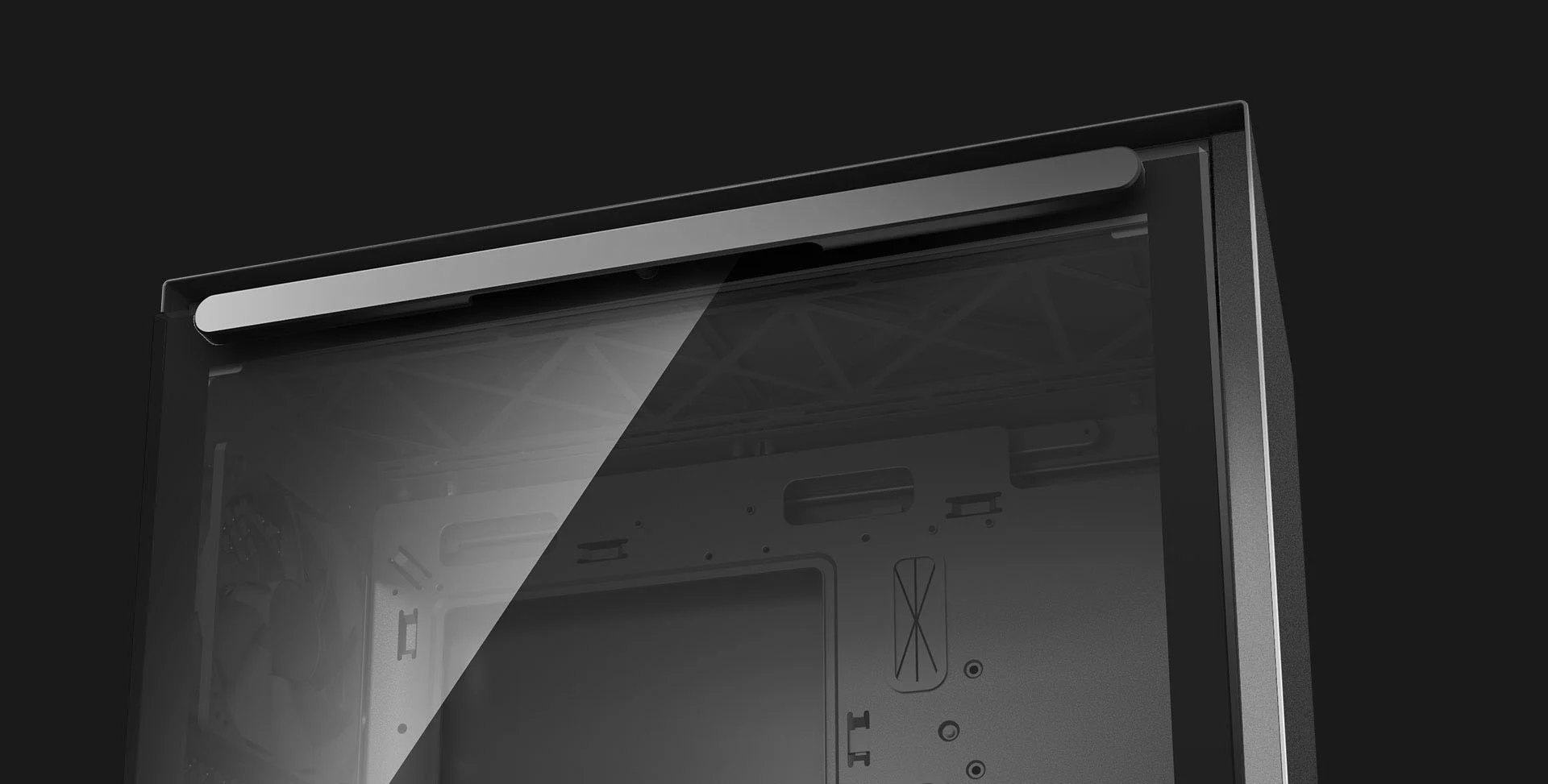

TINTED, TEMPERED GLASS PANEL, TASTEFUL AND STURDY.

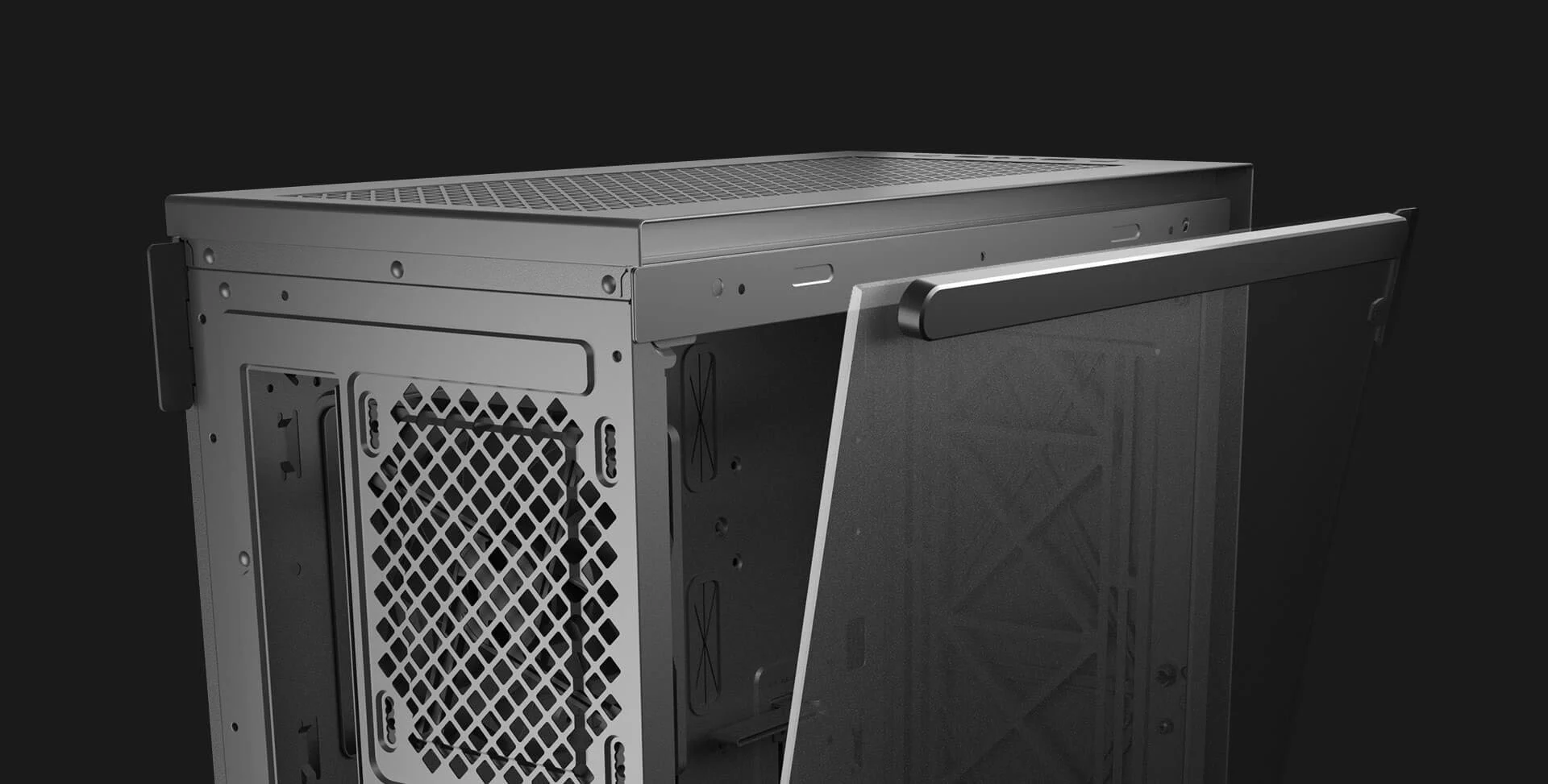

MAGNETIC SIDE PANELS, EASY TO MAINTAIN OR UPGRADE HARDWARE

CHILD SAFETY LOCK ON BOTH MAGNETIC PANELS, PROTECTING YOUR LOVED ONES FROM GETTING HURT.

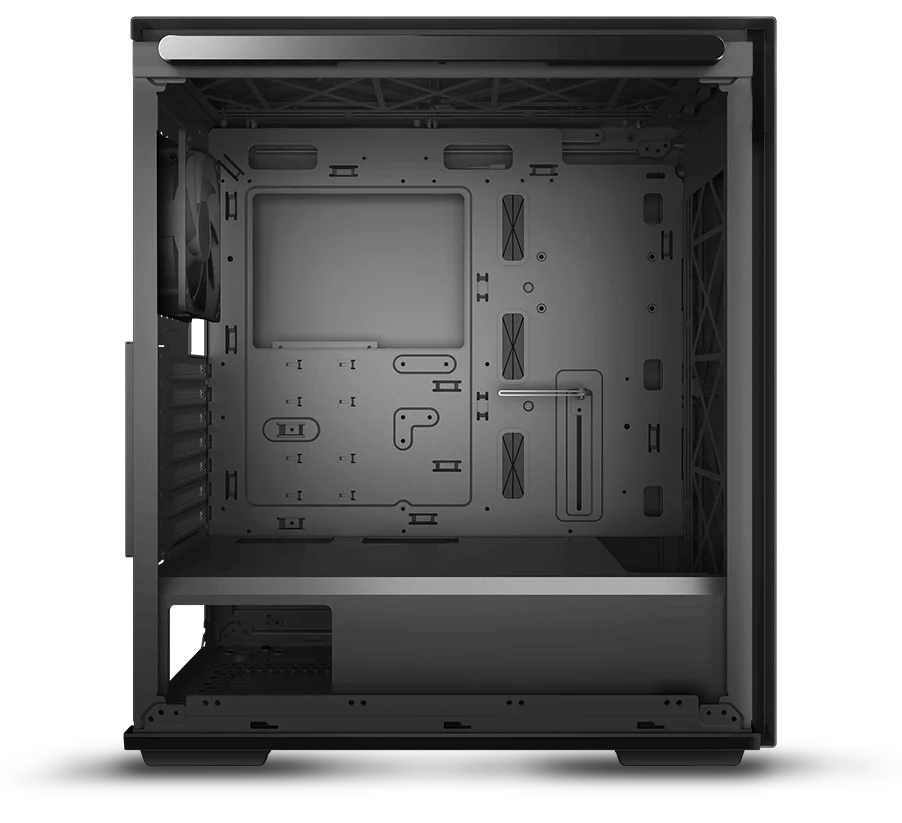

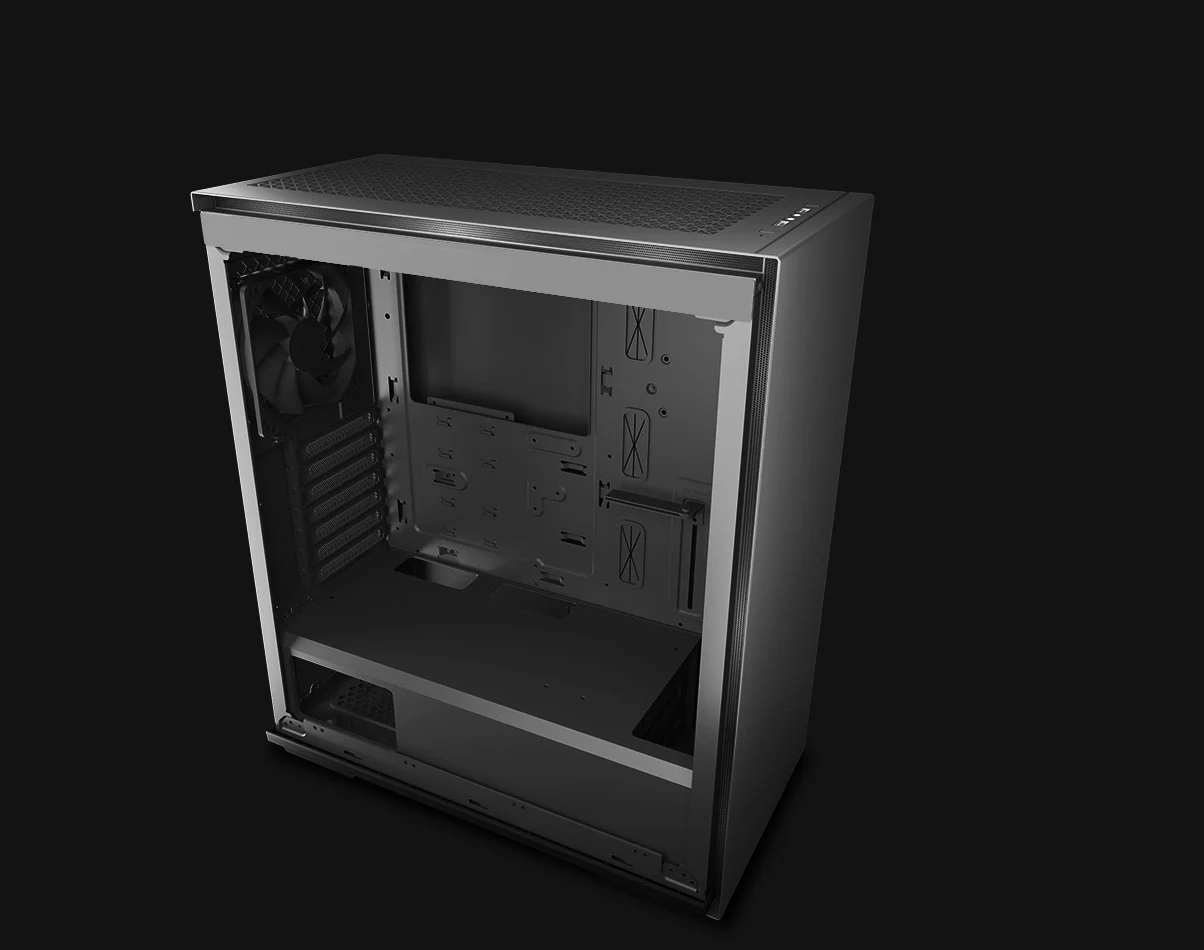

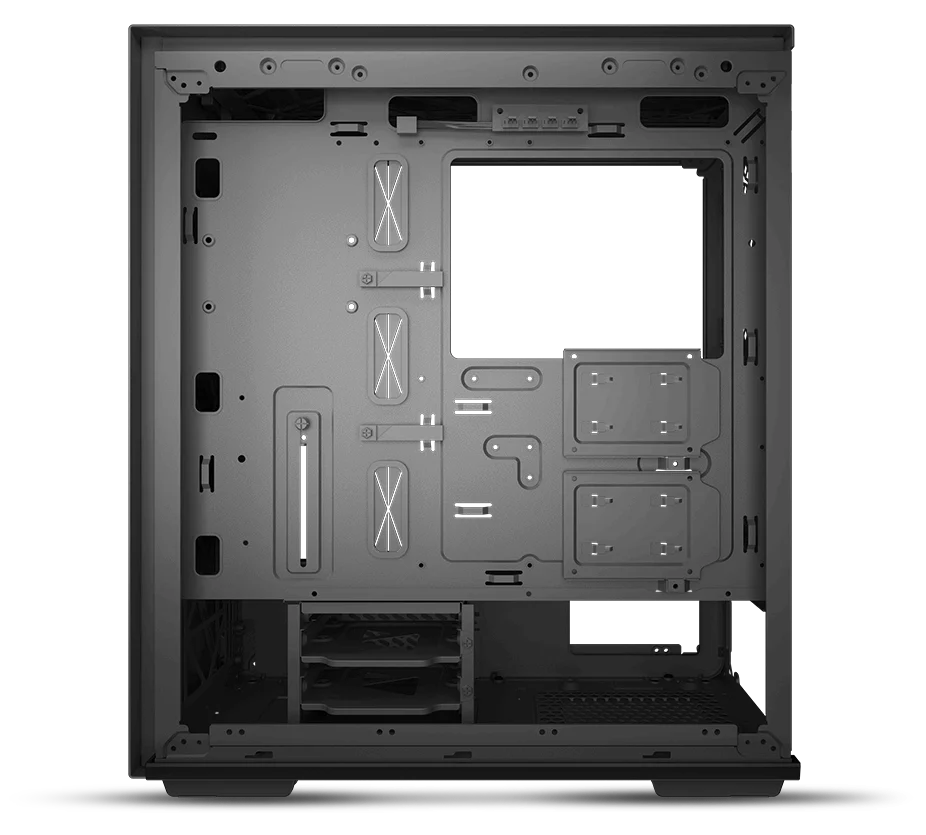

PREMIUM BUILDING EXPERIENCE

An abundance of accessories are installed on the motherboard tray to keep everything neat and safe.

1Velcro Cable Management Straps

2Graphics Card Holder

3Fan Hub

4Rubber Grommets

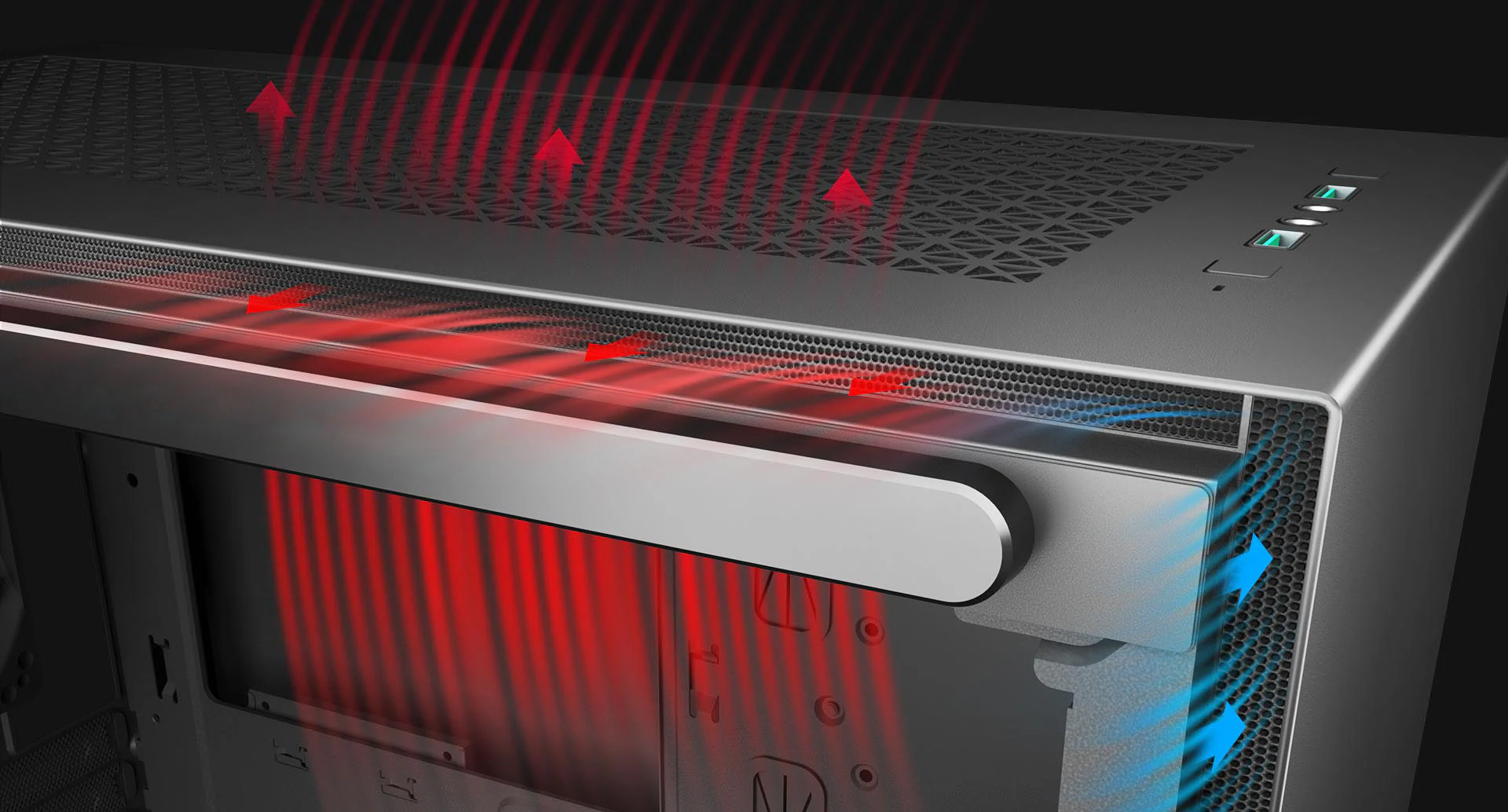

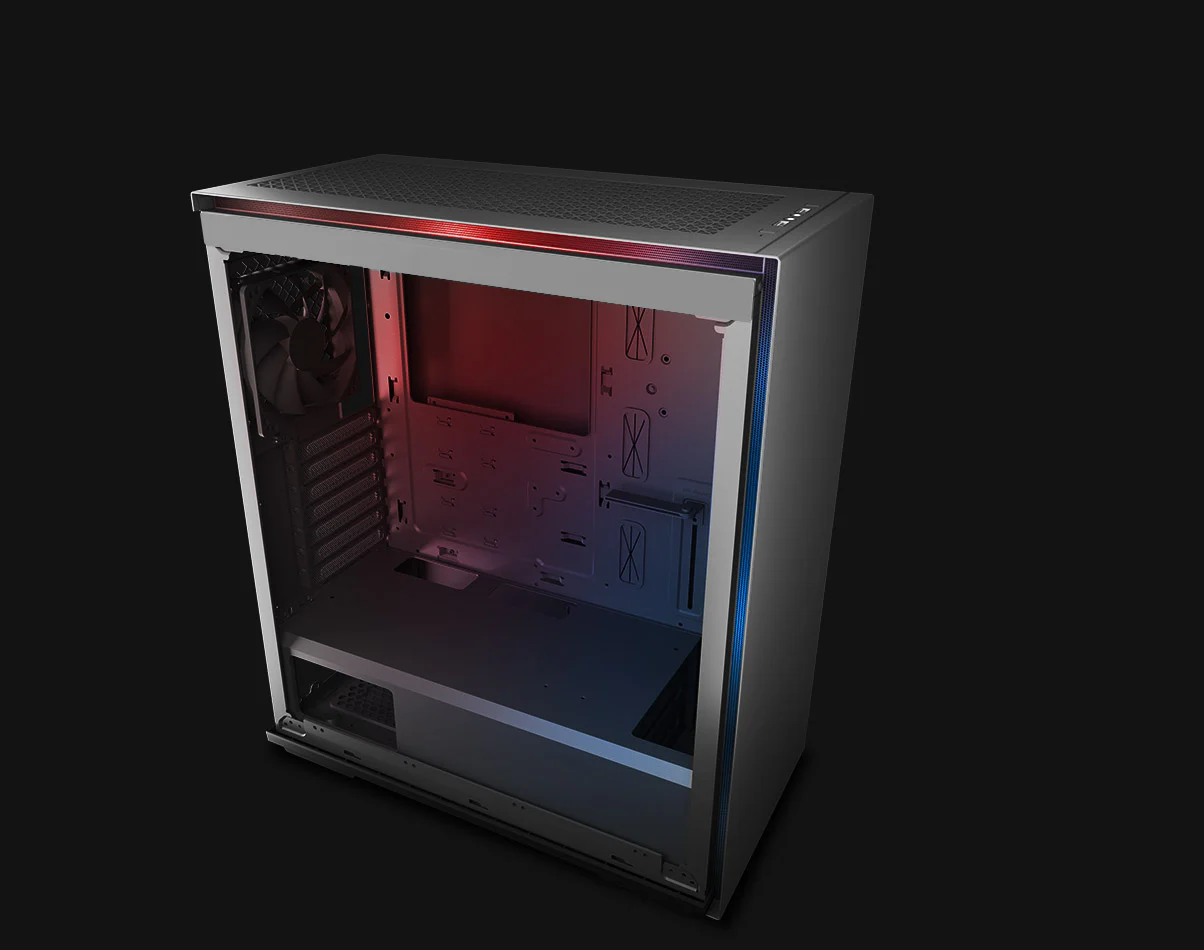

MAXED OUT & ELEGANT VENTILATION

The 13mm-wide intake channels are located on both sides of the front panels, it remains concealed while providing more-than-sufficient air supply.
The exhaust is maxed out at the mesh top panel, no heat loitering in the case!
MAXED OUT & ELEGANT VENTILATION

The 13mm-wide intake channels are located on both sides of the front panels, it remains concealed while providing more-than-sufficient air supply.
The exhaust is maxed out at the mesh top panel, no heat loitering in the case!

FAN & RADIATOR SUPPORT

Supports 3*120mm fans at the top, 360mm radiators at the front.

Front

Rear

Top
FAN & RADIATOR SUPPORT

Supports 3*120mm fans at the top, 360mm radiators at the front.

SIMPLE AND TASTEFUL

Beneath its minimalistic design, details like top mesh with print, concealed front ventilation and matt paint coating add its own unique styling. MACUBE 310P is not just a computer case, but also a work of art.

Technical Spec

Motherboards	Mini-ITX / Micro-ATX / ATX
Materials	ABS+SPCC+Tempered Glass
Product Dimensions	424.6mm×215mm×494.6mm(L×W×H)
Carton Dimensions	540mm283mm495mm
Net Weight	8.33KG
Gross Weight	10.34KG
5.25' Drive Bays	0
3.5' Drive Bays	2
2.5' Drive Bays	2

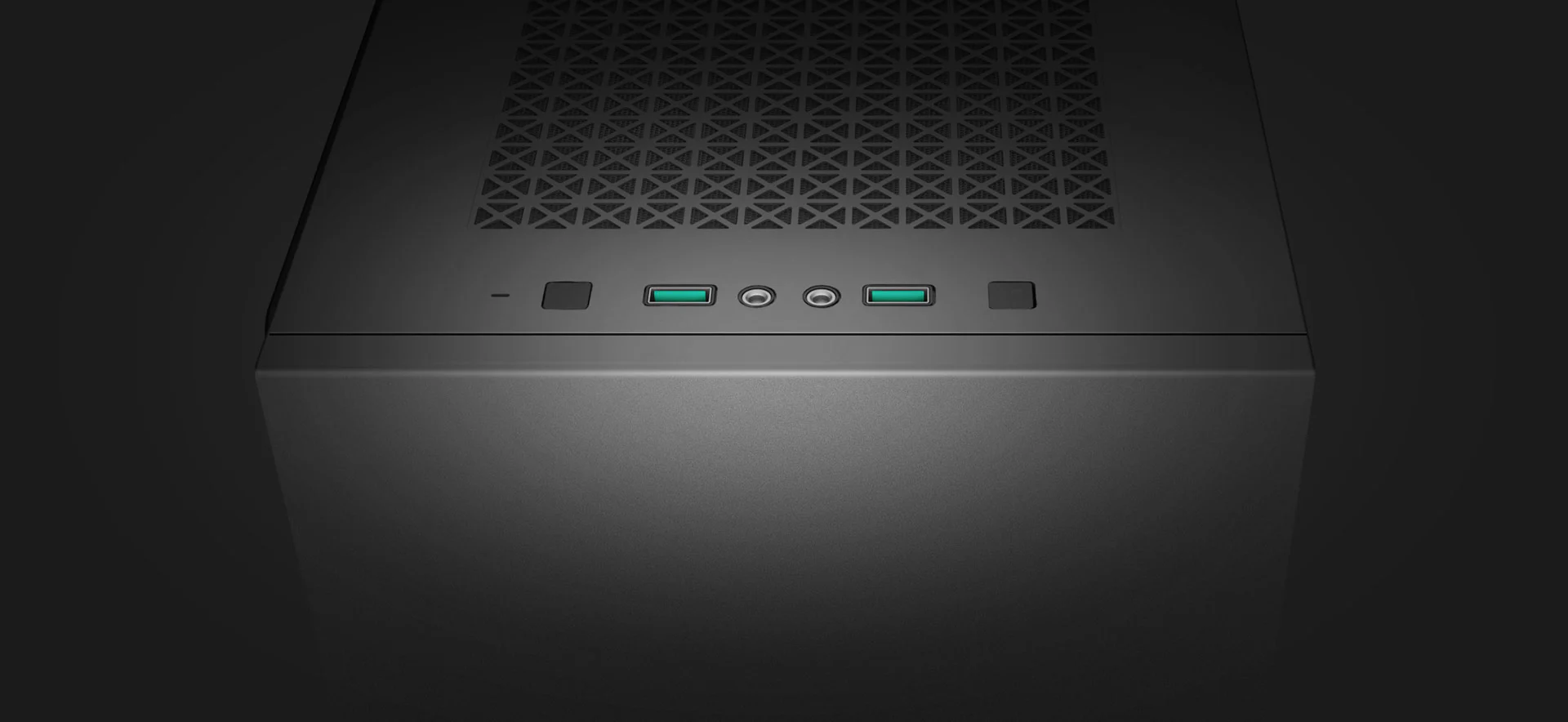

I/O Panel	USB3.0×2、Audio×1、Mic×1
Expansion Slots	7+2 Slots
Cooling Fans Compatibility	Pre-installed: Rear: 1×120mm DC fan; Optional: Front: 120mm×3/140mm×2， Top: 120mm×3/140mm×2
Power Supply Type	ATX PS2 (Length less than 160mm)
CPU Cooler Height Limit	165mm
Liquid Cooler Compatibility	Front: 120/140/240/280/360; Rear: 120
VGA Length Limit	330mm
Cable Management	23mm clearance
EAN	6933412714071
P/N	GS-ATX-MACUBE310P-BKG0P

Product Dimension
