CL500 CN

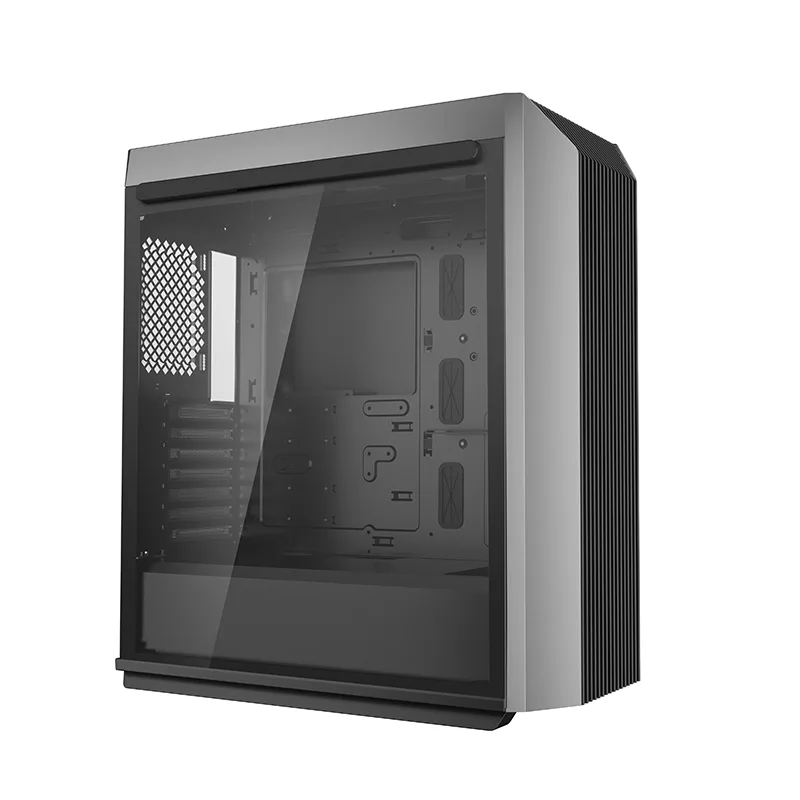

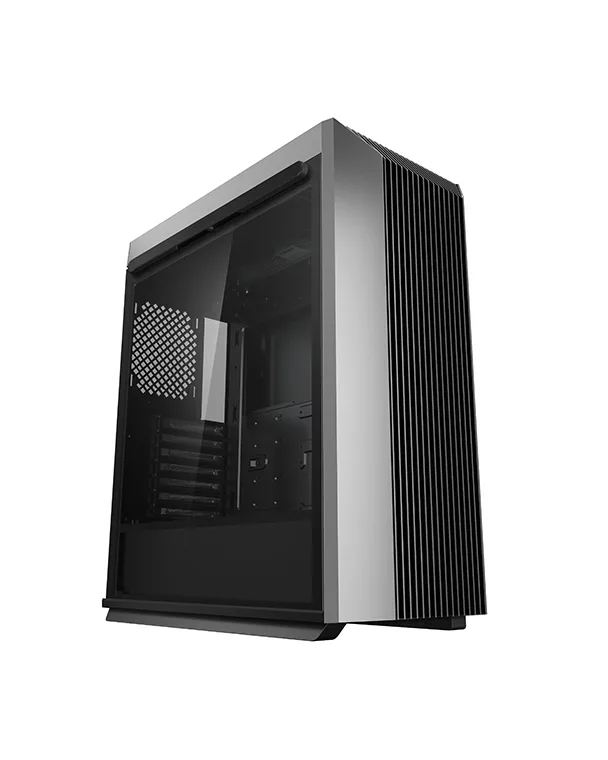

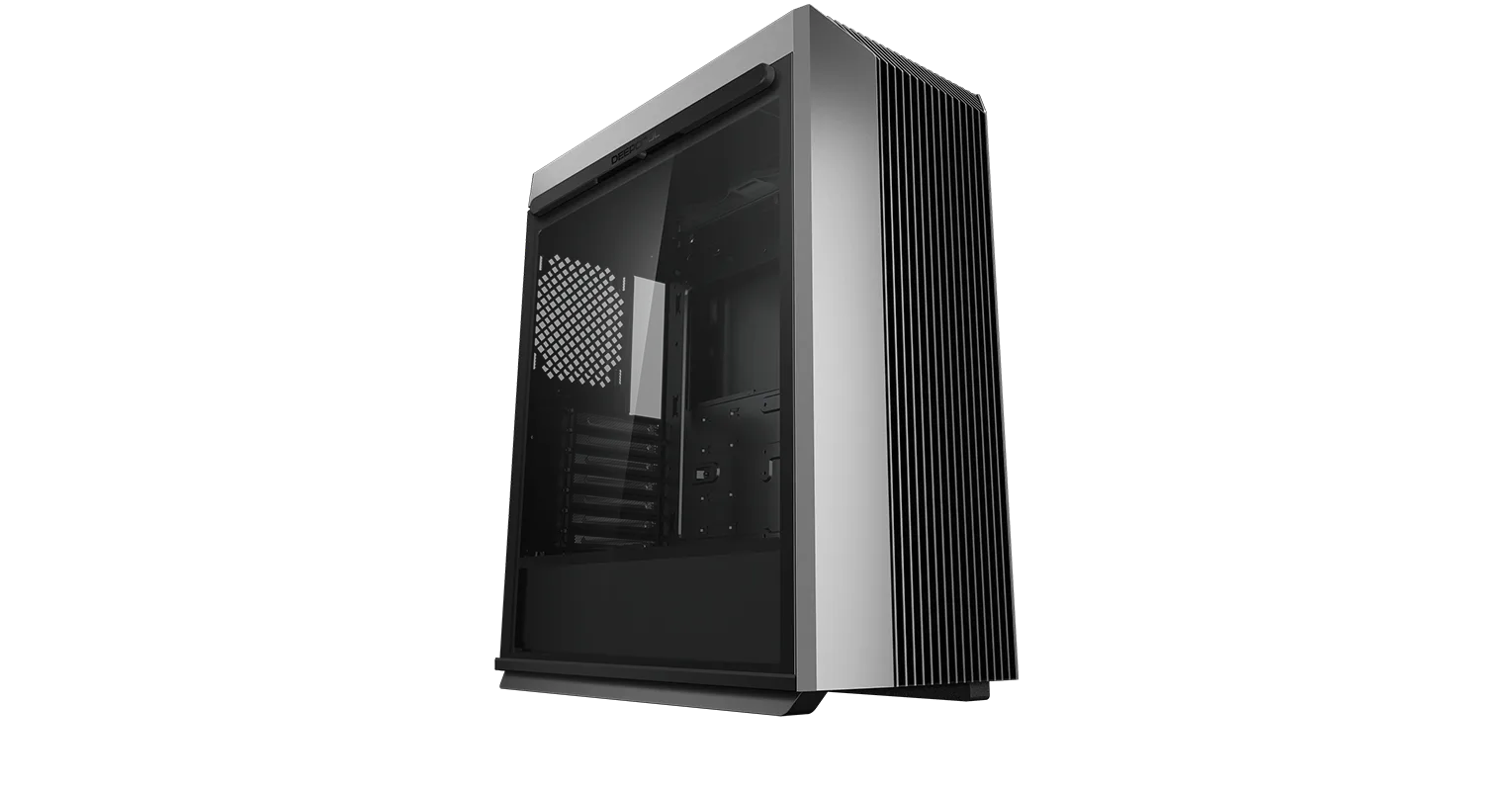

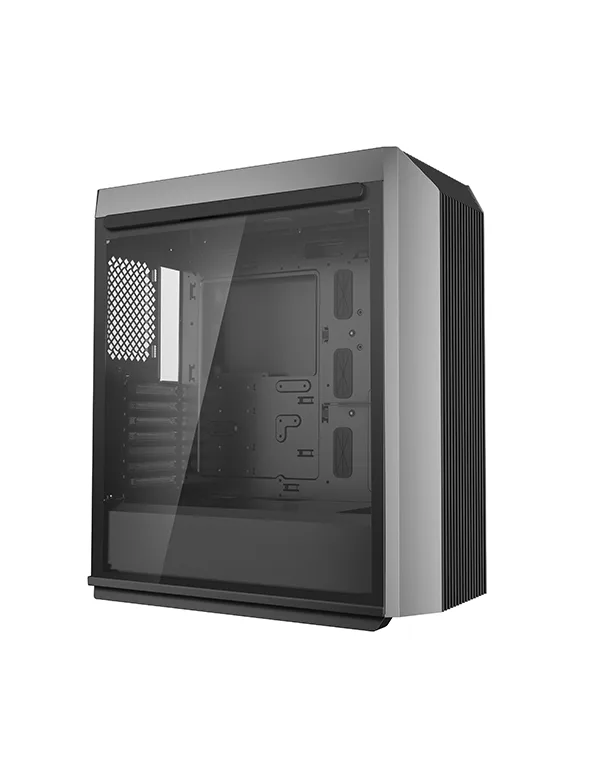

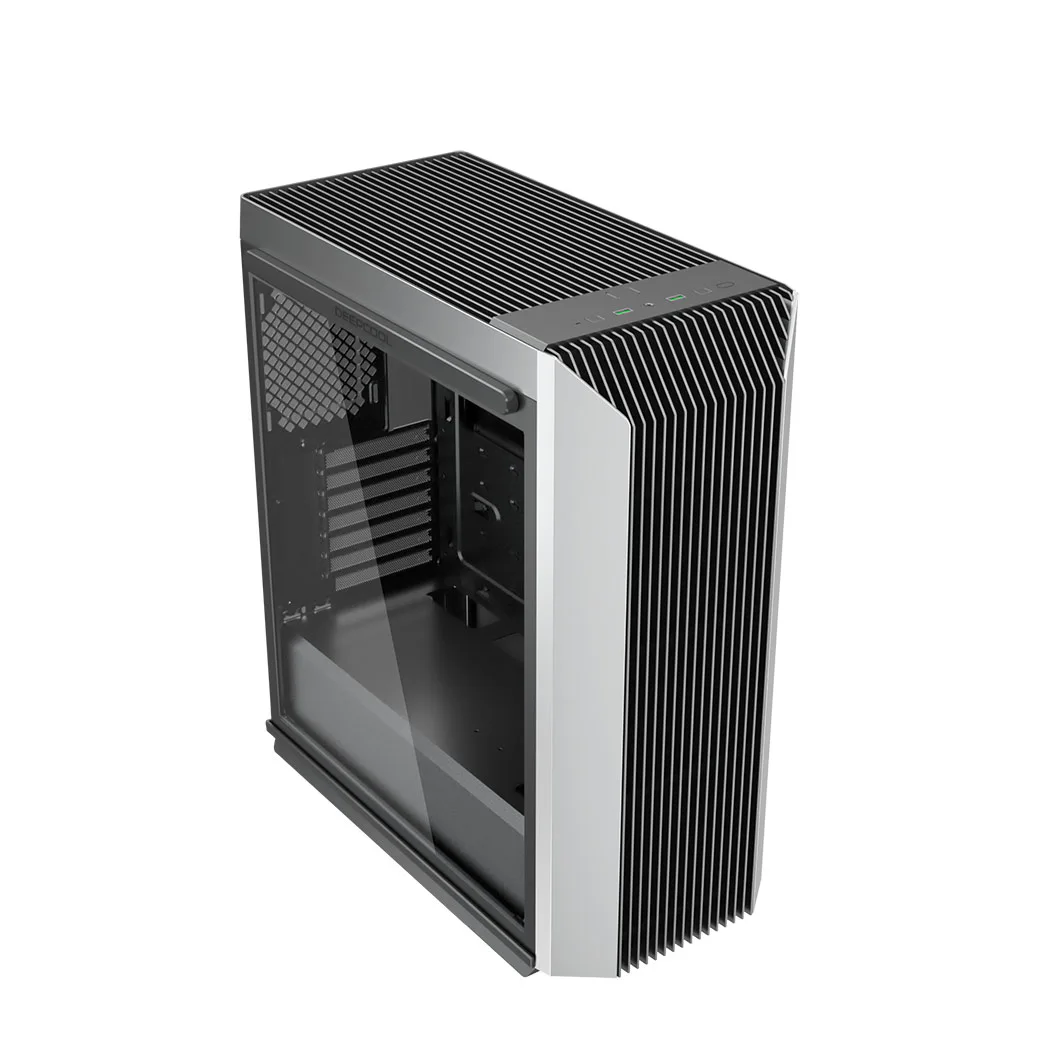

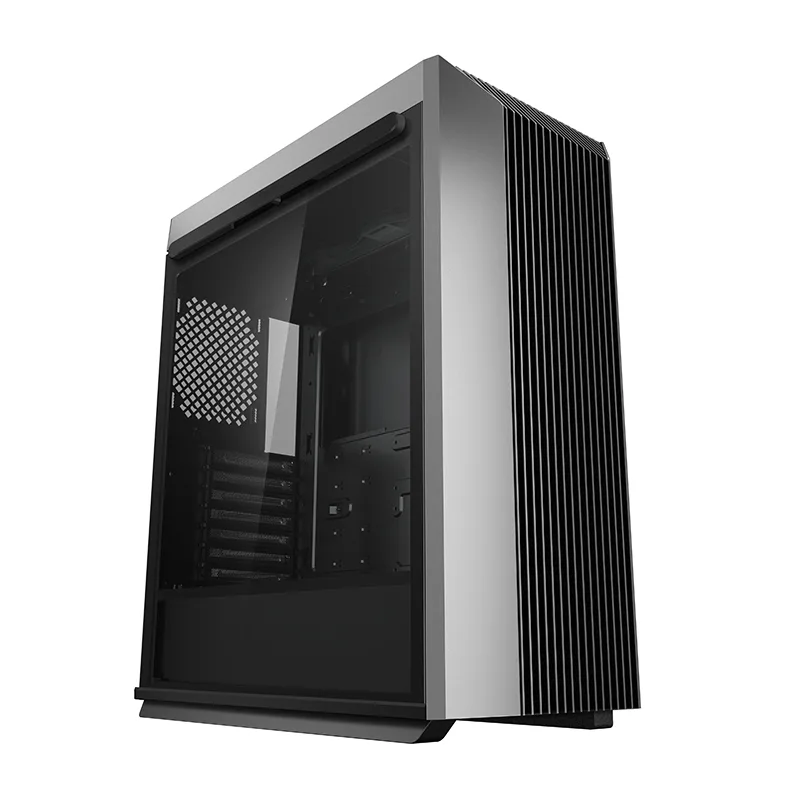

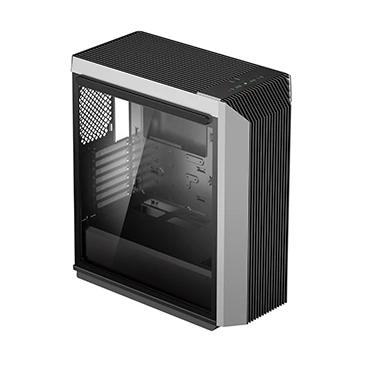

The CL500 CN is a mid-tower ATX case designed for high airflow and ease of use to provide builders a sensible chassis with better functionality.
COLOR
black
MODEL
CL500 CN
Form Follows Function
Form Follows Function
The CL500 CN is a mid-tower ATX case designed for high airflow and ease of use to provide builders a sensible chassis with better functionality.
Performance
based

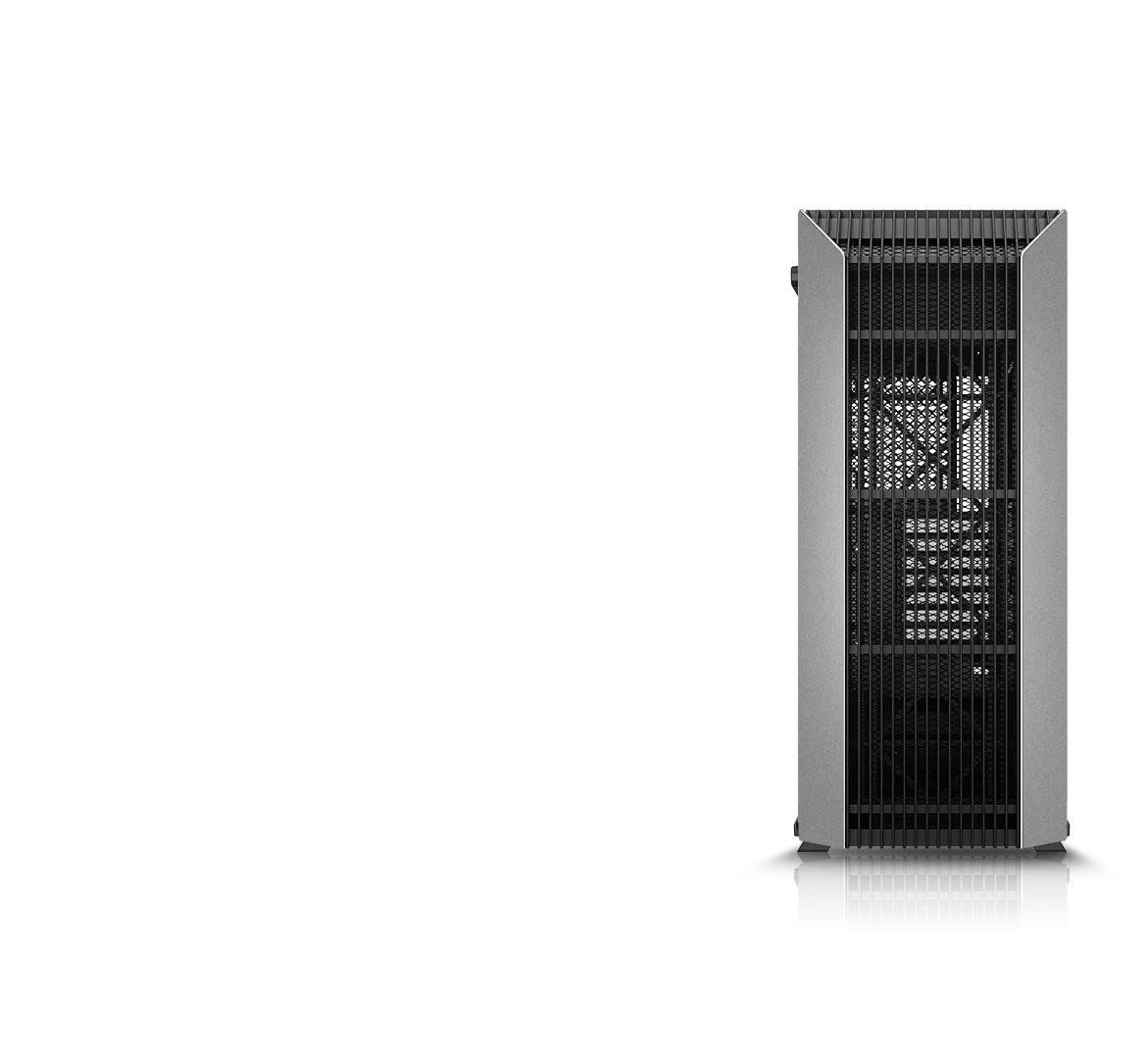

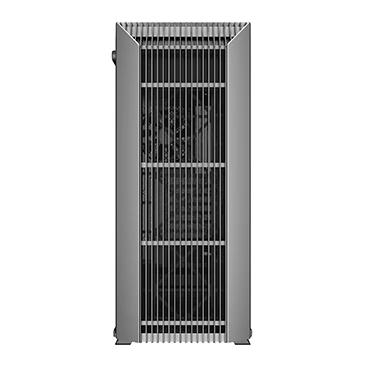

Large mesh panels draw in more airflow to make sure
the system is cooled and performing at its peak.

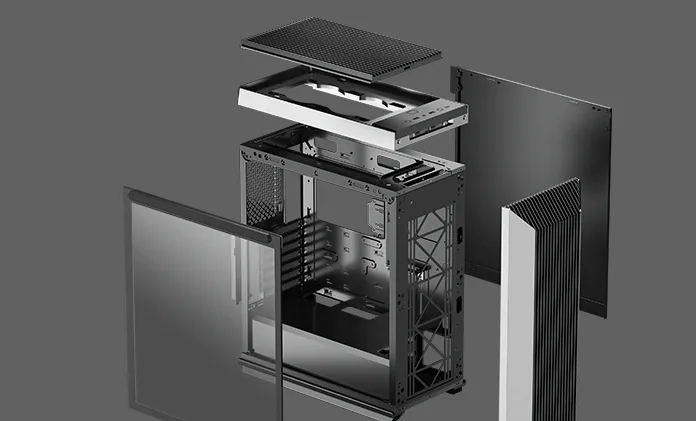

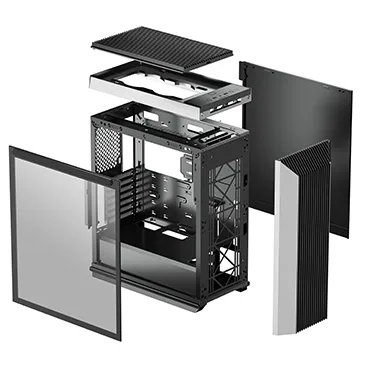

Setup
made simple

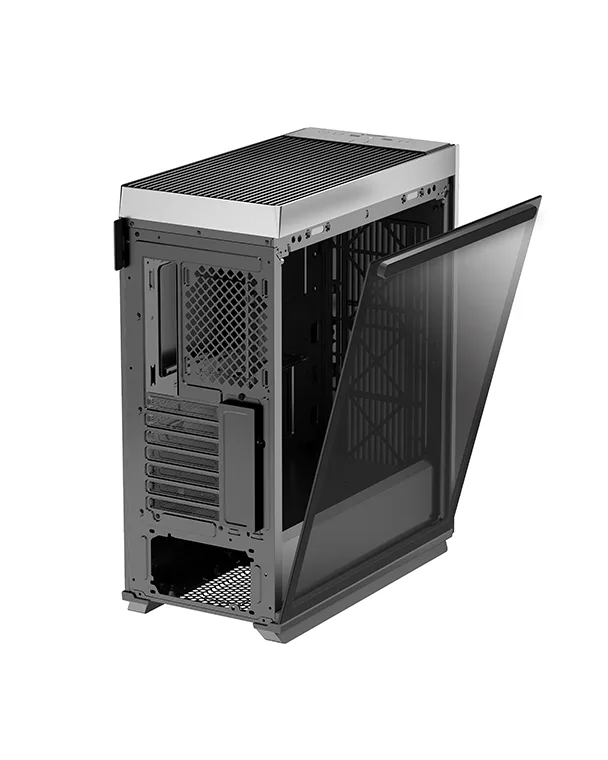

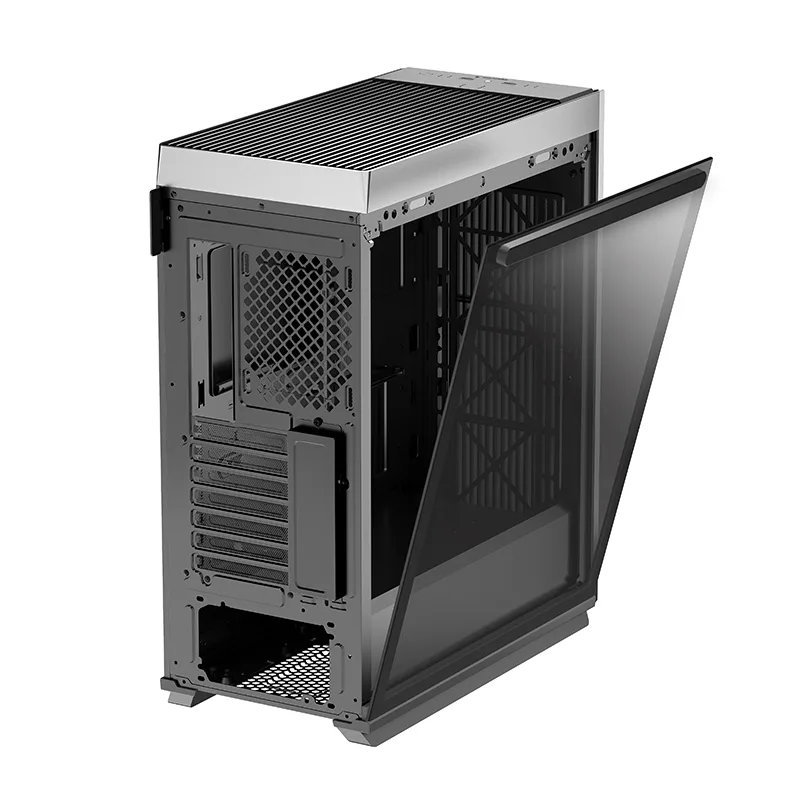

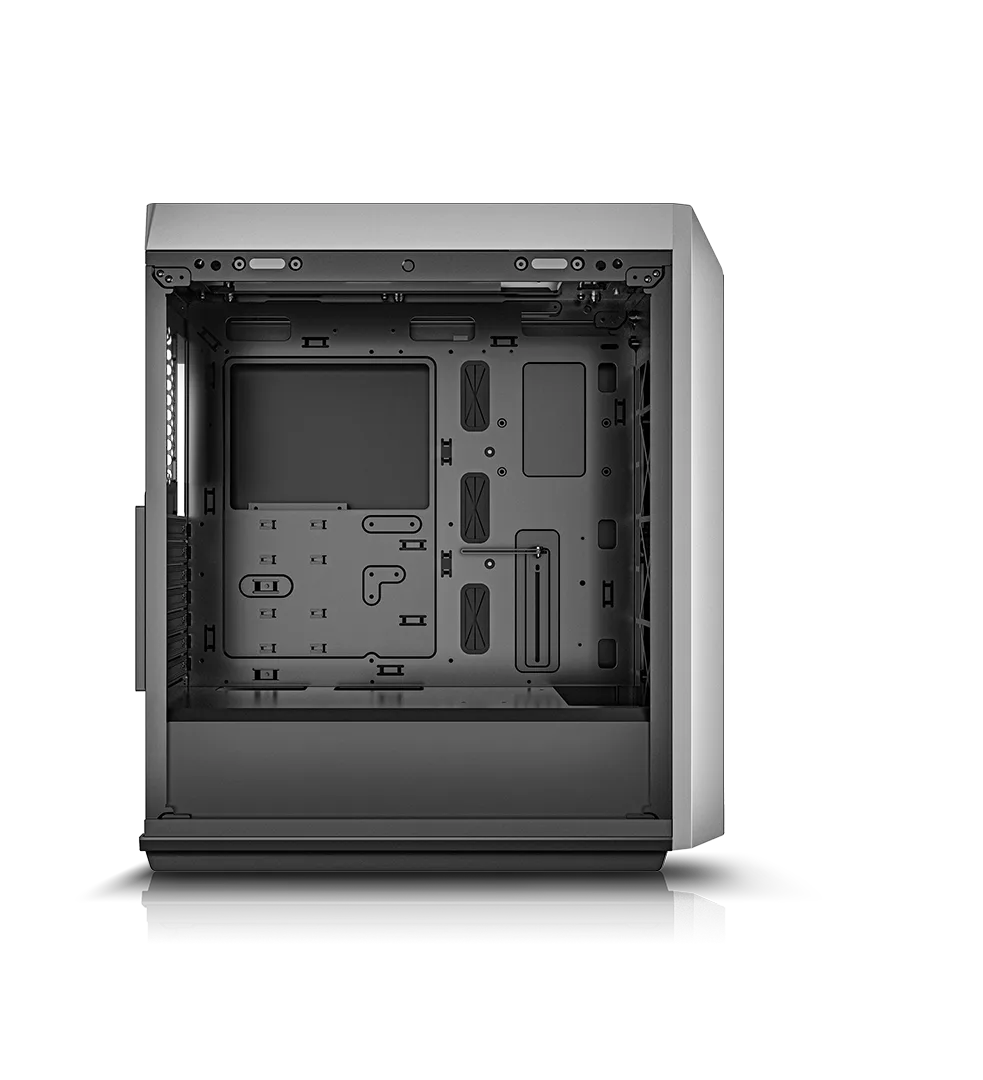

Getting started is easy. Access from each side is effortless with magnetic side panels and a one-touch button release for the top.

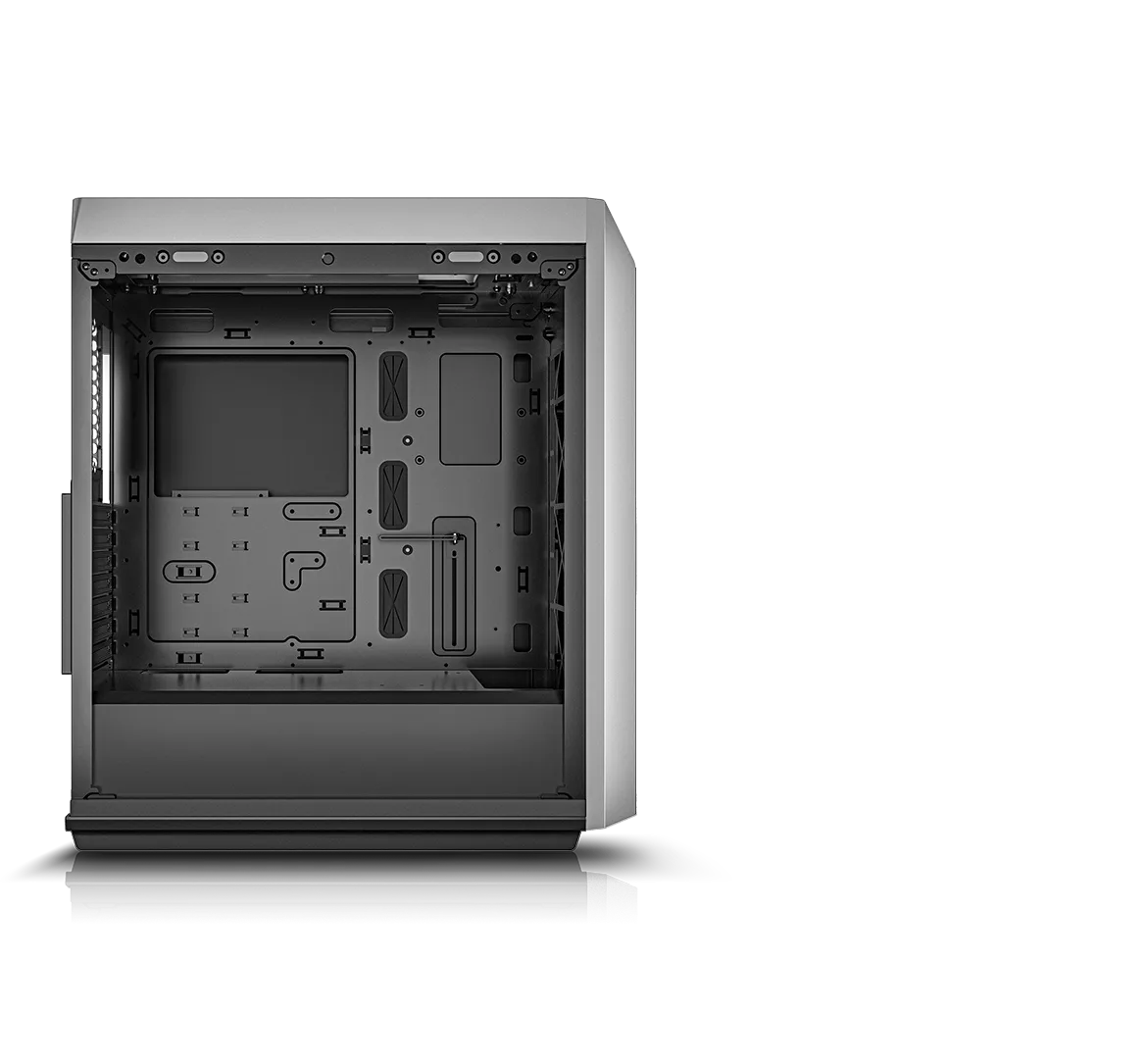

Built for builders

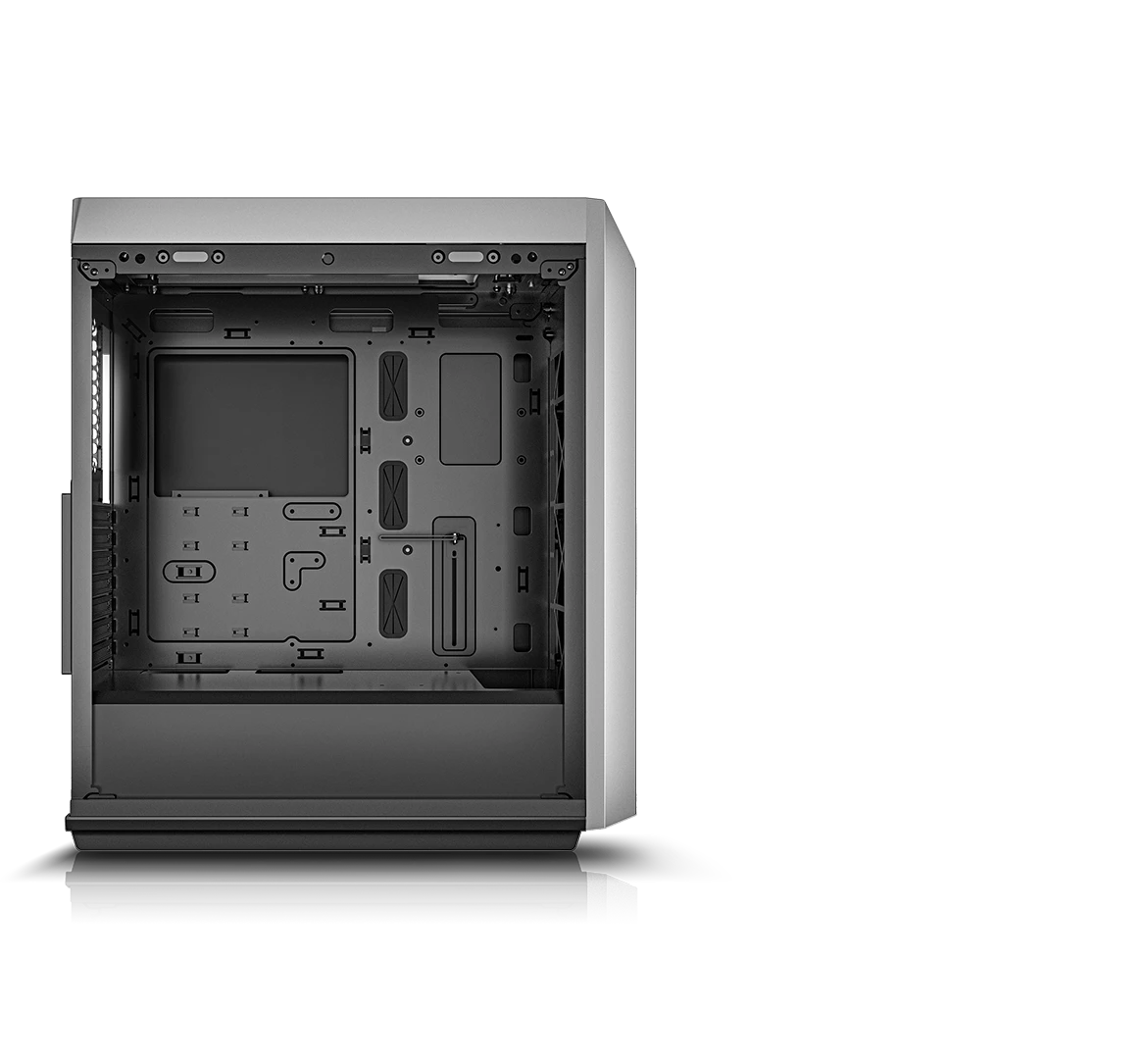

An integrated PWM fan hub and built-in adjustable GPU stand helps keep your system organized and aligned.

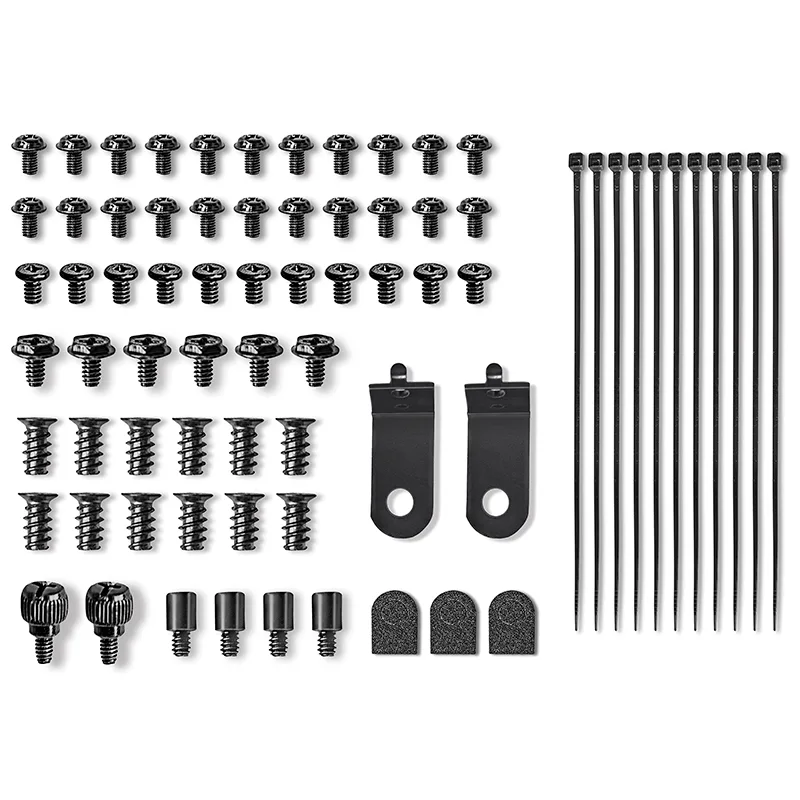

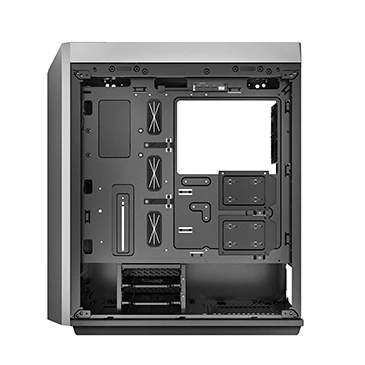

Cable management is also made easy with Velcro straps, rubber grommets and added clearance.
Built for builders
An integrated PWM fan hub and built-in adjustable GPU stand helps keep your system organized and aligned.
Cable management is also made easy with Velcro straps, rubber grommets and added clearance.

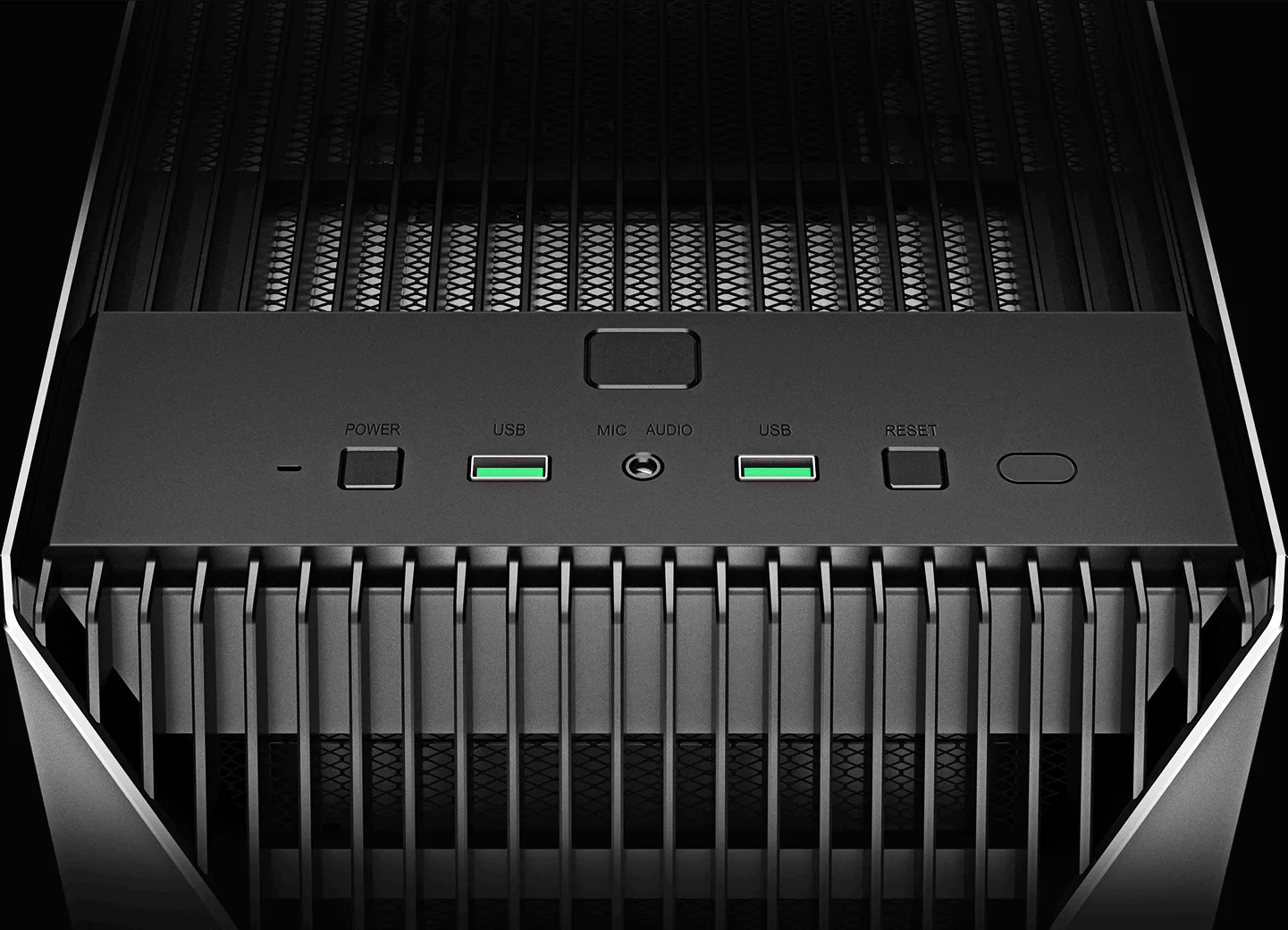

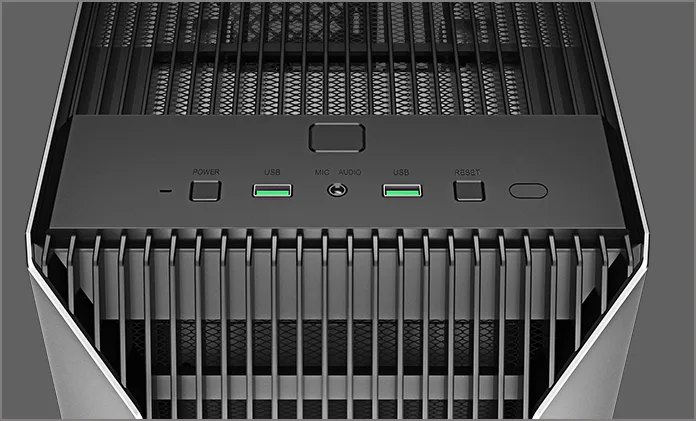

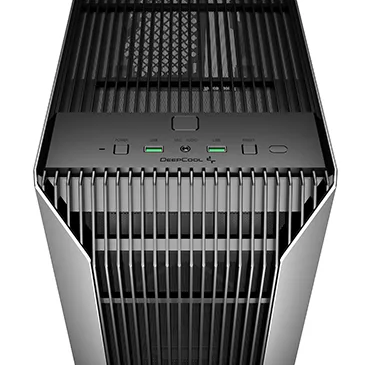

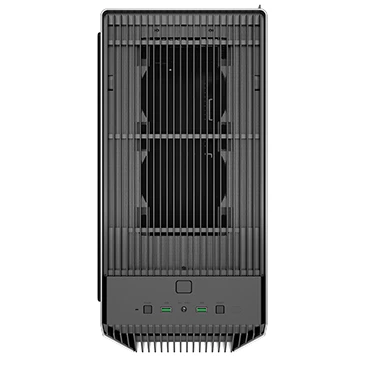

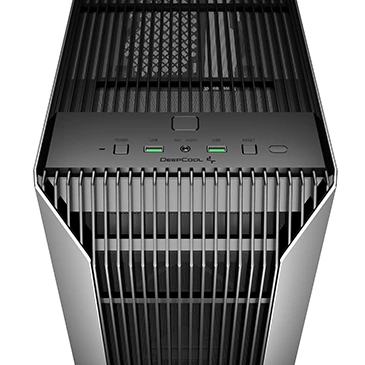

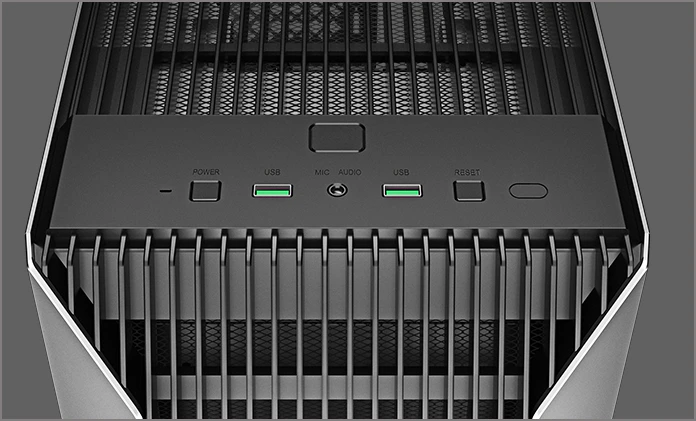

USB 3.0 ports with fast transmission speed
Two front USB 3.0 ports on the top are available for fast charging and connectivity with mobile devices
USB 3.0 ports with fast transmission speed
Two front USB 3.0 ports on the top are available for fast charging and connectivity with mobile devices
Compatibility
  • Compatibility - Dimensions
  • Compatibility - Radiator
  • Compatibility - Fan
  • Compatibility - Motherboard/GPU
Technical Spec
Case Type ATX Case
Materials ABS+SPCC+Tempered Glass
Product Dimensions 473mm×226mm×519mm
Carton Dimensions 565mm×285mm×535mm
Net Weight 8.4Kg
Gross Weight 9.75Kg
5.25' Drive Bays 0
3.5' Drive Bays 2
External 3.5'' Drive Bays 0
2.5' Drive Bays 2
I/O Ports Audio×1、 USB3.0 Type-A×2

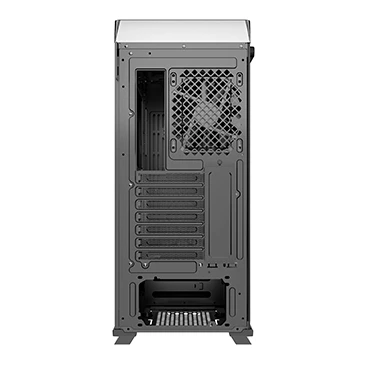

Expansion Slots 7 Slots
Power Supply Type ATX PS2 （maximum length: 160mm）
Cable Management 23mm clearance
CPU Cooler Height Limit 165mm
VGA Length Limit 330mm
Cooling Fans Support Optional: Front: 120mm×3/140mm×2，Top: 120mm×2Rear: 120mm×1
Liquid Cooler Support Front: 120/140/240/280/360; Rear: 120；TOP: 120/240
EAN 6933412714484
P/N R-CL500-BKNMA0N-C-1
Product Dimension
Download
CL500 CN Manual.pdf
