CH170 DIGITAL WH

The Tiny Tower of Power

HIGH AIRFLOW PANELS

Mesh panels surround the CH170 DIGITAL WH from every side and create a high-airflow, small-form-factor case like no other.

MULTIPLE DATA POINT DISPLAY

The CH170 DIGITAL WH has a digital base that displays four vital points of data at the same time. The display can focus on CPU, GPU, and PSU information at any given point in time. It can scroll through all aspects at a timed interval.

CPU

Temperature
Power Consumption
Usage
Frequency (or Fan Speed)

GPU

Temperature
Power Consumption
Usage
Frequency

PSU

Temperature
Power Consumption
Usage
Fan Speed

*Due to variances in hardware configurations, polling periods, and system settings, the displayed information may experience minor delays.
*CPU temperature based on Intel: CPU Package / AMD: CPU Tdie

FULL SIZED AIR COOLING!

Lack of air cooler support in small mITX cases is a thing of the past. The CH170 DIGITAL WH can support giant air coolers up to 172mm in height!

OR GO LIQUID

If liquid cooling is preferred, that is also an option with the CH170 DIGITAL WH. A specialized radiator bracket and a full mesh panel make it possible to mount a standard-sized 240mm AIO without any worries.

NO ADDED GPU LATENCY!

Designed to accommodate most 65mm thick dual-fan GPUs that are shorter than 305mm in length and up to 138mm in width, it can be directly inserted into the motherboard without the assistance of a riser cable—no added GPU latency concerns!

Maximum GPU Length Based on PSU:
SFX/SFX-L：305mm
ATX：230mm

FLEXIBLE POWER OPTIONS

Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH170 DIGITAL WH can support any of them up to 140mm.

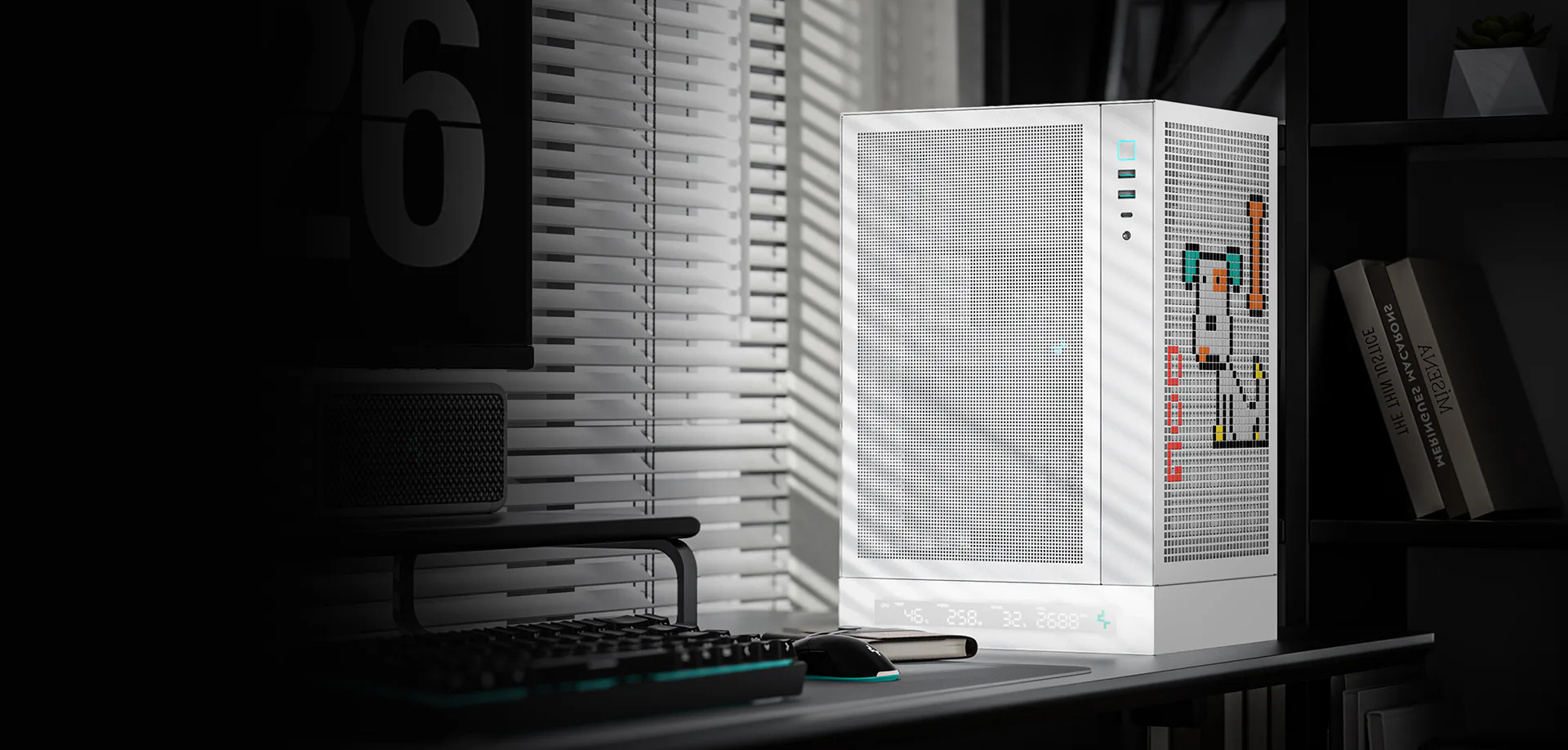

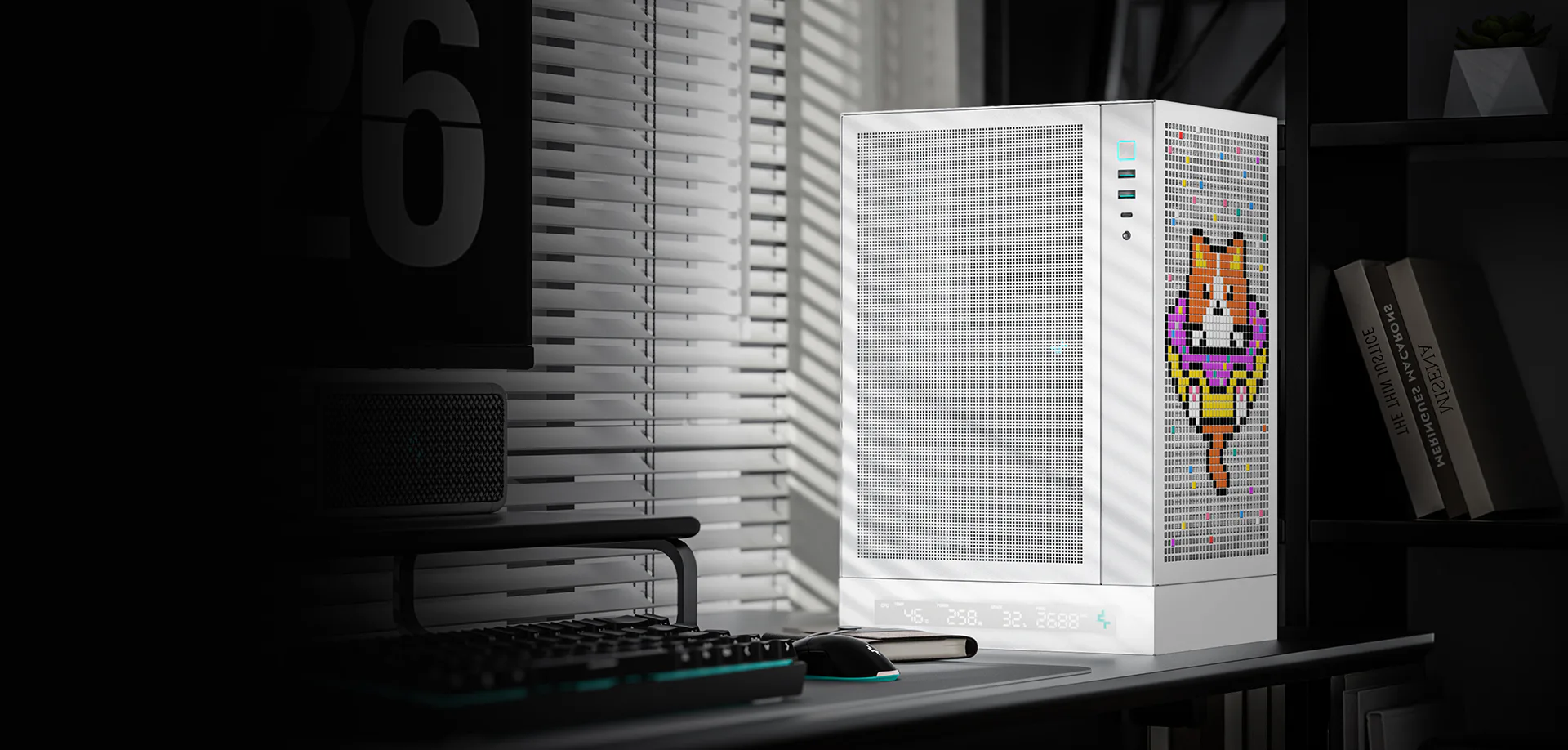

Create on PlXEL canvas

DeepCool PIXEL bits are colorful rubber pieces offered to add creativity and playfulness to the case panels for customized designs, currently compatible with CH series and MORPHEUS cases.

Let out your inner designer and create with PIXEL bits on DeepCool PC cases.

Start Your Creation Here

QUALITY OF LIFE IMPROVEMENTS

Equipped with options such as removable fan brackets, where the top fan bracket can be utilized to support either an SSD, HDD drive, or a 120mm fan; three removable dust filters for ease of cleaning; two USB 3.0, a Type-C, and a hybrid audio port, the CH170 DIGITAL WH makes everything a little easier.

Technical Spec

Product Dimensions	250x200x380mm(L×W×H)
Net Weight	3.5Kg
Materials	ABS+SPCC
Motherboard Support	Mini-ITX
Front I/O Ports	USB3.0×2、Audio×1、Gen2 TypeC×1
3.5" Drive Bays	1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）
2.5" Drive Bays	1（2.5 SSD / 3.5 HDD / Front 120 FAN :Choose one of the three）
Expansion Slots	3 Slots
Pre-Installed Fans	None
Fan Support	Top:1×120 mm Front: NA Rear: 2×120 mm Bottom:1×120 mm Side : 2×120 mm
Radiator Support	Side : 240mm
CPU Cooler Height Limit	172mm
GPU Size Limit	Length: SFX/SFX-L: 305mm / ATX: 230mm Height: 138mm Width: 65mm (3 Slots)
Power Supply Type	ATX PS2（maximum length: 140mm）/ SFX / SFX-L
EAN	6933412774211
P/N	R-CH170-WHNPI0D-G-1

Product Dimension
