CG590U 5F
The CG590U 5F is a curved-glass panoramic case with a dual-chamber layout and a spacious interior. Pre-installed with five ARGB fans, it is ready from the start with strong airflow and vibrant lighting.
COLOR
black
MODEL
CG590U 5F
CURVED GLASS SHOWCASE
SEAMLESS PANORAMIC VIEW

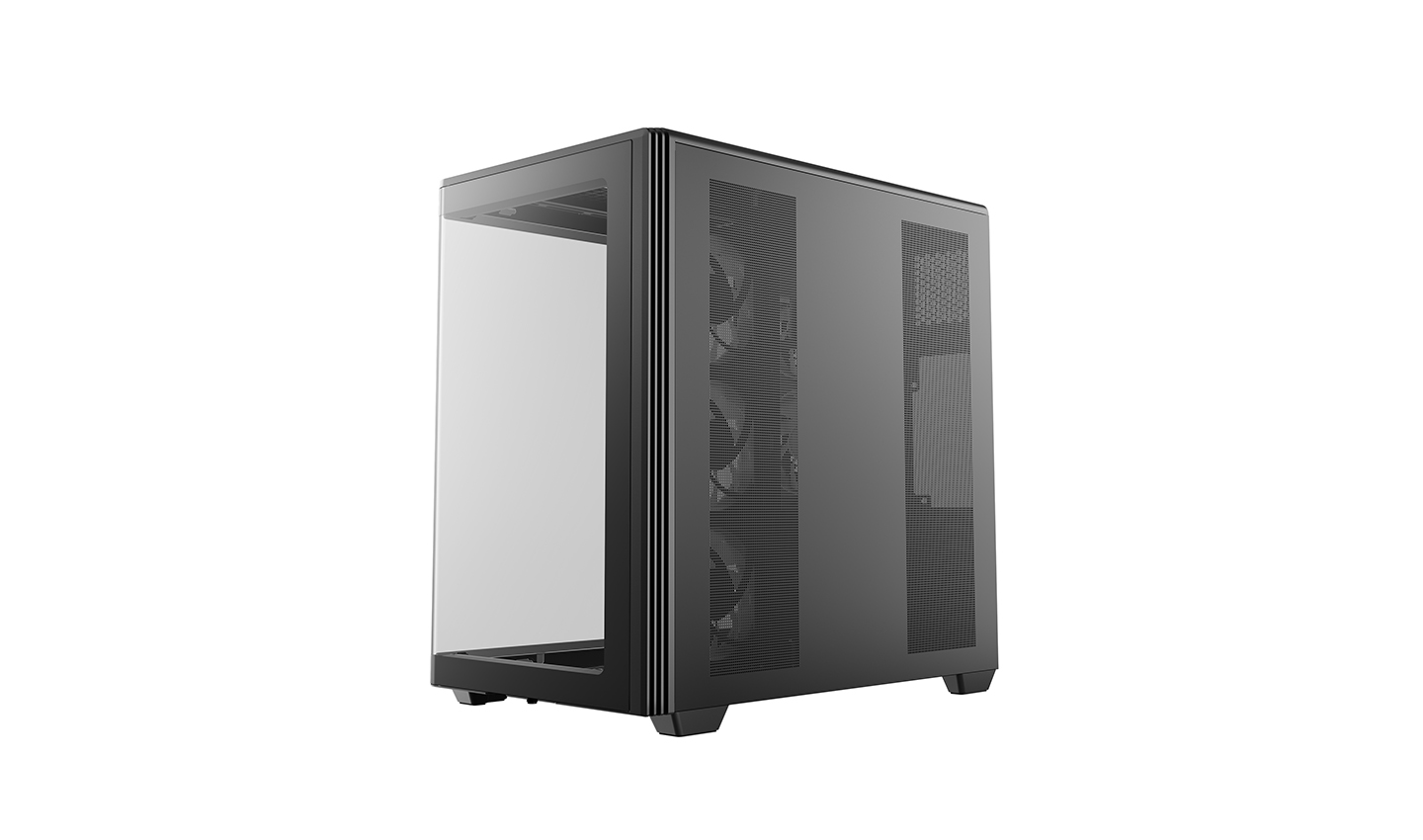

The CG590U 5F features a one-piece curved tempered glass panel that transitions smoothly around the corner. With no seams interrupting the line of sight, it offers an open, continuous view into the build within.
EFFICIENT VENTILATION
The dual-chamber layout separates the power supply and drives into their own cooling zone, keeping the GPU’s intake path clear. Large mesh panels on the top and side increase ventilation throughout the case.
START COOL, SHINE BRIGHT

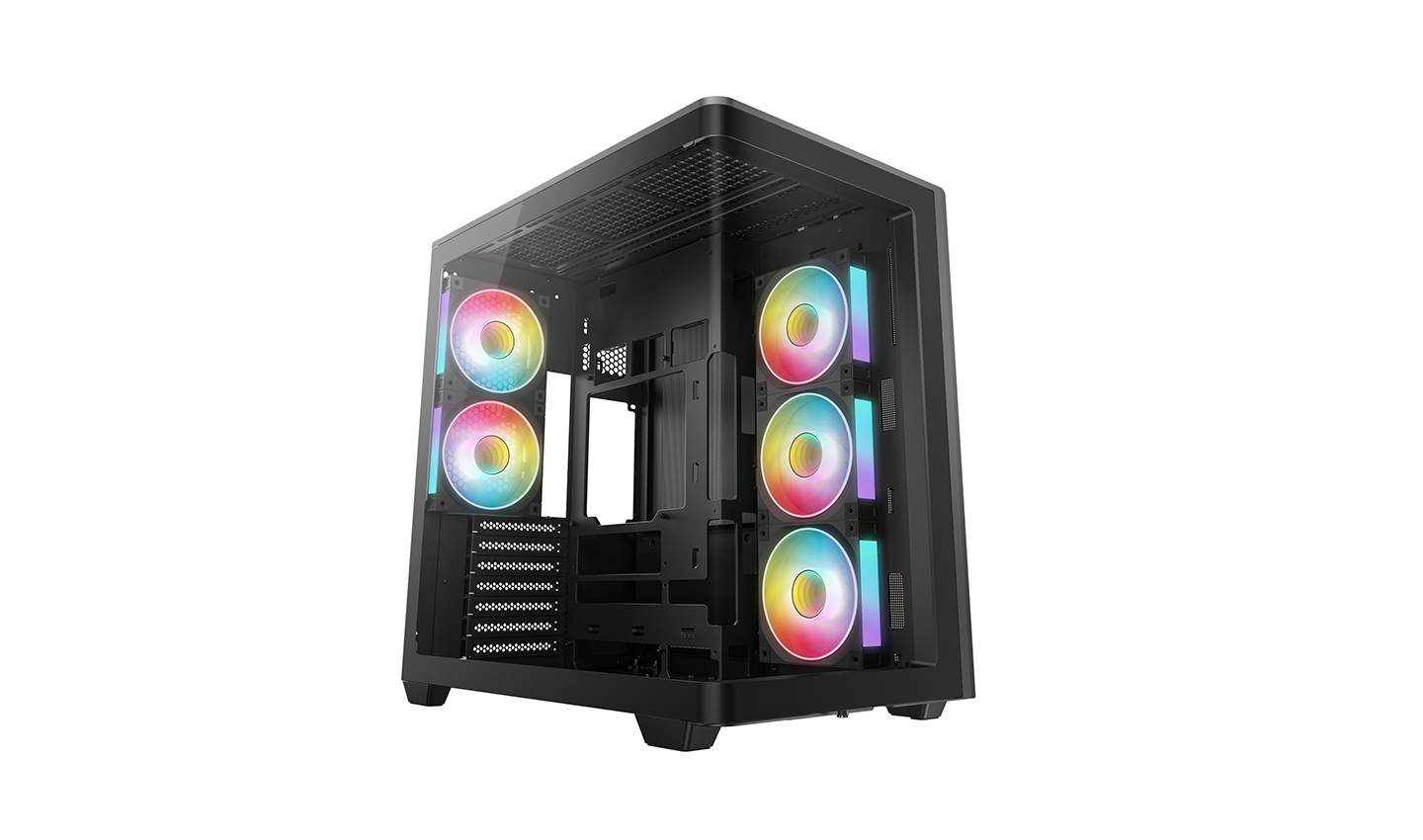

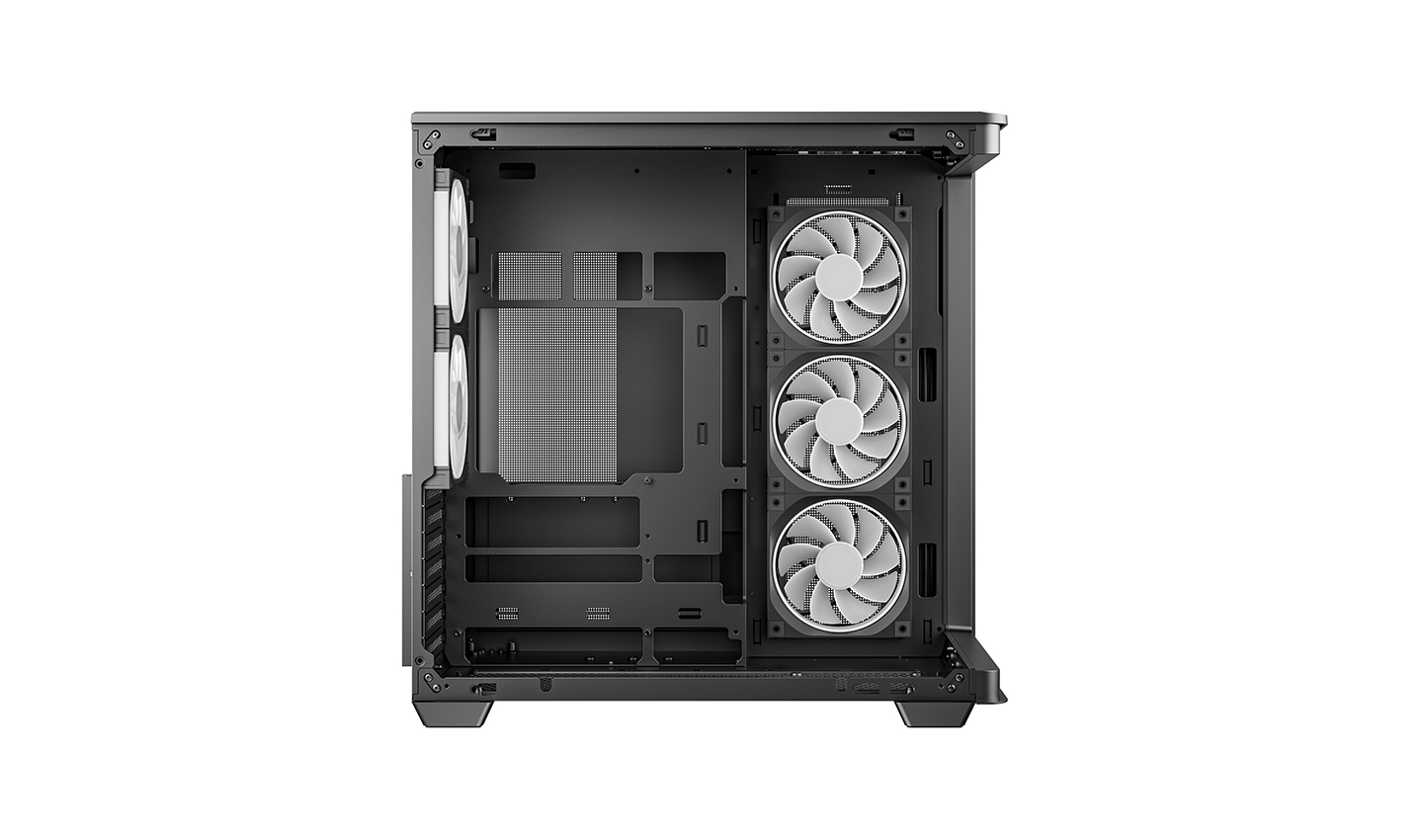

The CG590U 5F includes dual rear fan mounts to enhance exhaust capacity. It comes pre-installed with three reverse-blade 120mm ARGB fans on the side and two standard units at the rear, creating a powerful horizontal airflow.
BROAD HARDWARE SUPPORT
The spacious interior provides ample room for high-end components, supporting CPU coolers up to 160mm tall, GPUs up to 410mm long, and ATX PSUs up to 210mm.
Radiator Support:
Top: 120/140/240/280/360mm
Side: 120/240/360mm
Bottom: 120/240/360mm
Rear: 120mm
Fan Support:
Top: 3×120mm / 2×140mm
Side: 3×120mm
Rear: 2×120mm
Bottom: 3×120mm
FLEXIBLE COOLING OPTIONS
The CG590U 5F provides versatile cooling options with support for a 360mm radiator on the top, side, or bottom. In full air-cooling mode, it can house up to eleven fans for strong airflow.
  • Radiators
  • Fans(120)
  • Fans(140)
DETAILS THAT MATTER
Supports M-ATX and ATX reverse connector motherboards
45mm clearance for cable management

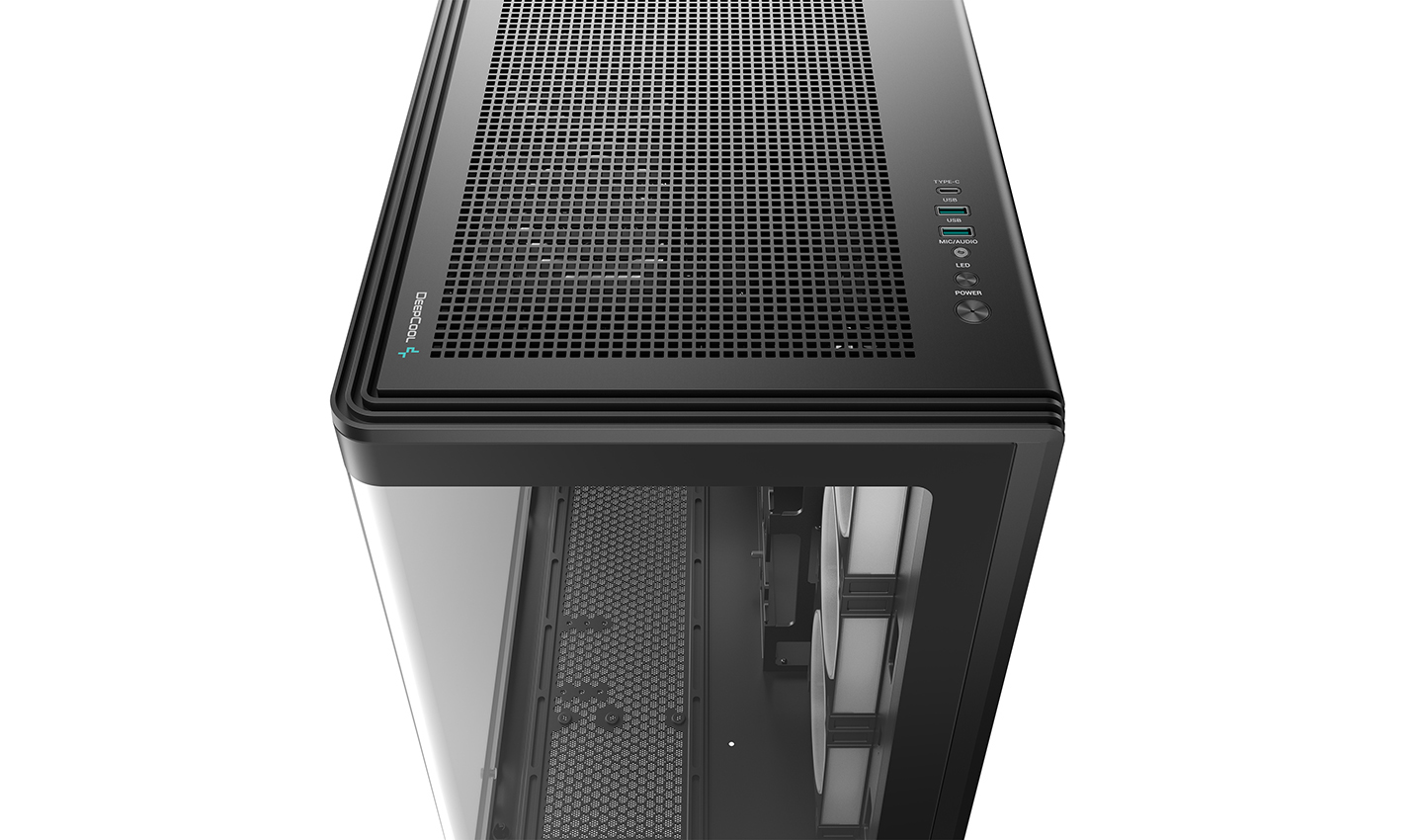

Quick-release top panel for easier access
Removable drive cage for flexible storage setup
EASY I/O ACCESS
The top I/O panel provides convenient access with two USB 3.0 ports, a Gen2 Type-C port, and a combined audio/mic jack.
Technical Spec
Product Dimensions460x285x460mm(L×W×H)
Net Weight8.2Kg
MaterialsABS+SPCC+Tempered Glass
Motherboard SupportITX/Micro-ATX/ATX
ATX(Rear Connector)/Micro-ATX(Rear Connector)
Front I/O PortsUSB3.0×2、Gen2 Type-C×1、Audio/Mic×1
3.5" Drive Bays1+1
2.5" Drive Bays2+1
Expansion Slots7 Slots
Pre-Installed FansSide: 3x120mm
Rear: 2x120mm
Fan SupportTop: 3×120/2x140mm
Side: 3x120mm
Rear: 2×120mm
Bottom: 3×120mm
Radiator SupportTop: 120/140/240/280/360mm
Side: 120/240/360mm
Bottom:120/240/360mm
Rear: 120mm
CPU Cooler Height Limit160mm
GPU Size Limit410mm
Power Supply TypeATX PS2（maximum length: 210mm）
EAN6933412765639
P/NR-CG590U-BKAGA5-G
Download
CG590U 5F Manual.pdf
