CG530 4F WH

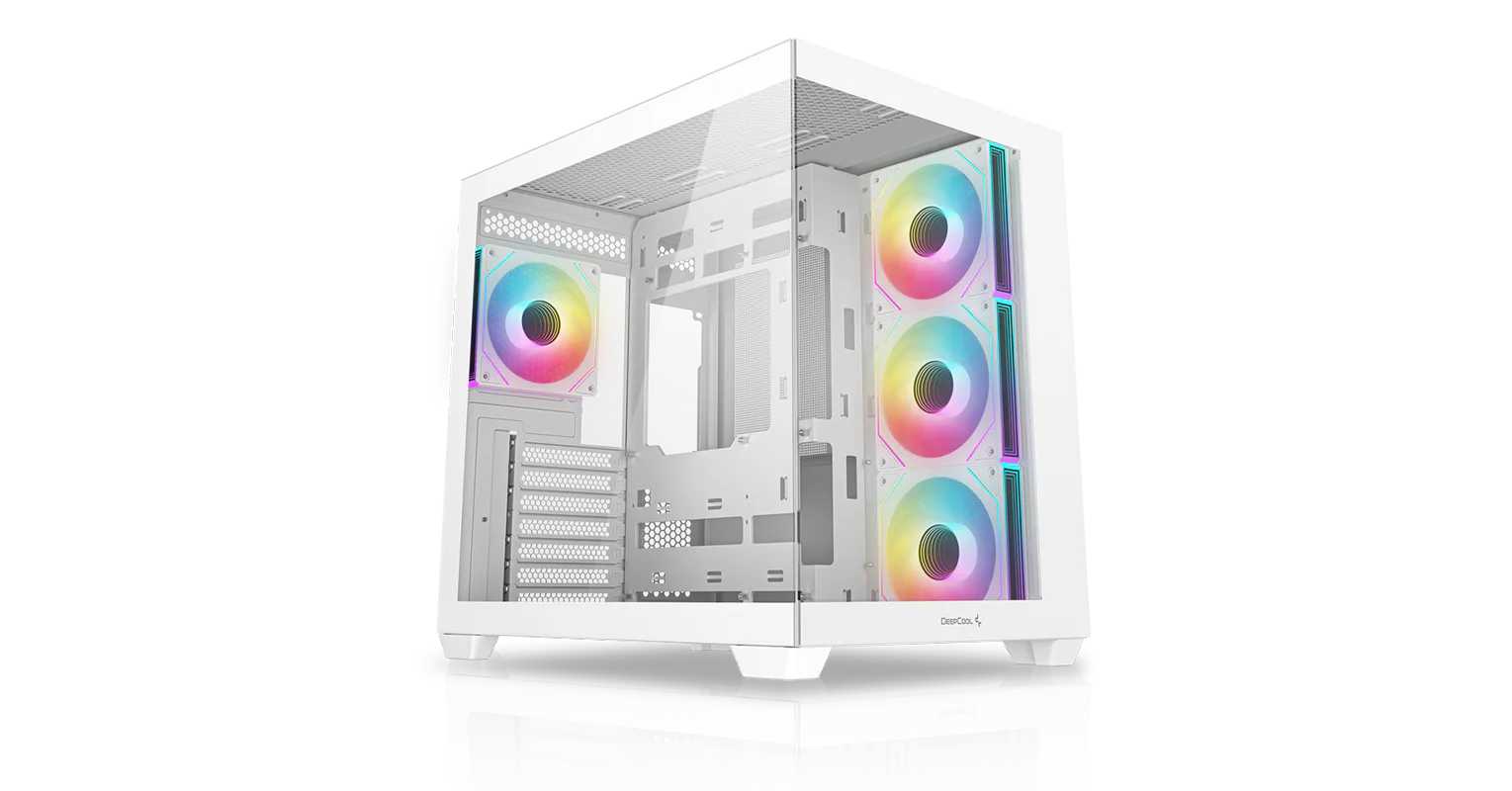

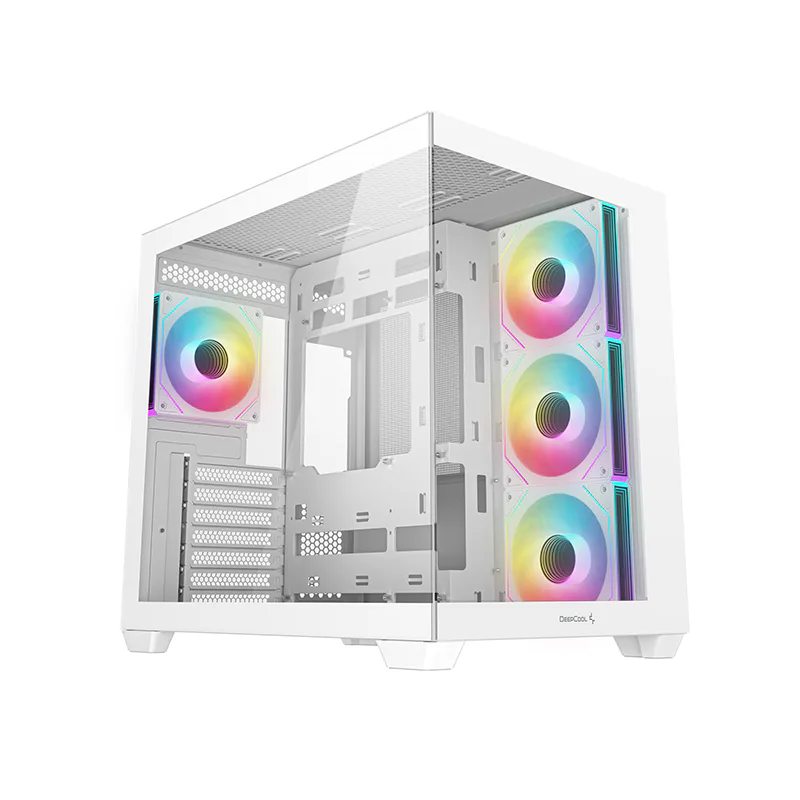

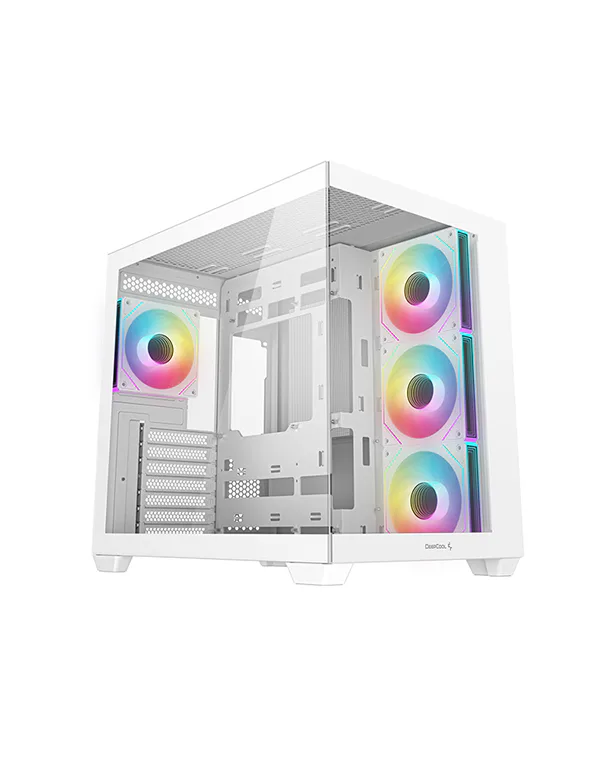

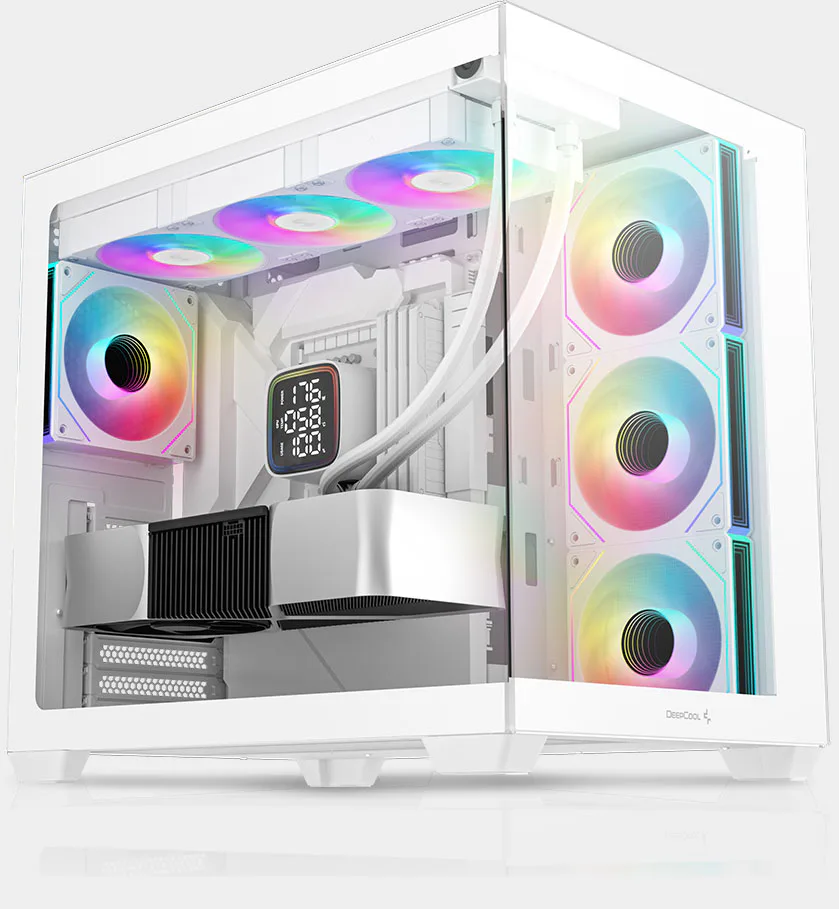

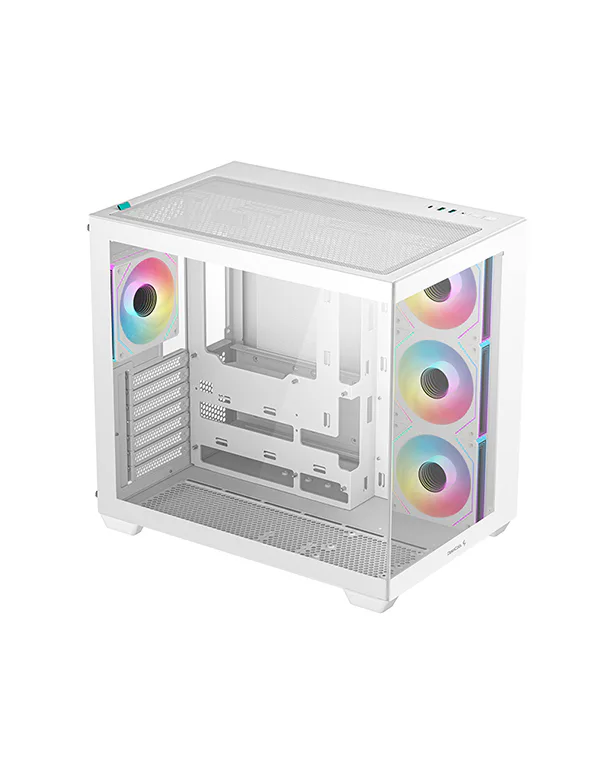

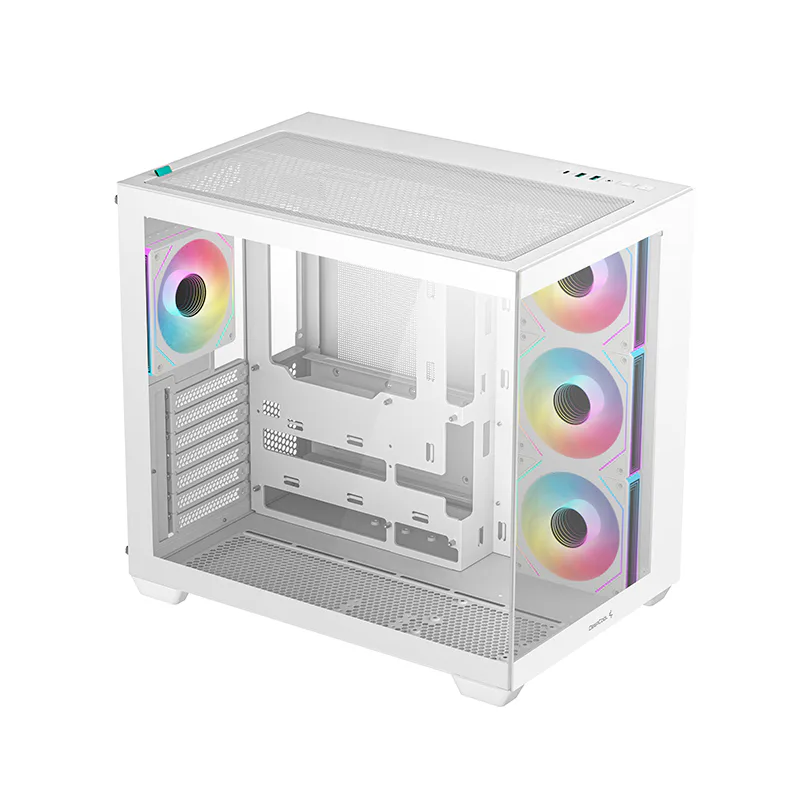

Experience the ultimate showcase build with its pillarless design. Featuring a seamless, non A-pillar construction, the CG530 4F WH boasts both a tempered glass side panel and a glass front panel, providing a crystal-clear view of components into full display, turning it into a true work of art.
COLOR
white
MODEL
CG530 4F WH
THE ULTIMATE "SHOW" CASE

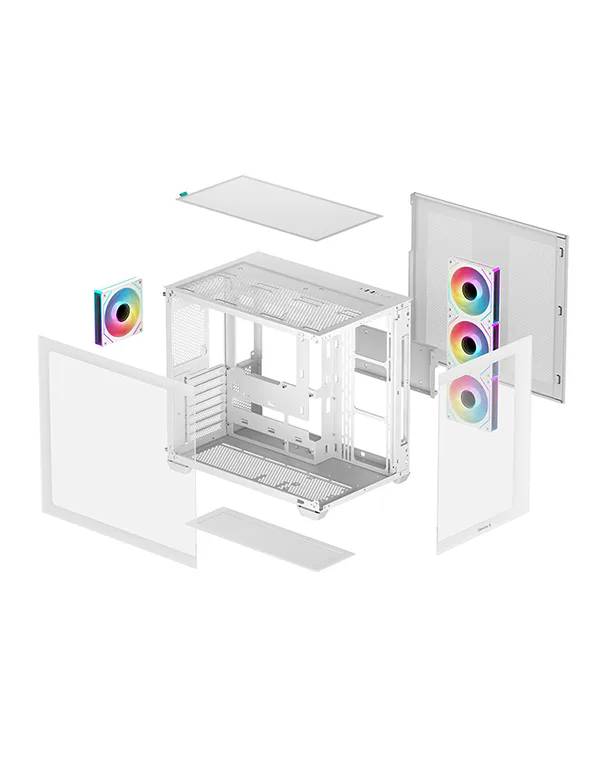

Advanced Dual-Chamber Design

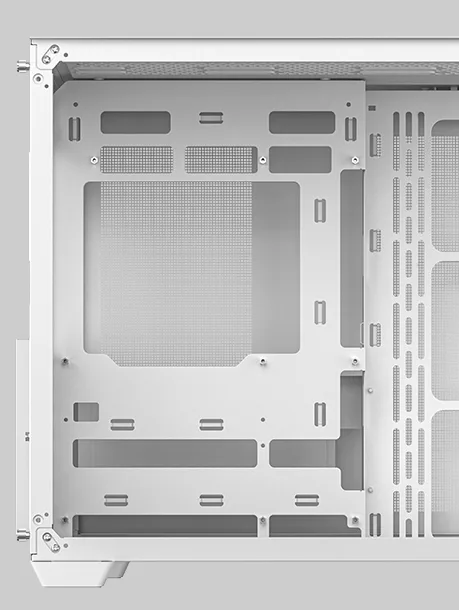

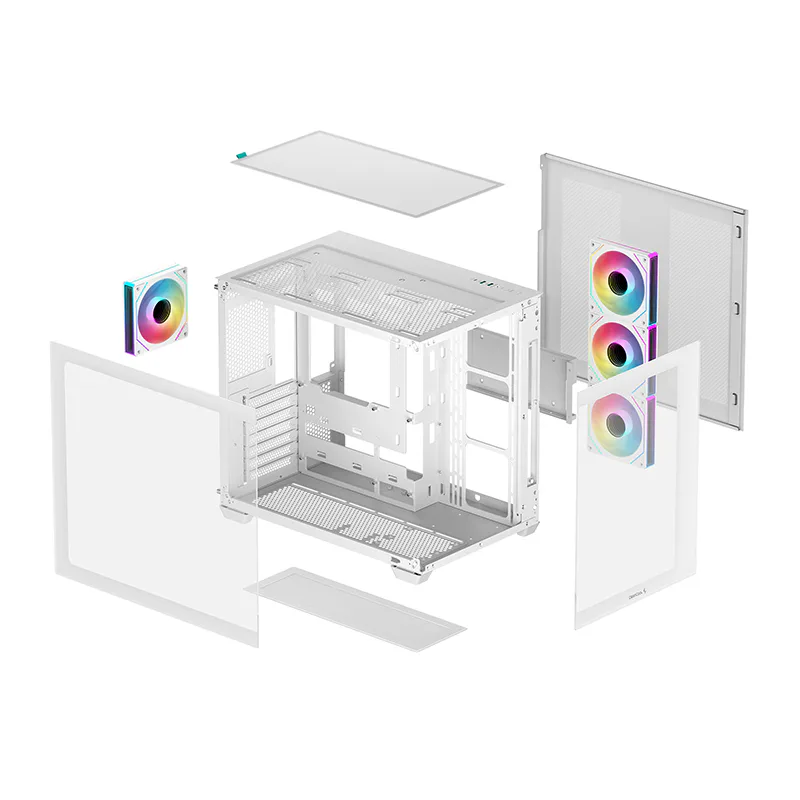

Featuring a wide case structure with a sophisticated dual-chamber layout, this case ensures excellent compatibility and optimal airflow. The PSU and hard disks benefit from separate air channels, while support for rear connector motherboards keeps the internal layout impeccably neat and organized.
High-Performance Aesthetics

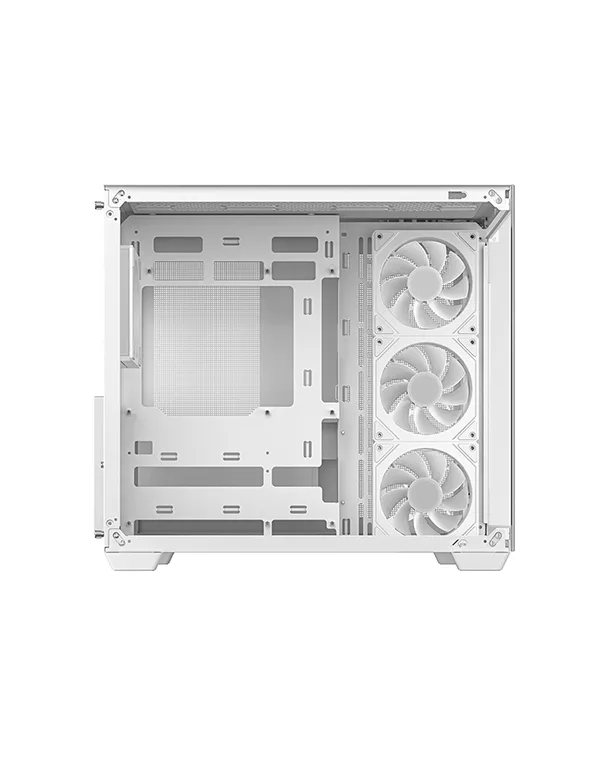

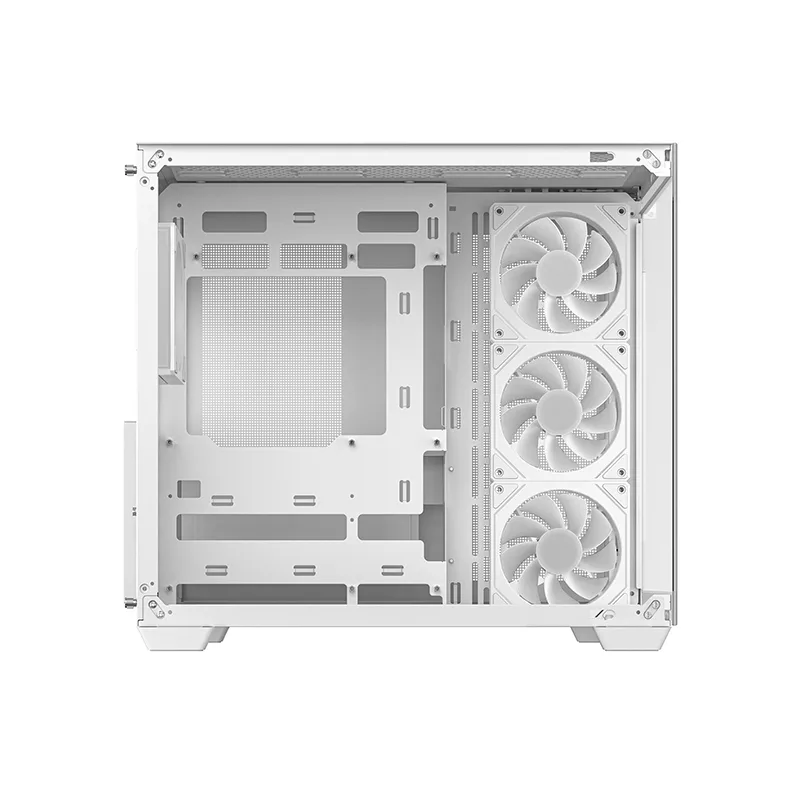

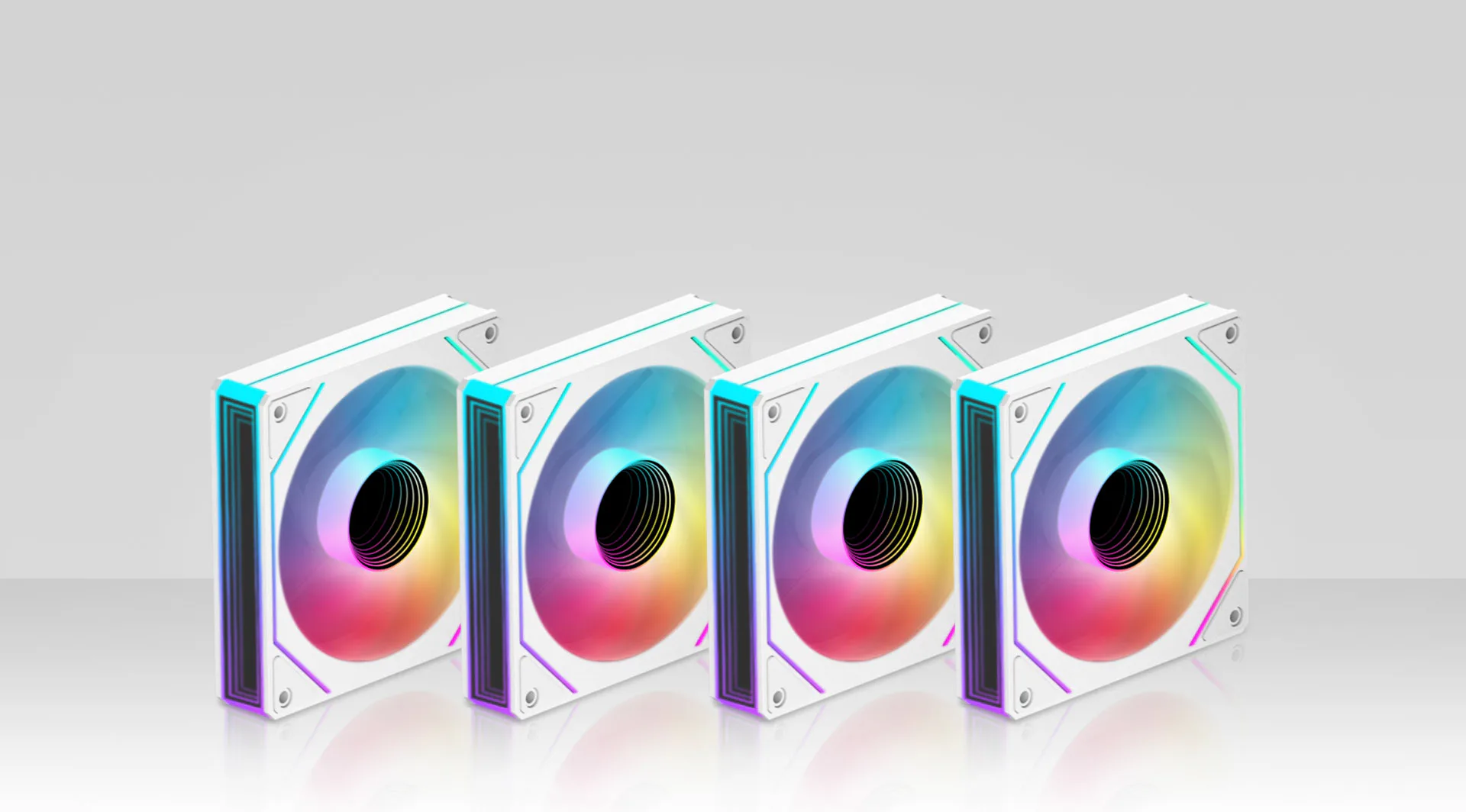

Engineered for both superior aesthetics and thermal efficiency, the CG530 4F WH comes pre-installed with three PWM ARGB reverse flow fans on the side and one PWM ARGB standard fan on the rear. This advanced fan configuration not only optimizes heat dissipation but also enhances system performance, while the four PWM ARGB fans deliver a captivating gaming ambiance, transforming your build into the ultimate "SHOW CASE".
High-Performance Aesthetics
Engineered for both superior aesthetics and thermal efficiency, the CG530 4F WH comes pre-installed with three PWM ARGB reverse flow fans on the side and one PWM ARGB standard fan on the rear. This advanced fan configuration not only optimizes heat dissipation but also enhances system performance, while the four PWM ARGB fans deliver a captivating gaming ambiance, transforming your build into the ultimate "SHOW CASE".
Versatility and Compatibility

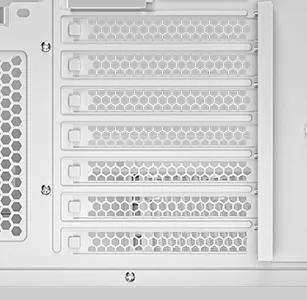

The CG530 4F WH accommodates component ranging from a 210mm PSU, to a 410mm GPU, ensuring installation of the most powerful components without compromise. Supports ATX motherboards and offers 7 expansion slots, providing ample room for multiple GPUs, high-end sound cards, and other peripherals. Additionally, the CG530 4F WH features versatile storage options with 2 x 3.5"" drive bays and 2+1 x 2.5"" drive bays, allowing a mixture of storage solutions for optimal performance and capacity.
Maximum Cooling Capabilities
Never fear the heat with CG530 4F WH's exceptional cooling support. Designed to house a variety of cooling components, it offers wide compatibility for radiators and fans to keep your system running cool under any load.
  • Radiators
  • Fans(120)
  • Fans(140)
  • CPU Air Cooler

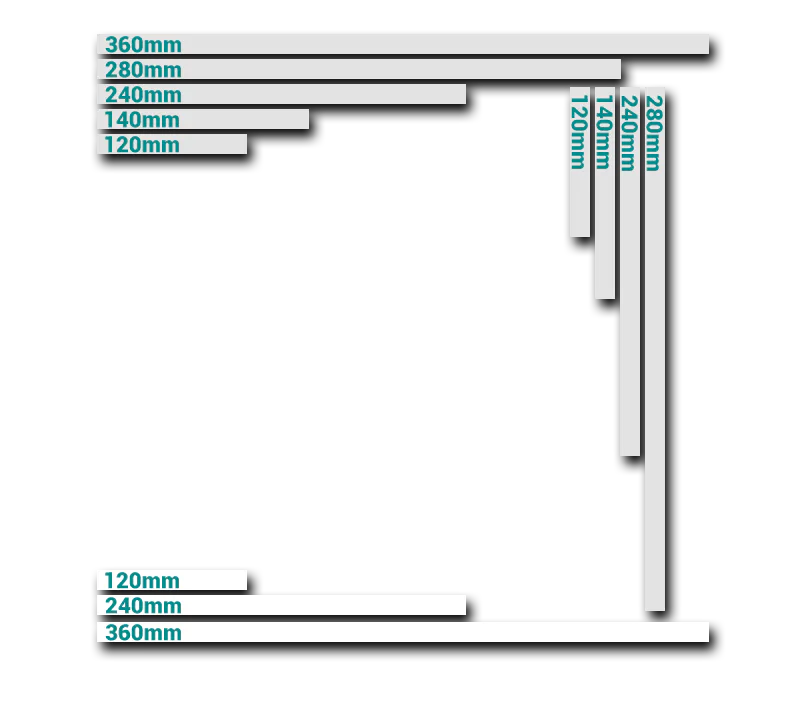

Radiator Support:
Top: Up to 360mm (120/140/240/280/360mm)
Side: Up to 280mm (120/140/240/280mm)
Bottom: Up to 360mm (120/240/360mm)

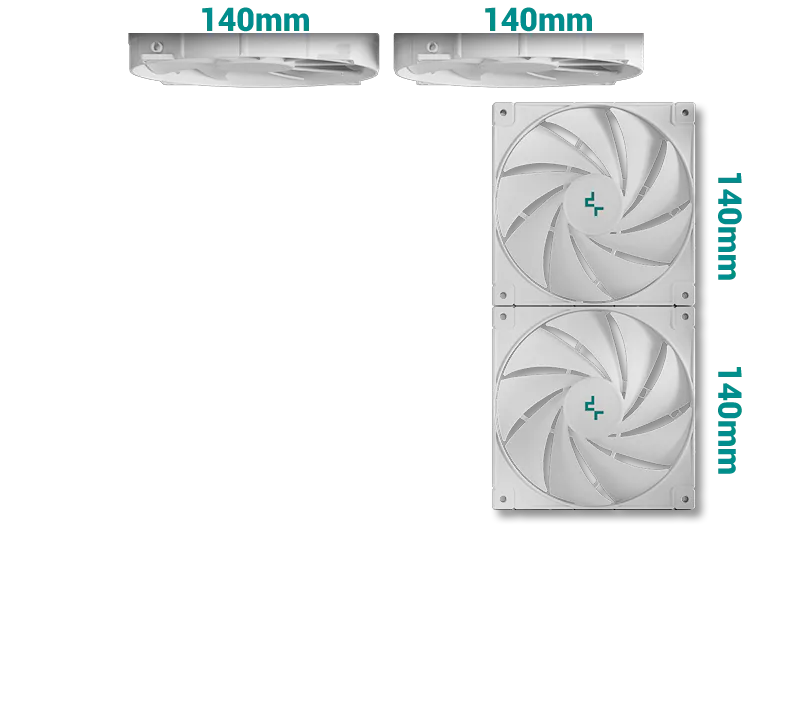

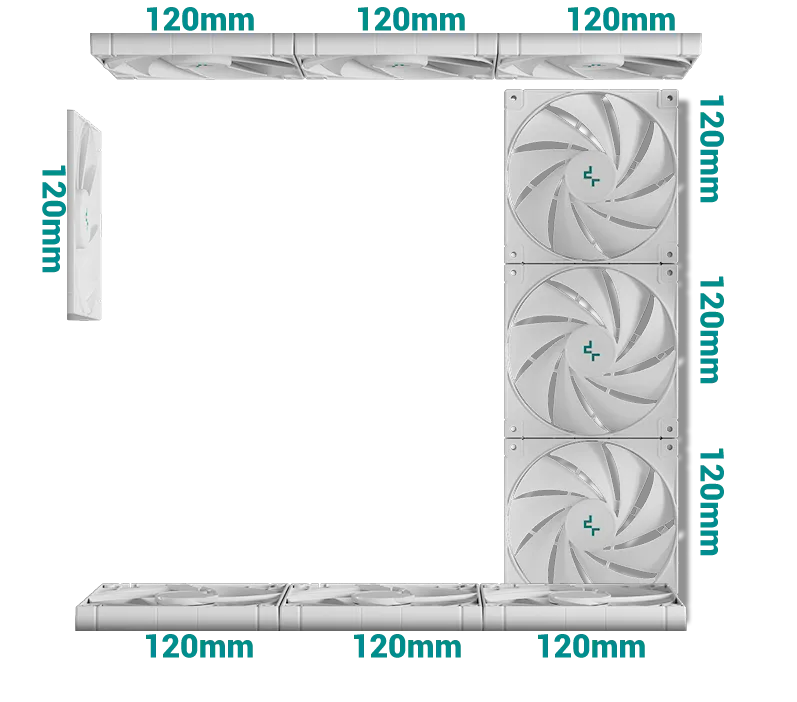

Fan Support:
Top: 3×120mm or 2×140mm
Side: 3×120mm or 2×140mm
Rear: 1×120mm
Bottom: 3×120mm or configurations including HDD/SSD mounts
CPU Air Cooler:
Supports coolers up to 160mm in height
Easy Maintenance and Cable Management

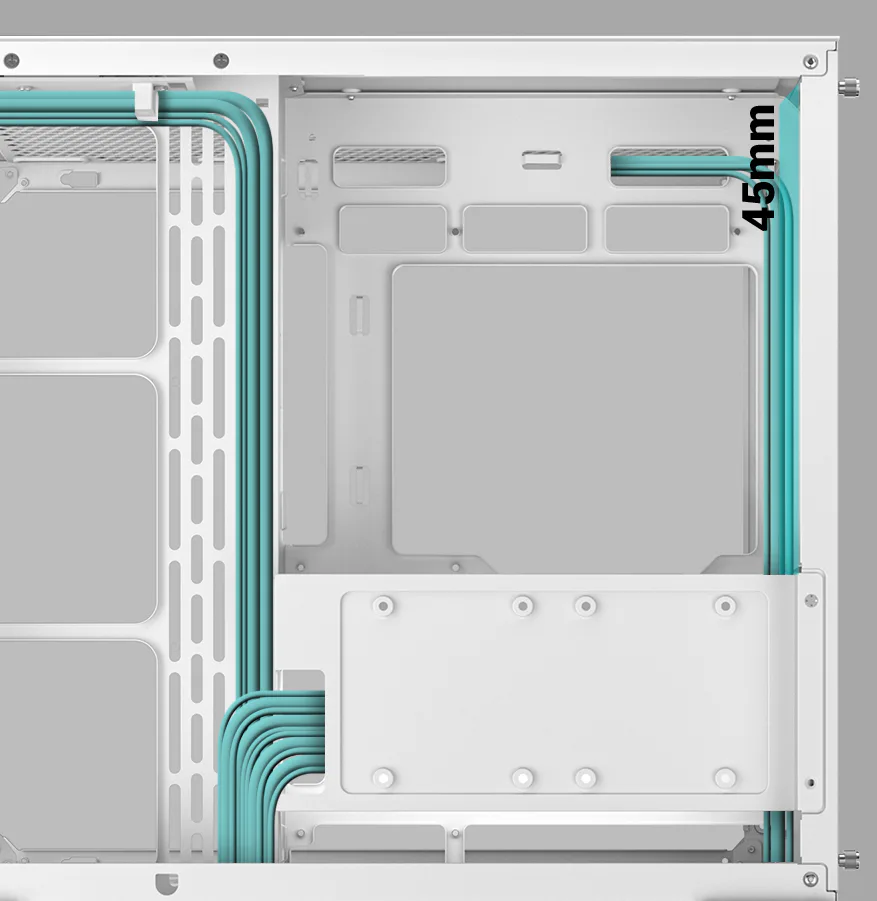

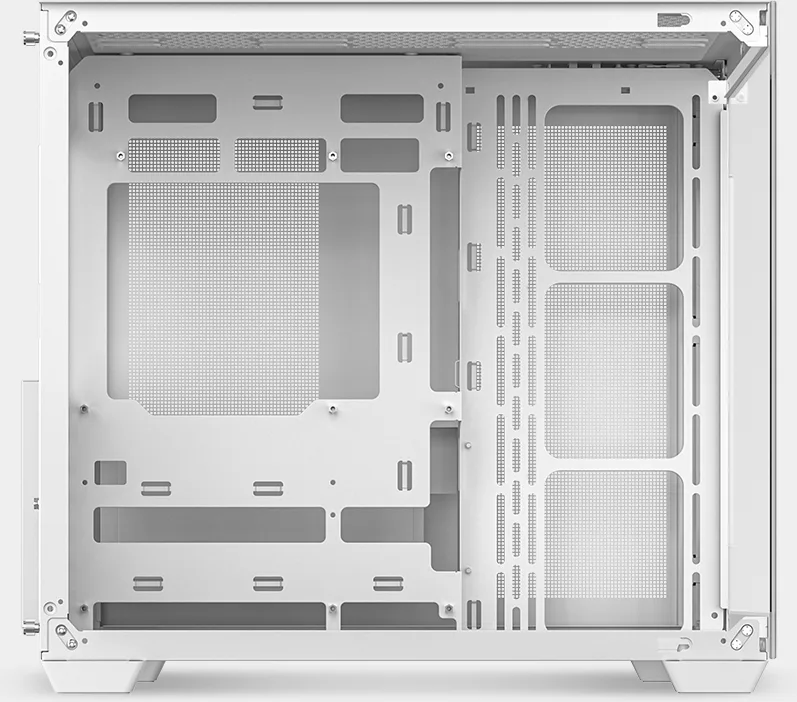

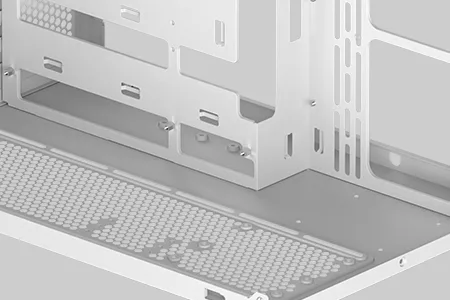

Keep your build pristine and your components dust-free. The top and bottom panels are equipped with magnetic air filters, making cleaning a breeze and providing robust dust prevention. Additionally, the backplane offers an impressive 45mm of wiring space, ensuring that cable management is straightforward and hassle-free. Enjoy a clean, organized interior that enhances airflow and simplifies maintenance.

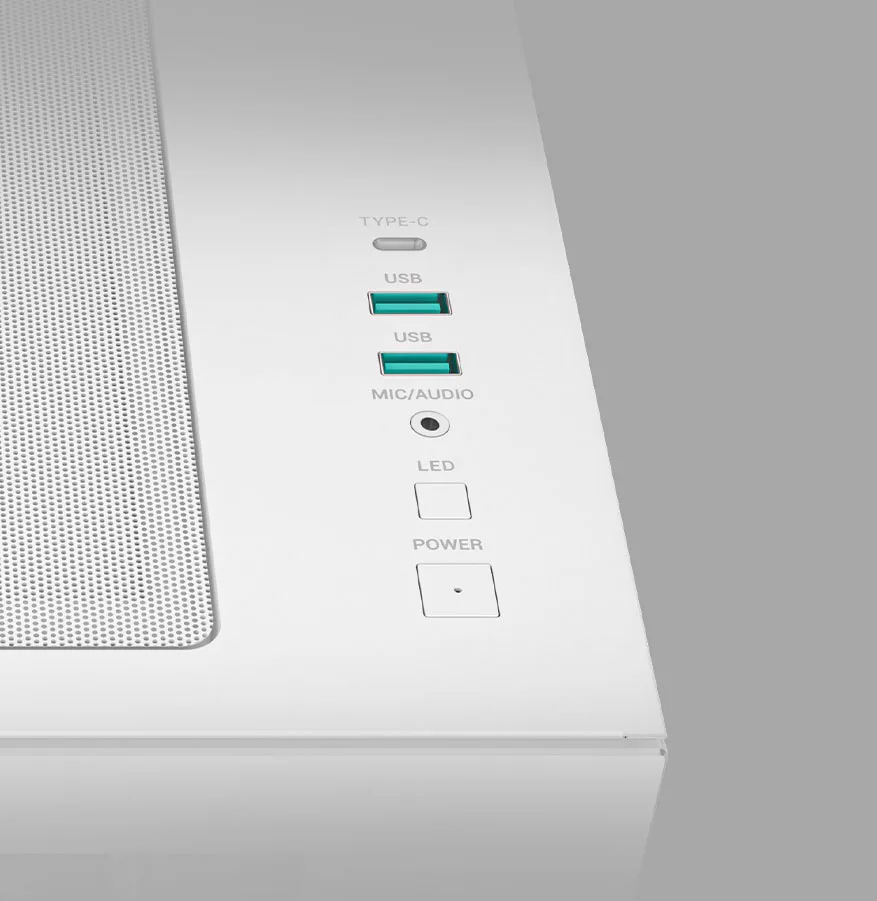

WELL CONNECTED
Additional I/O ports, featuring dual USB 3.0, USB TYPE C, and 2-in-1 audio port, offers seamless connectivity for multiple devices, enhancing user versatility and system integration.
Technical Spec
Product Dimensions440×285×399mm(L×W×H)
Net Weight7.1kg
MaterialsABS+SPCC+Tempered Glass
Motherboard SupportITX/Micro-ATX/ATX
ATX(Rear Connector)/Micro-ATX(Rear Connector)
Front I/O PortsUSB3.0×2、Gen2 Type-C x1、Audio/Mic×1
3.5" Drive Bays2
2.5" Drive Bays2+1
Expansion Slots7Slots
Pre-Installed FansSide: 3×120mm(PWM+ARGB Reverse Blade)
Rear: 1×120mm(PWM+ARGB)
Fan SupportFront: NA
Top: 3×120mm/2x140mm
Side: 3×120mm/2x140mm
Rear: 1×120mm
Bottom: 3×120mm/3.5 HDD+2x120mm/2.5 SSD+2x120mm
Radiator SupportFront: NA
Top: 120/140/240/280/360mm
Side: 120/140/240/280mm
Bottom: 120/240/360mm
CPU Cooler Height Limit160mm
GPU Length Limit410mm
Power Supply TypeATX PS2（maximum length: 210mm）
EAN6933412765165
P/NR-CG530-WHADA4-G-1
