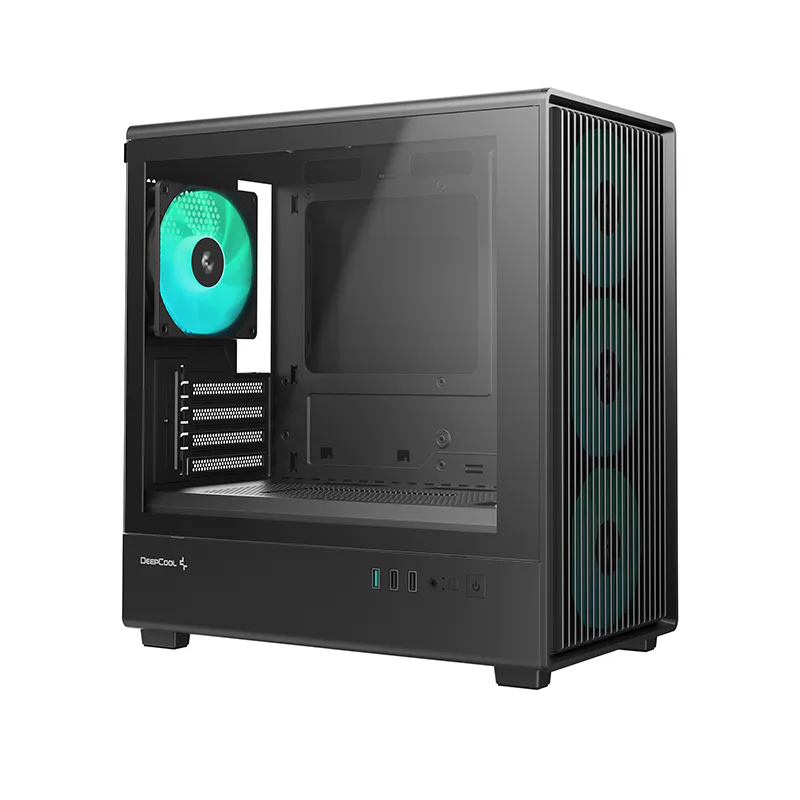

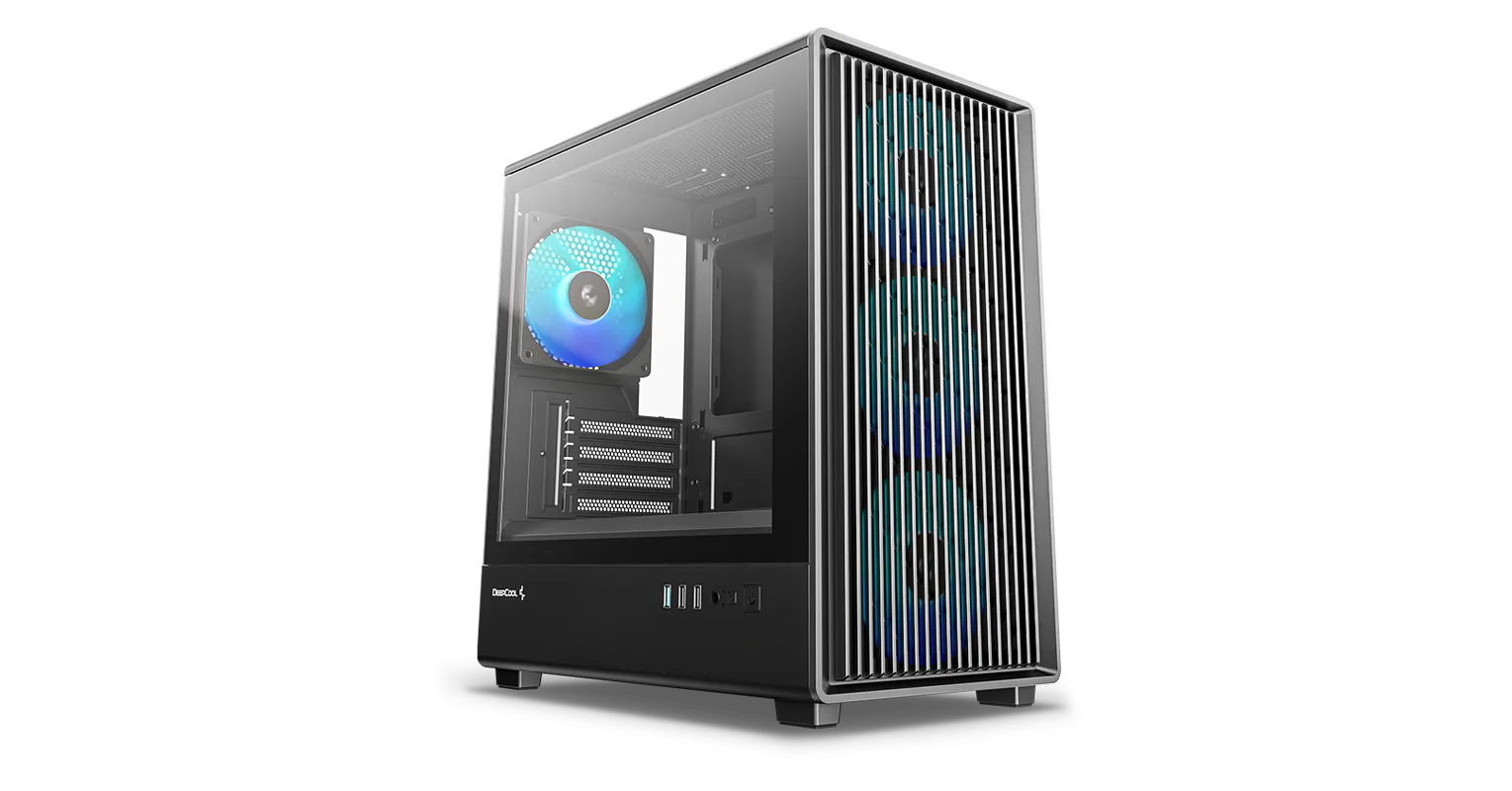

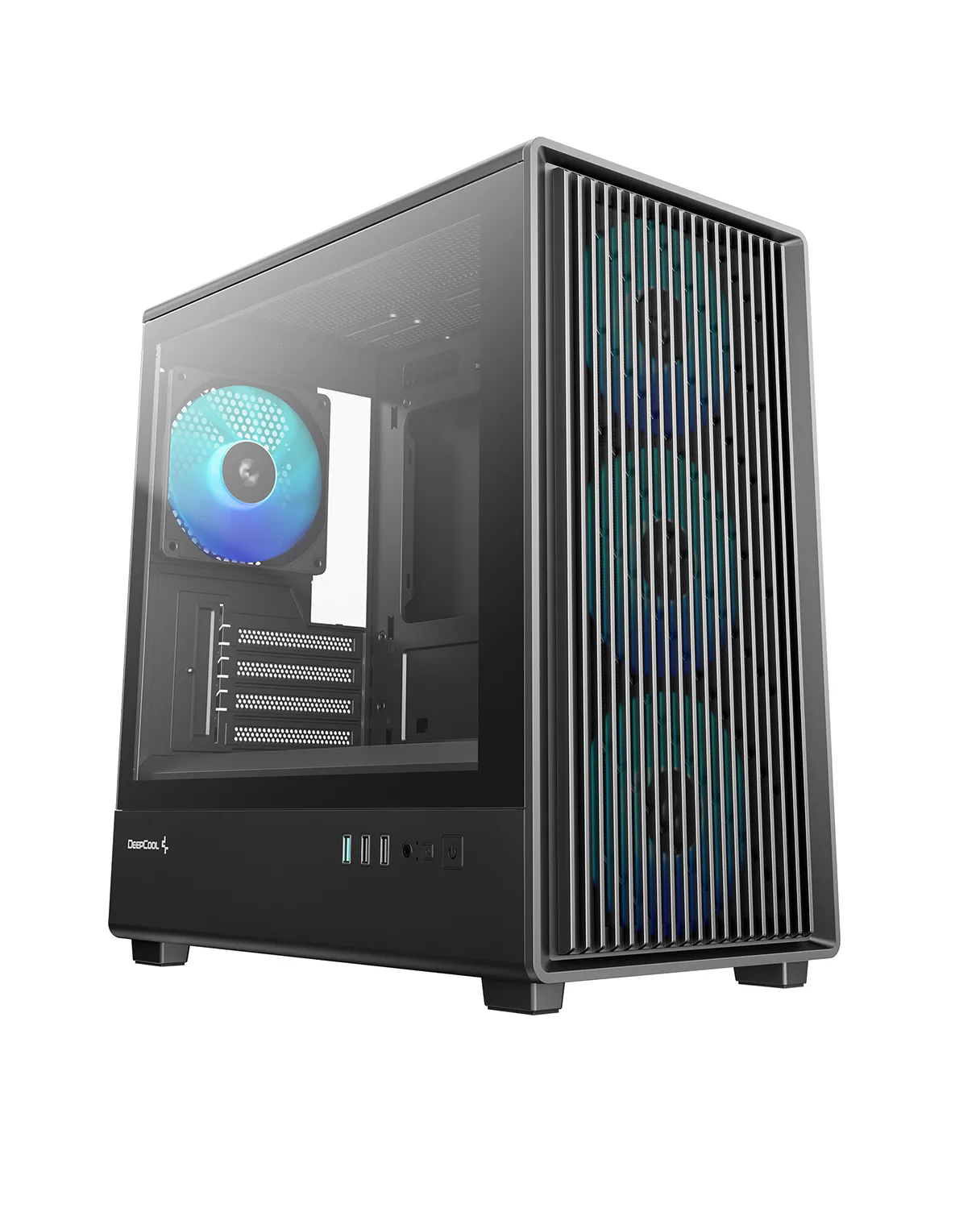

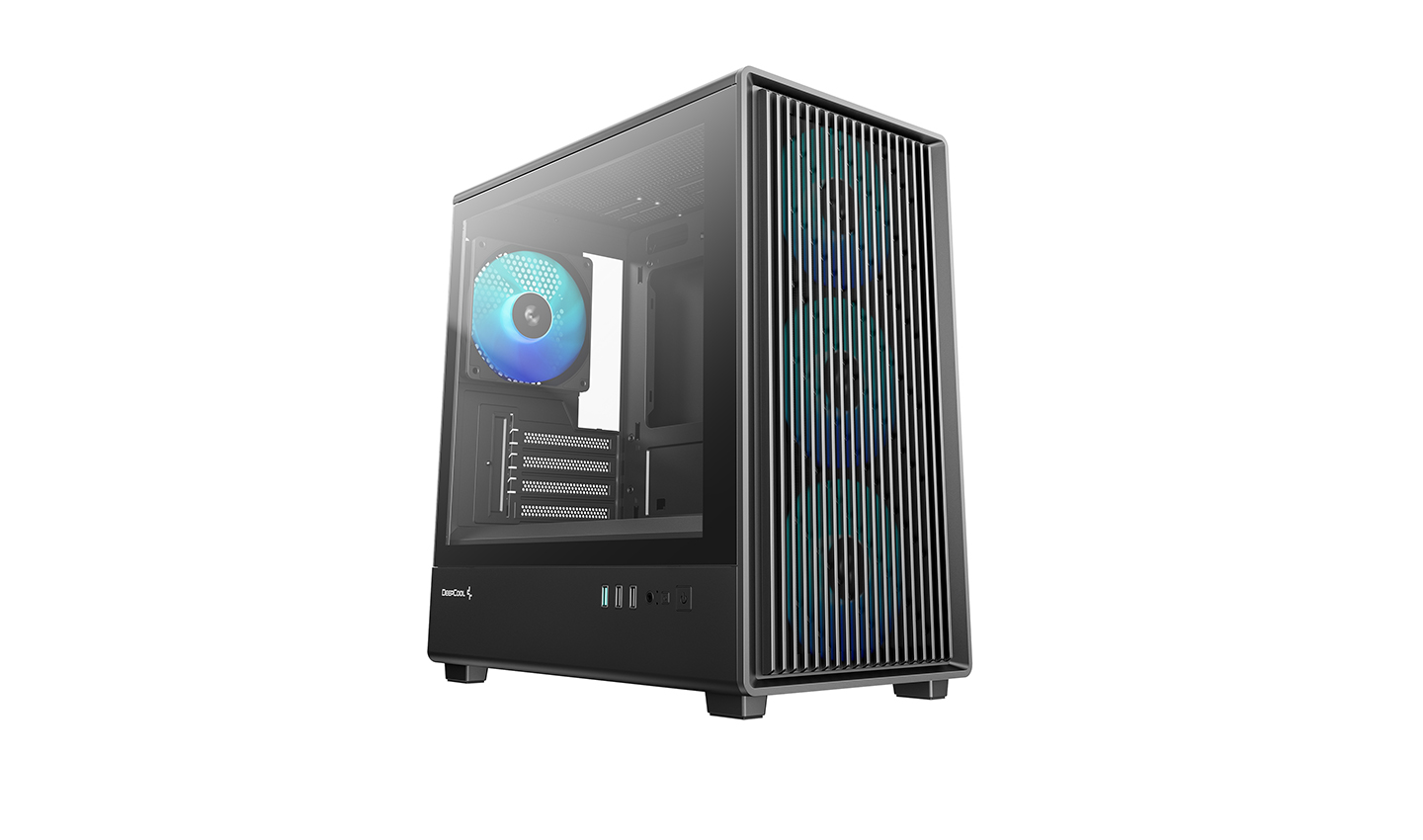

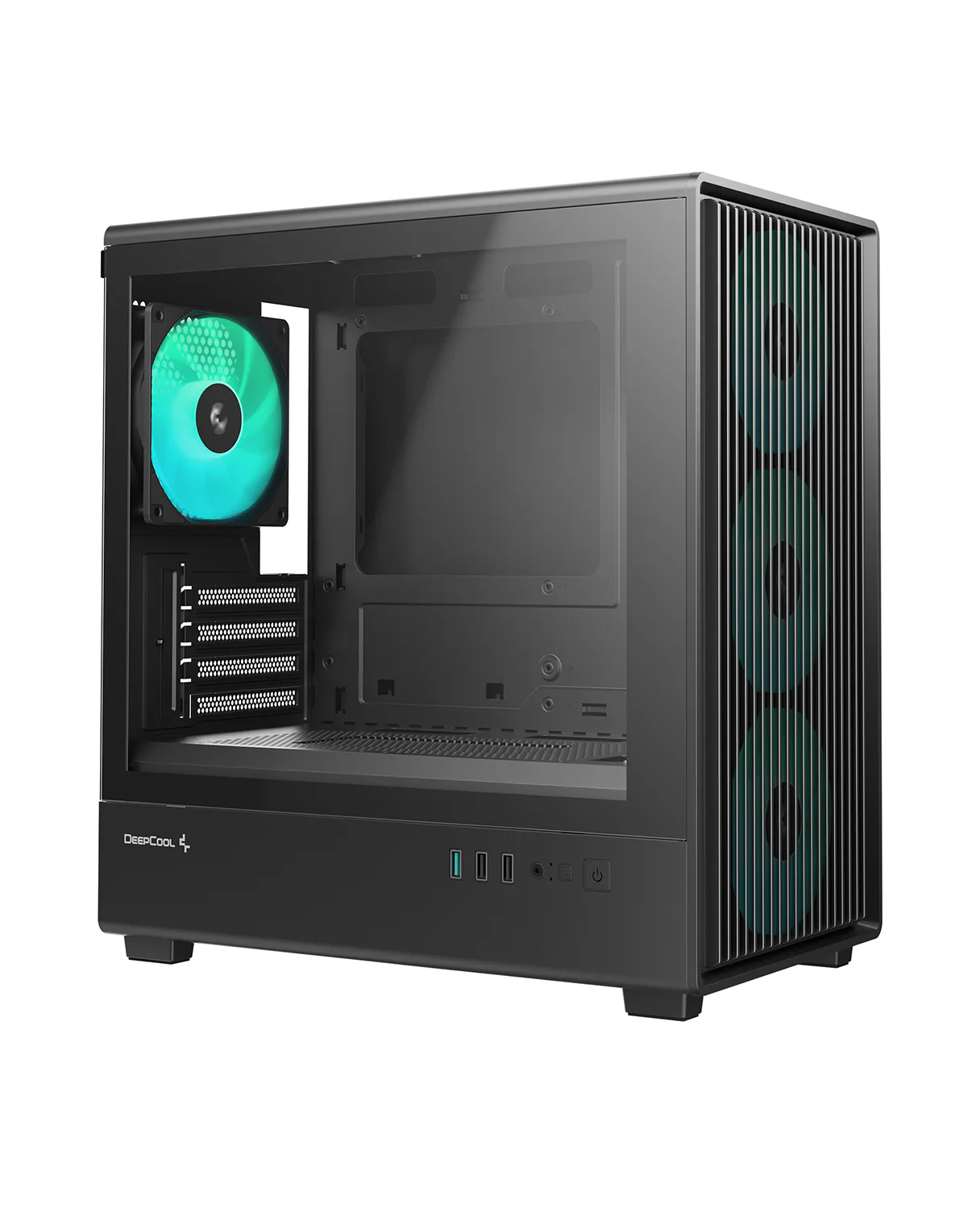

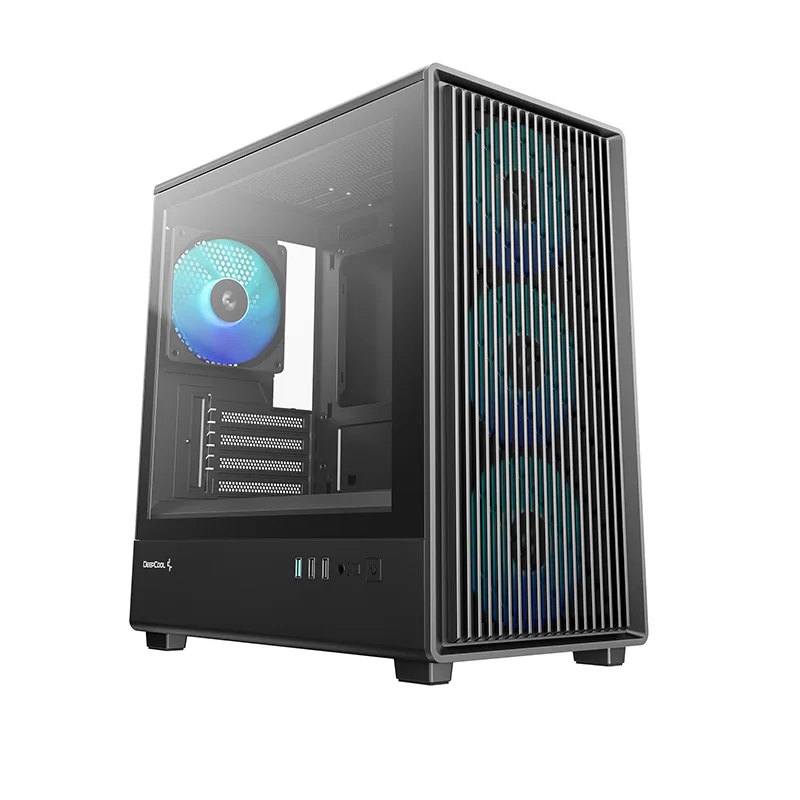

CC350 4F

M-ATX AIRFLOW CASE

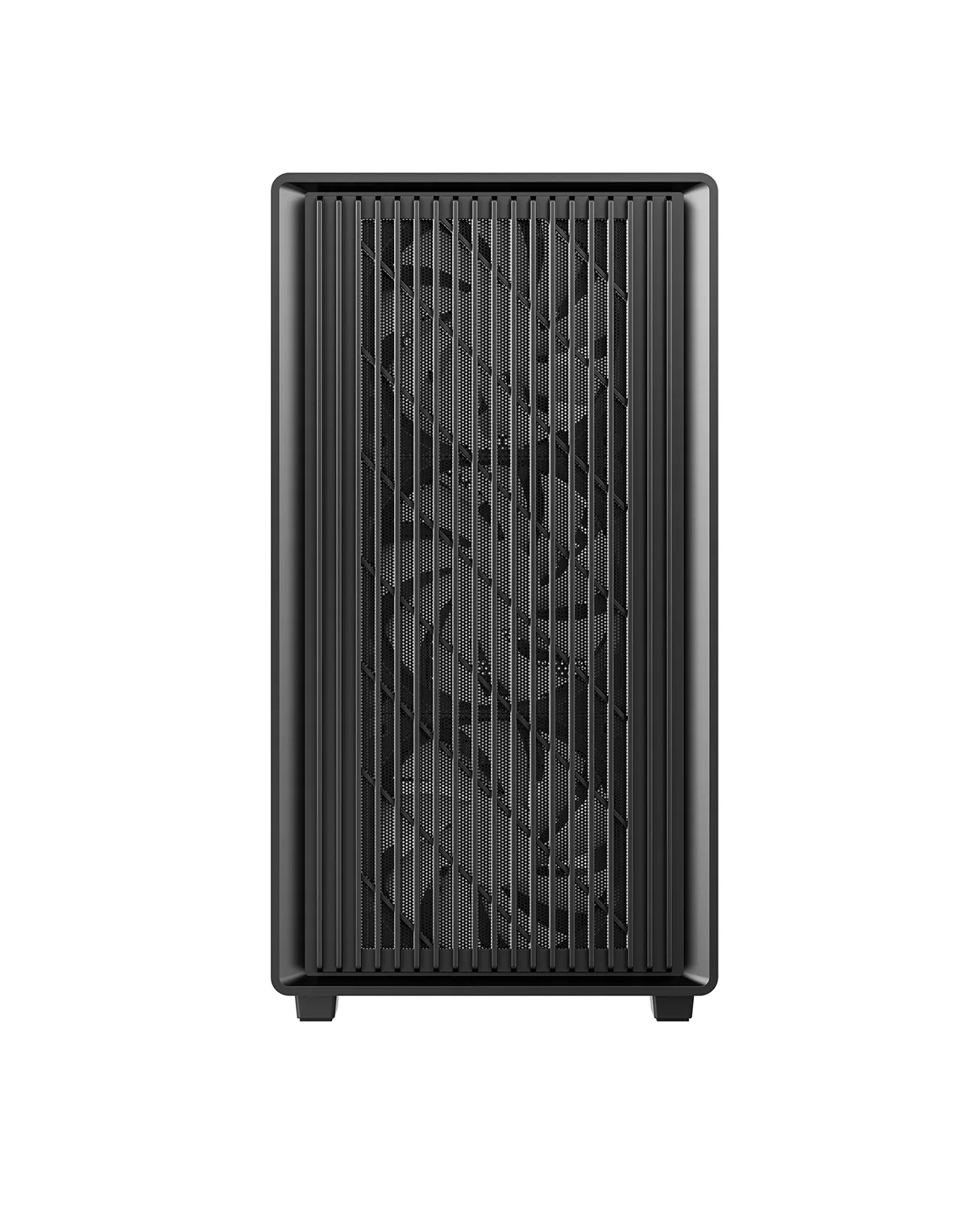

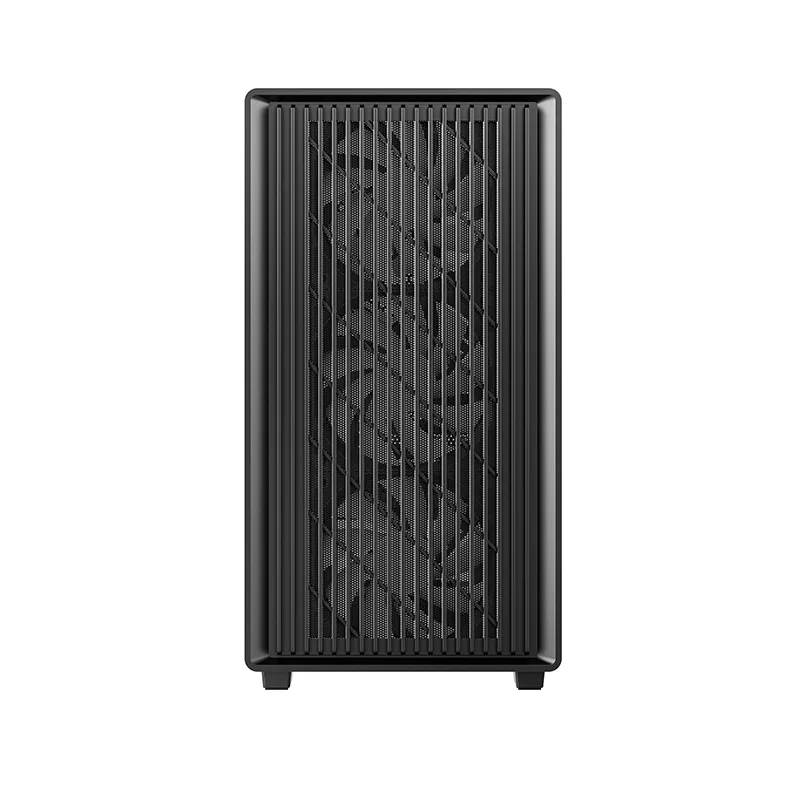

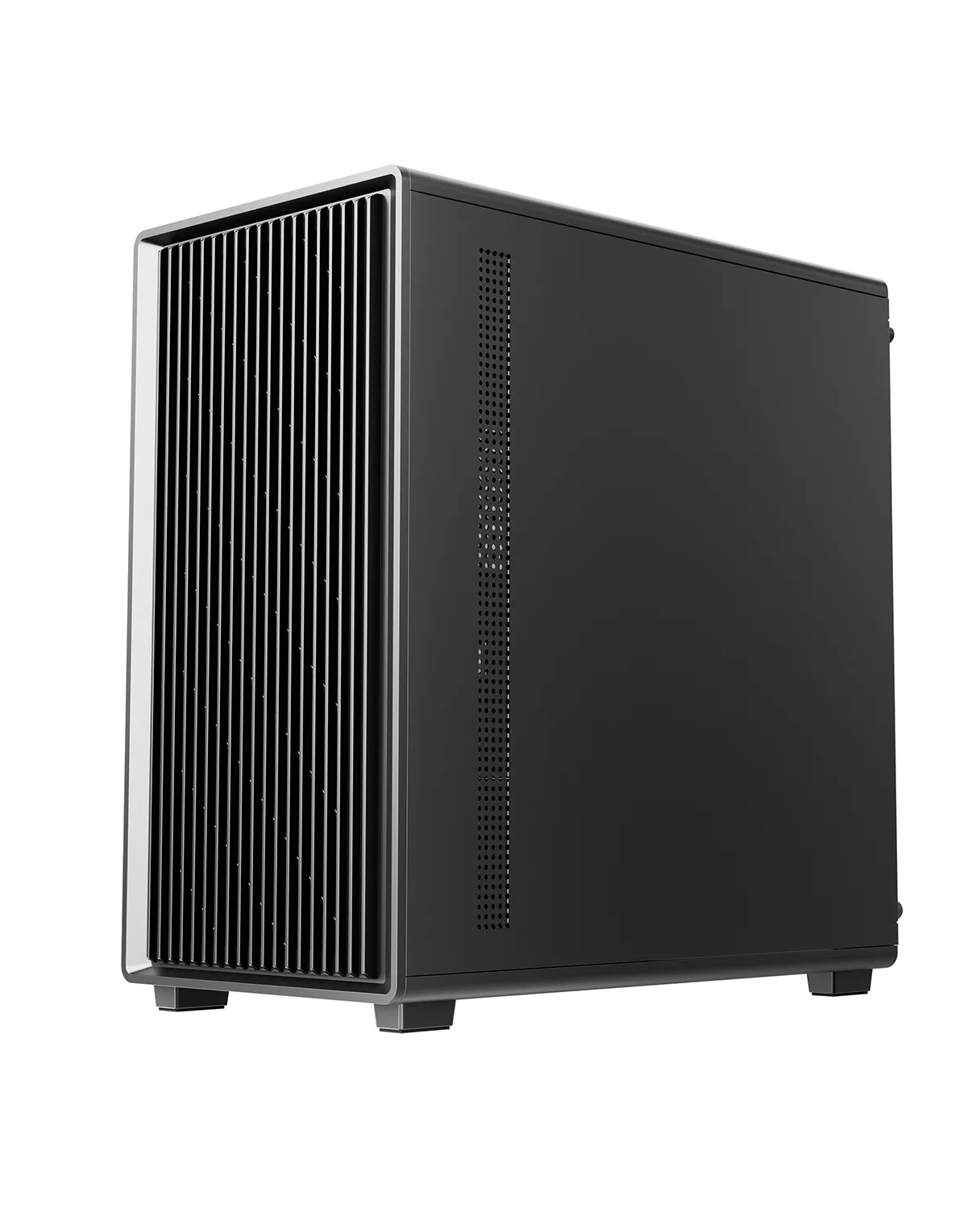

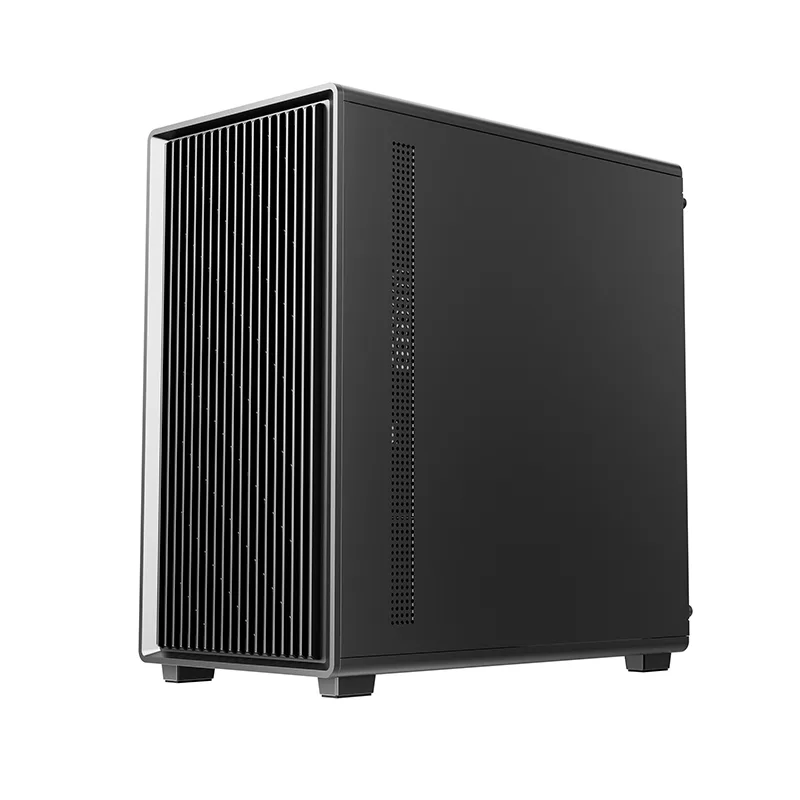

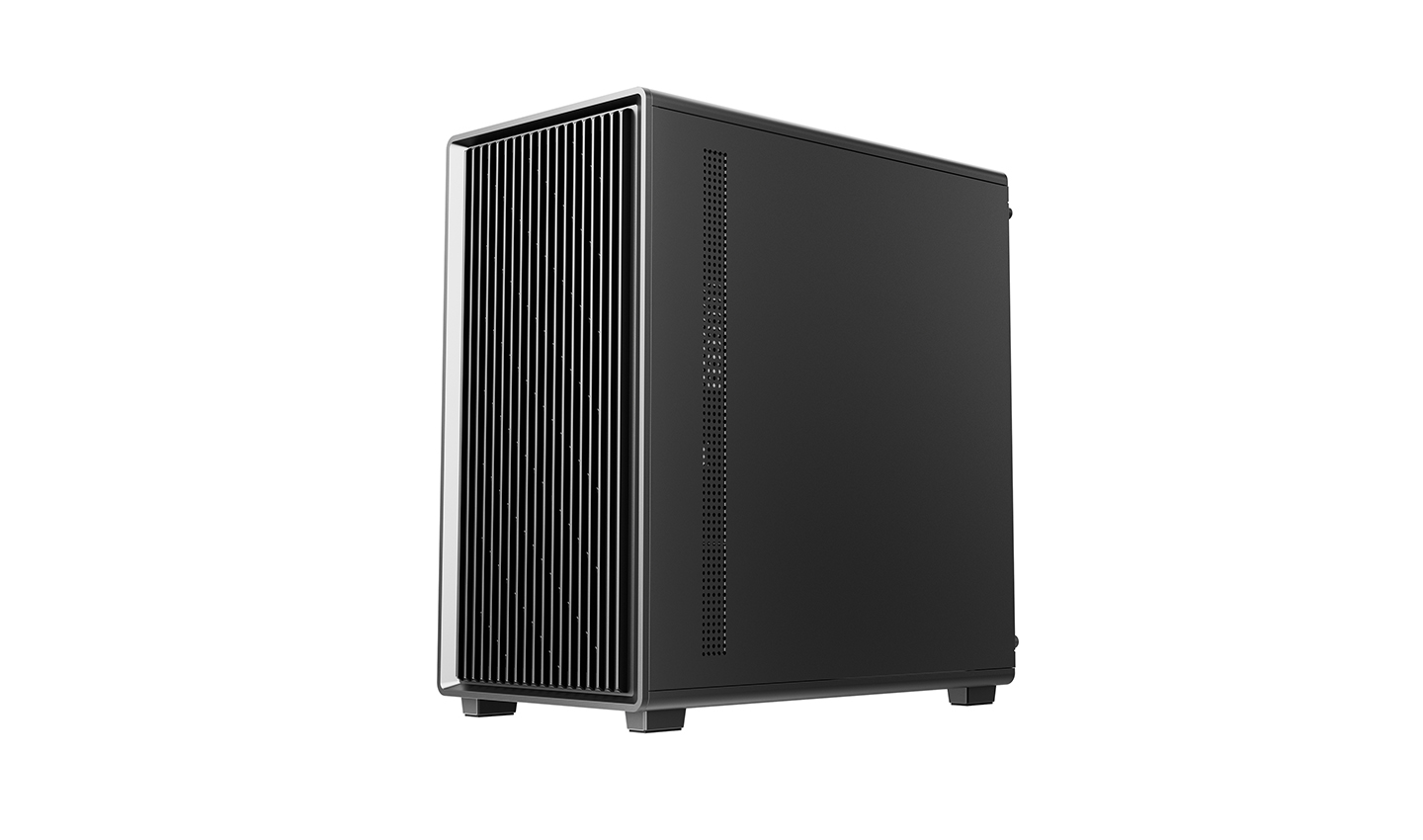

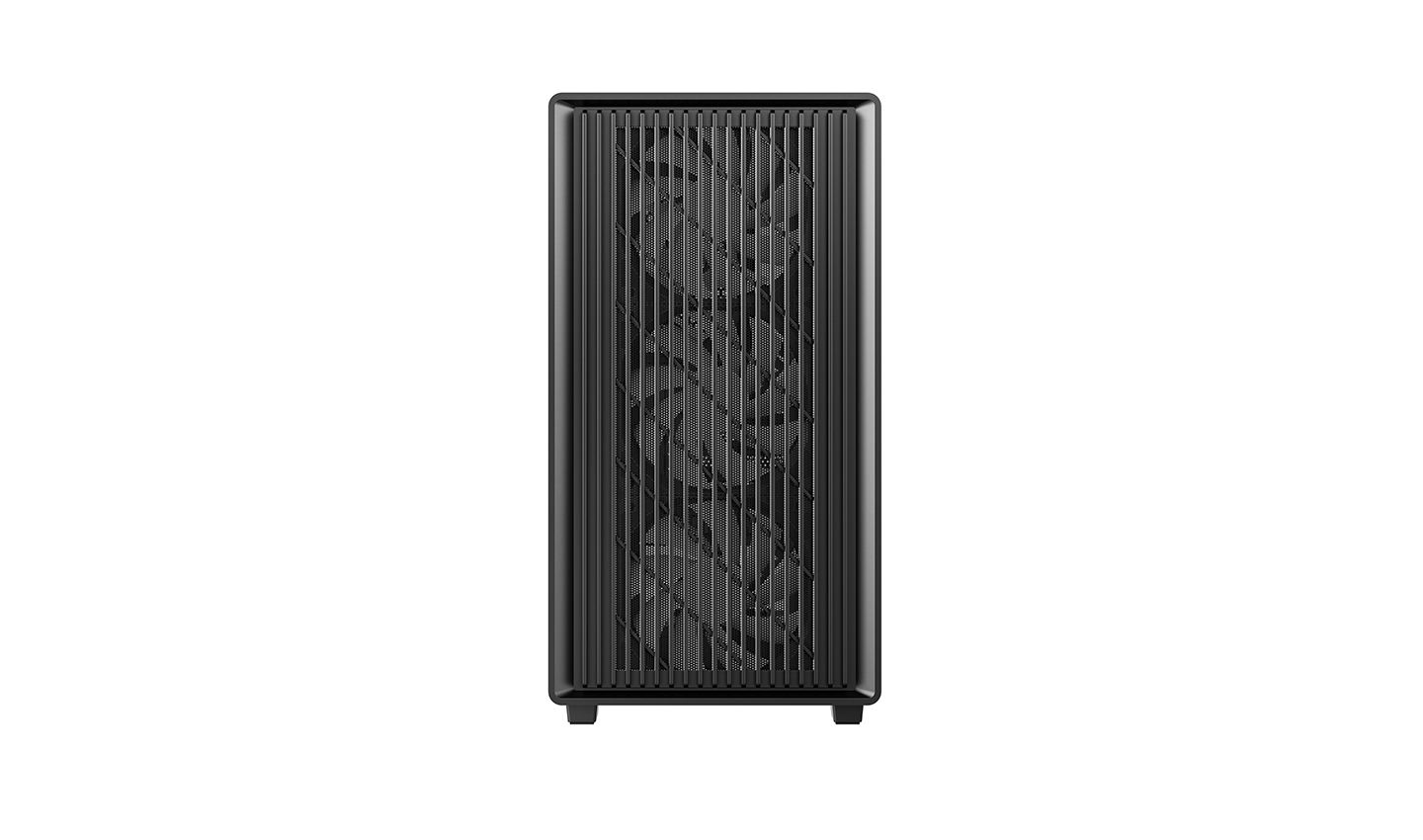

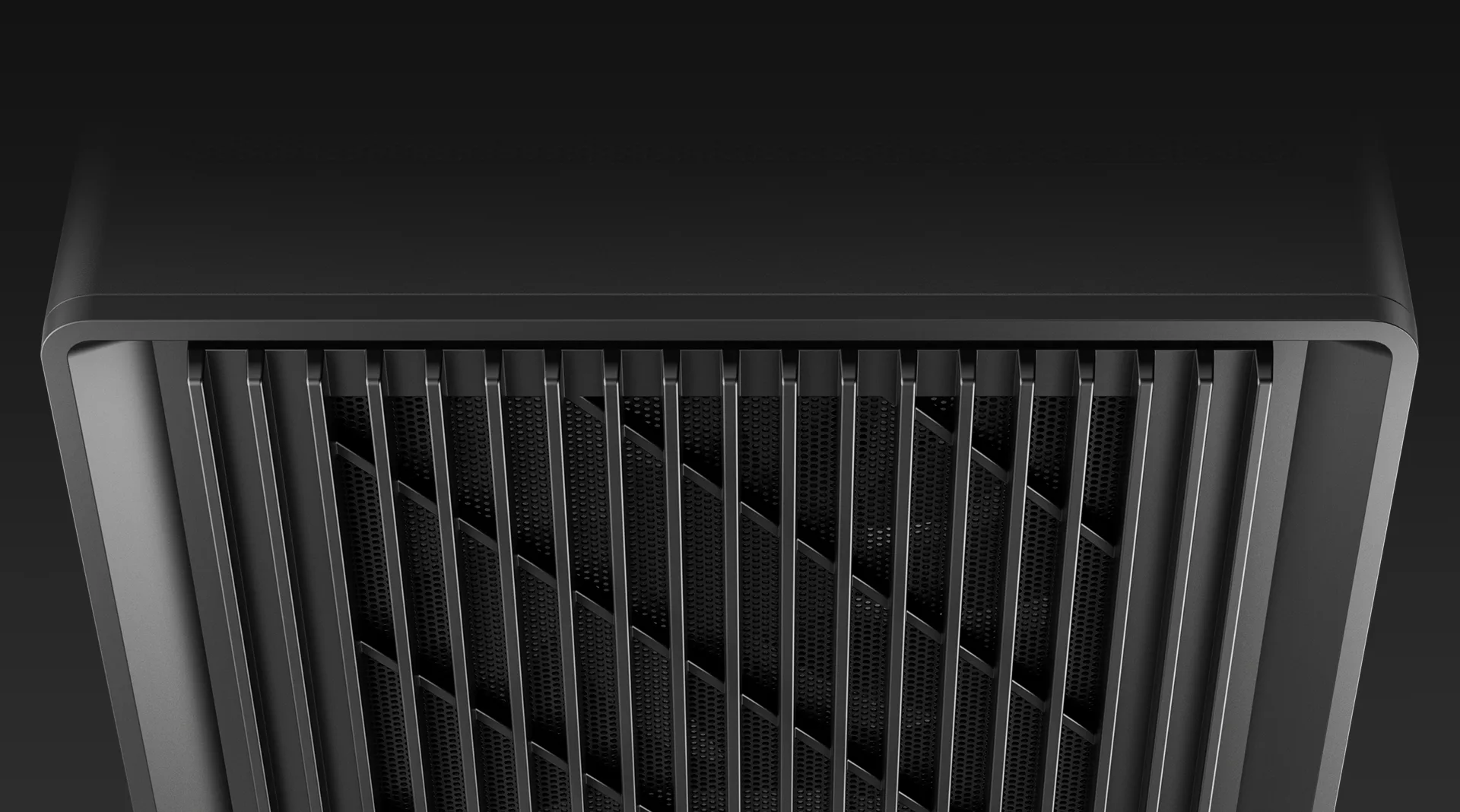

CLEAN FRONT GRILLE DESIGN

The grille-style front panel gives the case a clean, understated look while allowing ample ventilation for internal components.

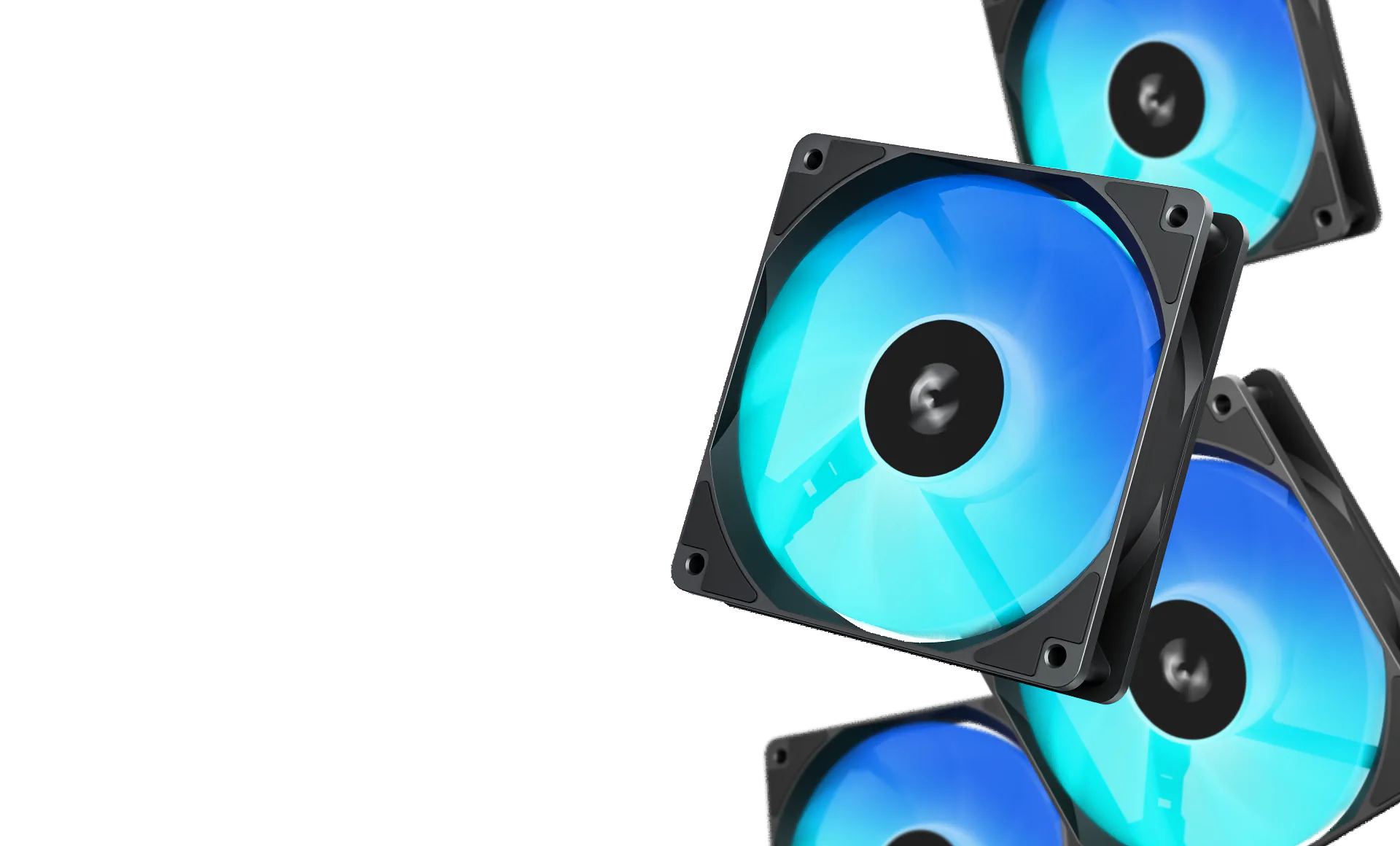

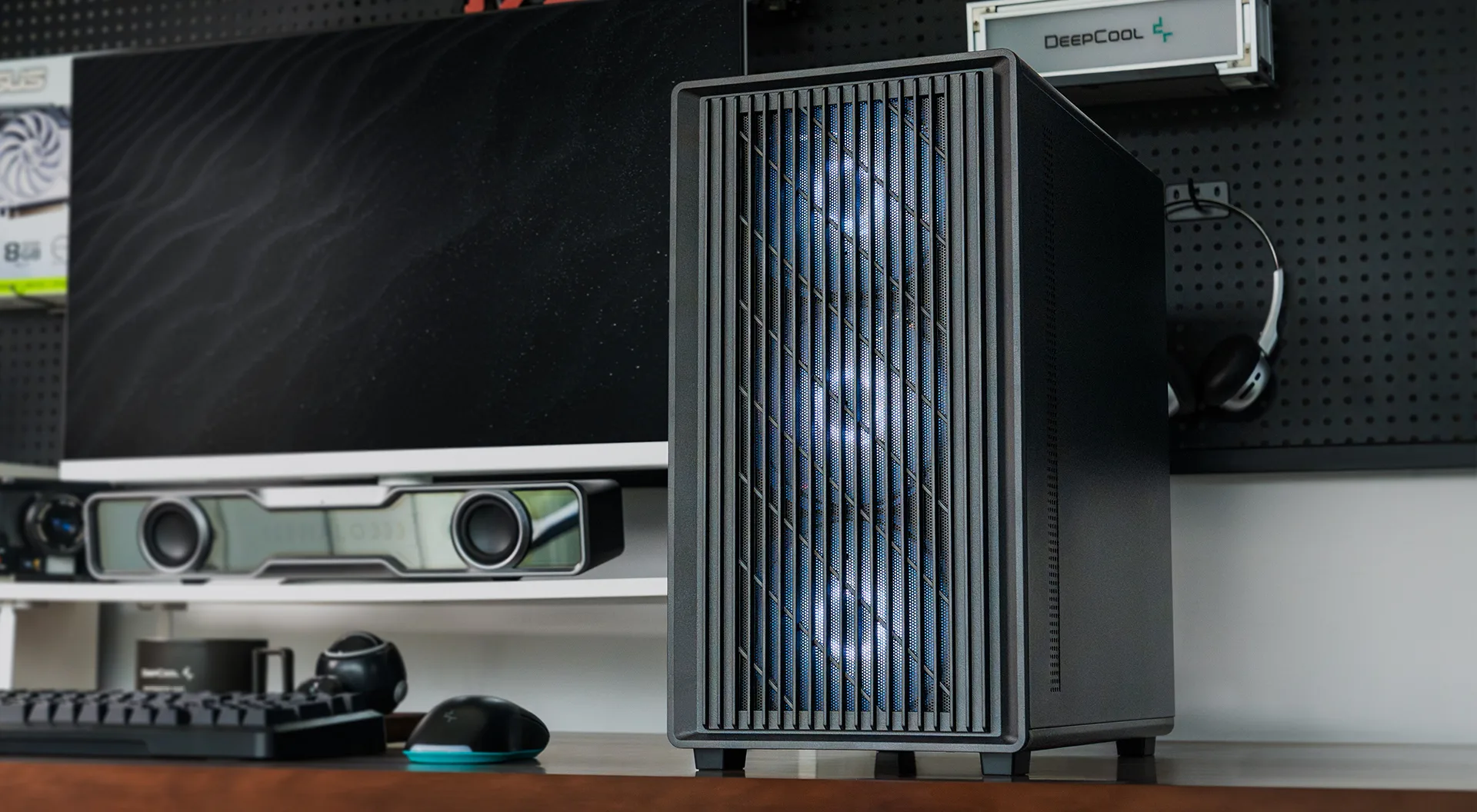

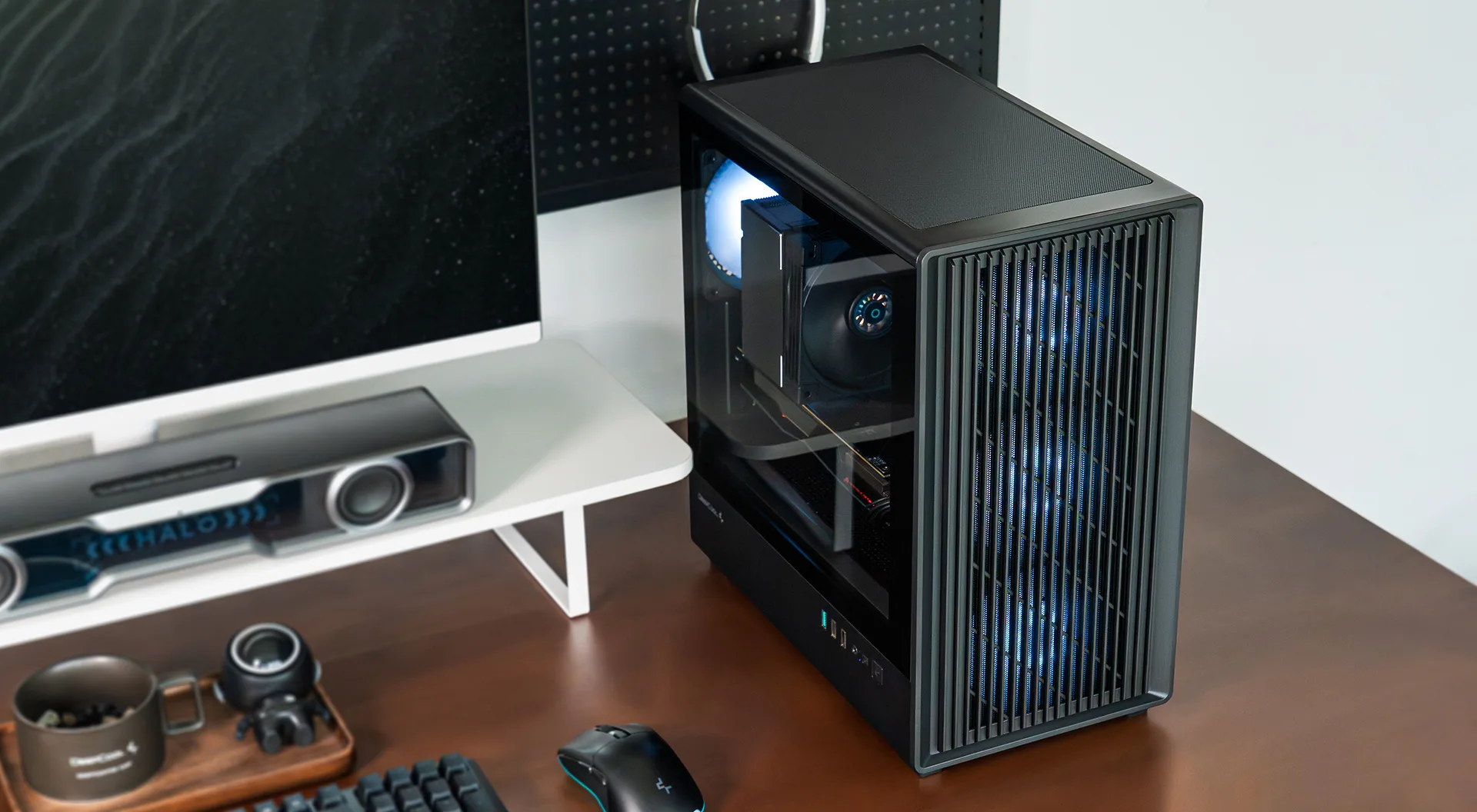

PRIMED AND READY

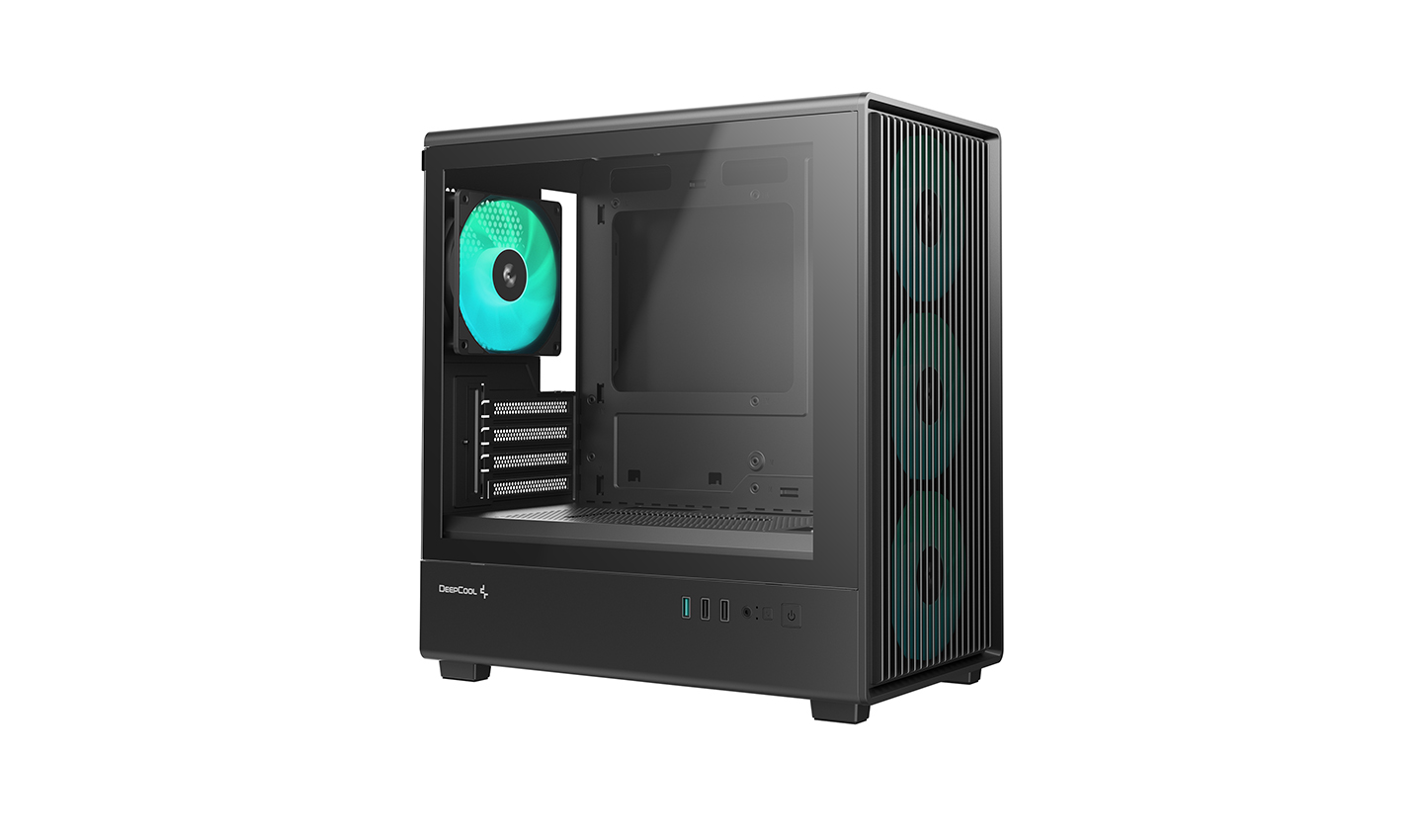

Four 120mm ARGB fans come pre-installed to deliver effective cooling and vivid illumination from the start.

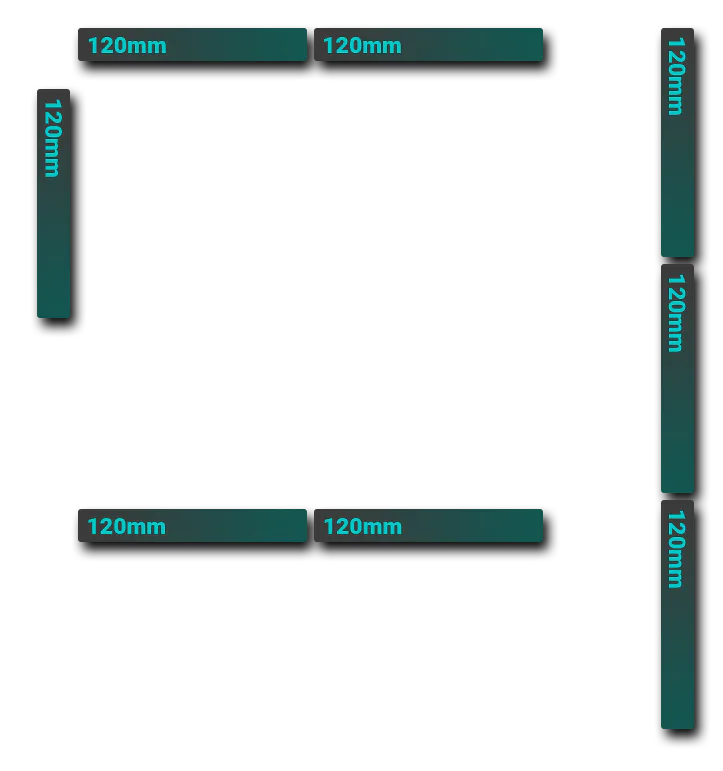

COOLING CONFIGURATION

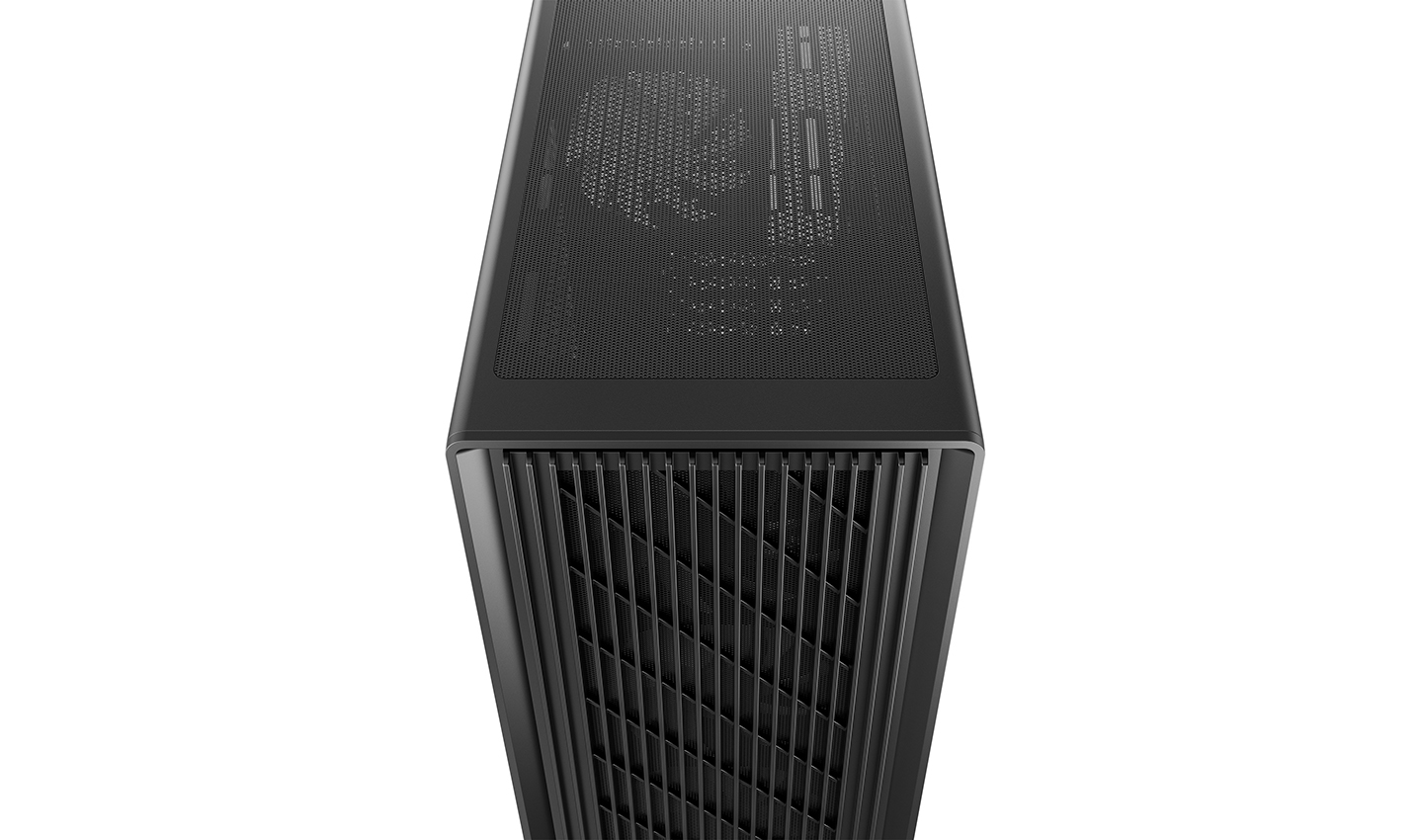

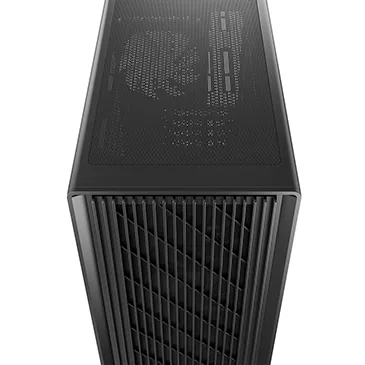

Support for up to eight fans allows you to tailor airflow to your needs. Two 120mm fan mounts on the PSU shroud help deliver fresh airflow directly to the GPU. A 240mm radiator is supported at the top.

8 120mm

2 140mm

Fan Support

1 240mm

1 120mm

Radiator Support

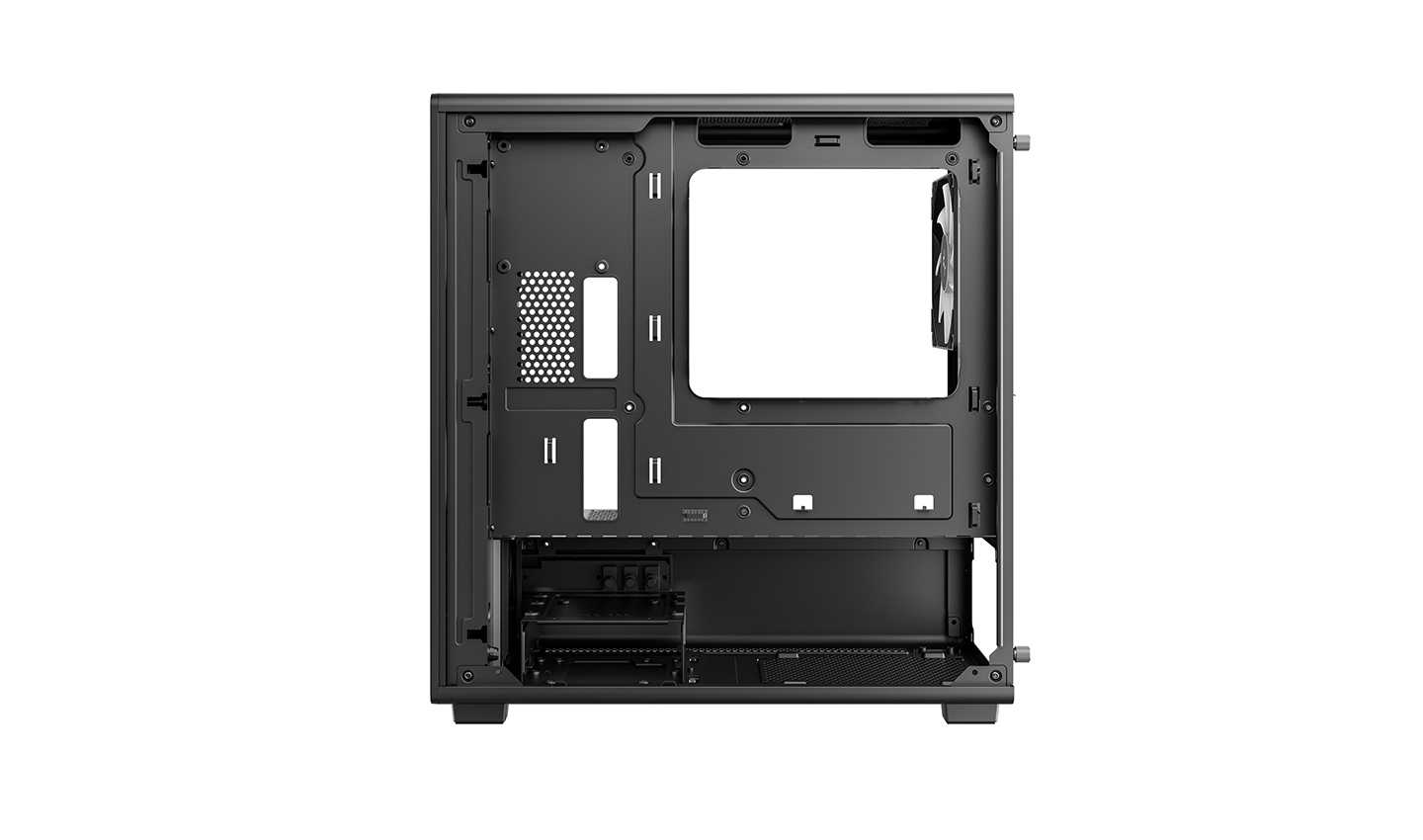

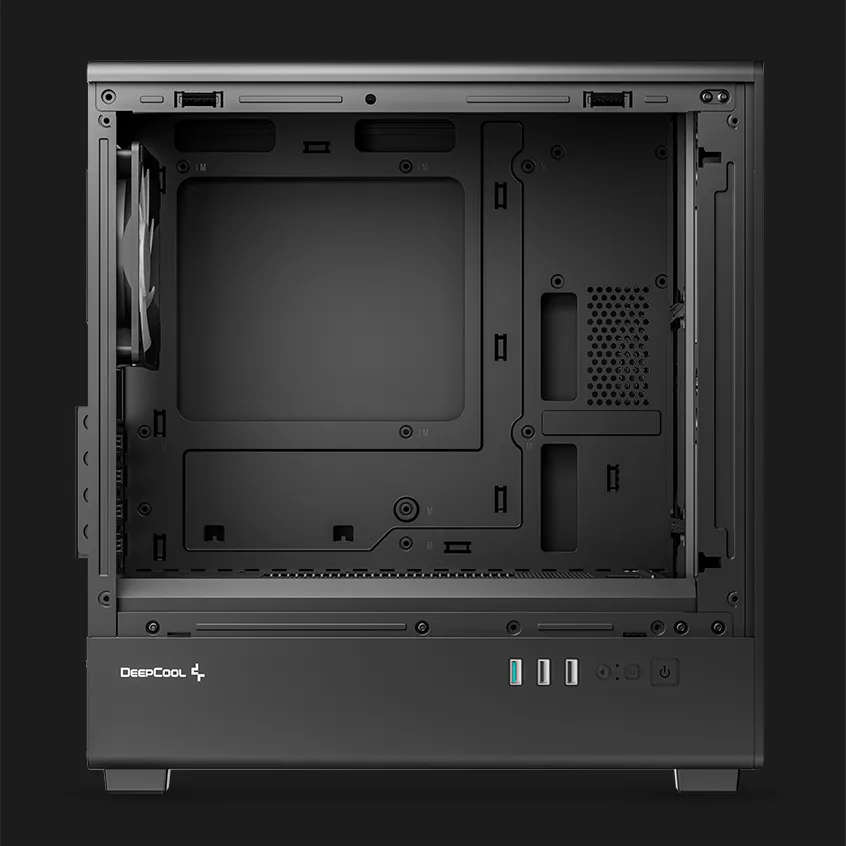

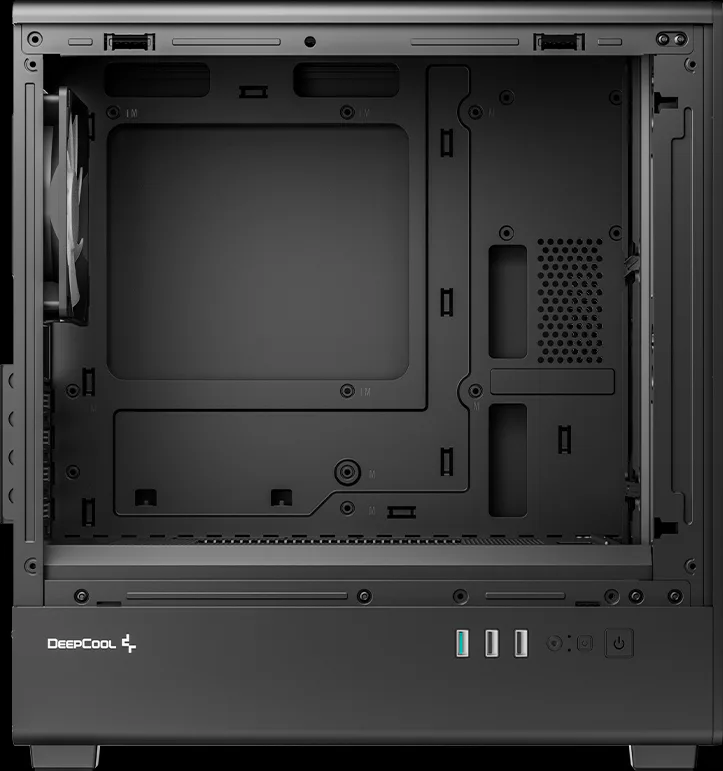

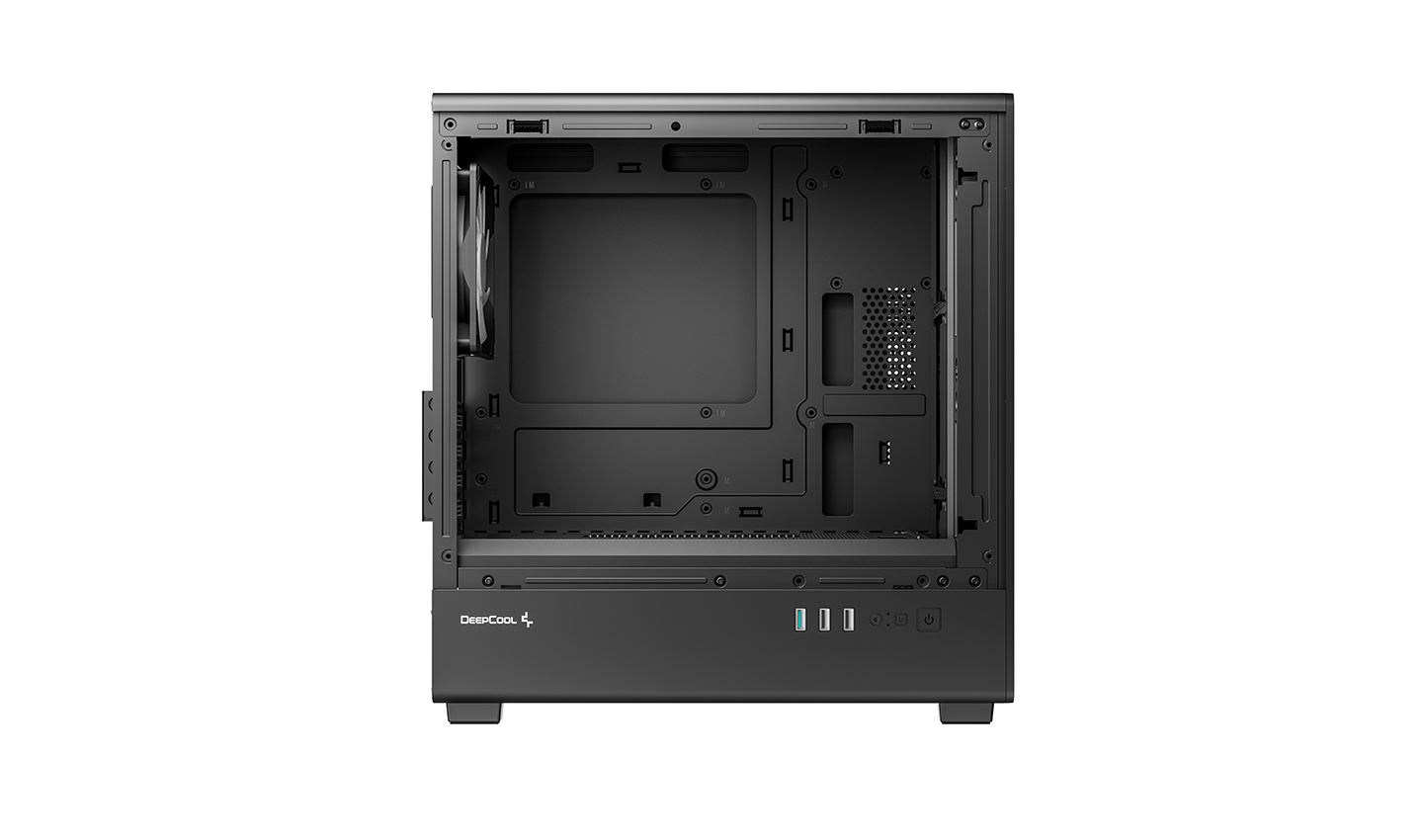

MORE ROOM THAN EXPECTED

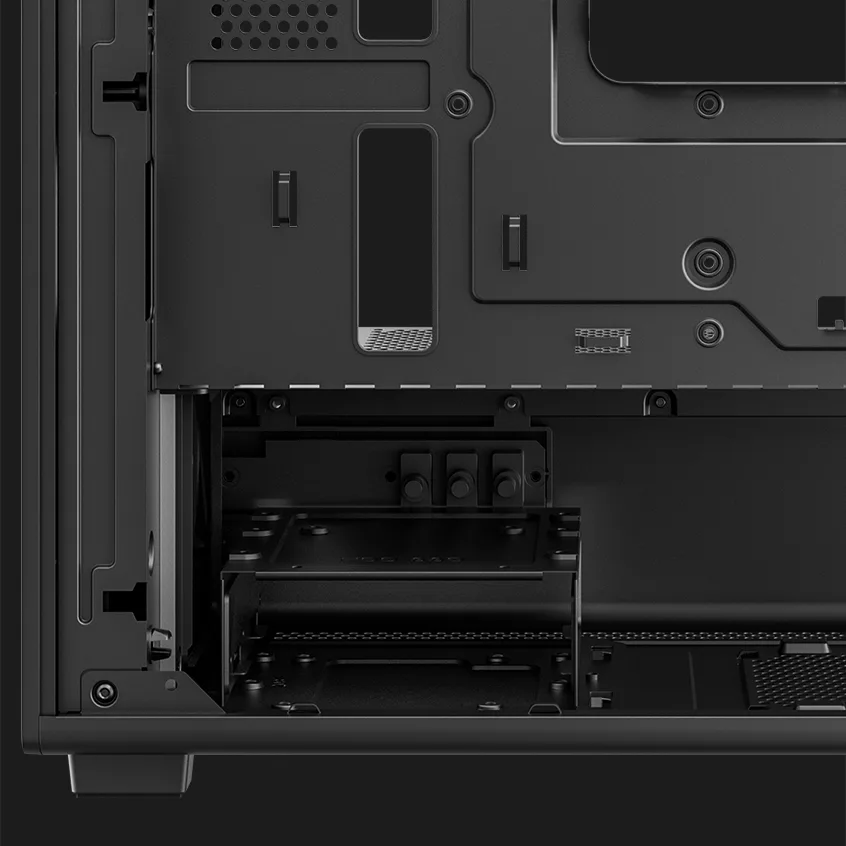

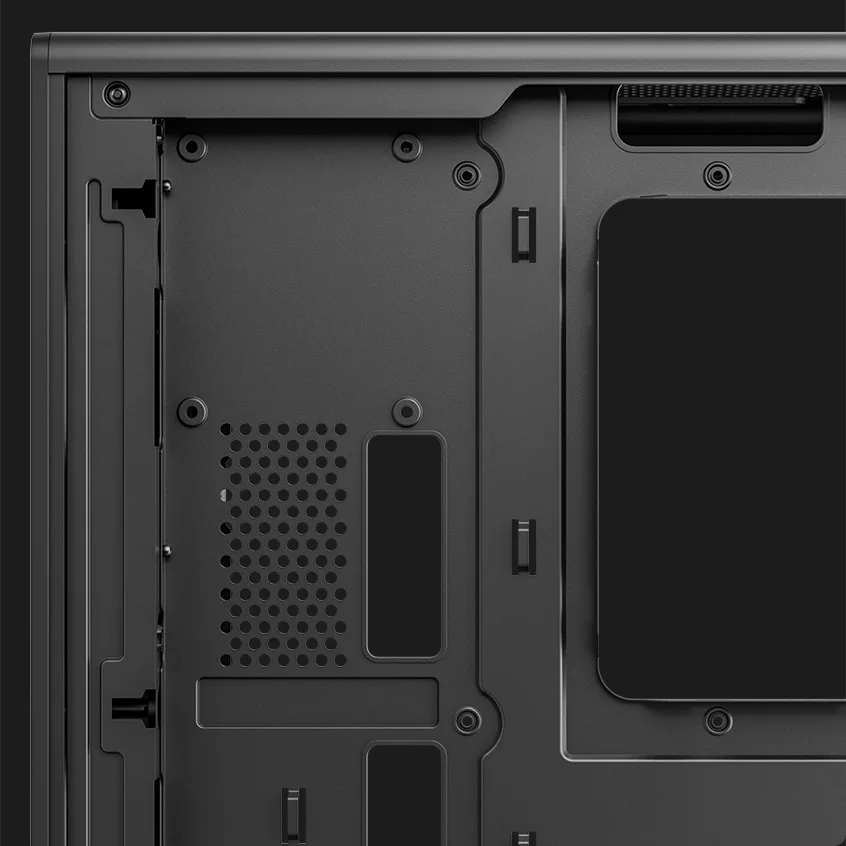

Built around a Micro-ATX layout, the CC350 4F still leaves room for serious hardware. It supports up to 317mm graphics cards, 163mm CPU air coolers, and 180mm ATX PS2 power supplies, making it easy to fit capable components into a smaller build. Storage support includes 2× 3.5" HDDs and 1× 2.5" SSD, with both 3.5" bays also usable for 2.5" drives when needed.

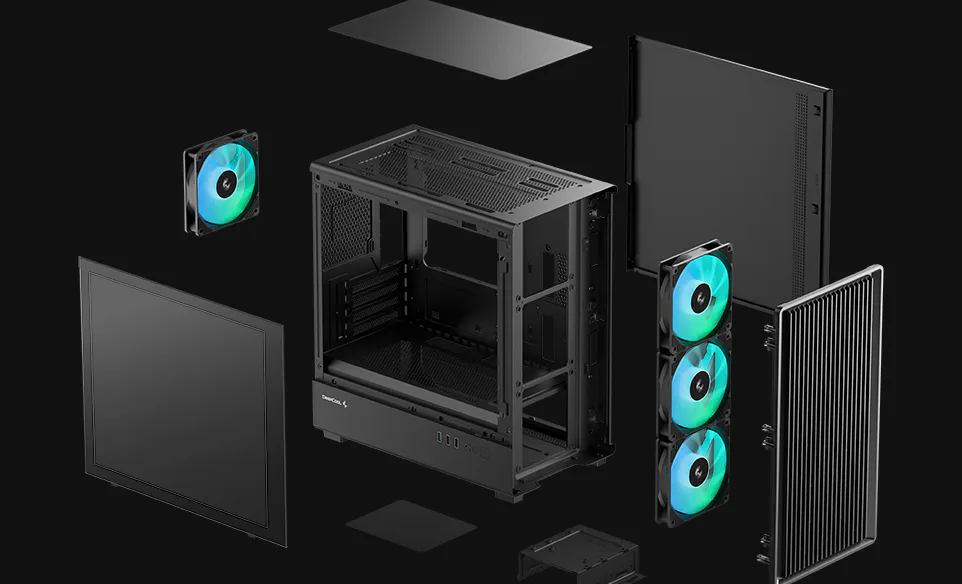

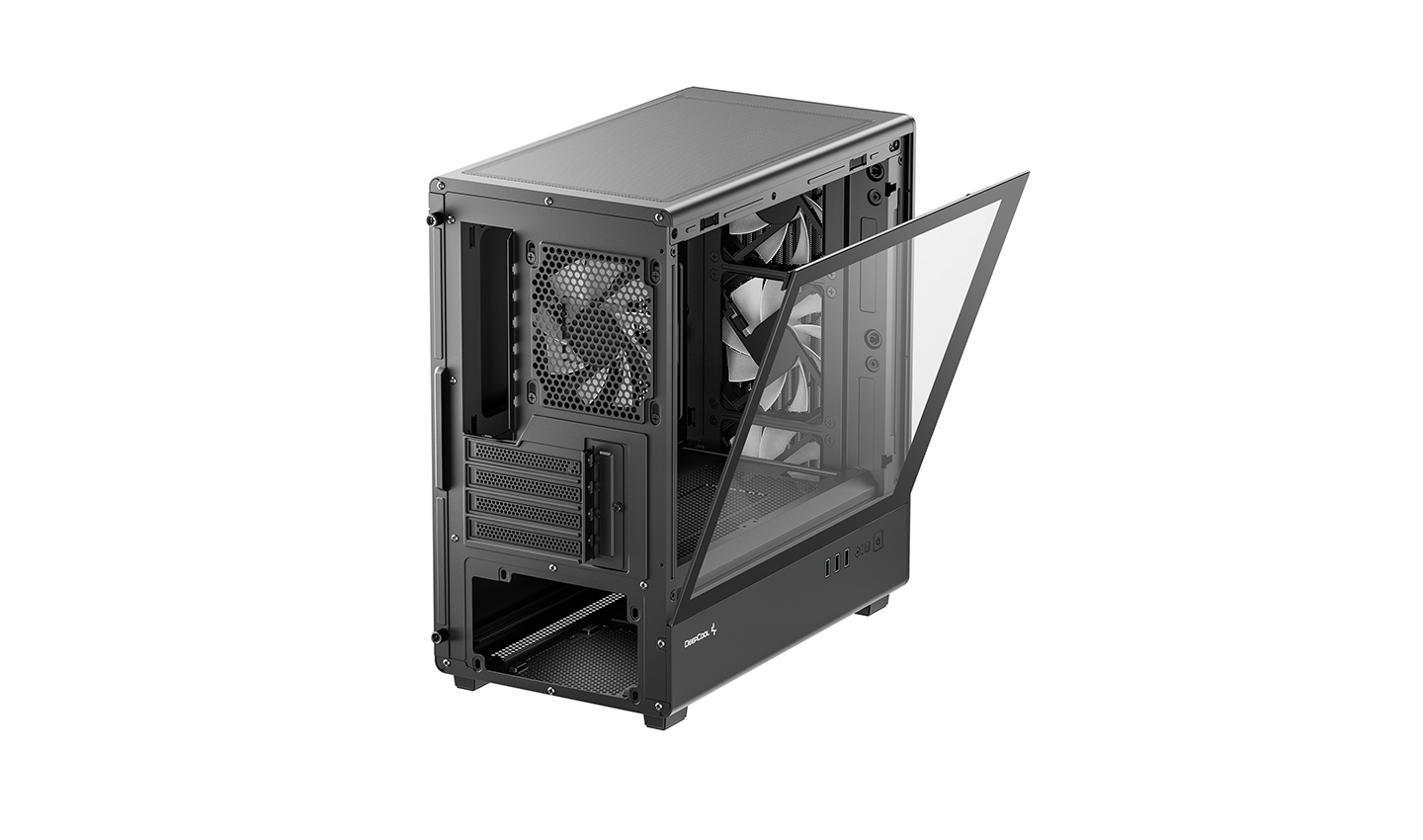

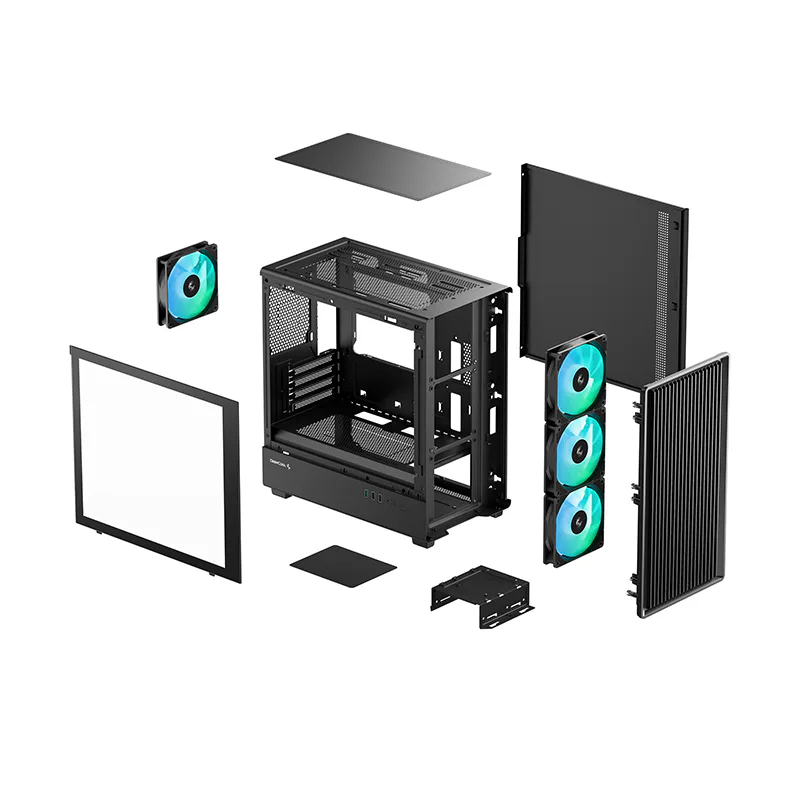

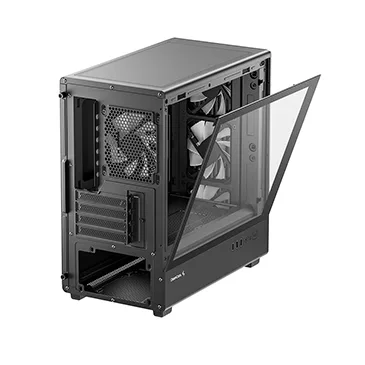

TOOL-FREE PANEL ACCESS

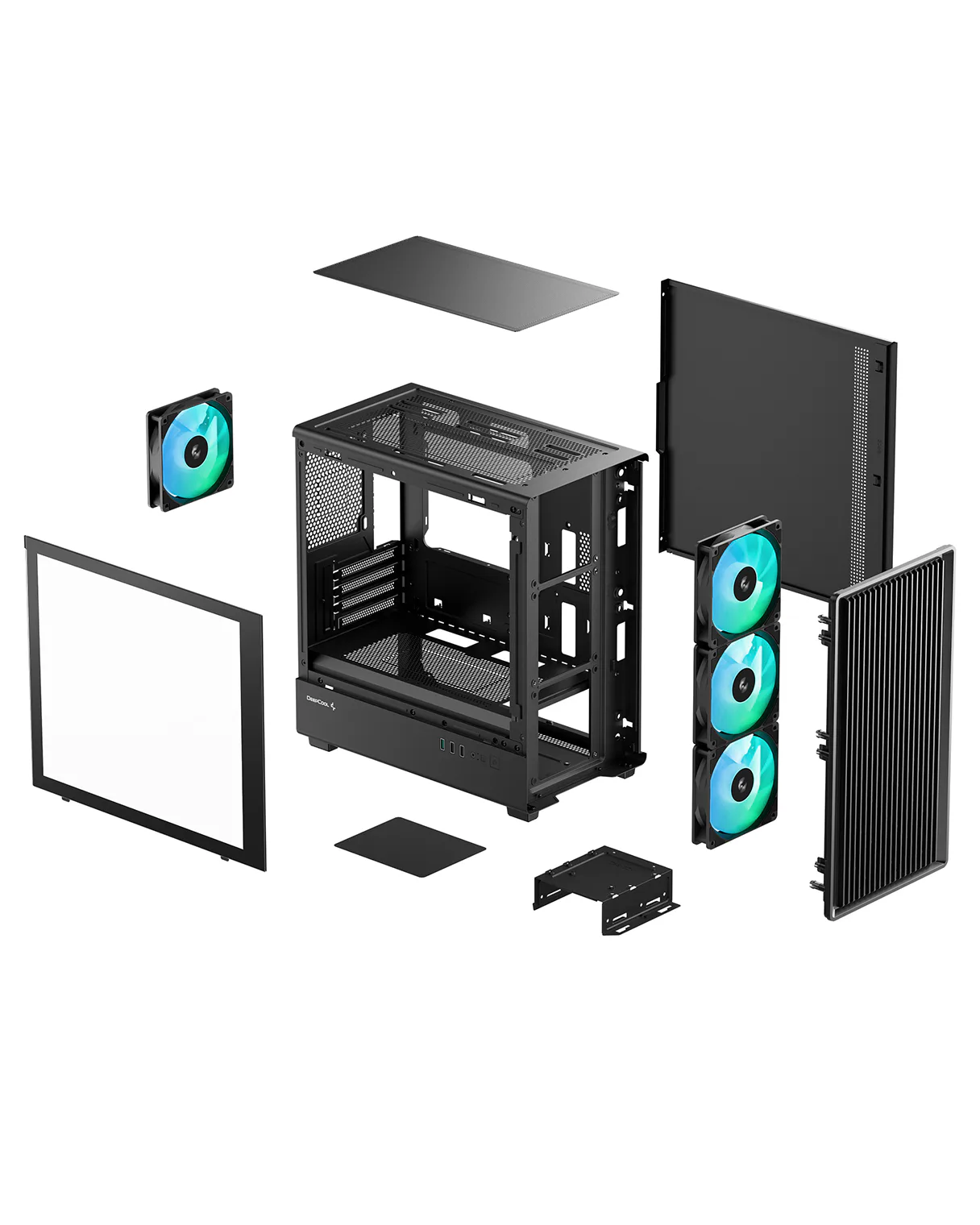

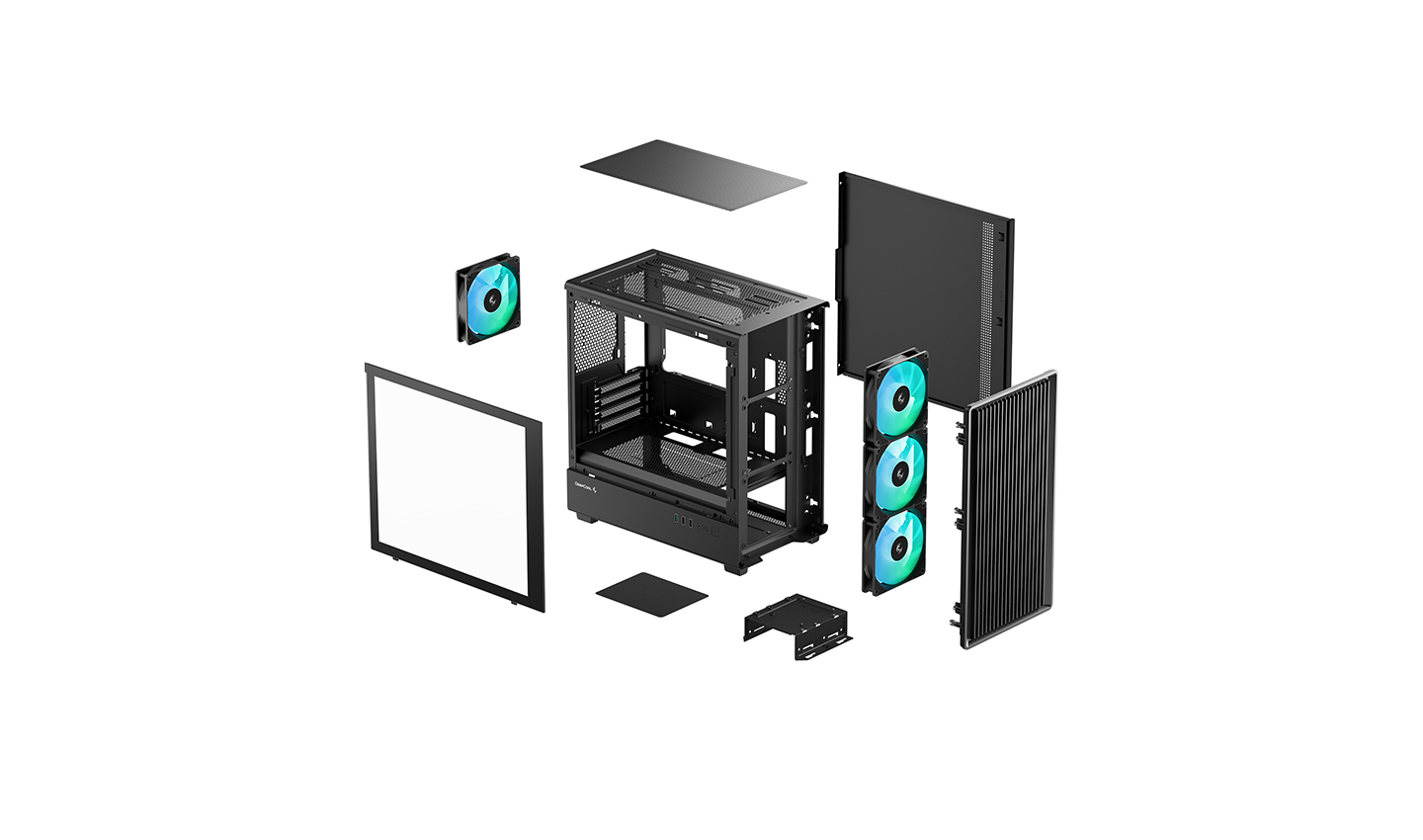

All panels are designed for quick removal with thumb screws, making it easier to build in and maintain.

READY TO CONNECT

Practical I/O panel gives quick access to one USB 3.0 port, two USB 2.0 ports, and an audio jack.

Technical Spec

Product Dimensions	363×208×395mm(L×W×H)
Net Weight	3.83Kg
Materials	ABS+SPCC+Tempered Glass
Motherboard Support	Mini-ITX / Micro-ATX
Front I/O Ports	USB3.0 x1,USB2.0 x2,Audio x1
3.5" Drive Bays	0+1
2.5" Drive Bays	1+1
Expansion Slots	4 Slots
Pre-Installed Fans	Front: 3×120mm Argb Rear: 1×120mm Argb
Fan Support	Top:2×120 / 2×140mm Front:3x120mm Bottom:2×120 mm Rear: 1×120mm
Radiator Support	TOP:120/240mm
CPU Cooler Height Limit	163mm
GPU Length Limit	317mm

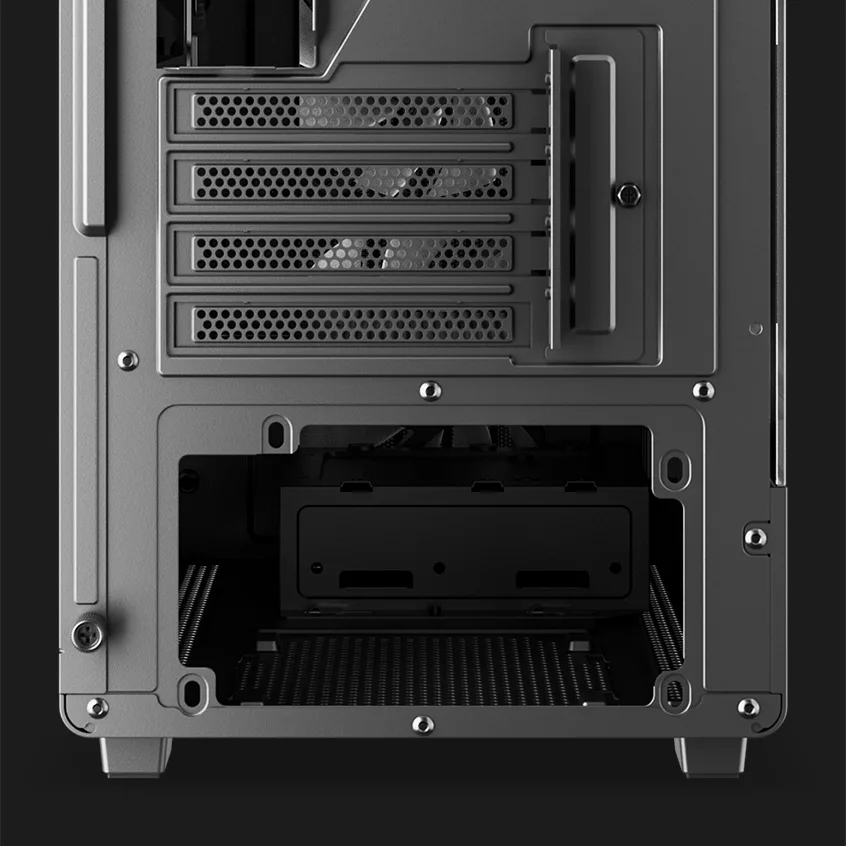

Power Supply Type	ATX PS2 （maximum length: 180mm）
EAN	6933412765851
P/N	R-CC350BKANA4-G

Download

CC350 4F Manual.pdf
