GH-01 LED

Adjustable, Colorful and Reliable Graphics Card Holder

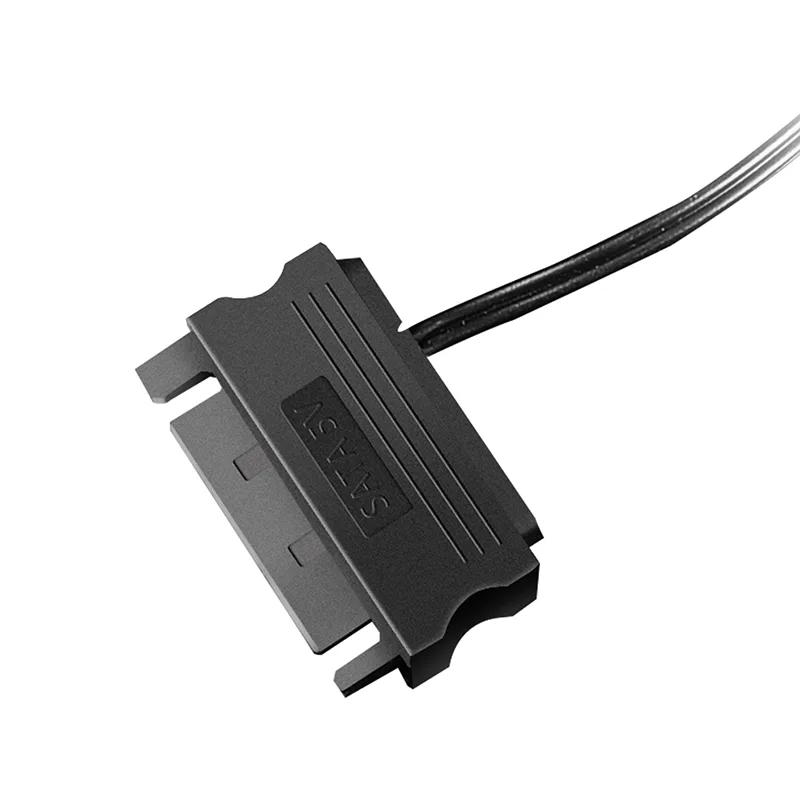

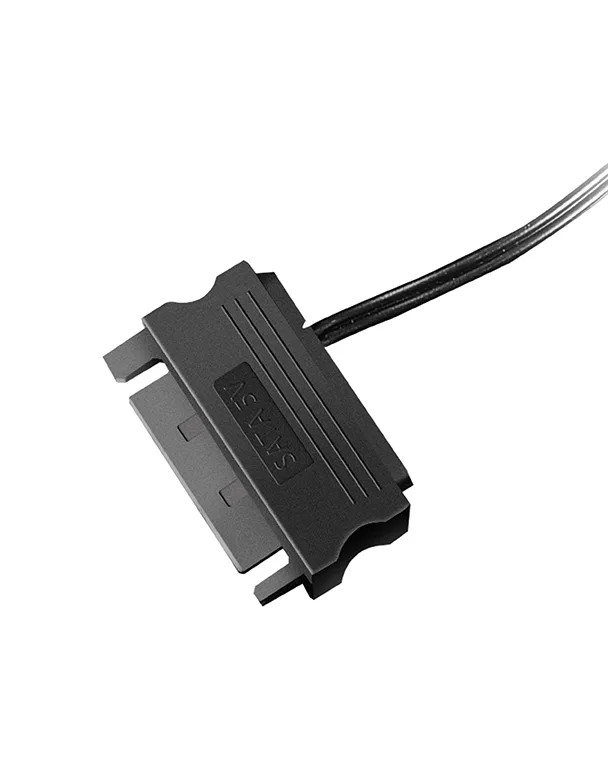

A-RGB Lighting ,5V SATA Connector

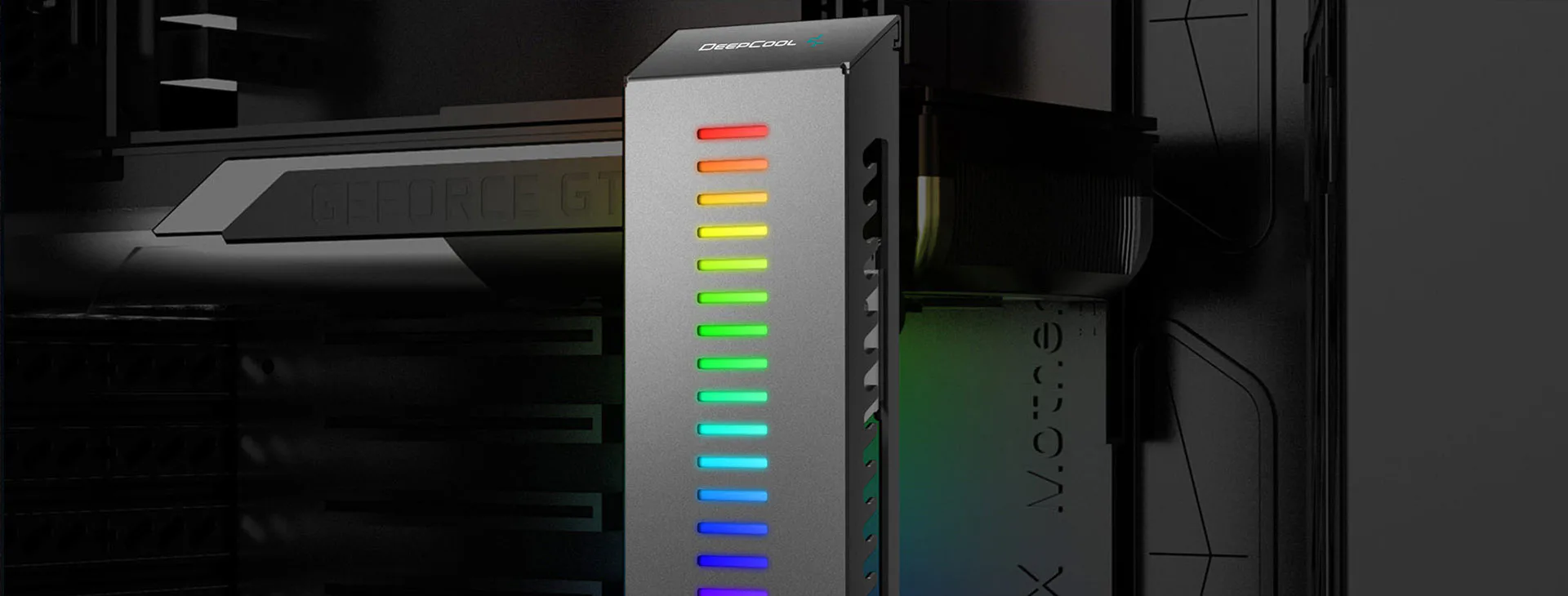

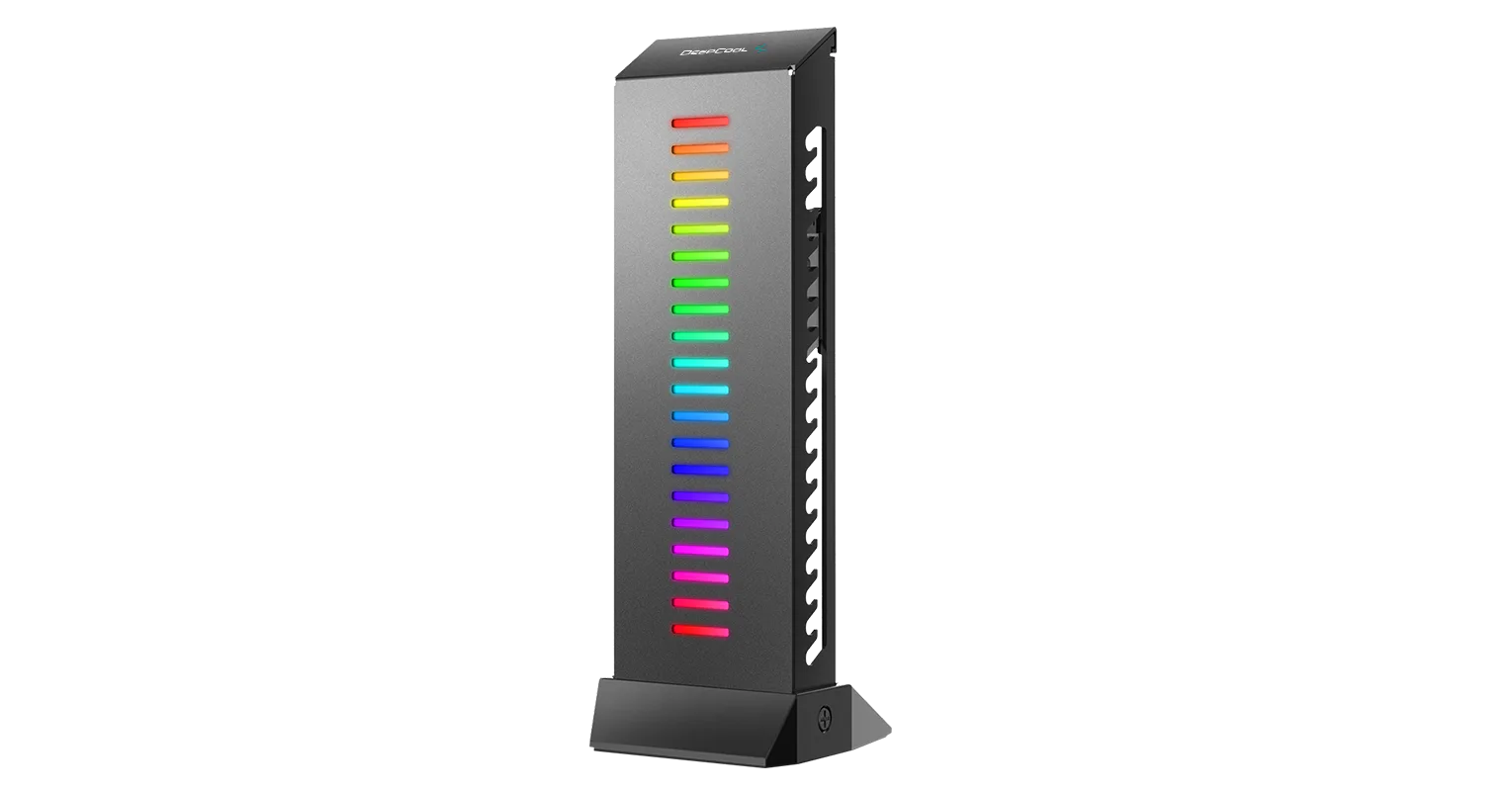

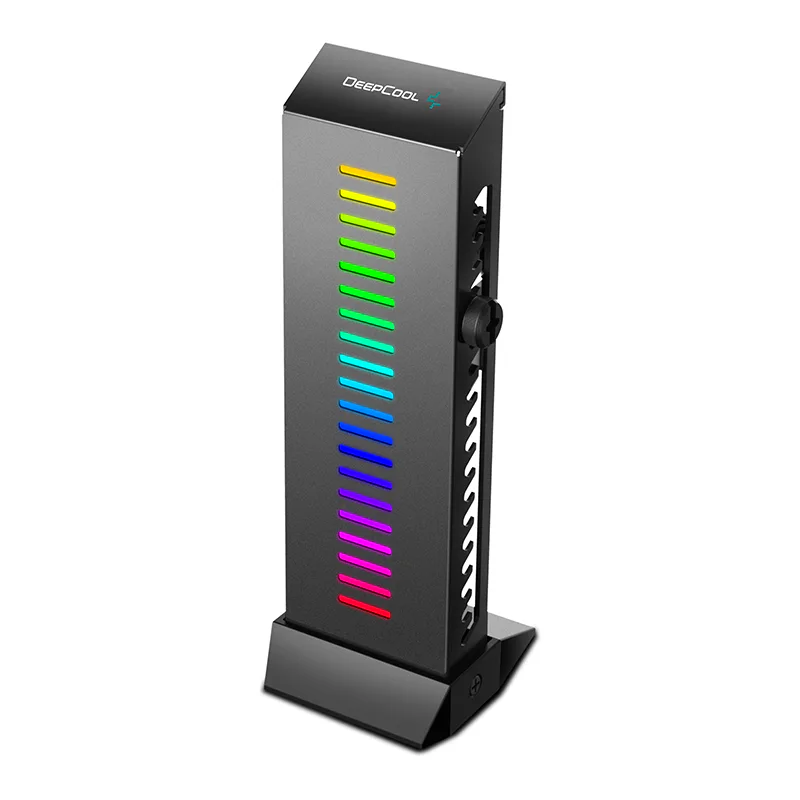

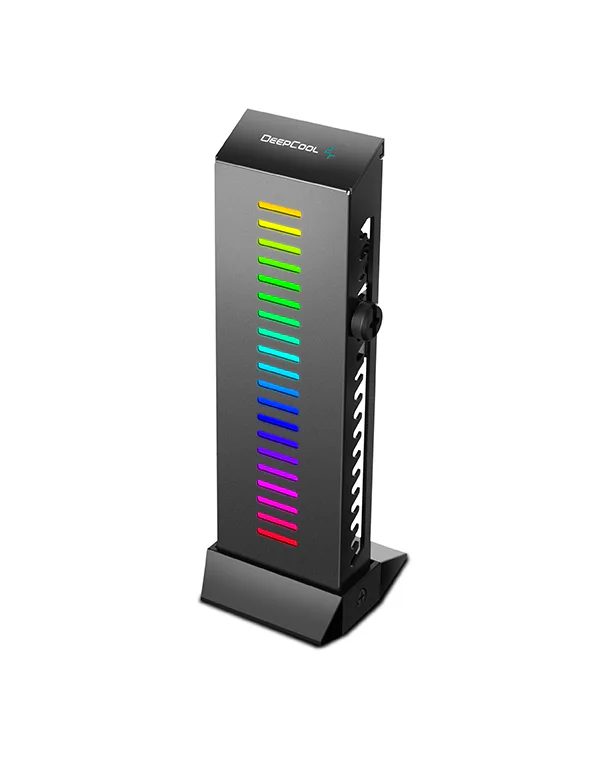

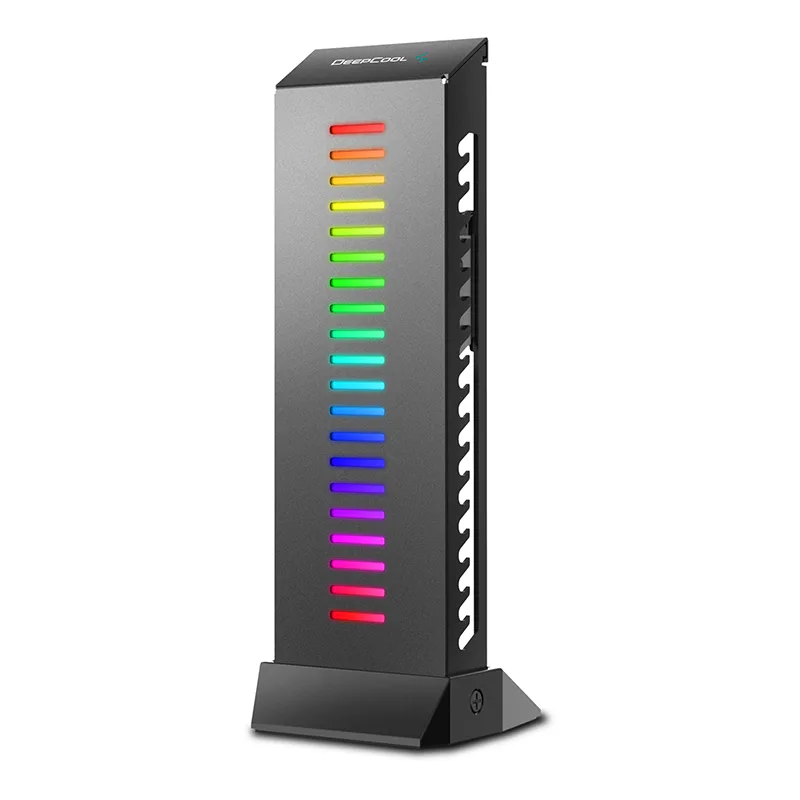

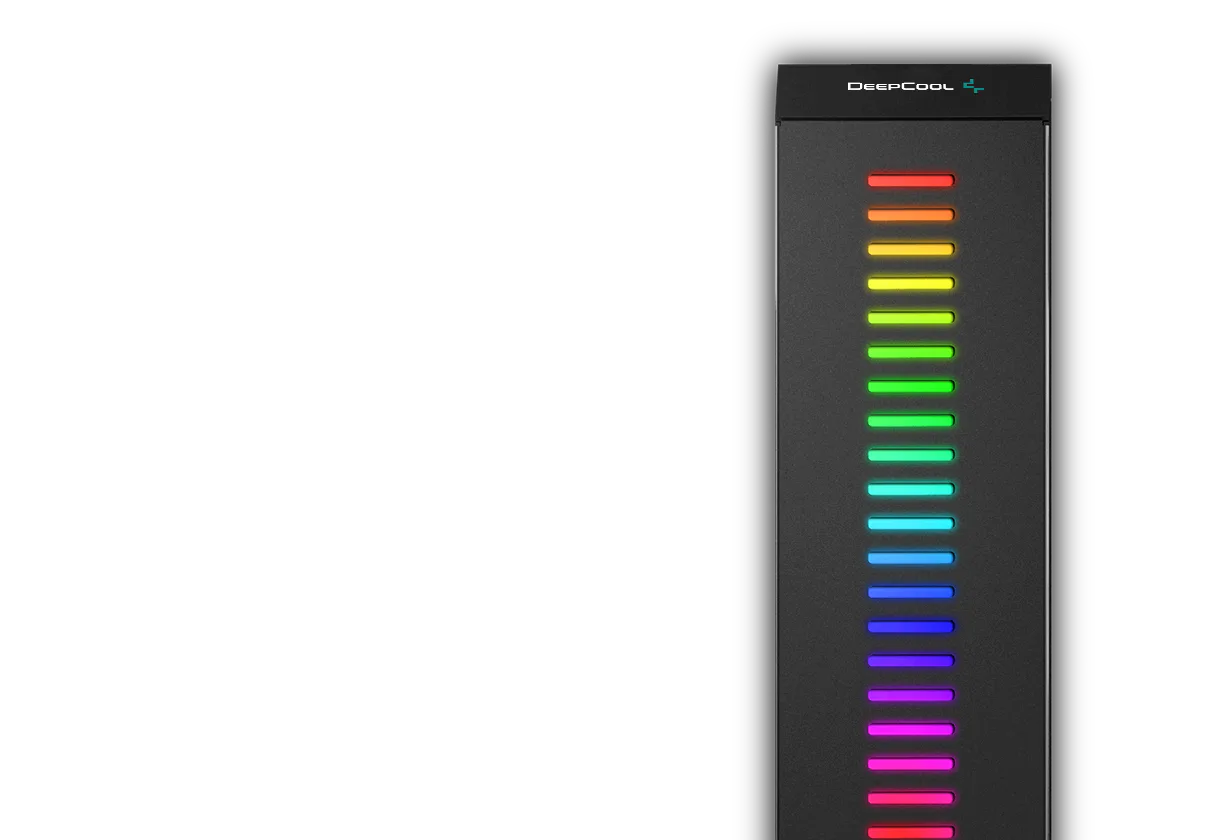

Equipped with 9pcs of A-RGB LED lights, GH-01 LED provides full colorful lighting for your build, it can be connected directly to power supply via the 5V SATA connector.

Fashionable and Hides Wirings

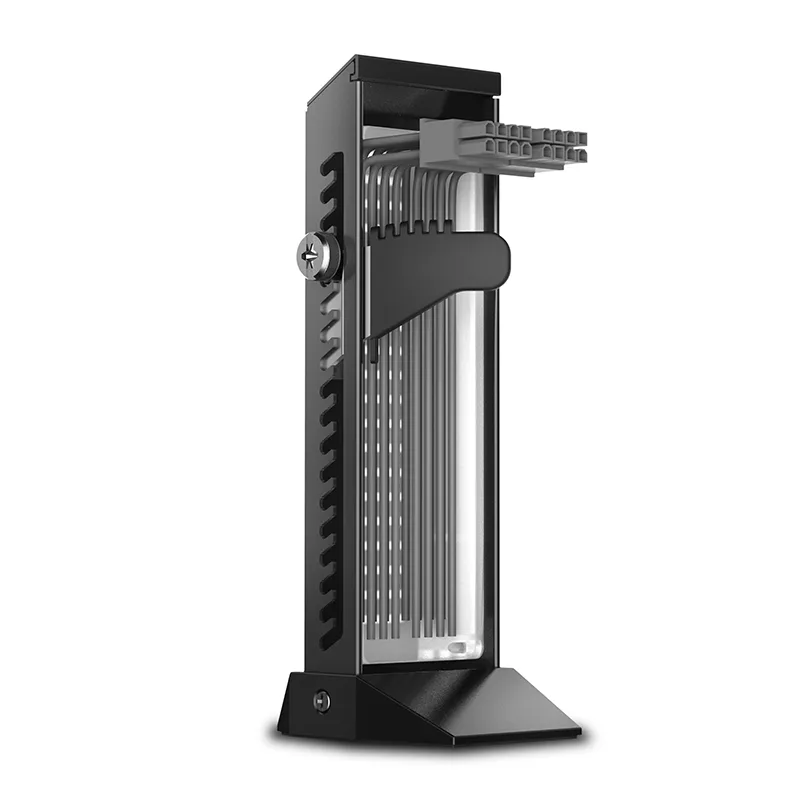

Structured with a uniquely designed metal frame and plastic base then coated with premium metallic paint, the GH-01 LED possesses a fashionable and exquisite appearance, the unique wire hiding function makes sure that only a neat, flashy appearance will be visible to the eye.

Modular Design, Easy to Install

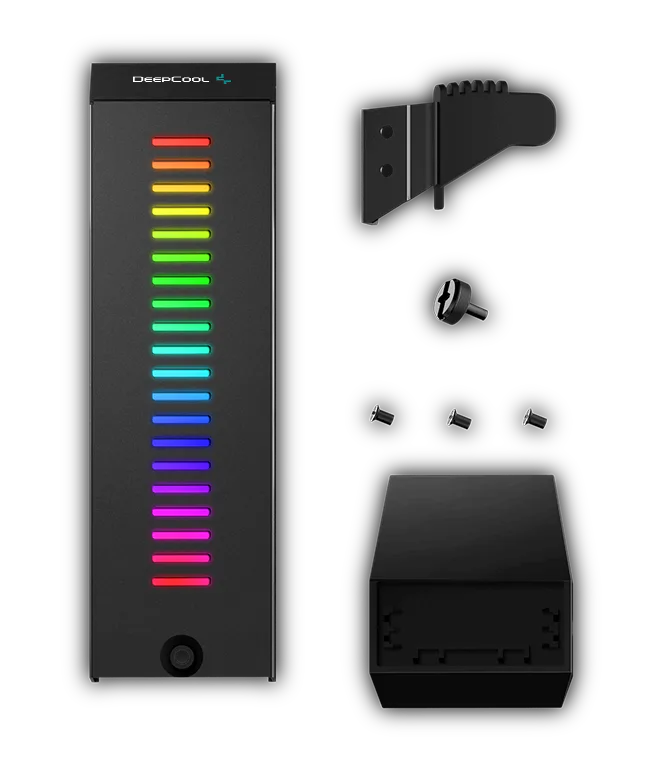

The GH-01 LED uses a modular design for all of its components, along with hand screws, so installation is convenient and easy.

Reasonable and Reliable

The design of the GH-01 LED is optimized using an incredibly logical structure. The materials are carefully selected and the manufacturing process meets the strictest standards to achieve the most reliable quality. Such high standards allows for the GH-01 LED to easily support a 5Kg graphics card and protect well the graphics card from bending or sagging and reduces stress on the motherboard.

Original and Compatible

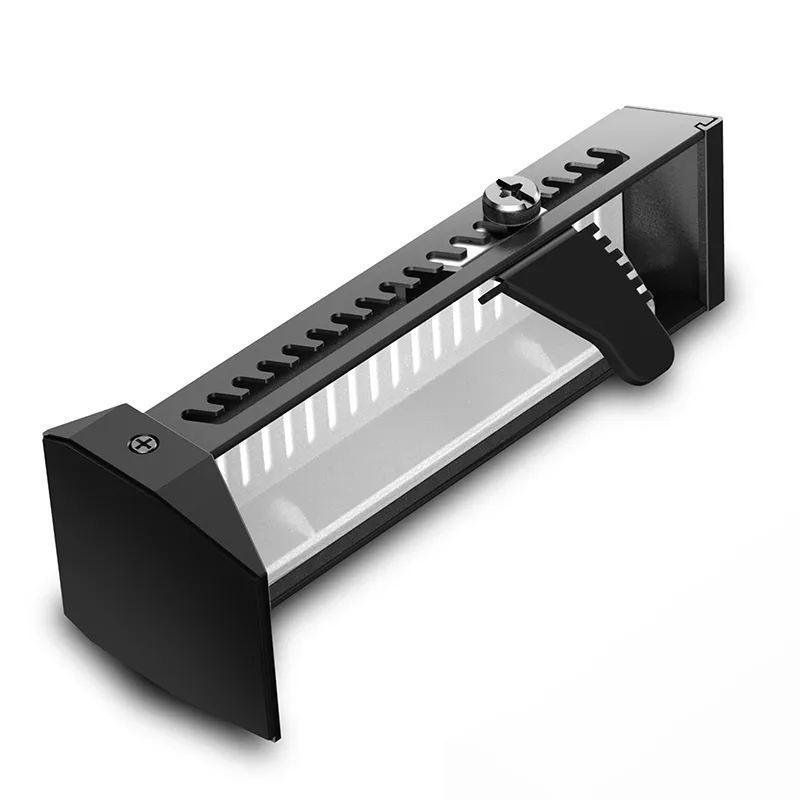

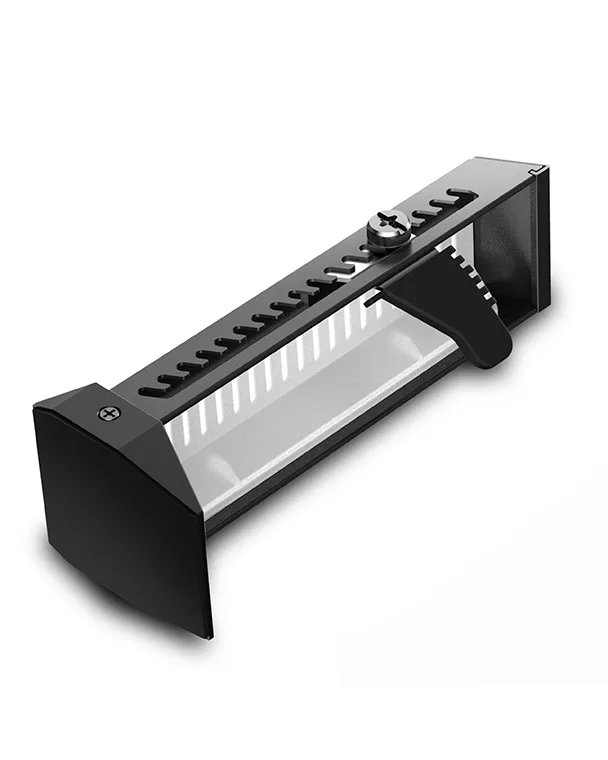

The GH-01 LED utilizes a unique saw-tooth adjustment mechanism, as well as a dual-hole installation design. The combination of the two makes the fine adjustment of height available in 3 scales:±3.3/6.7/10m

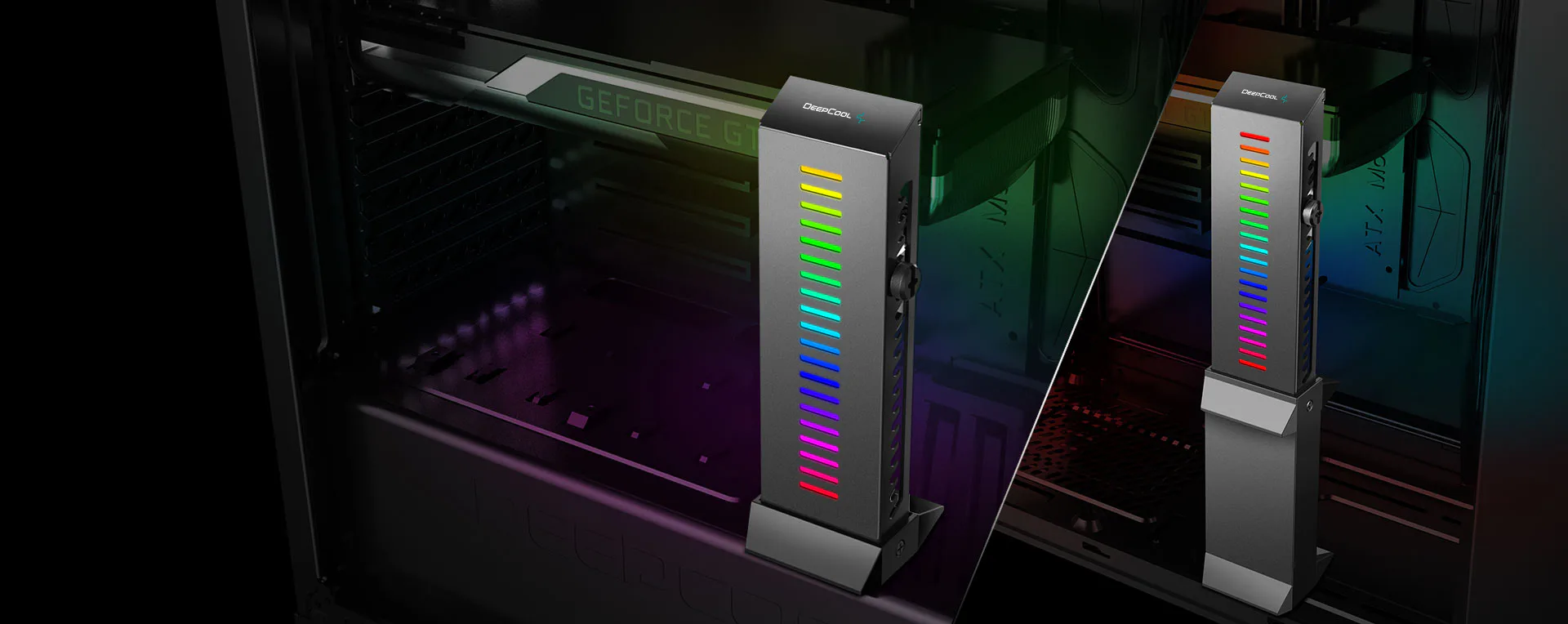

Supported With or Without a Power Supply Shield

The GH-01 LED can not only support cases with power supply shield, but also support cases without power supply shield by installing STAND For GH-01(sold separately).

Technical Spec

Overall Dimension	52.6×60.6×163.73mm（W×D×H）
Package Dimensions	56×74×182mm
Support Range	47.2~154mm
Net Weight	164g
Cable length	600mm
LED Rated Voltage	DC 5V
LED Rated Power	1.2W
EAN	6933412796145
P/N	DP-GCH01-GH01-LED

Product Dimension

Download

GH-01 LED Manual.pdf
