A-RGB Controller

Remote A-RGB Control

Overview

The DeepCool A-RGB Controller is designed to remotely control addressable RGB lighting effects simply without having to install any clunky software.

How it works

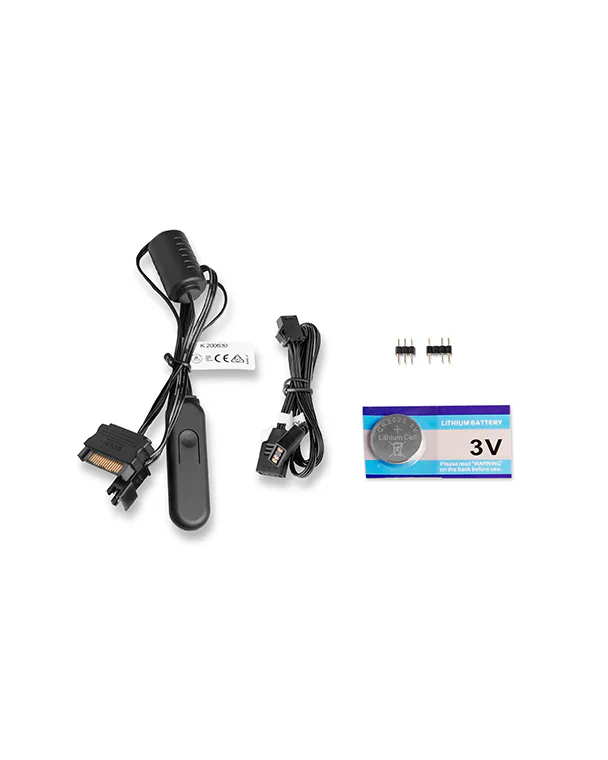

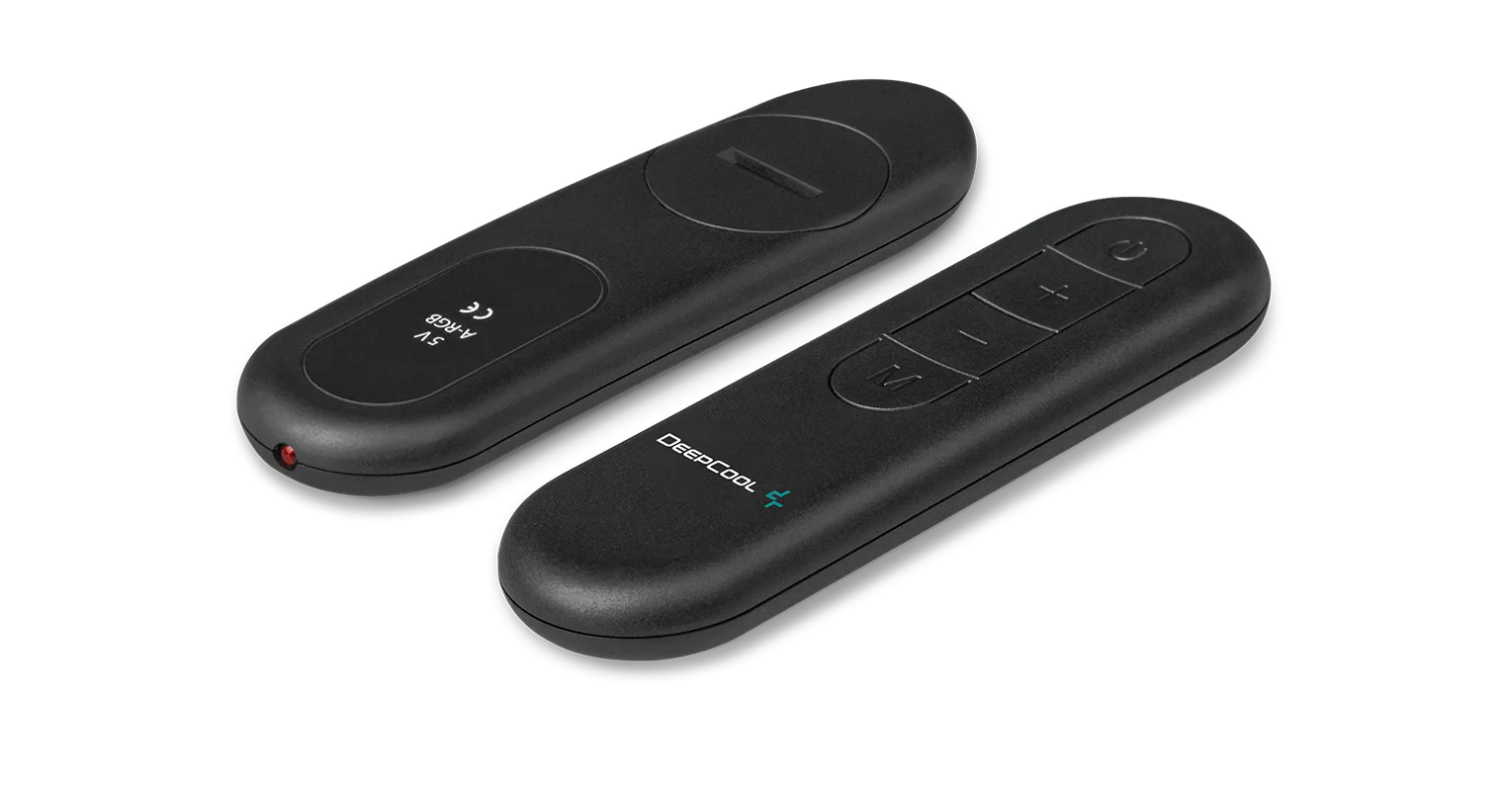

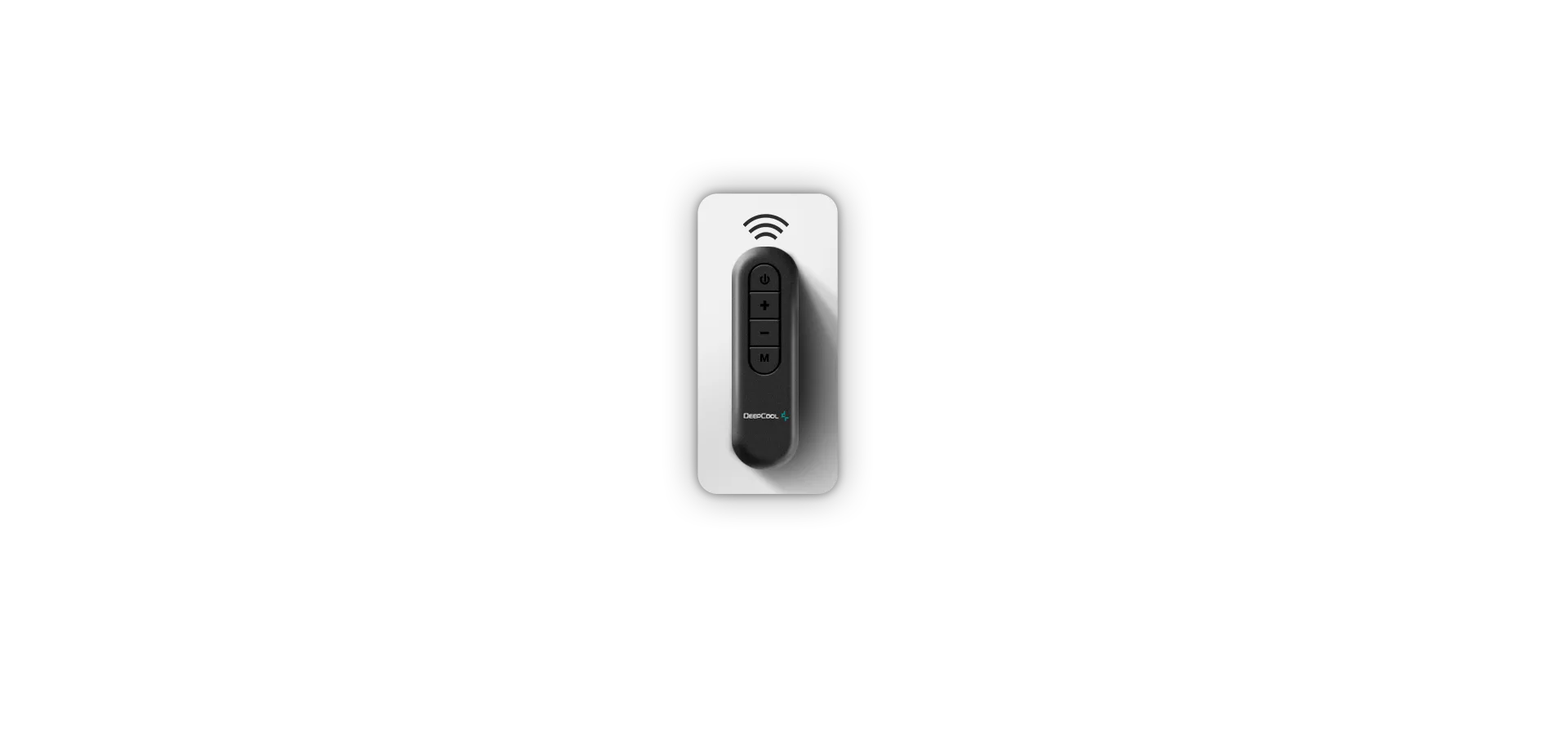

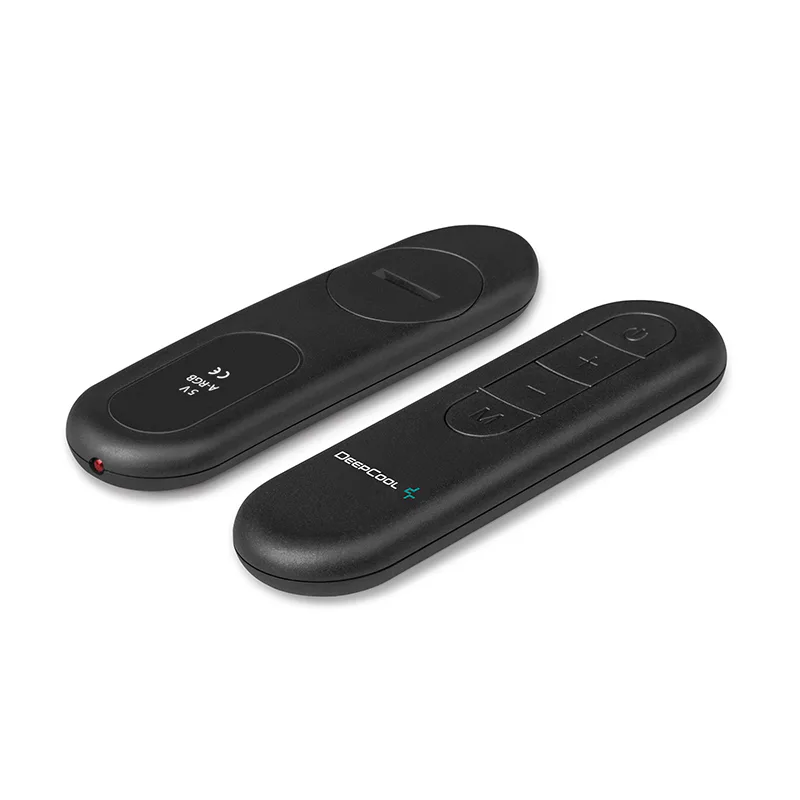

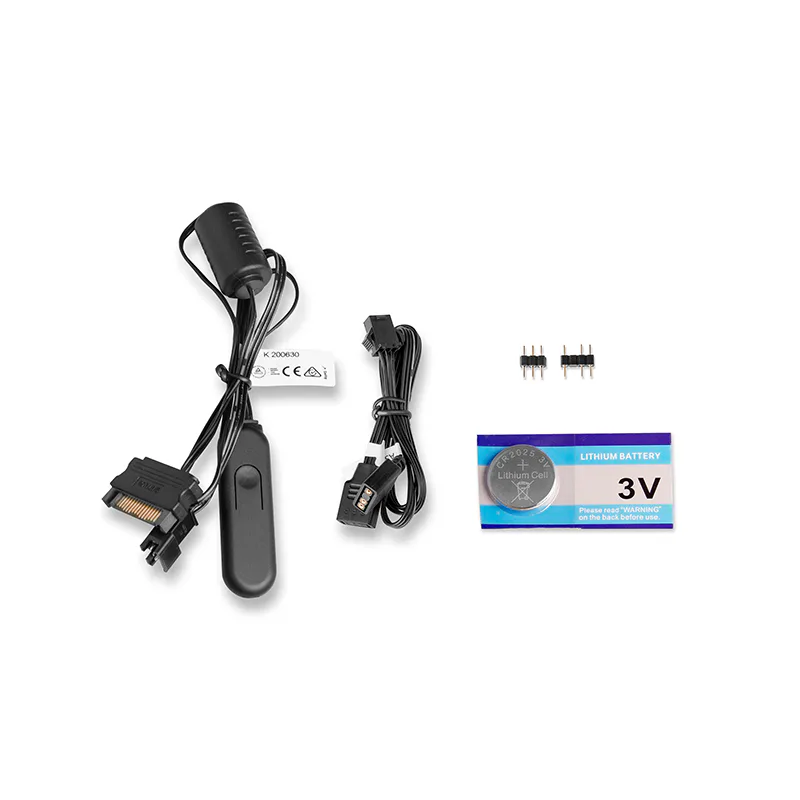

The A-RGB Controller system includes a receiver unit and a magnetic remote controller to easily attach to any steel case.

Just plug in a 3-pin A-RGB wire and SATA power cable to the receiver and the remote controller can wirelessly control numerous lighting effect presets.

The remote controller is powered with a 3V button(CR2025) battery (2 included).

How it works

The A-RGB Controller system includes a receiver unit and a magnetic remote controller to easily attach to any steel case.

Just plug in a 3-pin A-RGB wire and SATA power cable to the receiver and the remote controller can wirelessly control numerous lighting effect presets.

The remote controller is powered with a 3V button(CR2025) battery (2 included).

The back up plan

Just in case the battery runs out on the remote controller, the receiver unit features a button to manually switch lighting functions or turn on/off.

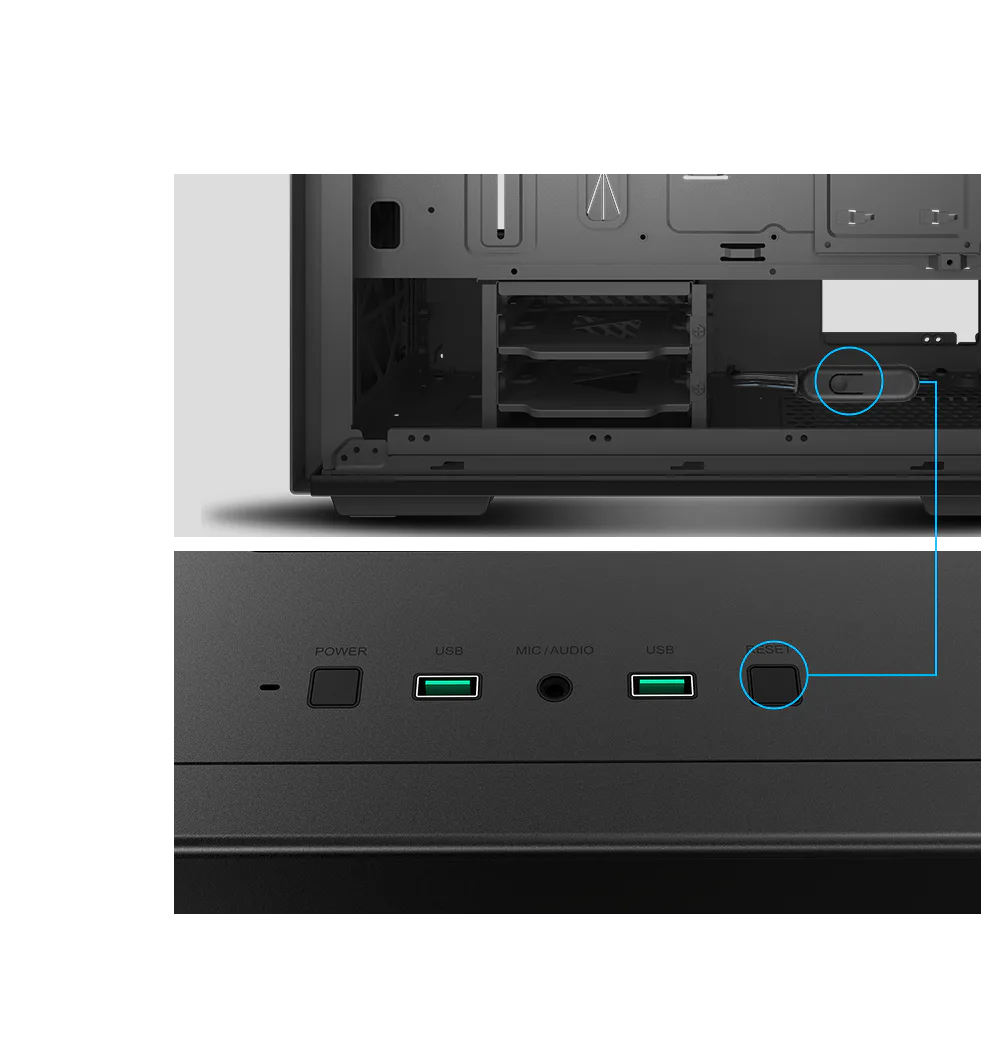

For added functionality, the receiver unit can also be attached to the front I/O reset button for convenient control outside the case.

Widely Compatible

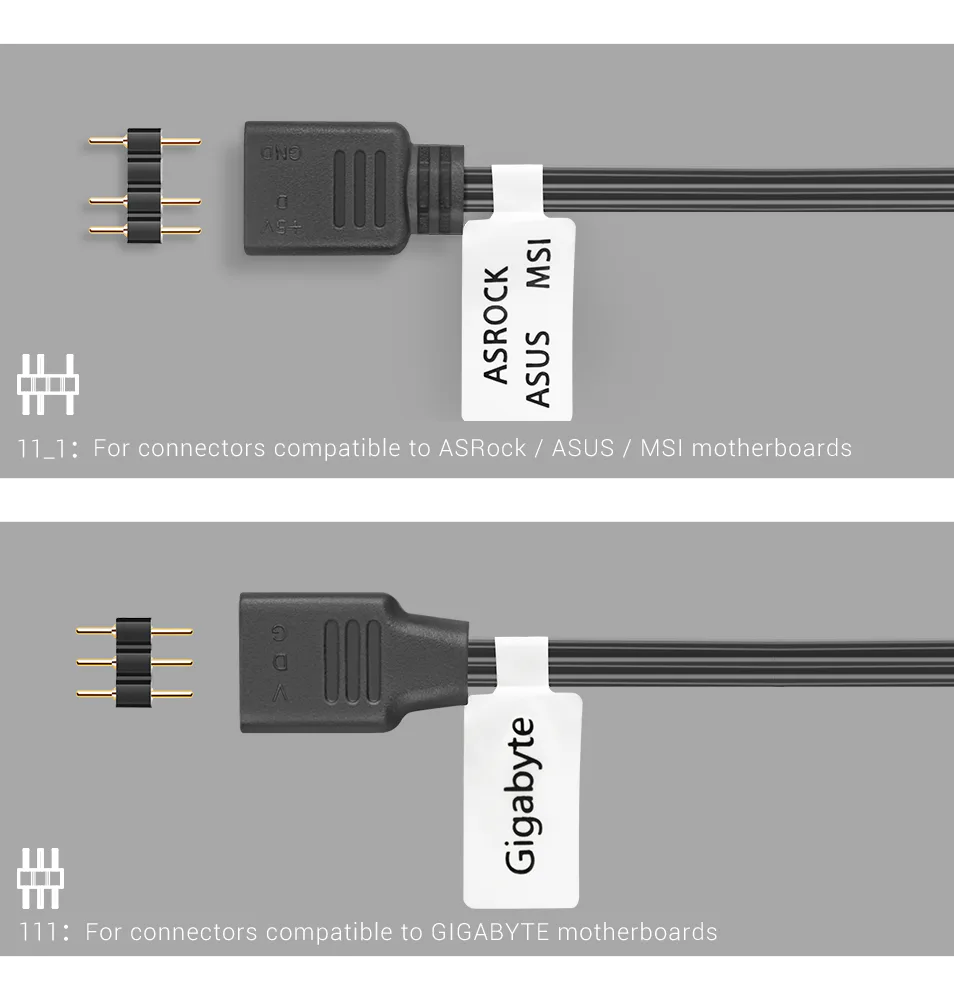

With the included adaptor, the A-RGB Controller can also control any non-DeepCool A-RGB products that have a standard 3-pin 5V A-RGB connector.

Technical Spec

Product Dimension	Remote Control：90×27×9 mm Receiver：55×17×8 mm
Net Weight	50 g
Port Type	SATA 5V×1 、3-pin(+5V-D-G)×1
Extension Port	2-pin
Length of HUB Strip Cable	SATA 5V×1：400 mm 3-pin(+5V-D-G)×1：170 mm
Mounting Method	Magnet
EAN	6933412796176
P/N	DP-MG-CTR-A-RGB-RMT

Download

A-RGB Controller Manual.pdf
