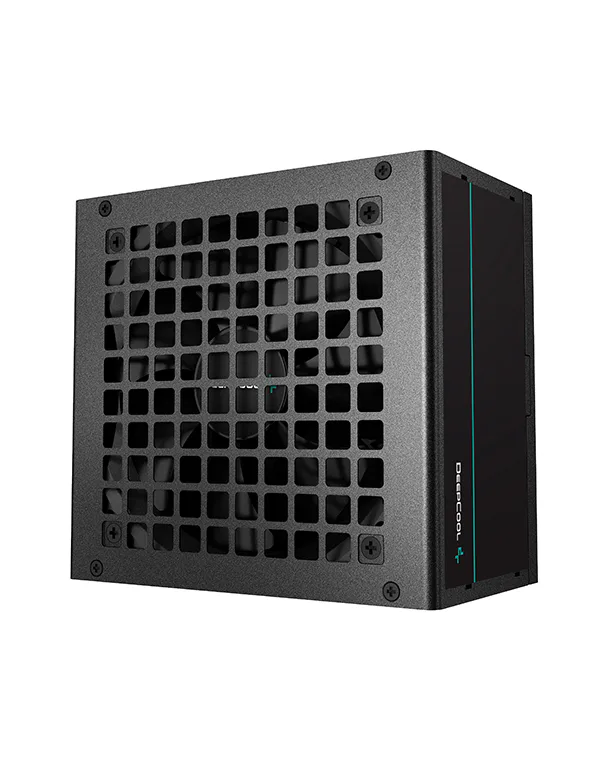

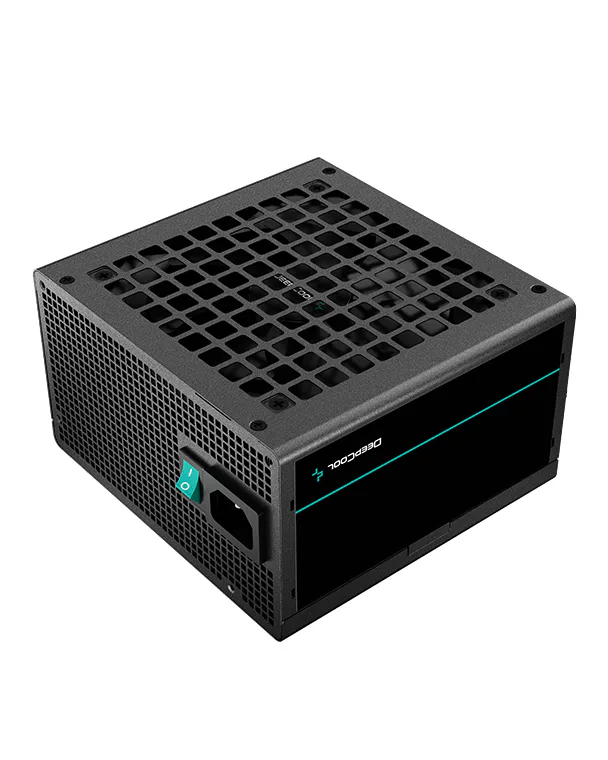

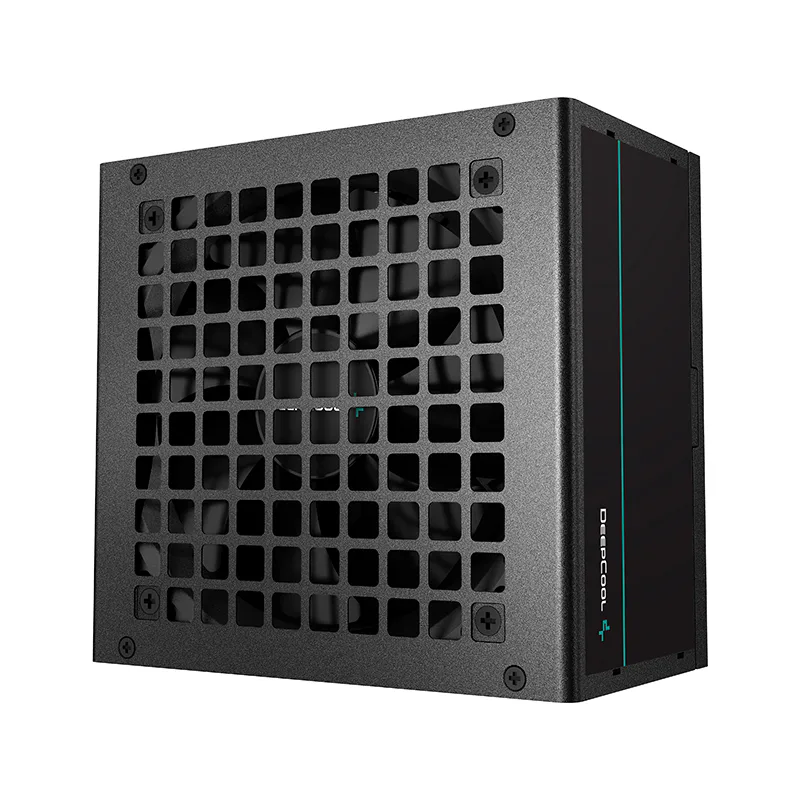

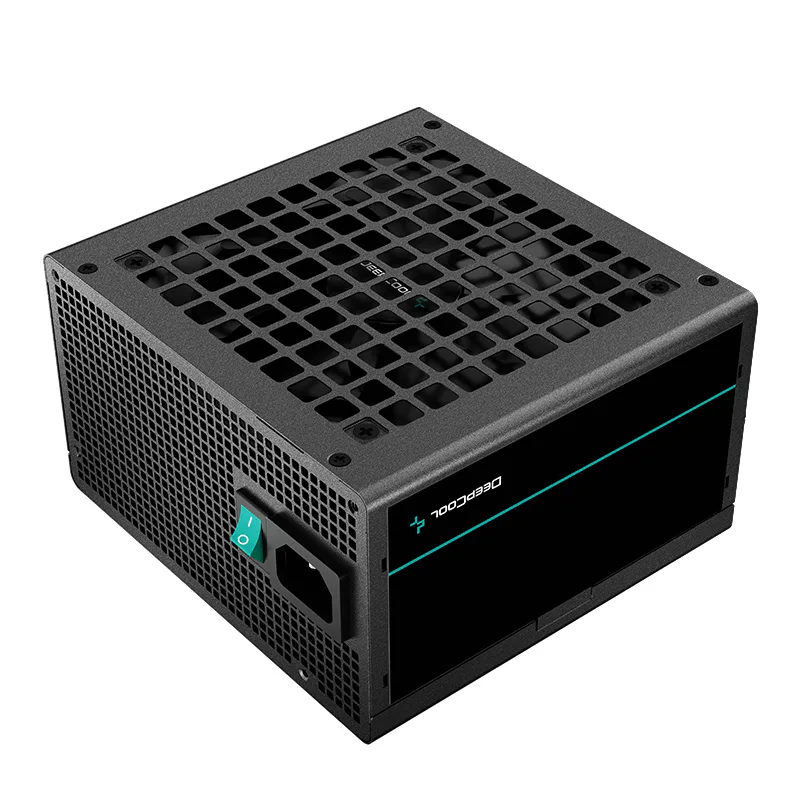

DeepCool-PF500

PF500

80 PLUS Standard Power Supply

PF500

The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.

To Higher Standards

Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.

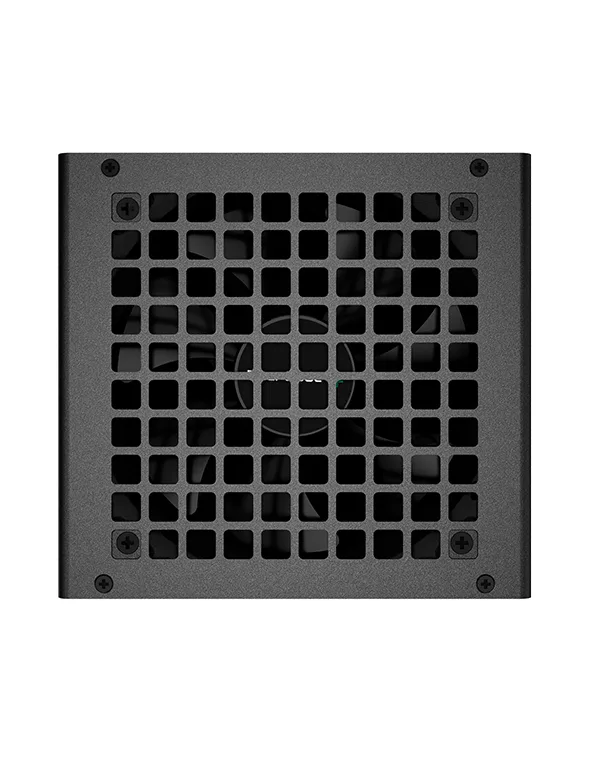

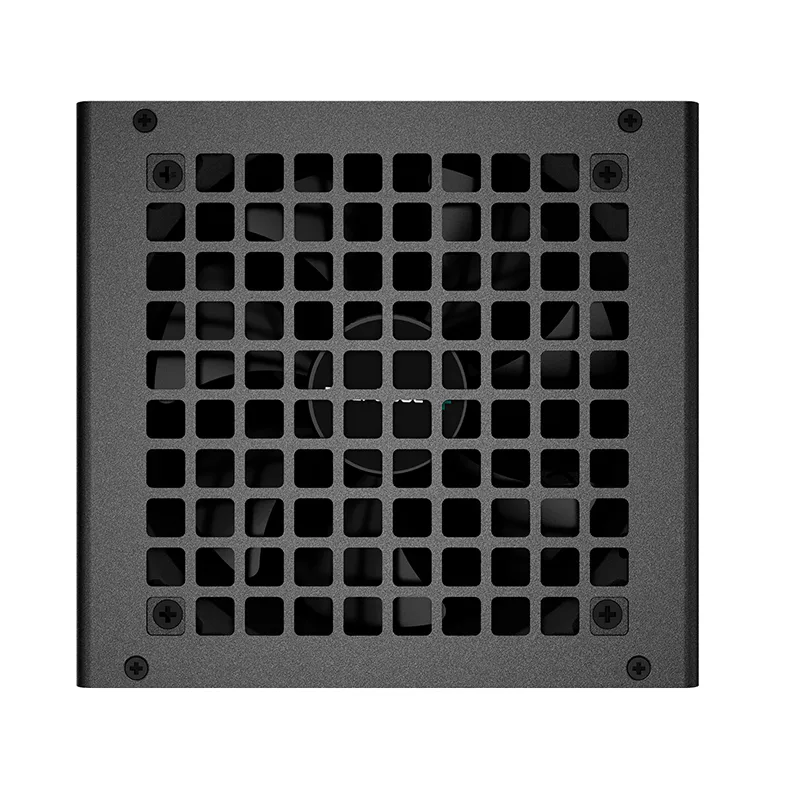

Silent Hydraulic Bearing Fan

Optimally balanced for low-noise performance, the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.

PF Series 80 PLUS Standard Power Supply

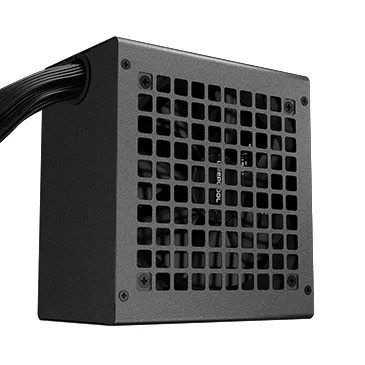

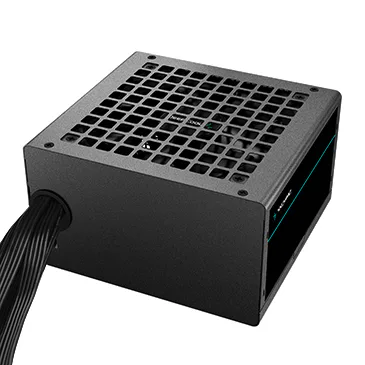

Flat Black Cables

Stealthy and flexible, the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.

Reliable Protection

Shield against potential risk and damage with overpower, over voltage, and short circuit power protection.

Over Power Protection

Over Voltage Protection

Short Circuit Protection

Main Power Connector 24 (20+4)Pin x1

EPS 12V Connector 8 (4+4)Pin x1

PCI-E (6+2)Pin x2

SATA x3 + 4Pin Peripheral x1

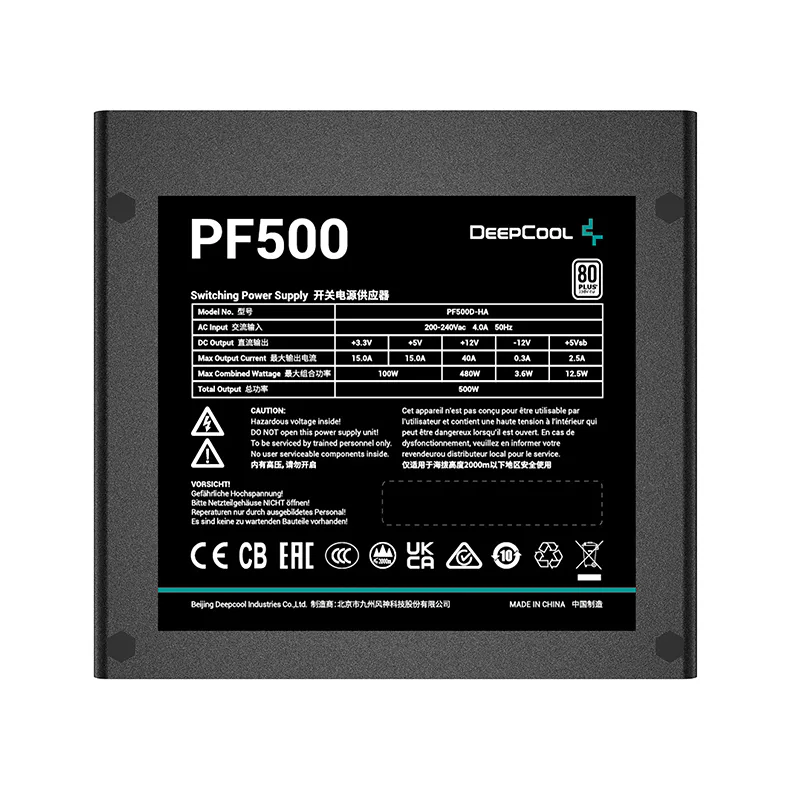

Technical Spec

Type	ATX12V V2.4
Product Dimensions	150×140×86mm (W x L x H)
80PLUS Certifications	230V EU White
Fan Size	120mm
Fan Bearing	Hypro Bearing

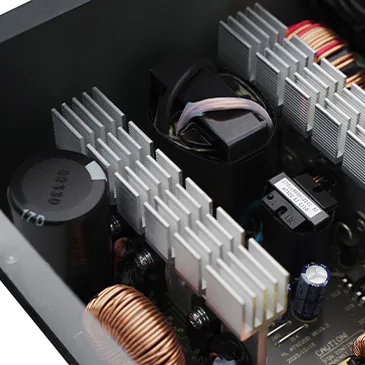

Topology	Active PFC+Double tube forward
Capacitors	Taiwan bulk capacitor
Power Good Signal	100-500ms
Hold Up Time	≥16ms(75% Load)
Efficiency	≥85% Under Typical Load(50% Loading)
Protection	OPP/OVP/SCP
Operation Temperature	0-40°C
Regulatory	CB/CCC/CE/UKCA/EAC/RCM/BIS
Erp Regulation	ErP 2010
MTBF	100,000 Hours
EAN P/N	6933412709381 R-PF500D-HA0B-AU 6933412709398 R-PF500D-HA0B-AR 6933412709404 R-PF500D-HA0B-CN 6933412711254 R-PF500D-HA0B-EU 6933412711261 R-PF500D-HA0B-UK 6933412711278 R-PF500D-HA0B-WO 6933412711285 R-PF500D-HA0B-BP 6933412711674 R-PF500D-HA0B-US
