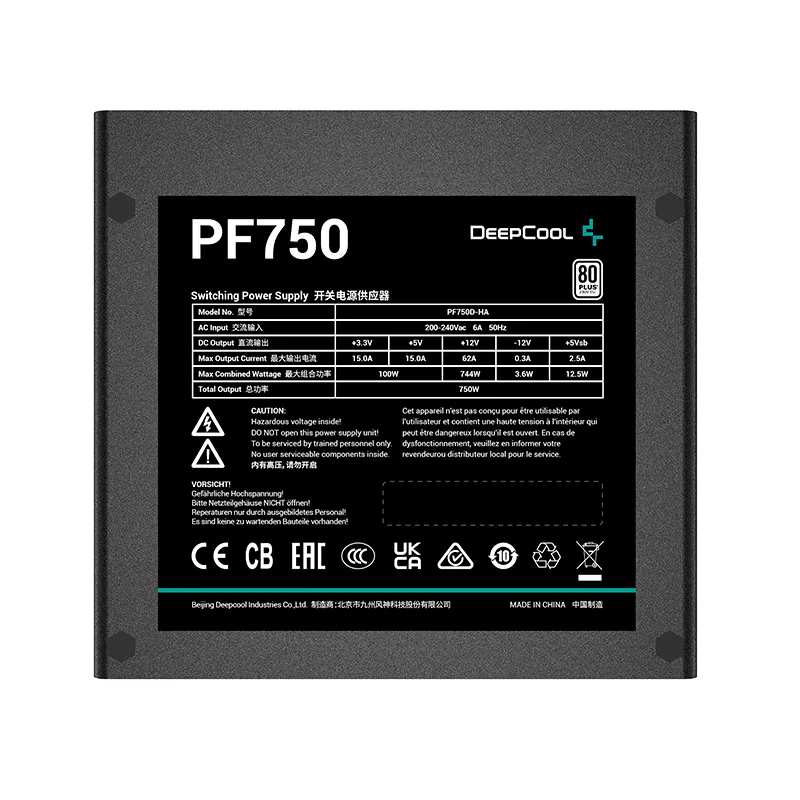

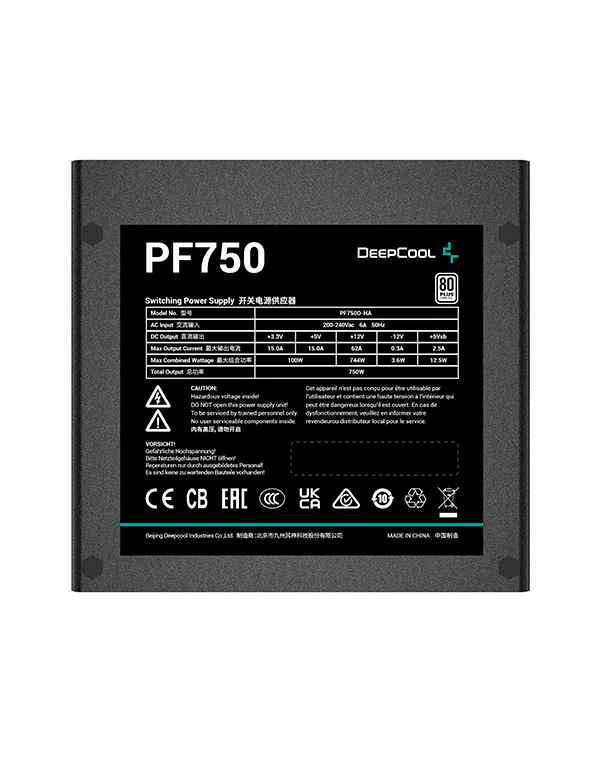

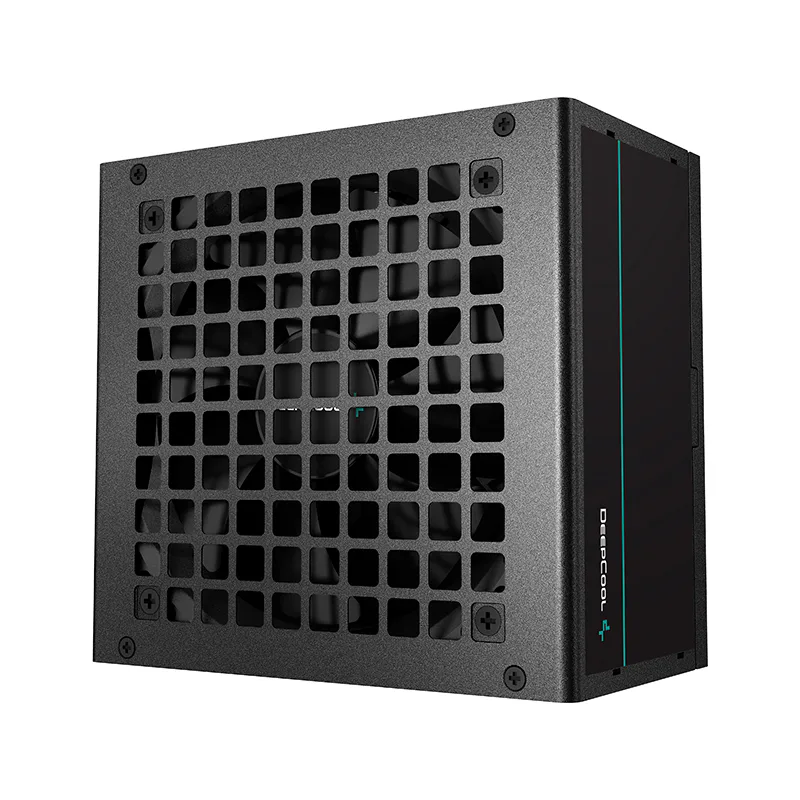

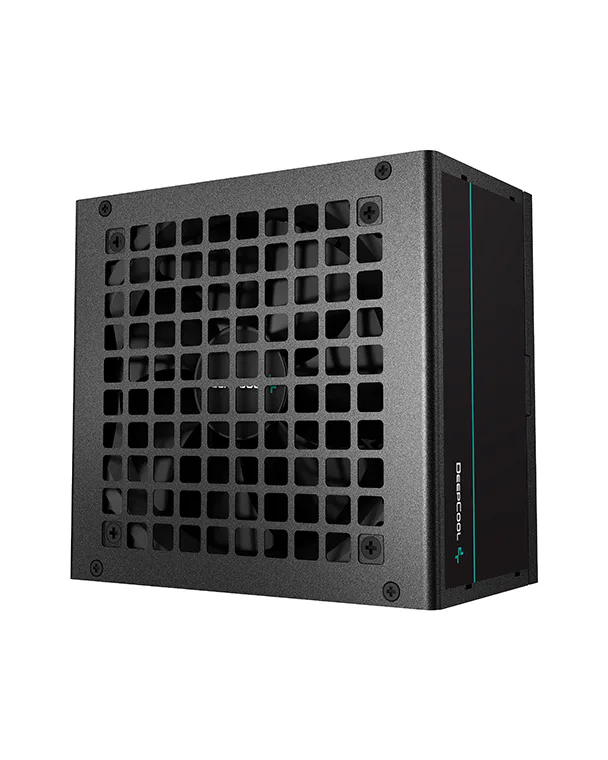

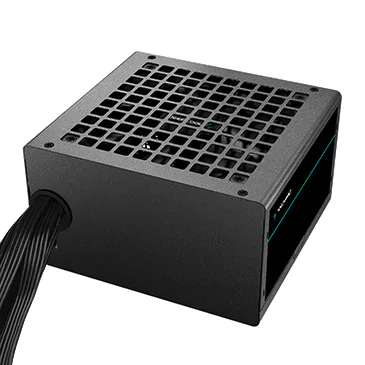

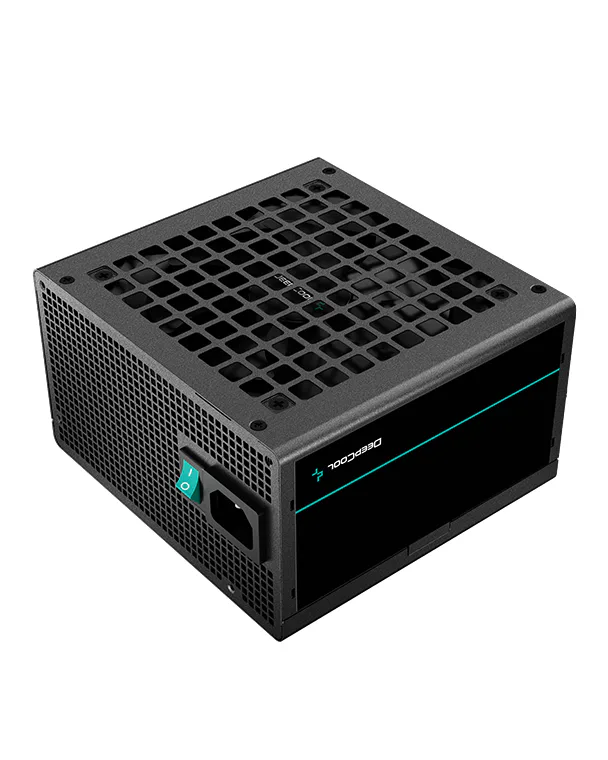

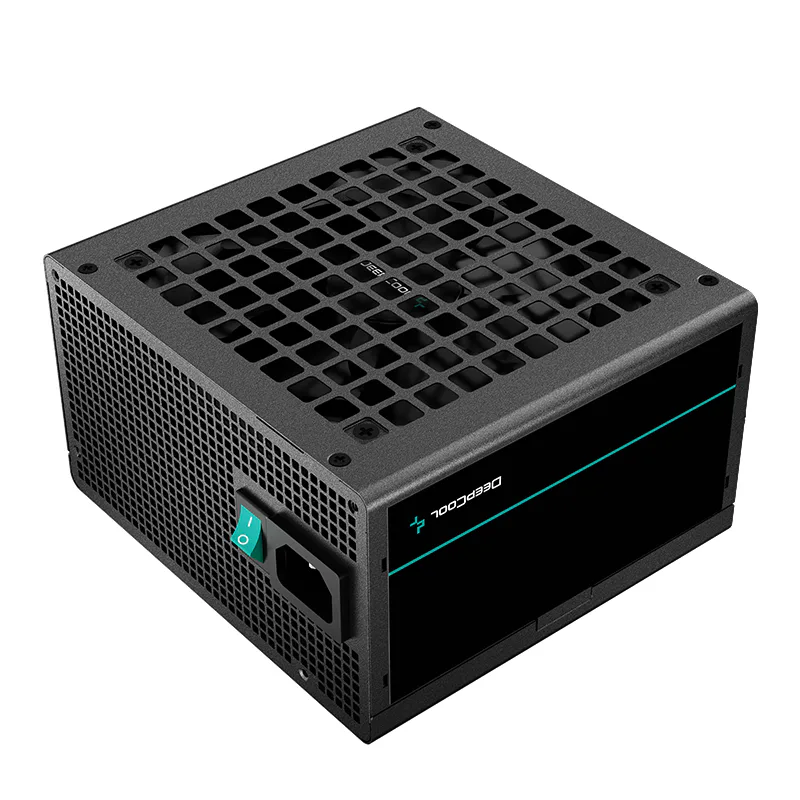

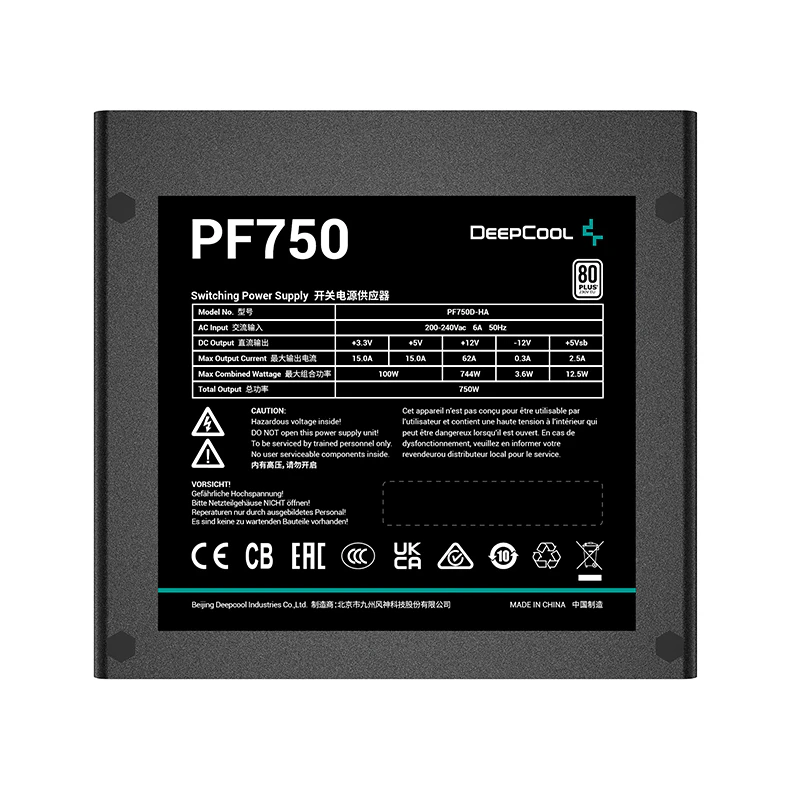

PF750
The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.
COLOR
black
MODEL
PF750
80 PLUS Standard Power Supply

PF750
The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.
To Higher Standards
Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.

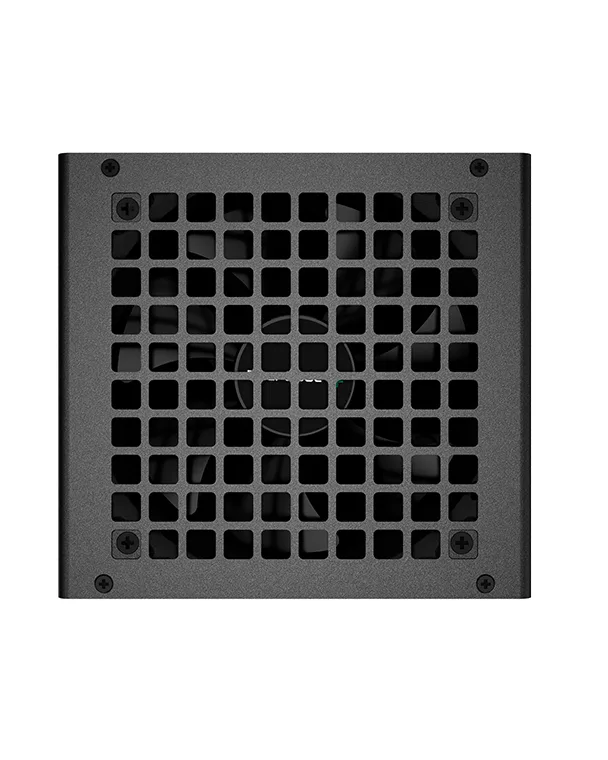

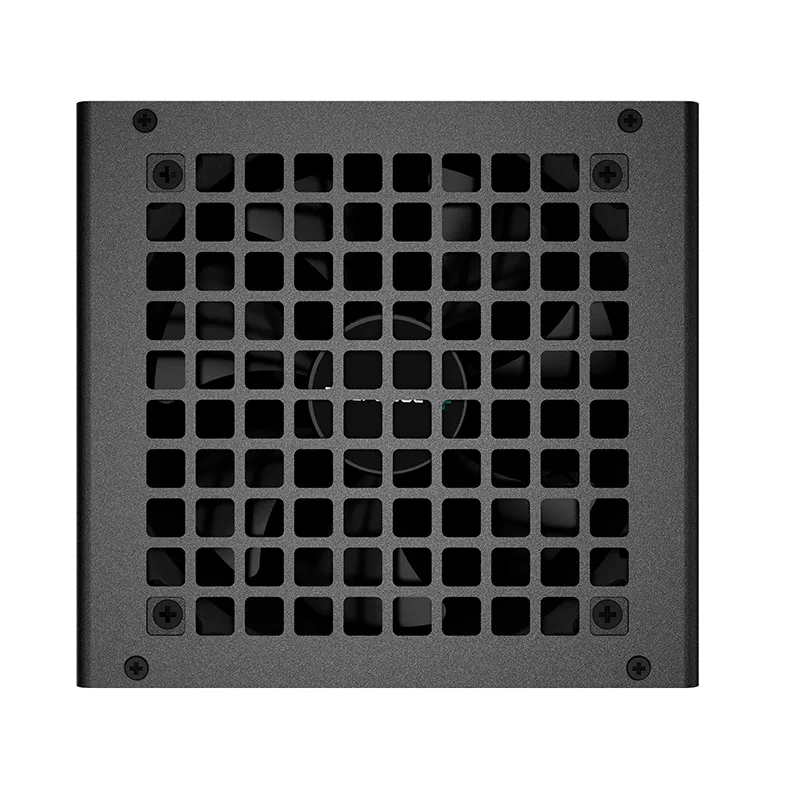

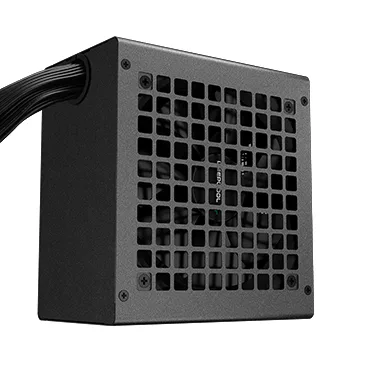

Silent Hydraulic Bearing Fan
Optimally balanced for low-noise performance, the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.
PF Series 80 PLUS Standard Power Supply
Flat Black Cables
Stealthy and flexible, the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.
Reliable Protection
Shield against potential risk and damage with overpower, over voltage, and short circuit power protection.
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Main Power Connector 24 (20+4)Pin x1
X1
EPS 12V Connector 8 (4+4)Pin x2
X1
PCI-E (6+2)Pin x2
X2
SATA x3 + 4Pin Peripheral x1
X2
Technical Spec
Type ATX12V V2.4
Product Dimensions 150×140×86mm (W x L x H)
80PLUS Certifications 230V EU White
Fan Size 120mm
Fan Bearing Hypro Bearing
Topology Active PFC+Double tube forward

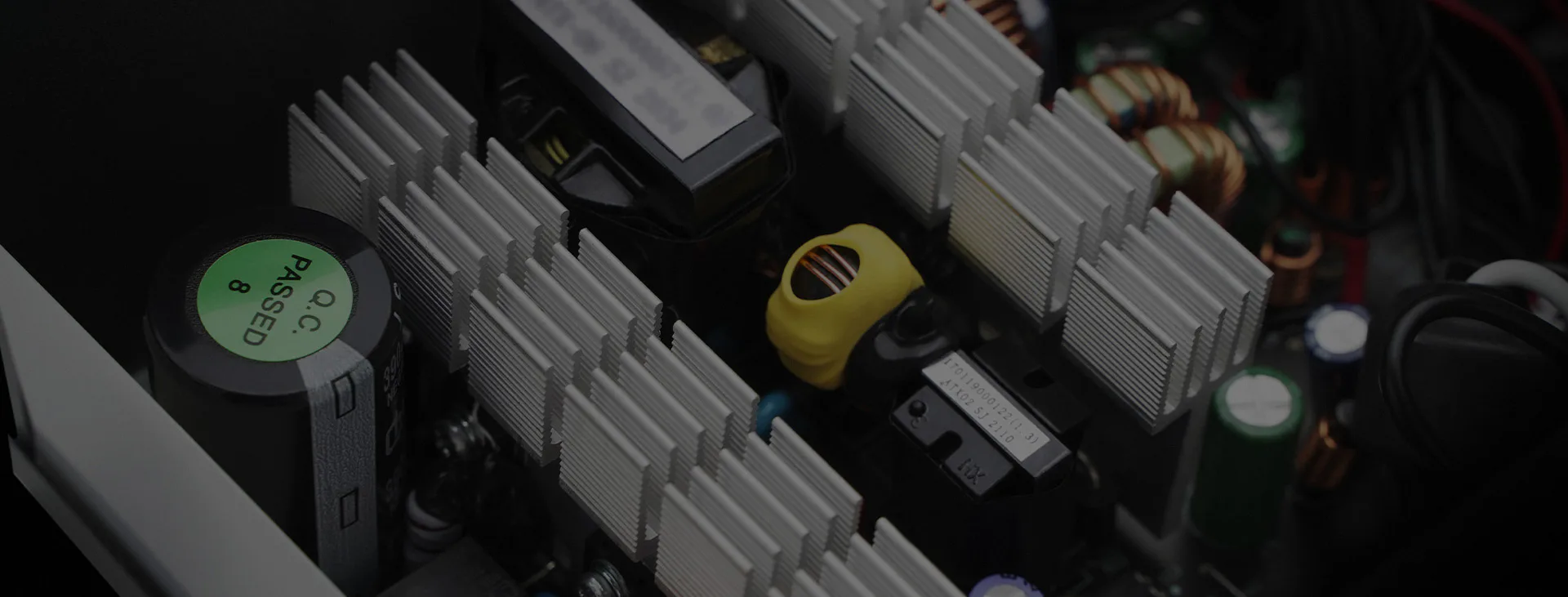

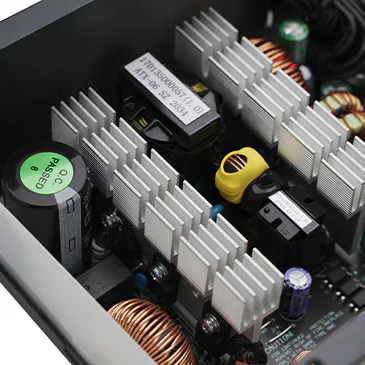

Capacitors Taiwan bulk capacitor
Power Good Signal 100-500ms
Hold Up Time ≥12ms(75% Load)
Efficiency ≥85% Under Typical Load(50% Loading)
Protection OPP/OVP/SCP
Operation Temperature 0-40°C
Regulatory CB/CCC/CE/UKCA/EAC/RCM
Erp Regulation ErP 2010
MTBF 100,000 Hours
EANP/N 6933412711575R-PF750D-HA0B-AU
6933412711582R-PF750D-HA0B-AR
6933412711599R-PF750D-HA0B-CN
6933412711605R-PF750D-HA0B-EU
6933412711612R-PF750D-HA0B-UK
6933412711629R-PF750D-HA0B-WO
6933412711636R-PF750D-HA0B-BP
6933412711728R-PF750D-HA0B-US
