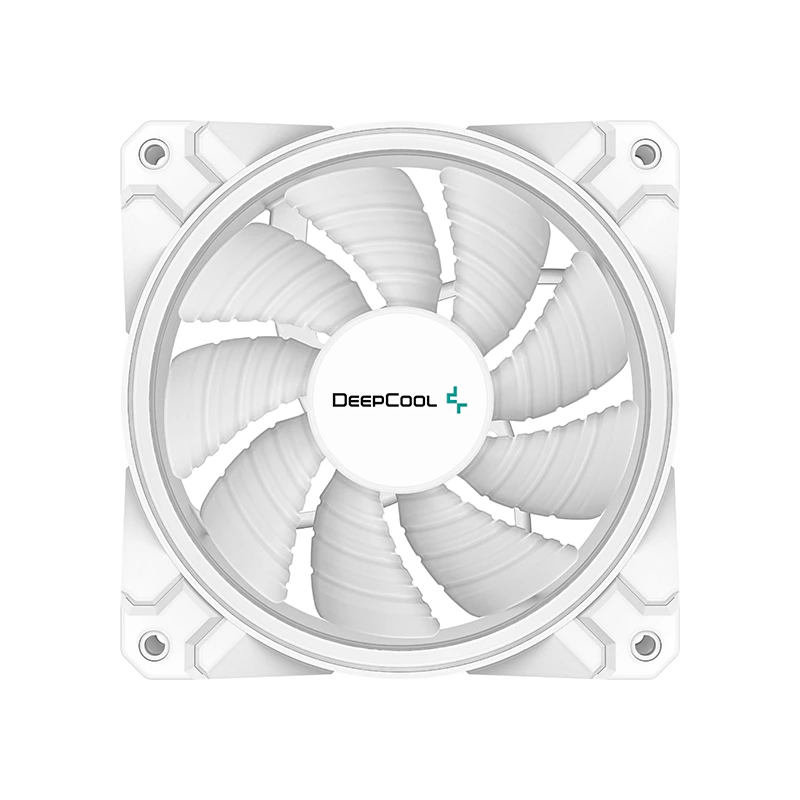

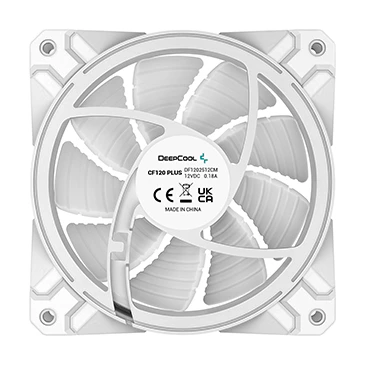

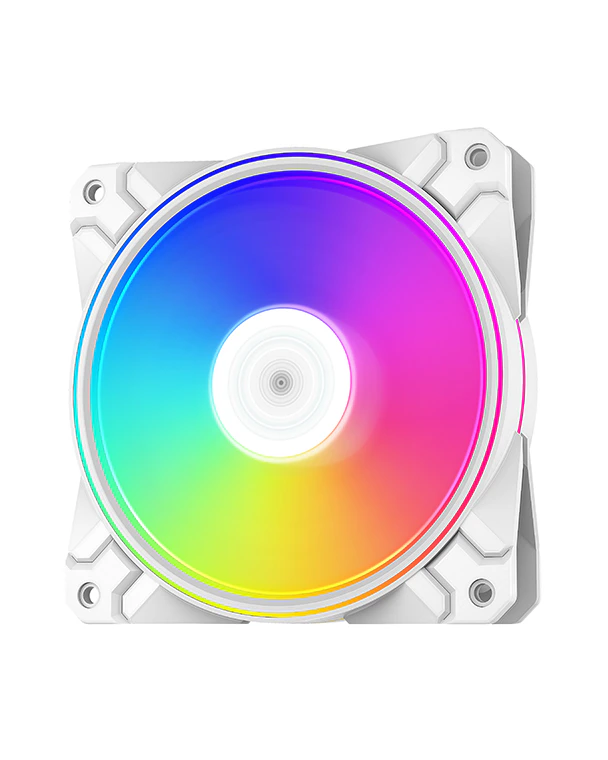

DeepCool-CF120 PLUS WH

CF120 PLUS WH

Overflowing Light

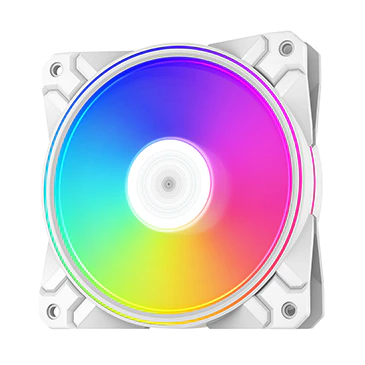

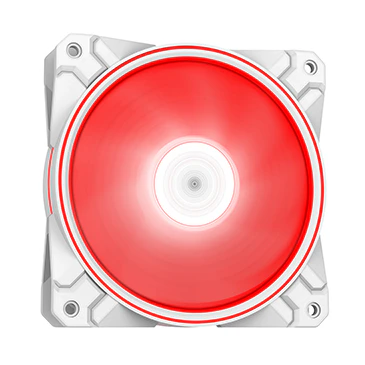

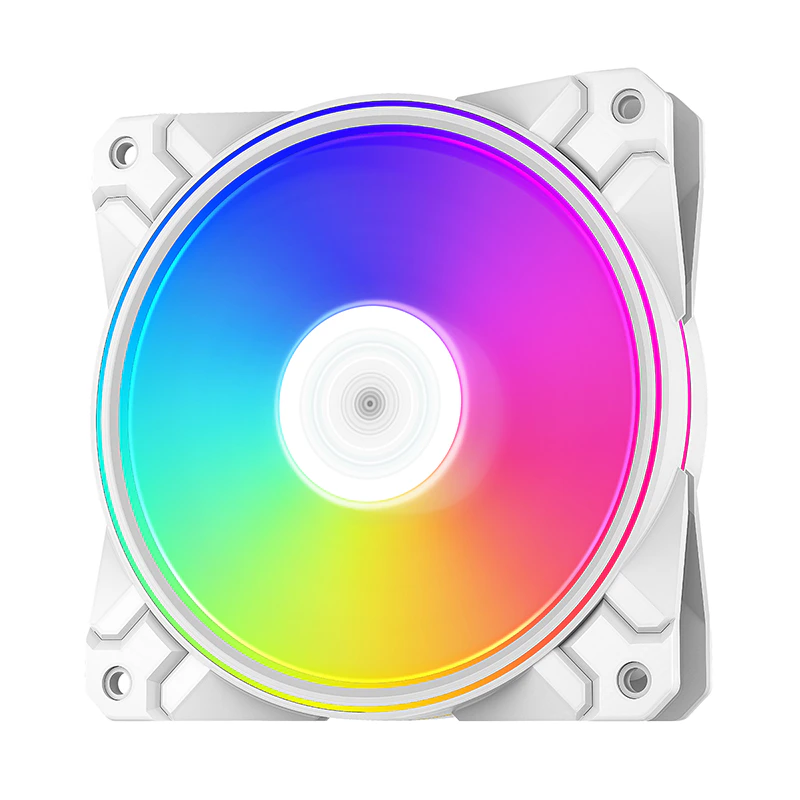

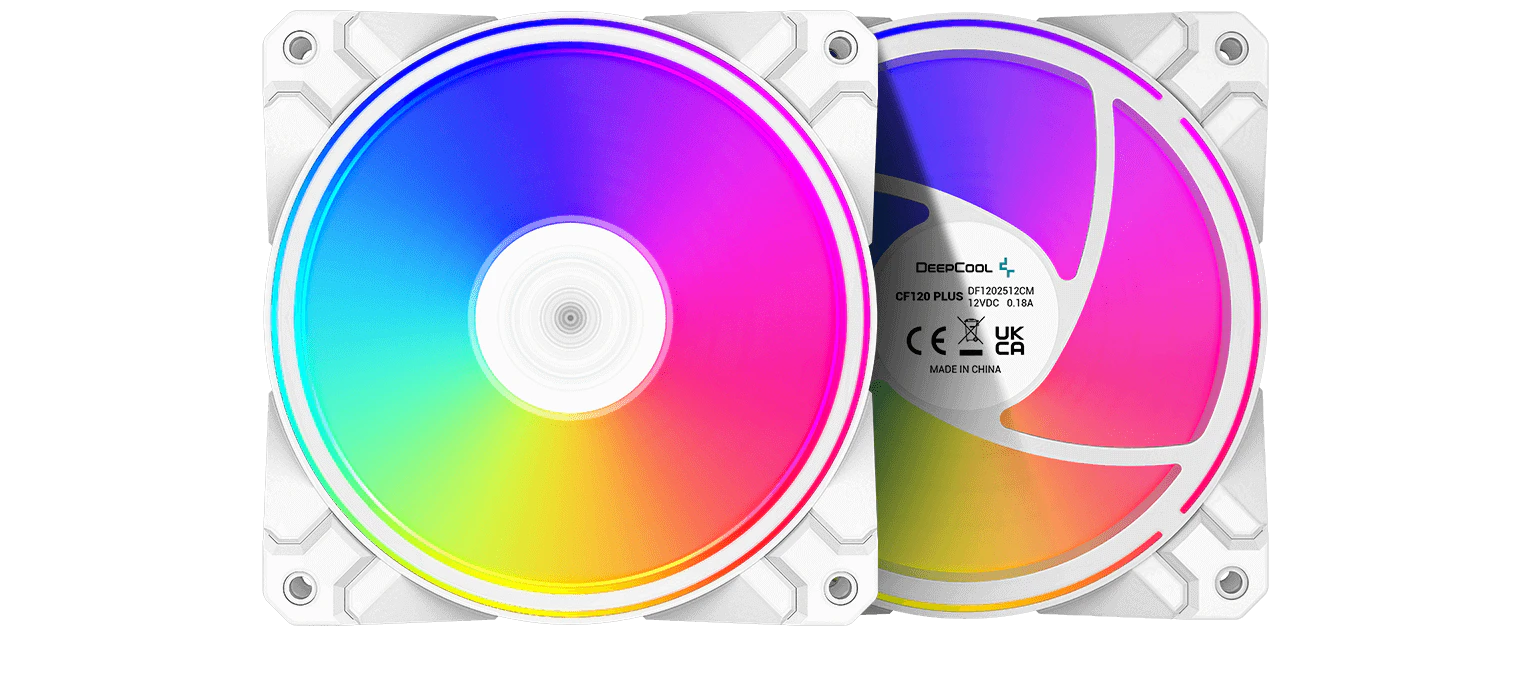

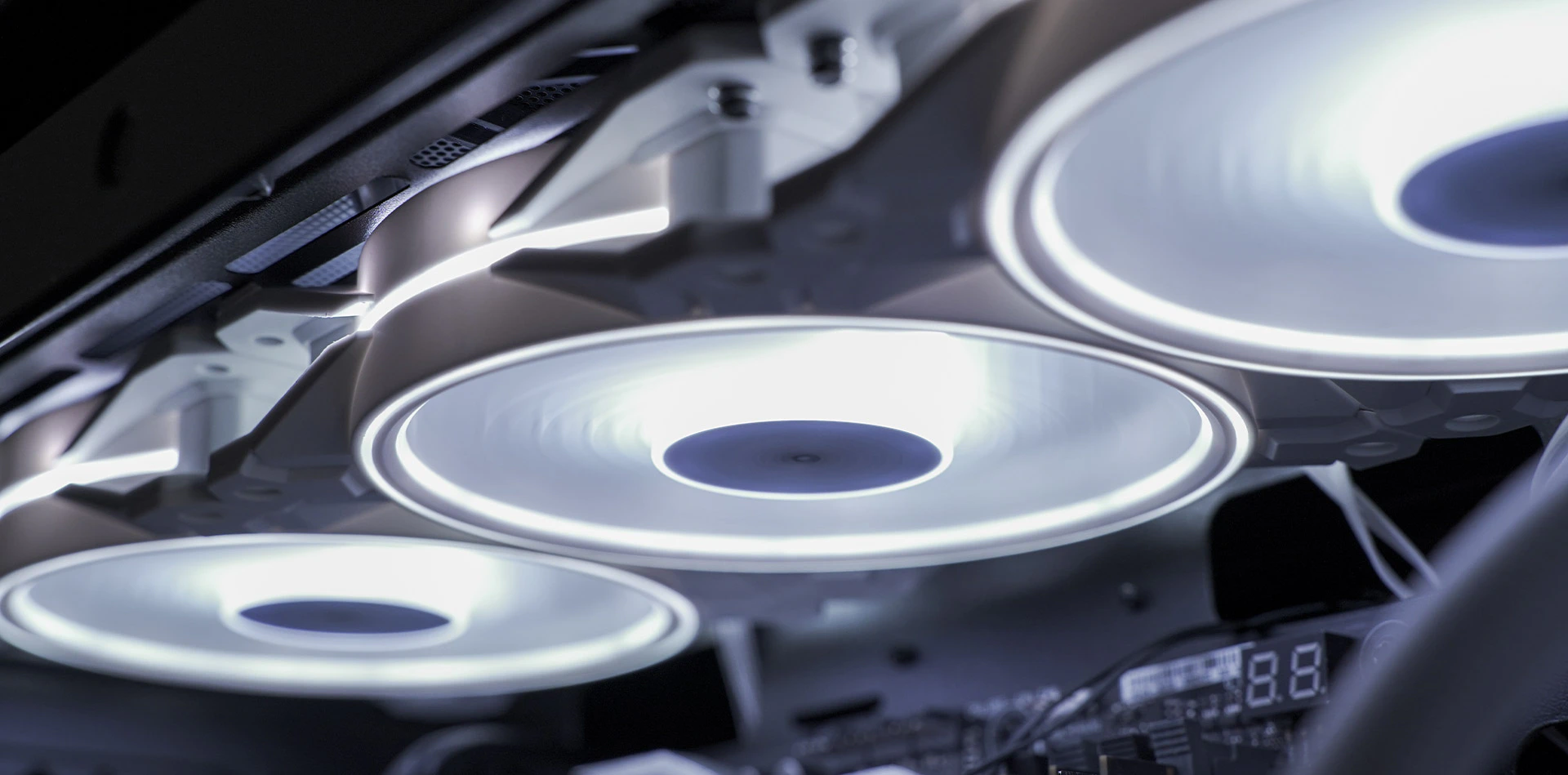

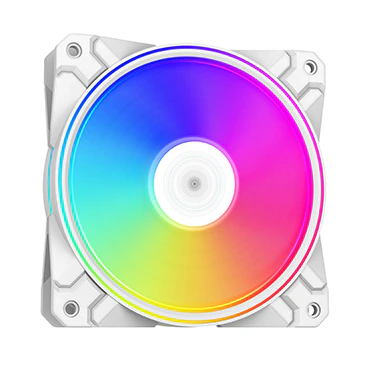

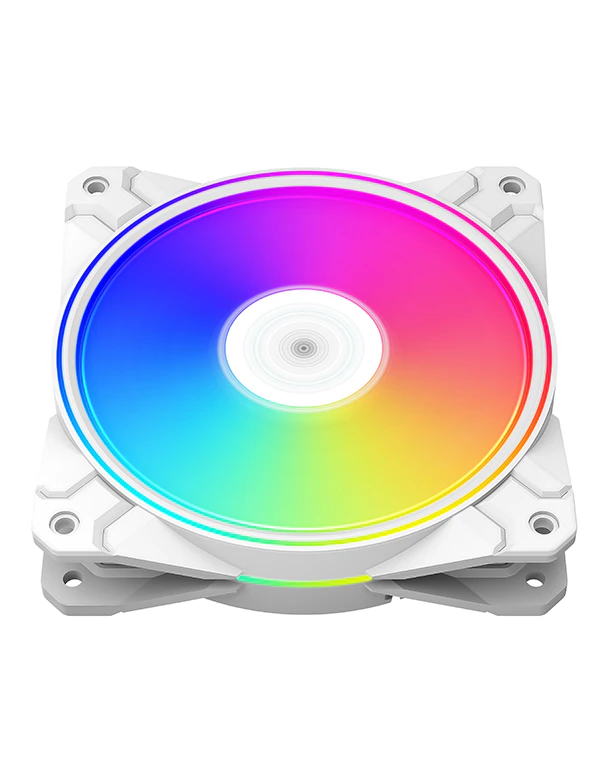

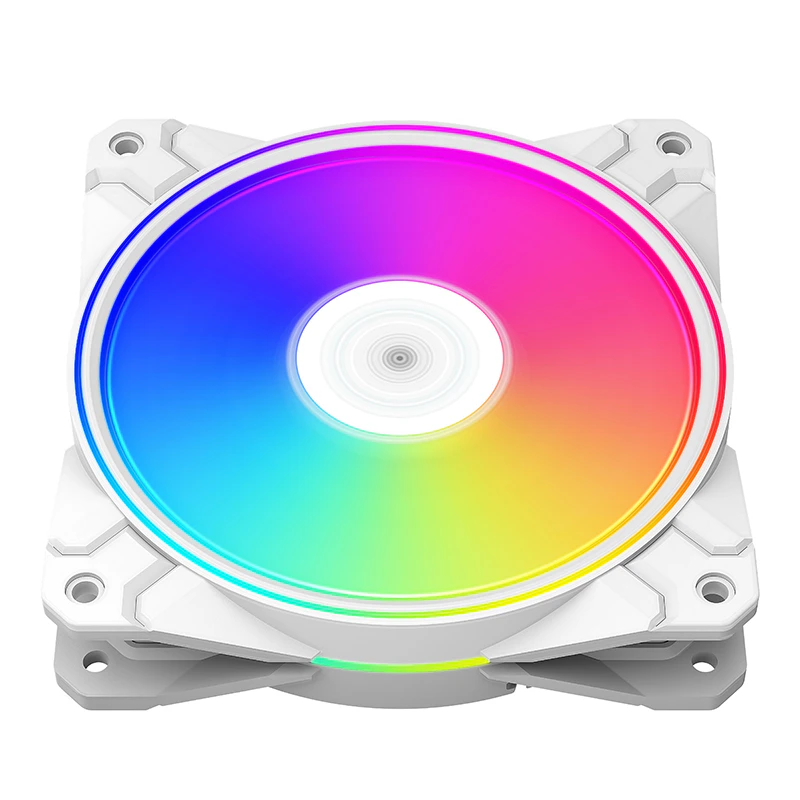

LIGHT UP YOUR BUILD

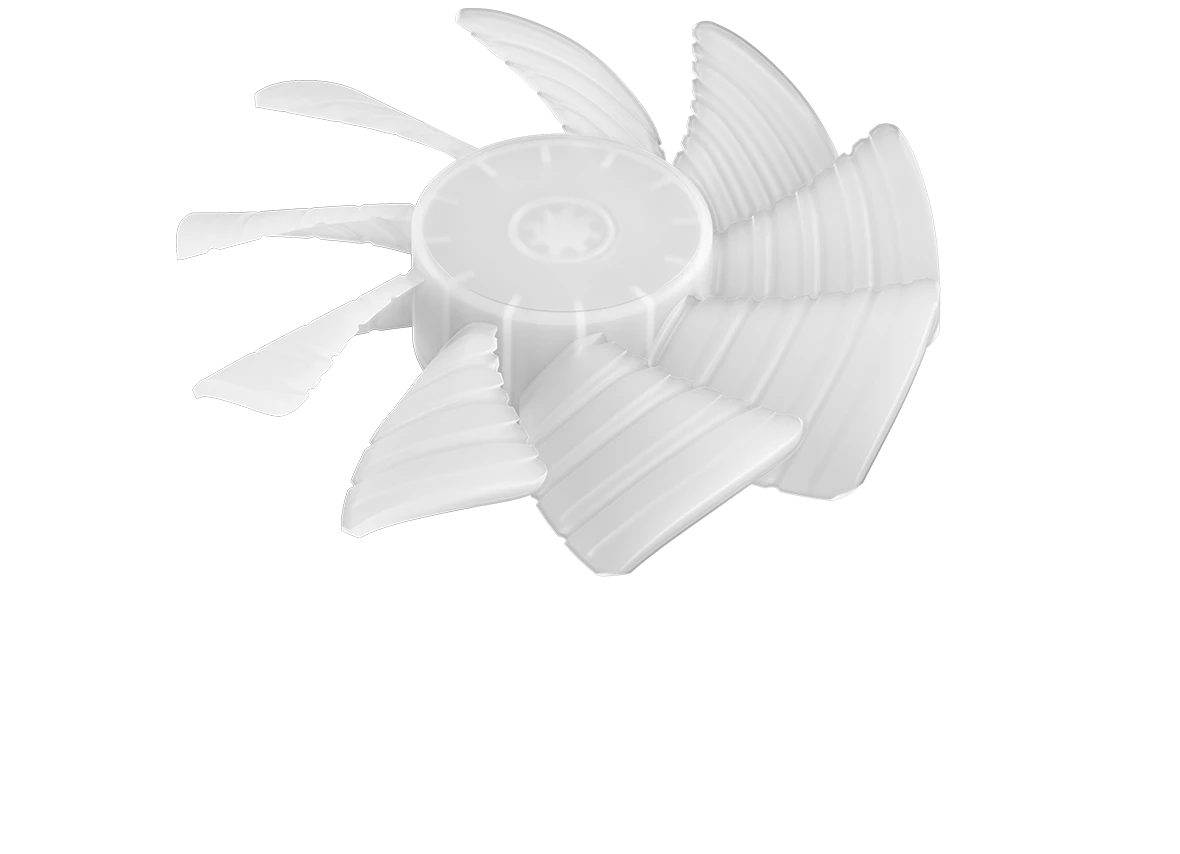

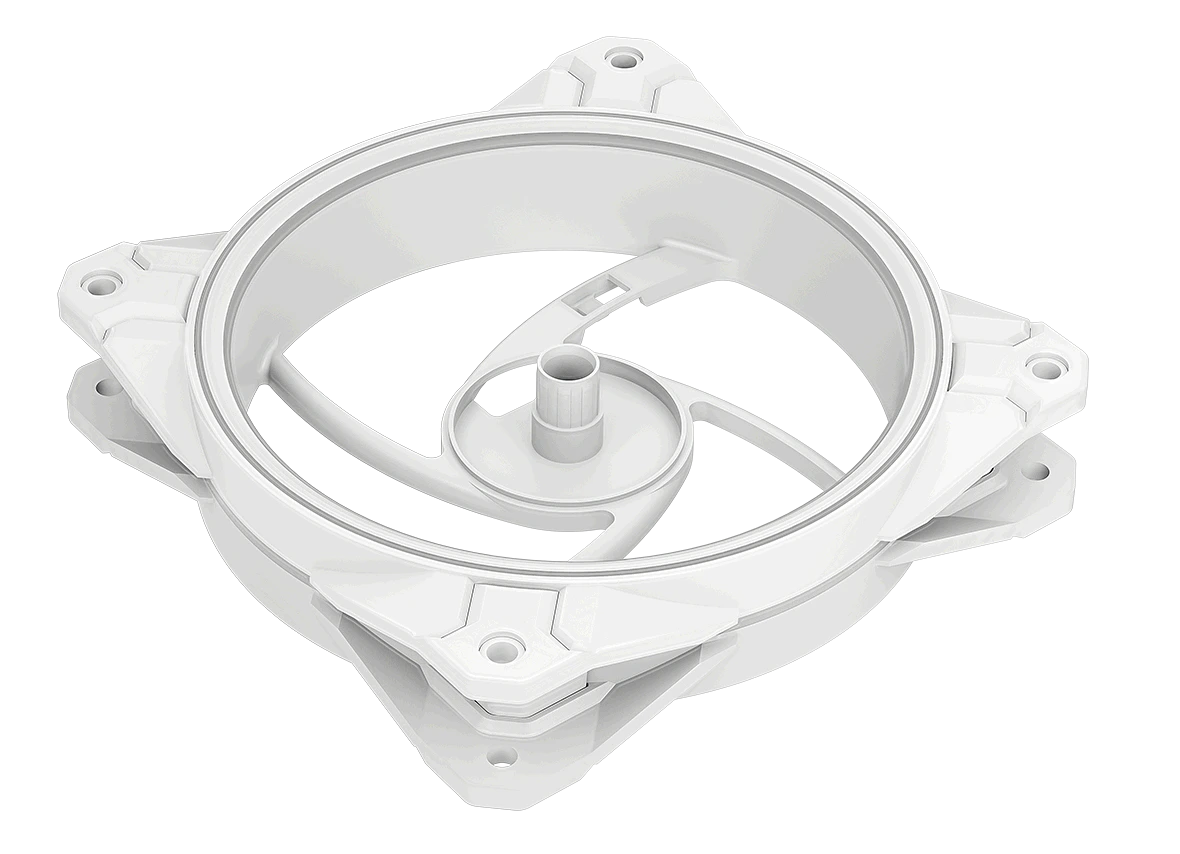

The CF120 PLUS WH case fan fits 18 individual addressable RGB LEDs across the fan blades and housing to create vibrant lighting effects in a layered design.

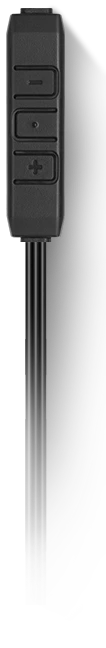

RGB CONTROLLER

Easily switch between 6 preset lighting effects with the included RGB controller. Customize to fit with your color settings.

Double Click to Switch
-Full RGB/ Halo Only

Hold for 3 seconds to Switch
-RGB ON/Off

MOTHERBOARD RGB SYNC

Sync with your motherboard for direct control using RGB software, including Chroma.

MOTHERBOARD RGB SYNC

Sync with your motherboard for direct control using RGB software, including Chroma.

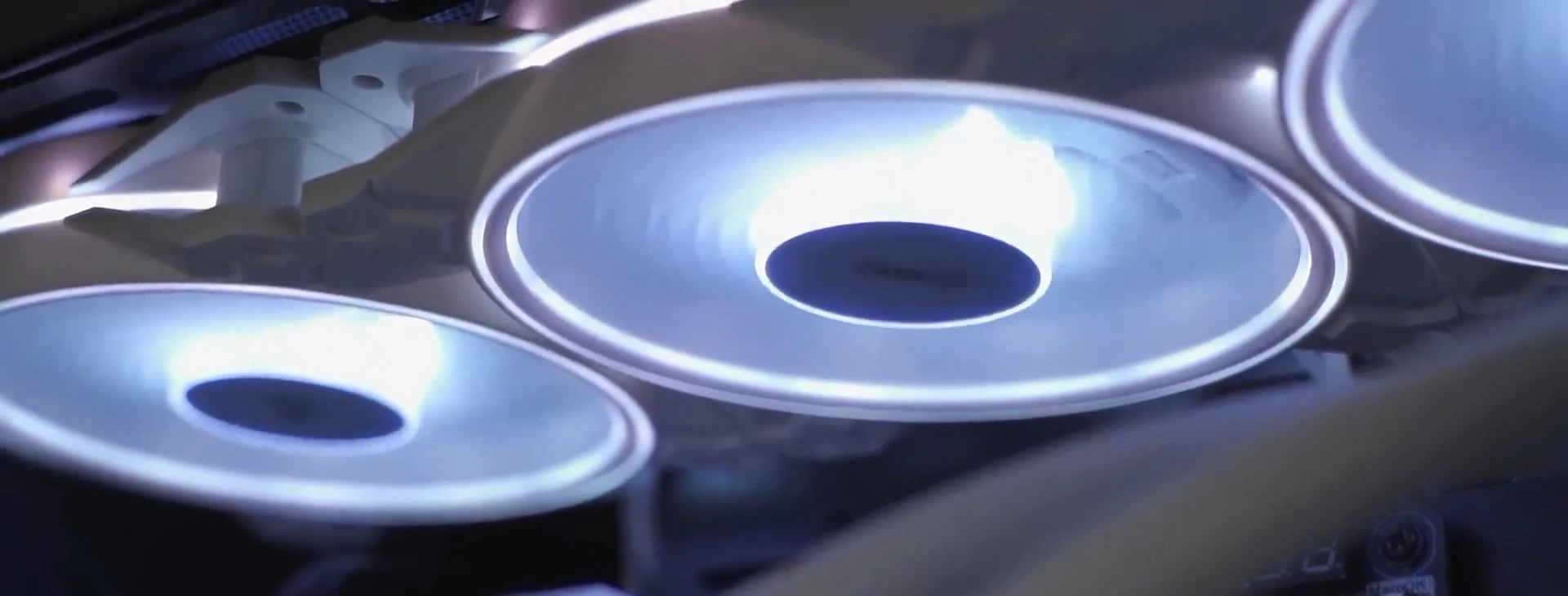

KEEPING THINGS COOL

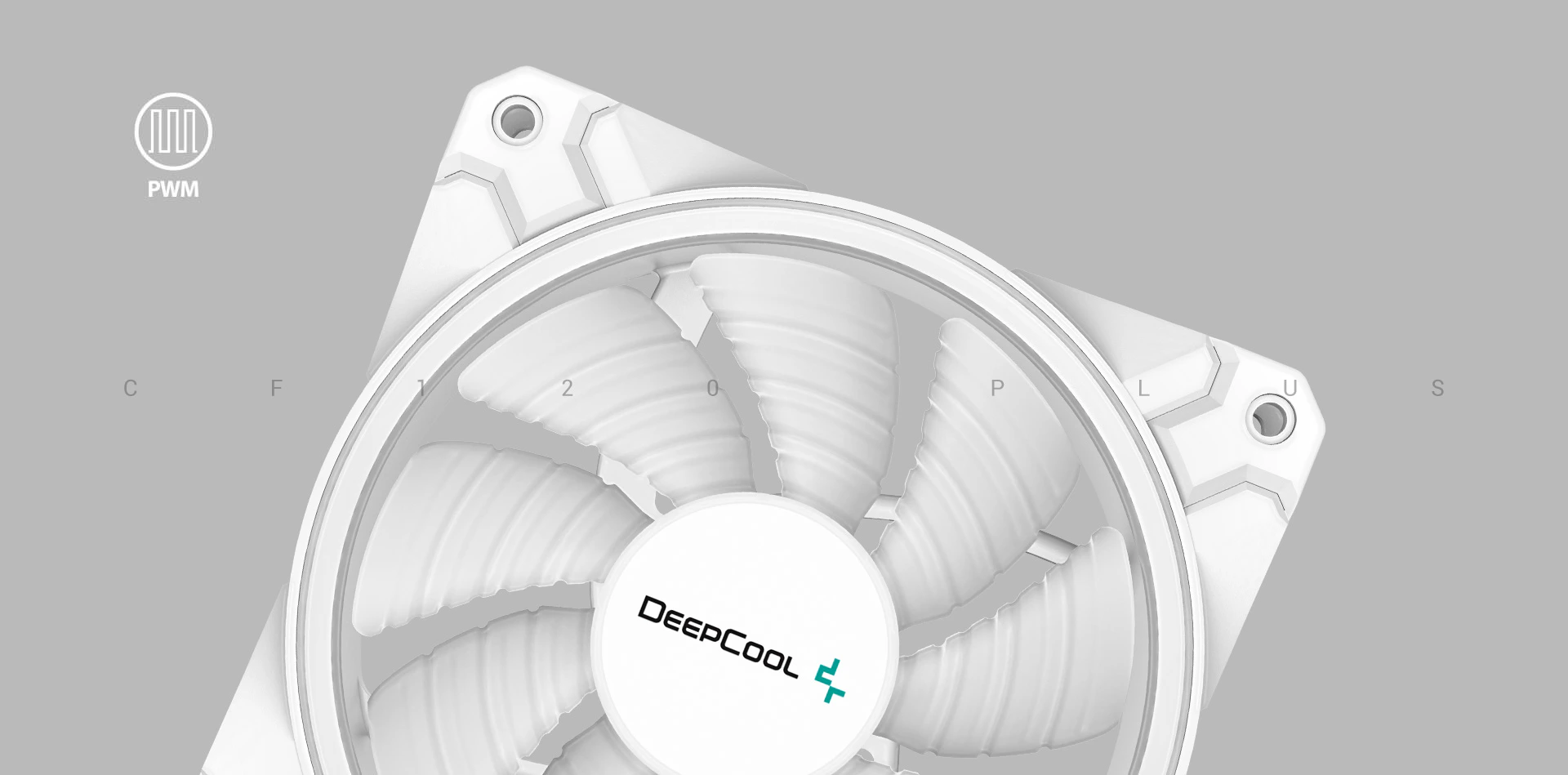

Maximize cooling efficiency with powerful fan speeds and PWM fan control to quickly lower system temperatures when needed and staying quiet under light loads.

500~1800 RPM±10%

Wide Speed Range

52.5 CFM

Ultra Airflow

≤28.8 dB(A)

Super Silent

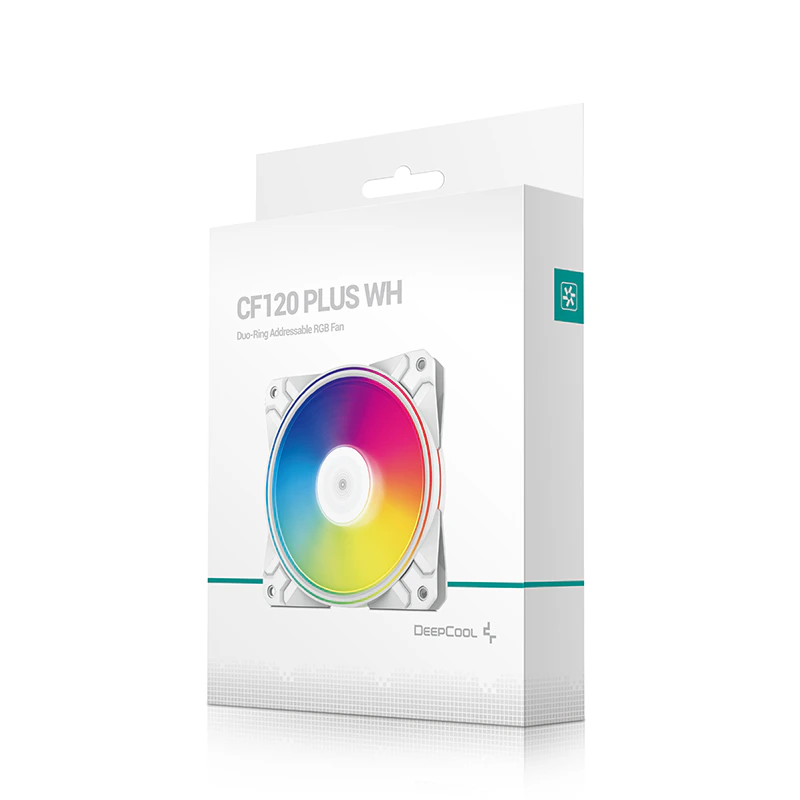

WHAT’S IN THE BOX

5V A-RGB Wire Controller
6 Ports A-RGB Hub
4 Ports PWM Hub
5V A-RGB Motherboard Adaptor
Screws

Technical Spec

Fan Dimensions	120×120×26.5 mm
Net Weight	186 g
Fan Speed	500~1800 RPM±10%
Fan Airflow	52.5 CFM
Fan Air Pressure	2.08 mmAq
Fan Noise	≤28.8 dB(A)
Fan Connector	4-Pin PWM
Bearing Type	Hydro Bearing
Fan Rated Voltage	12VDC
Fan Rated Current	0.18A
Fan Power Consumption	2.16W
LED Type	Addressable RGB LED
LED Rated Voltage	5VDC
LED Rated Current	0.63A
LED Power Consumption	3.15W
LED Connector	3-pin（+5V-D-G）
EAN	6933412710592
P/N	DP-F12-AR-CF120P-WH

Product Dimension

Download

CF120 PLUS WH.pdf

Download

5V A-RGB Wire Controller

6 Ports A-RGB Hub

4 Ports PWM Hub

5V A-RGB Motherboard Adaptor

Screws
