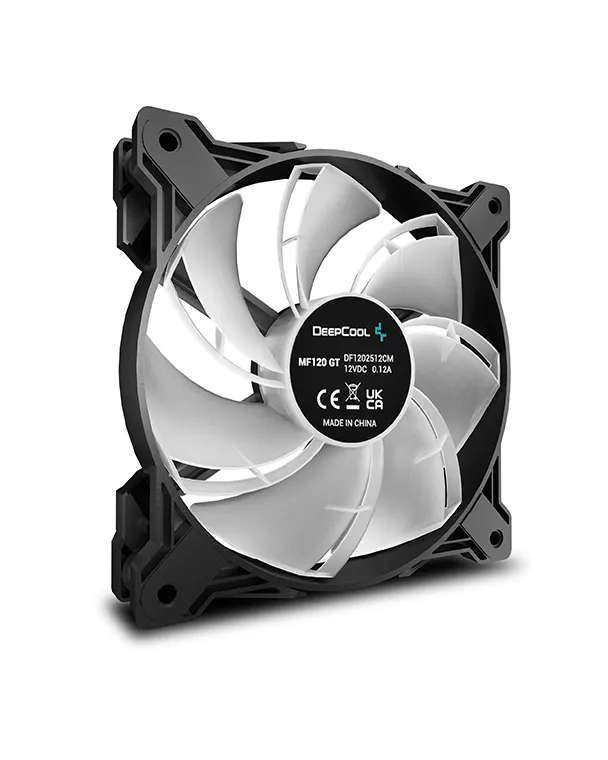

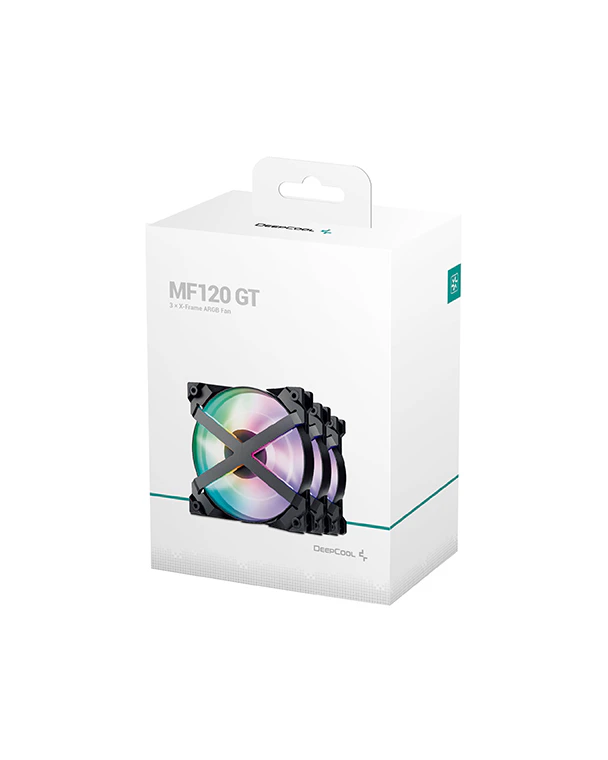

MF120 GT

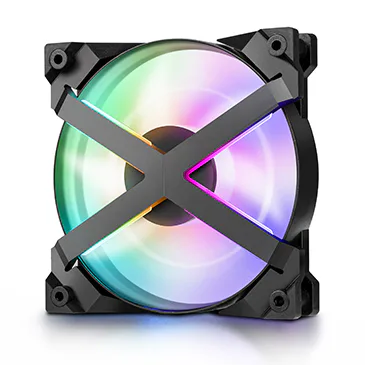

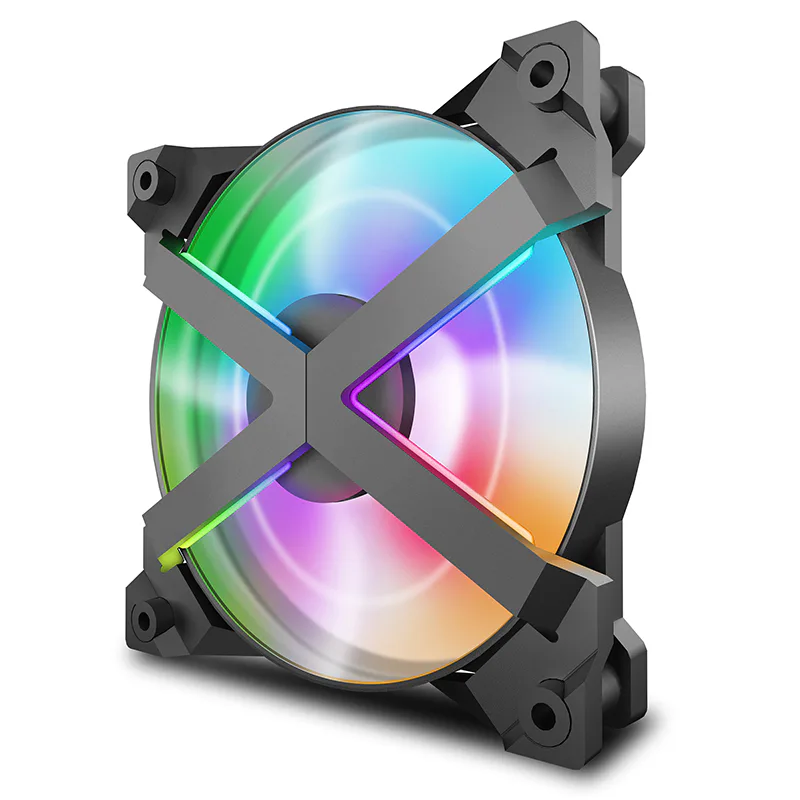

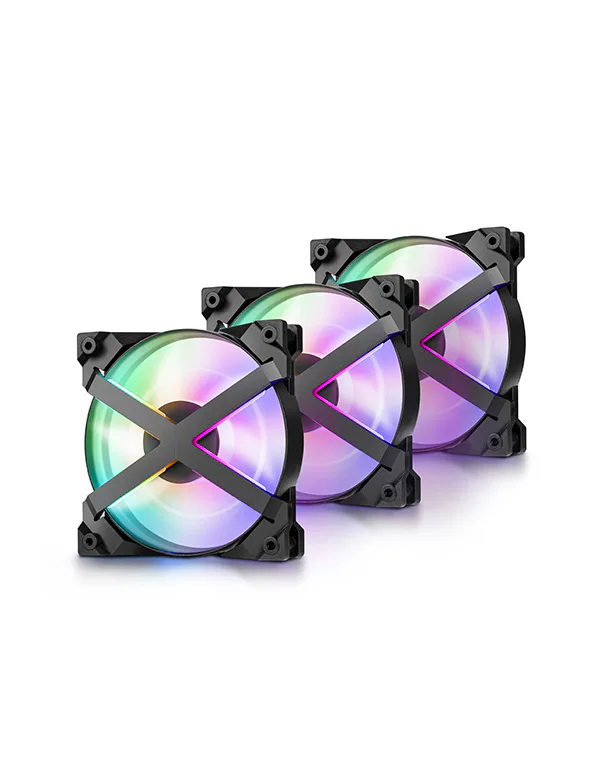

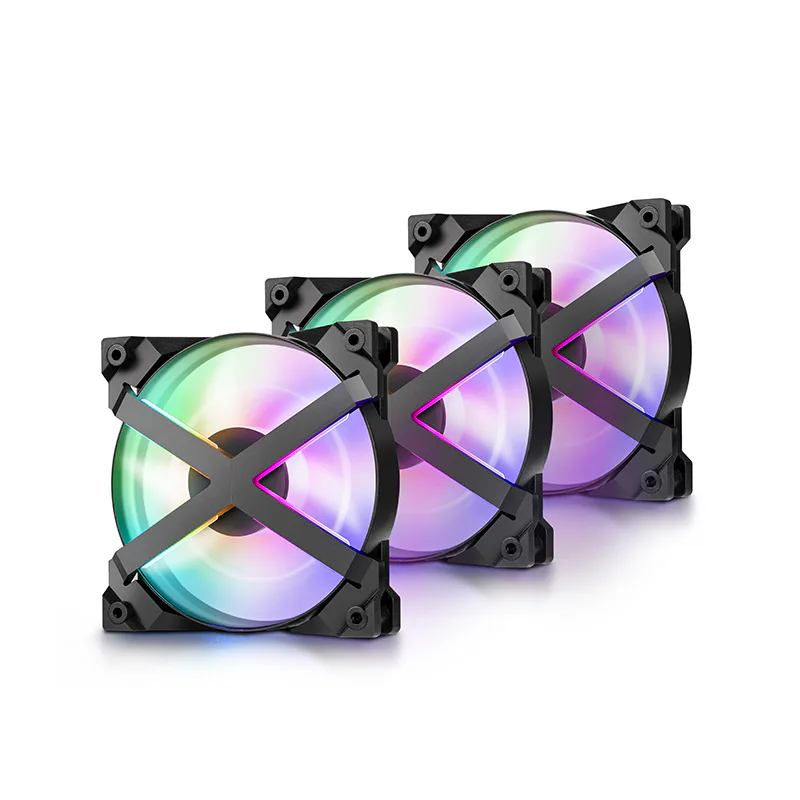

The DeepCool MF120 GT A-RGB PWM fan features 20 ultra-bright addressable LEDs across a unique X-Frame for a striking design that provides powerful cooling.
COLOR
black
MODEL
MF120 GT
First Class

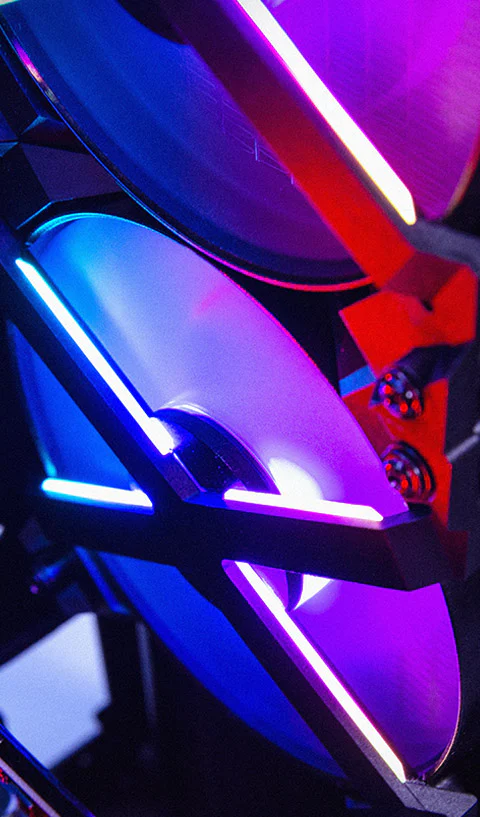

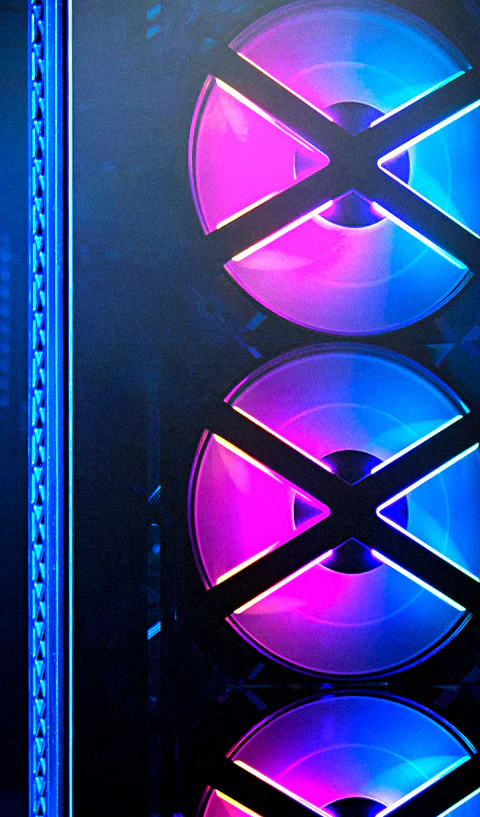

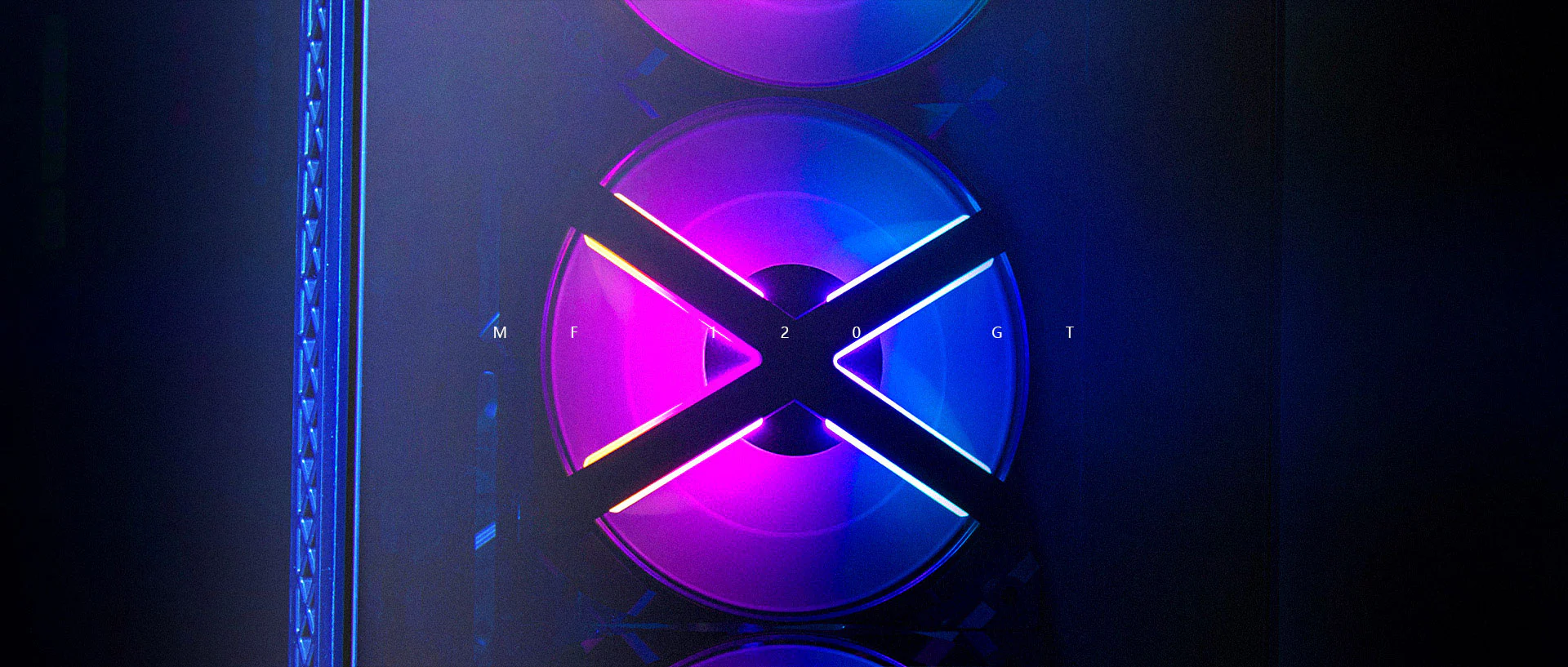

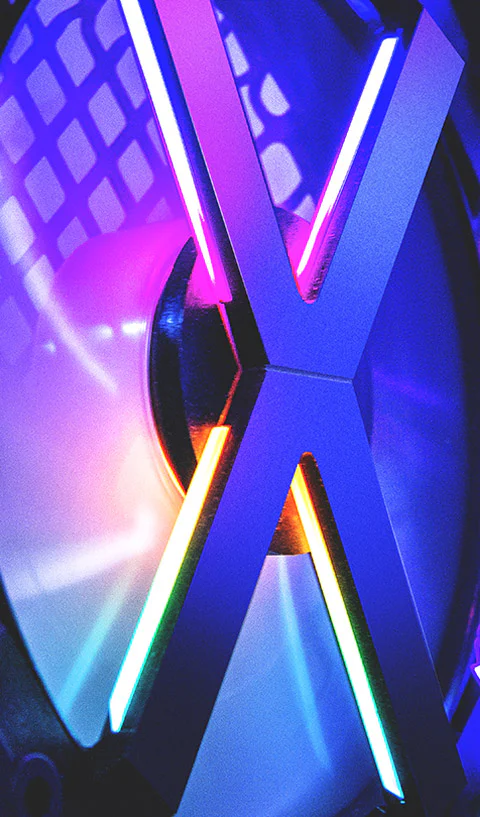

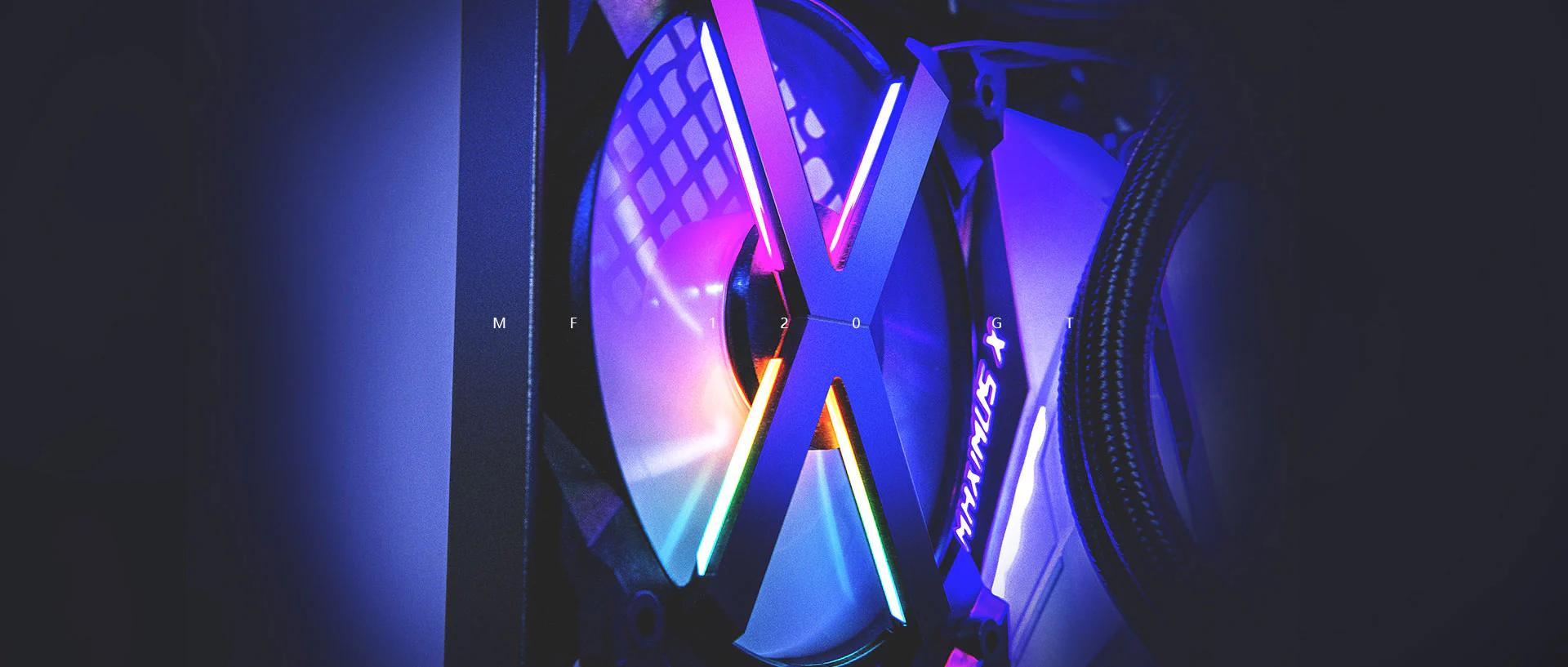

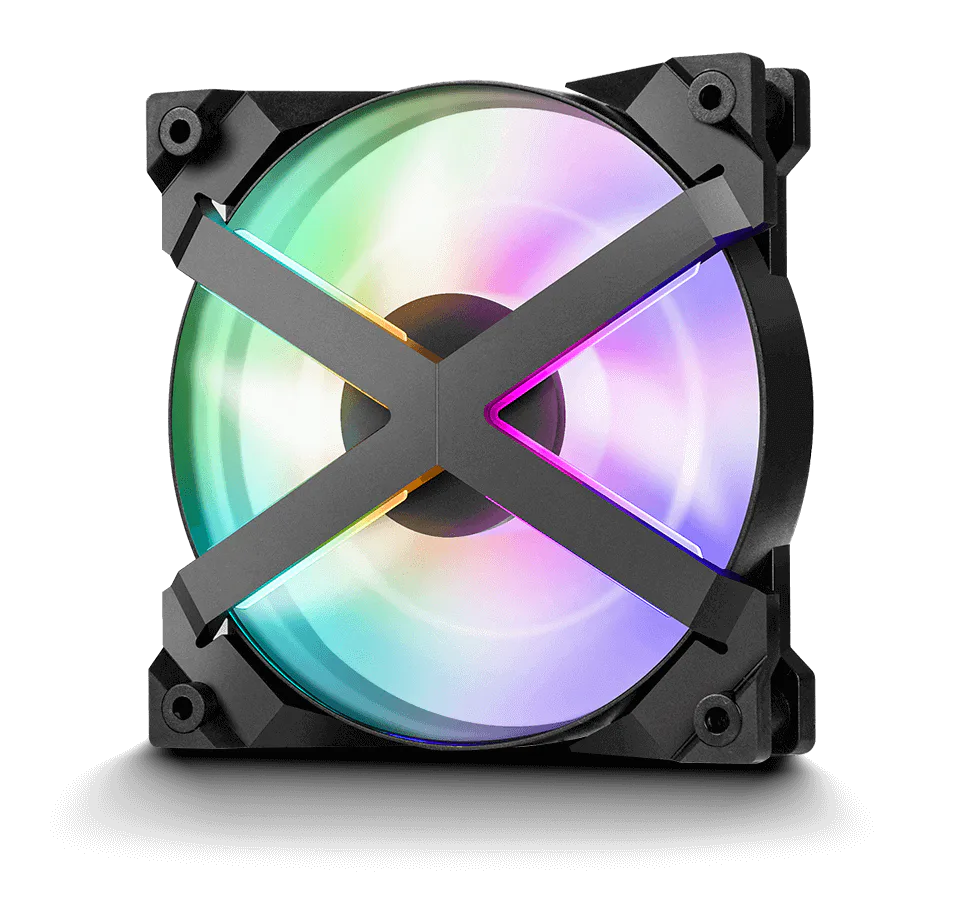

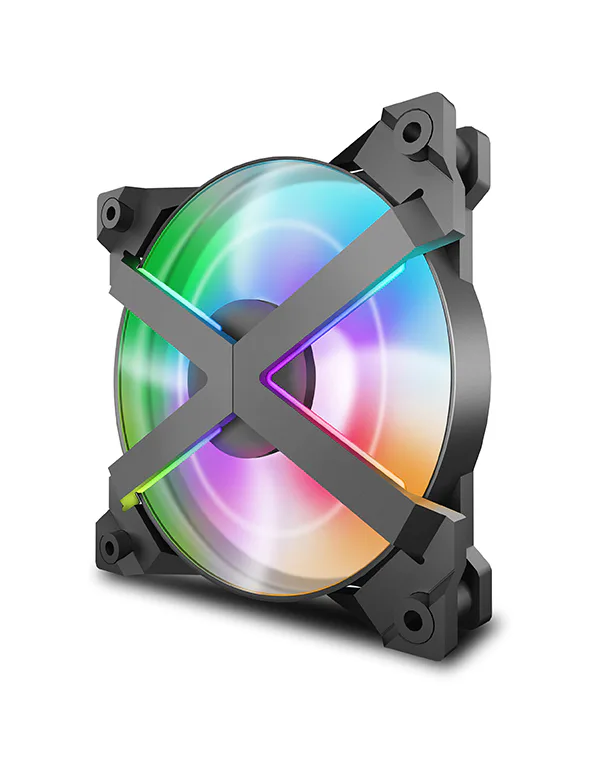

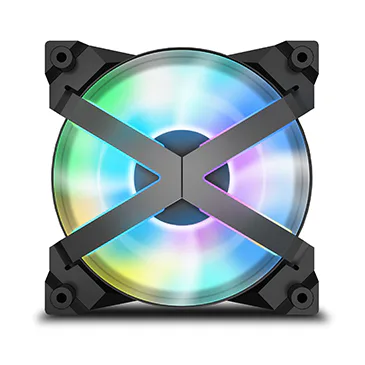

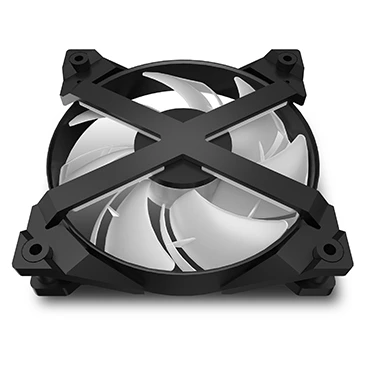

The X Factor

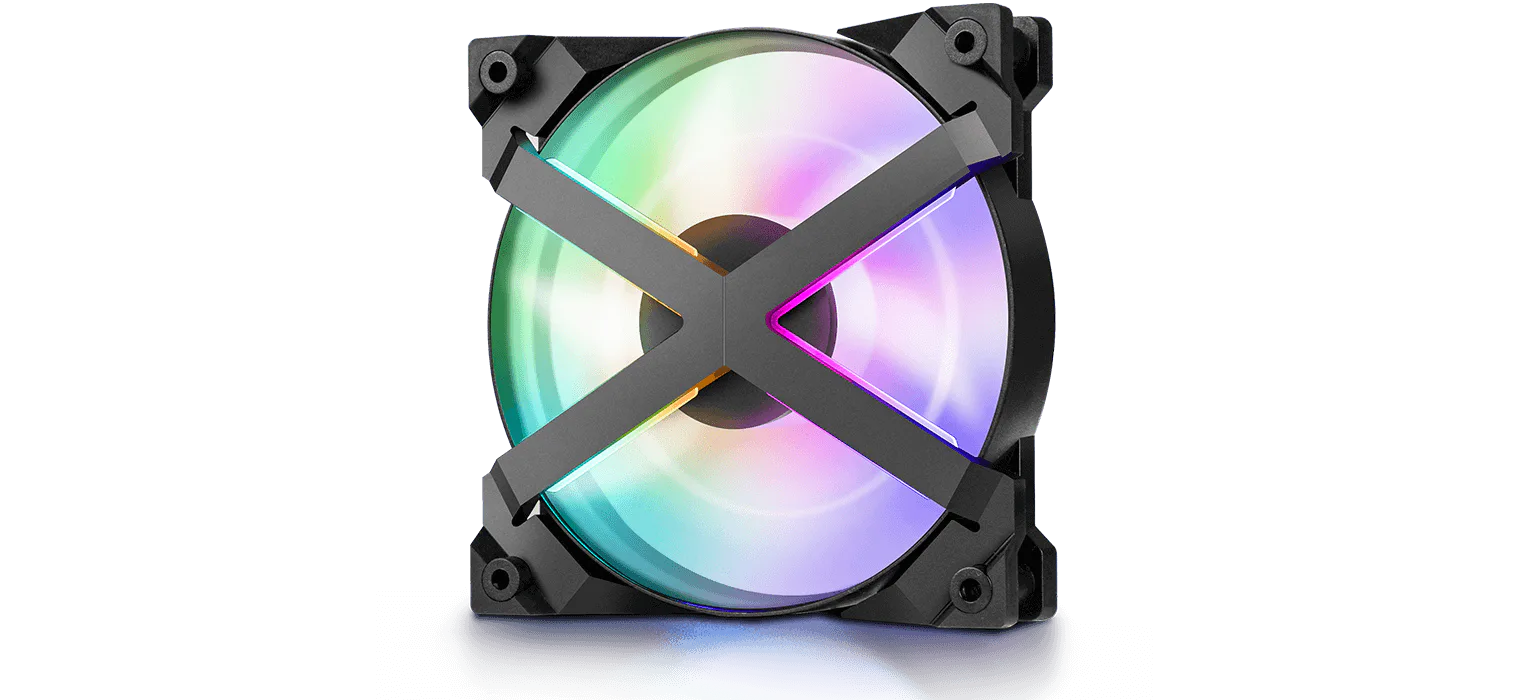

Stand out with a unique X frame aesthetic featuring addressable RGB lighting effects for a striking new look.

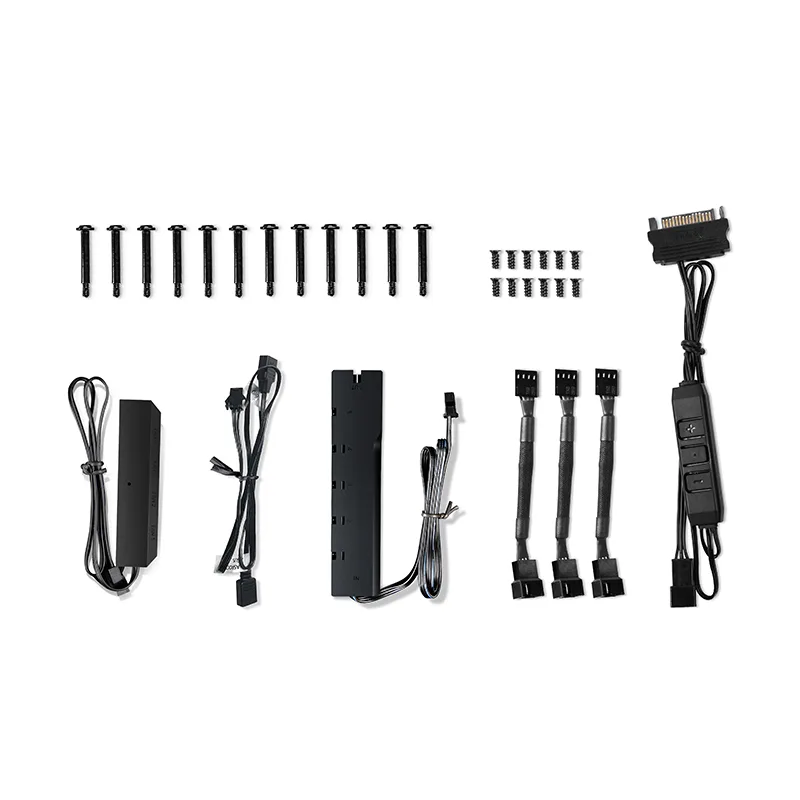

One touch lighting control

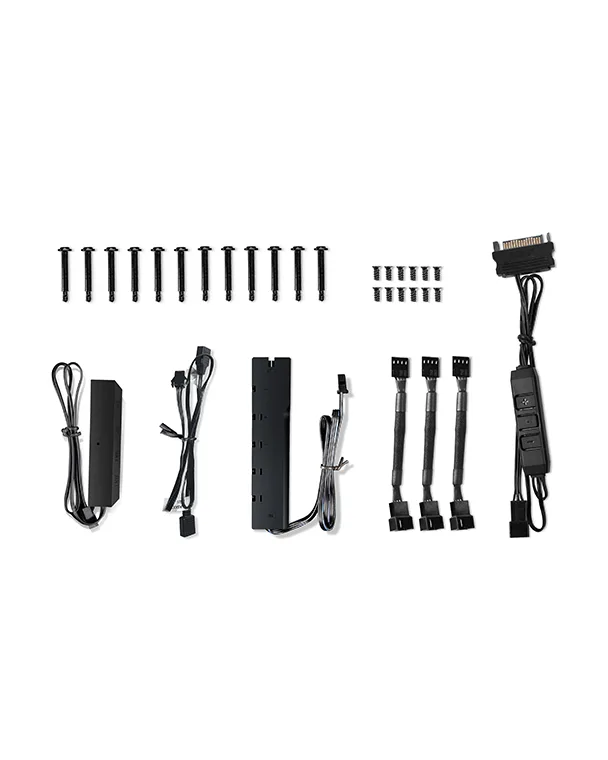

Adjusting colors is easy with direct control through motherboard software, A-RGB hubs or the included wire controller.

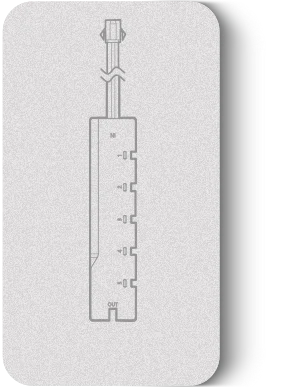

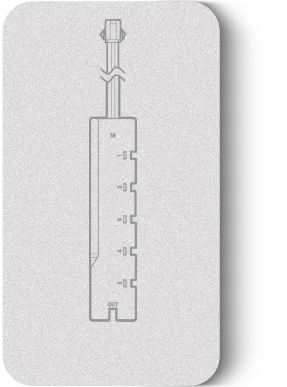

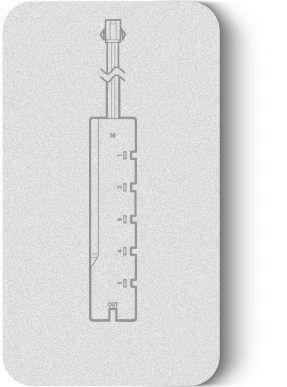

  • A-RGB Hub

    A-RGB Hub

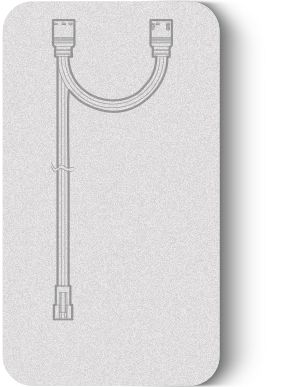

  • Motherboard Extension Cable

    Motherboard Extension Cable

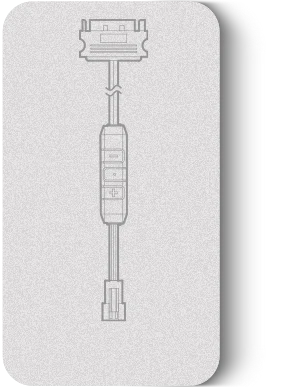

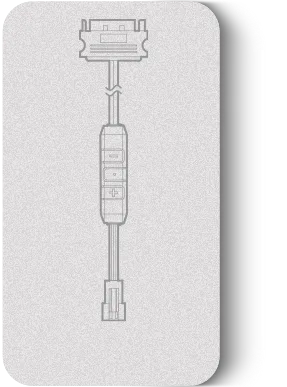

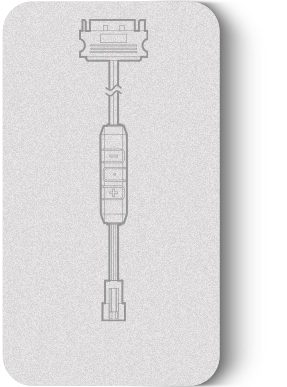

  • Wire Controller

    Wire Controller

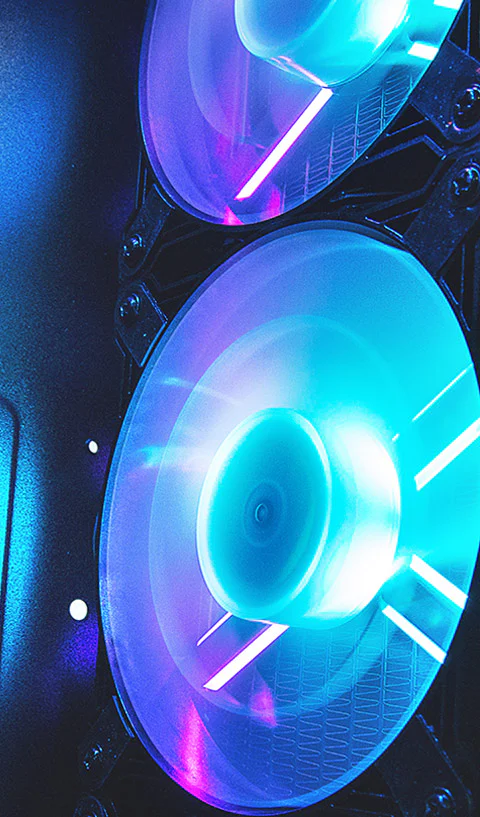

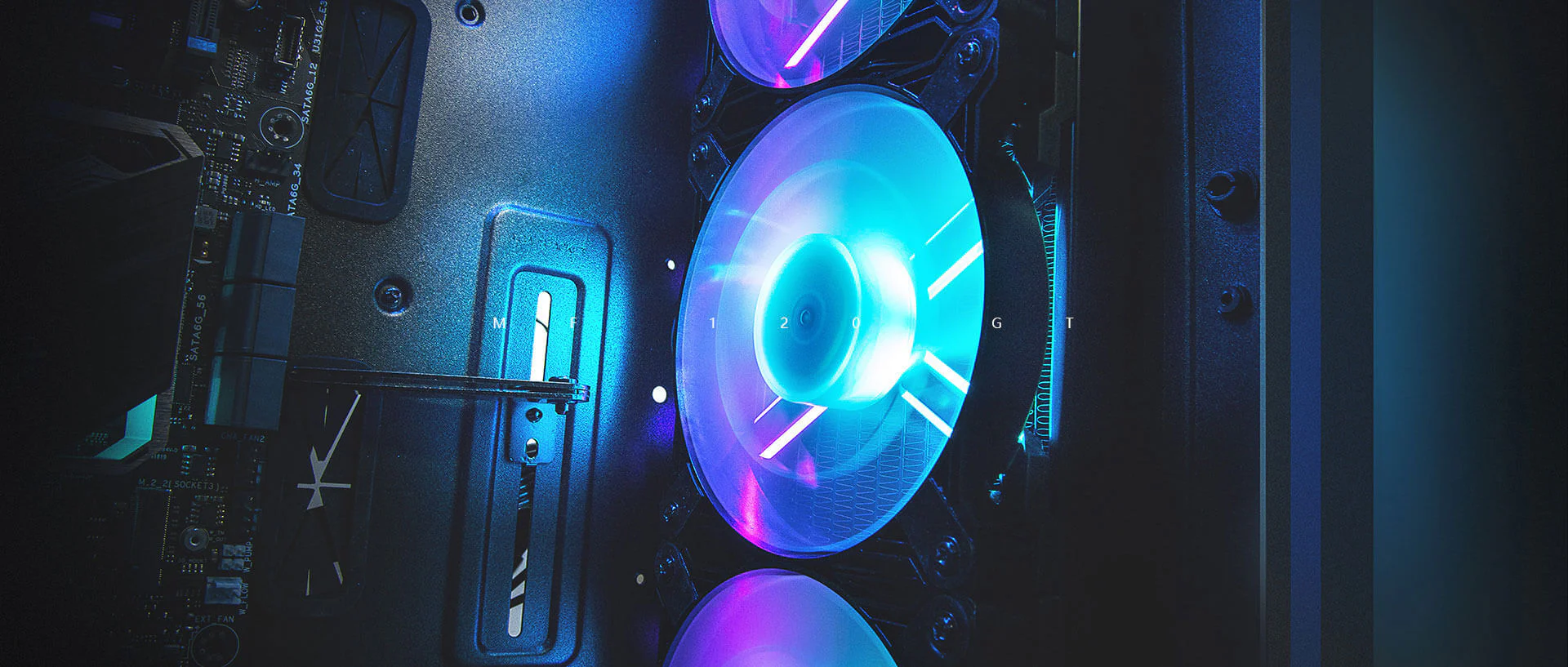

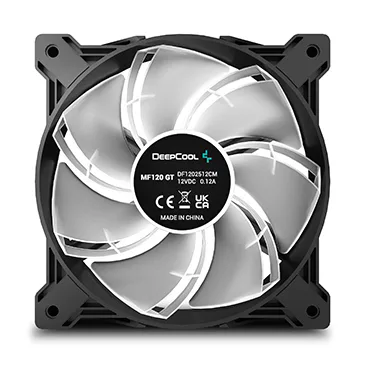

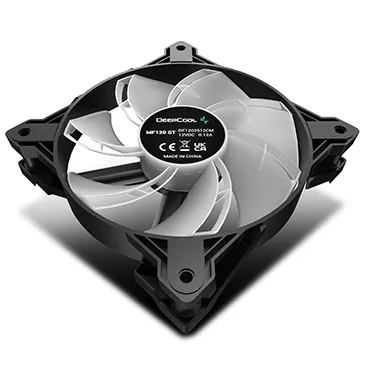

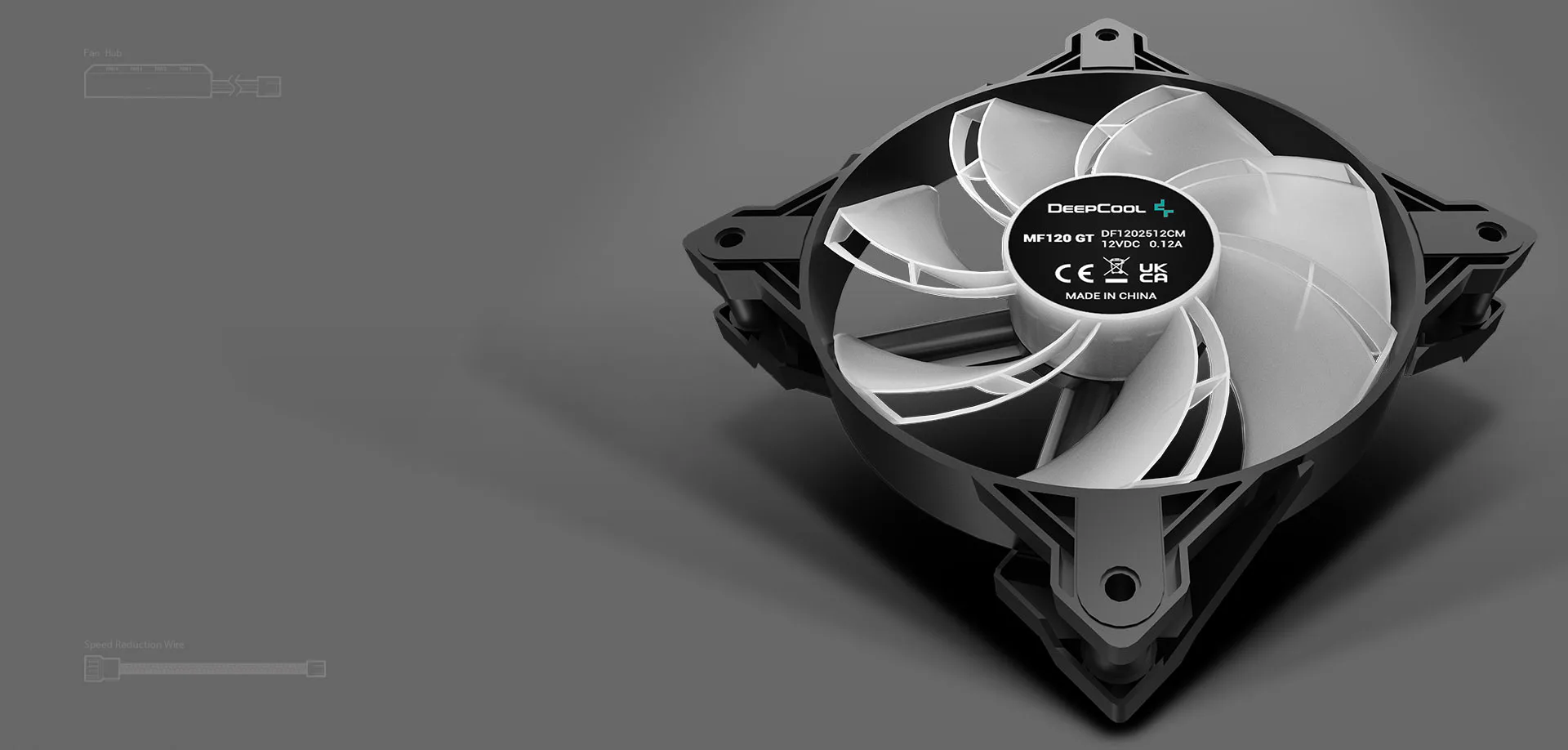

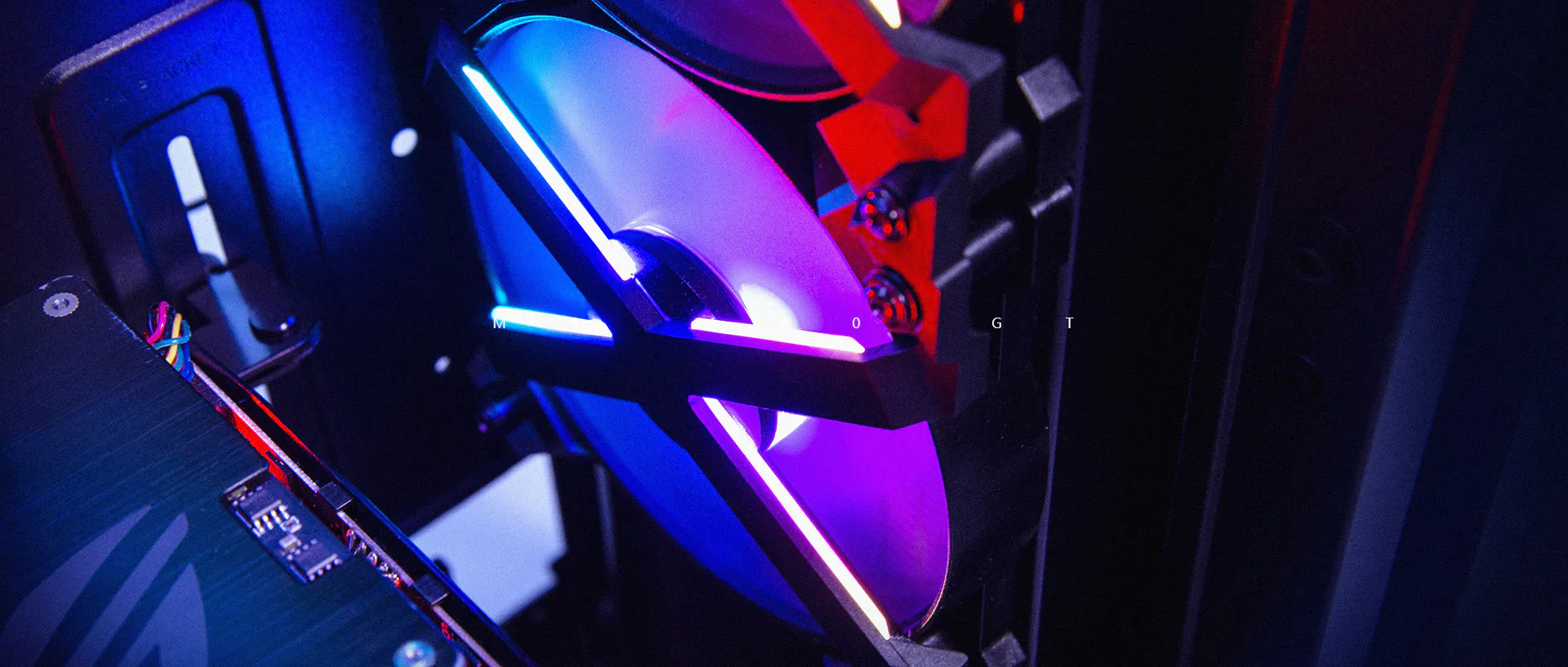

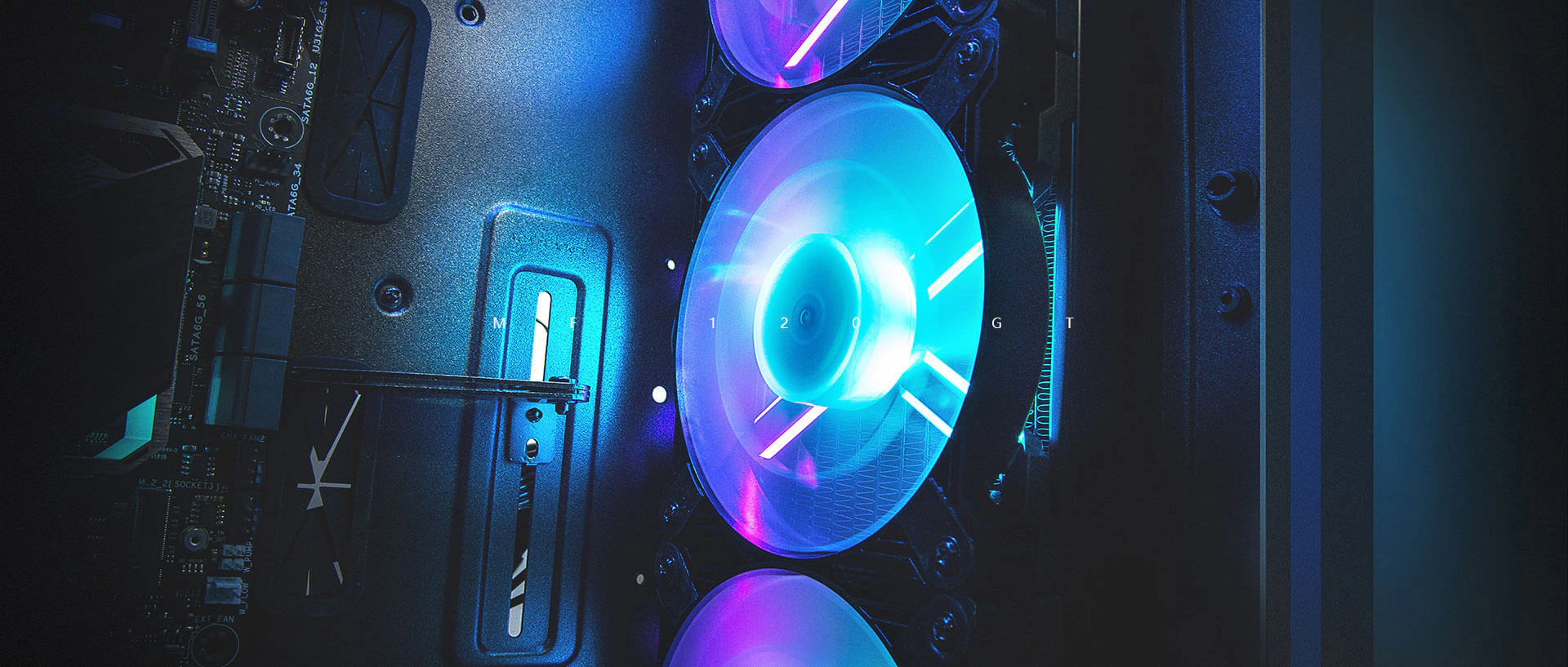

Choose your side
Get creative with either intake or exhaust setups that deliver an impact.

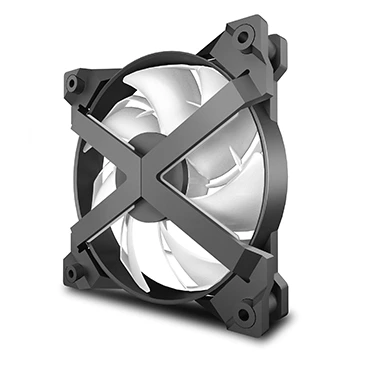

Better thermal performance

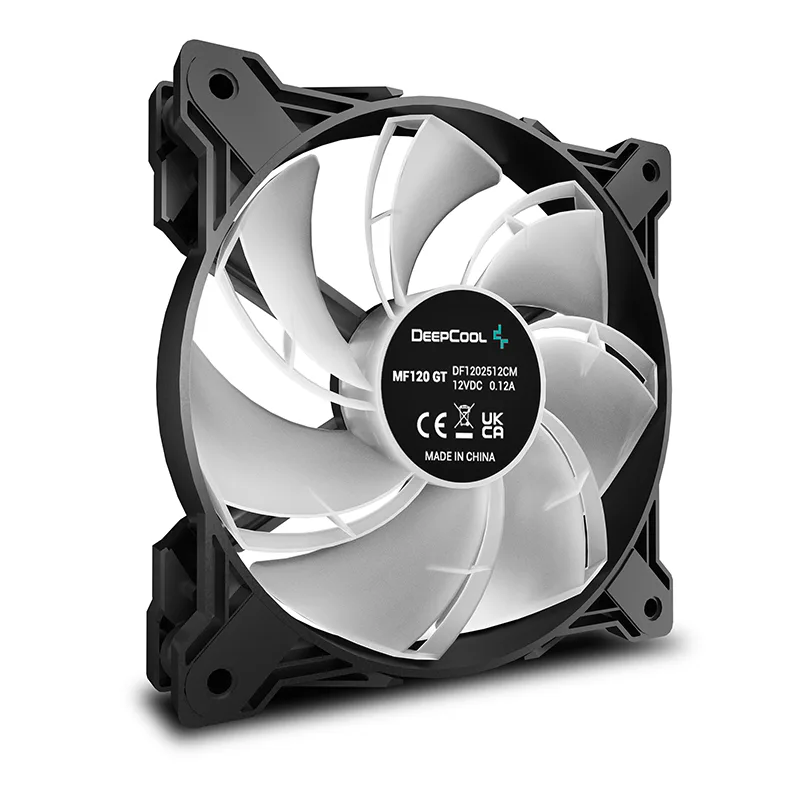

Dual-layer fan blades provide exceptional cooling and airflow to lower your system temperatures quickly. Achieve balance between performance and noise with precise PWM control.
500~1800 RPM±10%
Wide Speed Range
60.6 CFM
Ultra Airflow
Better thermal performance
Dual-layer fan blades provide exceptional cooling and airflow to lower your system temperatures quickly. Achieve balance between performance and noise with precise PWM control.
500~1800 RPM±10%
Wide Speed Range
60.6 CFM
Ultra Airflow
Technical Spec
Fan Dimensions 120×120×27 mm
Net Weight 488g
Fan Speed 500~1800 RPM±10%
Fan Airflow 60.6 CFM
Fan Air Pressure 1.73 mmAq
Fan Noise ≤35 dB(A)
Fan Speed (with LSP) 400~1450 RPM±10%
Fan Airflow (with LSP) 48.3 CFM
Fan Air Pressure (with LSP) 1.1 mmAq
Fan Noise (with LSP) ≤29.5 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.12 A±10%
Fan Power Consumption 1.44 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Rated Current 0.74 A±10%
LED Power Consumption 3.7 W
EAN 6933412710493
P/N DP-GS-F12-AR-MF120GT-3P
Product Dimension

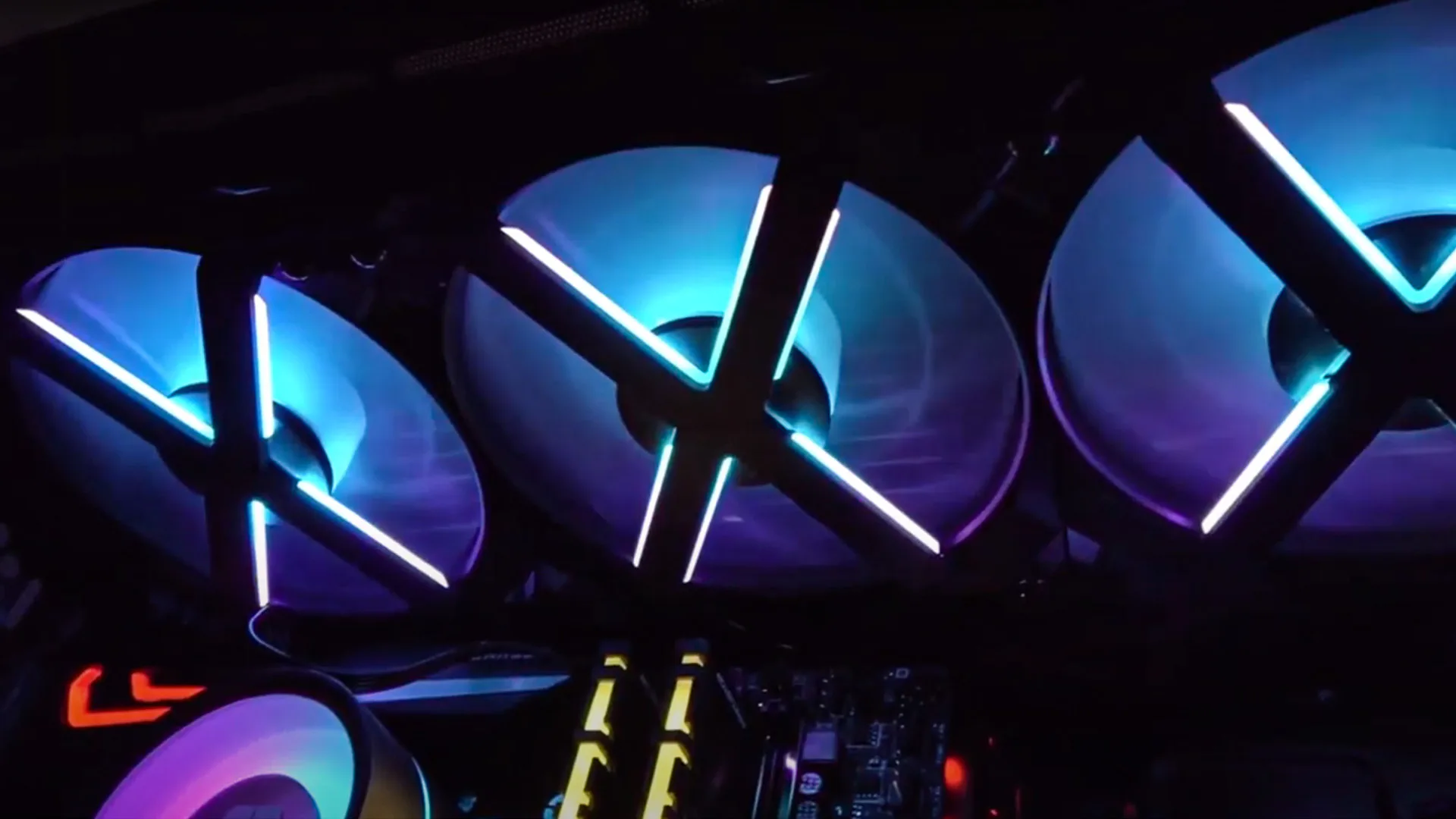

Are these the Most INSANE PC Fans Ever? DeepCool MF120 GT Review + Lighting Demo!
MF120 GT fans are interesting. Featuring a unique 'X' frame design and addressable RGB lighting, are these the craziest PC fans ever? Let's find out!
View More
DeepCool MF120 GT Review - X marks the spot!
DeepCool has a history of creating some very unique fans designs.MF120 GT fans bring a unique design with a new take on RGB placement, which is nice to see especially in a market filled with RGB fans with lighting in the frames and hubs. Let’s see how it stacks up!
View More
