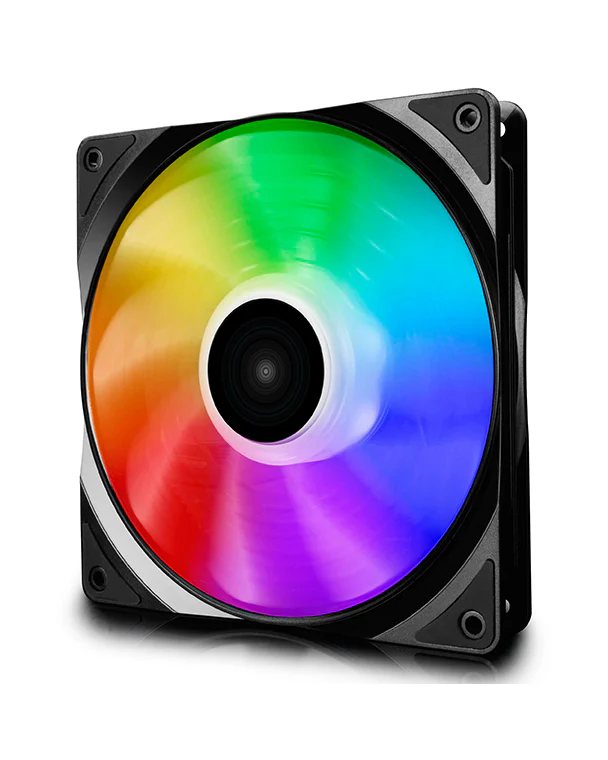

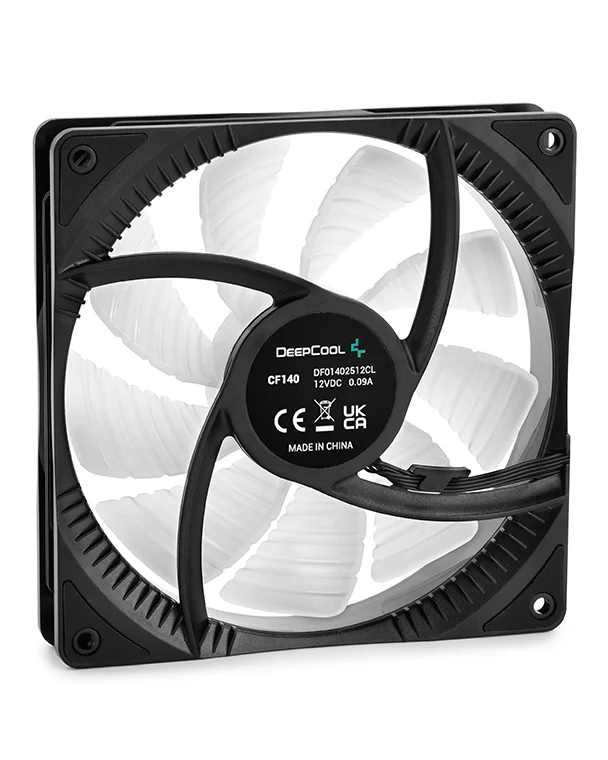

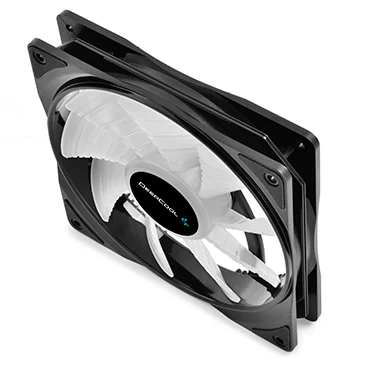

CF 140

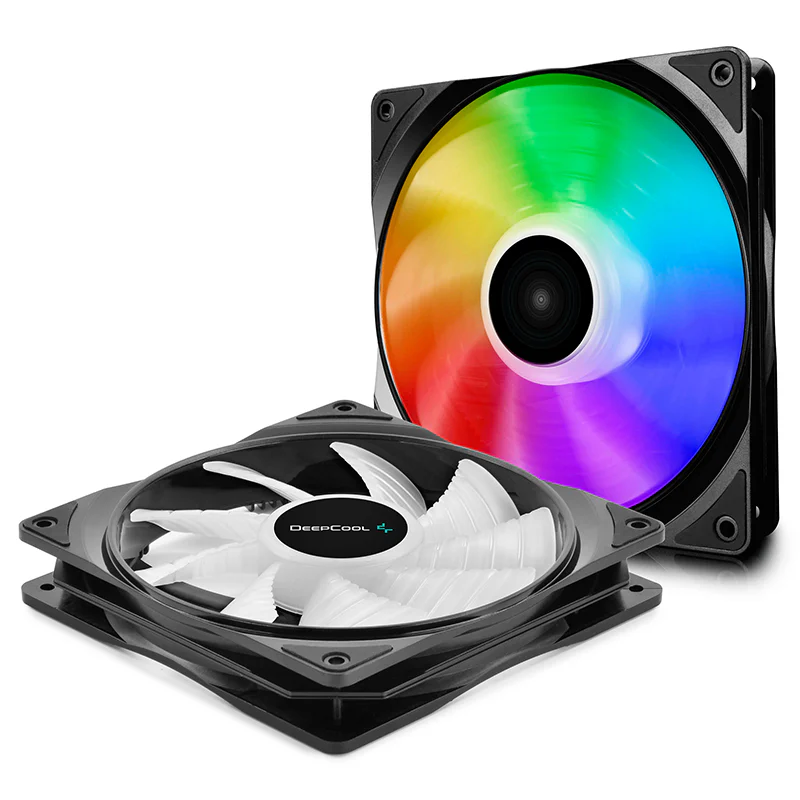

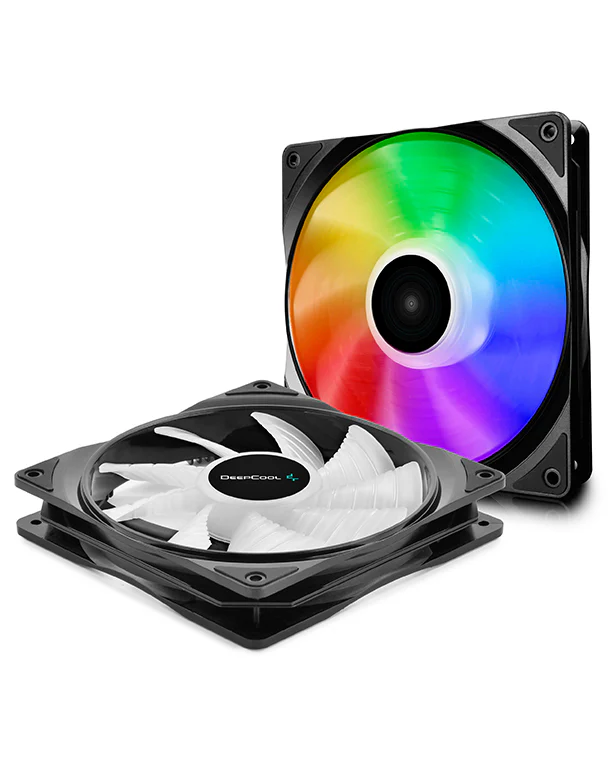

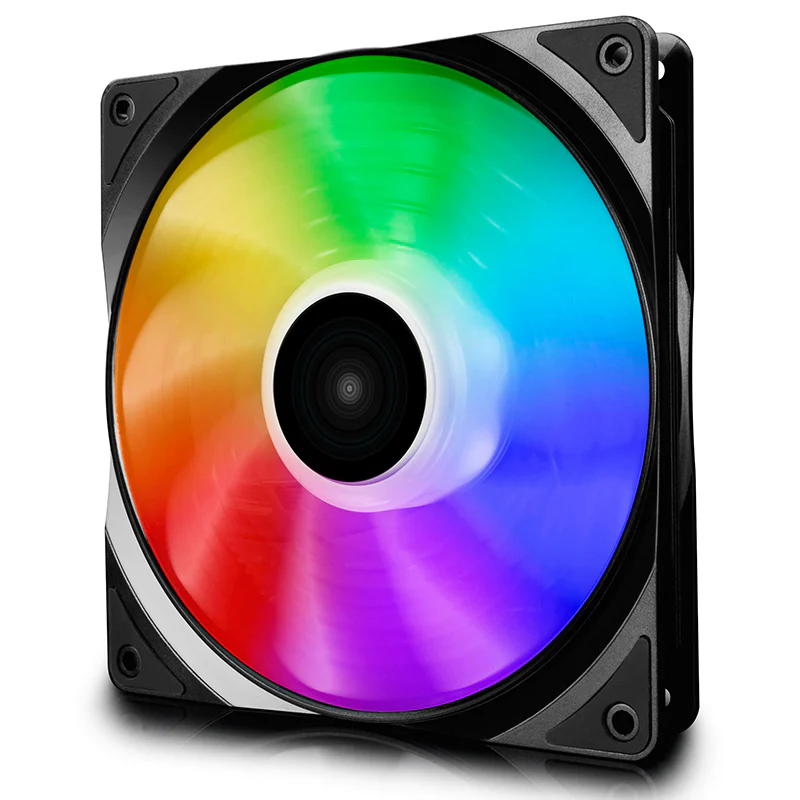

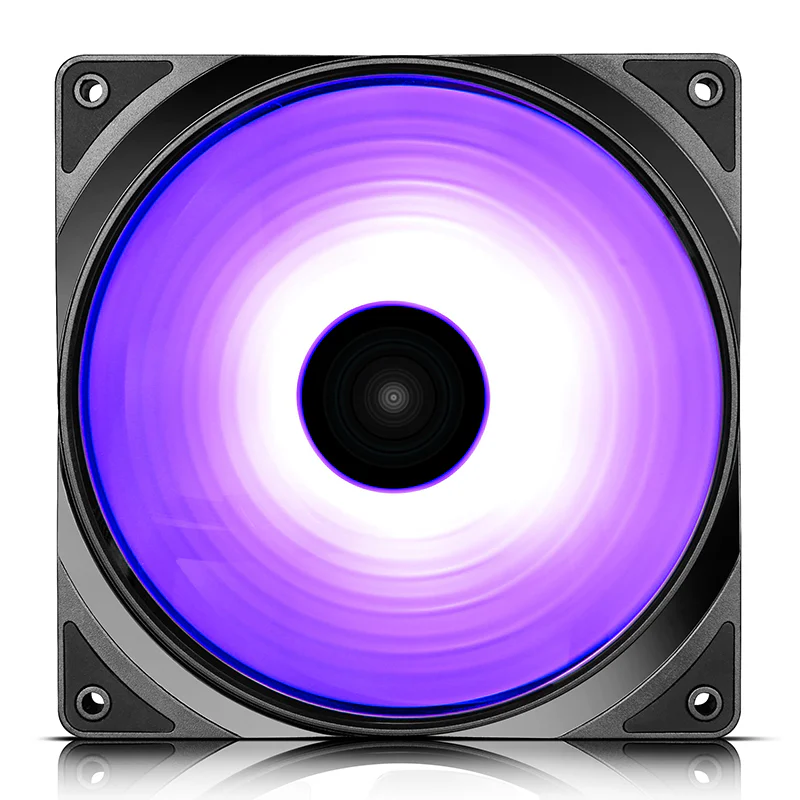

The DeepCool CF140 2in1 PWM fan kit features 24 independently addressable RGB LEDs with 12 LEDs on each 140mm fan for brilliant lighting effects and performance cooling.
COLOR
black
MODEL
CF 140
A-RGB LED Case Fans

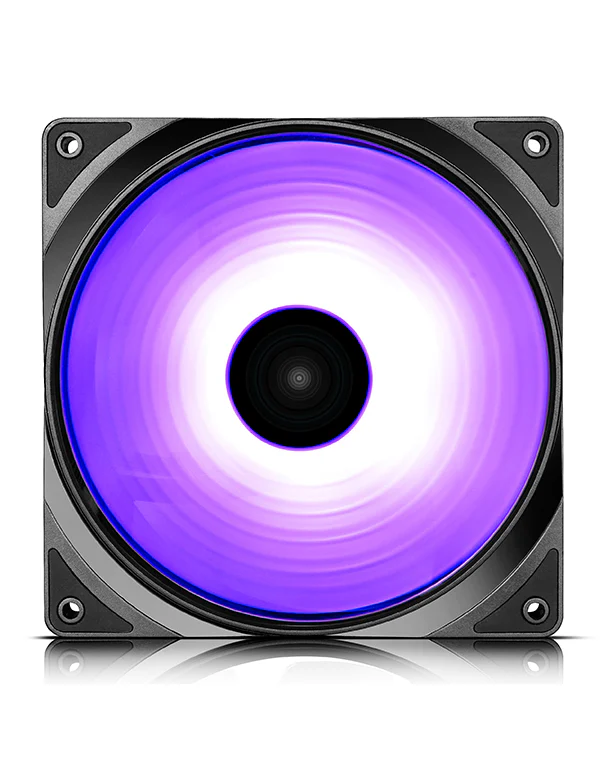

Customizable Addressable RGB LED Lighting
Utilize 12pcs of independently programmable RGB LED lights, CF140 provides full lighting for your build, achieving magical lighting effects with MB controls include 3 dynamic modes(waves, cycles and breathing) and 3 monochrome modes (constant light, breathing and meteor), up to 8 different colors to choose from

Synchronized Control via 5V A-RGB Header on MB

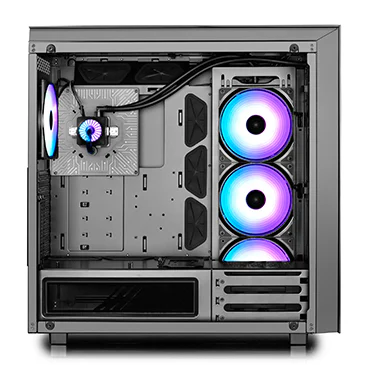

Can be easily controlled by MB through 5V A-RGB Header, no additional controller needed, and can synchronize with other A-RGB devices

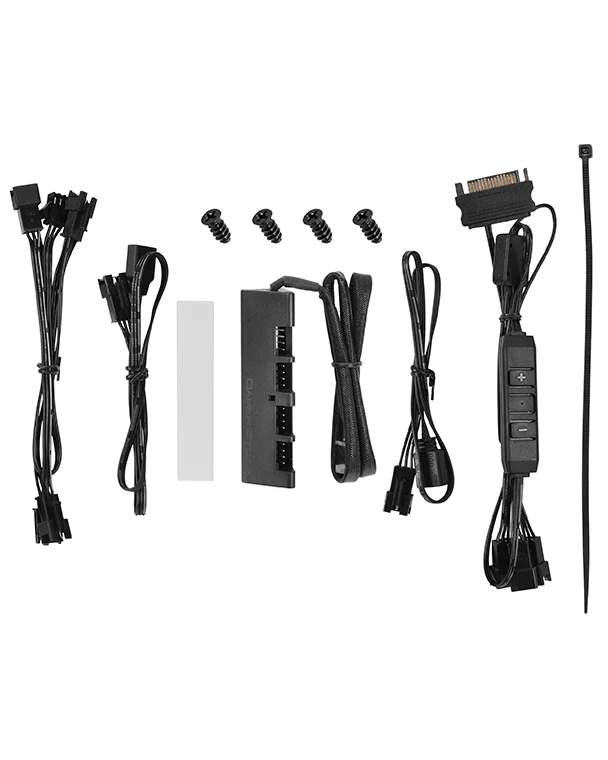

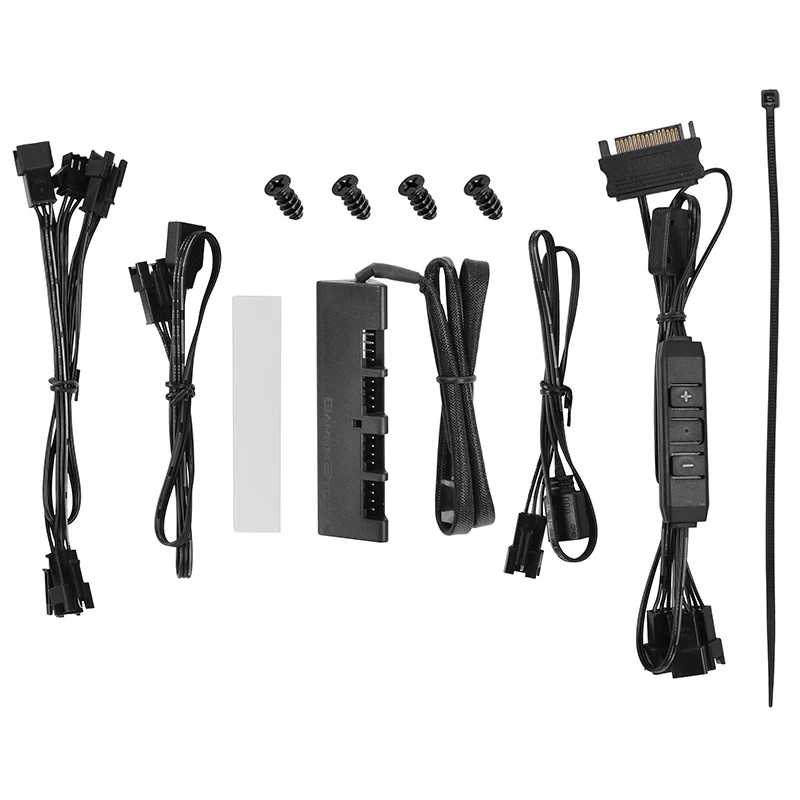

Control by Using the Included A-RGB Controller
Use the included A-RGB Controller to control multiple Deepcool RGB devices, up to 6pcs
Mode+
Speed （Hold for 3 seconds to switch on/off）
Mode-

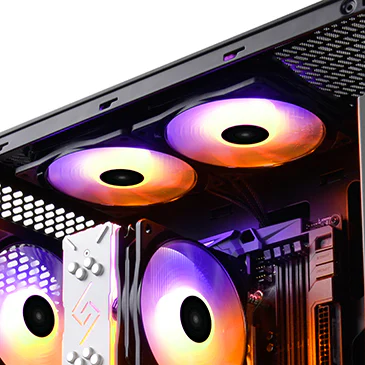

Better Balance on Performance & Low Noise

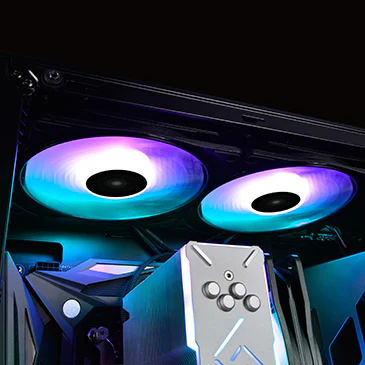

Better balance on air volume & air pressure, low noise, can be used as a case fan or CPU cooling fan
PWM Control
Super Silent
ADD-RGB LED
PWM Intelligent Control
Fan speed can be intelligently controlled by MB in accordance with temperature

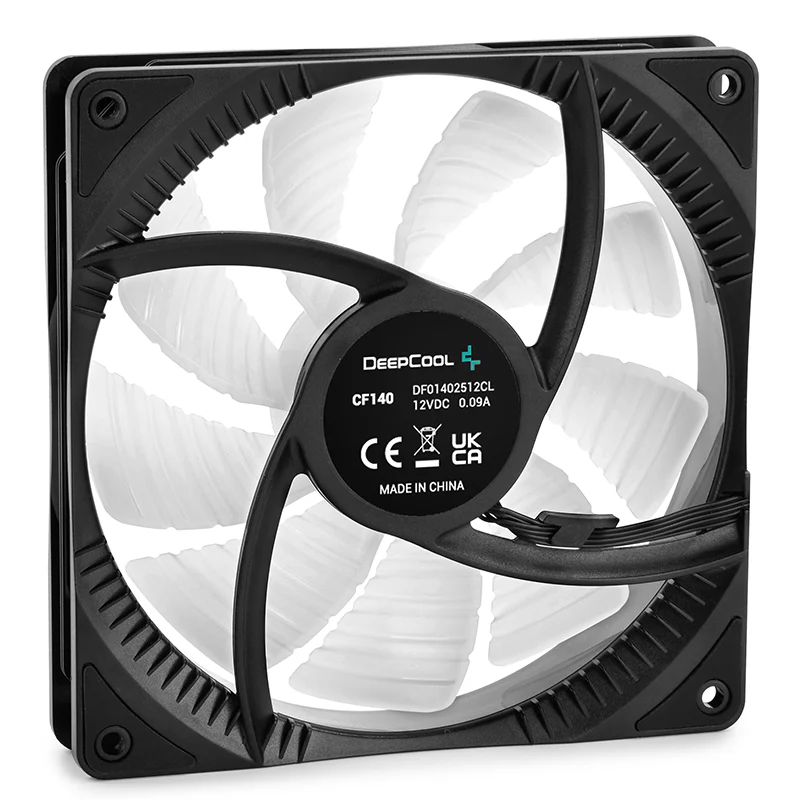

Technical Spec
Fan Dimension 140X140X26mm
Net Weight 436g
Fan Speed 500±200 -1200±10%RPM
Fan Air Flow 64.13CFM
Fan Air Pressure 1.09mmH2O
Fan Noise Level 19.8~24dB(A)
Fan Connector 4Pin
FAN Rated Voltage 12VDC
FAN Operating Voltage 10.8～13.2VDC
FAN Starting Voltage 7VDC
FAN Rated Current 0.02±15%A-0.09±10%A
FAN Power Input 1.08W
Bearing Type Hydro Bearing
LED Type Addressable RGB LED
LED Rated Voltage 5VDC
LED Rated Current 0.48±10%A
LED Rated Power 2.4W
LED Connector 3pin（+5V-D-G）
LED Control M/B with 5V ADD-RGB Header
EAN 6933412710356
P/N DP-FA-RGB-CF140-2
Product Dimension
Download
CF140 2IN1.pdf
