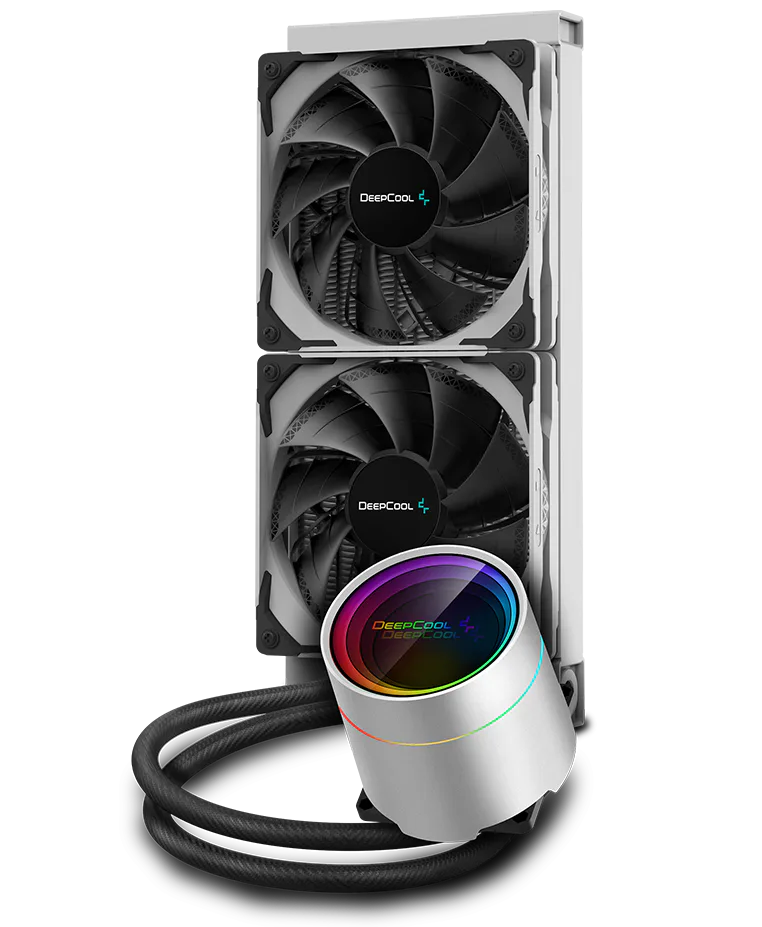

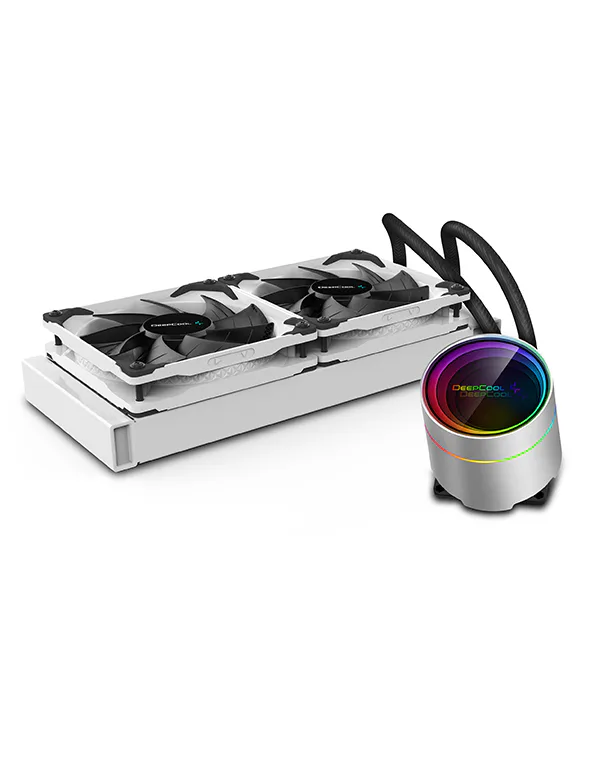

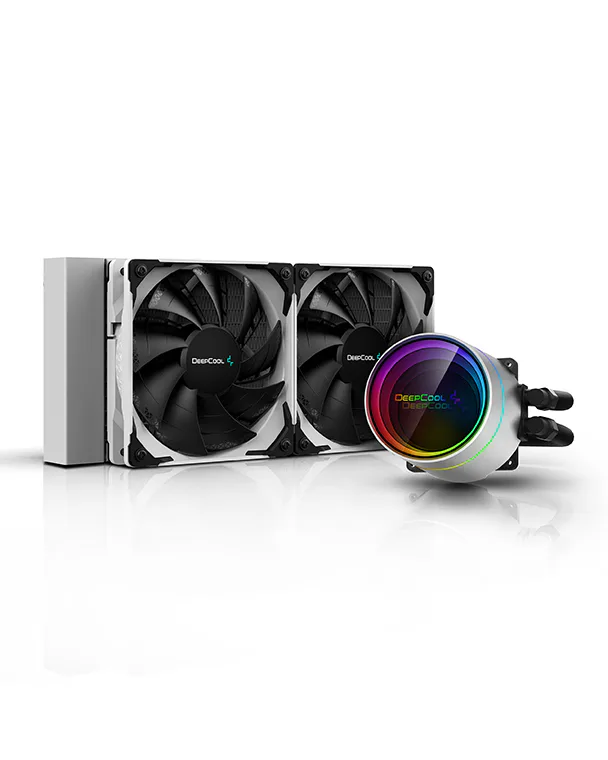

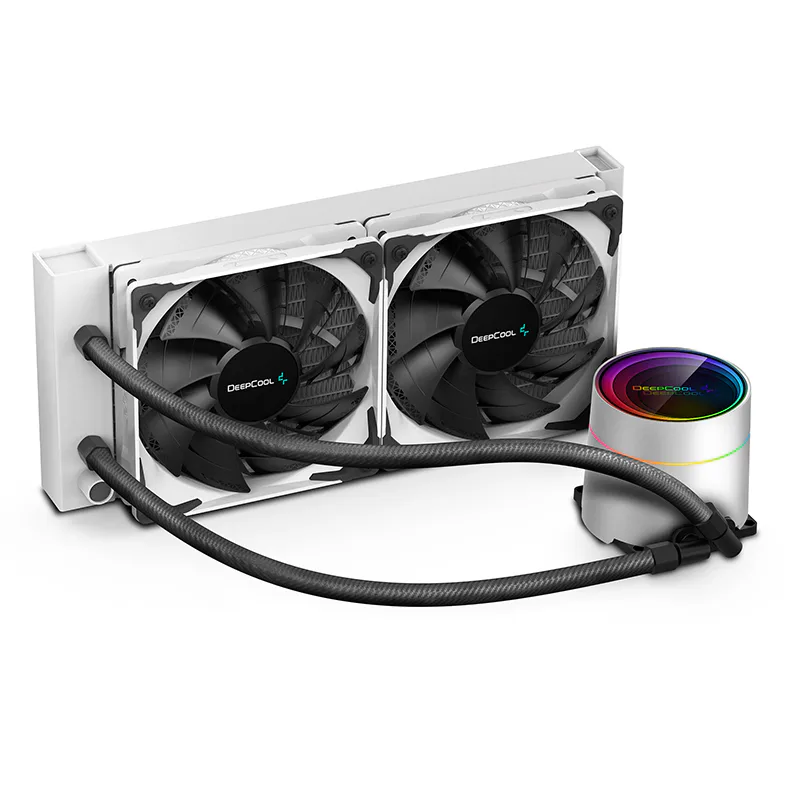

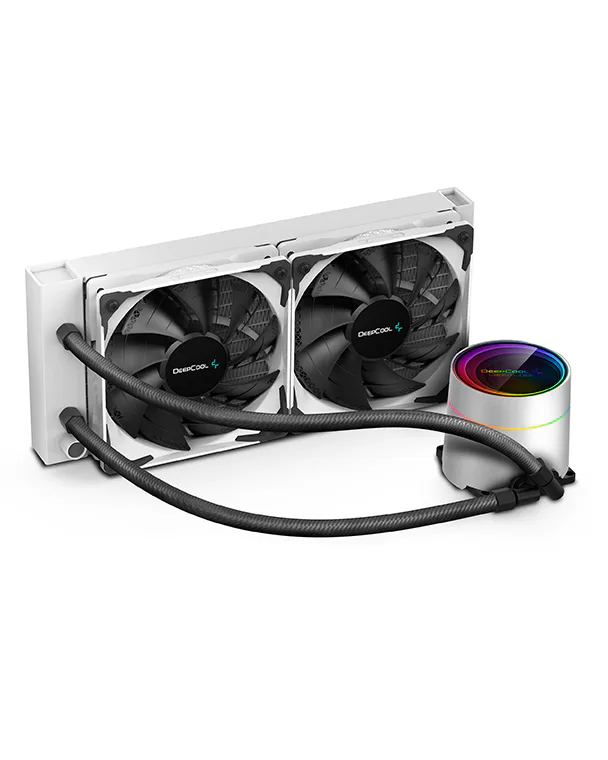

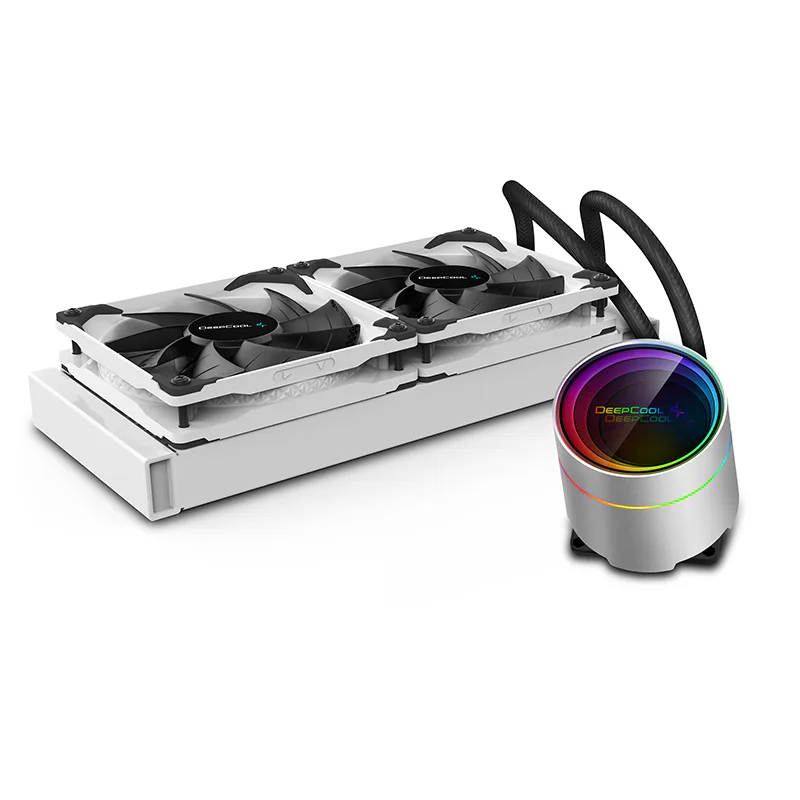

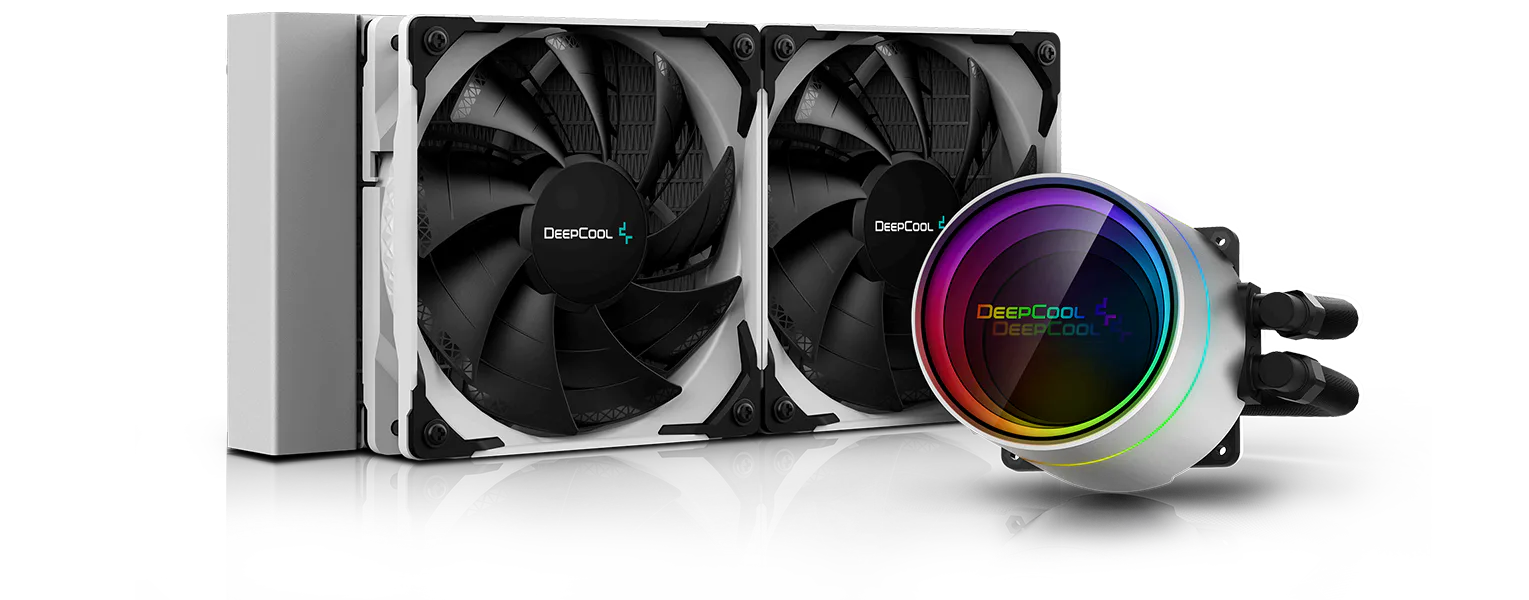

CASTLE 240EX WHITE

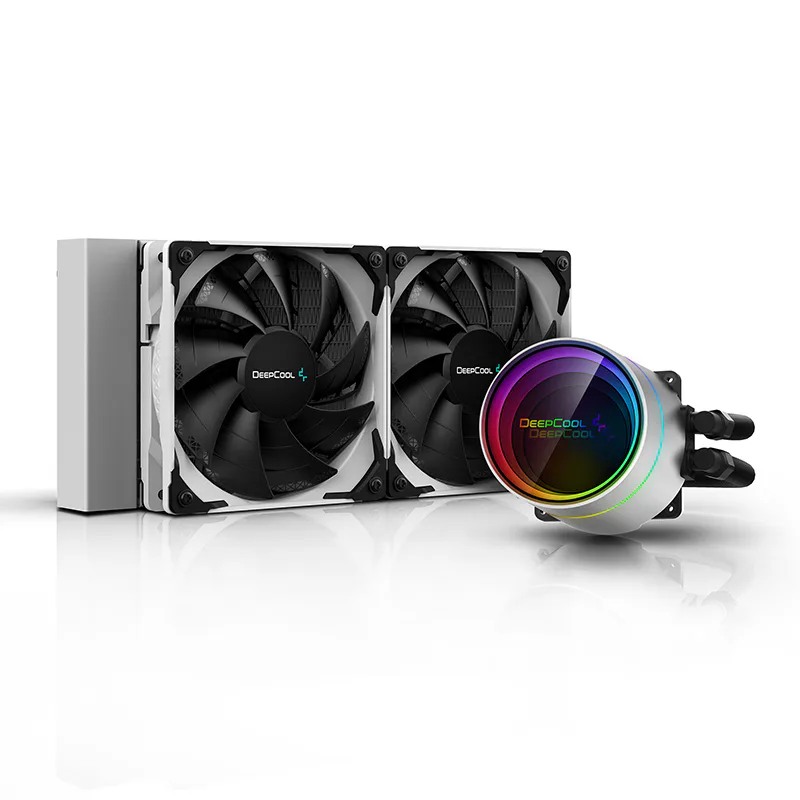

The CASTLE 240EX WHITE AIO liquid CPU cooler features Anti-leak tech to help keep systems safe and cool including a redesigned pump, 240mm radiator and RGB lighting support in a white enclosure.
COLOR
white
MODEL
CASTLE 240EX WHITE
Fortified Cooling

Protect what’s yours
Equipped with patented Anti-Leak technology that helps regulate pressure buildup inside the radiator to significantly improve operational safety and prevent leakage.

Powerful and quiet
―
A strong 3-phase motor provides higher cooling performance with an increased flow rate while keeping noise levels low.

Efficient cooling
―

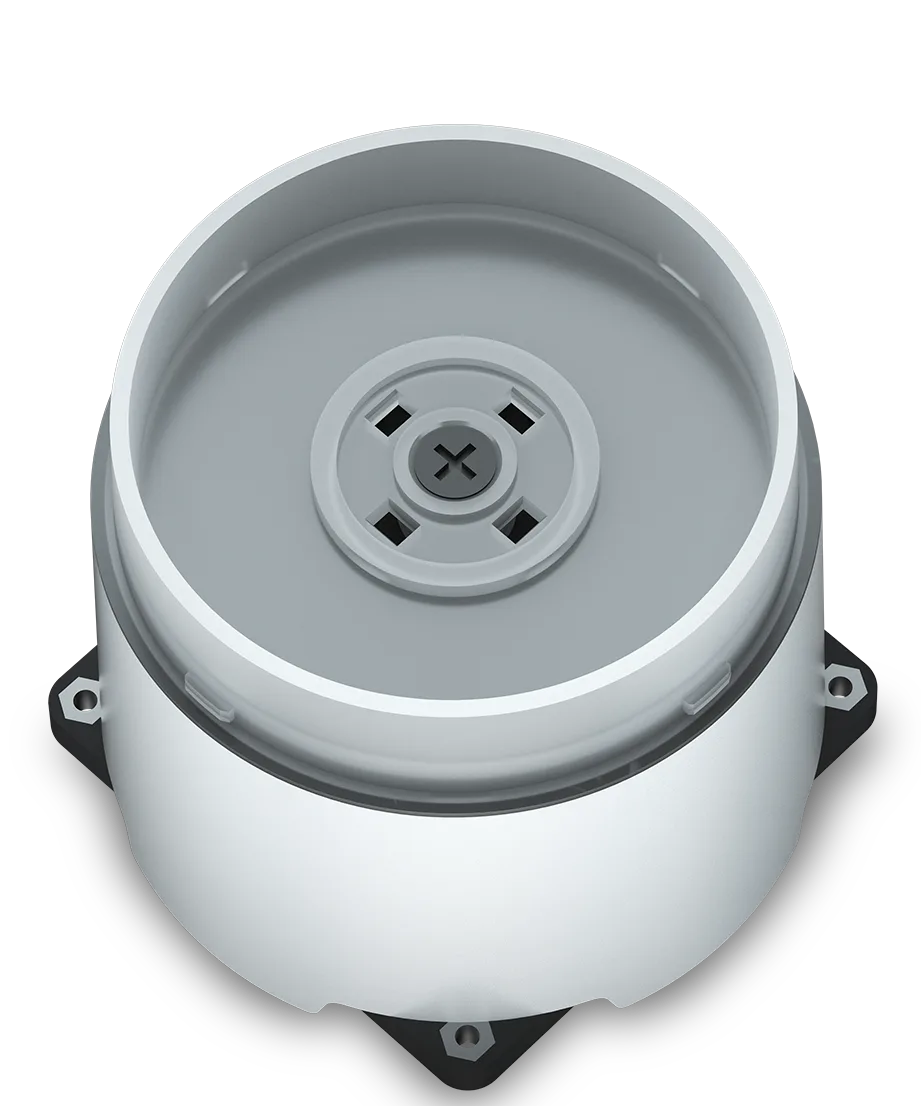

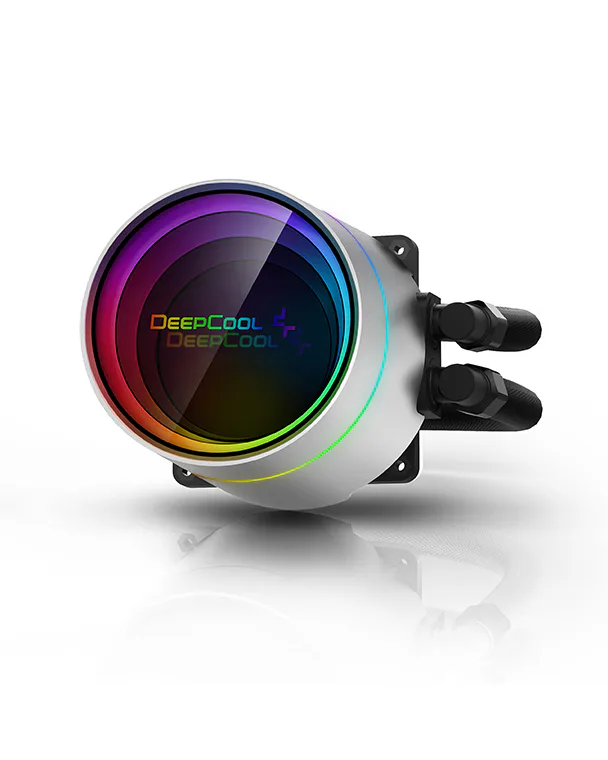

Designed from the inside out, the new dual-chamber pump features an optimized flow route for better heat exchange.

MORE EFFICIENT FLOW
―
With 25% more skived fins on the copper cold plate, the larger surface area effectively dissipates heat.

Performance tuned
―

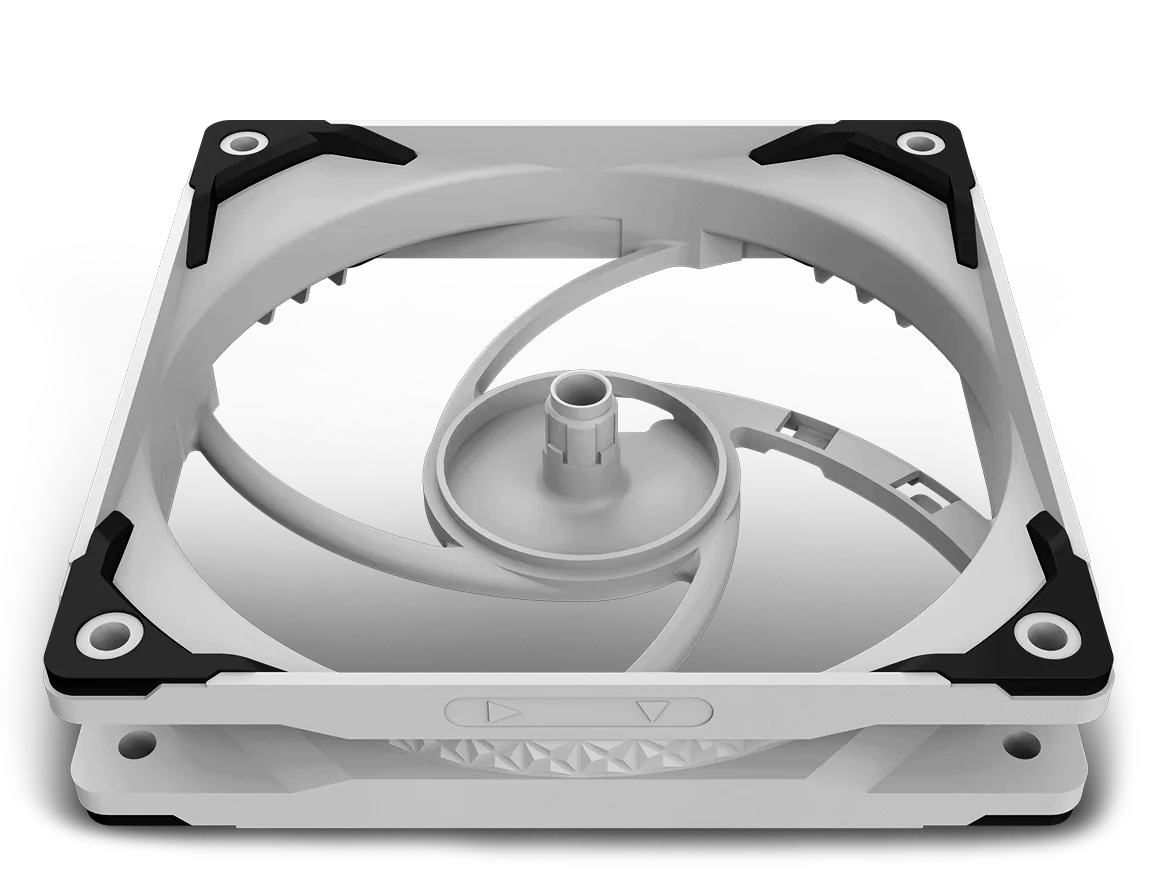

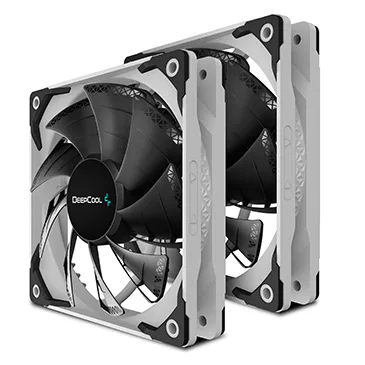

Specially tuned DeepCool TF120 S fans deliver the extreme cooling performance for AIO liquid coolers by maximizing both static pressure and airflow.

Customize your look
―

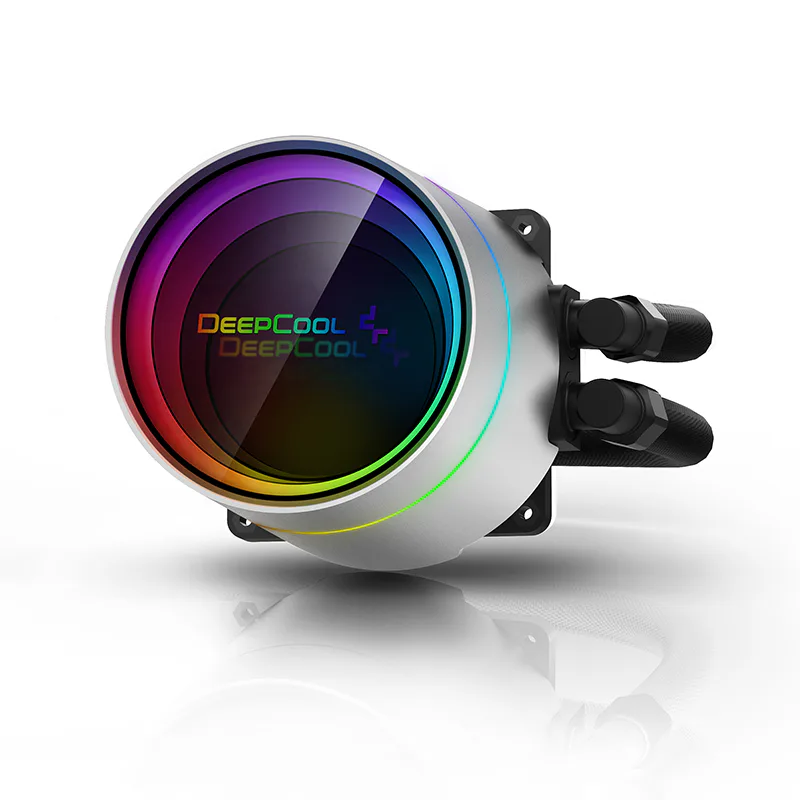

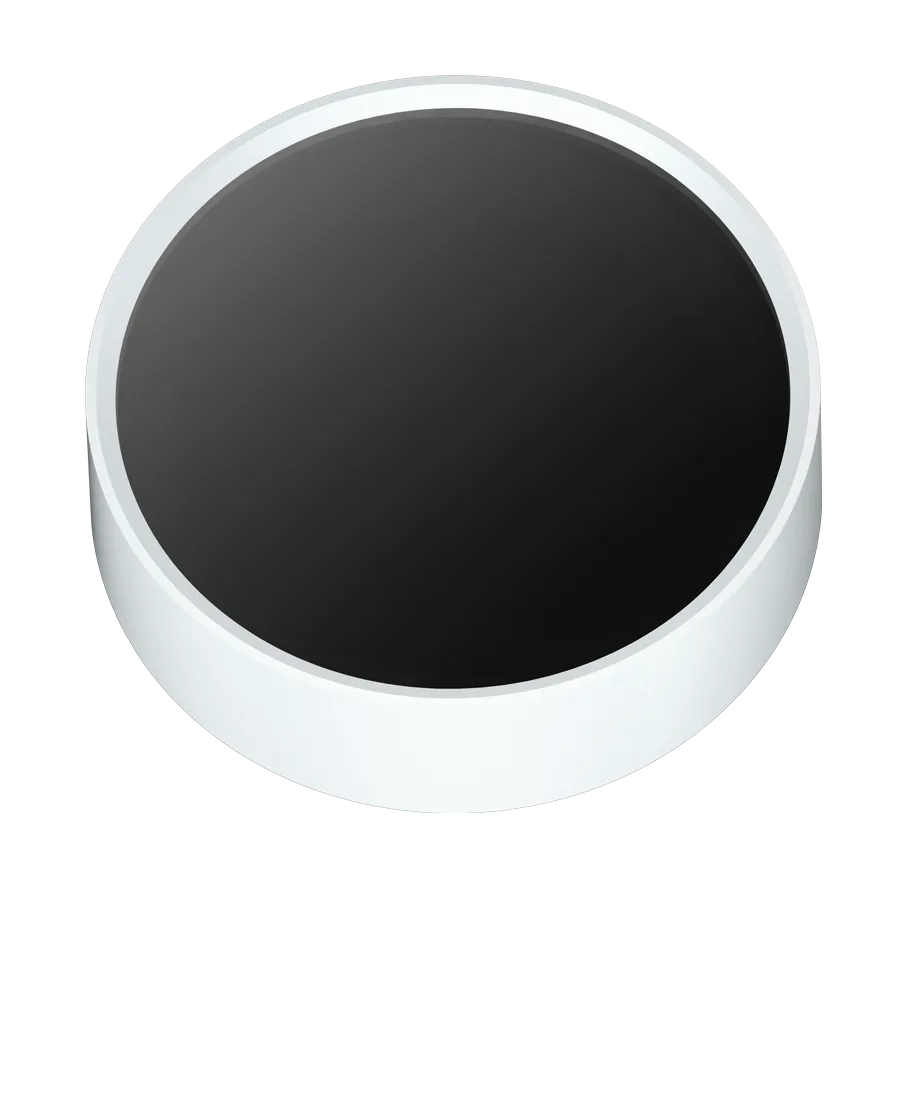

Upside down logo? Easily change orientation by twisting off the pump face to adjust the logo.
Take it to the next level with your own custom design using the included extra logo chip!

Mode+
Speed （Hold for 3 seconds to switch on/off）
Mode-
Choose your style
―
Coordinate your colors by adjusting the addressable RGB lighting through popular motherboard software or through the included RGB controller.
Dynamic
Static
Breathing
Comet
Fashion Collision

Application For
Intel
LGA20XX/LGA1200/1151/1150/1155/LGA1366
AMD
TRX4/TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Technical Spec
Radiator Dimensions 282×120×27 mm
Radiator Material Aluminum
Net Weight 1420 g
Tube length 380 mm
Pump Dimensions 86×75×71 mm
Pump Speed 2550 RPM±10%
Pump Noise 17.8 dB(A)
Pump Connector 3-pin
Pump Rated Voltage 12 VDC
Pump Rated Current 0.2 A
Pump Power Consumption 2.4 W
Fan Dimensions 120×120×25 mm
Fan Speed 500~1800 RPM±10%
Fan Airflow 64.4 CFM
Fan Air Pressure 2.33 mmAq
Fan Noise ≤32.1 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.15 A
Fan Power Consumption 1.8 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Power Consumption 2.25 W（PUMP）
EAN 6933412726852
P/N DP-GS-H12W-CSL240EXWH
