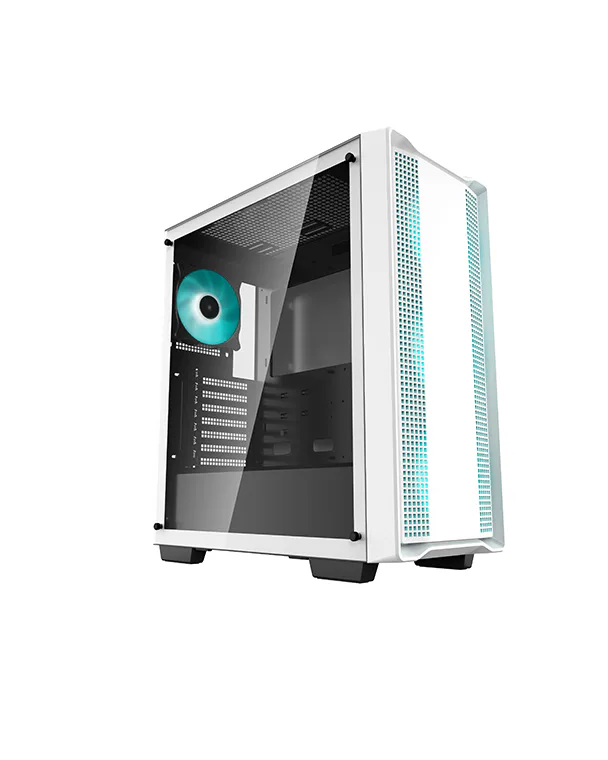

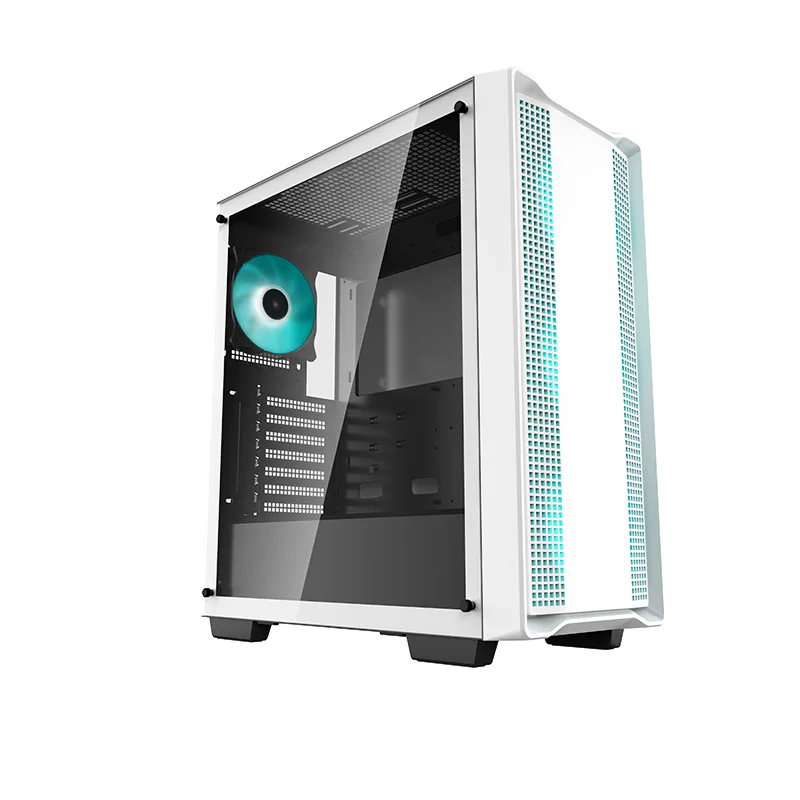

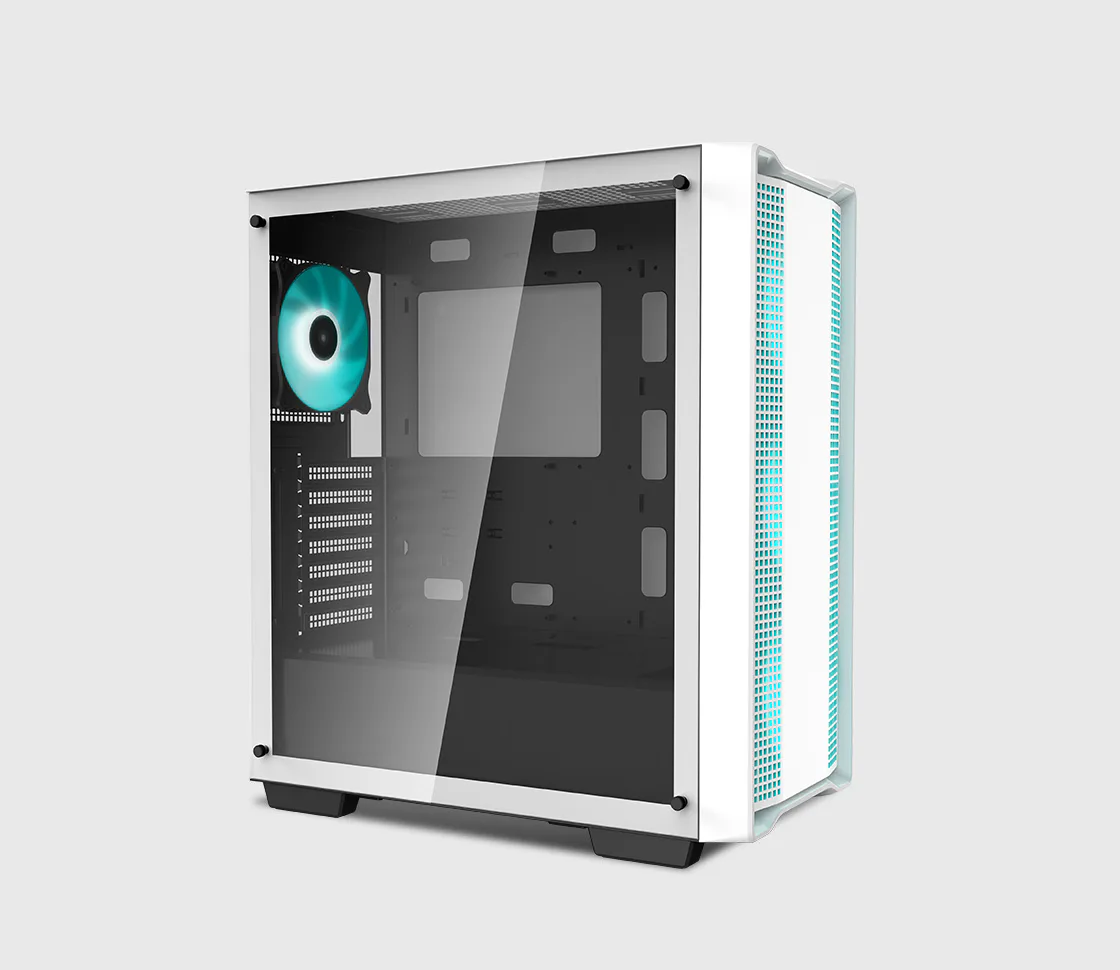

CC560 WH
The DeepCool CC560 WH Mid-Tower Case in White offers outstanding value with spacious component compatibility, a full-sized tempered glass window, and a total of four pre-installed LED fans that gets any build started right.
COLOR
white
MODEL
CC560 WH
Mid-Tower Case
The DeepCool CC560 WH Mid-Tower Case in White offers outstanding value with spacious component compatibility, a full-sized tempered glass window, and a total of four pre-installed LED fans that gets any build started right.
Abundant
Airflow Performance

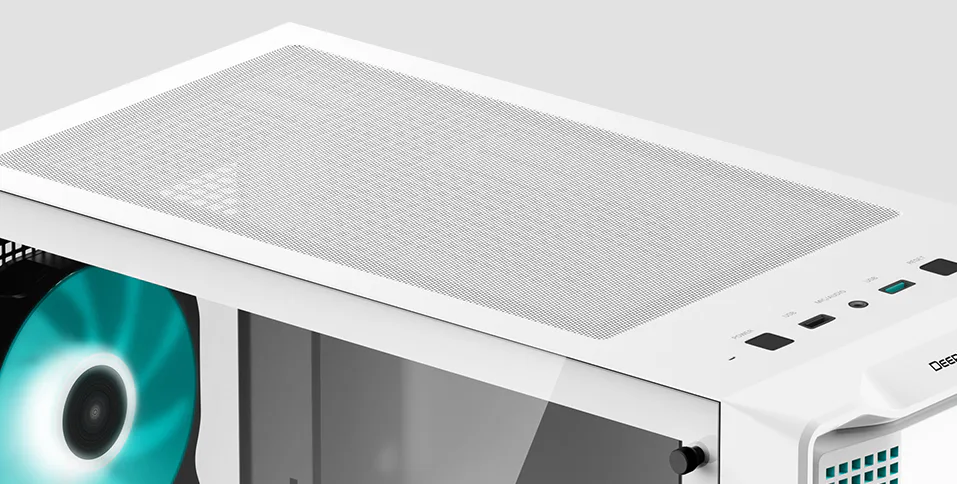

Well ventilated throughout the entire chassis, the CC560 WH sports an airflow front panel and a large mesh top panel to ensure fresh air is circulating.
Primed and Ready

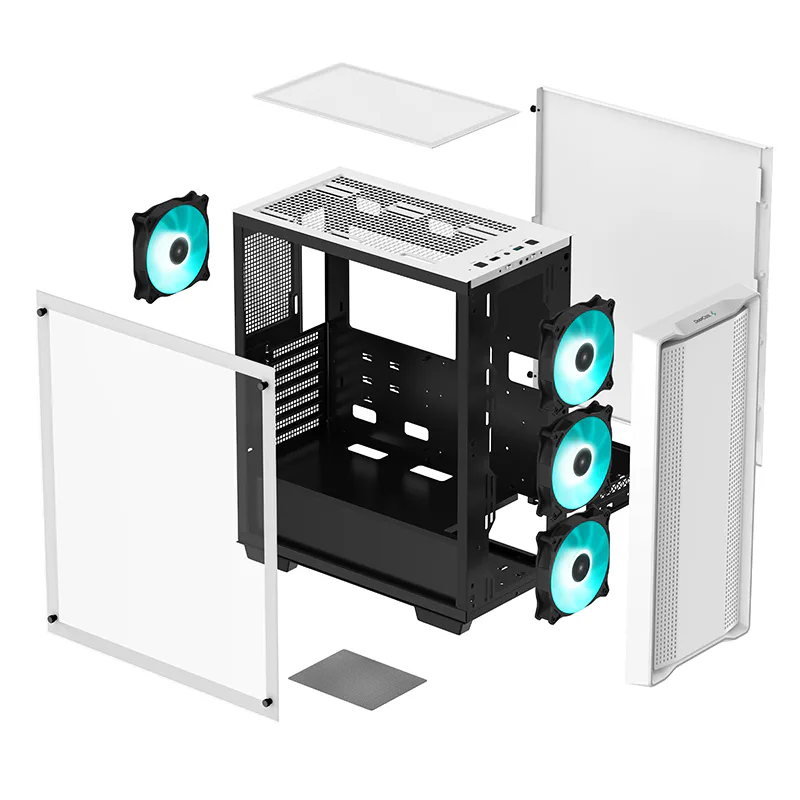

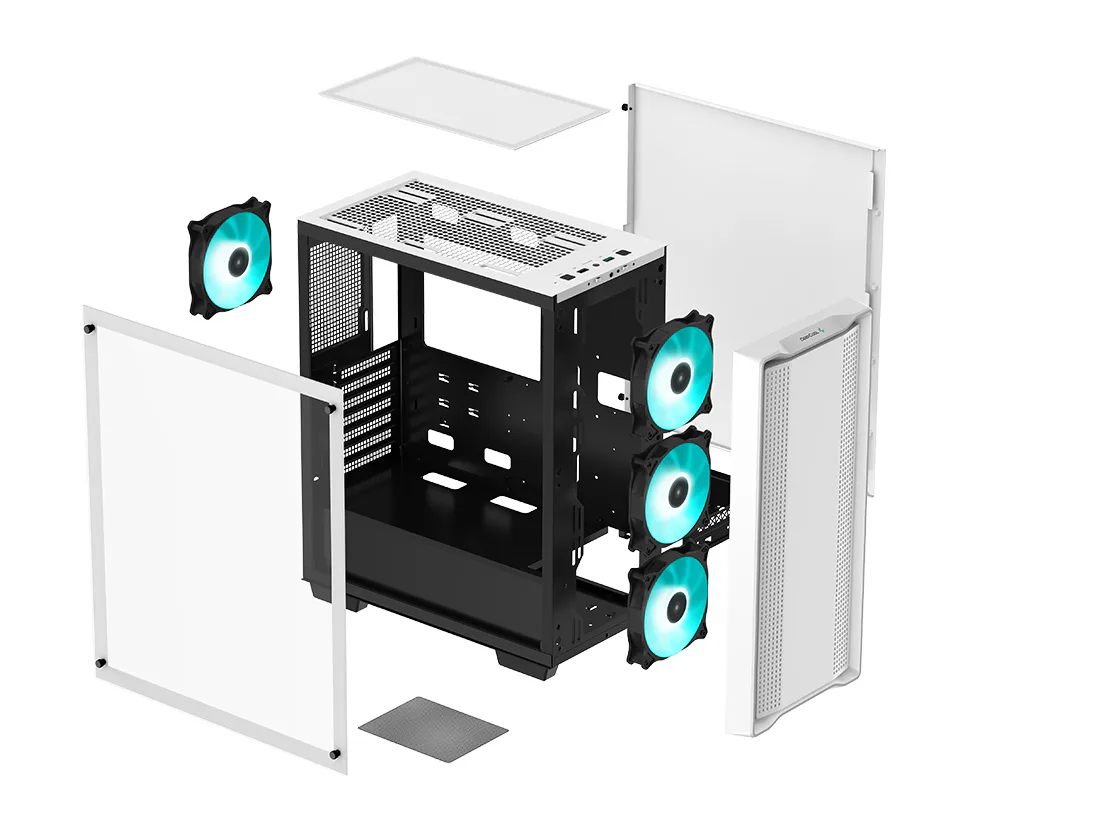

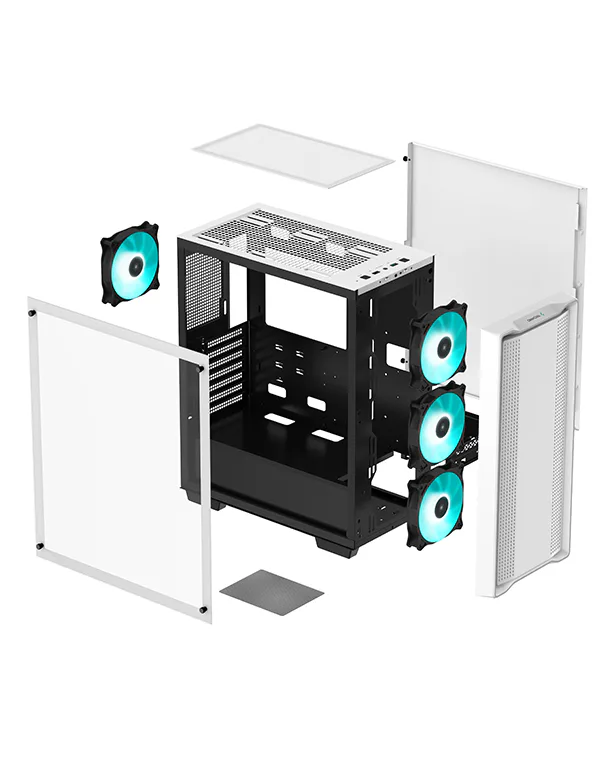

A total of 4 pre-installed LED fans delivers big airflow performance ensuring any system build is receiving top-notch cooling capacity.
Wide Cooling Support
Enough space to support high-performance AIO liquid coolers with room for 360mm radiators in front or 240mm on top. Cooling fan support for up to 6x 120mm or 4x 140mm.
6 120mm
5 140mm
CASE FANS
1 360mm
2 280mm
2 240mm
3 140mm
3 120mm
RADIATOR

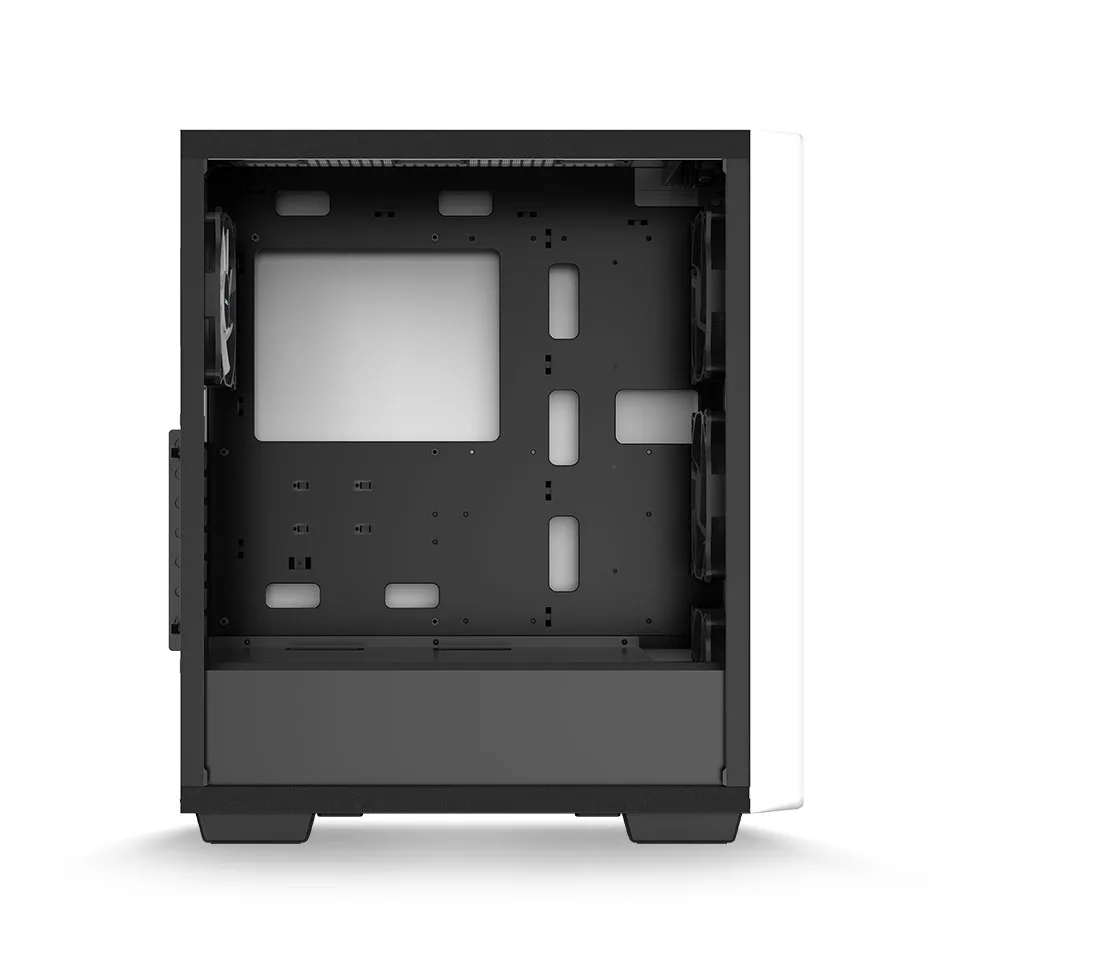

Compatibility
Max CPU Cooler Height: 163mm
Max GPU Length: 370mm
Max PSU Length: 170mm
Storage Solutions
Install up to 2x 2.5” SSDs directly on the backplate and 2x 3.5” HDDs underneath the shroud in a removeable drive cage for adjustability.

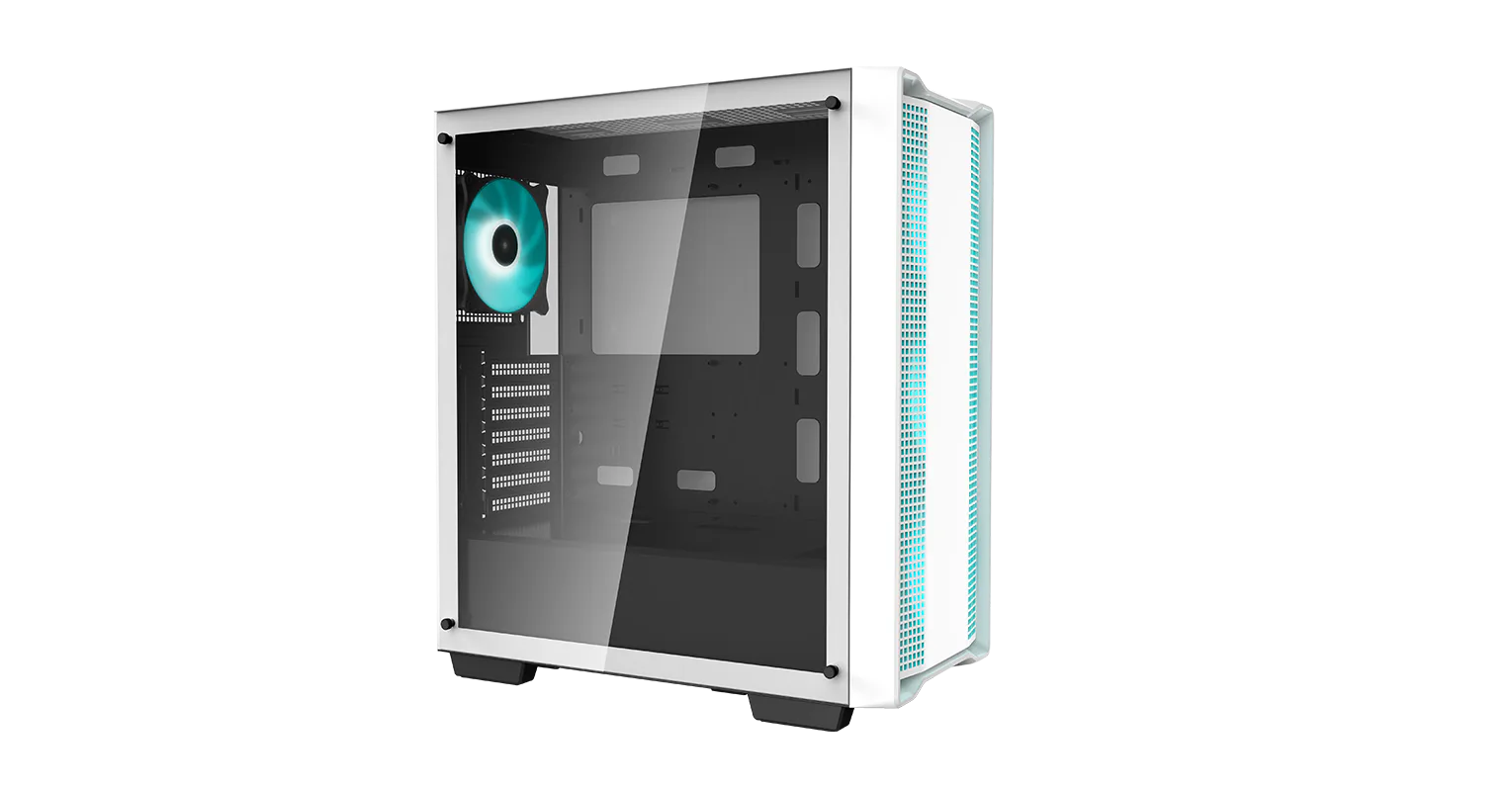

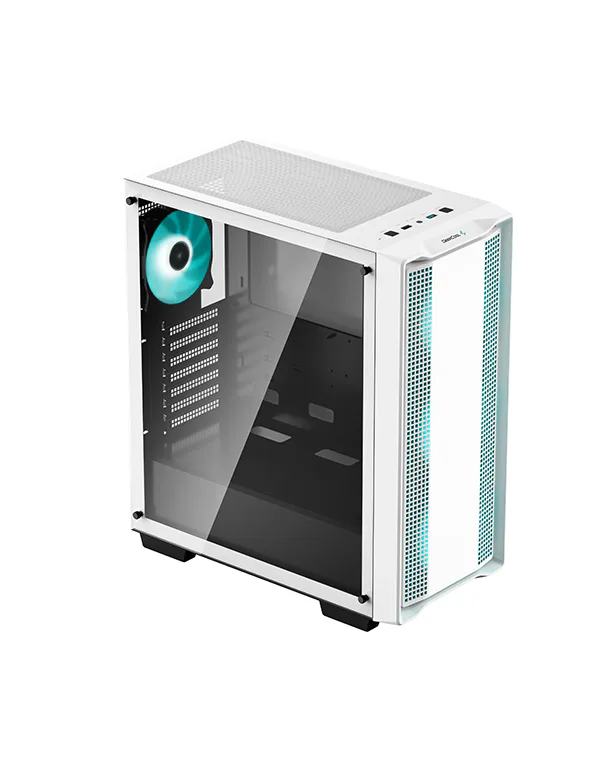

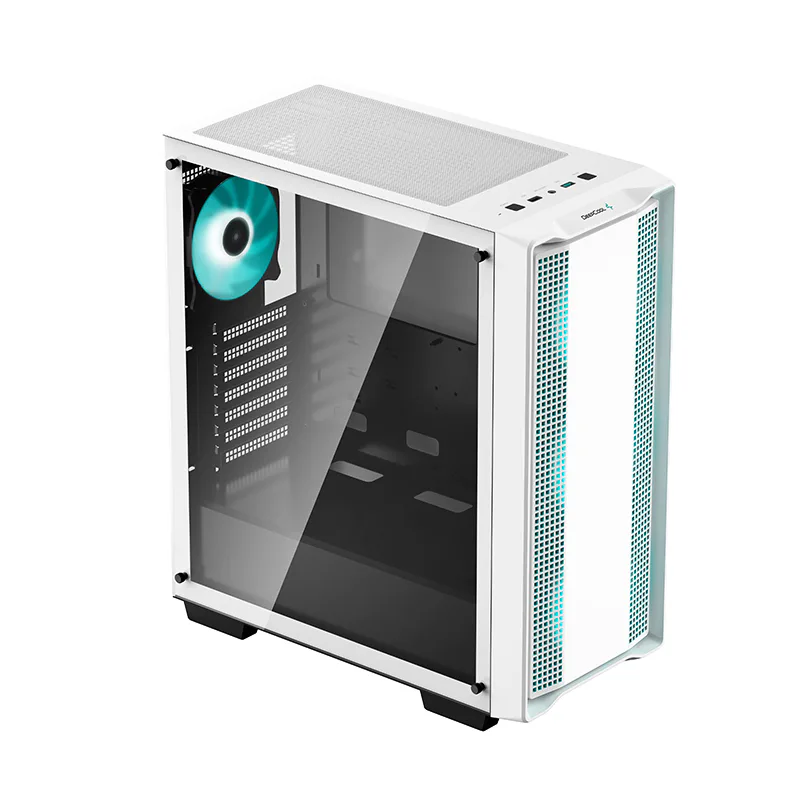

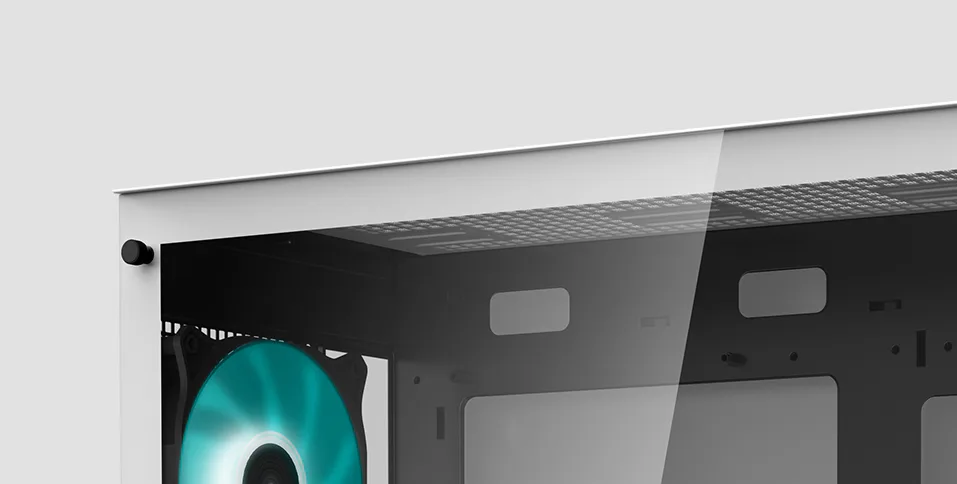

Full-Sized Tempered Glass Window

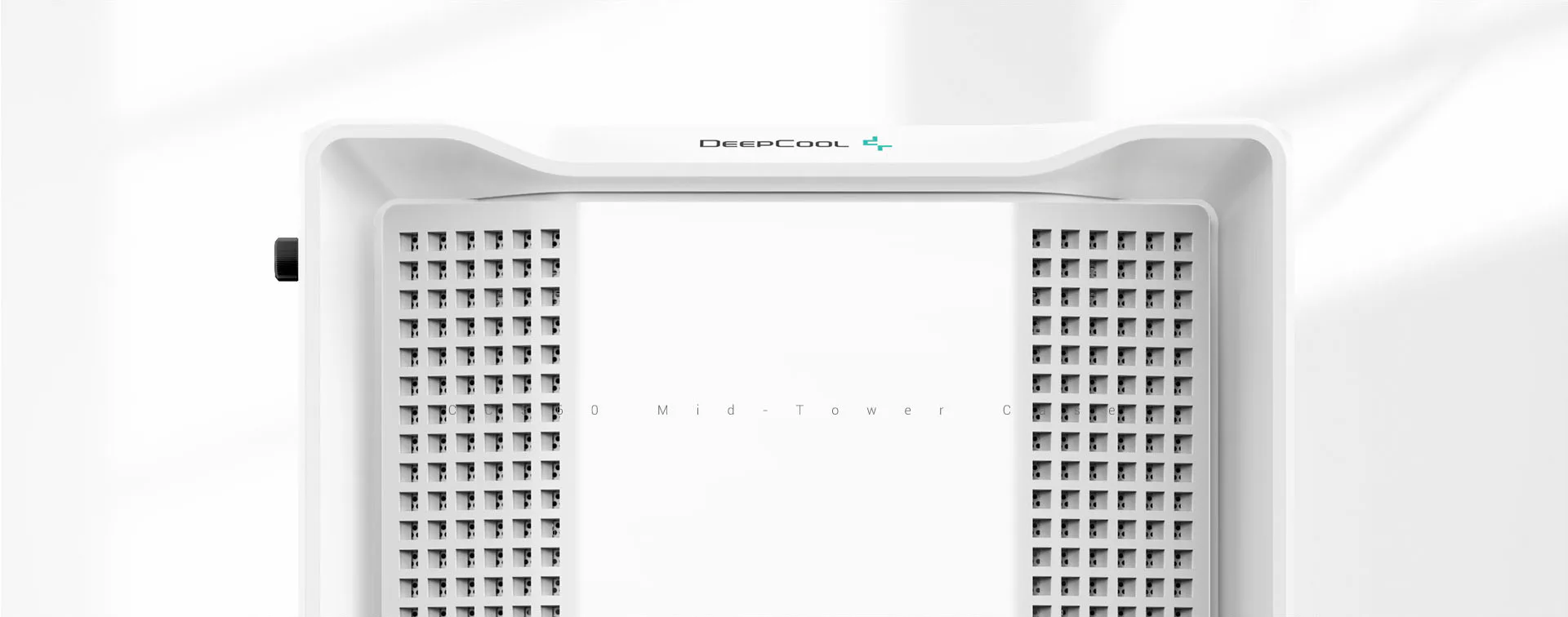

Top Panel Magnetic Dust Filter

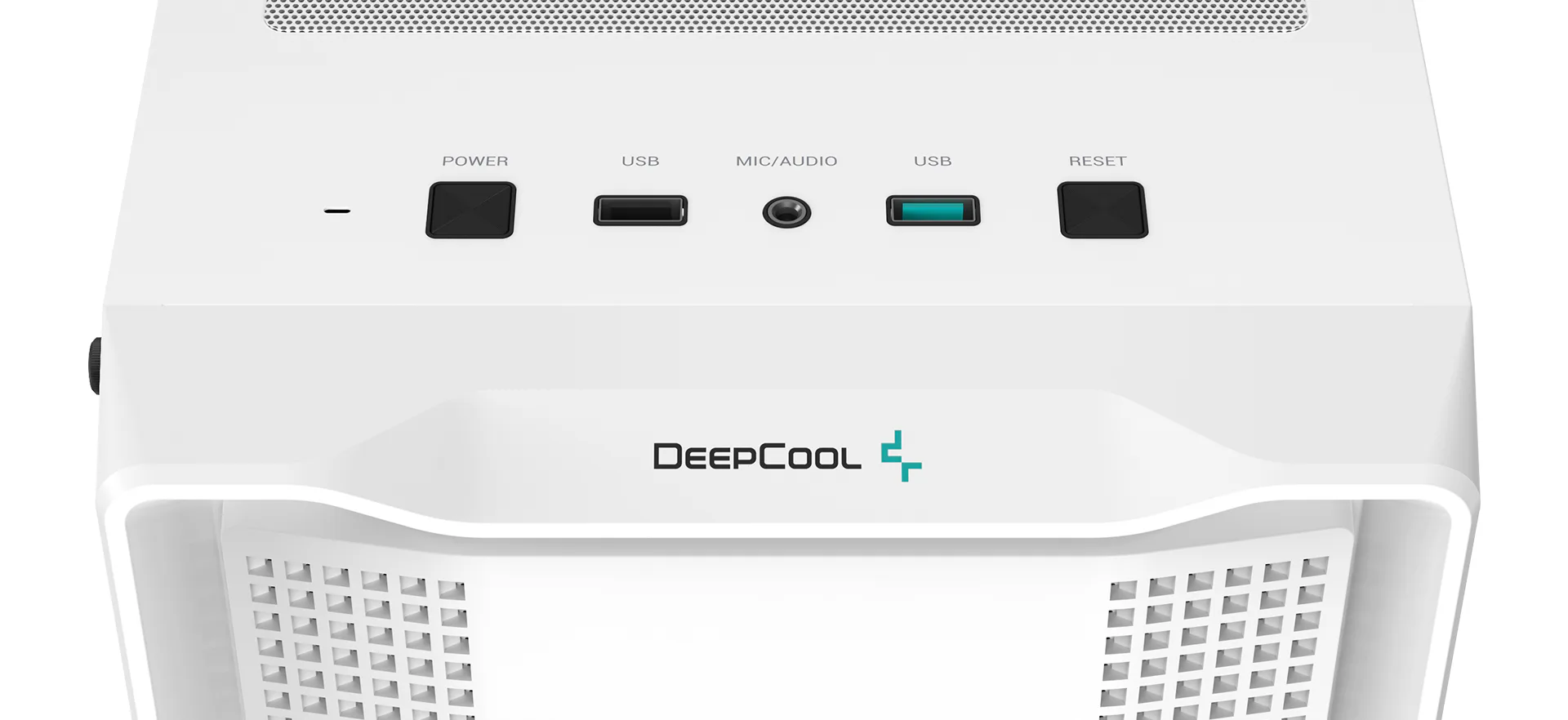

Front I/O Panel
Features USB 3.0, USB 2.0, and a combo audio jack.
Front I/O Panel
Features USB 3.0, USB 2.0, and a combo audio jack.
Technical Spec
Product Dimensions 416×210×477mm(L×W×H)
Net Weight 5.25Kg
Materials ABS+SPCC+Tempered Glass
Motherboard Support Mini-ITX / Mico-ATX / ATX
Front I/O Ports USB3.0×1、USB2.0×1、Audio×1
3.5" Drive Bays 2
2.5" Drive Bays 2

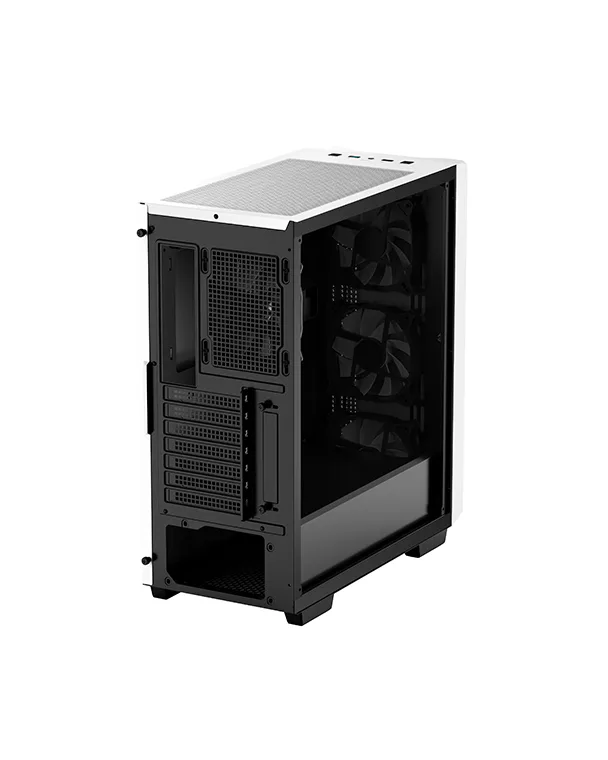

Expansion Slots 7 Slots
Pre-Installed Fans Front: 3×120mm
Rear: 1×120mm
Fan Support Front: 3×120 / 2×140mm
Top: 2×120 / 2×140mm
Rear: 1×120mm
Radiator Support Front: 120/140/240/280/360mm
Top: 120/240mm
Rear: 120mm
CPU Cooler Height Limit 163mm
GPU Length Limit 370mm
Power Supply Type ATX PS2（maximum length: 170mm）
EAN Code 6933412714897
PN Code R-CC560-WHGAA4-G-1
Product Dimension
Download
CC560 WH Manual.pdf
