CG540

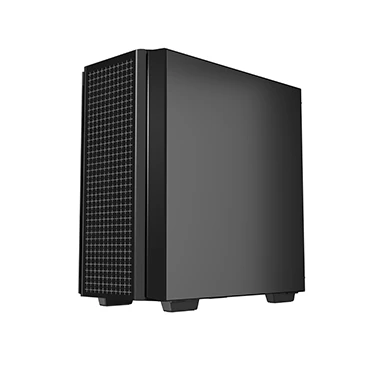

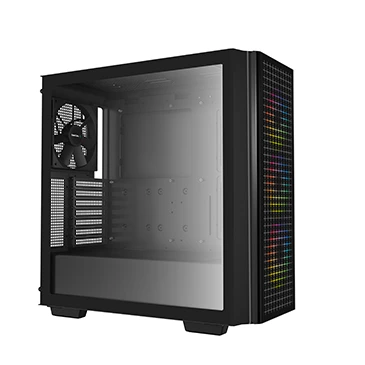

The DeepCool CG540 Mid-Tower Case displays a striking tempered glass panel and generous cooling capacity in an updated modern design that makes system building a breeze with four pre-installed fans.
COLOR
black
MODEL
CG540
A Moment of Clarity

On Full Display

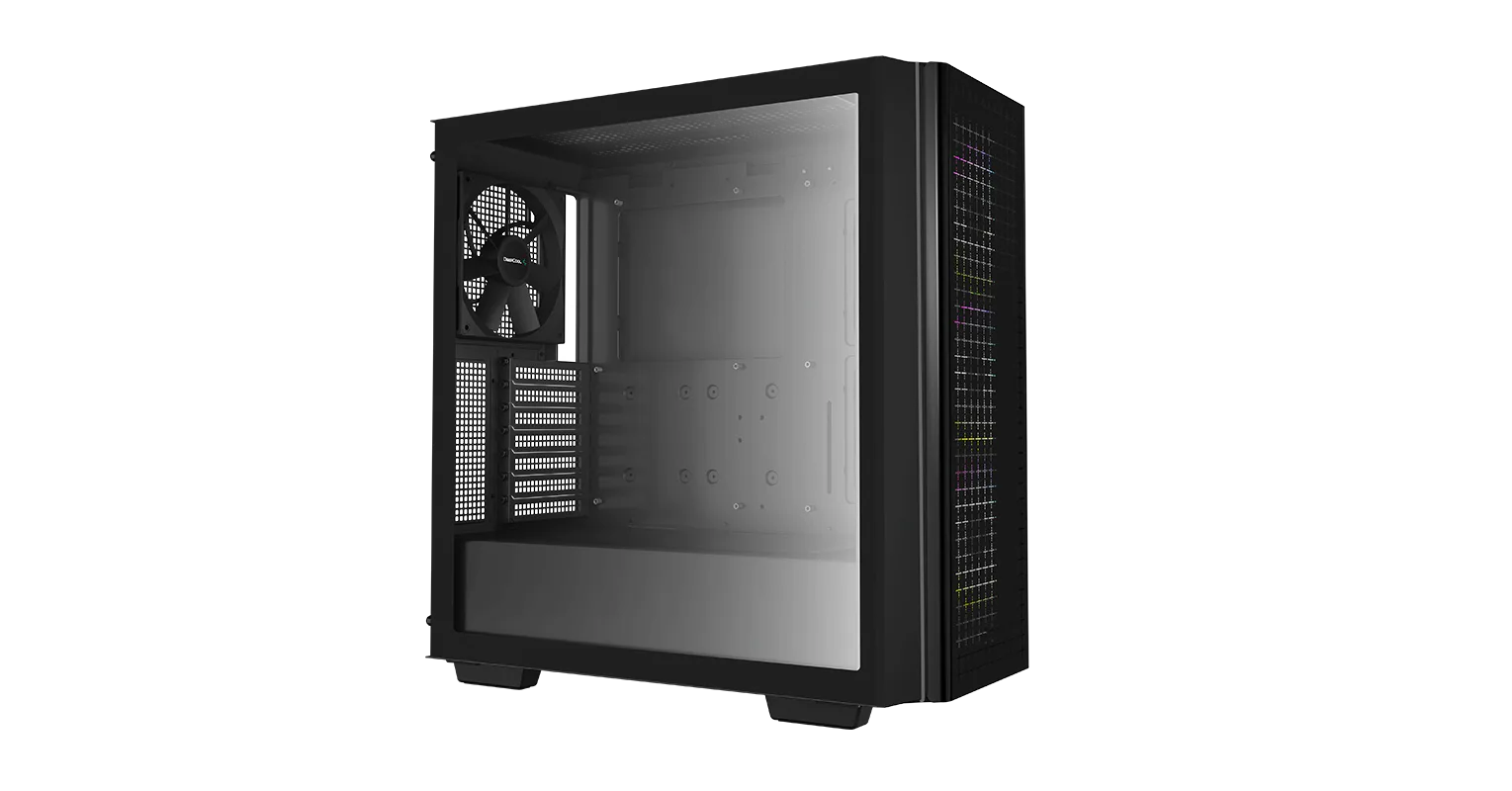

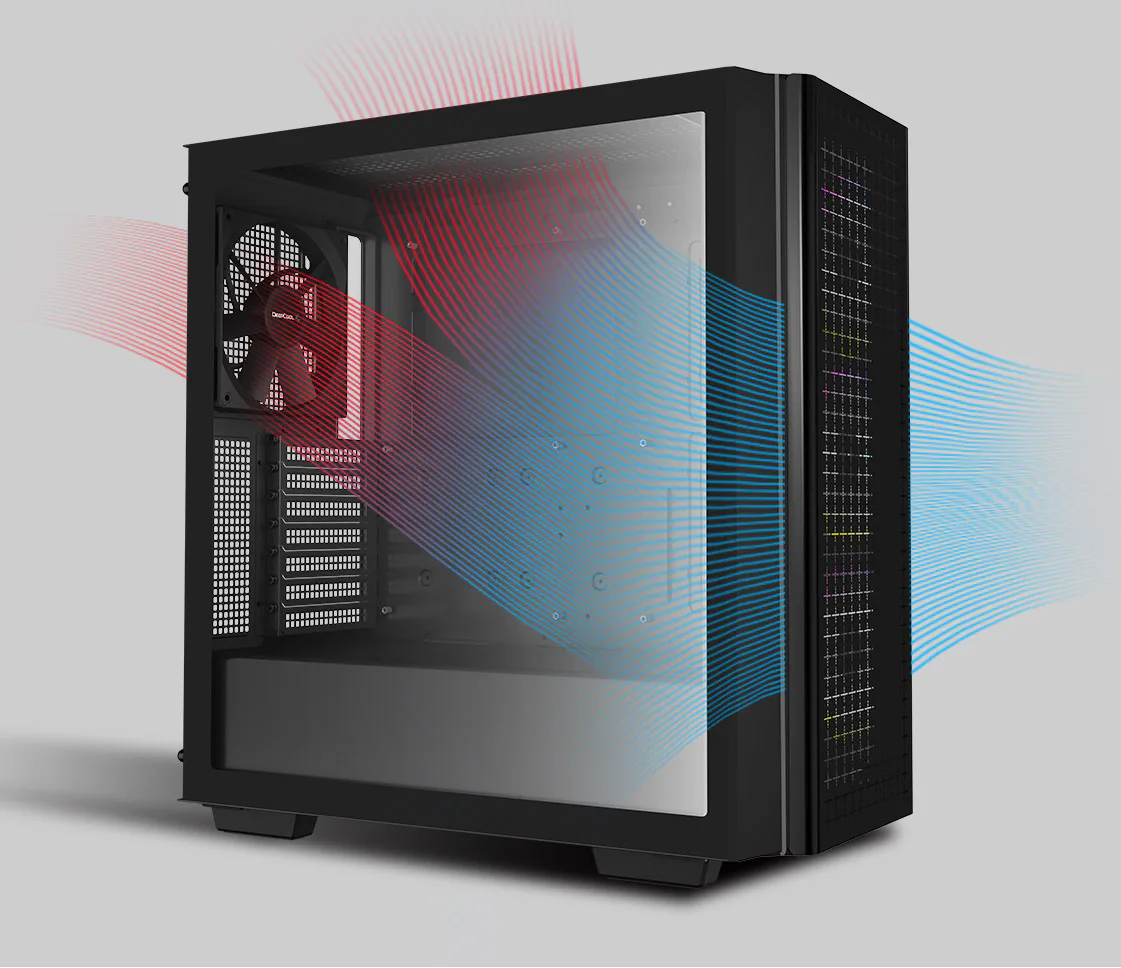

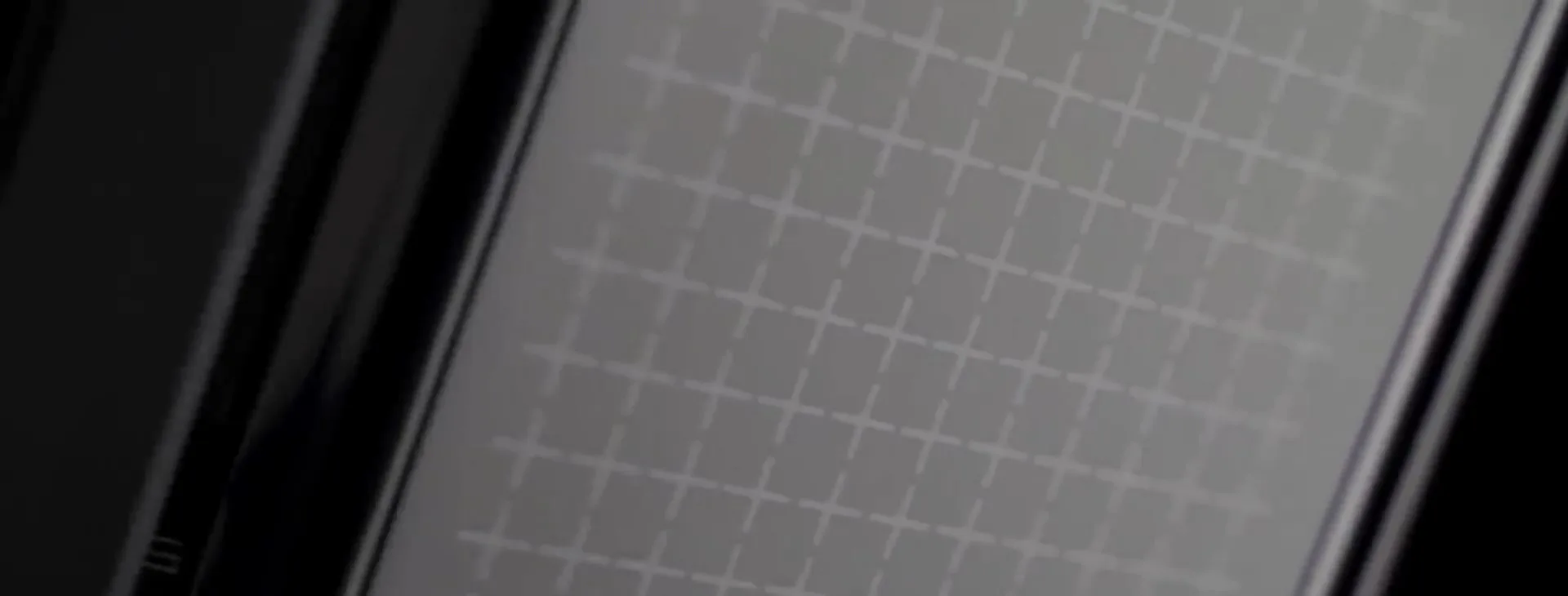

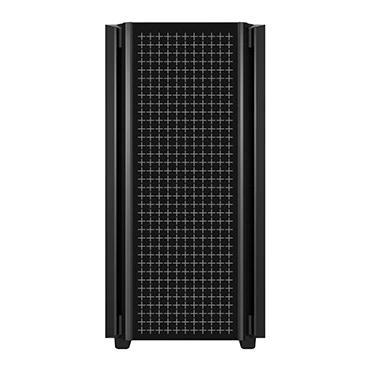

Put on a show with tempered glass side and front panels lined with optimized ventilation for proper airflow performance.

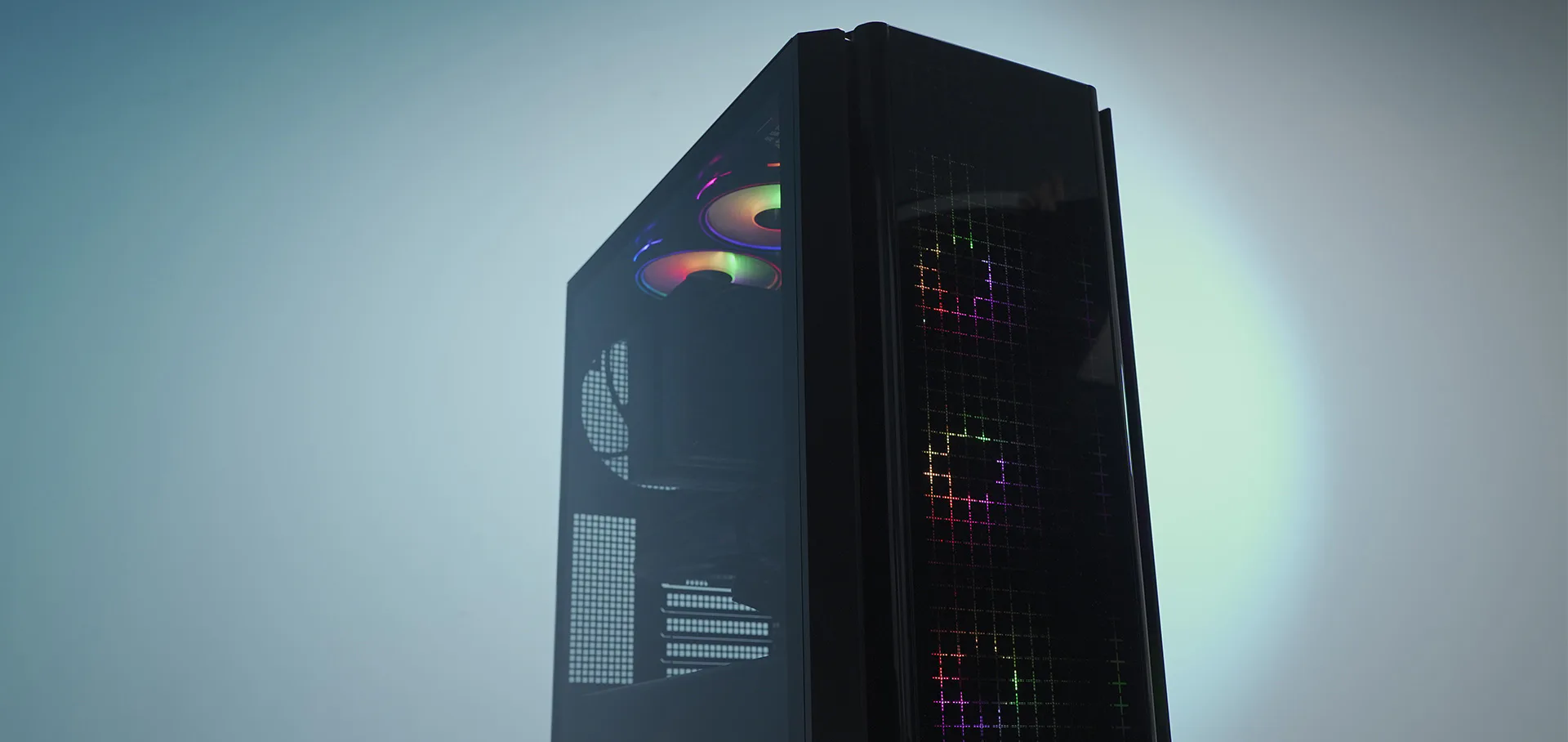

Shine Bright

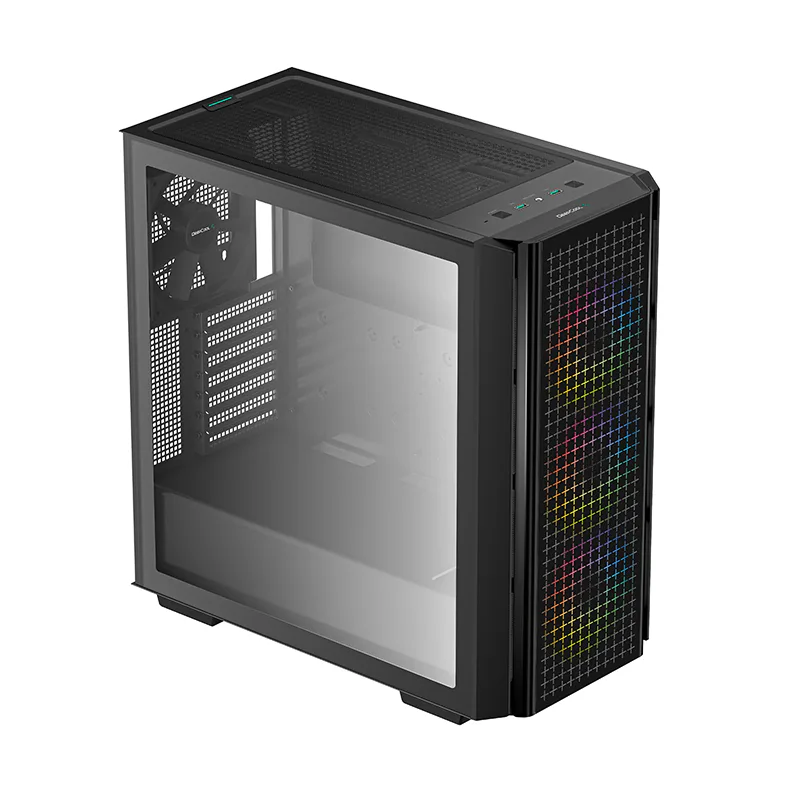

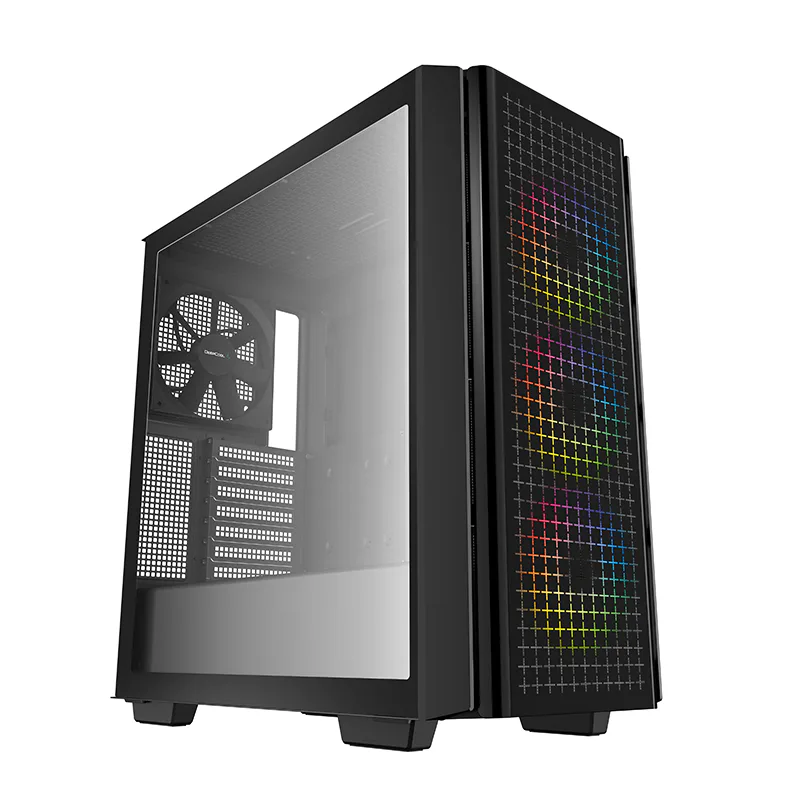

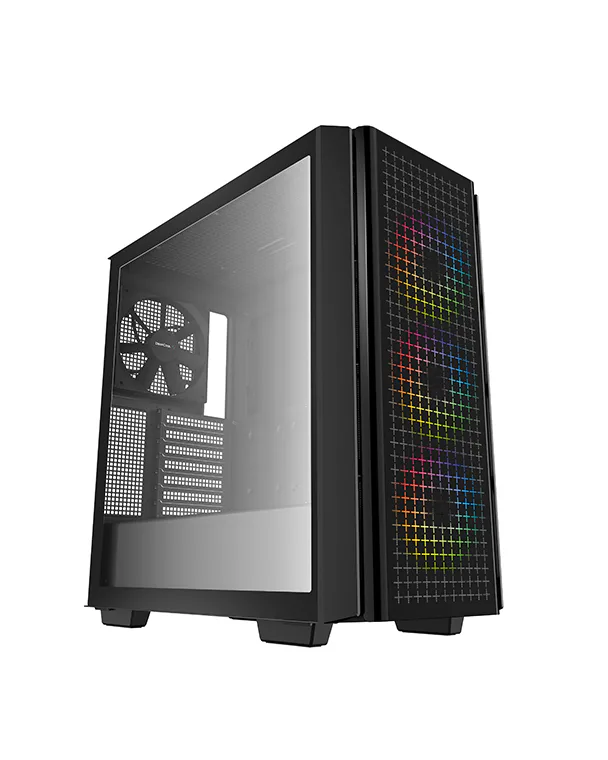

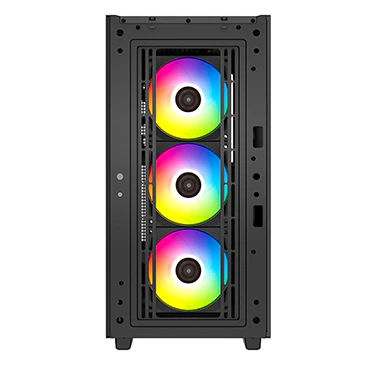

Three pre-installed 120mm ARGB fans installed in front illuminate through the designed tempered glass.

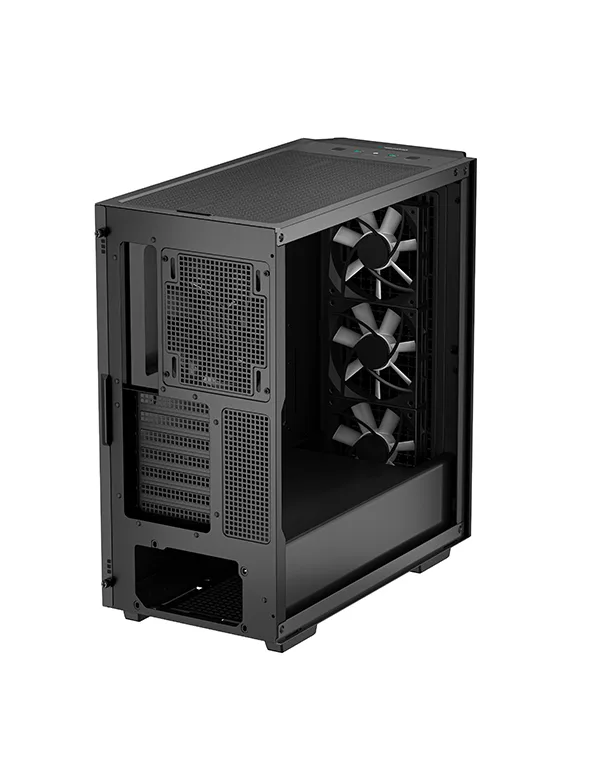

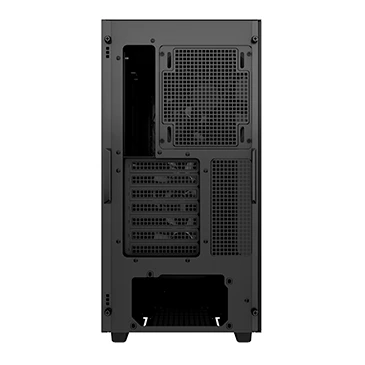

An additional 140mm black fan is featured in the rear for increased airflow.
Expansive Cooling Capacity
Get big cooling potential with support up to 6x 120mm or 5x 140mm case fans, and multiple radiator configurations for 360mm installed in front and 280mm up top.
6 120mm
5 140mm
CASE FANS
1 360mm
2 280mm
2 240mm
3 140mm
3 120mm
RADIATOR

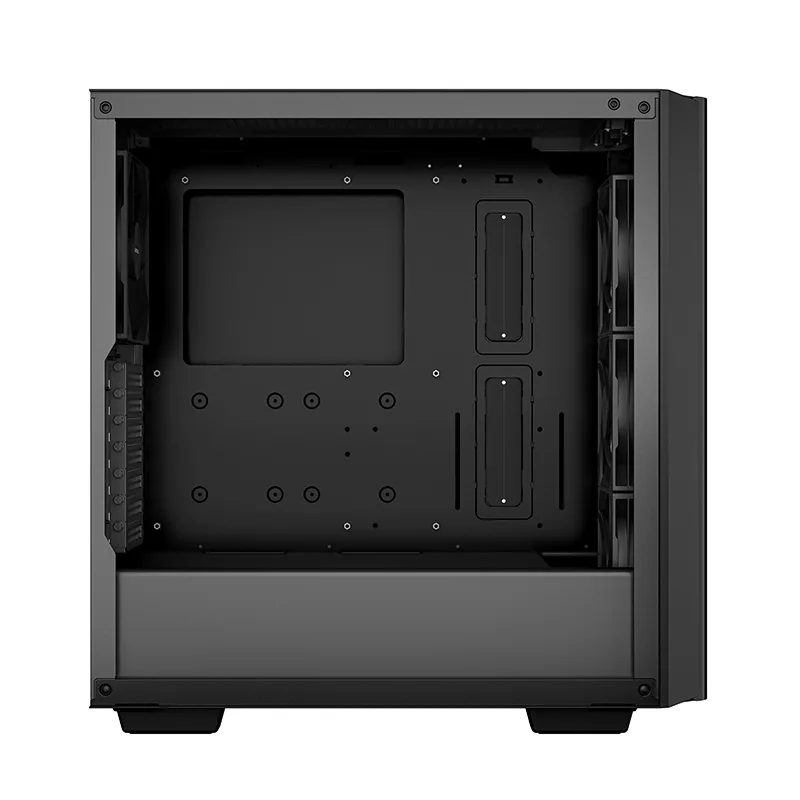

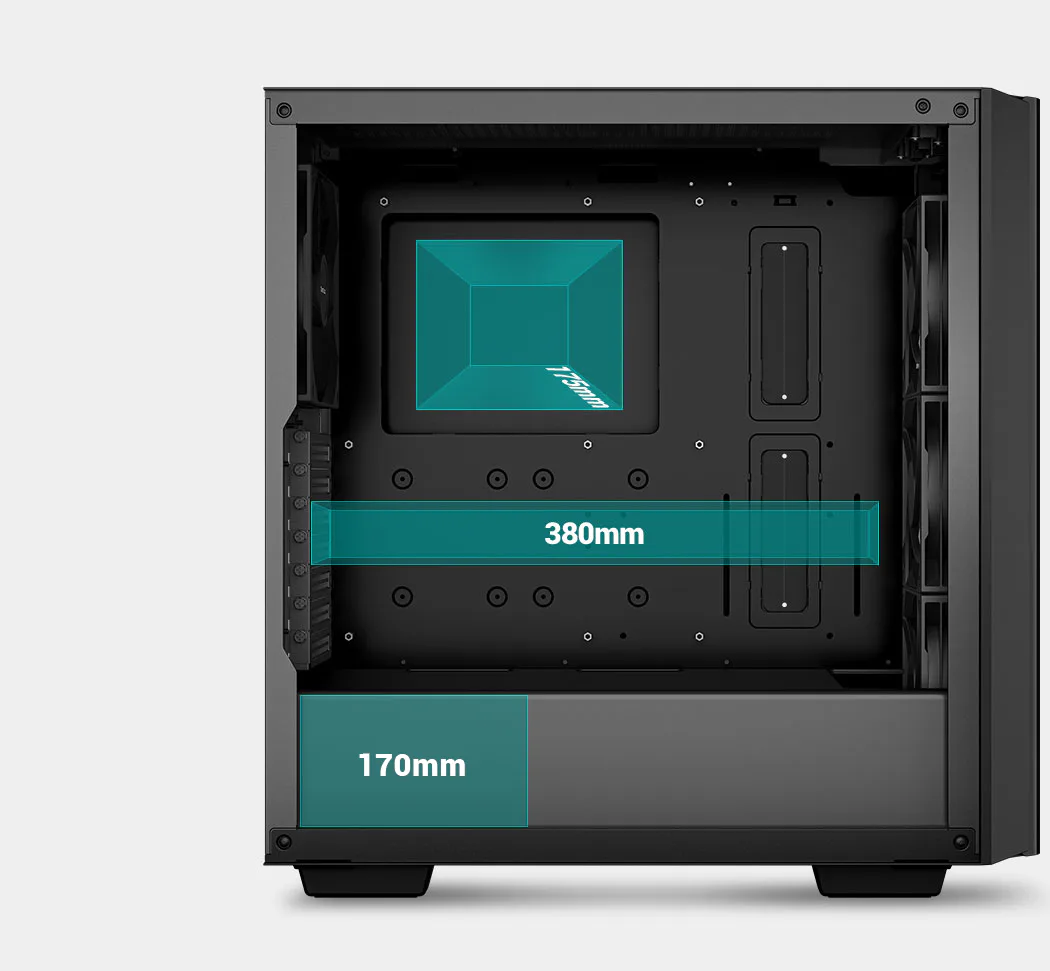

Compatibility
- Max CPU Cooler Height: 175mm
- Max GPU Length: 380mm
- Max PSU Length: 160mm

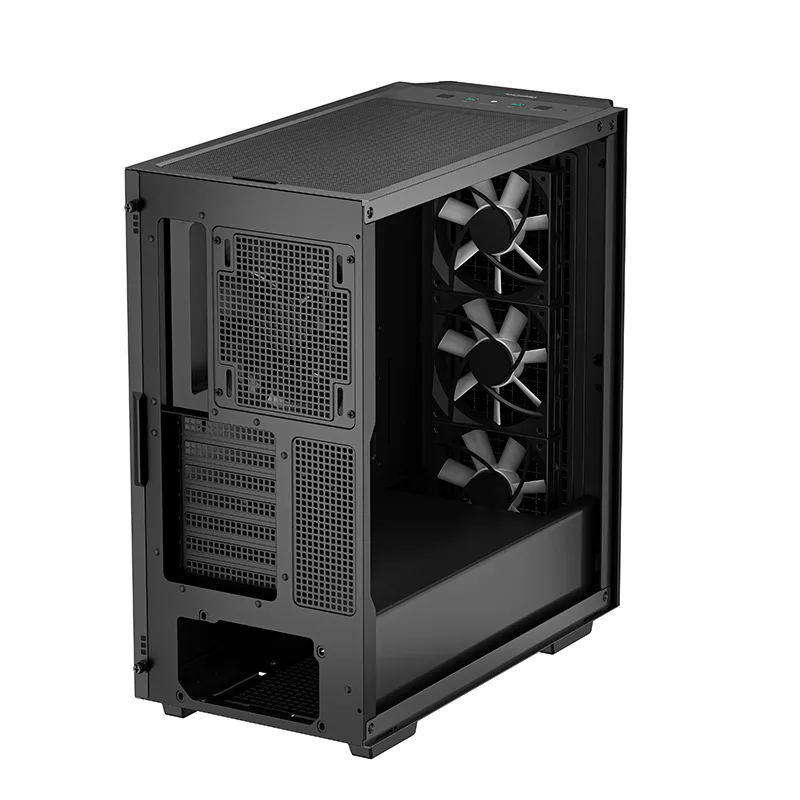

Complete Storage

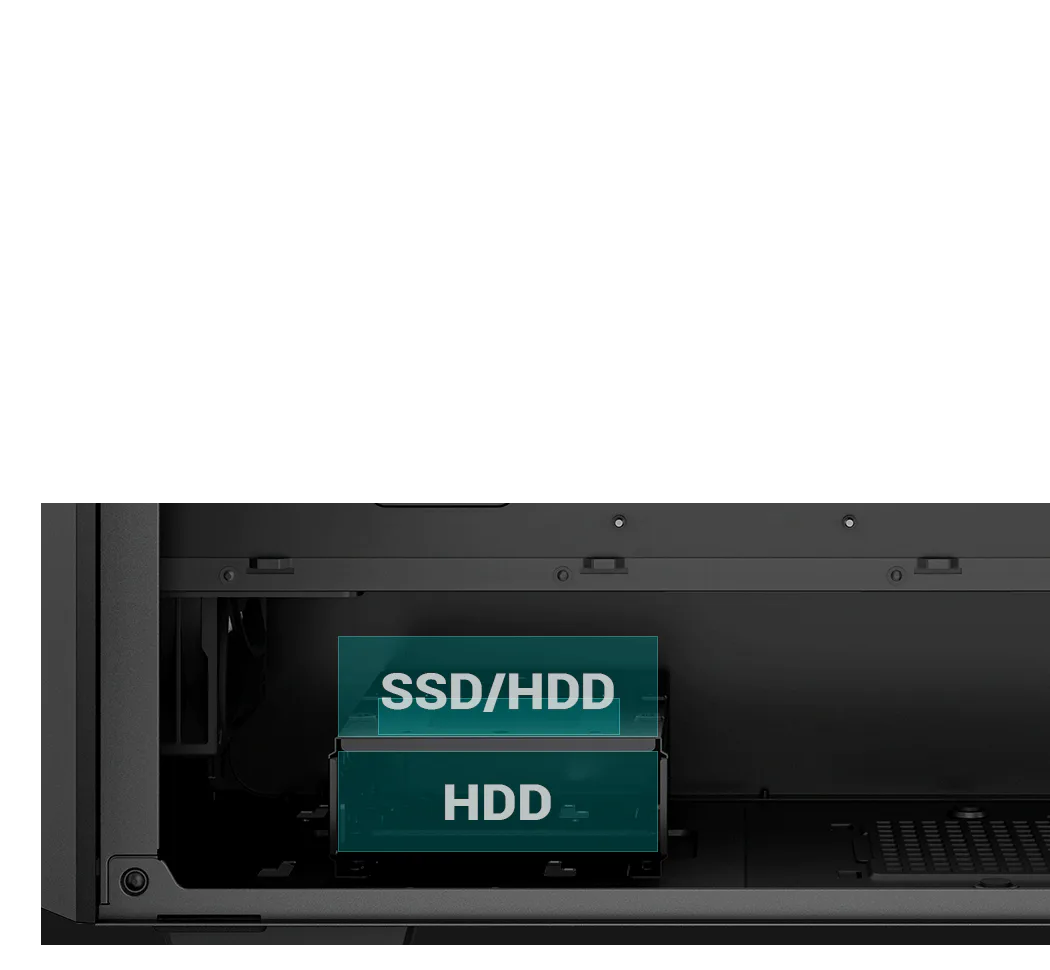

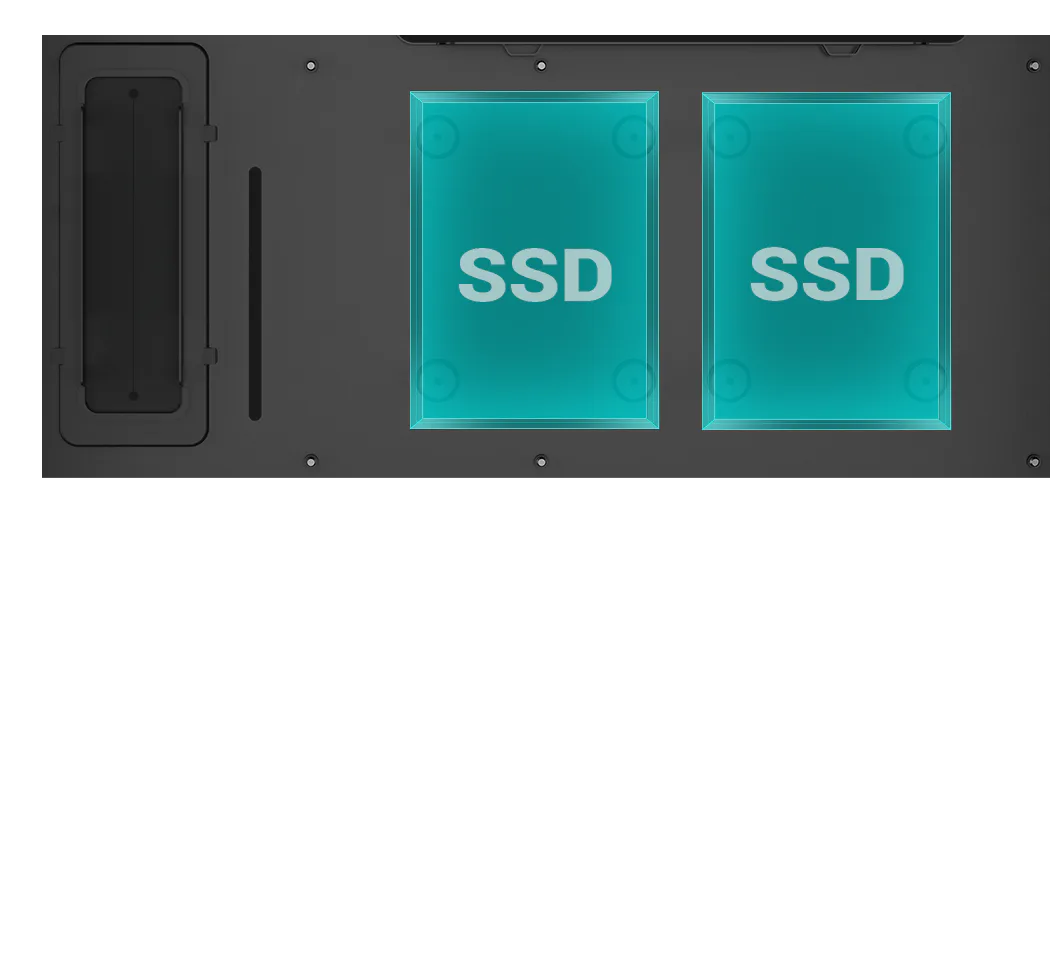

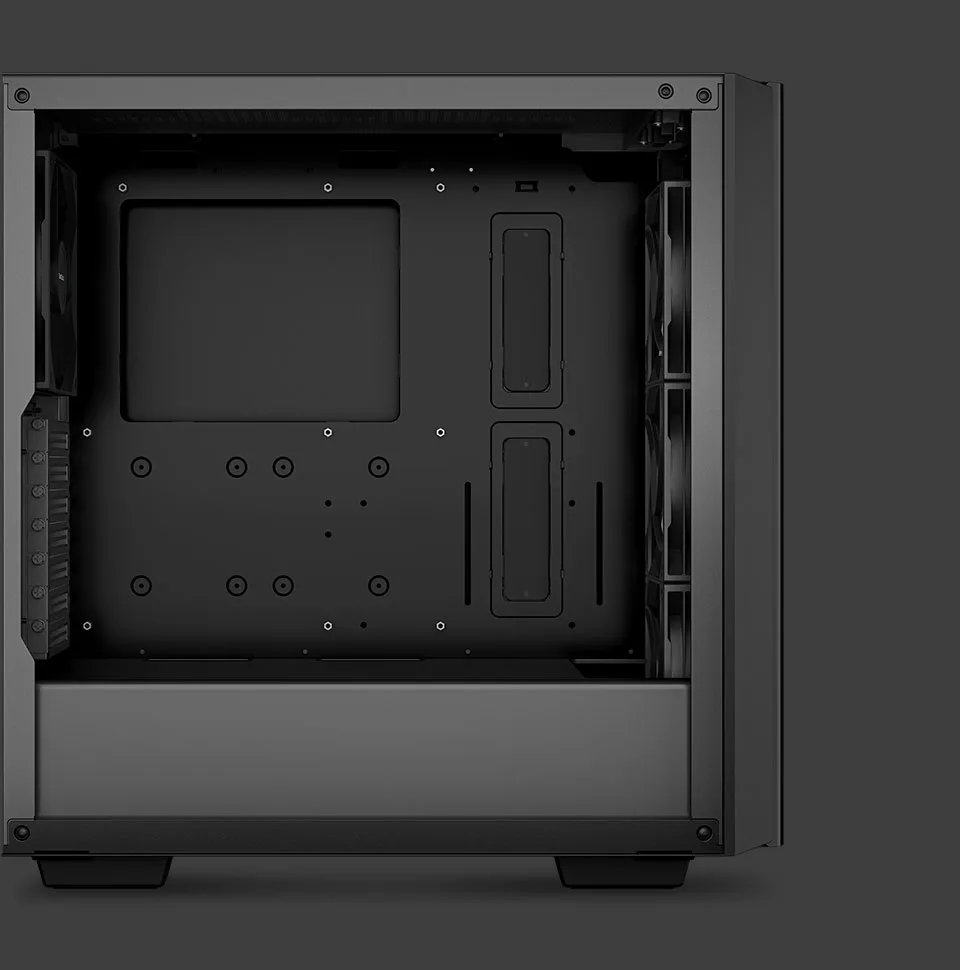

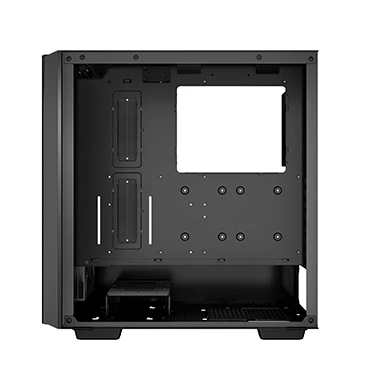

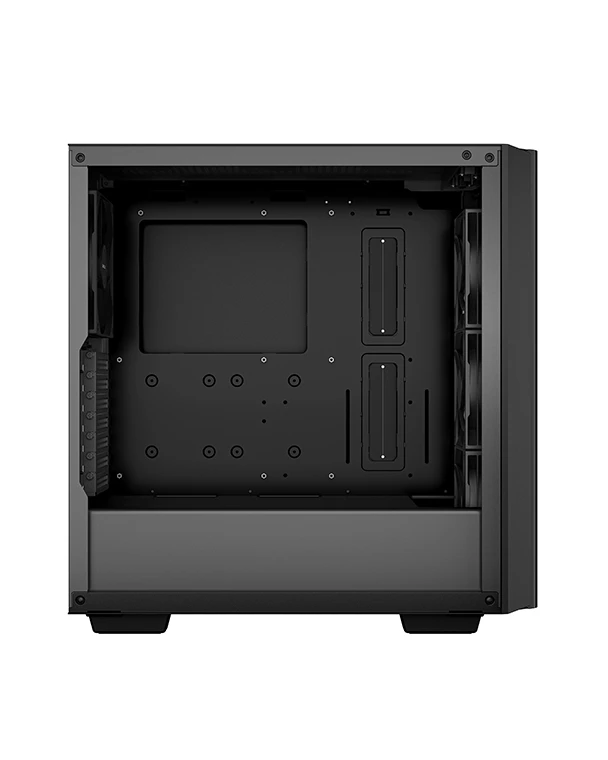

Install up to 2x 2.5” SSDs directly on the backplate and 2x 3.5” HDDs underneath the shroud for ample storage discreetly tucked away.

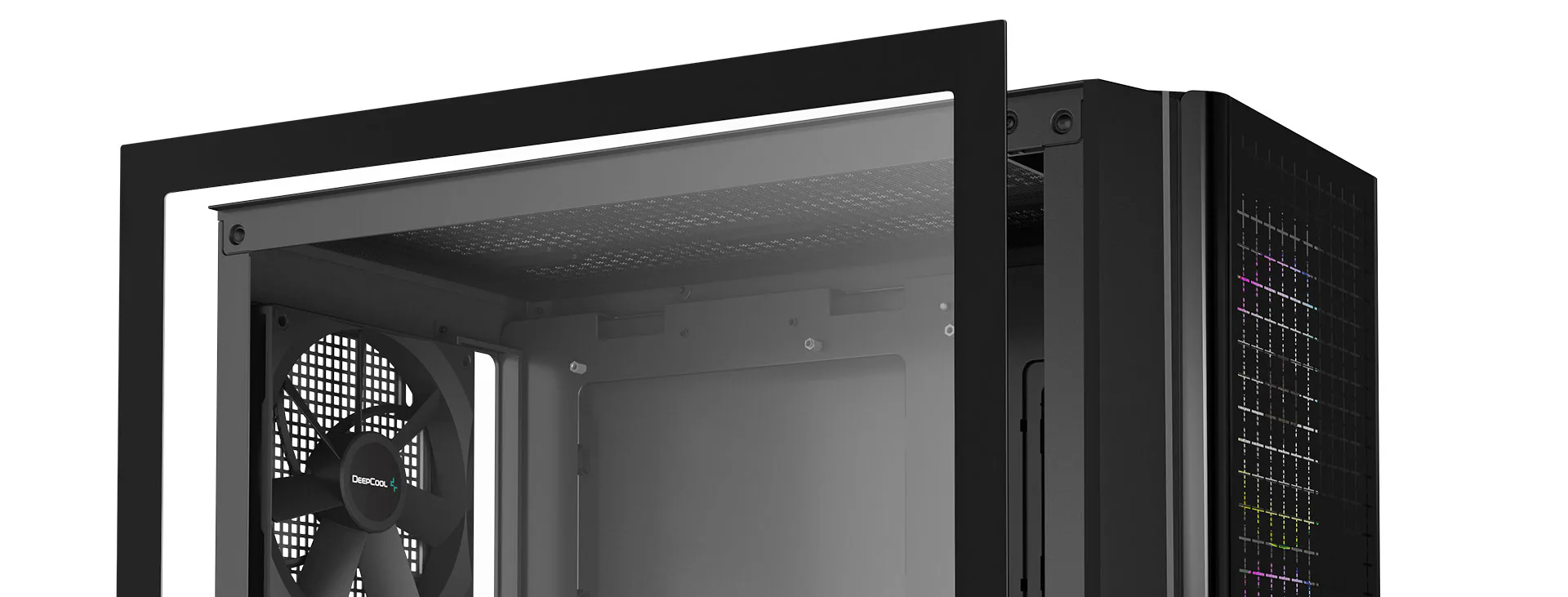

Easy Access Side Panels

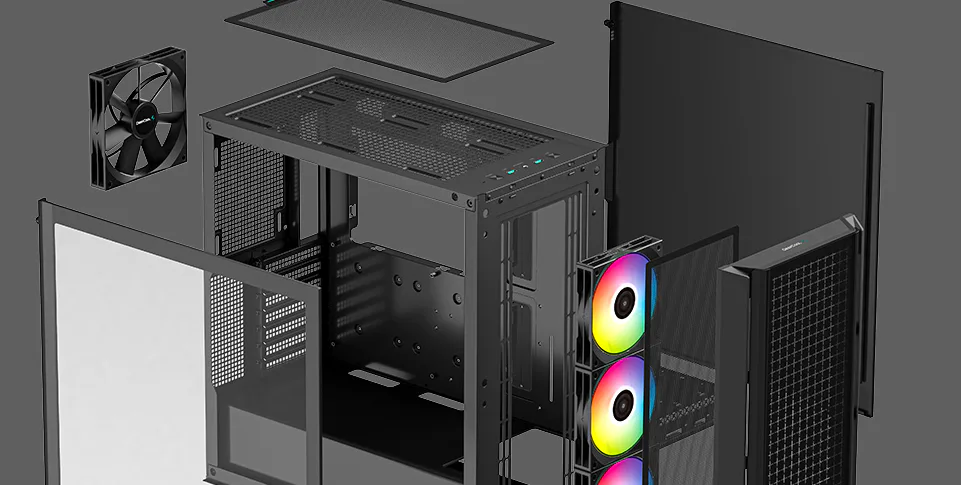

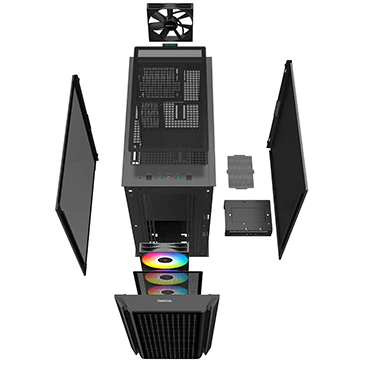

Quickly get to your internal components with simple slide and latch side panels and a solid tempered glass window to highlight your system.
Clean and Tidy

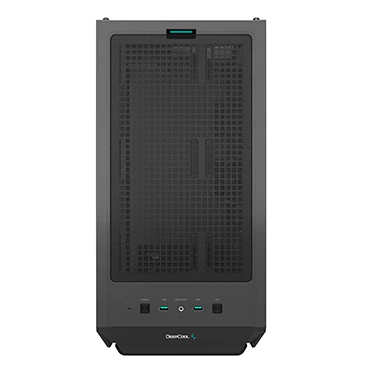

Easy-to-clean magnetic dust filters.

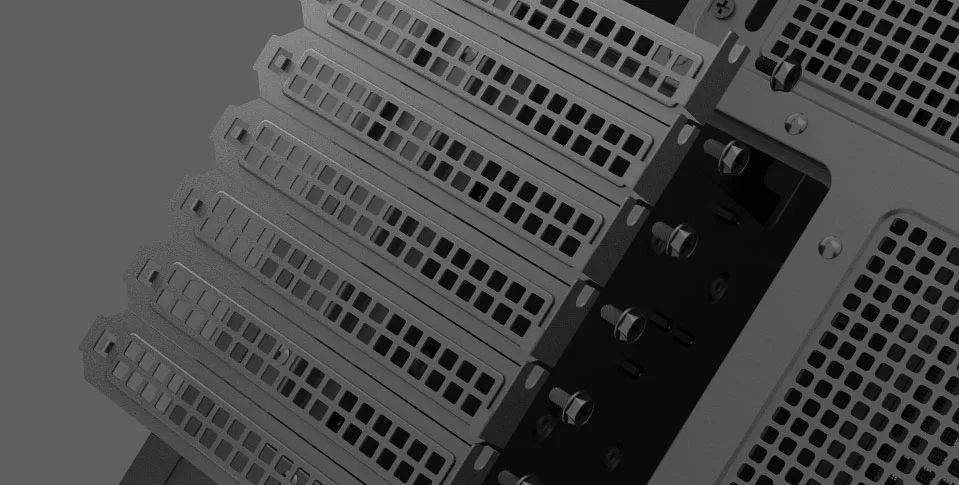

Independent PCIe Slot Baffles
Remove and reuse for simpler setup.

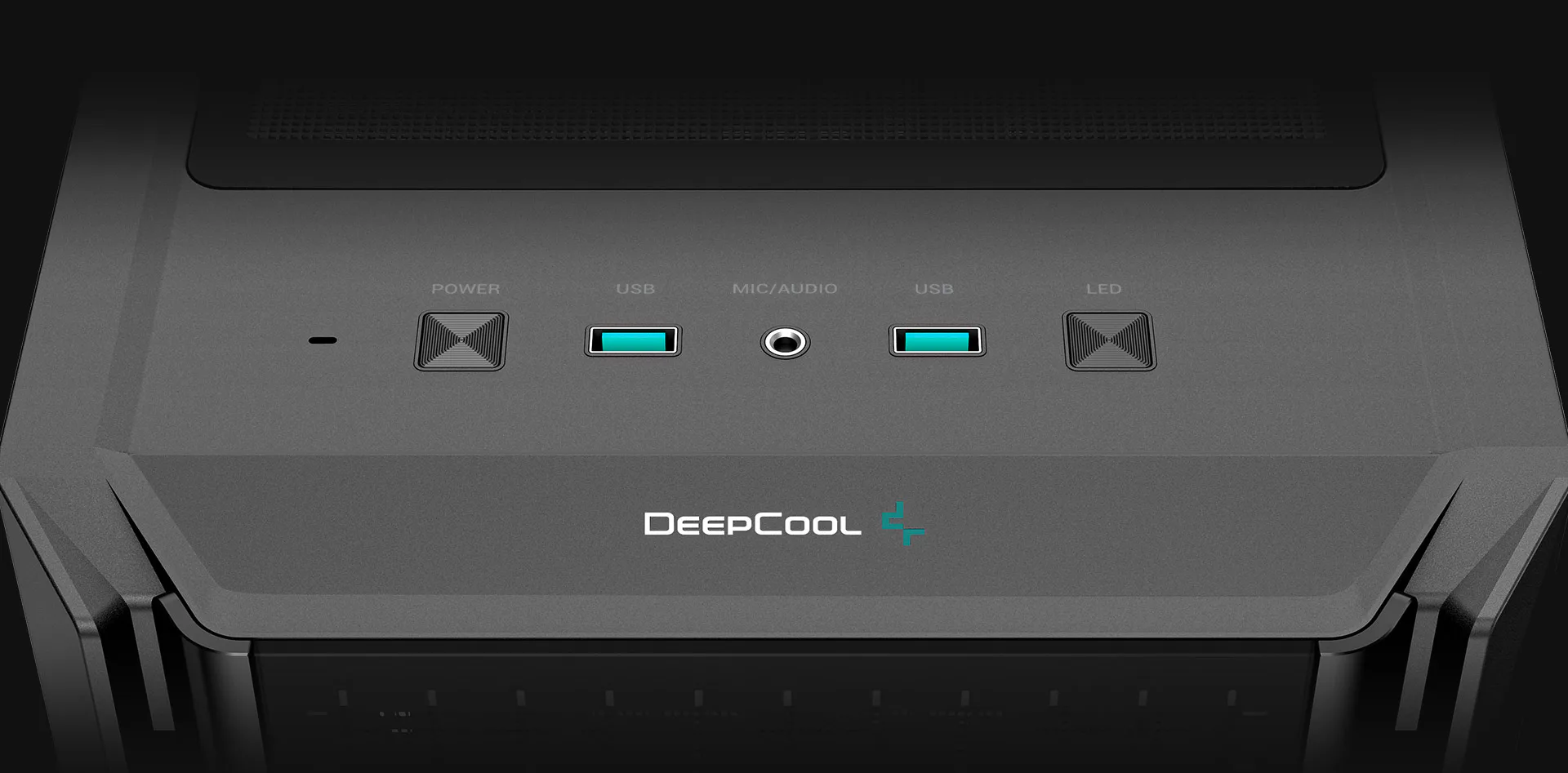

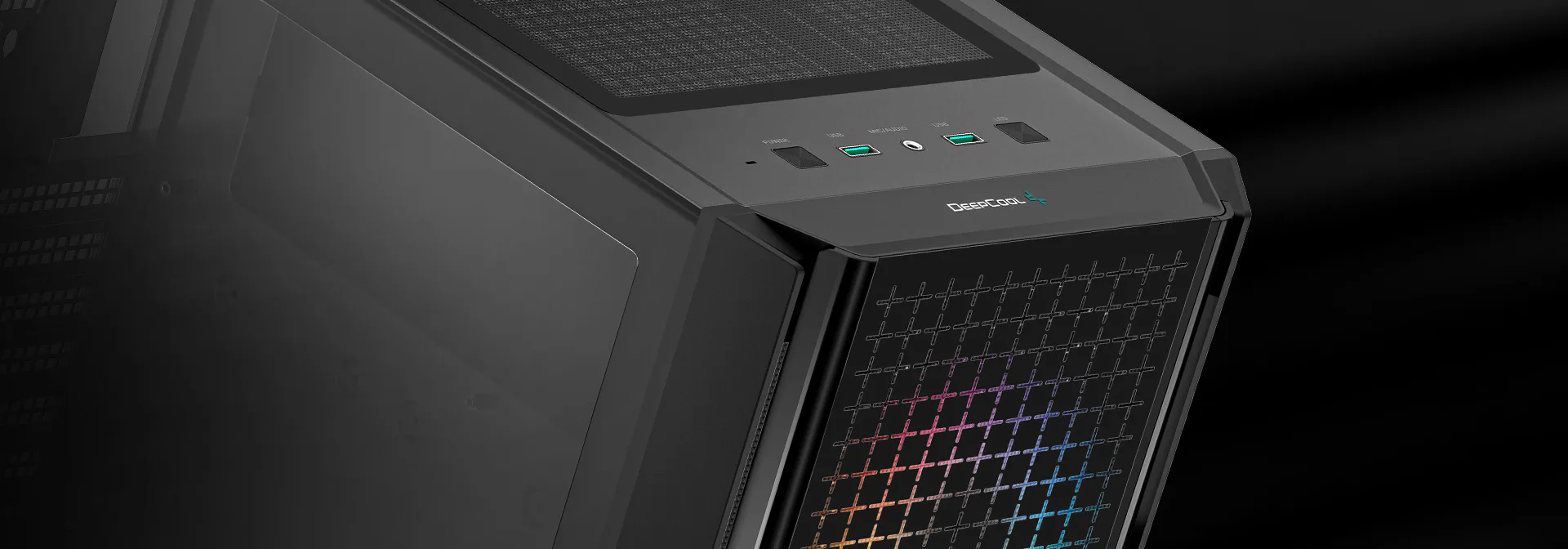

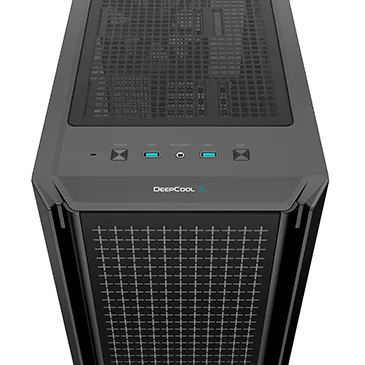

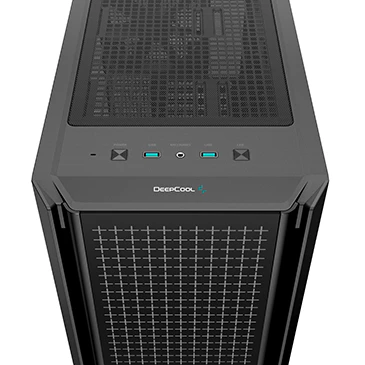

Front I/O Panel
Along with two USB 3.0 ports and a combination audio/mic jack, the reset button is custom configured to control preset lighting effects on the three pre-installed ARGB fans.
Front I/O Panel
Along with two USB 3.0 ports and a combination audio/mic jack, the reset button is custom configured to control preset lighting effects on the three pre-installed ARGB fans.
Technical Spec
Product Dimensions 455×230×470mm(L×W×H)
Net Weight 7.5Kg
Materials ABS+SPCC+Tempered Glass
Motherboard Support Mini-ITX / Mico-ATX / ATX / E-ATX
Front I/O Ports USB3.0×2、Audio×1
3.5" Drive Bays 2
2.5" Drive Bays 2
Expansion Slots 7 Slots
Pre-Installed Fans Front: 3×120mm Rear: 1×140mm
Fan Support Front: 3×120 / 2×140mm Top: 2×120 / 2×140mm Rear: 1×120 / 1×140mm
Radiator Support Front: 120/140/240/280/360mm Top: 120/140/240/280mm Rear: 120/140mm
CPU Cooler Height Limit 175mm
GPU Length Limit 380mm
Power Supply Type ATX PS2（maximum length: 160mm）
EAN Code 6933412714798
PN Code R-CG540-BKAGE4-G-1
Product Dimension
Download
CG540.pdf
