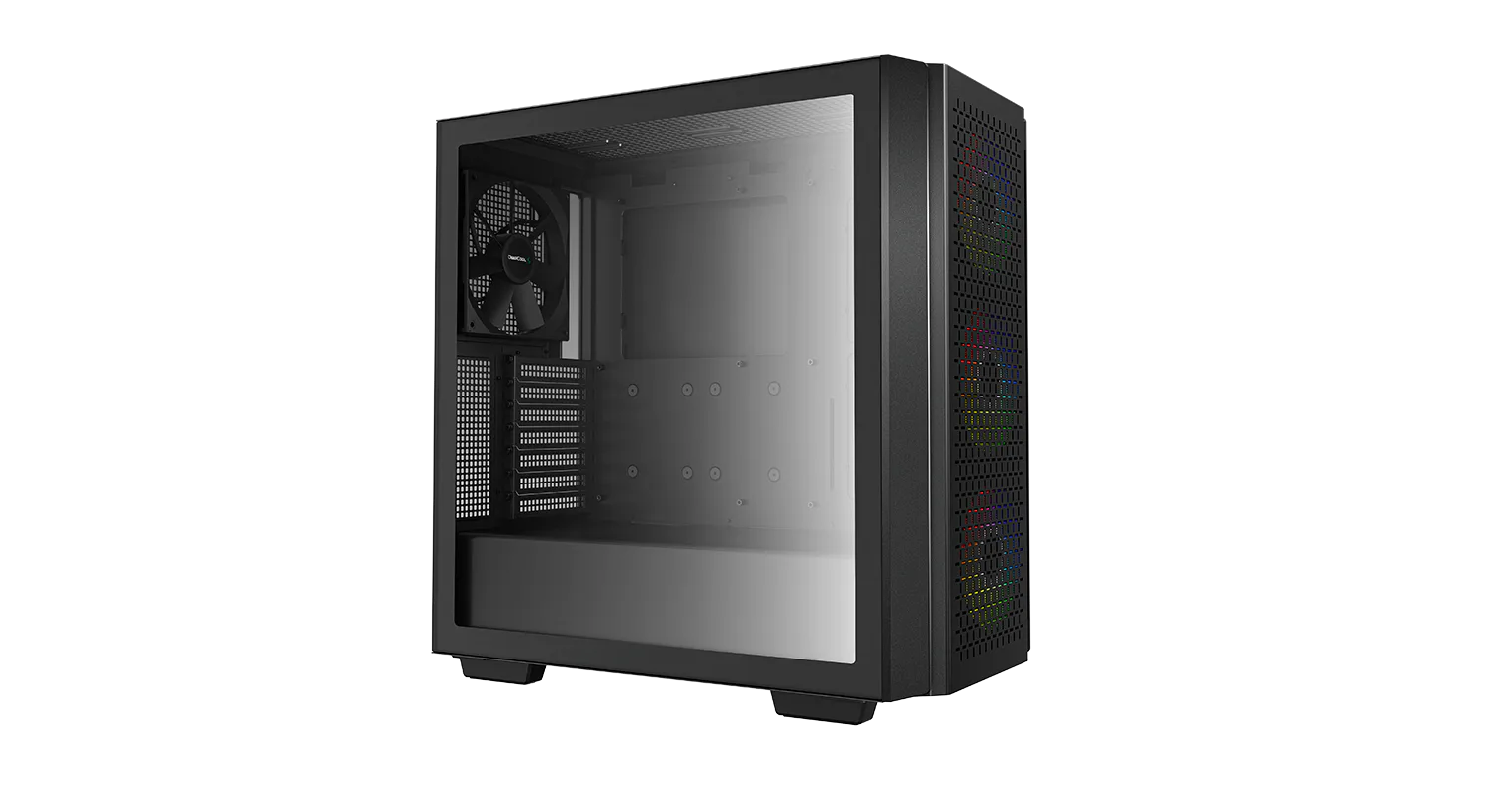

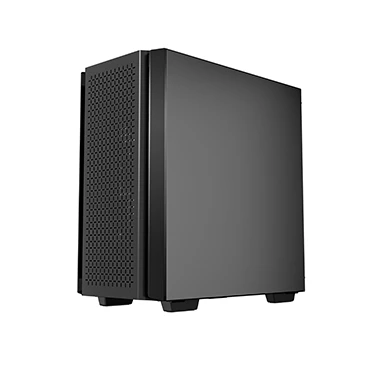

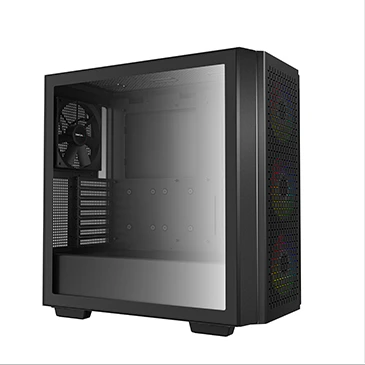

CG560

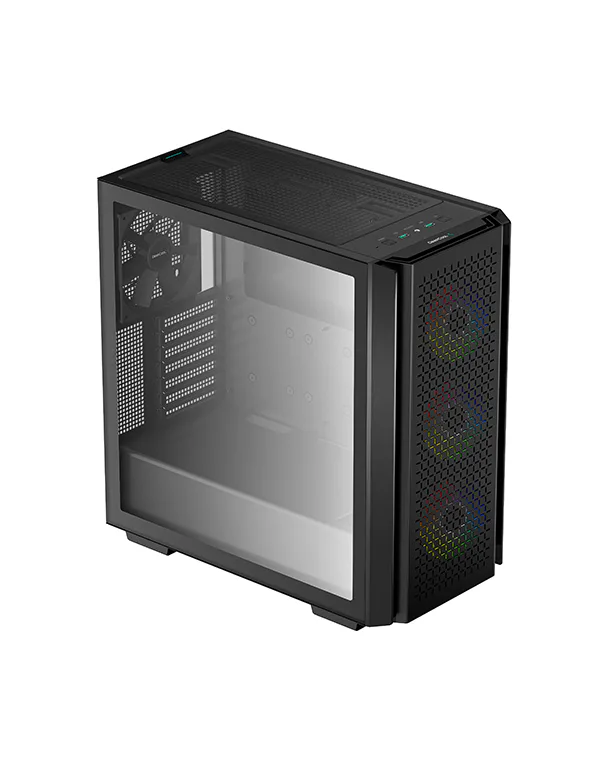

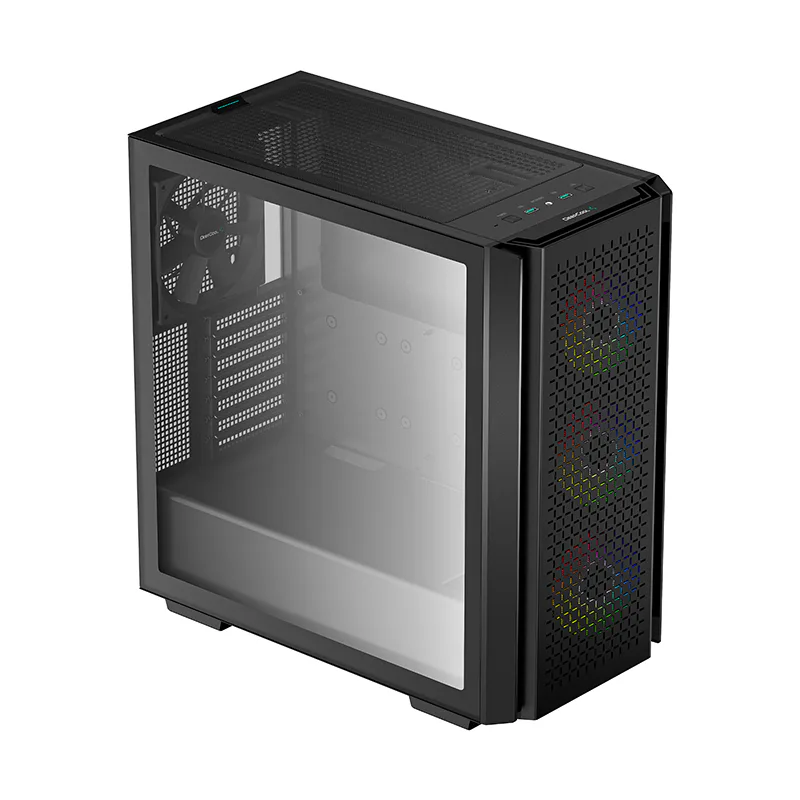

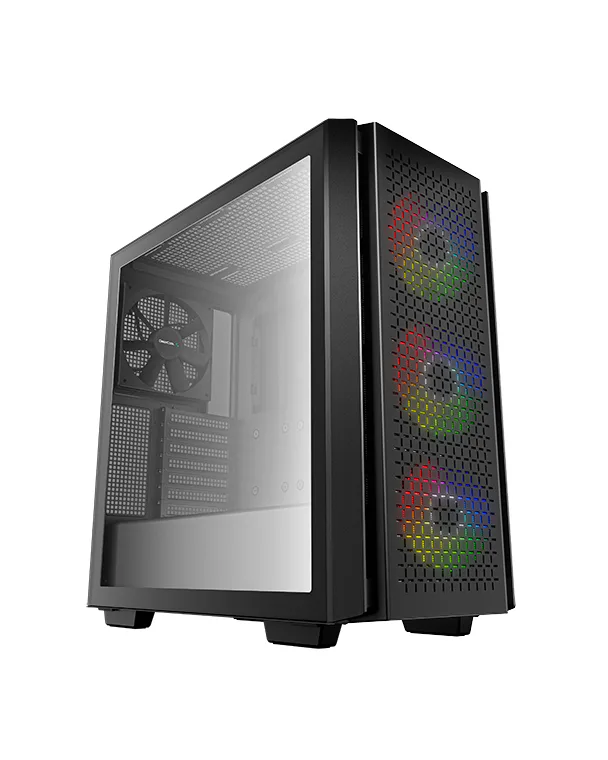

The DeepCool CG560 Mid-Tower Case combines abundant airflow and generous cooling capacity in an updated modern design that makes system building a breeze with four pre-installed fans.
COLOR
black
MODEL
CG560

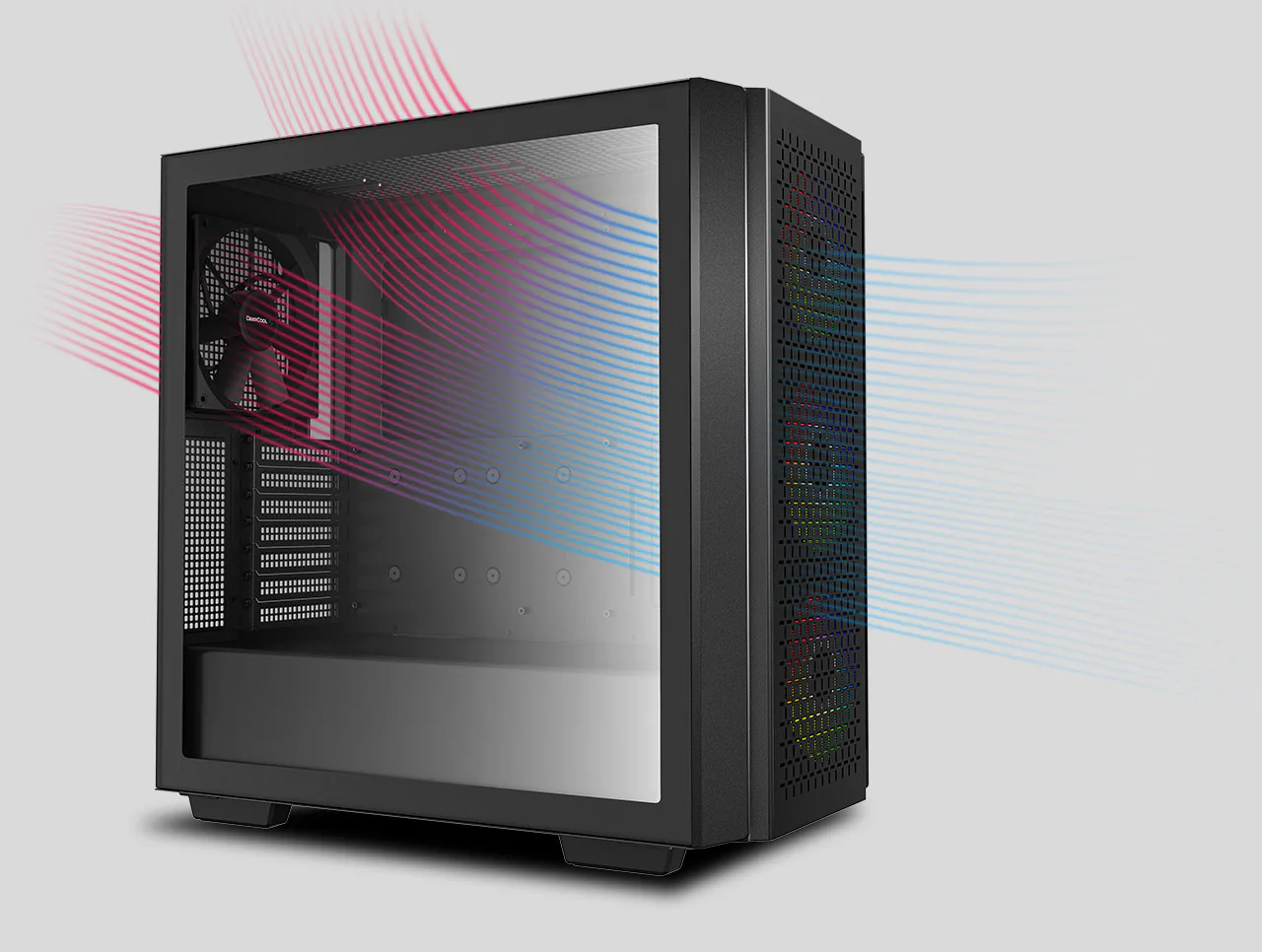

Airflow Focused

Accelerated Airflow

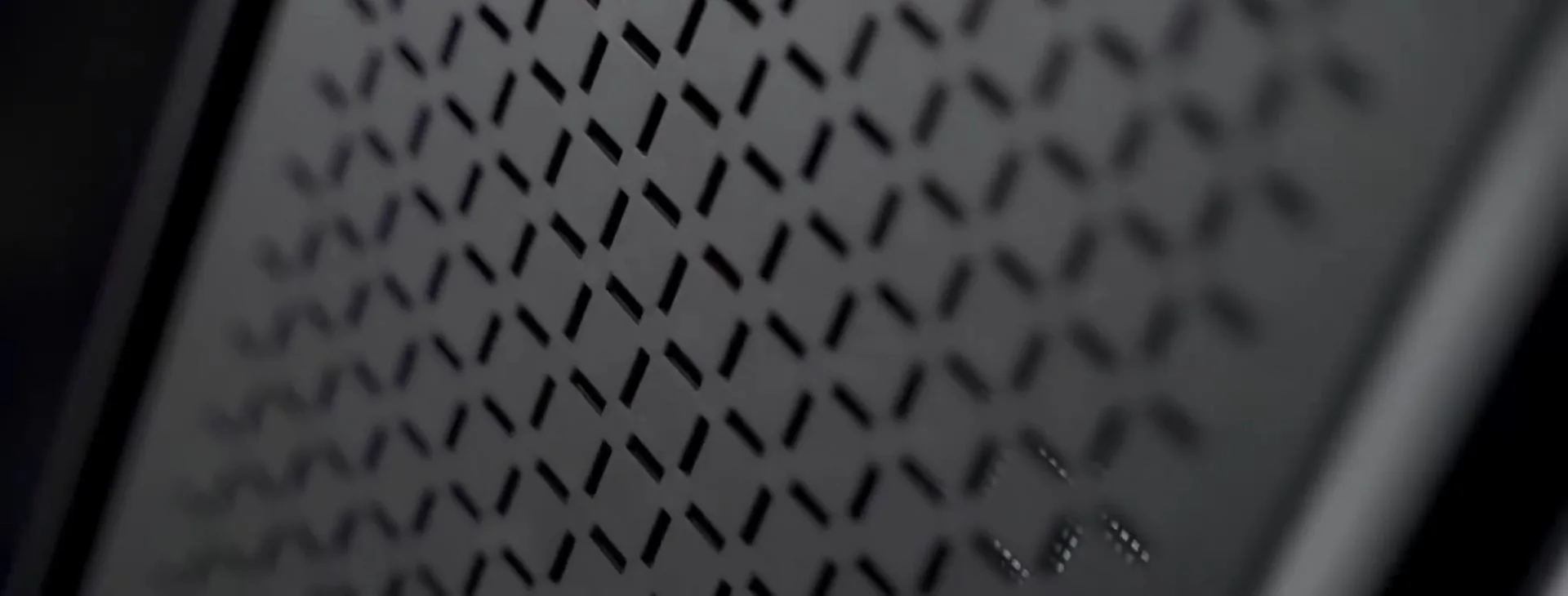

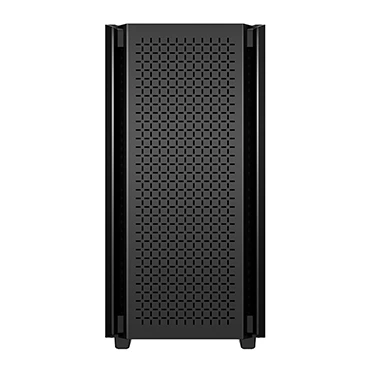

Keep your components cool with increased air intake through an optimized front panel for maximum ventilation.
Ready.
Set.
Go.

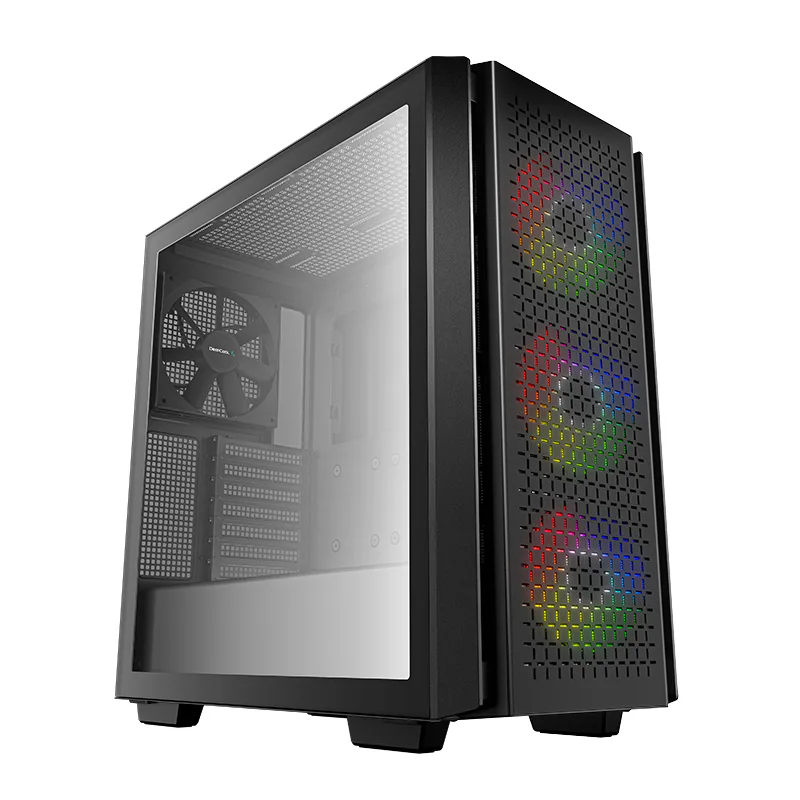

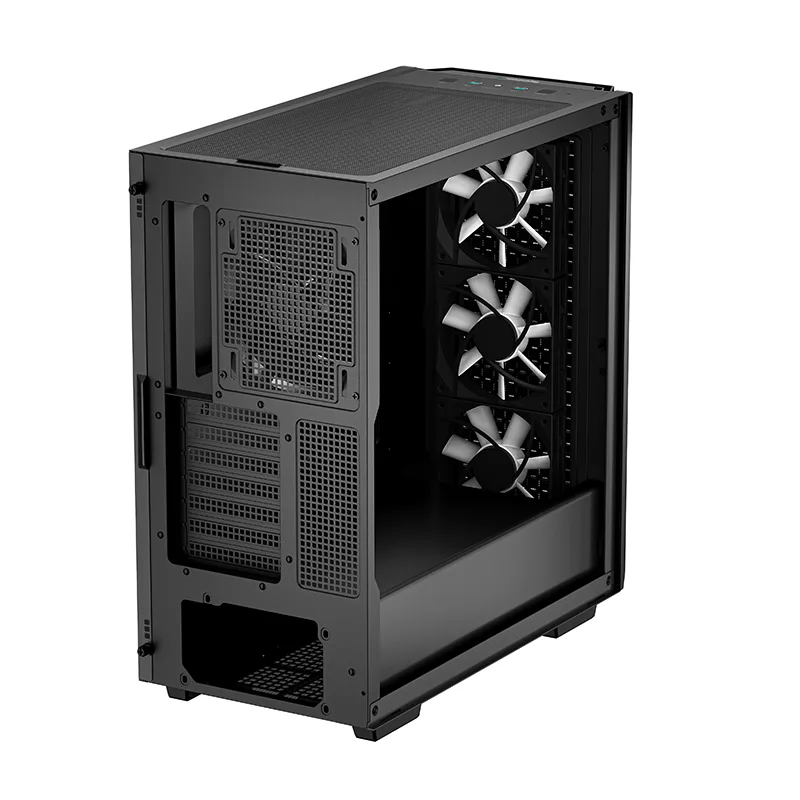

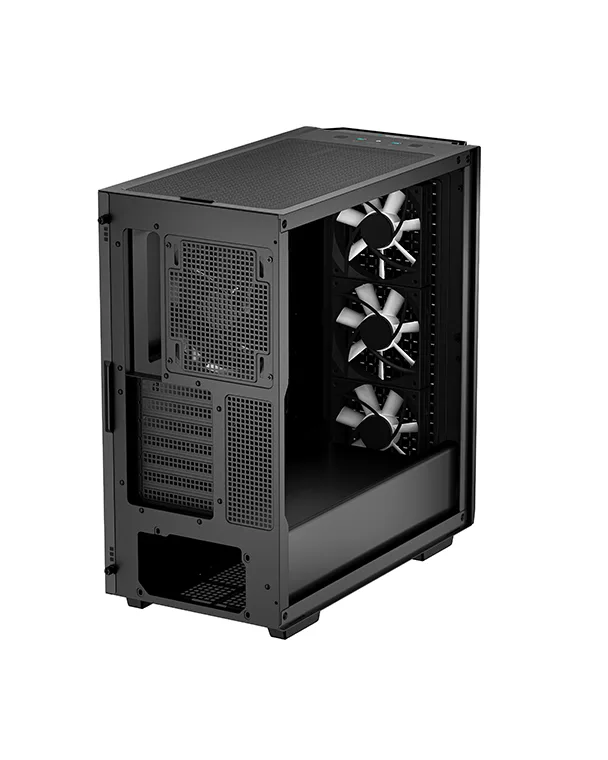

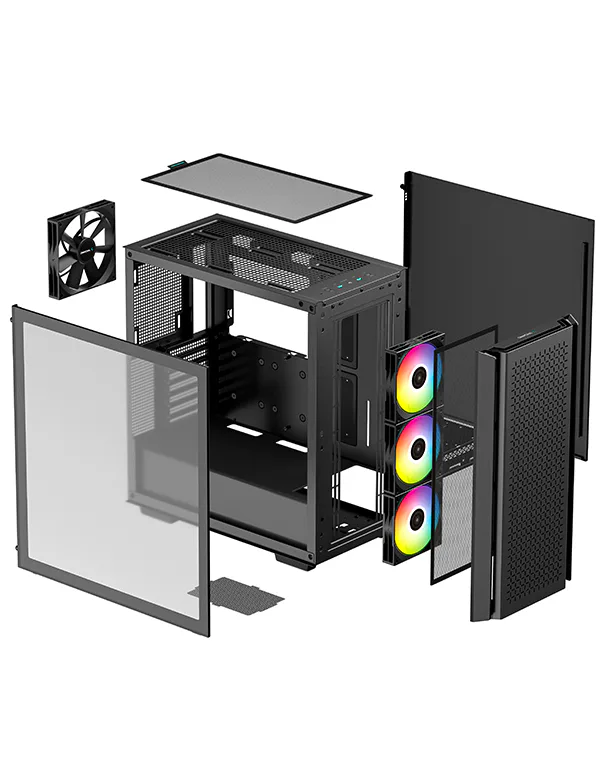

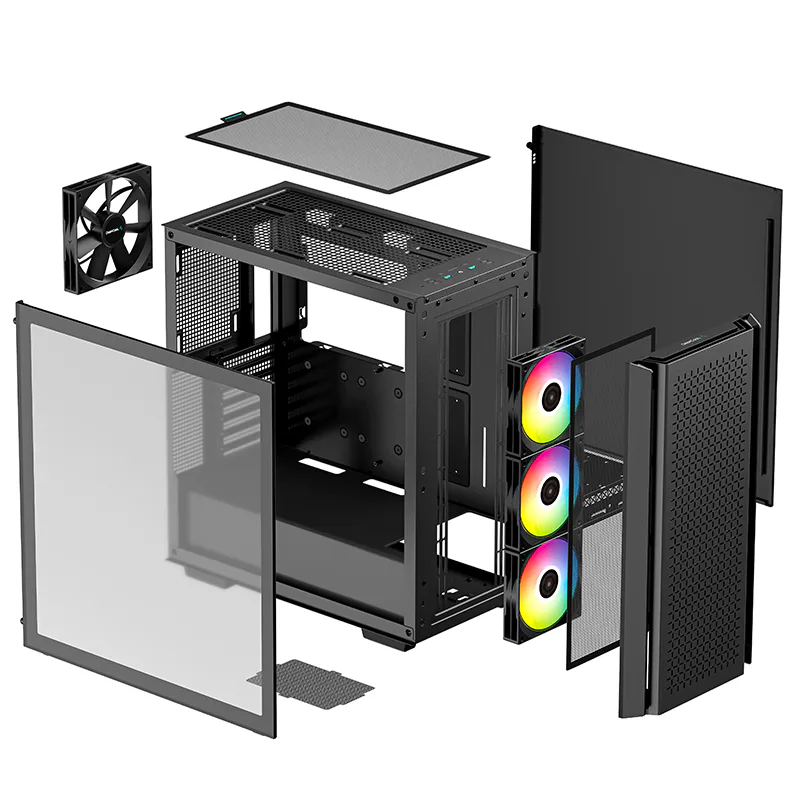

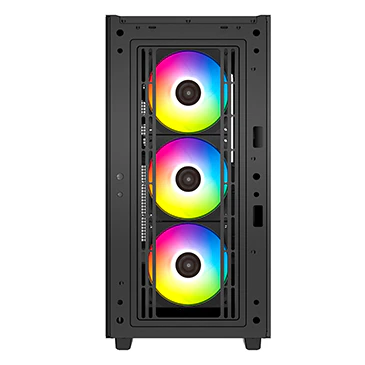

Start your build right with three pre-installed 120mm ARGB fans in front and one 140mm fan in the rear for enhanced cooling performance.
Expansive Cooling Capacity
Get big cooling potential with support up to 6x 120mm or 5x 140mm case fans, and multiple radiator configurations for 360mm installed in front and 280mm up top.
6 120mm
5 140mm
CASE FANS
1 360mm
2 280mm
2 240mm
3 140mm
3 120mm
RADIATOR
Compatibility
- Max CPU Cooler Height: 175mm
- Max GPU Length: 380mm
- Max PSU Length: 160mm

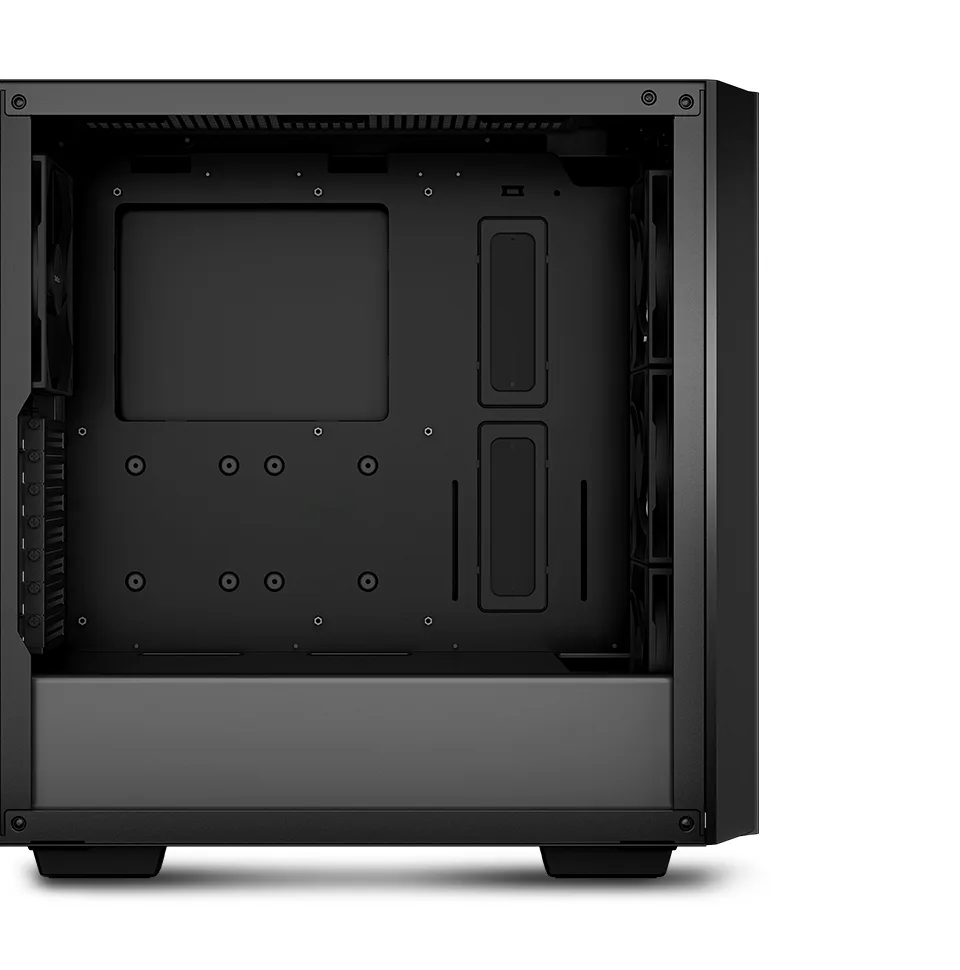

Complete Storage

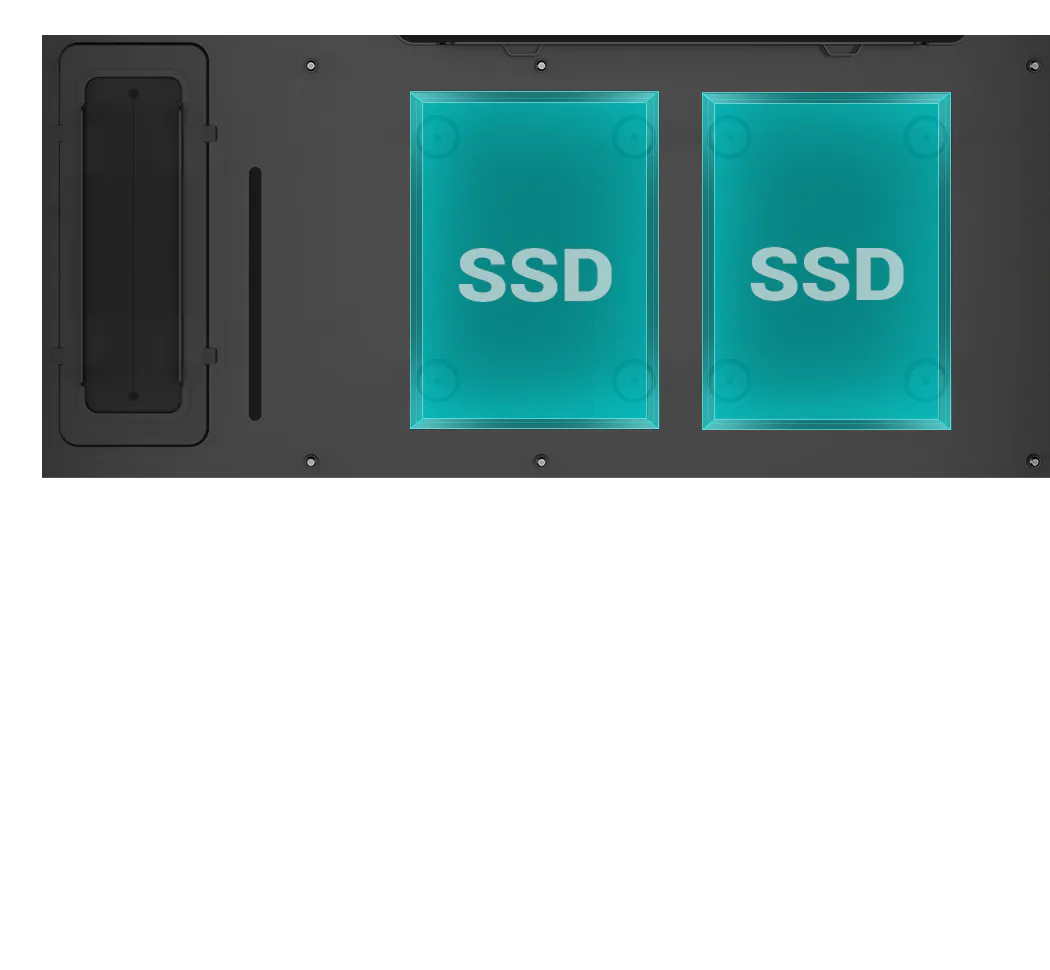

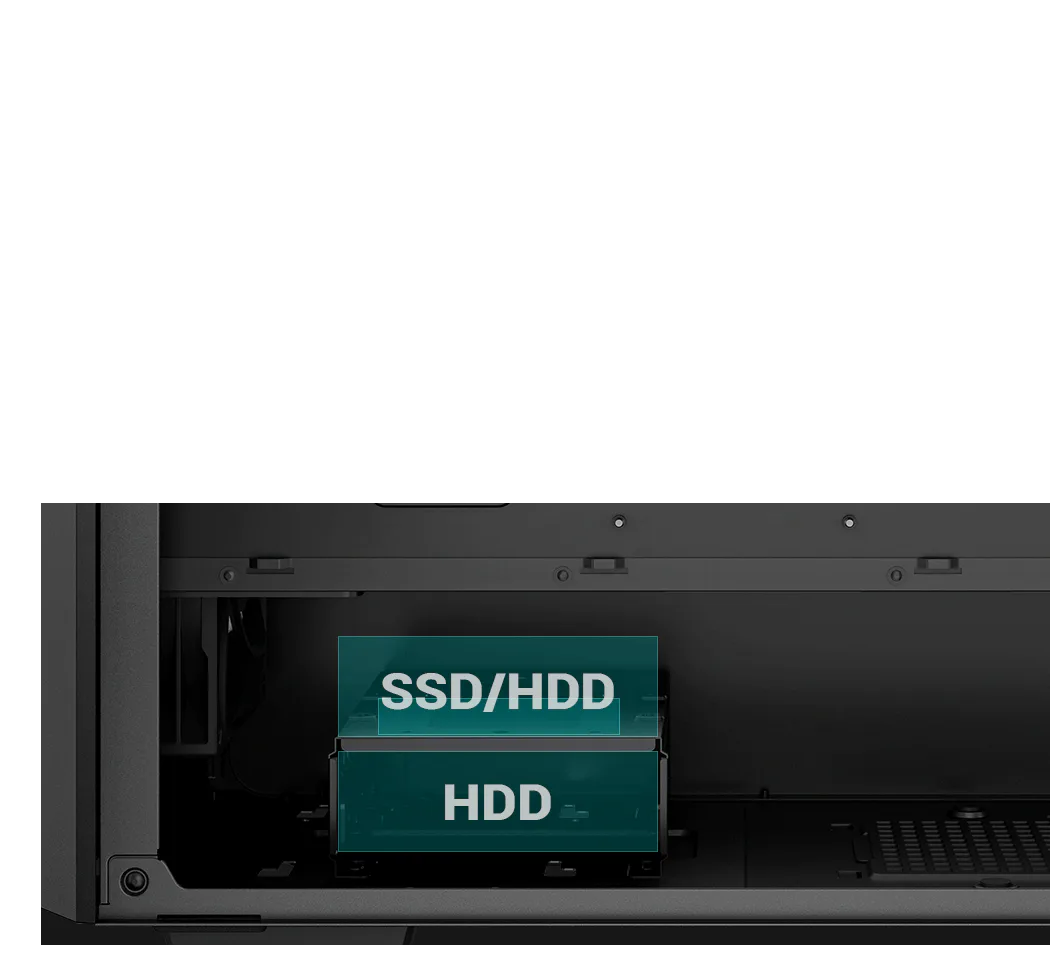

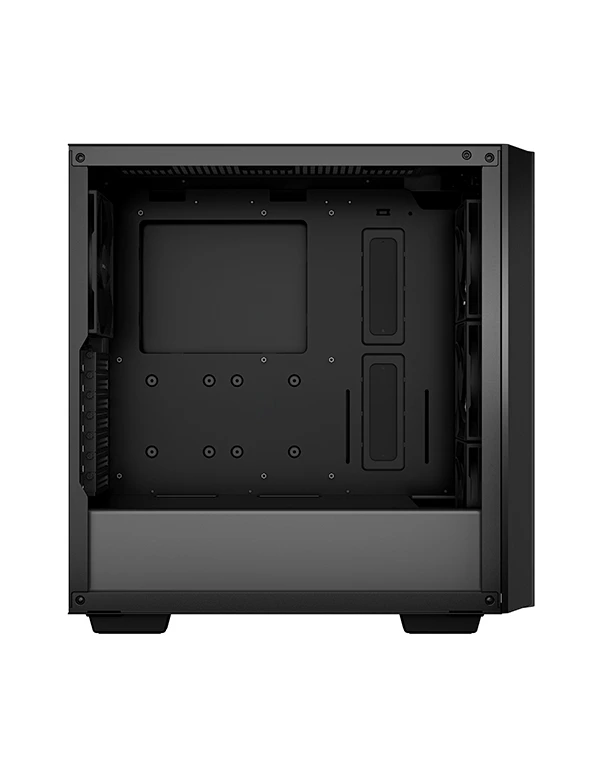

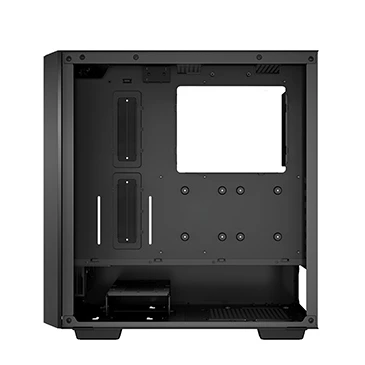

Install up to 2x 2.5” SSDs directly on the backplate and 2x 3.5” HDDs underneath the shroud for ample storage discreetly tucked away.

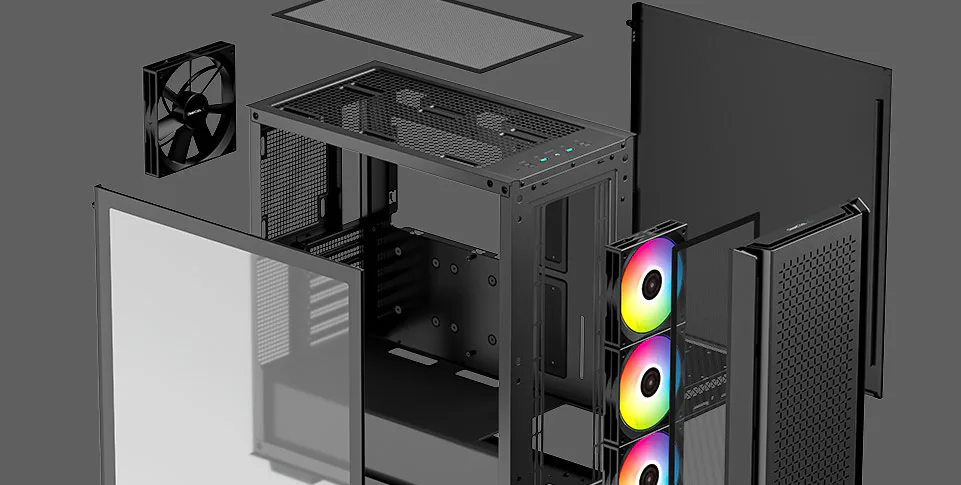

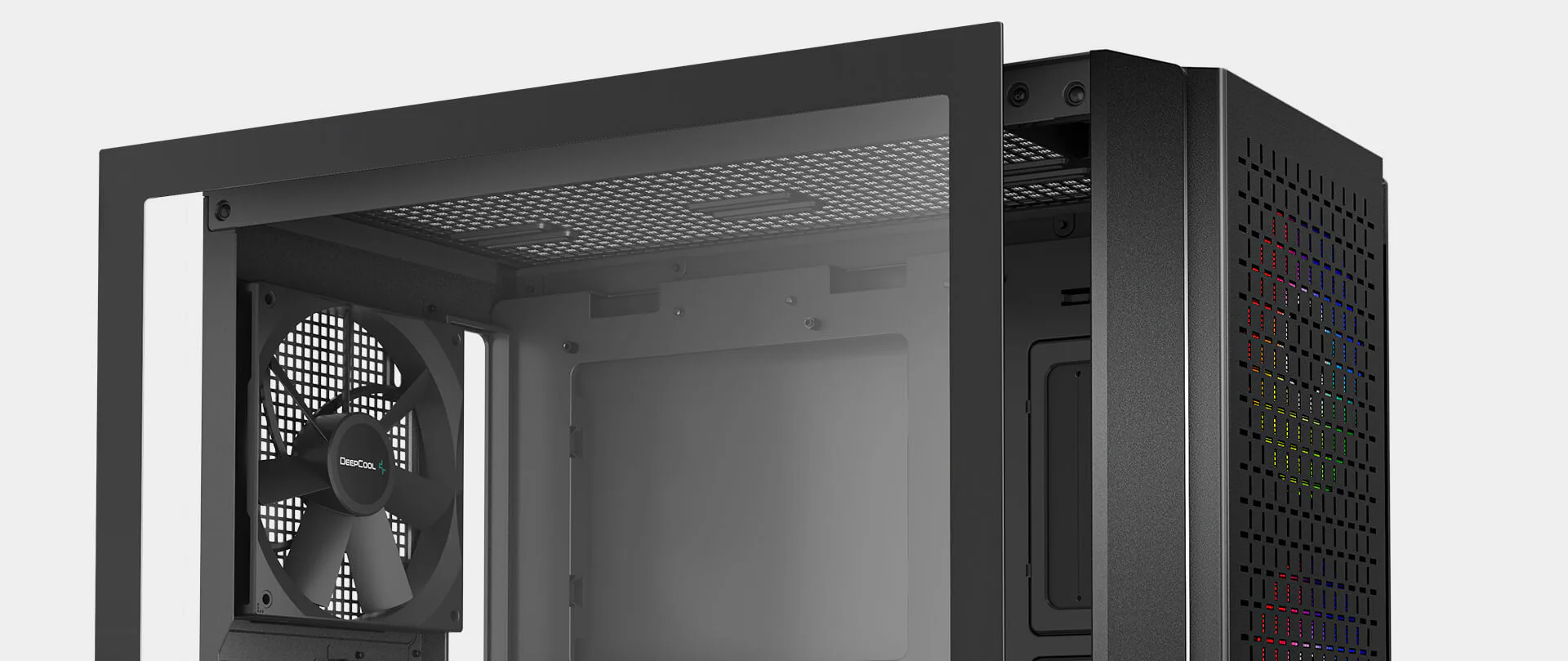

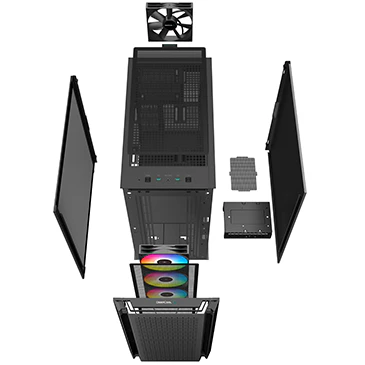

Easy Access Side Panels

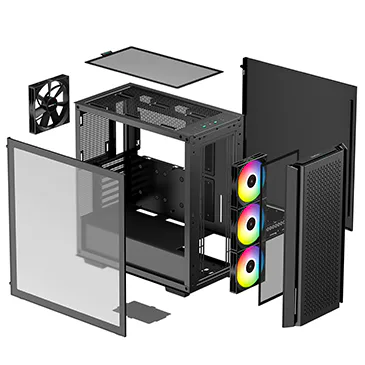

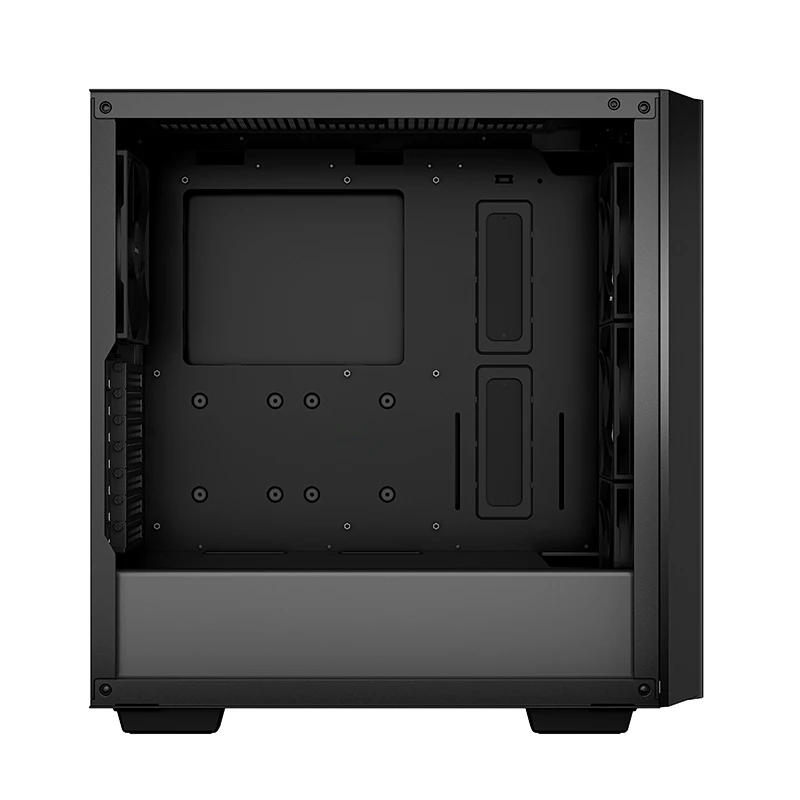

Quickly get to your internal components with simple slide and latch side panels and a solid tempered glass window to highlight your system.
Clean and Tidy
Easy-to-clean magnetic dust filters.

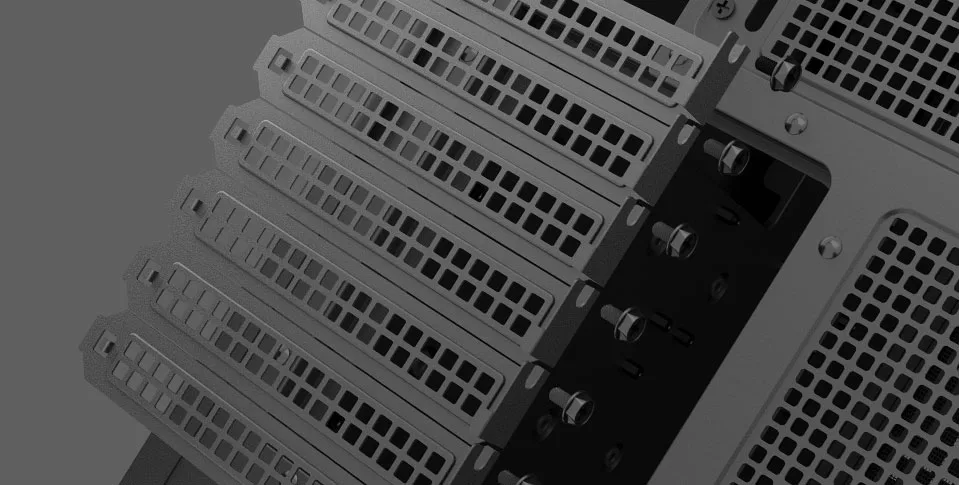

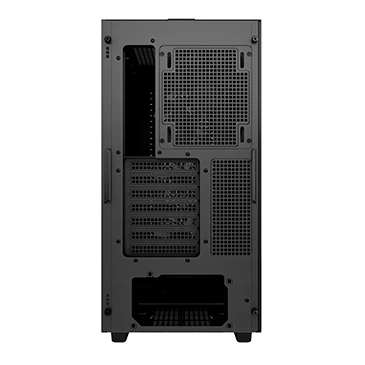

Independent PCIe Slot Baffles
Remove and reuse for simpler setup.

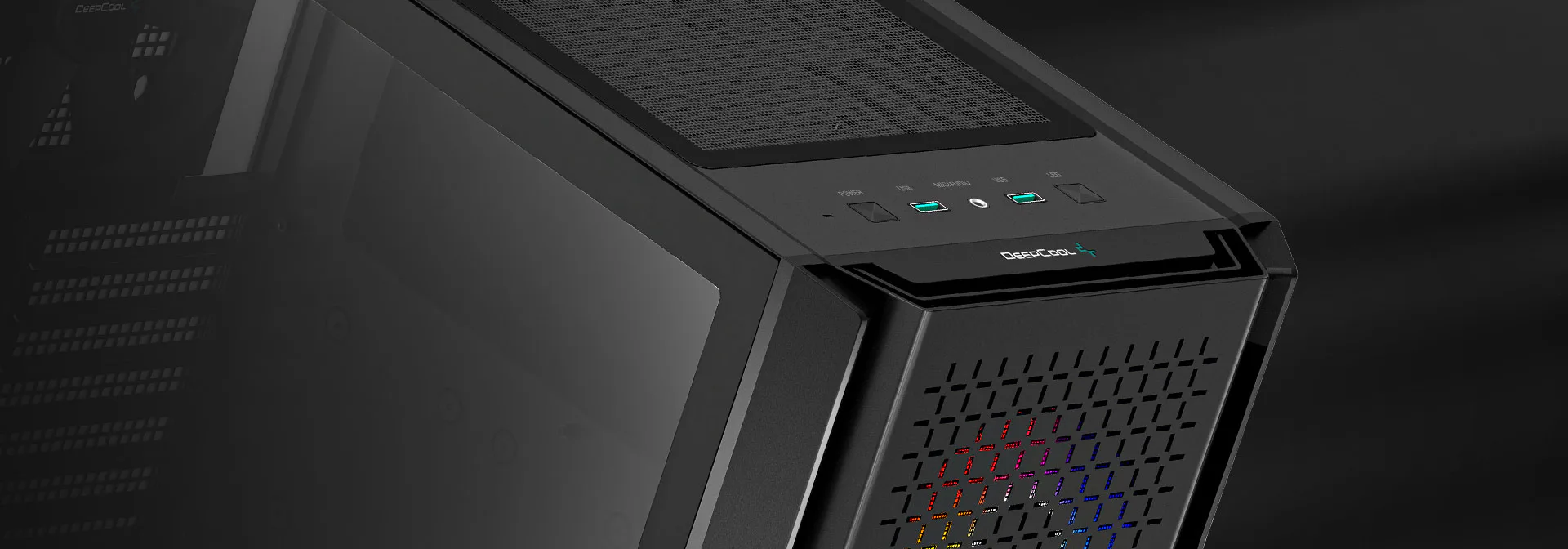

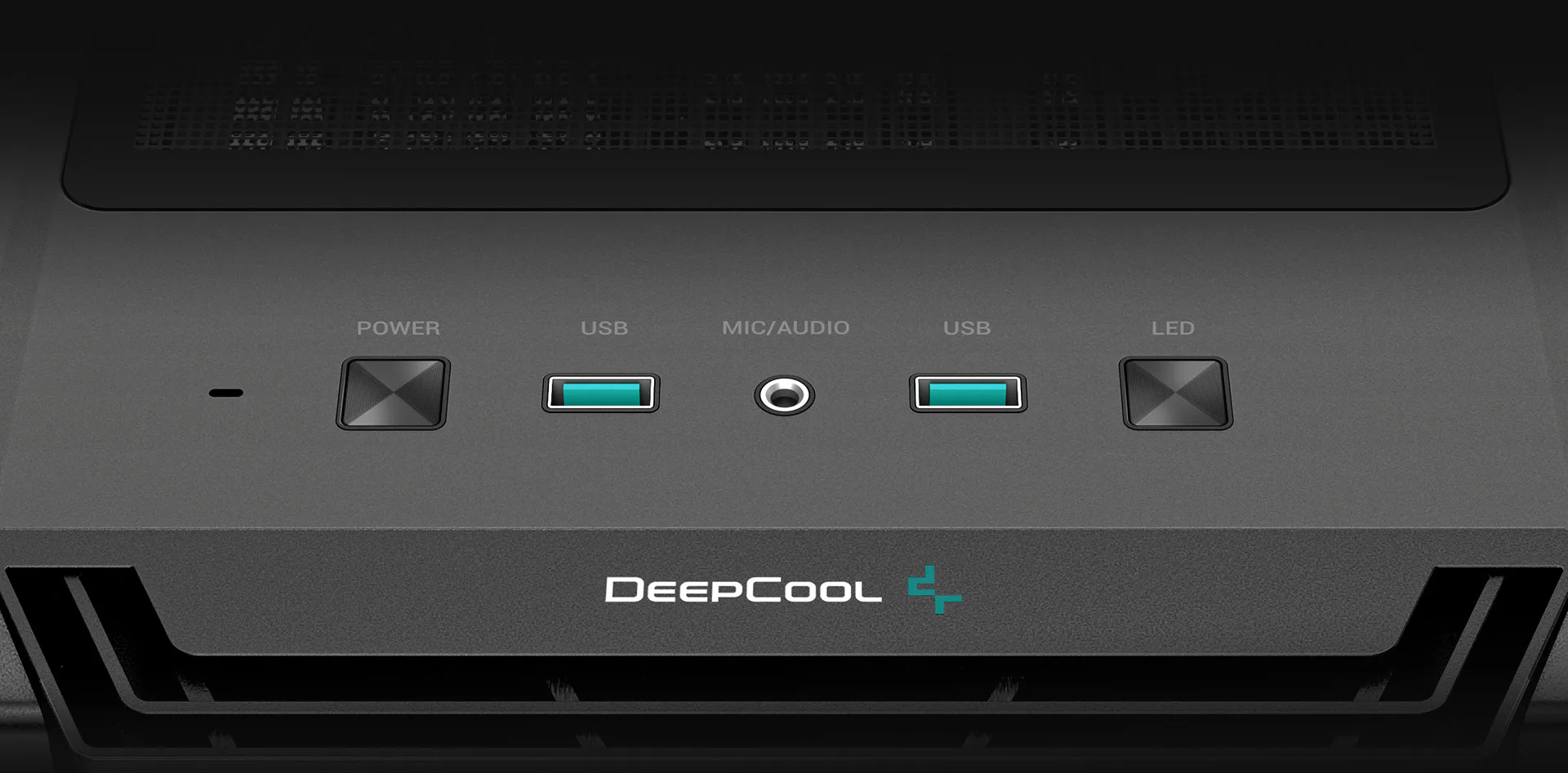

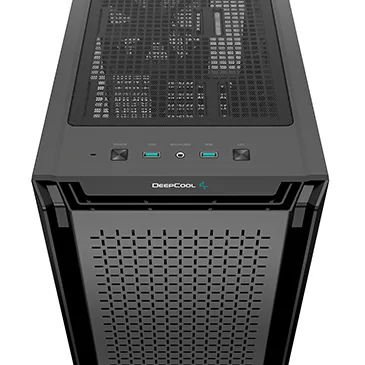

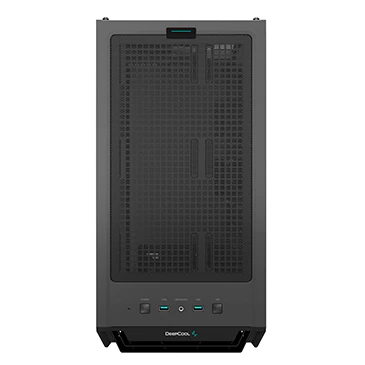

Front I/O Panel
Along with two USB 3.0 ports and a combination audio/mic jack, the reset button is custom configured to control preset lighting effects on the three pre-installed ARGB fans.
Front I/O Panel
Along with two USB 3.0 ports and a combination audio/mic jack, the reset button is custom configured to control preset lighting effects on the three pre-installed ARGB fans.
Technical Spec
Product Dimensions 452×230×470(L×W×H)
Net Weight 7Kg
Materials ABS+SPCC+Tempered Glass
Motherboard Support Mini-ITX / Mico-ATX / ATX / E-ATX
Front I/O Ports USB3.0×2、Audio×1
3.5" Drive Bays 2
2.5" Drive Bays 2
Expansion Slots 7 Slots
Pre-Installed Fans Front: 3×120mm Rear: 1×140mm
Fan Support Front: 3×120 / 2×140mm Top: 2×120 / 2×140mm Rear: 1×120 / 1×140mm
Radiator Support Front: 120/140/240/280/360mm Top: 120/140/240/280mm Rear: 120/140mm
CPU Cooler Height Limit 175mm
GPU Length Limit 380mm
Power Supply Type ATX PS2 (maximum length: 160mm)
EAN Code 6933412714774
PN Code R-CG560-BKAAE4-G-1
Product Dimension
Download
CG560.pdf
