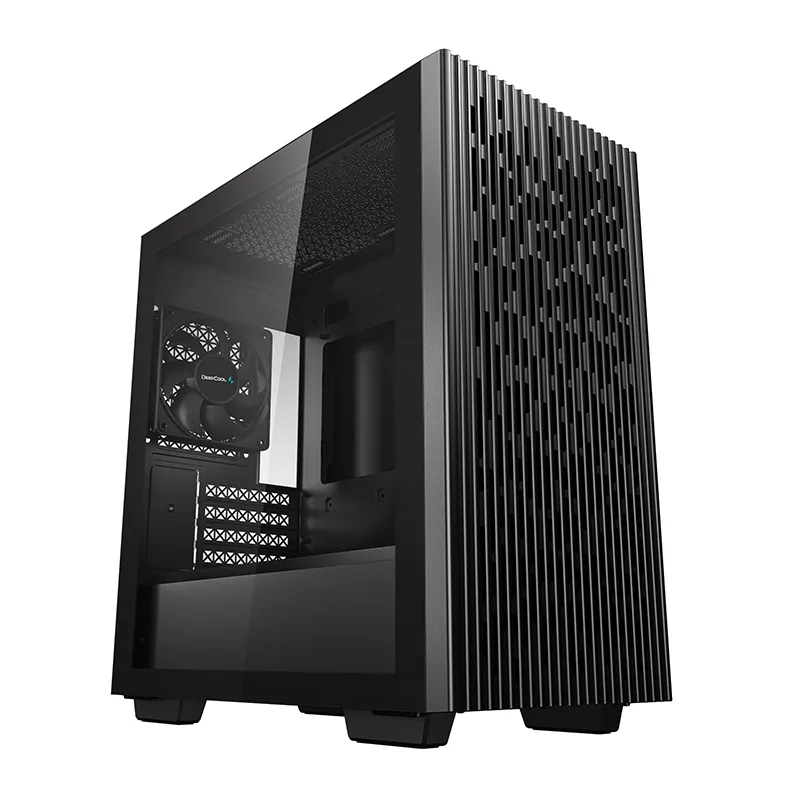

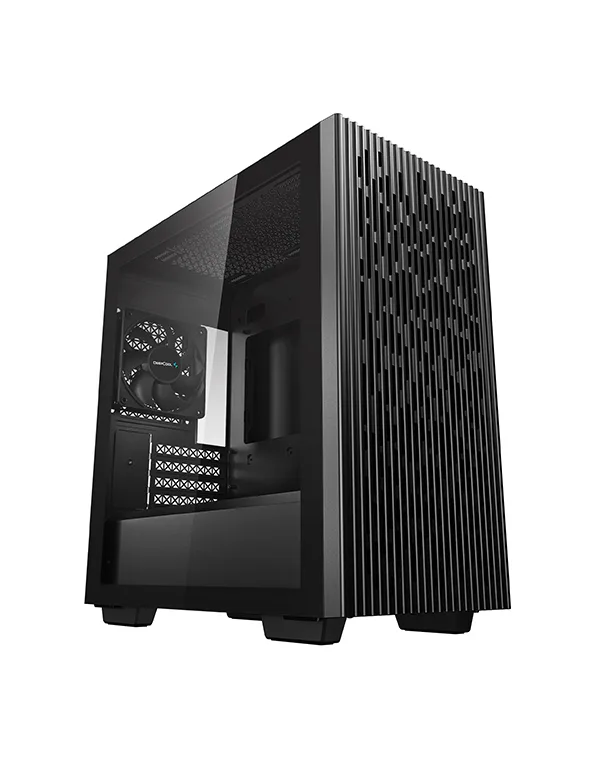

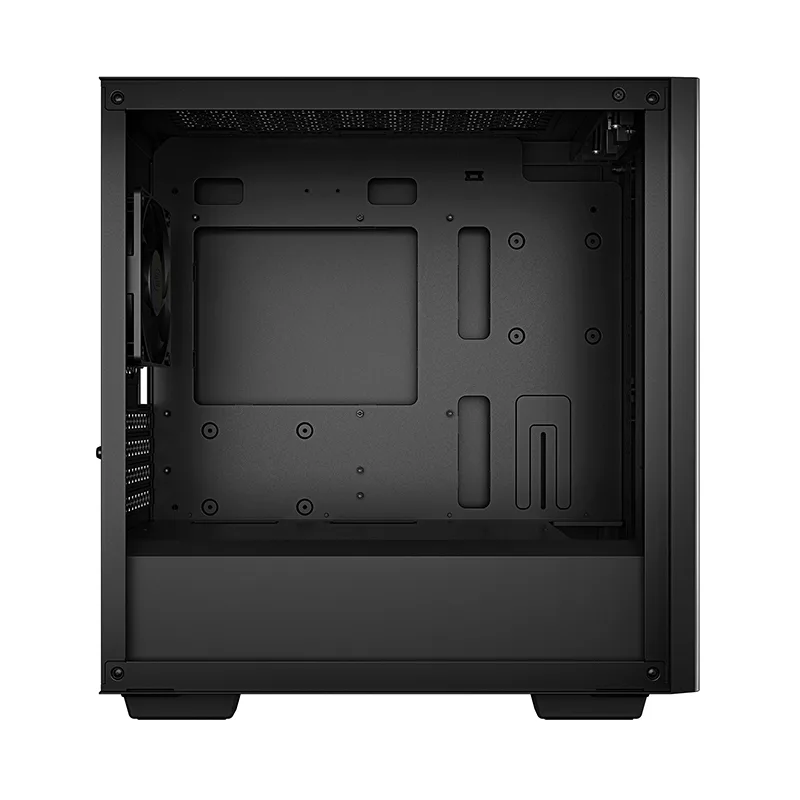

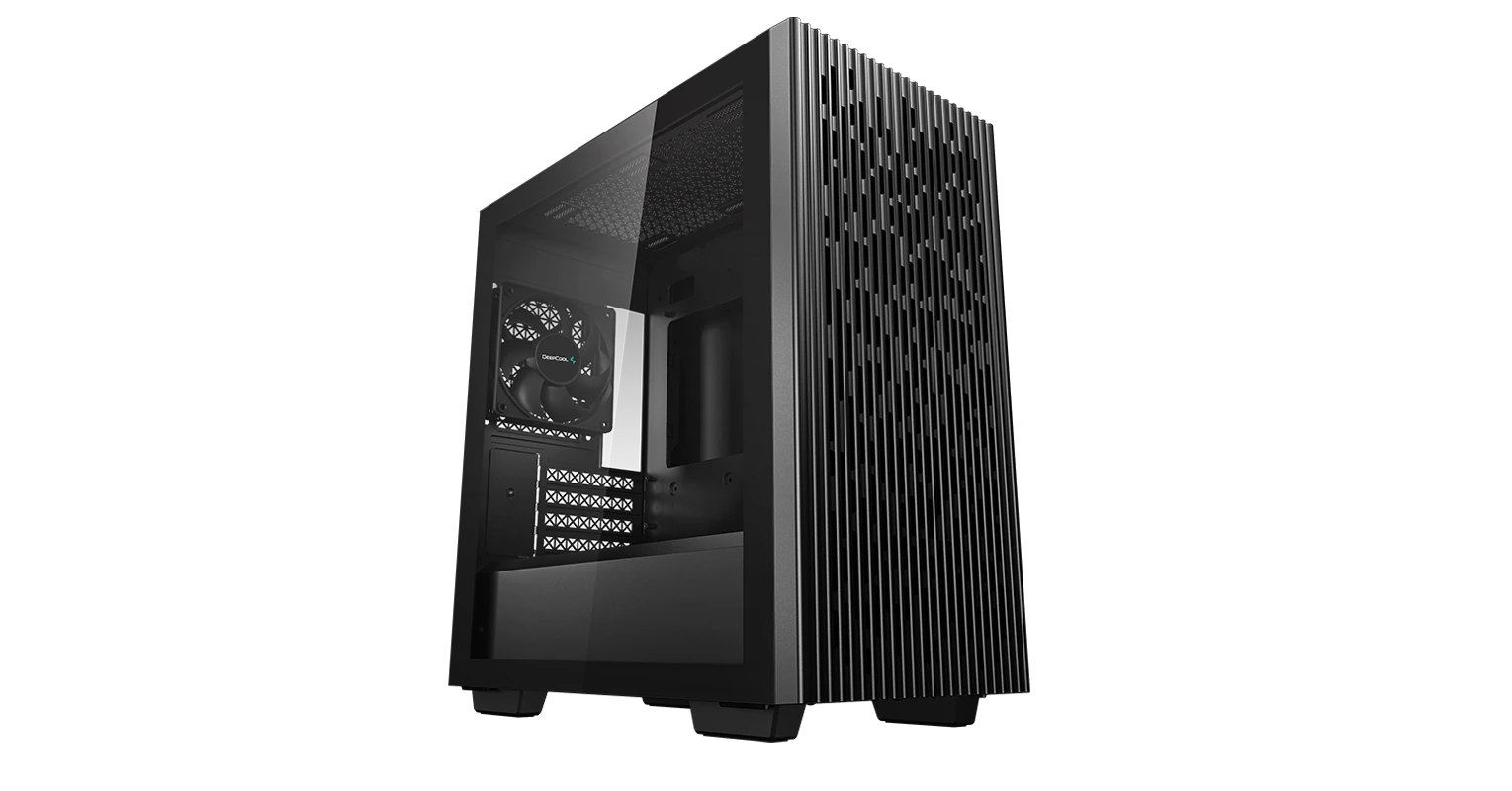

MATREXX 40
The MATREXX 40 Micro-ATX case packs massive value in a tiny chassis with impressive cooling support for max airflow and a solid tempered glass panel.
COLOR
black
MODEL
MATREXX 40
ESSENTIAL MICRO-ATX

Essential Micro-ATX
The MATREXX 40 Micro-ATX case packs massive value in a tiny chassis with impressive cooling support for max airflow and a solid tempered glass panel.
MATREXX 40
Essential Micro-ATX
The MATREXX 40 Micro-ATX case packs massive value in a tiny chassis with impressive cooling support for max airflow and a solid tempered glass panel.
Substantial cooling capability
With support for up to six 120mm or four 140mm cooling fans and also radiators up to 280mm installed on top or in front, the MATREXX 40 provides ample cooling configurations.
  • Fan Support
  • Radiator Support

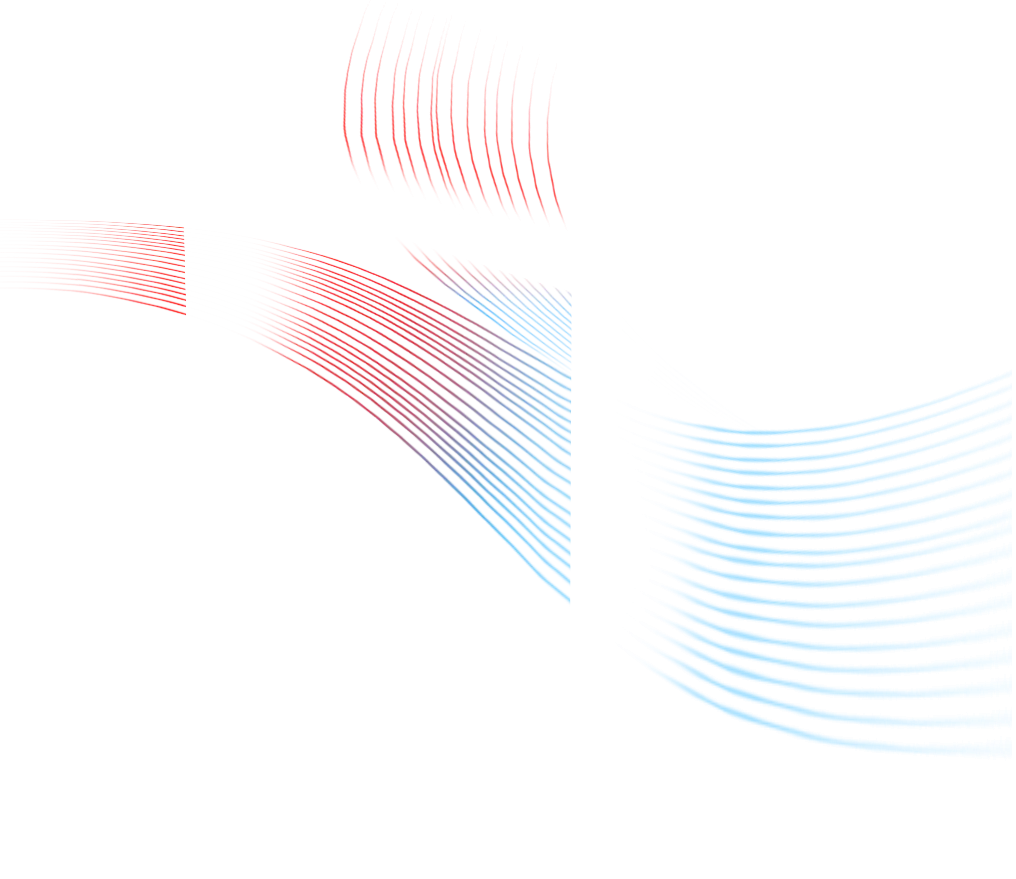

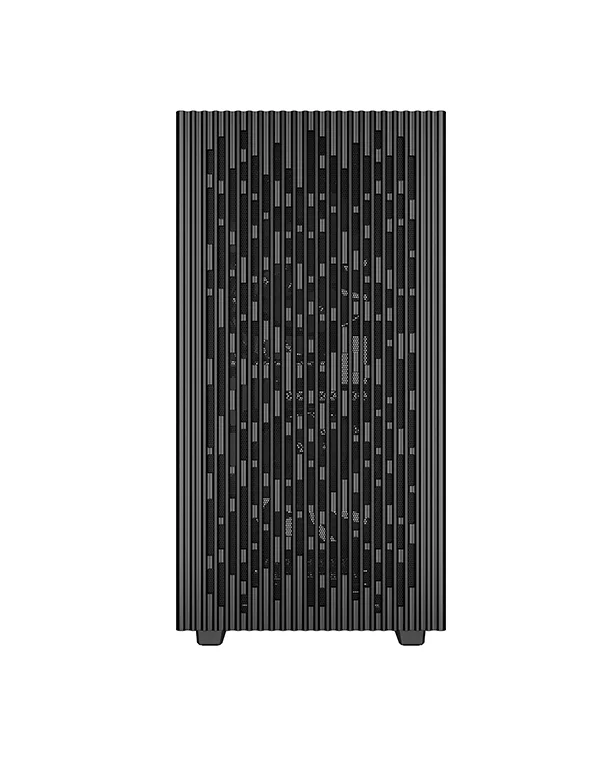

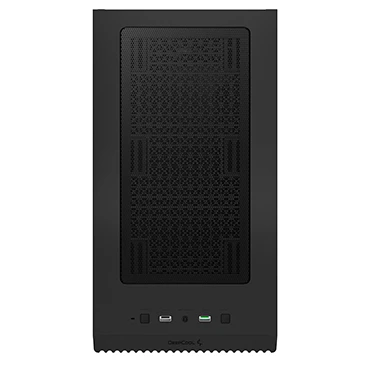

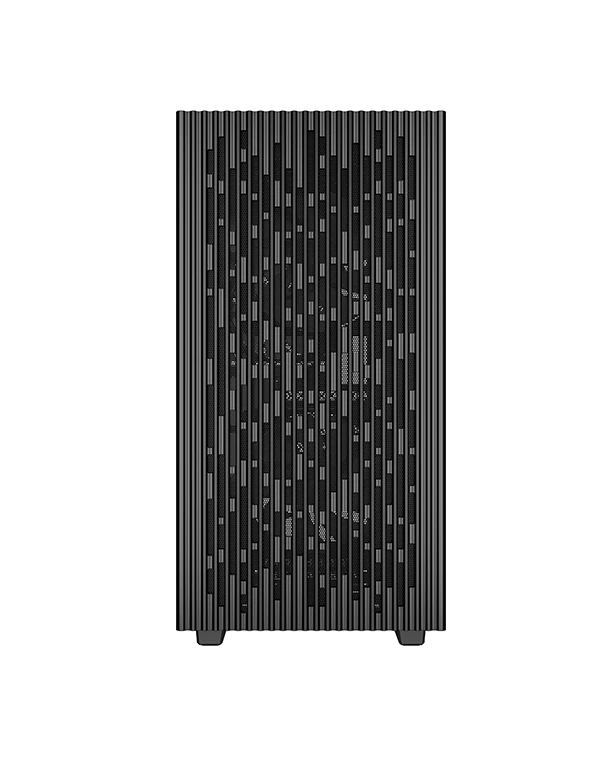

Better airflow

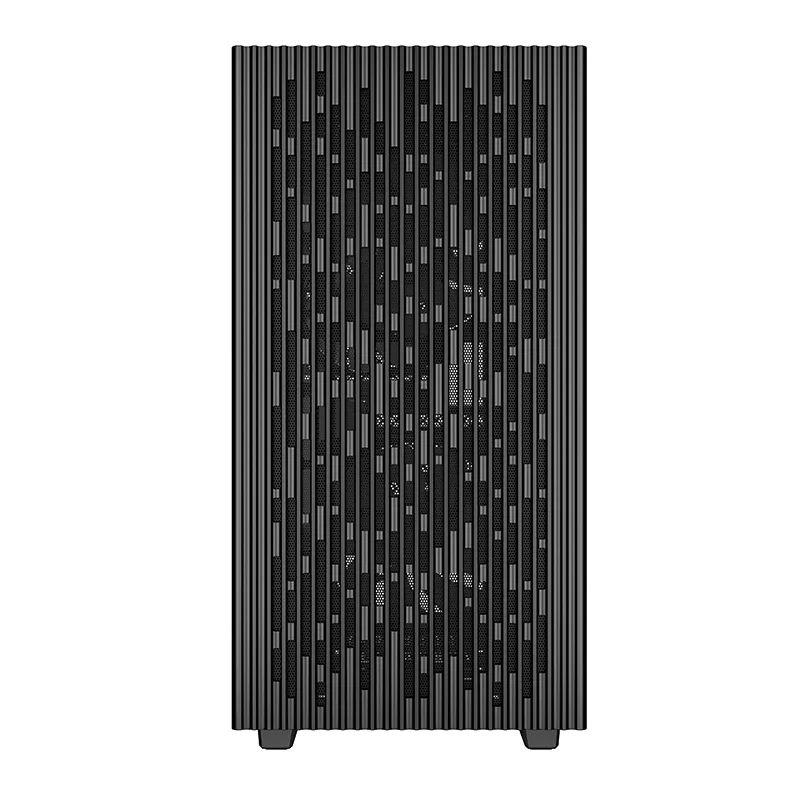

The front and top mesh panels provide optimal ventilation to move large amounts of air throughout the case.
Better airflow
The front and top mesh panels provide optimal ventilation to move large amounts of air throughout the case.

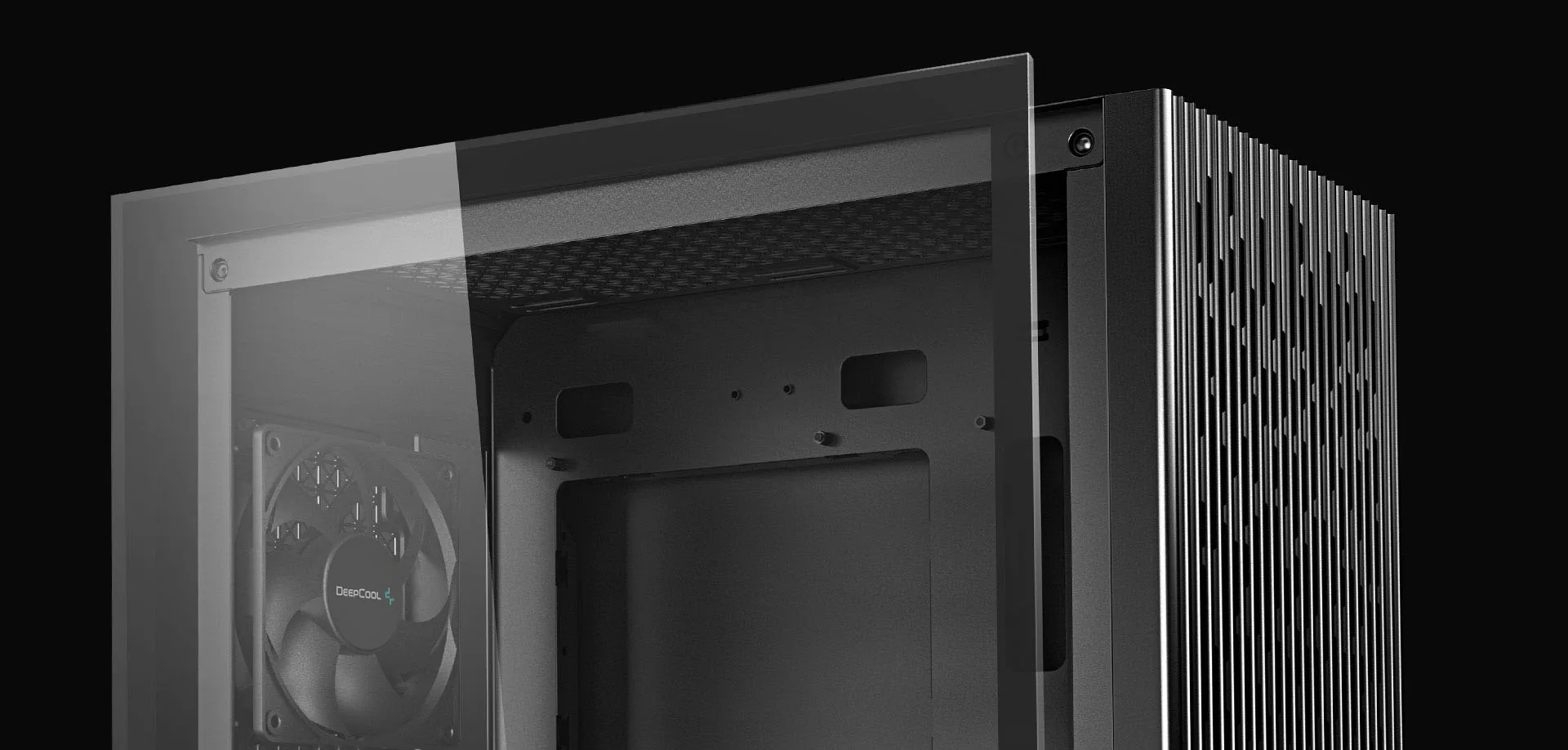

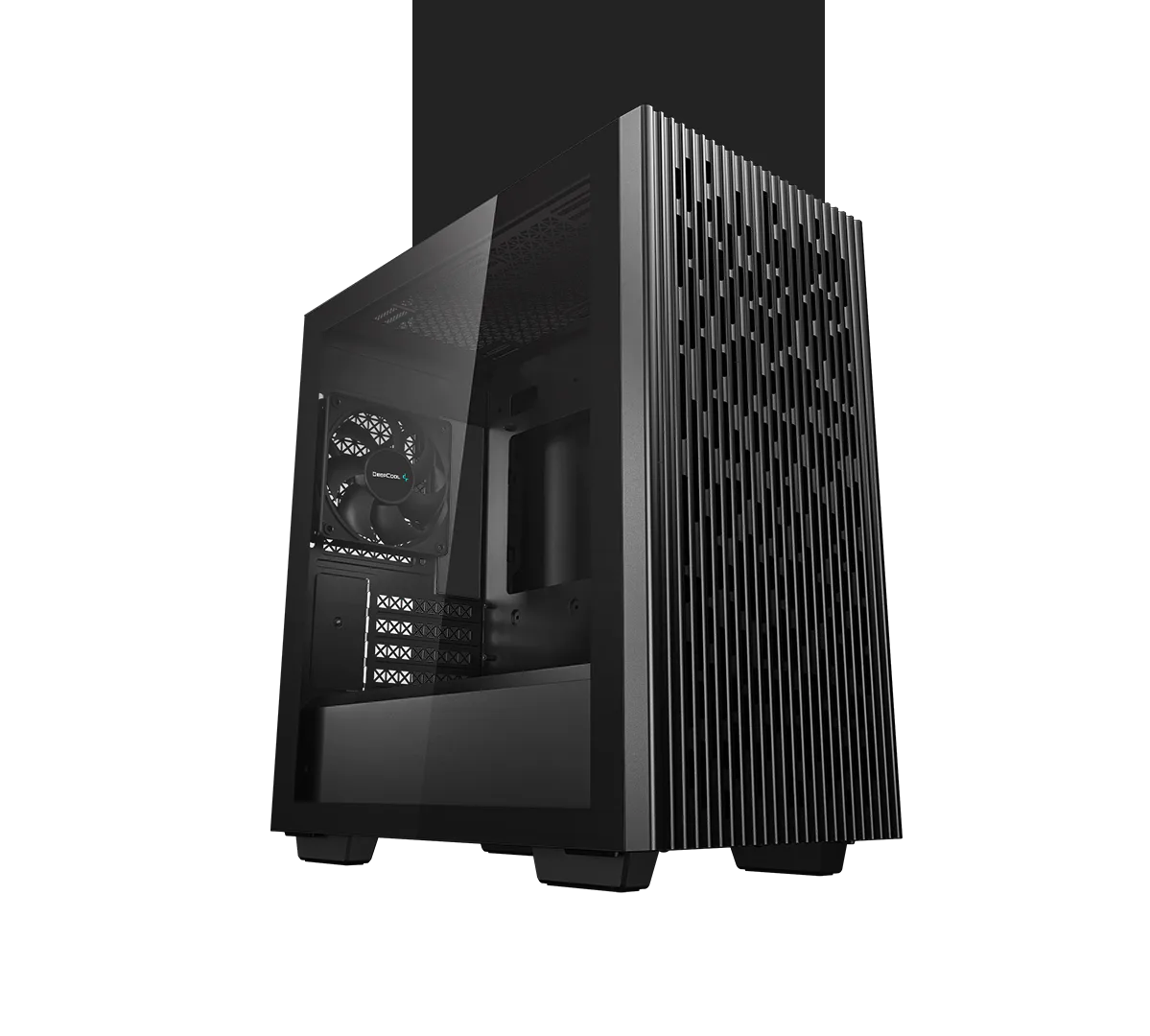

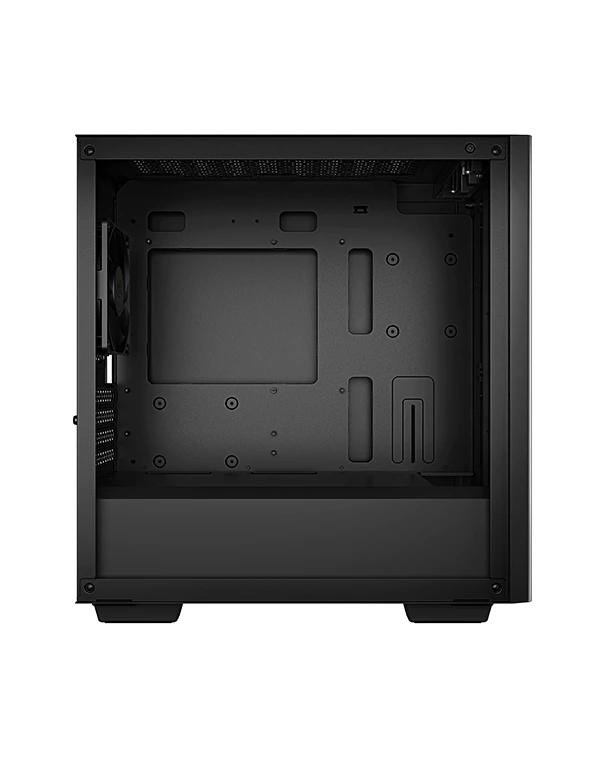

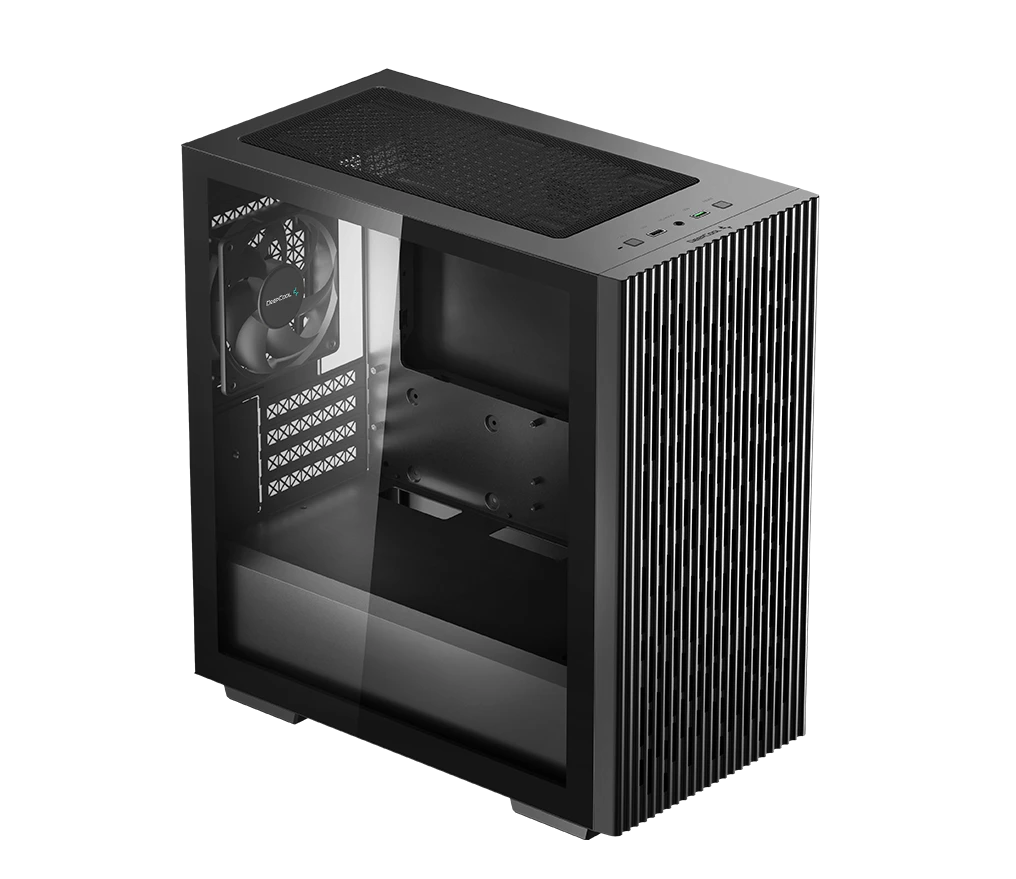

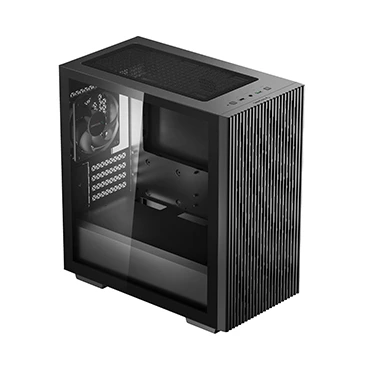

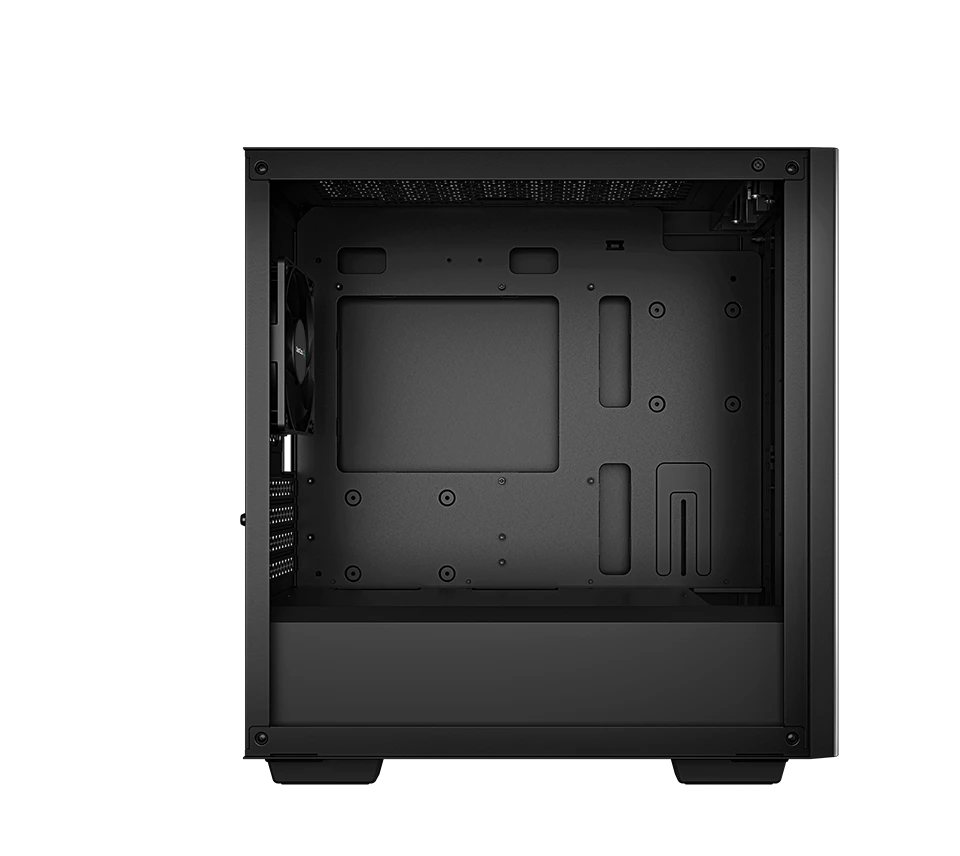

Tempered glass side panel
Upgrade the quality of your build with a clean edge-to-edge tempered glass panel.

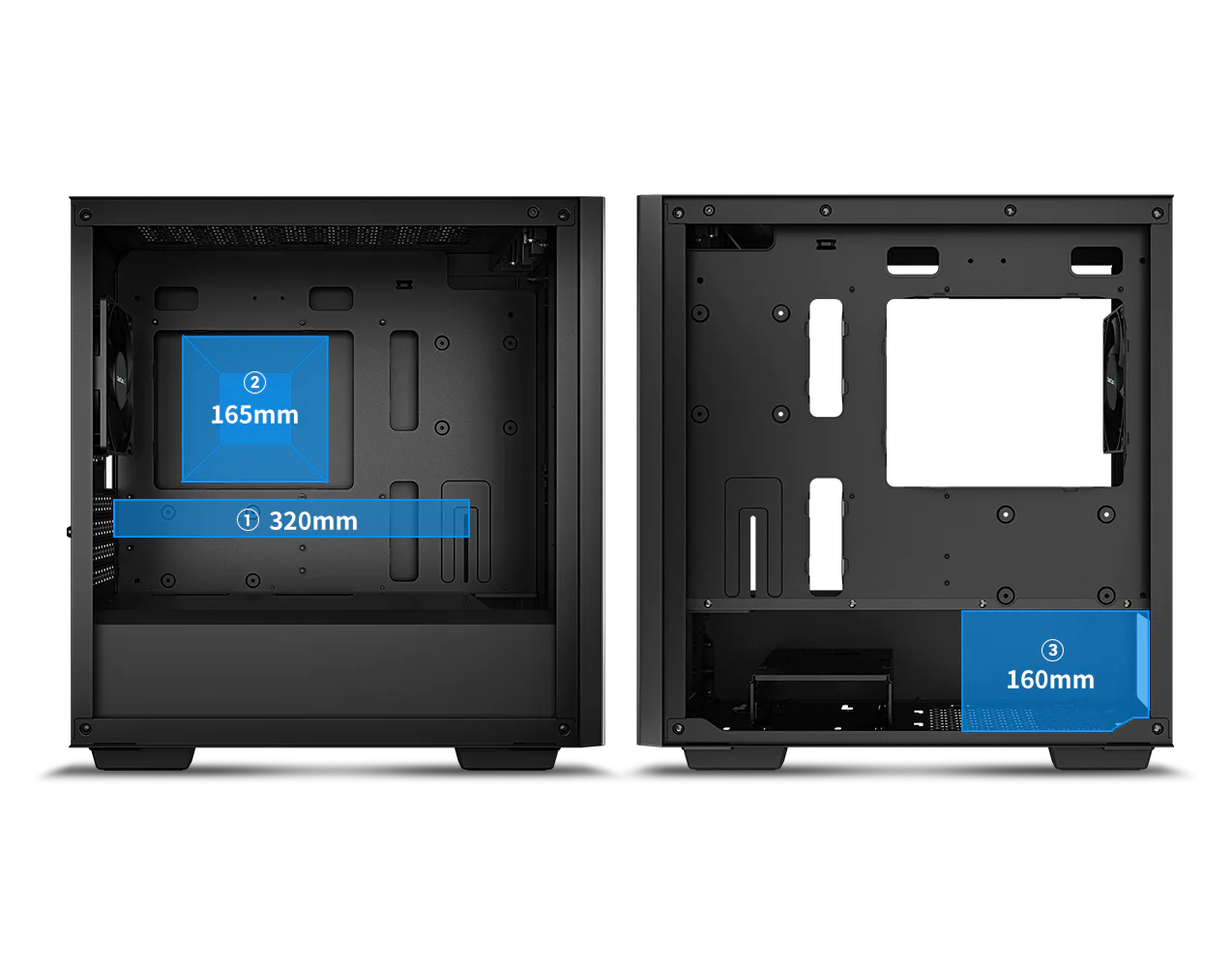

Great clearance
  • 1GPU
  • 2CPU Cooler
  • 3PSU

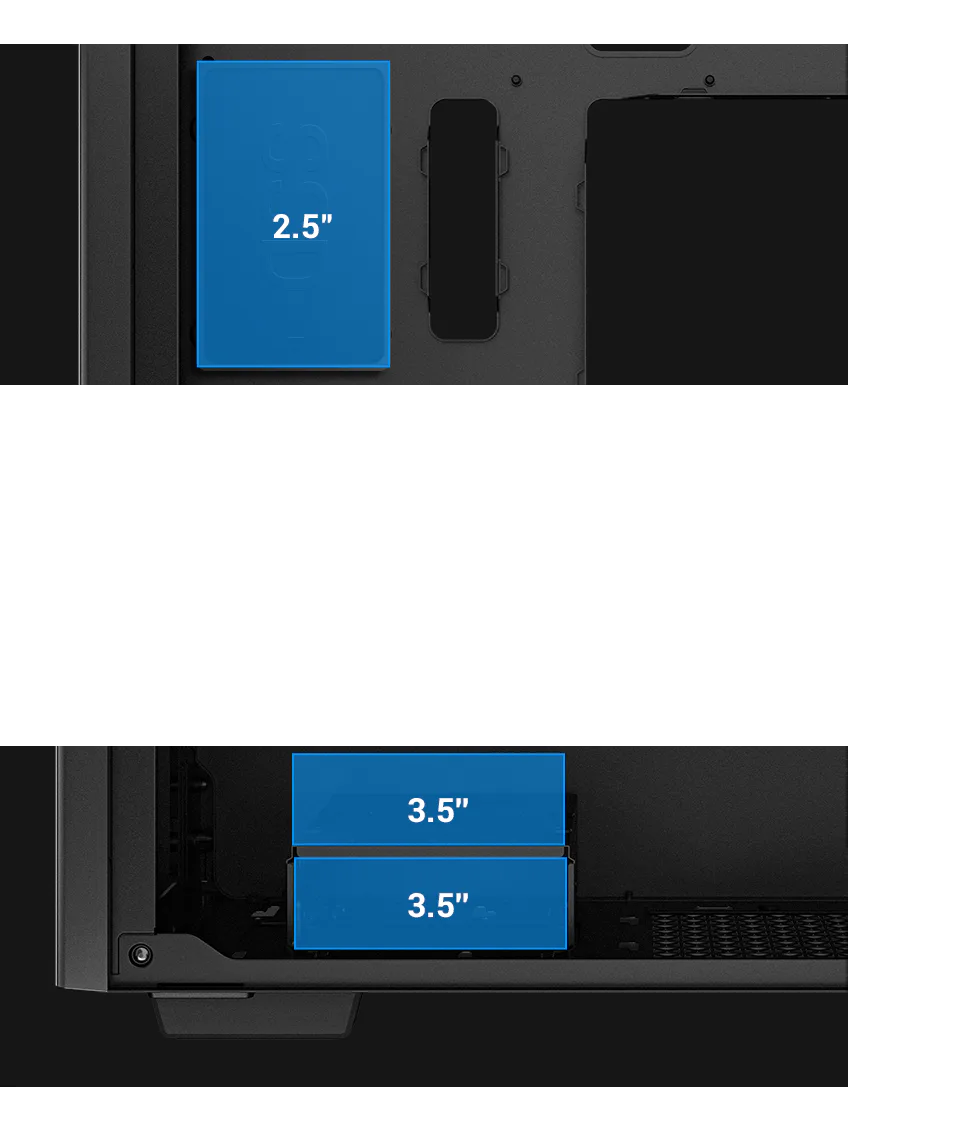

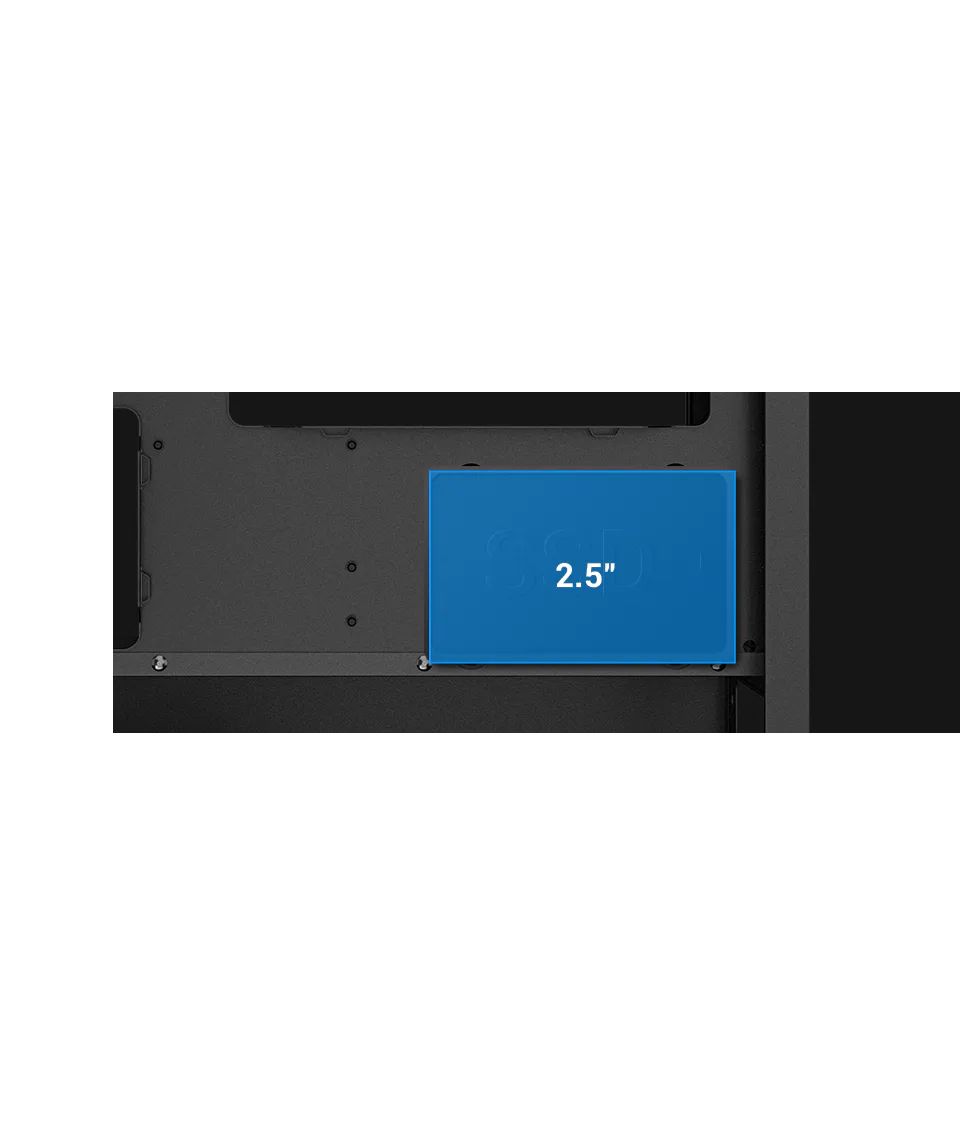

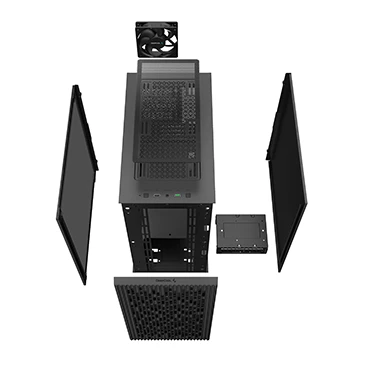

Additional storage options
The MATREXX 40 supports up to two 2.5" SSDs and two 3.5" HDDs through a removable drive cage.
Additional storage options
The MATREXX 40 supports up to two 2.5" SSDs and two 3.5" HDDs through a removable drive cage.
Technical Spec
Motherboard Mini-ITX / Micro-ATX
Case Type MATX Case
Product Dimensions 400mm×215mm×431mm(L×W×H)
Carton Dimensions 470mm×288mm×470mm(L×W×H)
Net Weight 5.2KG
Gross Weight 6.4KG
Colors Black
Materials ABS+SPCC+Tempered Glass
3.5" Drive Bays 2
2.5" Drive Bays 2
External 3.5'' Drive Bays 0
5.25" Drive Bays 0
Power Supply Type ATX PS2 （maximum length: 160mm）

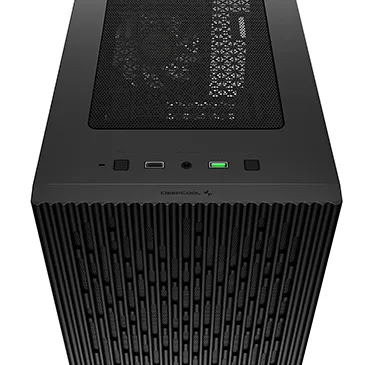

I/O Ports USB3.0×1、USB2.0×1、Audio×1
Expansion Slots 4 Slots
Cooling Fans Compatibility Pre-installed: Rear: 1×120mm DC fan; Optional:Front: 120mm×3/140mm×2， Top:120mm×2/140mm×2
Liquid Cooler Compatibility Front: 120/140/240/280; TOP: 120/140/240/280 Rear: 120；
CPU Cooler Height Limit 165mm
VGA Length Limit 320mm
Cable Management 20mm clearance
EAN Code 6933412714552
PN Code DP-MATX-MATREXX40
Product Dimension
