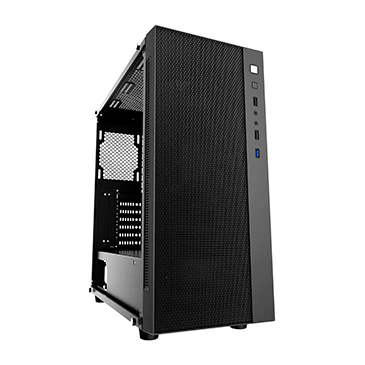

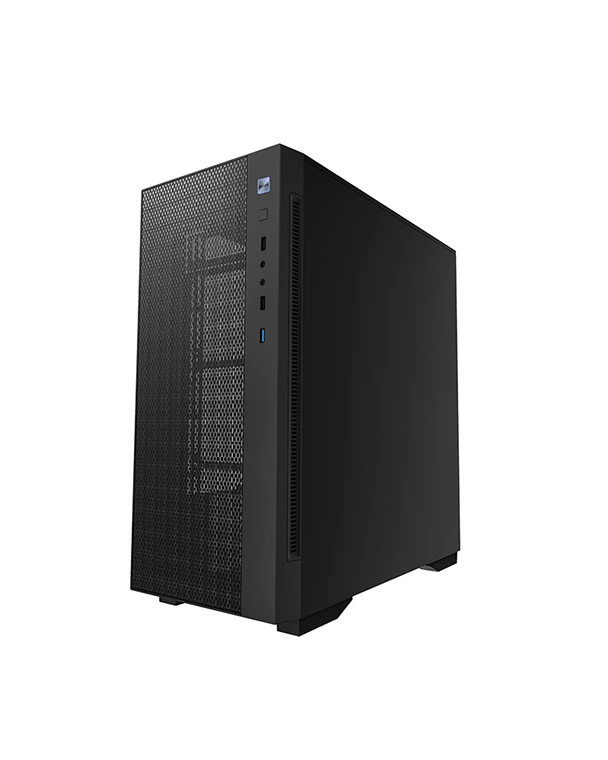

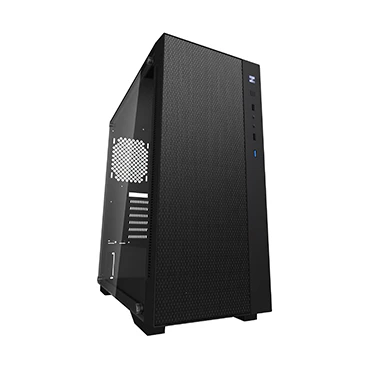

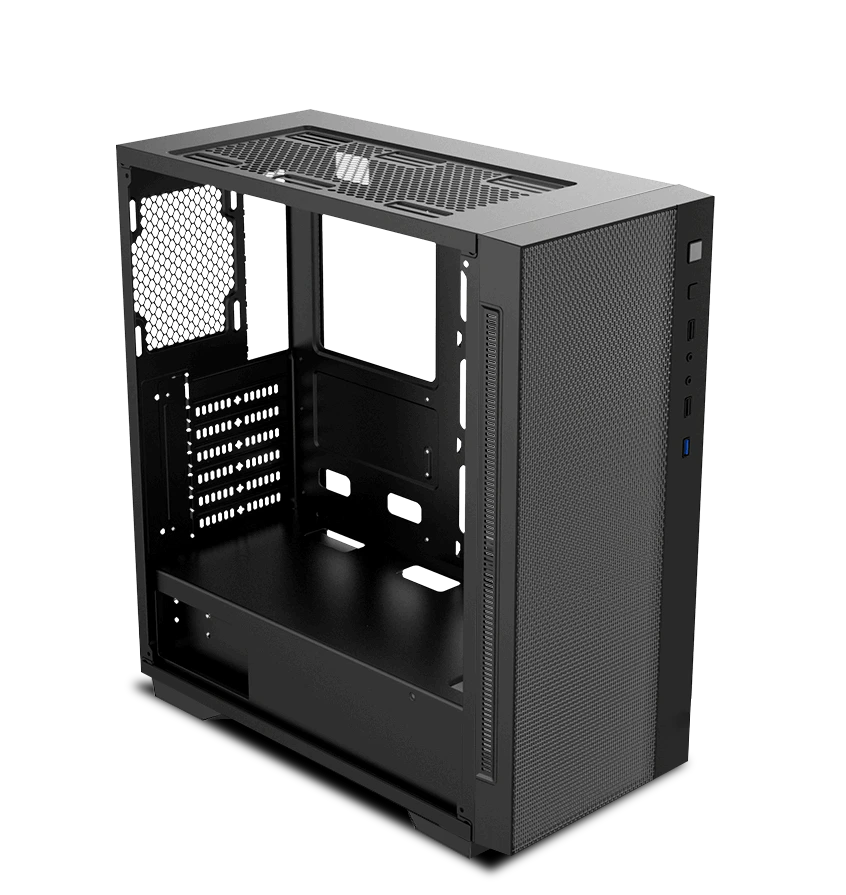

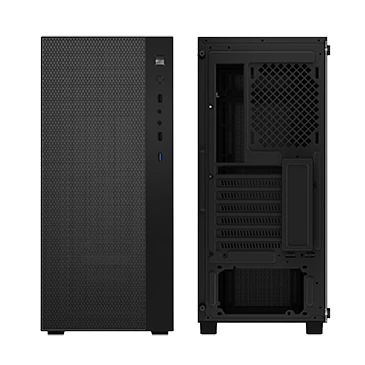

MATREXX 55 MESH
As a mid-tower case, the Matrexx 55 Mesh offers abundant space that supports up to an E-ATX motherboard and has optimized airflow keeps your components cool.
COLOR
black
MODEL
MATREXX 55 MESH
The clear choice

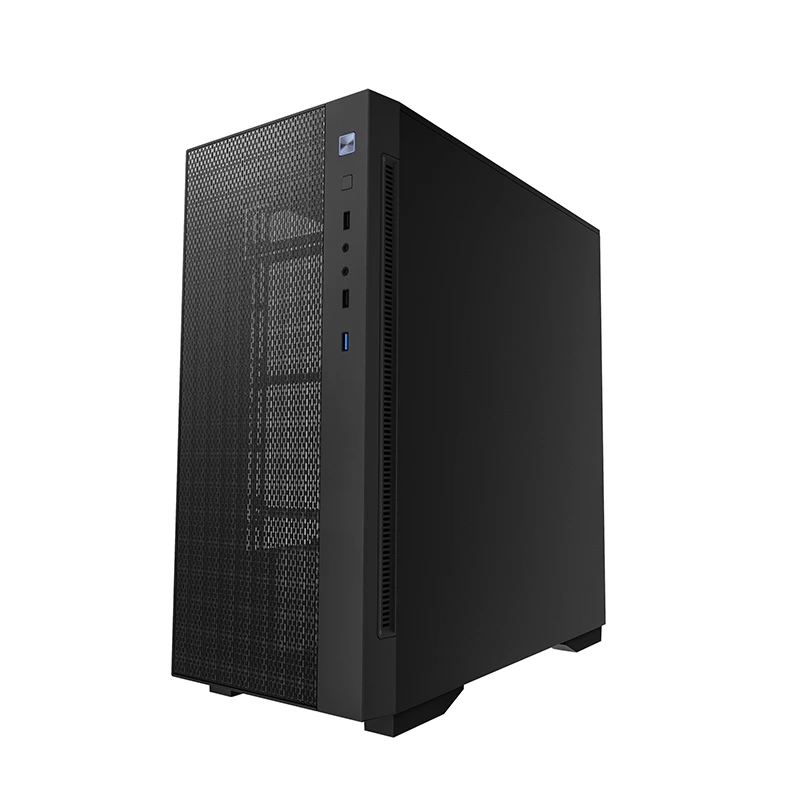

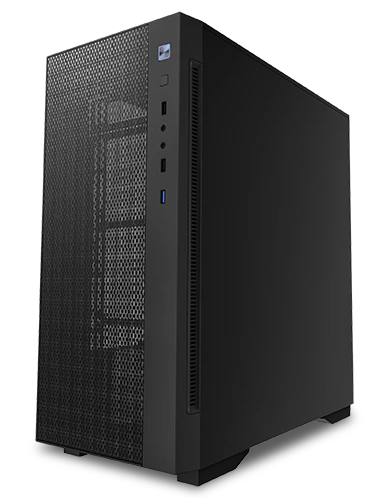

High Airflow Design

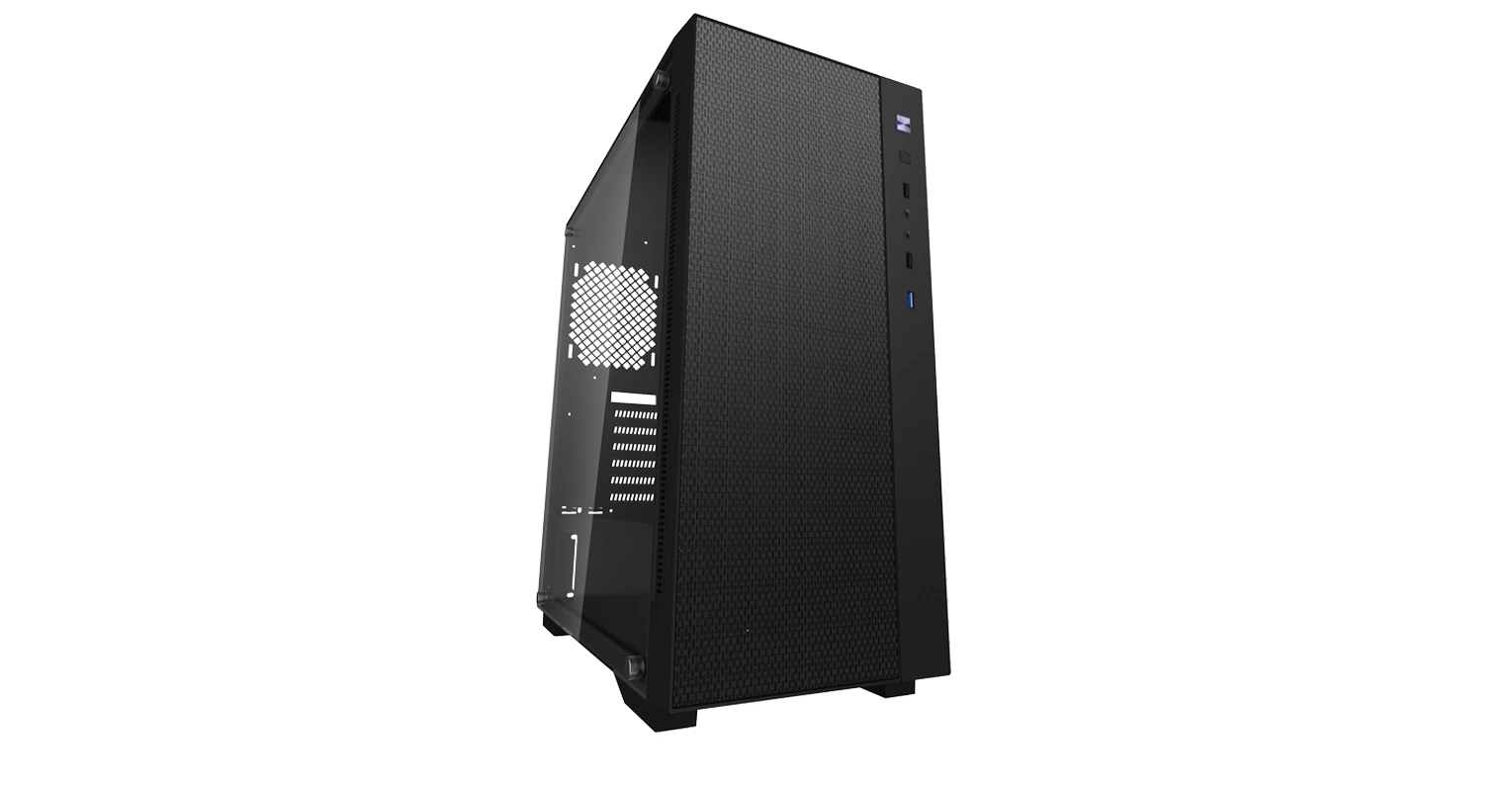

In terms of design, MATREXX 55 Mesh features a meshed front panel and features a dust filter.With a meshed front panel, the intake channel provides abundant airflow for your system and maintains your entire build at a steady, sustainable temperature. Matrexx 55 Mesh solves all your thermal issues

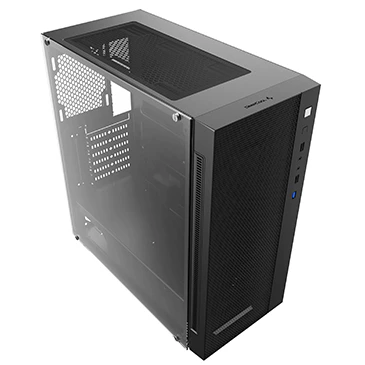

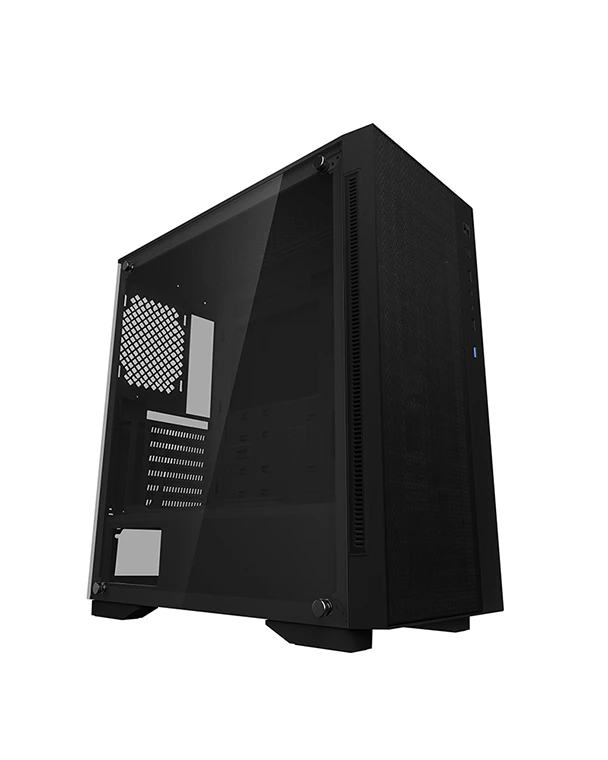

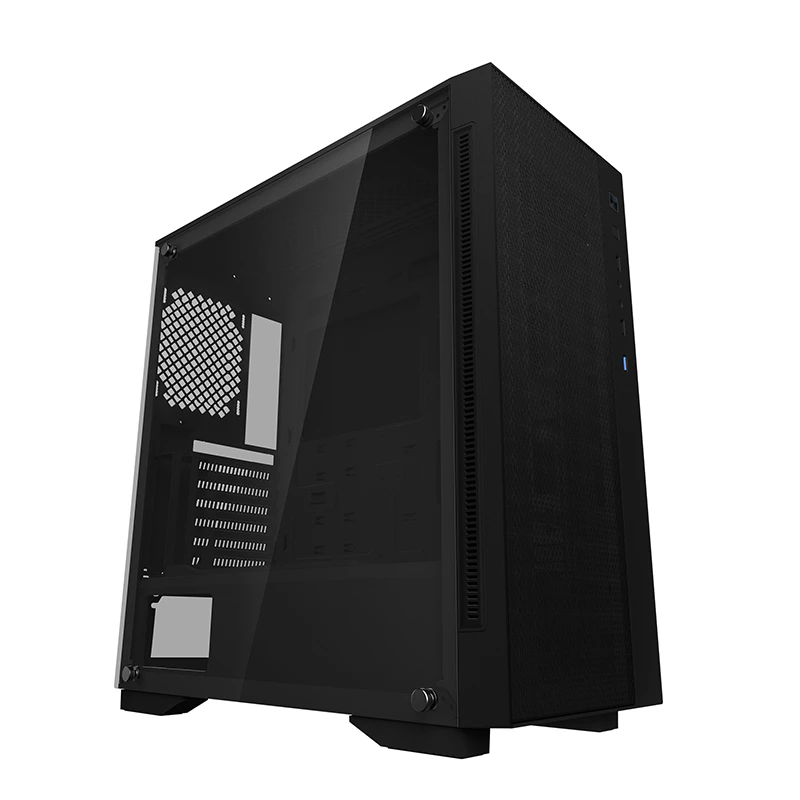

4mm Tempered Glass

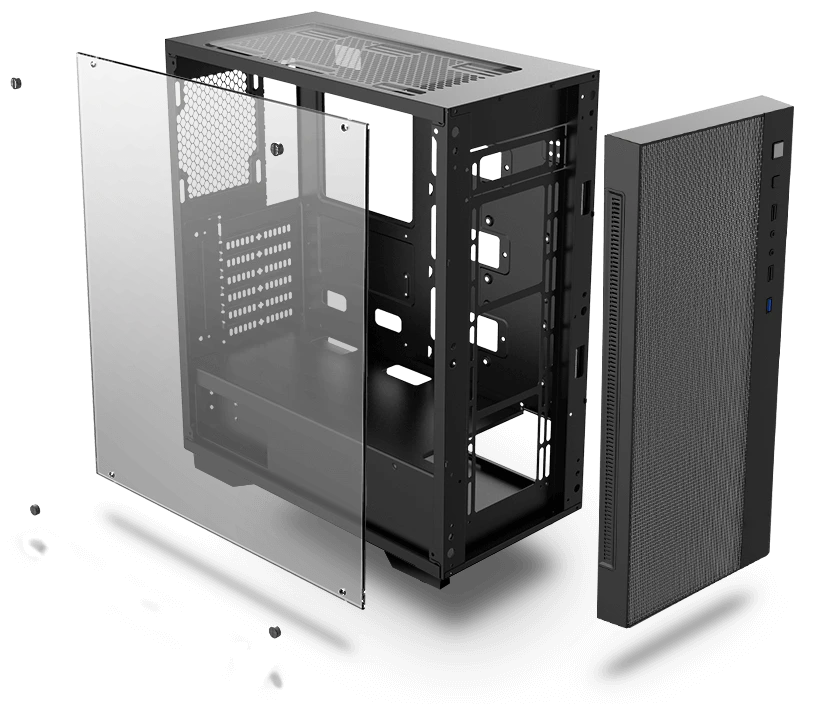

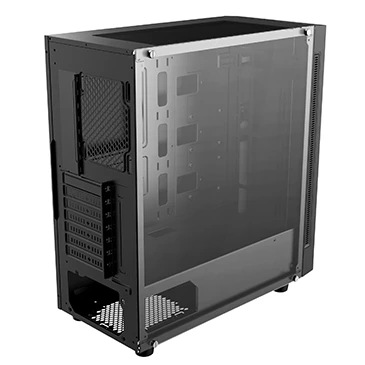

Full sized 4mm thickness, tempered glass side panel gives the case a unique look to perfectly show off your inner structure

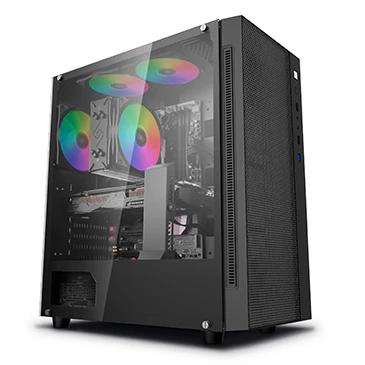

Massive Cooling Compatibility
Optimized airflow is guaranteed with large air intakes both sides of the front panel and an air exhaust in the back and on top, to keep your components cool

Cooling Compatibility:
Supports the installation of liquid cooler :
1
120/140/240/280mm radiator liquid cooling system on the top
2
120mm radiator liquid cooling system at the rear
3
120/140/240/280/360mm radiator liquid cooling system at the front
Supports the installation of cooling fans :
1
2×120/ 2×140mm fan on the top
2
1×120mm fan at the rear
3
3×120mm/3×140mm fan at the front

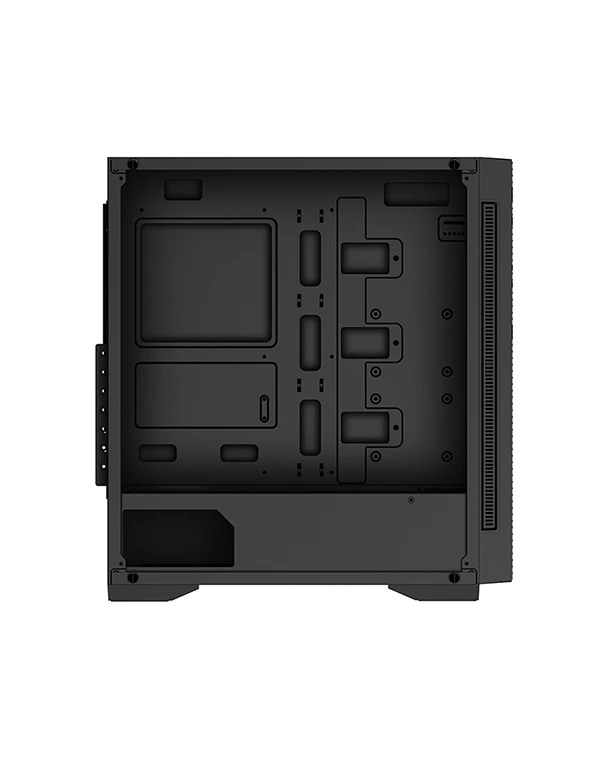

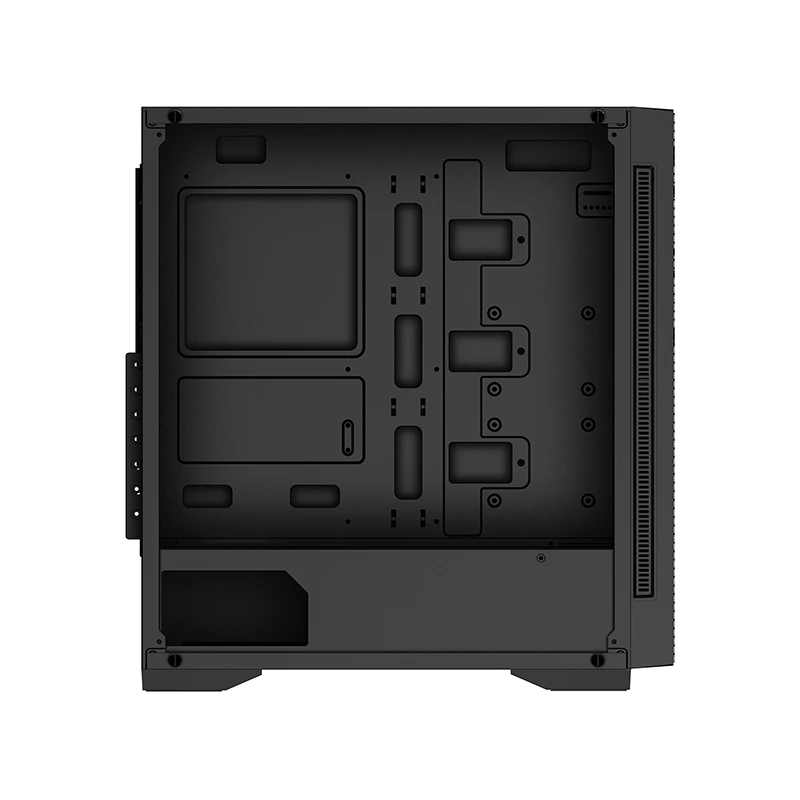

PSU Shroud Added
The Matrexx 55 Mesh version is equipped with a PSU Shroud to hide the cables and to keep the system neat and tidy
PSU Shroud Added
The Matrexx 55 Mesh version is equipped with a PSU Shroud to hide the cables and to keep the system neat and tidy

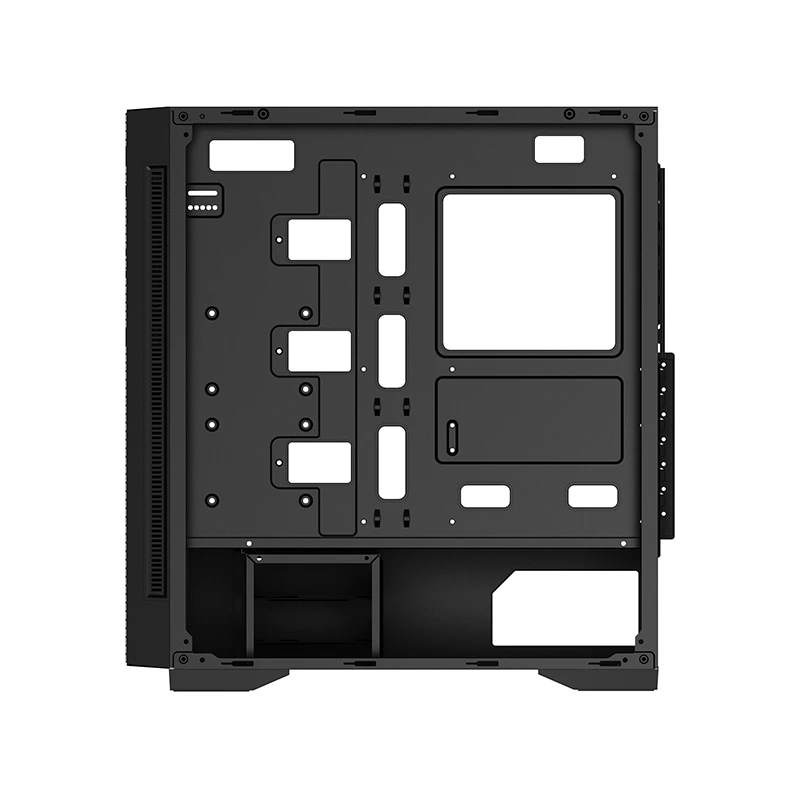

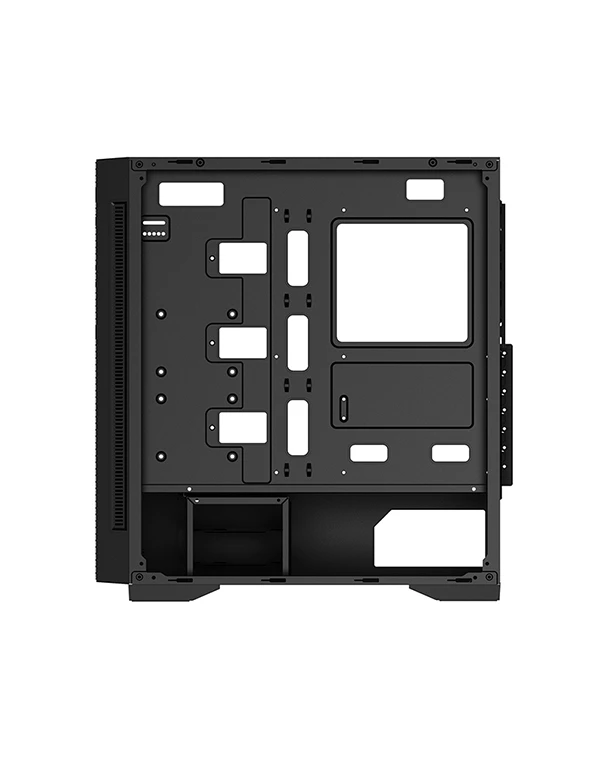

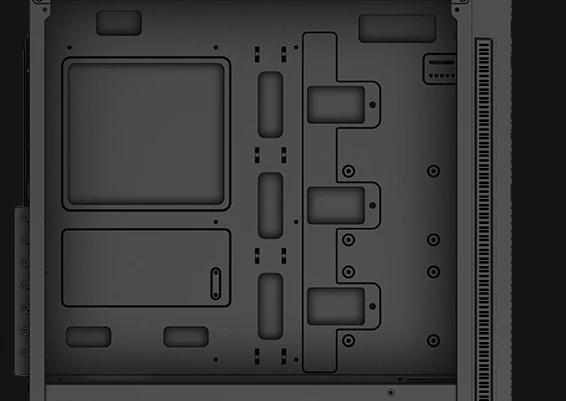

Easy Cable Management
Cable managing is now easy with a 210mm wide tower compartment (23mm clearance)

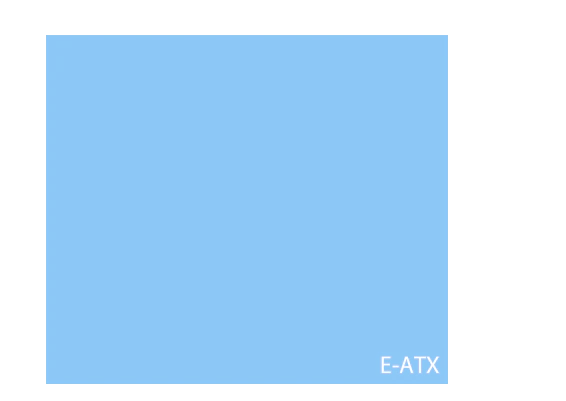

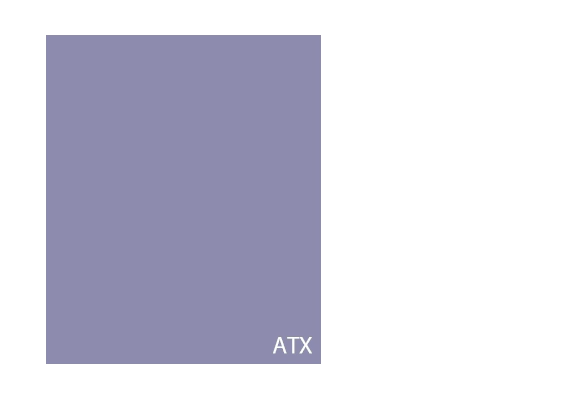

Supports motherboards up to E-ATX
Power Supply: ATX PS2 (Length less than 170mm)
Supports 370mm (Max) graphic cards installation

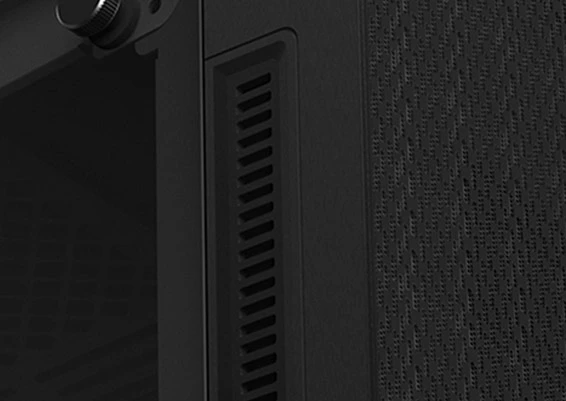

The large area of air-intake at two sides of the front panel ensures sufficient airflow for the systems
The magnet-mounted dust filter provided at the front panel, offers users easy removal and cleaning
1×USB3.0/2×USB2.0/1×Audio (HD)/1×Mic
Technical Spec

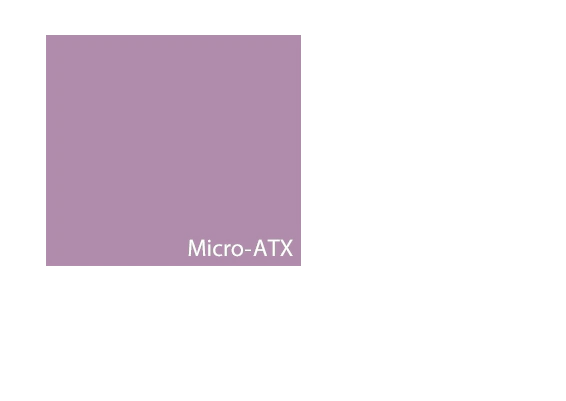

Motherboard Mini-ITX/Micro-ATX/ATX/E-ATX
Case Type Middle Tower
Materials ABS+SPCC+Tempered Glass
Product Dimensions 440X210X480mm
Carton Dimensions 523X277X514mm
Net Weight 6.6Kg
Gross Weight 7.6Kg
5.25' Drive Bays 0
3.5' Drive Bays 2
External 3.5'' Drive Bays 0
2.5' Drive Bays 4
I/O Ports USB2.0×2、USB3.0×1、Audio×1、Mic×1
Expansion Slots 7 Slots
Power Supply Type ATX PS2 （Length less than 170mm）
Cable Management 23mm clearance
CPU Cooler Height Limit 168 mm
VGA Length Limit 370mm
Cooling Fans Support Optional: Front:140mm×3/120mm×3; Top:140mm×2/120mm×2; Rear:1×120mm; Pre-installed:noner
Liquid Cooler Support Front:120/140/240/280/360mm;Top:120/140/240/280mm; Rear:120mm
EAN 6933412714057
P/N DP-ATX-MATREXX55-MESH
Product Dimension
Download
MATREXX 55 MESH.pdf
