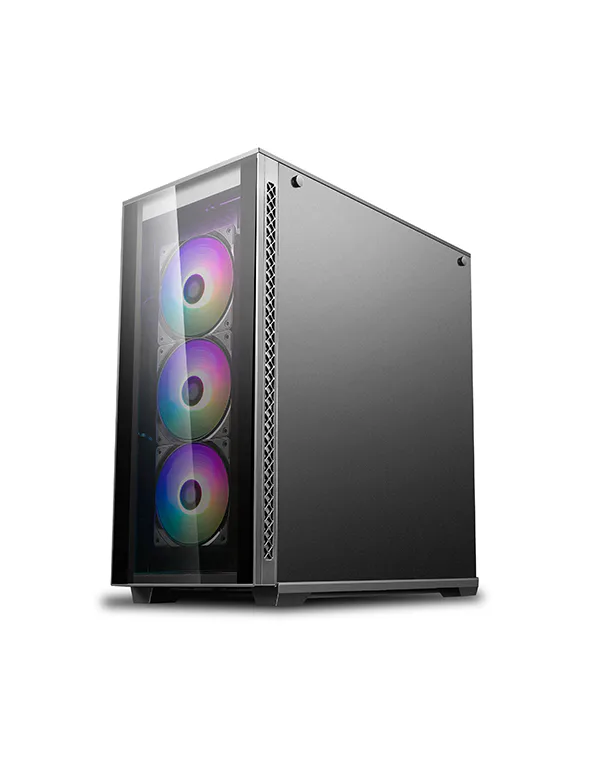

MATREXX 70 ADD-RGB 3F

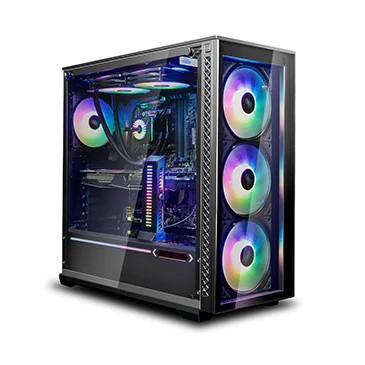

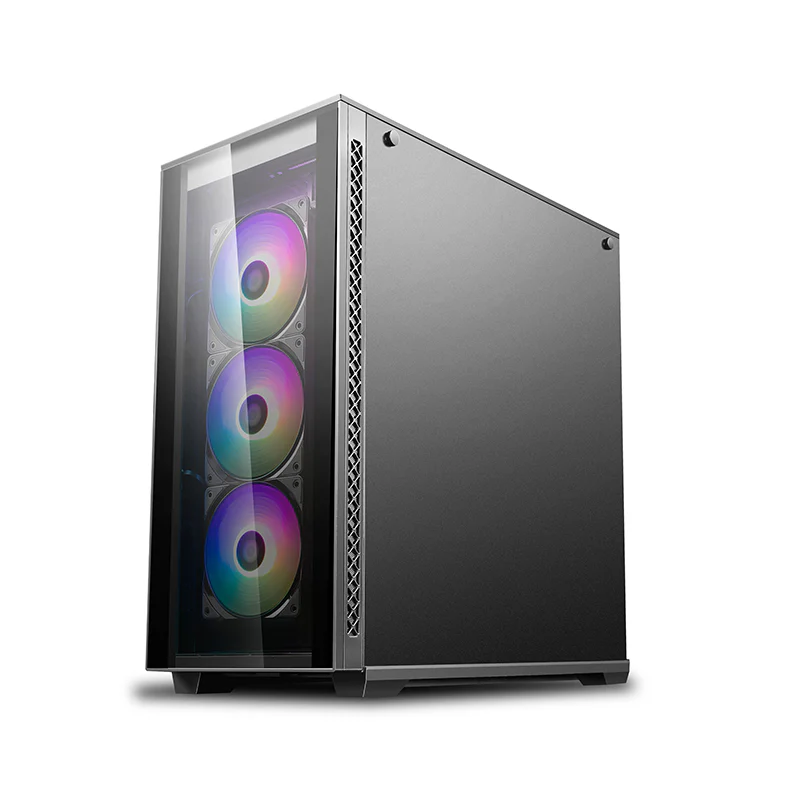

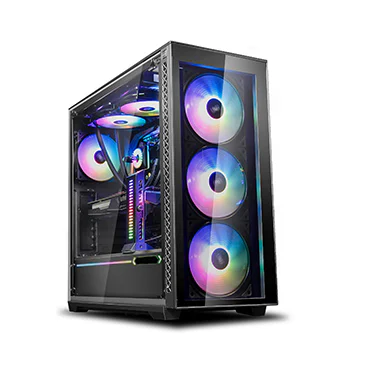

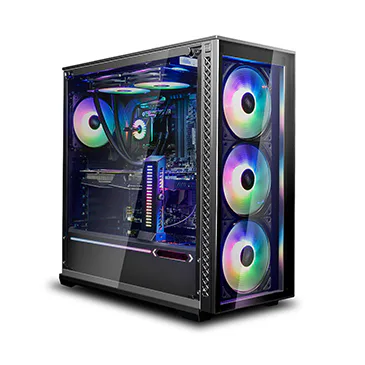

A new-concept chassis designed for flexibility when PC building, the Matrexx 70 provides a remarkable experience with abundant space supporting up to E-ATX motherboards featuring 3 included A-RGB fans and an A-RGB LED strip.
COLOR
black
MODEL
MATREXX 70 ADD-RGB 3F
Novel Adaptibility

Description

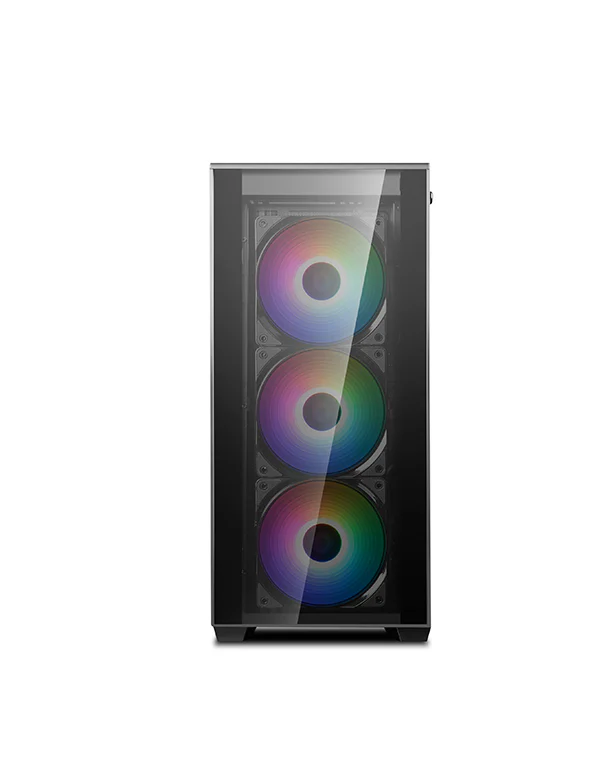

MATREXX 70 ADD-RGB 3F is a new-concept chassis specially designed for the enjoyment of DIY. By adopting numerous novel structural designs, its architecture yields convenience and flexibility in PC building. Meanwhile 3 * RGB fans and 1* RGB LED strip are included to provide top-notch lighting effects. MATREXX 70 ADD-RGB 3F is ready to give you a boost of the gaming ambience.

For DeepCool devices

For other brand devices

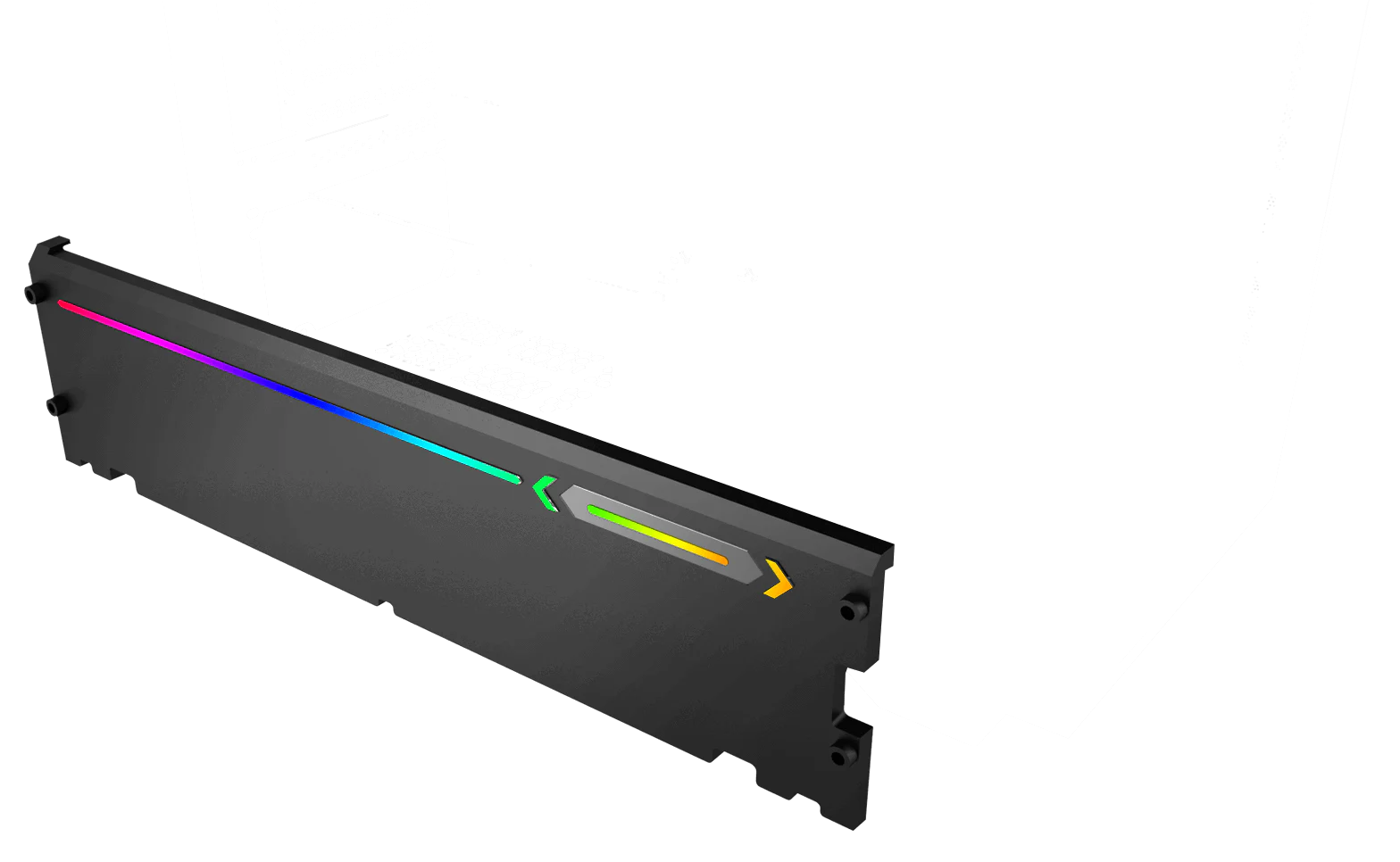

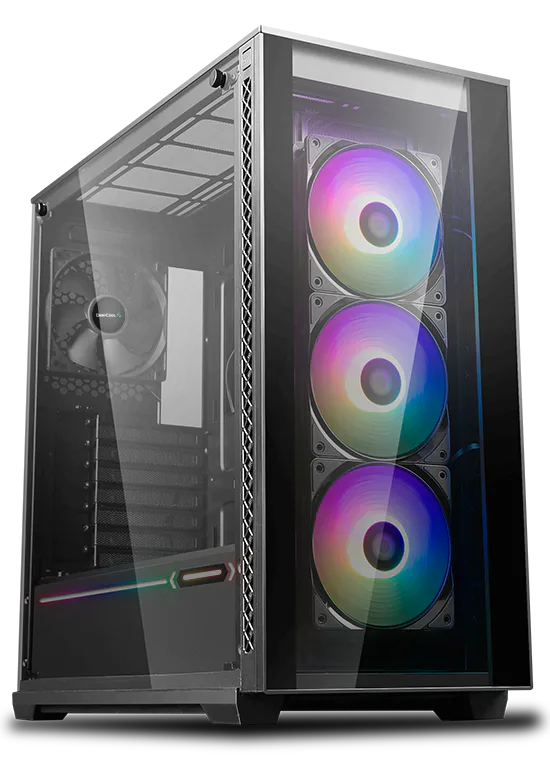

A-RGB lighting effects

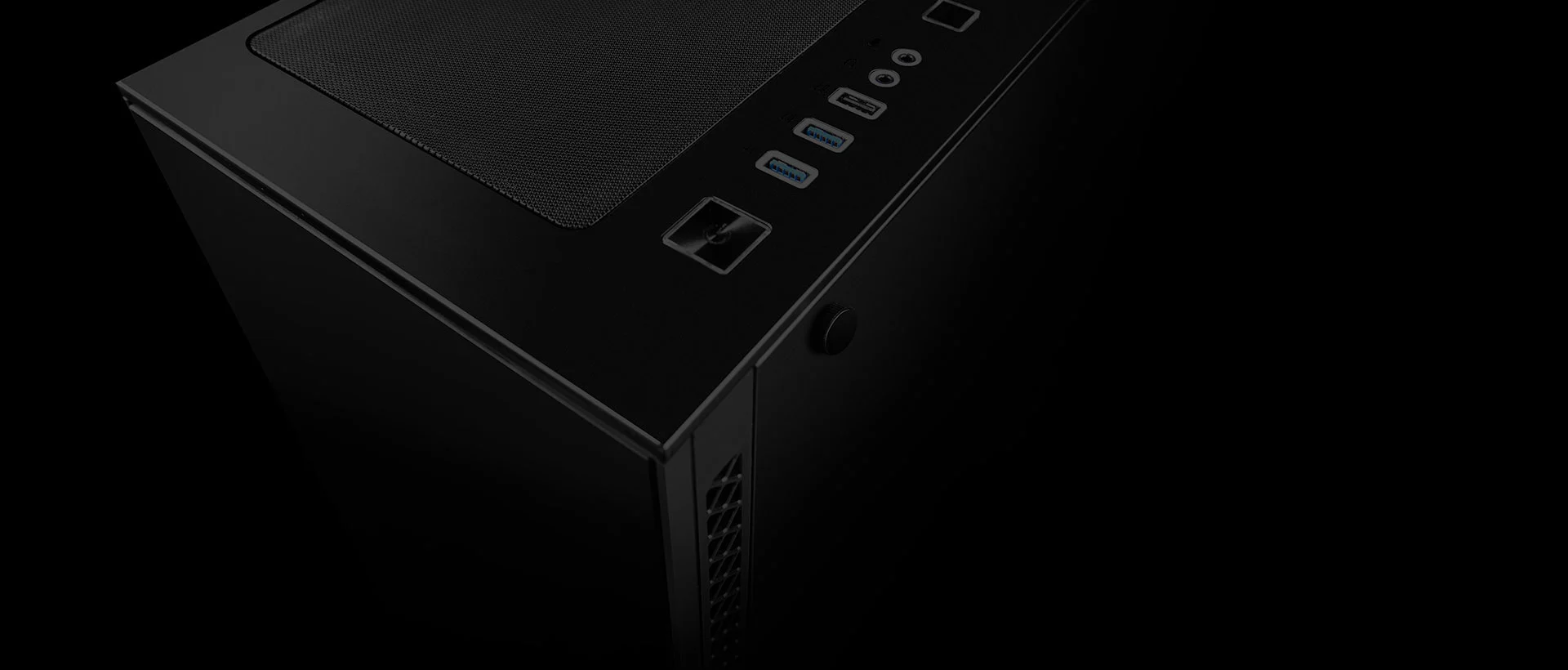

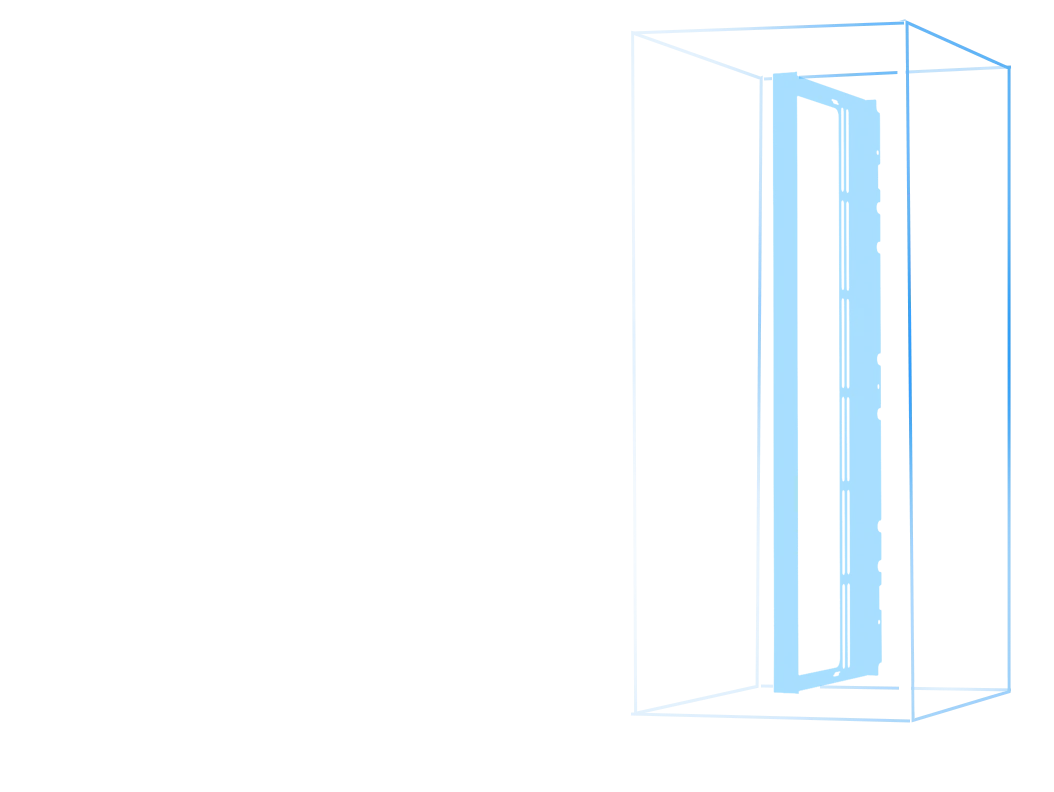

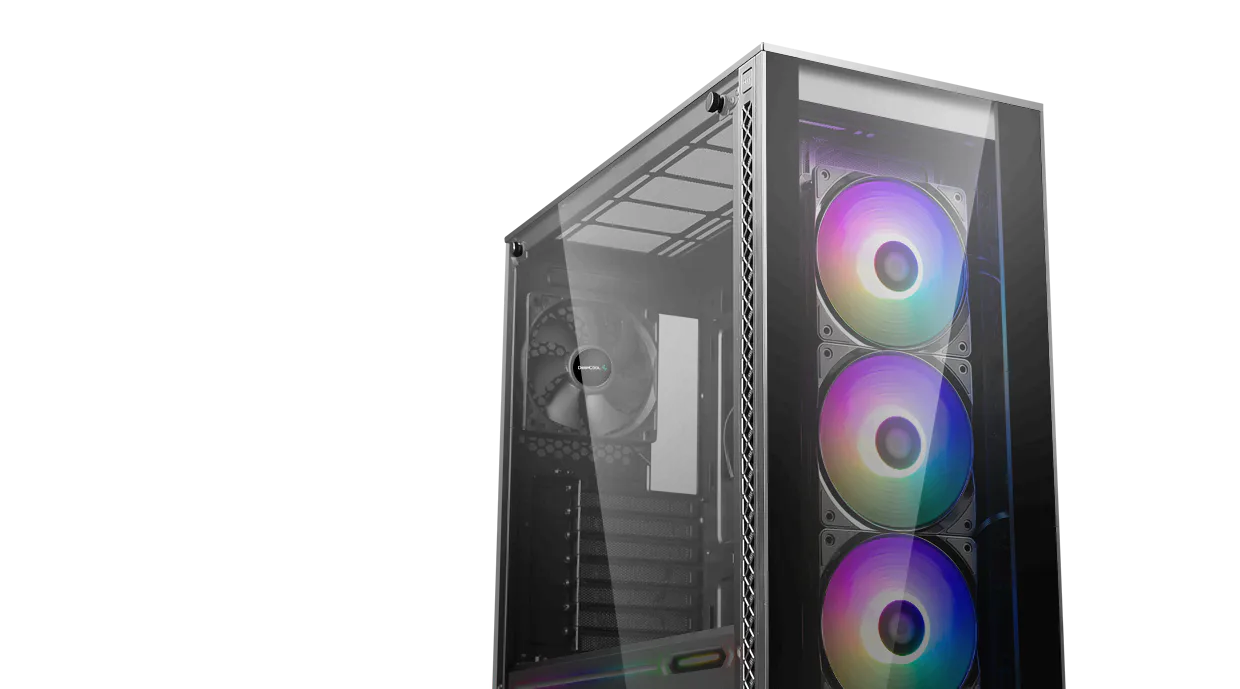

A built-in 5V A-RGB lighting system featuring an A-RGB LED strip in front is easily controlled manually on the I/O panel or via software with extra connectors to sync with compatible components.
A-RGB lighting effects
A built-in 5V A-RGB lighting system featuring an A-RGB LED strip in front is easily controlled manually on the I/O panel or via software with extra connectors to sync with compatible components.

For DeepCool devices

For other brand devices

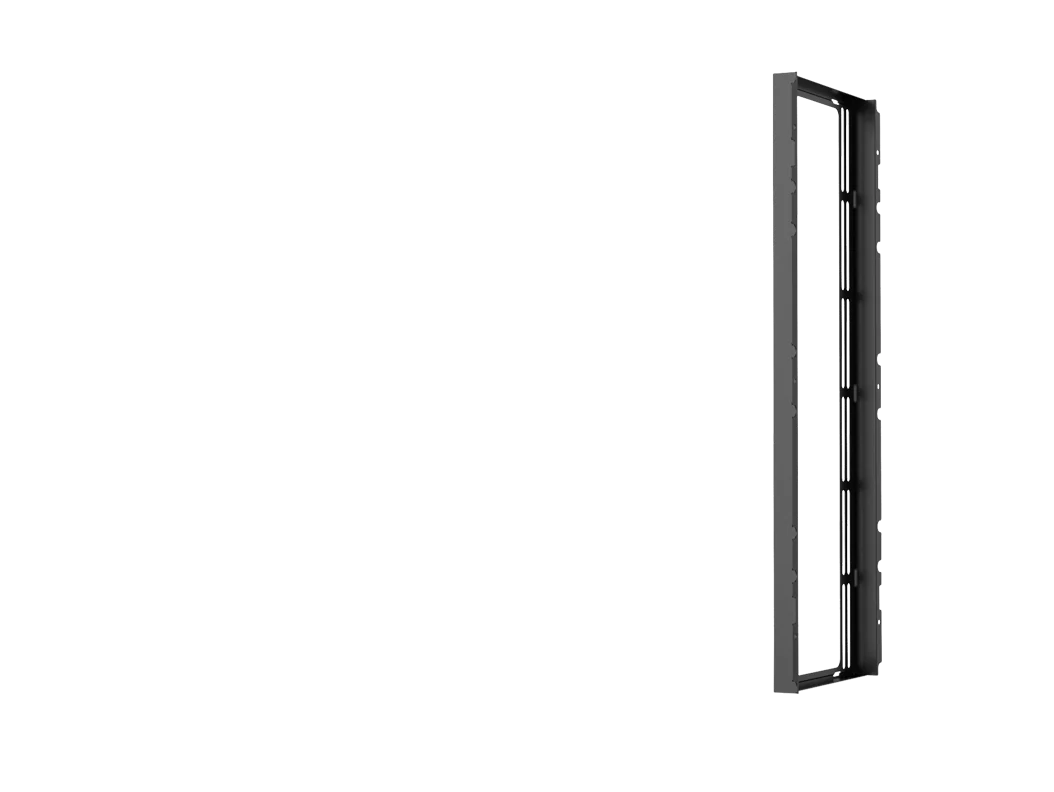

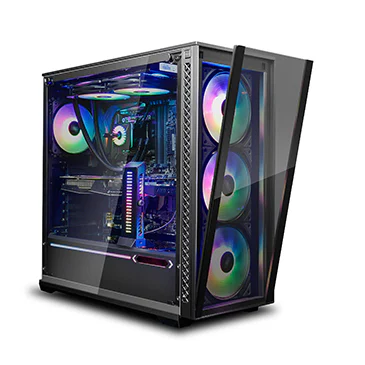

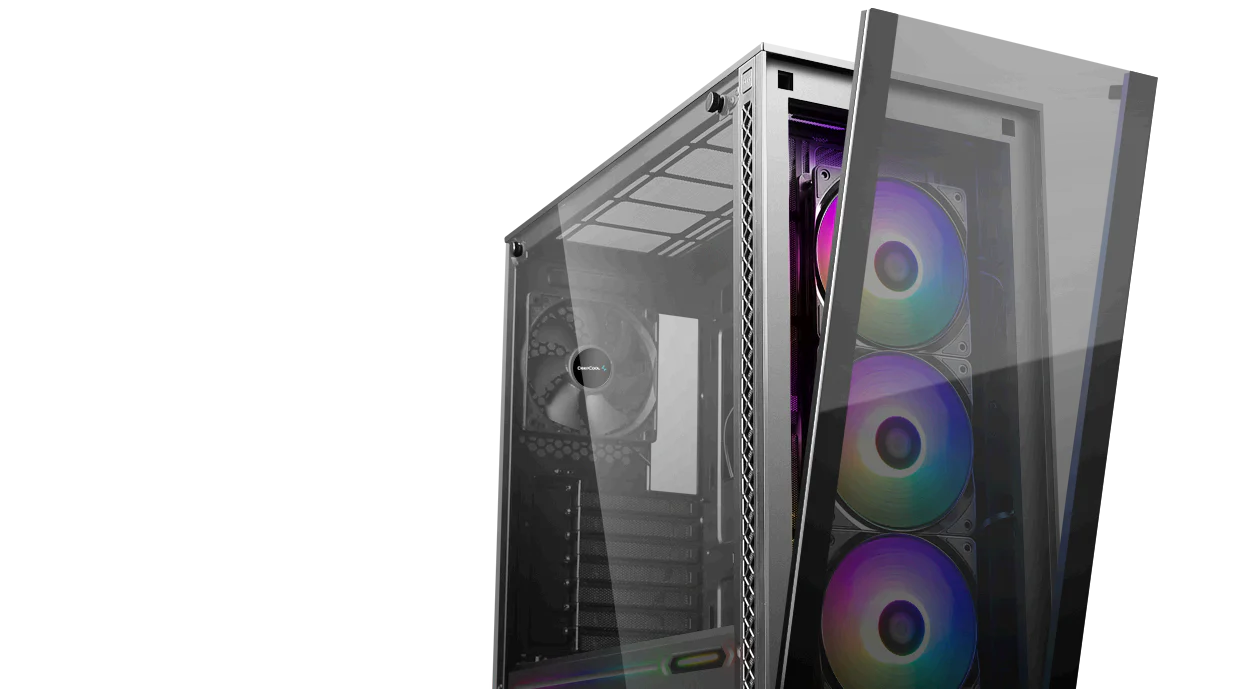

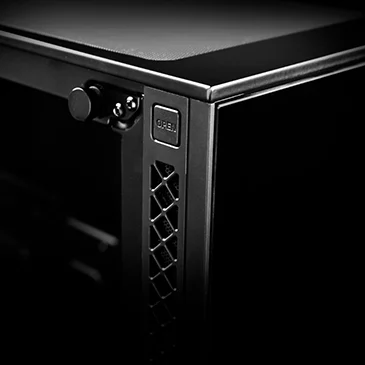

  • One-touch-release Front Panel

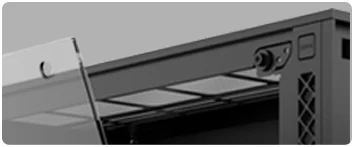

    With the bottom hooked to case structure, and the top locked by a spring buckle, the front panel of MATREXX 70 ADD-RGB 3F can be released to “dismounting ready”state with just one touch. Once the “OPEN” button is pressed, the front panel will be released and held at a 5°angel, and is ready to be pulled out.

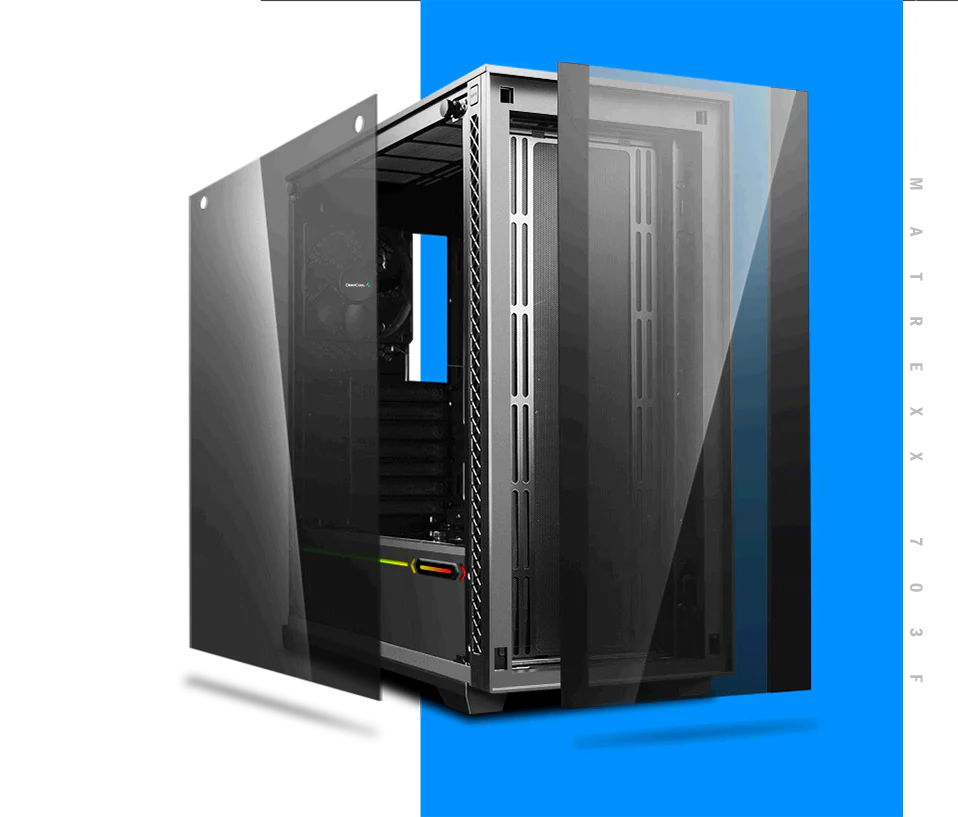

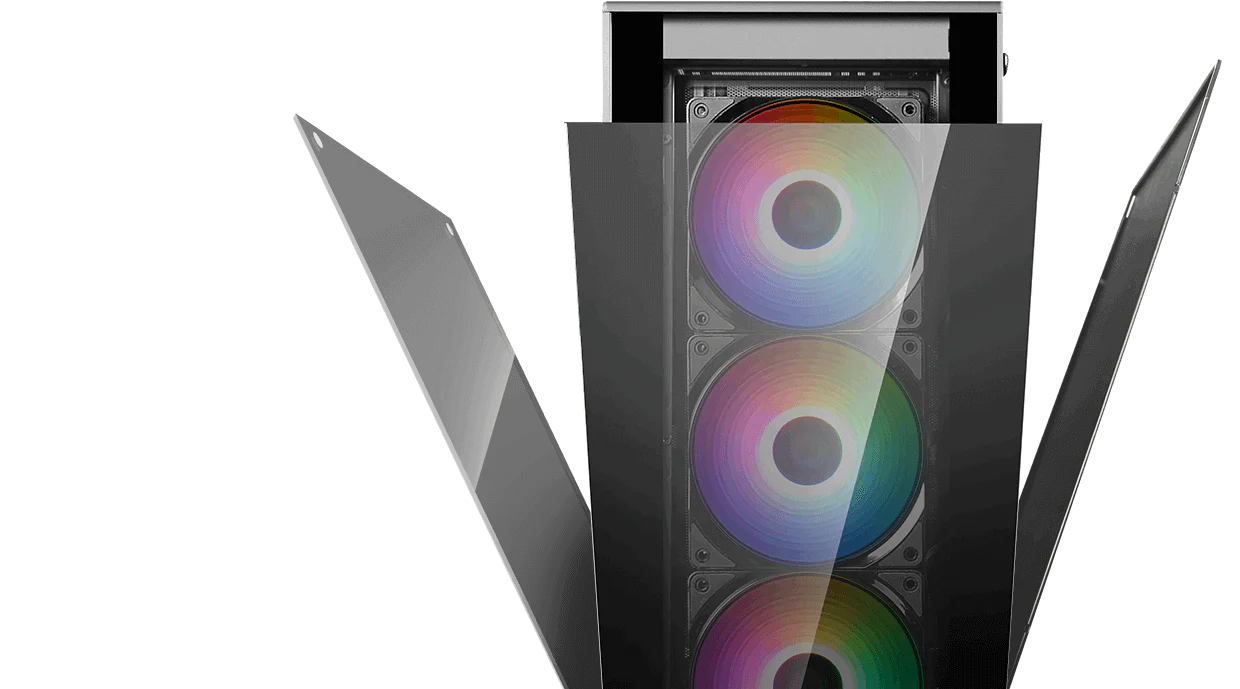

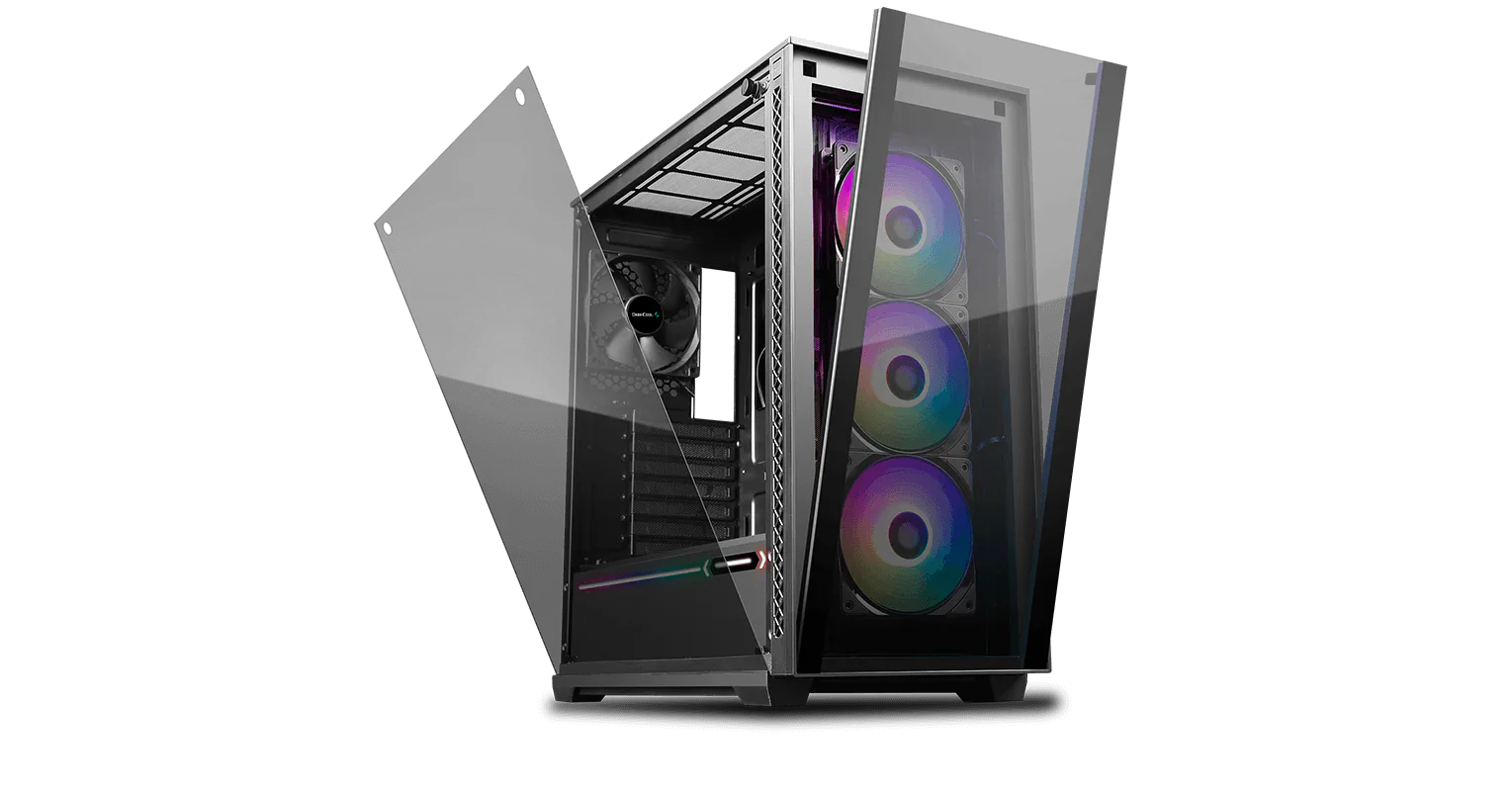

  • Easy panel access

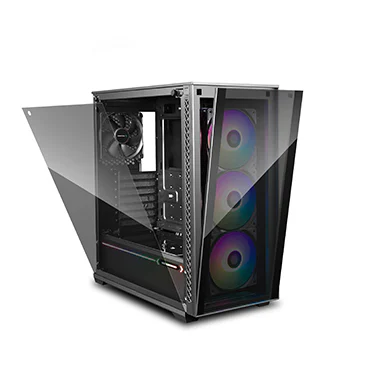

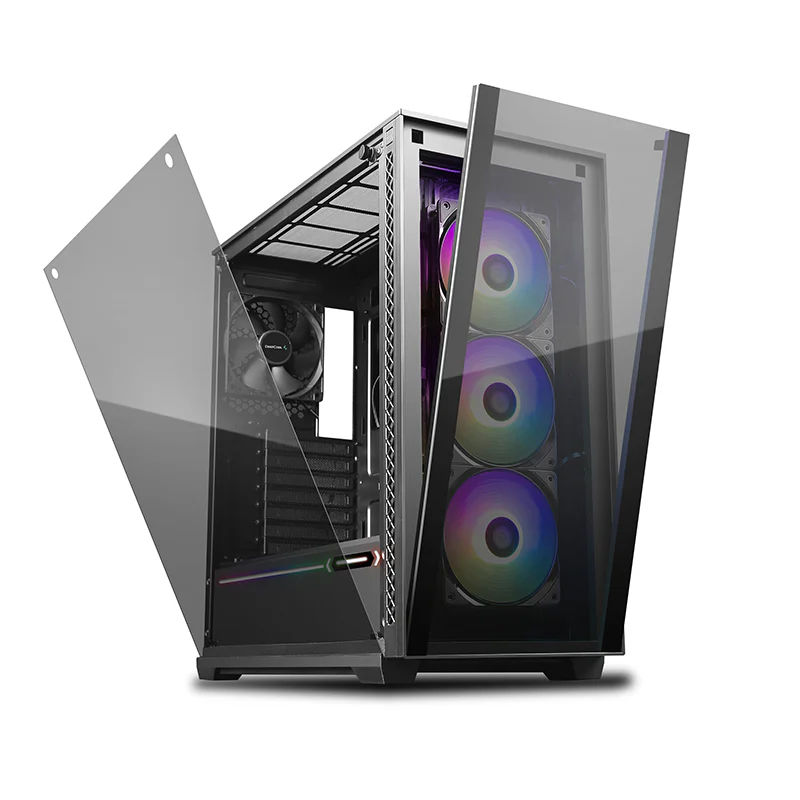

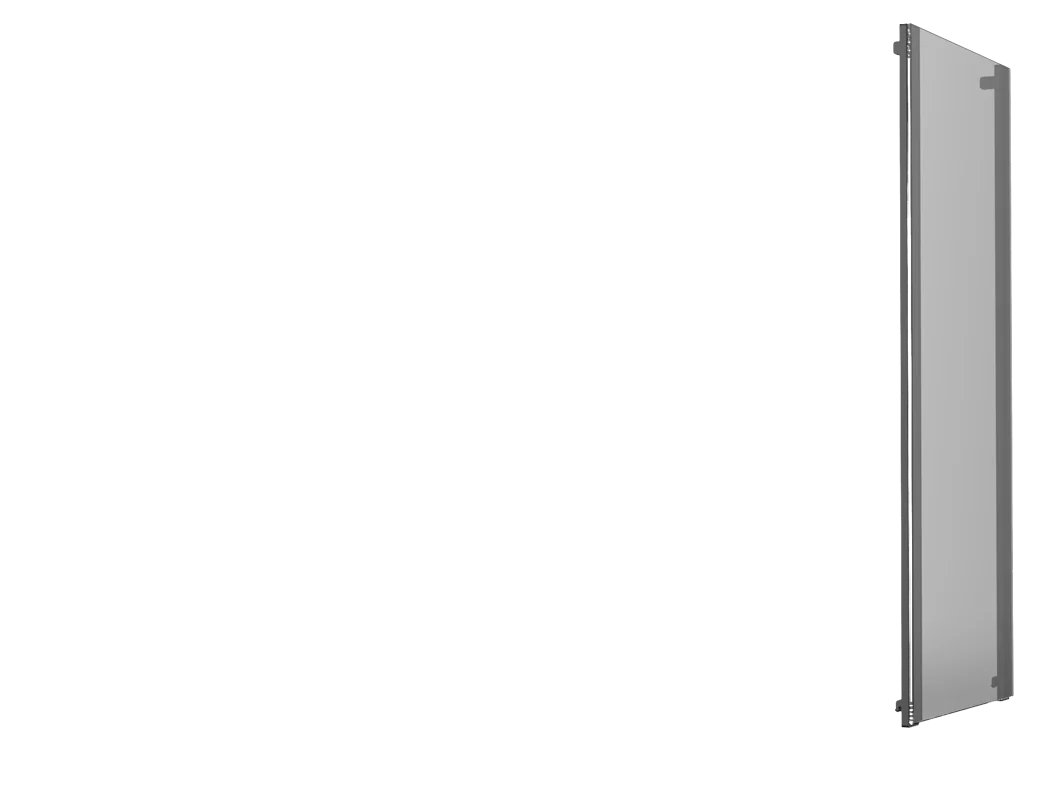

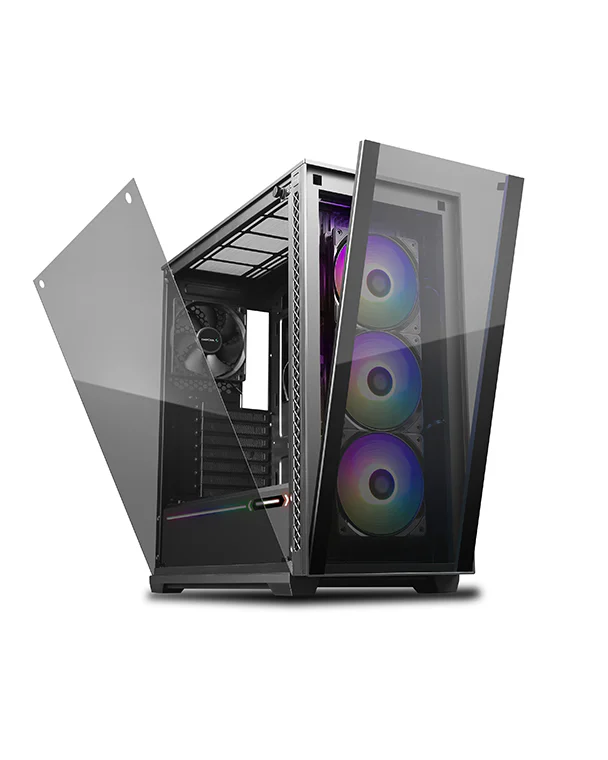

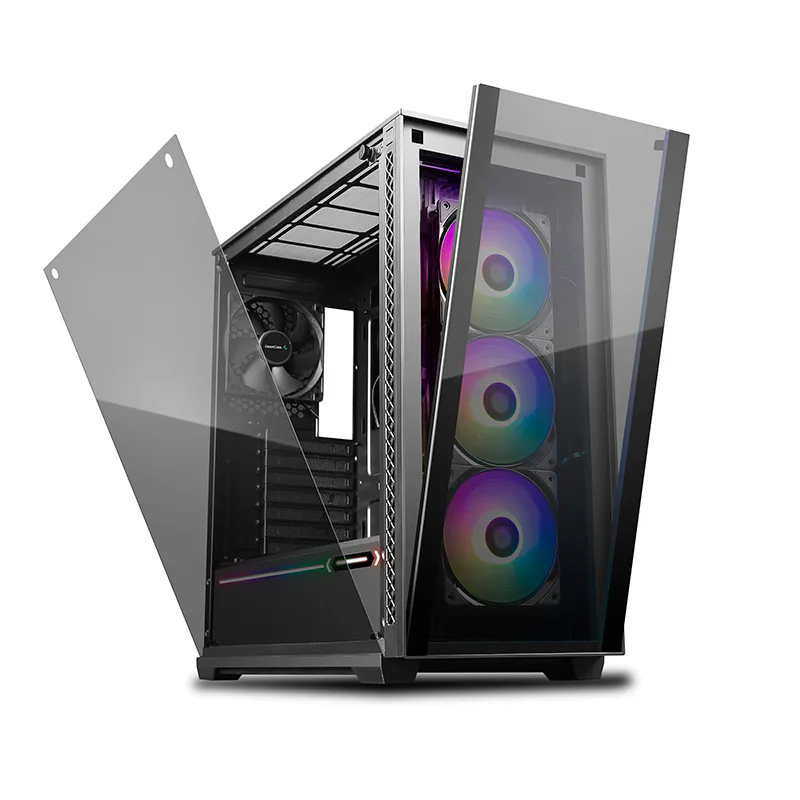

    The front glass panel is easily dismounted with a single button press. Side panels can be removed with just two screws.
Removable radiator bracket
A new radiator mounting bracket design simplifies liquid cooling installation when mounting the radiator or cooling fans on either side.
Supports up to a 360mm radiator or 3×140mm fans.

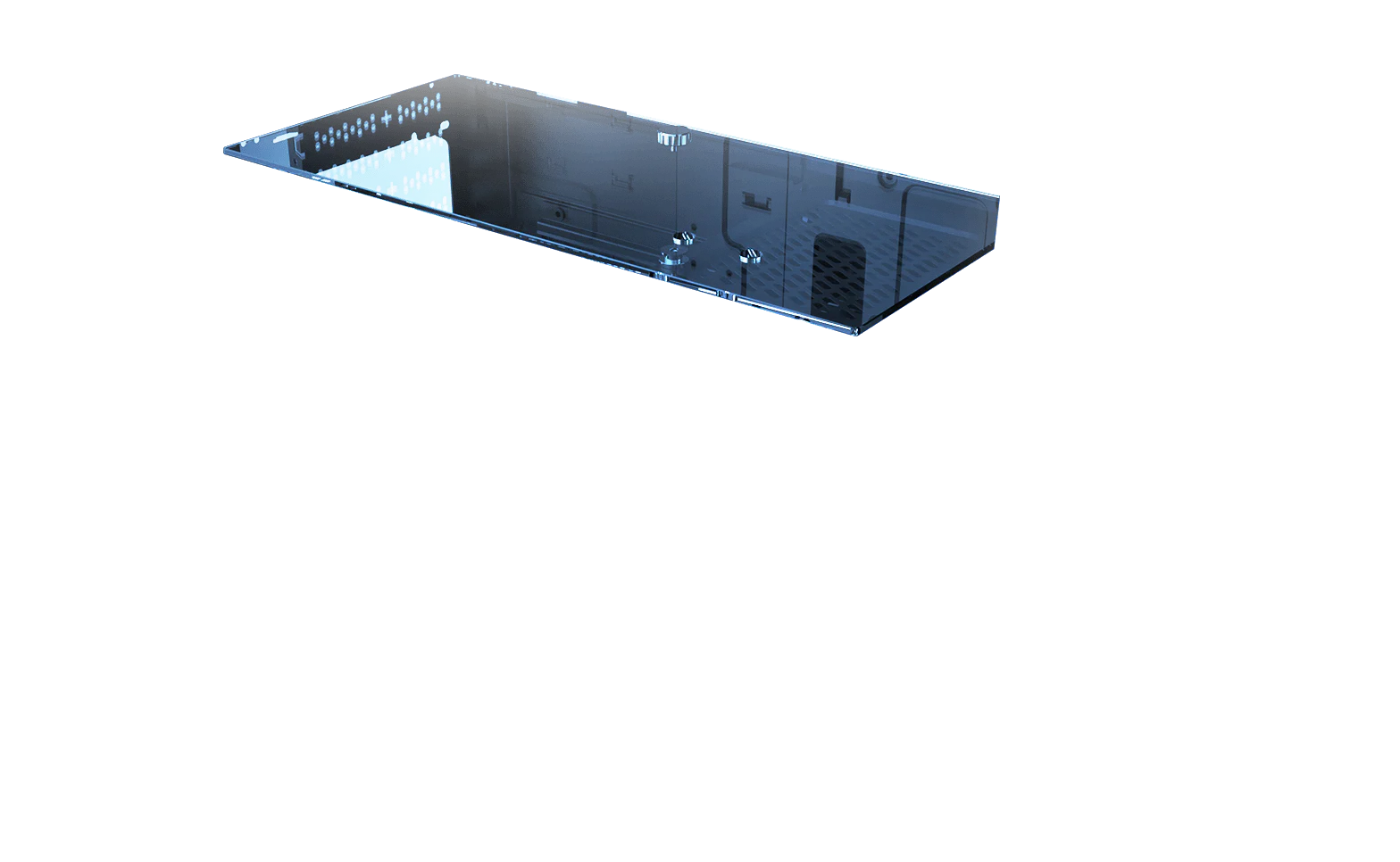

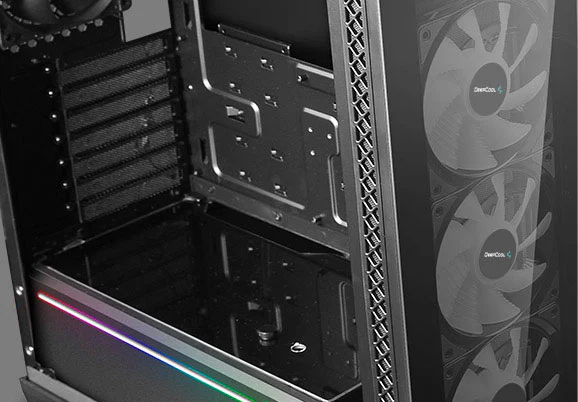

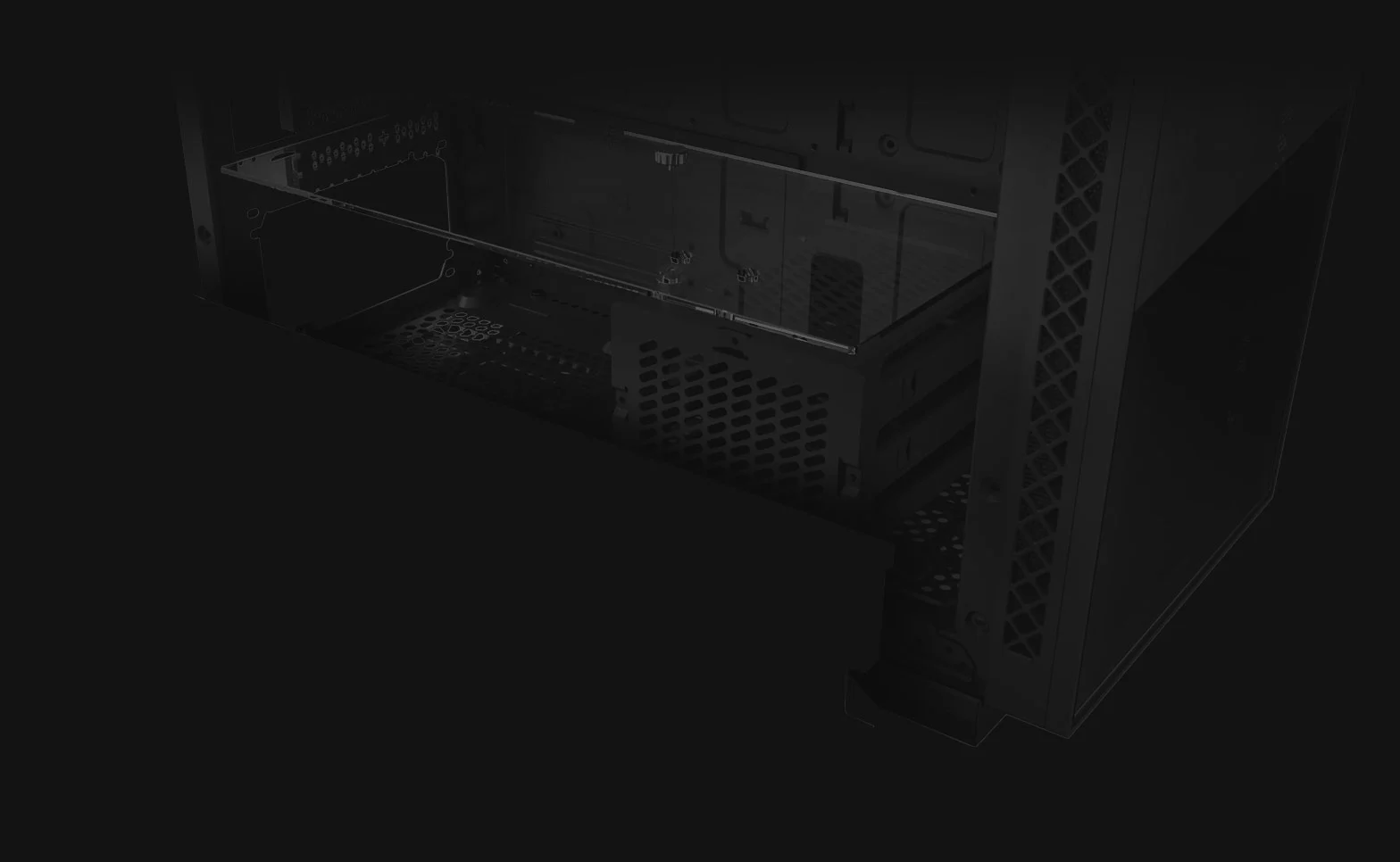

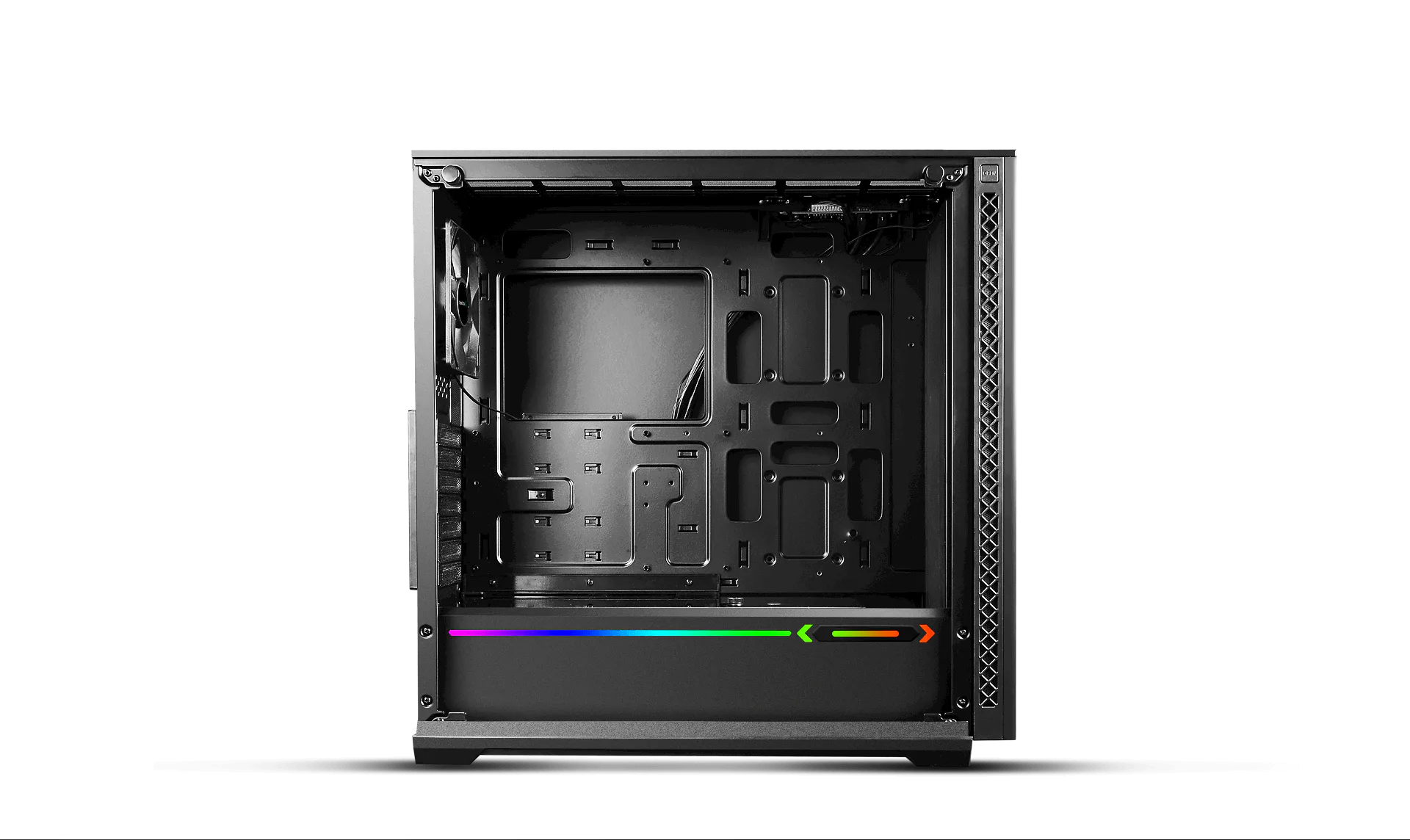

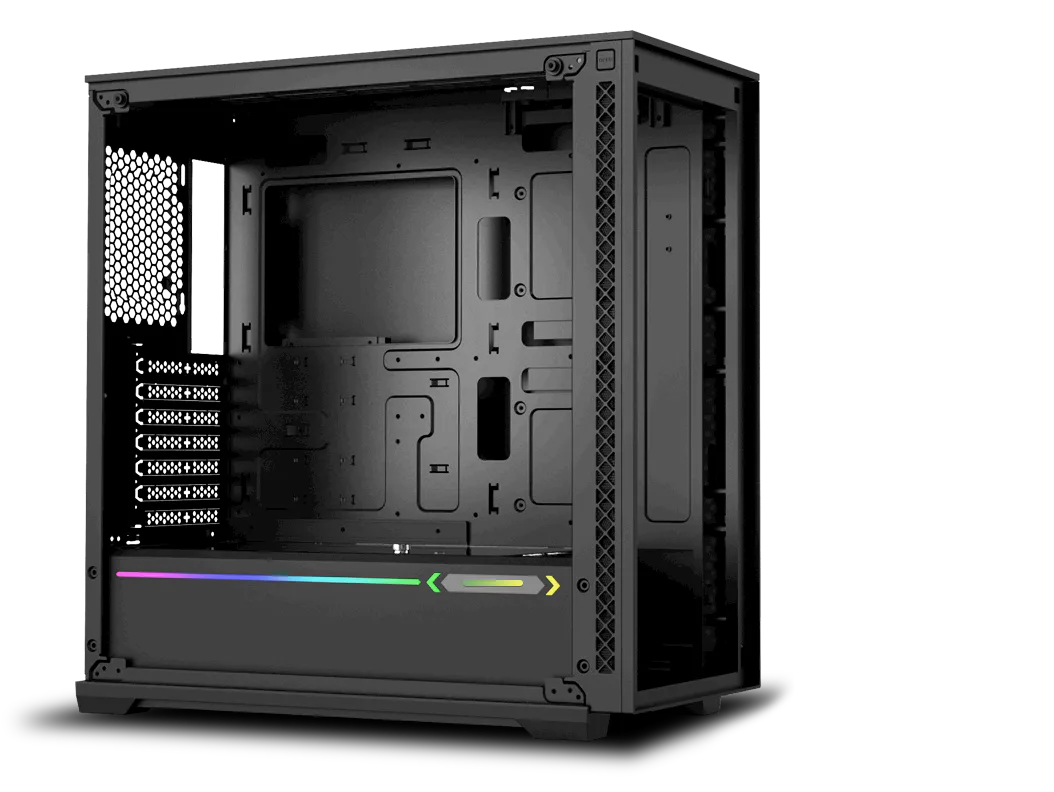

Removable glass PSU shroud
A tinted tempered glass top cover of the PSU shroud gives a stand out look.

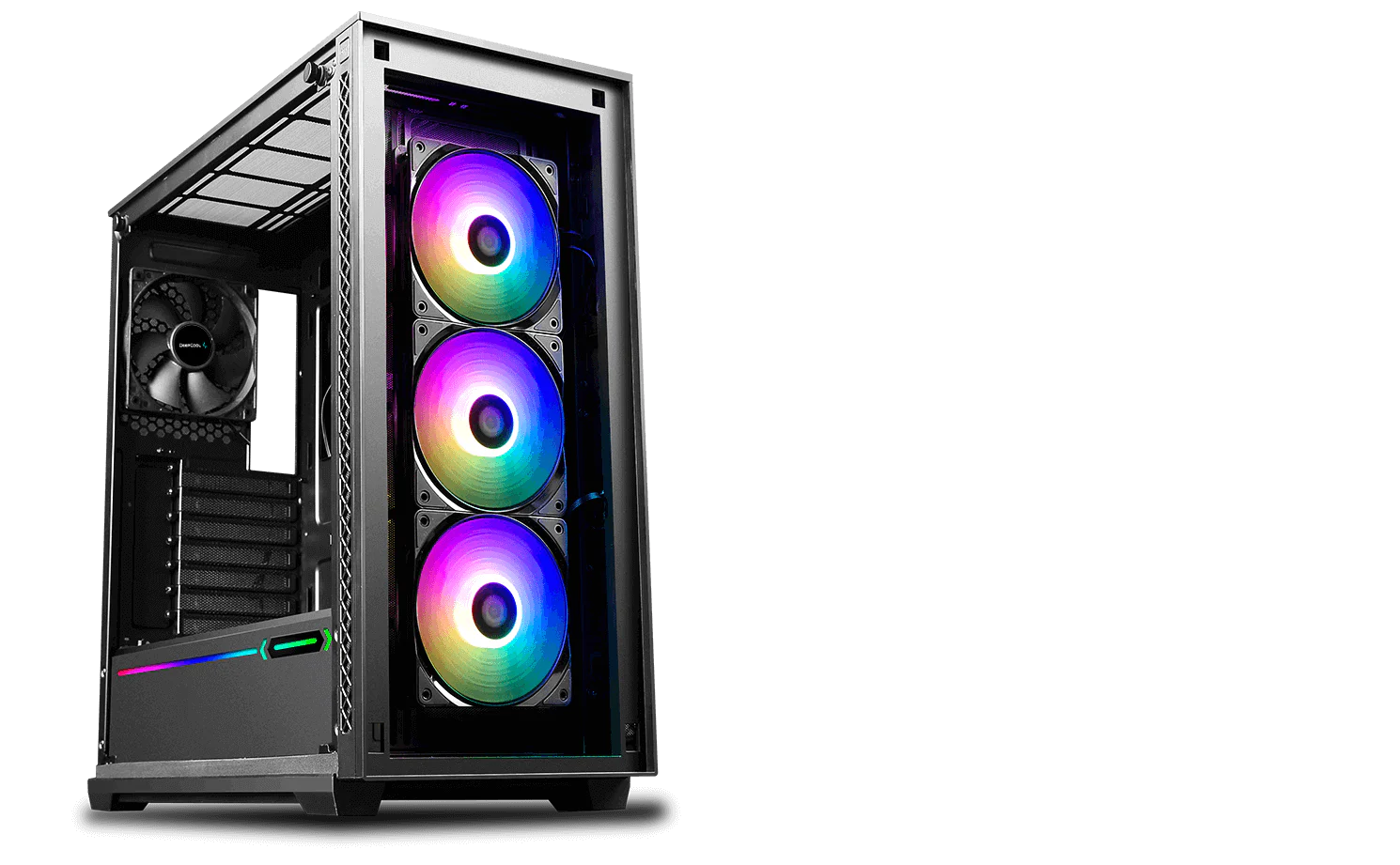

Excellent performance

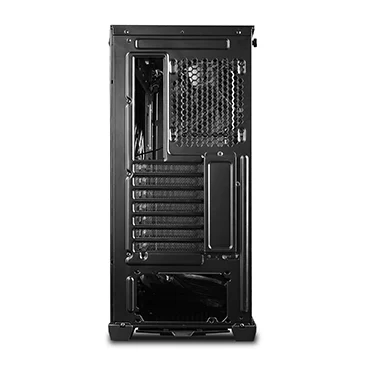

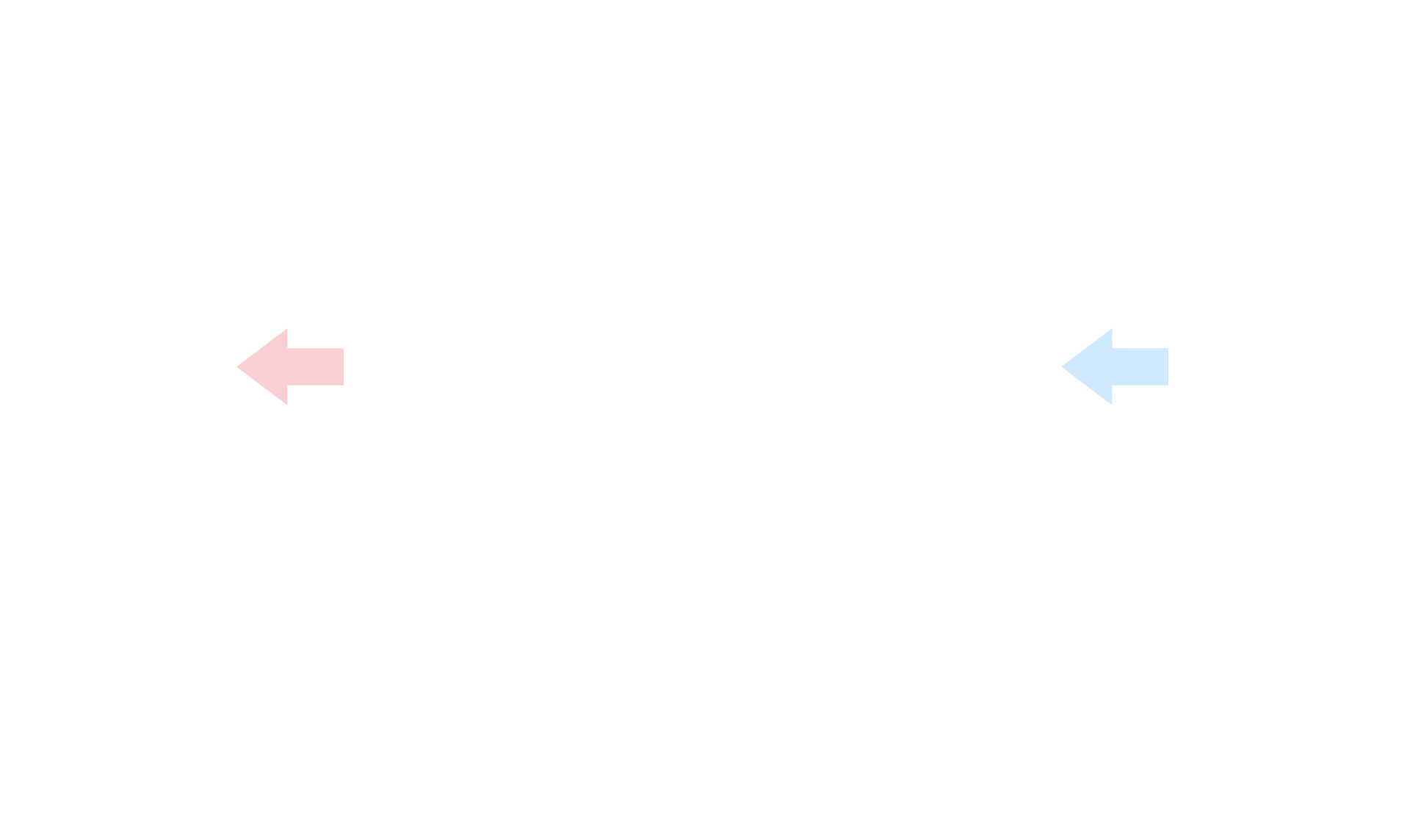

Air intakes at front and bottom with exhaust channels at the top and rear provide flexible ventilation solutions for maximizing cooling efficiency.
Radiator Support

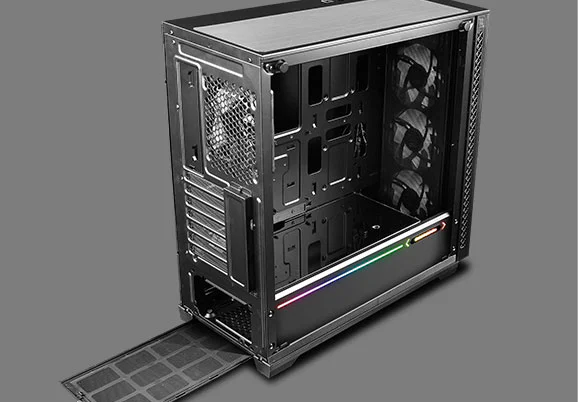

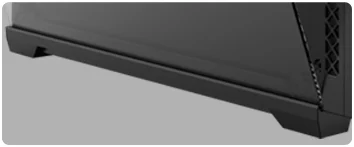

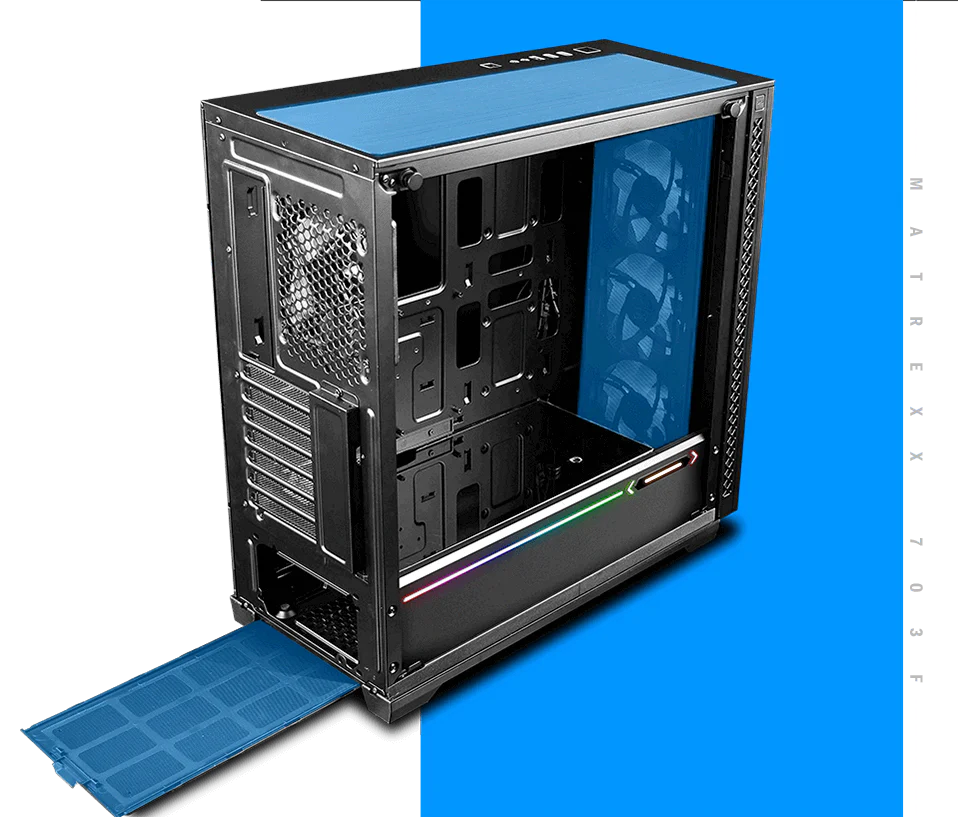

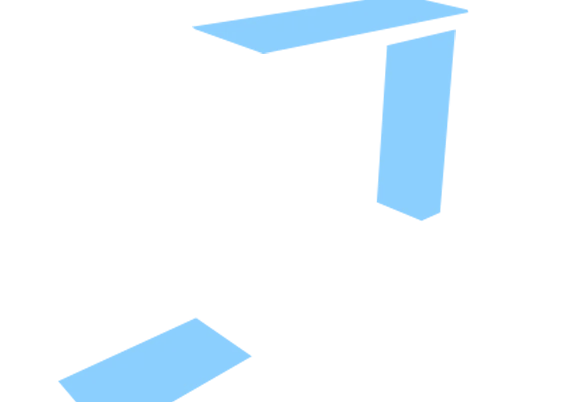

  • All-round Dust Proof

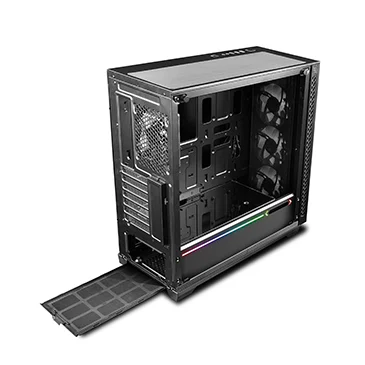

    Dust filters are installed at the front, top and bottom of the case.The all-round and fine coverage offers remarkable dust-proof capabilities. Meanwhile the top filter is magnetic whereas the front/bottom filters are inserted, which makes them very easy to clean.

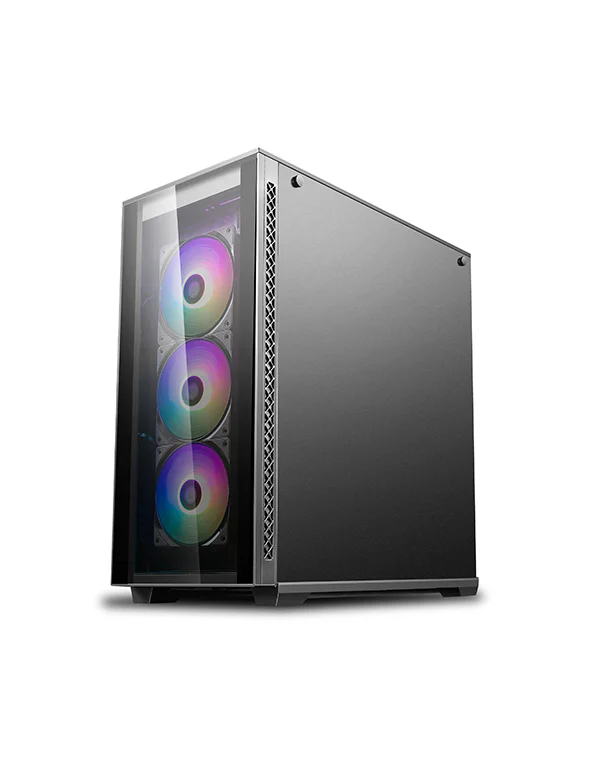

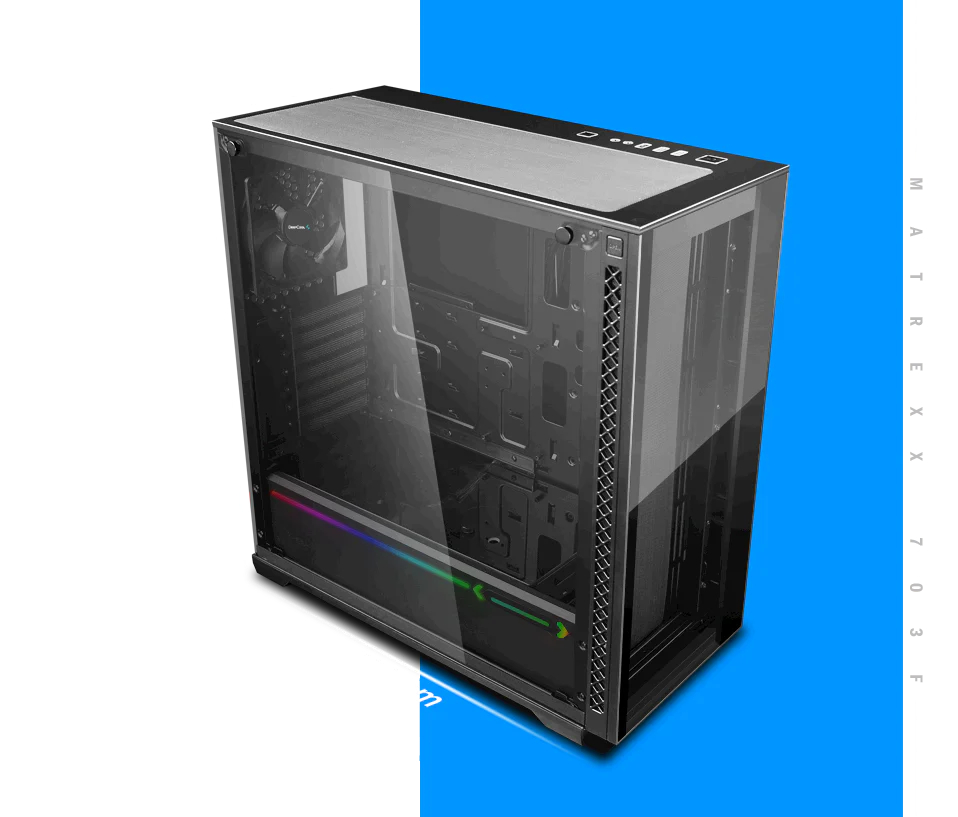

  • Simple & Sleek Design

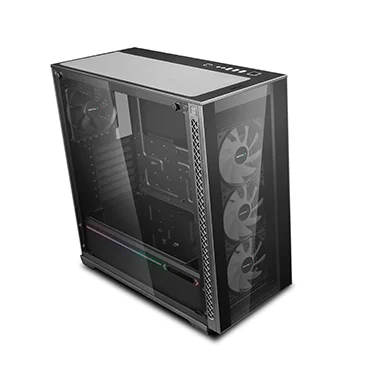

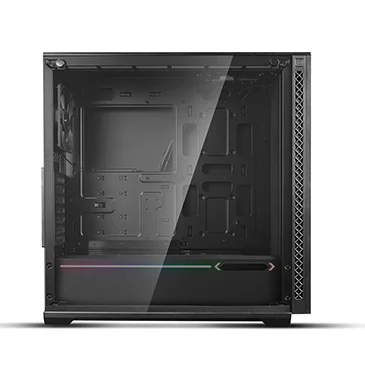

    The front and side panels are made of full-sized, tinted tempered glass. They display your gears with a classy filter while keeping the overall look clean .

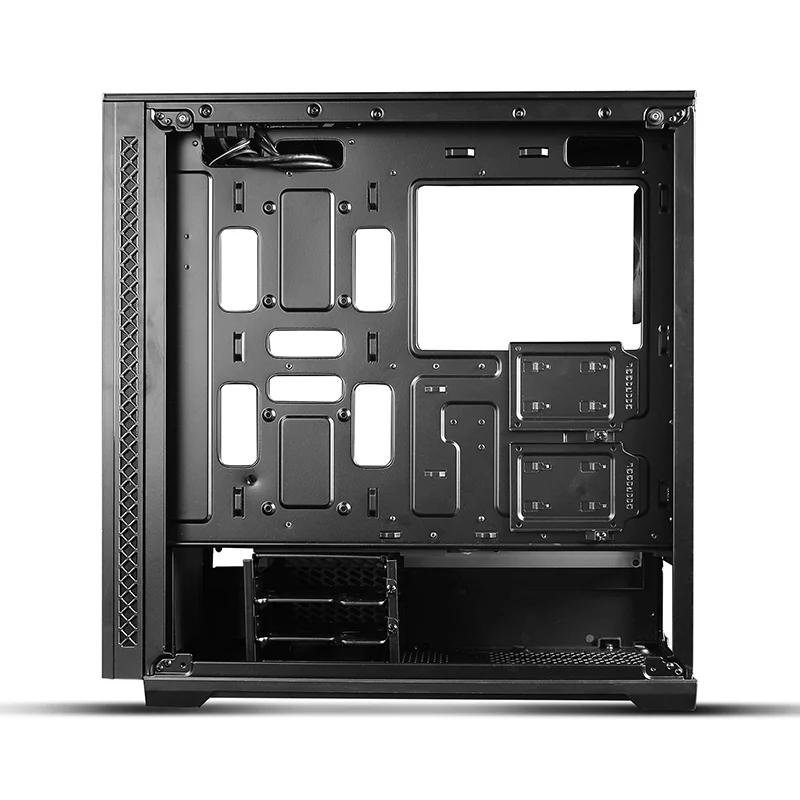

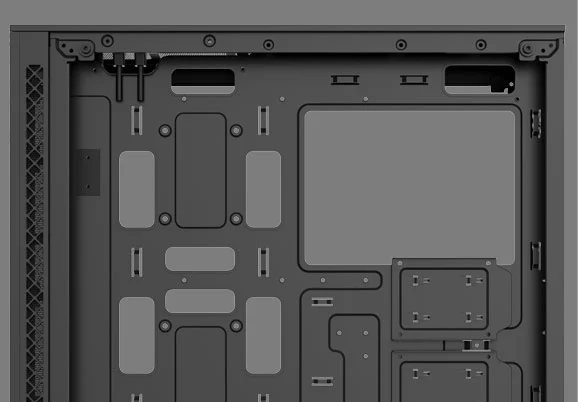

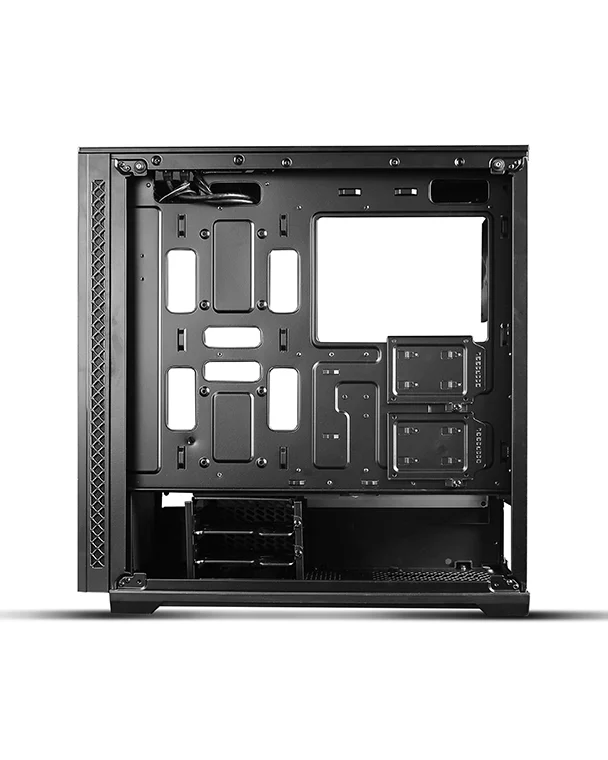

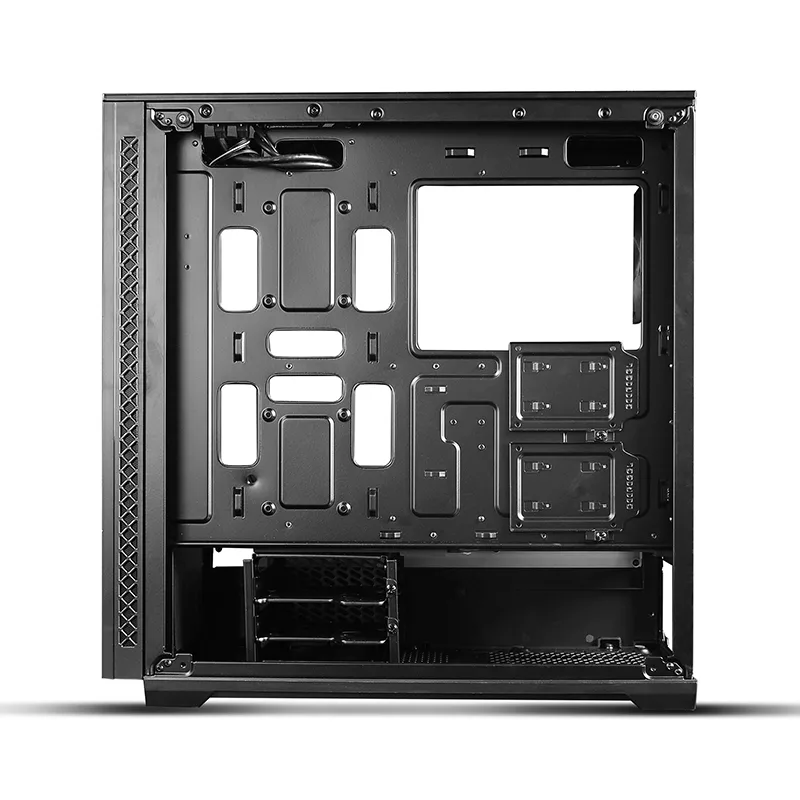

  • Spacious Interior
    The case’s dimensions are 484×233×492mm, offering gigantic room to manage cables (170mm motherboard tray-to-glass clearance, 30mm motherboard tray-to-back plate clearance).
Graphic cards support up to 380mm
Equipped with large spacing - 170mm( Tower Room ) and 30mm ( cable sorting at the rear )

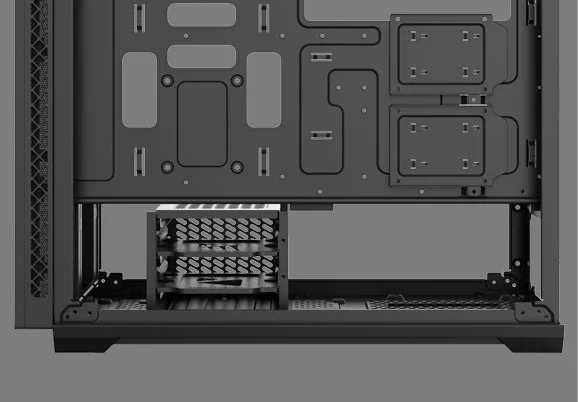

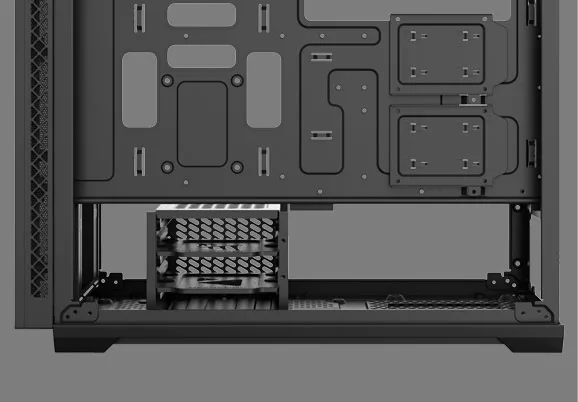

Four 2.5inch independent hard disk lots and two 3.5/2.5inch hard disk spaces.
As the dust screens are installed at the top, bottom and front, it provides remarkable anti-dust capabilities while being easy to clean.
Technical Spec
Motherboards E-ATX/ATX/Micro ATX/Mini-ITX
Case Type Middle Tower
Materials
ABS+SPCC+Tempered Glass
Product Dimensions (L×W×H) 435mm×222mm×471mm
Net Weight 9.39 Kg
Gross Weight 10.81 kg
5.25' Drive Bays 0
3.5' Drive Bays 2
2.5' Drive Bays 4
I/O Ports 2×USB3.0/1×USB2.0/1xAudio(HD)/1xMic

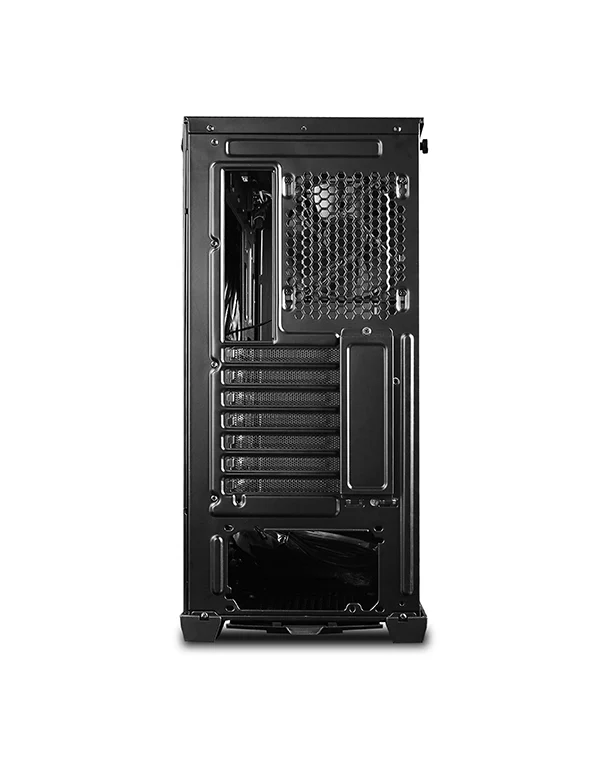

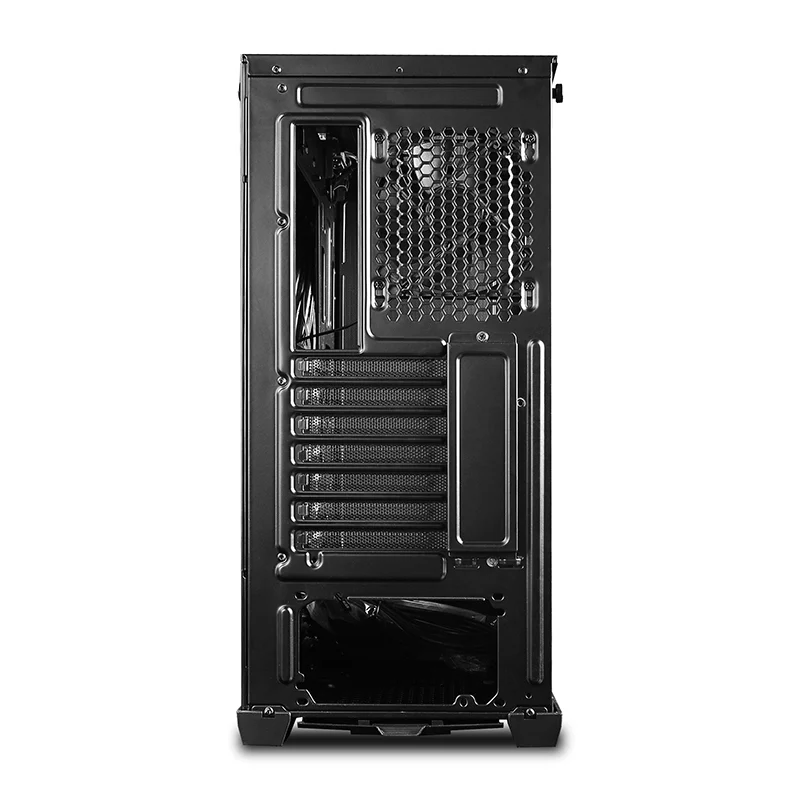

Expansion Slots 7 +2
Cooling Fans Support

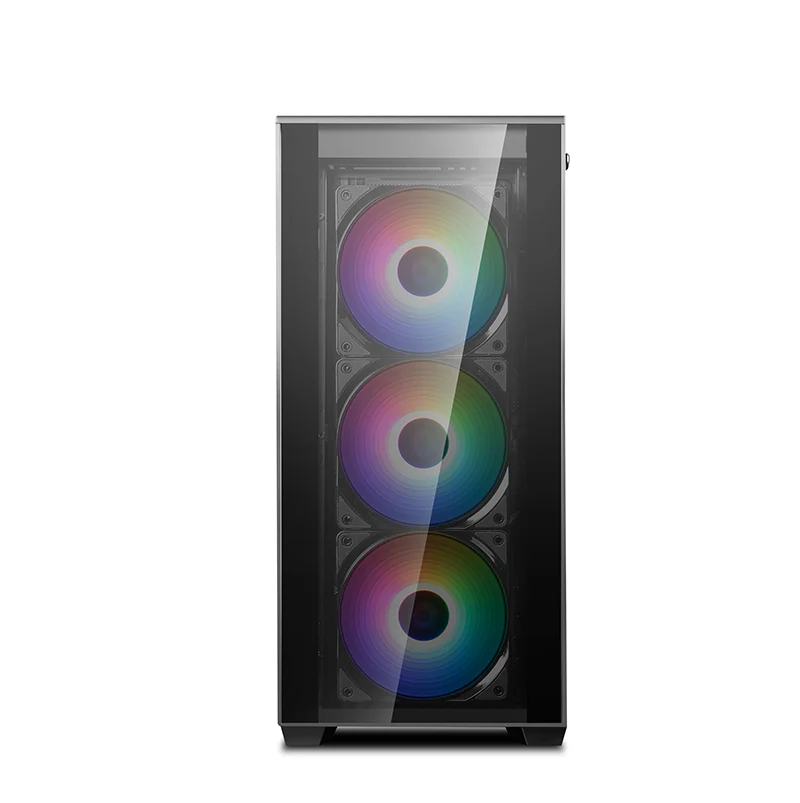

Pre-installed: Front: 3×120mm ADD-RGB Fan Rear: 1×120mm black fan
Optional: Front: 3×140mm; Top: 3×120/140mm
Cable Management 30mm Clearance
Liquid Cooler Support Front: 120/140/240/280/360mm radiator; Top: 120/140/240/280/360mm radiator; Rear: 120mm radiator
Power Supply Type ATX PS2 (maximum length: 200mm)
CPU Cooler Height Limit 170mm
VGA Length Limit 380mm (horizontal)/360mm (vertical)
Carton Dimension (LxWxH) 537×285×539mm
EAN 6933412713876
P/N DP-ATX-MATREXX70-BKG0P-3F
Product Dimension
This case is WAY cheaper than you expect...
DeepCool Matrexx 70 become a case that highly recommended by Timmy Joe PC Tech aftet his test. Let's see what is special about this case!
View More
Deepcool Matrexx 70 ADD-RGB 3F Review
Here is the review of the DeepCool Matrexx ADD-RGB 3F E-ATX case. This case features an integrated Addressable RGB controller with an addressable RGB LED strip and 3x RGB fans. Let's check it out!
View More
Download
MATREXX 70 ADD-RGB 3F.pdf
Download
